Hollow Cathode and Low-Thrust Extraction Grid Analysis for a Miniature Ion Thruster

1.1. Background and Motivation

Ion thrusters are well known for their ability to deliver continuous thrust at high efficiency (η_tot  ~60–70%, η_ud  ~80–90%) and high specific impulse (I_sp  ~2 000–5 000 seconds) with the use of benign propellants (e.g., xenon and argon). A miniature ion thruster that can provide these performance advantages at a maximum thrust near 3 mN and minimum thrust <0.1 mN is attractive for a variety of future space missions [1]. Candidate mission include many of NASA’s and ESA’s Exoplanet finding missions which require precision control of large spacecraft and formation flying as well as Earth-orbiting missions that require precision orbit control.

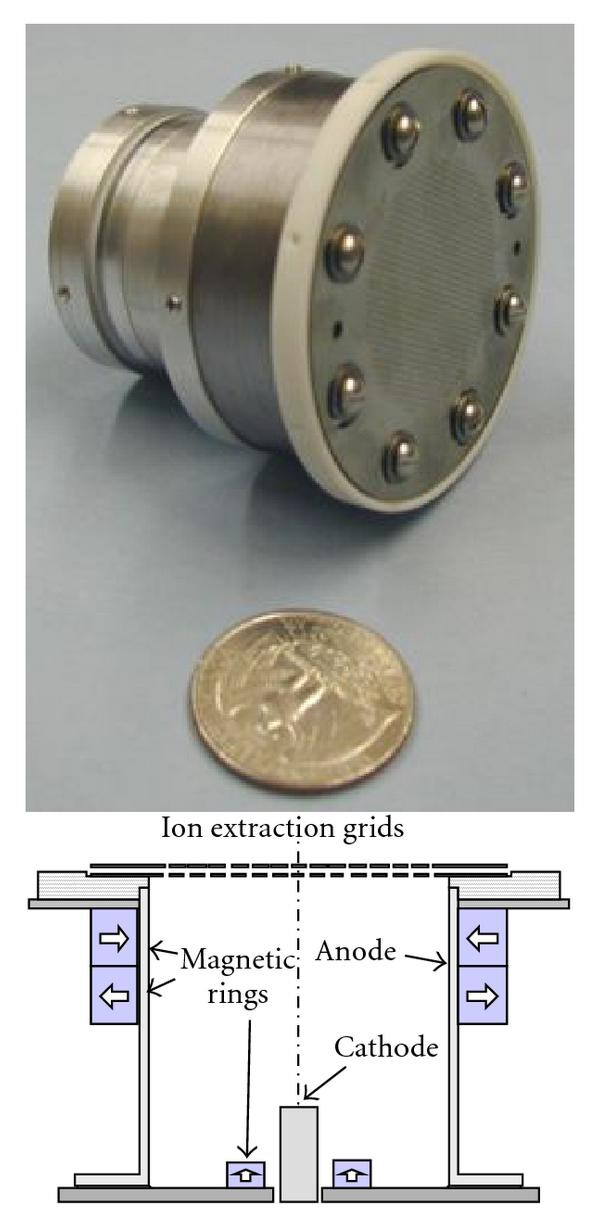

Historically, miniaturization of ion thruster technologies has presented many design and performance challenges that have put the concept out of reach for mission designers. However, recent advancements have shown that reasonable performance is possible for small ion thrusters if the development and validation of key technologies are continued. The miniature xenon ion (MiXI) thruster, shown in Figure 1, is a significantly scaled-down version of conventional ion thrusters that has demonstrated an efficient discharge and a high-performance ion extraction grid assembly [2]. Similarly to conventional ion thrusters, the MiXI thruster uses electrons released from the cathode to create a low-density (~10¹⁷ m⁻³) xenon plasma. The xenon propellant can be introduced to the chamber through the back flange or through the cathode if a hollow cathode is used. A 3-ring cusp magnetic field is used to confine the plasma and improve discharge efficiency. Plasma ions are accelerated out of the thruster at high velocities (~40,000 m/s) through the ion extraction grid assembly by an applied thruster voltage of up to 1 kV, thus providing high specific impulse of over 3 000 seconds. The physical transparency of the screen grid is 0.67 and during ion extraction the transparency is approximately 0.72–0.75 for the conditions discussed herein. Additional details on the thruster configuration and operation are given in Sections 2 and 3. Previous studies and performance tests with the MiXI have used filament cathodes and the internal conduction (IC) cathode [2–4]. The IC cathode demonstrated high performance but it is a risky technology for ion thrusters due to its low maturity; therefore miniature hollow cathodes were designed and built specifically for the MiXI thruster. In future experimental investigations we will use one of these cathodes for the thruster discharge and, as evident from other ion thruster discharge studies, the axial location of the cathode has a strong effect on thruster performance. Therefore, in this study, we use an ion thruster discharge model, DC-ION, to help determine a favorable axial position of the hollow cathode within the discharge before we position the cathode inside the thruster for testing [5].

Another important aspect of the MiXI design is the miniature ion extraction grids. The MiXI grids are designed to achieve thrust up to ~3.0 mN, and have thus far demonstrated high performance at nominal thrust levels [4]. Since MiXI is considered an attractive candidate for missions that require high precision and a relatively large thrust range, this study investigates the minimum continuous thrust that MiXI can achieve with the current grid set in an effort to find the minimum thrust available for future candidate missions.

1.2. Objective

In Section 2 computational analysis is used to determine the optimal location of the hollow cathode in MiXI’s discharge chamber. In Section 3 the MiXI ion extraction grid assembly is experimentally and computationally characterized in the low-thrust regime to determine the minimum thrust capability of the grids.

2.1. Miniature, Low-Flow Hollow Cathodes

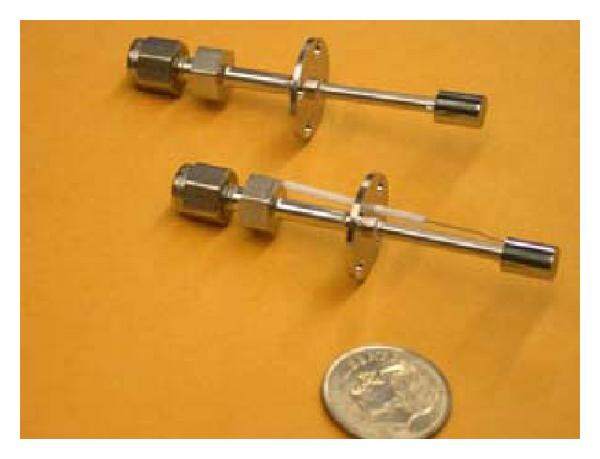

Previous investigations show that attractive performance is possible for the MiXI thruster with low-power electron sources such as the hollow cathodes used in conventional ion thrusters. Hollow cathodes are a mature technology and typically require less power per amp of emitted electrons than other discharge cathode options. Cathodeless discharge options, such as the microwave and rf discharges discussed in [3], will be investigated for the MiXI thruster if the high efficiency of cathode discharges is not achieved with cathode options. Conventional-sized hollow cathodes require a designated propellant feed (>1 sccm) that can exceed the propellant needs for the entire MiXI discharge chamber (typically 0.05–0.5 sccm), which, may result in very low efficiencies and poor throttleability [3]. Previous investigations into small hollow cathodes with a 1.22 mm insert ID have shown that scaling down to the discharge currents and propellant flow rates of the MiXI thruster (J_D  ~50–500 mA and 0.2–1.0 sccm, resp.) is difficult if the cathode is to run efficiently in self-heated mode [5–7]. To address this challenge, JPL designed and built two miniature hollow cathodes (Figure 2) specifically for MiXI’s low-flow and current conditions. These hollow cathodes are a scaled-down version of conventional hollow cathodes. They are designed to have sufficiently high current capacity so that they may scale to larger ion thruster sizes (>3 cm) and small Hall thrusters, and may also provide a reliable and efficient option for neutralizing the plumes of other small electric propulsion thrusters such as electrospray (i.e., colloid and FEEP) thrusters.

2.2. Hollow Cathode Axial Location Analysis

In this study, JPL’s ion thruster model (DC-ION) simulates MiXI thruster performance at a range of axial locations of a miniature hollow cathode inside the discharge. For ring cusp discharges of this orientation, the axial placement of the cathode (for a given magnetic field geometry) can drastically change the paths the electrons take to the anode and hence the quality of the electron confinement; which, in turn, can greatly affect ionization efficiency and performance. Details of the DC- ION model and hollow cathode simulations with DC-ION are given in [4, 8, 9]. For this analysis, the entire discharge propellant flow is assumed to come from the hollow cathode. The primary electrons produced from the hollow cathode exit are assumed to exhibit an accelerated half-Maxwellian velocity distribution as used for the hollow cathode input for the NSTAR thruster in [5]. At this time, the hollow cathode is assumed to operate at similar voltages and electron tempe ratures as the NSTAR hollow cathode at TH12, resulting in the model inputs shown in Table 1 for nominal MiXI operation.

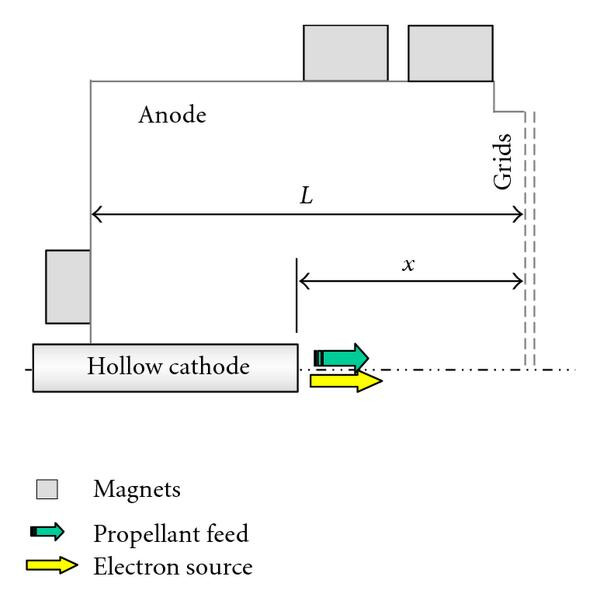

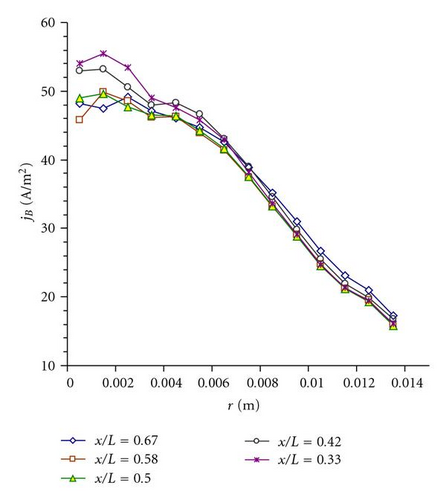

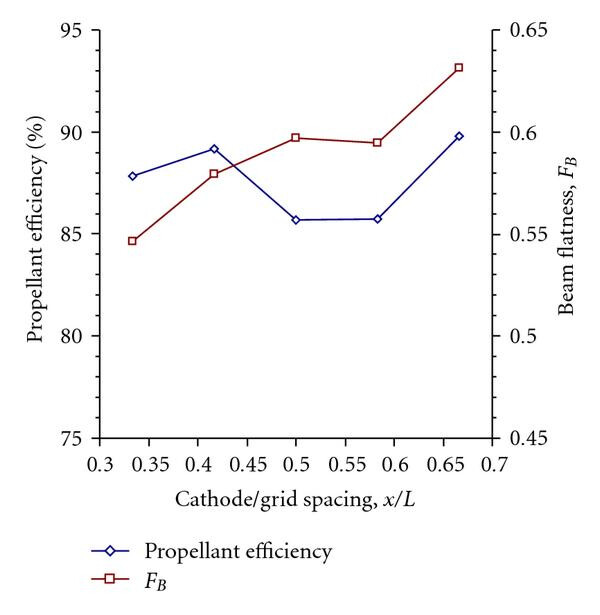

The DC-ION discharge model was used to compare the propellant efficiency and beam flatness for several hollow cathode orifice plate and grid separation distances; which are shown as “x” in Figure 3 and are normalized by the discharge length “L.” Results from the DC-ION analysis shown in Figure 4 suggest that an upstream cathode location ion thrusters yields the best propellant efficiency and beam profile for nominal MiXI operation. Upstream cathode placements are also used in larger ion thrusters to increase the field-free region available for ionization. One must be careful to place the cathode orifice beyond the magnetic maximum of the cathode magnet ring to avoid magnetic mirror effects; therefore, the maximum x/L (i.e., 0.67) is forward of the local cathode ring maximum in the MiXI discharge. Moving the cathode further upstream (i.e., x/L > 0.67) is also undesirable since the cathode heat can possibly demagnetize the cathode magnets, as discussed later. Figure 5 gives the beam profiles for all the configurations investigated herein and shows that the beam profile progressively peaks on-axis as the hollow cathode is located closer to the extraction grids. This behavior for closer spacing is due to the fact that the electrons emitted by the cathode have a smaller distance to undergo a collision that will cause them to more readily diffuse away the thruster axis where they will create more ions off-axis, resulting in a flatter profile.

2.3. Magnetic Field Analysis

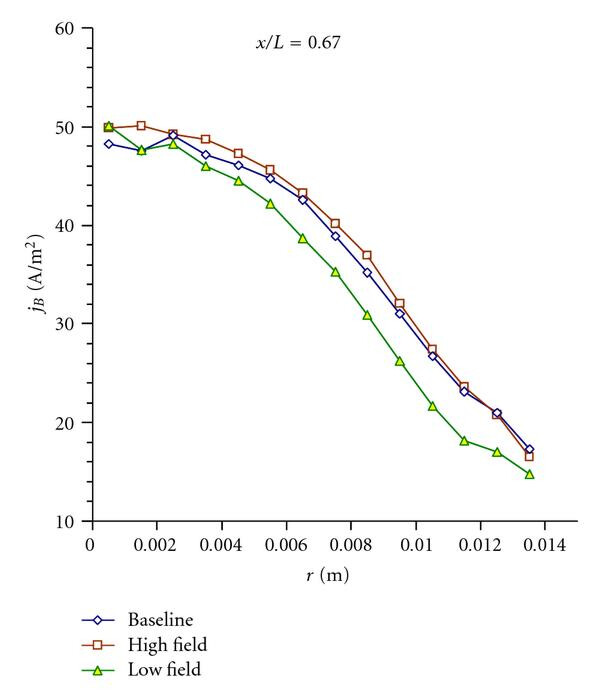

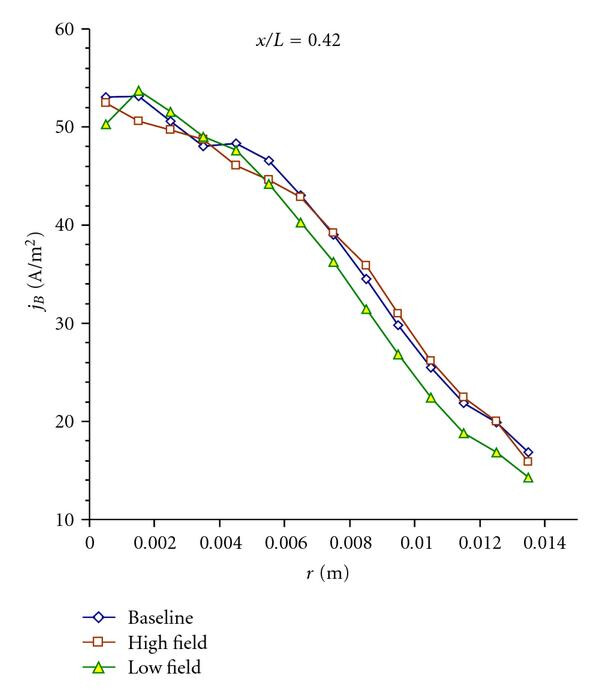

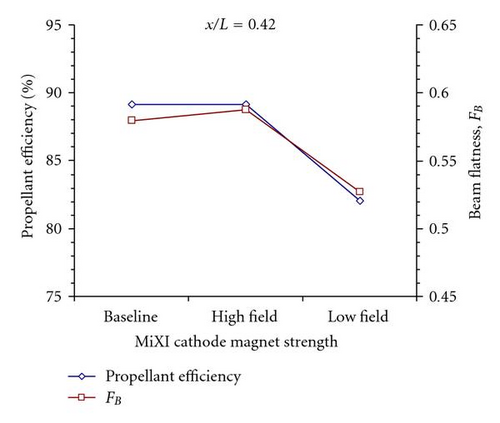

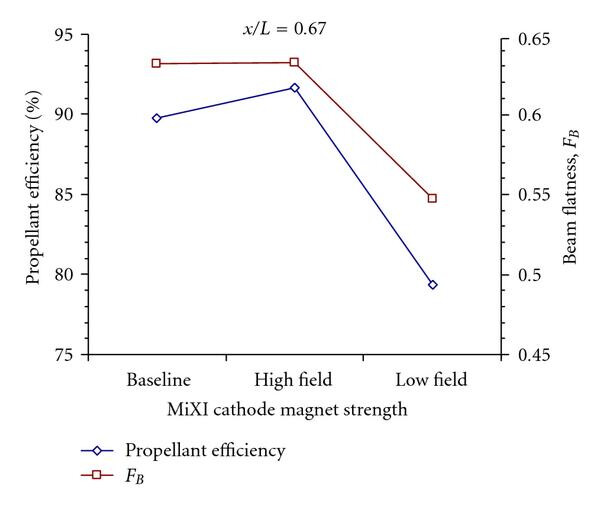

Currently, MiXI employs a relatively weak cathode magnet since favorable performance was found with filament discharges in previous efforts [2]; however, conventional ion thrusters (such as NASA’s NSTAR thruster), which use hollow cathodes, typically use high cathode magnet strengths. Therefore, when MiXI uses a hollow cathode in the discharge, it may prove beneficial to strengthen the cathode magnet as done in conventional ion thrusters. At the other extreme, due to the small size of the MiXI discharge, there is some concern that the heat from the hollow cathode may demagnetize the cathode magnet, especially if the cathode is positioned far upstream. To address these potential scenarios, DC-ION runs were used to simulate the impact of changing MiXI’s cathode magnet strength. In the following analysis, “High Field” is the condition where cathode magnet strength is increased by a factor of two by doubling the dimension along the magnetization direction, while “Low Field” assumes the cathode magnet has been entirely demagnetized by cathode heat (in the computations the magnet strength was set to zero). Previous experimental results show that loss of the cathode magnet can reduce the discharge performance by over 10% [4]. Figure 7 shows the anticipated performance for the Baseline, High Field, and Low Field configurations at cathode locations x/L = 0.42 and 0.67. These x/L conditions were chosen since they give the two highest propellant efficiencies and represent downstream and upstream cathode positions, respectively. Figure 6 shows the beam profiles for these scenarios. As expected, the performance effects are most pronounced when the cathode is in the most upstream position (i.e., x/L = 0.67), closest to the cathode magnet.

3.1. Ion Extraction at Low Thrust Levels

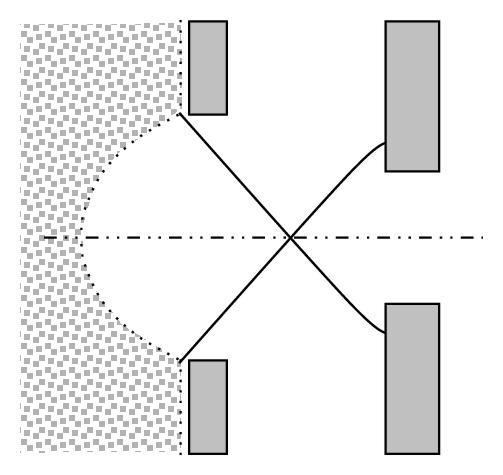

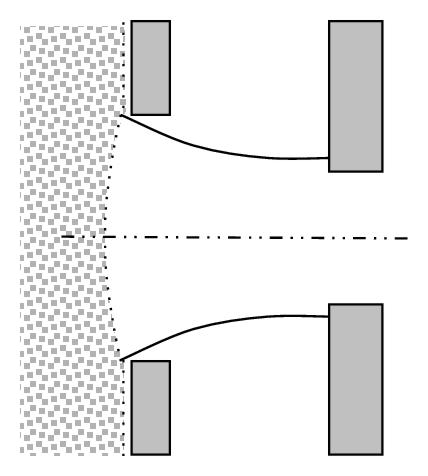

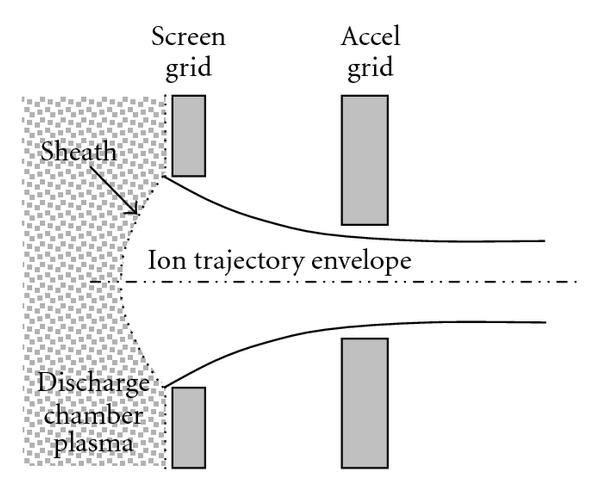

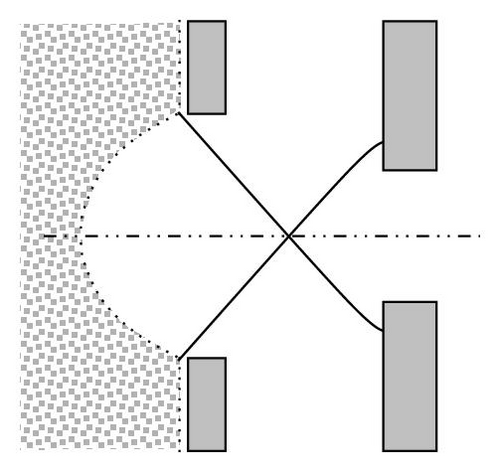

The plasma sheath immediately upstream of the ion extraction grids will change shape based on the extractor geometry, voltages, and plasma properties. In general, for given upstream plasma properties and extractor geometry, the sheath will increase in size with increasing total voltage, V_T, to provide the space-charge current determined by the Child-Langmuir law [10]. Figure 8 shows how the sheath adjusts at different total voltage values (assuming all other properties, such as upstream plasma density, are constant). In this figure V_foc is the limit below which we observe direct ion impingement on the accel grid, and V_xo is the voltage beyond which we observe cross-over impingement on the accel grid. The process of changing V_T to achieve the nominal operating condition in Figure 8(a) is called “focusing.” From this behavior one can also see that increasing the discharge chamber plasma density increases the current density at the screen hole plasma sheath, thus increasing V_foc for a given grid geometry.

3.2. Experimental Testing Apparatus

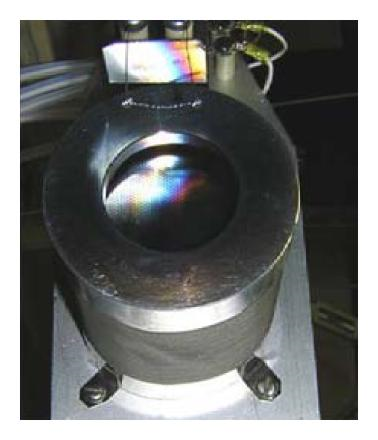

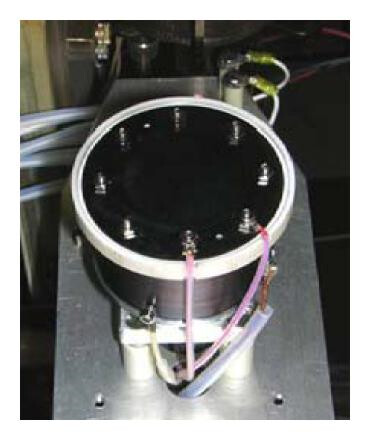

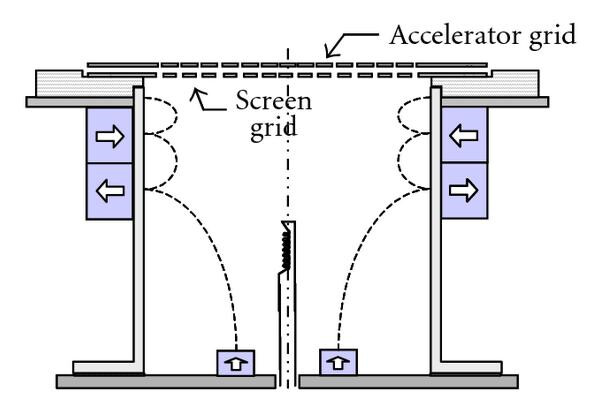

A second lab model of the 3 cm diameter MiXI thruster “MiXI-II” for characterization of MiXI components, performance, and beam. MiXI-II is identical to the original 3-ring cusp MiXI thruster [1] except that the thruster mount (at the aft end of the thruster) is simplified and the grid mounts were modified to provide improved contact between the grids and the electrical leads. Figure 9 shows MiXI-II mounted in the vacuum chamber. As shown schematically in Figure 9, MiXI uses a 3-ring cusp discharge that is 3 cm in diameter with two ion extraction grids at the downstream end of the discharge. In this study, MiXI-II is used to analyze the grid performance at low thrust levels.

3.2.2. Vacuum Facility

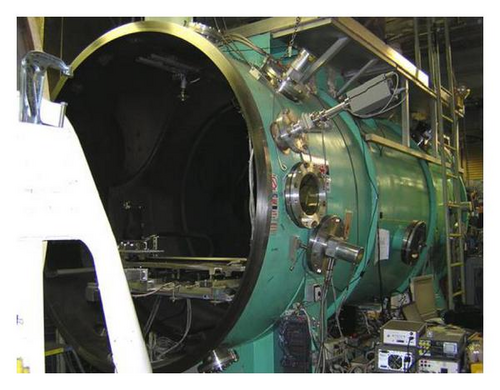

The experiment was conducted in the 2 m diameter vacuum chamber (see Figure 10) outfitted with 3 diffusion pumps and 2 cryopumps, as well as several mechanical pumps. In these experiments, only the diffusion pumps were used. The vacuum achievable with these pumps was between 1 × 10⁻⁶ and 5 × 10⁻⁶ Torr depending on propellant flow rate. The MiXI-II thruster was pointed along the chamber axis towards the far end of the chamber, and was offset horizontally 0.15 m from the centerline.

3.3. Experimental Analysis of Low Thrust Regime

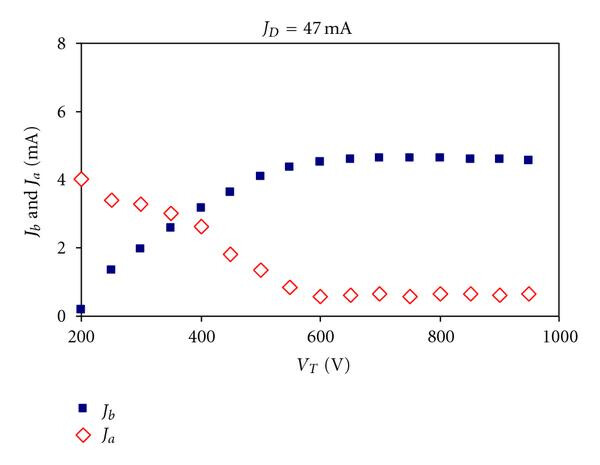

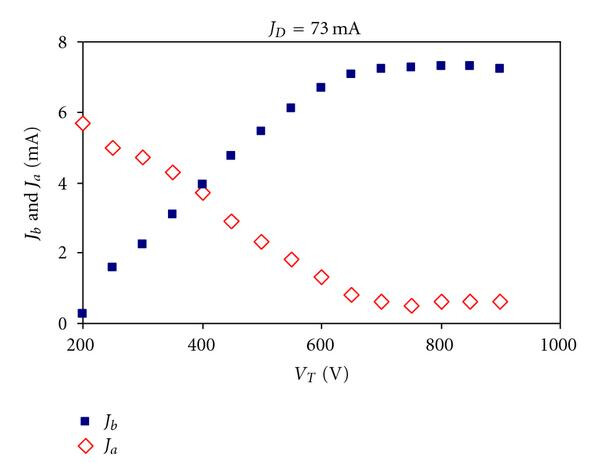

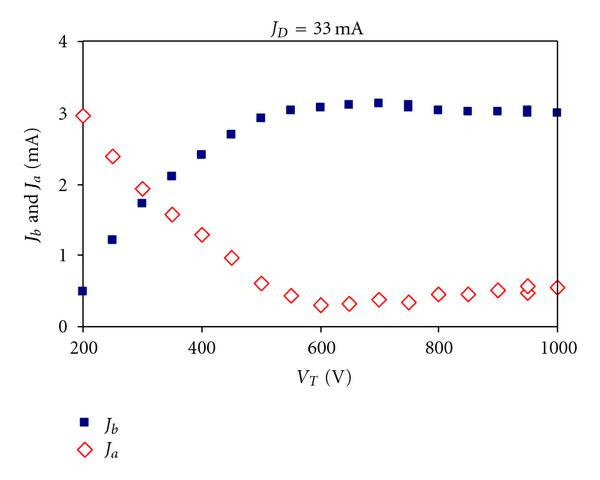

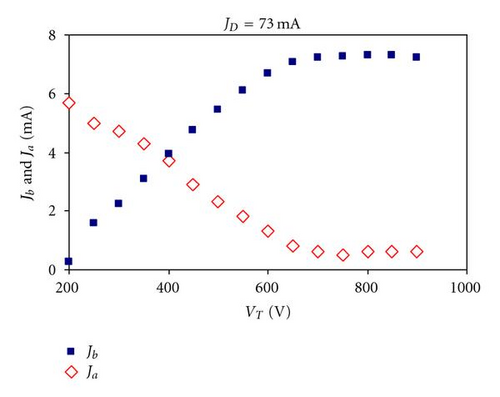

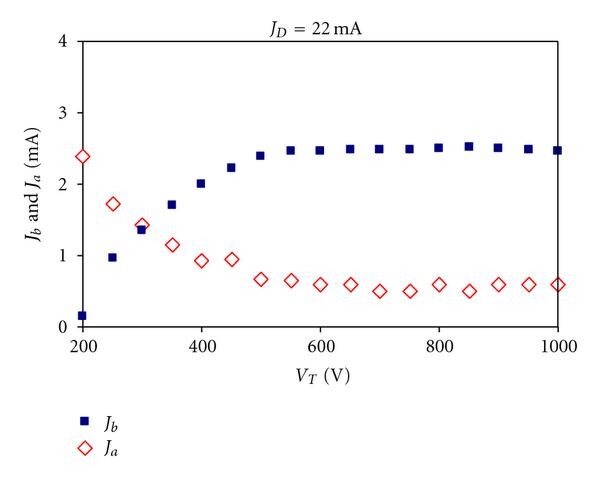

During each test, the discharge current, J_D, was set at a specified value while the total voltage between the two grids, V_T, was varied. Discharge voltage, V_D, was held at 25 V for all tests. To simulate a steady discharge with a constant ion density, the discharge current was held within 5% of the reported average value over the entire range of total extraction voltage. As expected, with increasing total voltage, J_B reaches a near-constant maximum value while J_A reaches a near-constant minimum value for all the discharge current levels. The data in Figure 11 show that the beam “focuses” at increasing voltages for increasing discharge current level and that cross-over impingement is not achieved for the densities and voltages investigated.

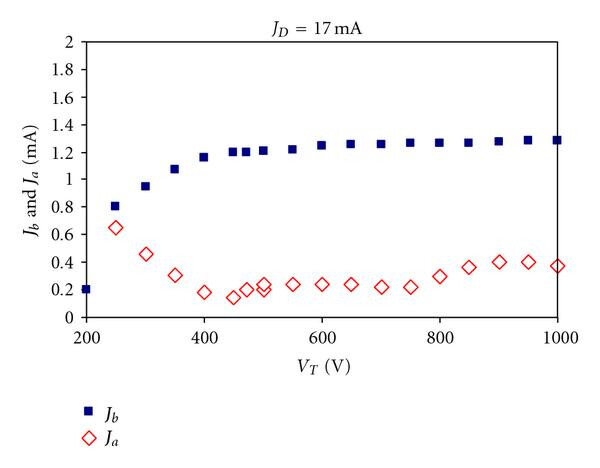

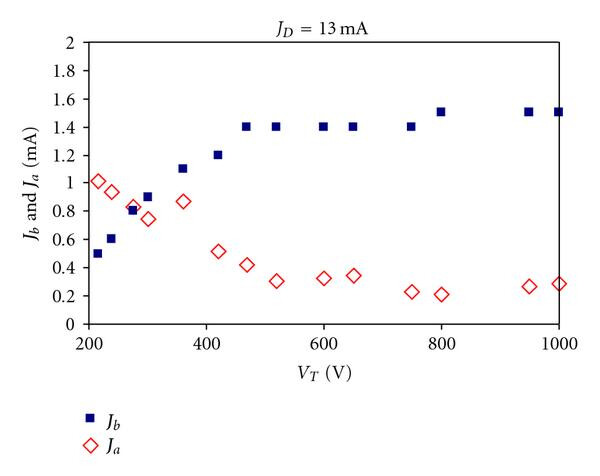

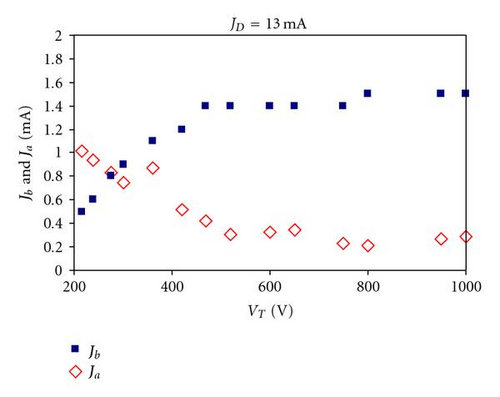

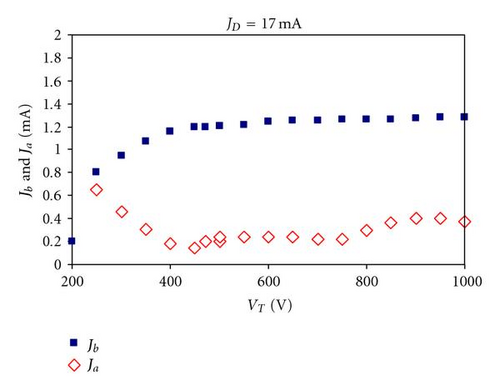

This experiment was primarily aimed at the low-discharge current regime since potential missions considering the MiXI thruster, such as NASA’s exoplanet finding missions and the Space Interferometer Mission (SIM), desire that MiXI produces thrust over a large thrust range, mN to sub-mN levels. Therefore, test cases were conducted with very low discharge currents (i.e., <20 mA). Two test cases at low discharges are shown in Figure 12. For an average J_D of 17 mA, the focusing voltage, V_foc, at which J_A and J_B become approximately constant occurs at around 400 to 450 V. For the 13 mA case, this appears to occur at around 450 to 50 V, although it is difficult to tell the exact point due to the inconsistencies in the data trend (especially the J_A curve). During data acquisition, the low J_D test cases exhibited more noticeable fluctuations in J_B and J_A than those conducted at higher values of   J_D, so approximate values are reported. Further examination is needed to explain why the focusing voltage and maximum beam current are greater for the 13 mA versus the 17 mA case, which is contrary to the expected trends from Figure 11. The increase in J_A at higher voltages for the 17 mA case does not appear to signify cross-over impingement due to the constantly increasing levels of beam current.

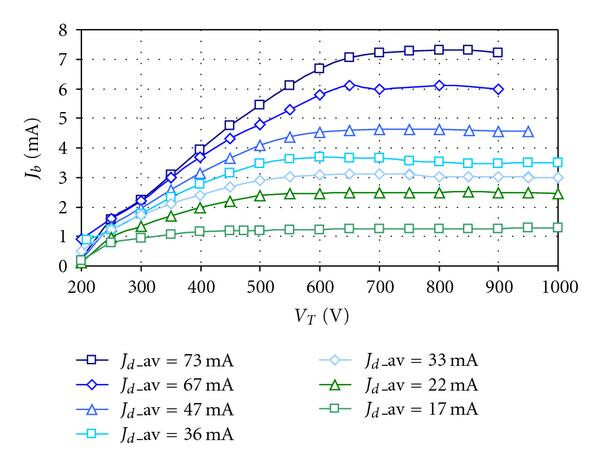

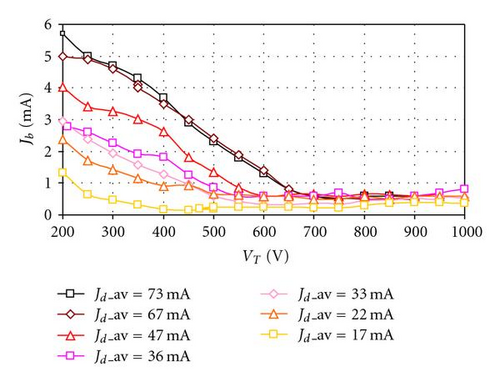

The results in Figures 11 and 12 follow the expected space-charge current limited operation where the “focusing voltage” increases with upstream ion density (or in this case, discharge current). This is apparent in Figures 13 and 14 where all data are plotted on the same scale for comparison with the computational data in the following section.

3.4. Computational Analysis of Low Thrust Regime

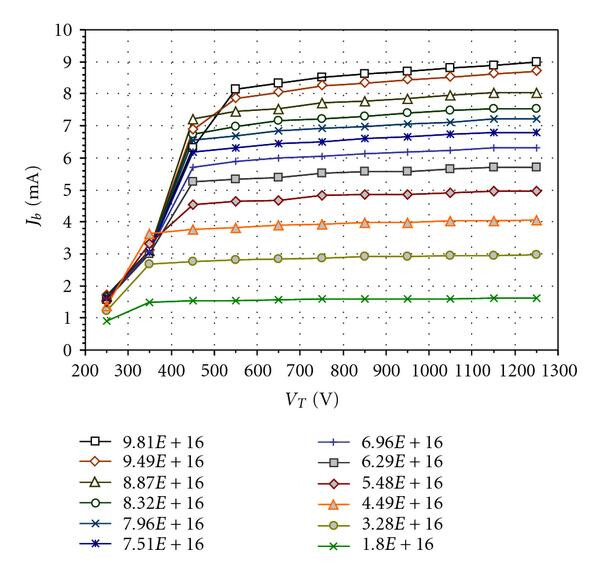

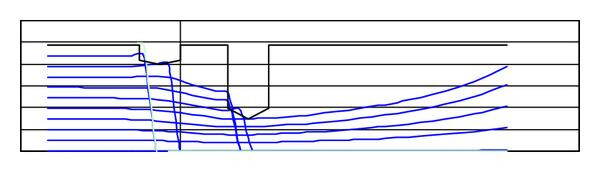

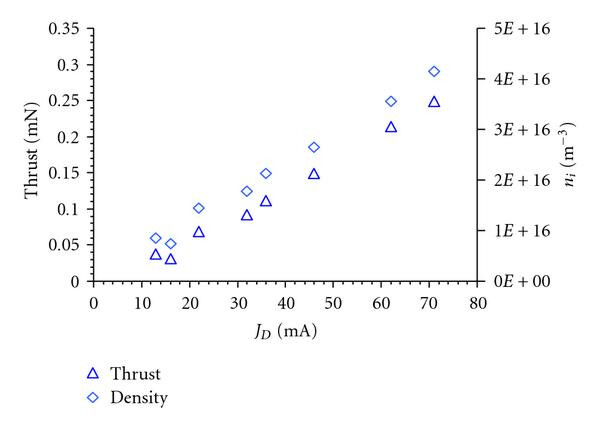

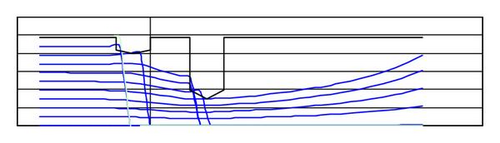

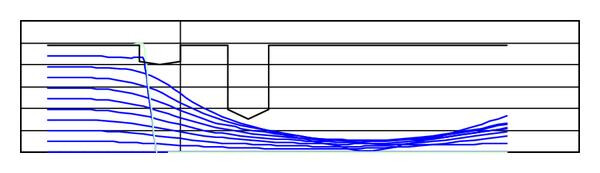

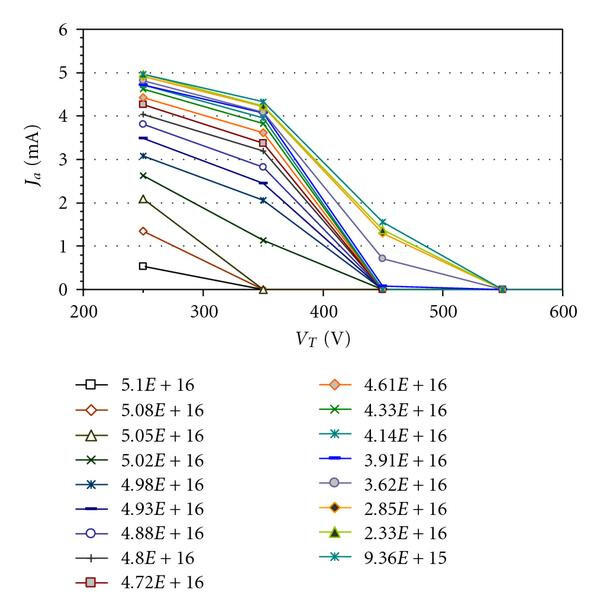

The 2D ion optics model, CEX2D, was used to simulate single beamlets of the MiXI grid geometry over a range of upstream plasma densities and extraction voltages [8]. For the calculations performed herein, the model requires grid geometry, grid voltages, upstream plasma density, upstream electron temperature, and downstream electron temperature. The plasma density is inferred as discussed below while the electron temperatures are assumed equal to experimental values from similar experiments [4]. As shown in Figure 15, the CEX2D model outputs example ion trajectories that demonstrate the transition from direct-impingement to focused beamlet conditions.

3.5. Discussion of Low-Thrust Analysis of Extraction Grids

3.5.1. Discussion of Experimental Results

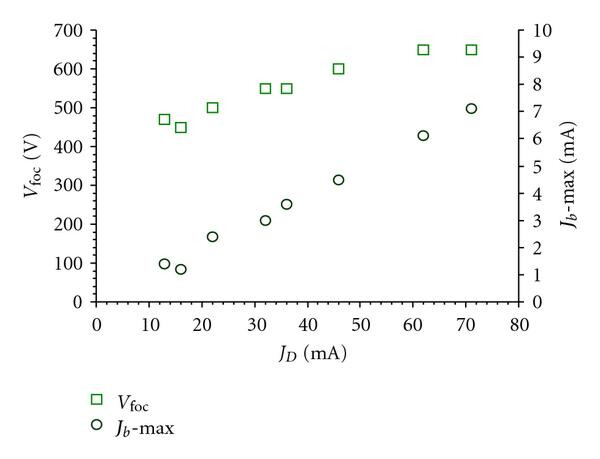

For the experimental results, beam focusing is the region of simultaneous decrease in J_A and an increase in J_B; and the value at which these currents both reach a near zero slope is the focusing voltage, V_foc. The focusing voltages and maximum beam currents for the different discharge currents used in the experimental tests are shown in Figure 18. The general trend of increased focusing voltage and beam current for higher discharge current is expected as discussed in Section 3 and in [2, 9]. Further investigation is needed to explain the increase in focusing voltage and beam current at the lowest discharge current (13 mA) value. During the experimental tests, the extraction voltage was increased beyond V_foc in an attempt to achieve cross-over impingement; however, this point was not reached since increasing the beam voltage beyond 1000 V caused the grids to short for these tests. The relatively high ratio of J_A/J_B measured suggests that low-thrust operation may lead to decreased grid life due to direct impingement. Additional efforts are needed to determine to what level the high accel current is caused by variation in upstream plasma density (low-beam flatness) which can lead to cross-over impingement at the high radial gridlet locations. Also, long-term erosion predictions and assessments will be needed to assess grid life for given mission profiles.

3.5.2. Comparison of Experimental Results and Computational Results

The computational results produce qualitative trends similar to those found in the measured data; however, the transition to V_foc occurs much more sharply in the computational data. This is due to the simplifying assumption in the computational analysis that characteristics of one beamlet represent the behavior of all beamlets. For actual ion thrusters, the radial variation in the ion density in the discharge chamber leads to a variation in focusing voltage across the grid surface. Thus the transition to focused operation should be more gradual as seen in the measured data. Also, the prediction of zero accel current is not realized in the measured data. After focusing occurs, we see a nominal accel current of at least 0.3 mA in the measured data, which is likely an effect of the nonuniform ion density, variation in the MEMS-fabricated hole sizes, and impingement of charge-exchange ions on the downstream surface of the accel grid. For these reasons, this first-order computational analysis also under-predicts the focusing voltage and over-predicts the rate at which the beam focuses. However, these effects do not greatly affect the total beam current predicted by the model and by comparing the maximum beam current values from the experimental (Figure 13) and computational data (Figure 16) we can approximate the average discharge plasma densities for the discharge currents used in the experiment. This comparison yields the correlation of average discharge plasma density and discharge current shown in Figure 19. Also in Figure 19, we approximate the thrust at the focusing voltages for each condition, assuming no beam divergence or double ions losses [4].

In light of the needs of future efforts, it would be helpful for the CEX2D grid model to facilitate the simulation of an entire grid set for a given upstream density profile as opposed to single gridlets. Another possible improvement to the CEX2D model would be to randomize the initial velocity direction of the ions that enter the plasma sheath (currently the model assumes the ions enter the sheath with Bohm velocity parallel to the beamlet axis), this modification would likely give a more realistic value for direct accel grid impingement, that is, nonzero values for focused cases, if a sufficient number of particles are used in the simulation.
