2.1 Study Overview

All physicians had autonomy over how to integrate EGF mapping into their clinical procedures in the AF-FLOW Global Registry. Twenty-five patients were enrolled across five experienced, high-volume centers in three countries. Patients were eligible if they were at least 18 years old with a history of documented, symptomatic AF and were candidates for catheter ablation. AF could be paroxysmal AF (PAF, i.e., no sustained episodes of more than 7 days), PeAF (i.e., sustained episode of AF lasting more than 7 days), or LS-PeAF (i.e., sustained episode of AF lasting more than 1 year). Patients also consisted of both those presenting for redo ablation who previously received catheter ablation but had recurrent AF and those presenting for de novo ablation who were undergoing elective catheter ablation for the first time. Patients were excluded from the study if any of the following were present: pacemaker or other transvenous pacing/defibrillation leads; prosthetic mitral valve; known reversible causes of AF; any cerebral ischemic event (strokes or transient ischemic attacks) that occurred during the 6-month interval preceding the consent date; history of thromboembolic event within the past 6 months or evidence of intracardiac thrombus at the time of the procedure; or they were unable to provide their own informed consent.

Patients first underwent high-density bipolar voltage mapping using the 16-pole grid mapping catheter, followed by baseline EGF mapping in their presenting rhythm: AF or SR. PVI was then performed in standard fashion, as detailed below. A 20-minute waiting period to confirm electrical isolation of the PVs was required, and PV reconnections were ablated when necessary. If patients were not already in AF, AF was induced after completion of PVI. EGF mapping then proceeded in AF. If AF was not inducible, mapping and EGFC calculation proceeded in SR.

All patients were evaluated 7 days post-procedure with a follow-up phone call to document any adverse events and/or any medication changes. Mandatory ambulatory monitoring was performed at 12 months post-procedure. Unscheduled visits for symptomatic AF or adverse events were additionally tracked. If any AF was detected by EKG or Holter monitoring during any scheduled ambulatory monitoring or unscheduled visit outside a 3-month post-procedure blanking period, patients were considered to have AF recurrence after their EGF-mapping procedure. If no such events occurred, patients were considered to have FFAF. Patients who did not complete 12-month follow-up and who otherwise did not have documented recurrence outside the blanking period were considered lost to follow-up (LTFU).

The trial was sponsored by Cortex Inc. (formerly Ablacon Inc.) and approved by the appropriate Ethics Committees at each of the participating centers. Data monitoring, collection, and analysis were performed by the sponsor using a third-party clinical research organization. The authors assume responsibility for the accuracy and completeness of the data.

2.2 Ablation Procedure

All procedures were performed under sedation after obtaining informed consent. Patients underwent three-dimensional electroanatomic mapping with either Ensite NavX (Abbott, Abbott Park, IL) or CARTO (Biosense Webster, Diamond Bar, CA), followed by PVI using an irrigated tip radiofrequency (RF) ablation catheter. Ablation catheter power and temperature settings were at the operator's discretion. Intravenous heparin was administered for systemic anticoagulation to maintain an activated clotting time of > 300 s before insertion of the 64-pole basket mapping catheter. For any ablation of PVs, confirmation of PVI (entrance or exit block) was performed after a mandatory minimum 20-min wait following the last RF application.

2.3 EGF Mapping

EGF mapping was performed both pre- and post-PVI using the Ablamap v11.1.0.56 software (Ablacon, Wheat Ridge, CO). Unipolar electrograms were recorded using a commercially available 64-electrode basket mapping catheter connected to a proprietary, CE-marked recording system (EP Map, Herdecke, Germany). Each recording was 1-min long, and the unipolar signals were processed using a proprietary algorithm to remove the QRS complex, noise, baseline fluctuations, and far-field signals. Using a biharmonic spline interpolation based on Green's function, the electrical field was estimated, and a Horn–Schunck flow estimation of the Green's interpolation frames was performed to visualize atrial wavefront propagation over time. Haines et al. published an in-depth explanation of the theoretical basis for EGF mapping and details of the EGF mapping algorithm [9]. The dominant patterns of wavefront propagation over time are displayed as flow vectors in EGF Segment Maps, and the consistency of these flow vectors is measured over time, enabling the visualization of origins of excitation representing extra-PV AF triggers, called sources. Active sources exhibit divergent flow fields.

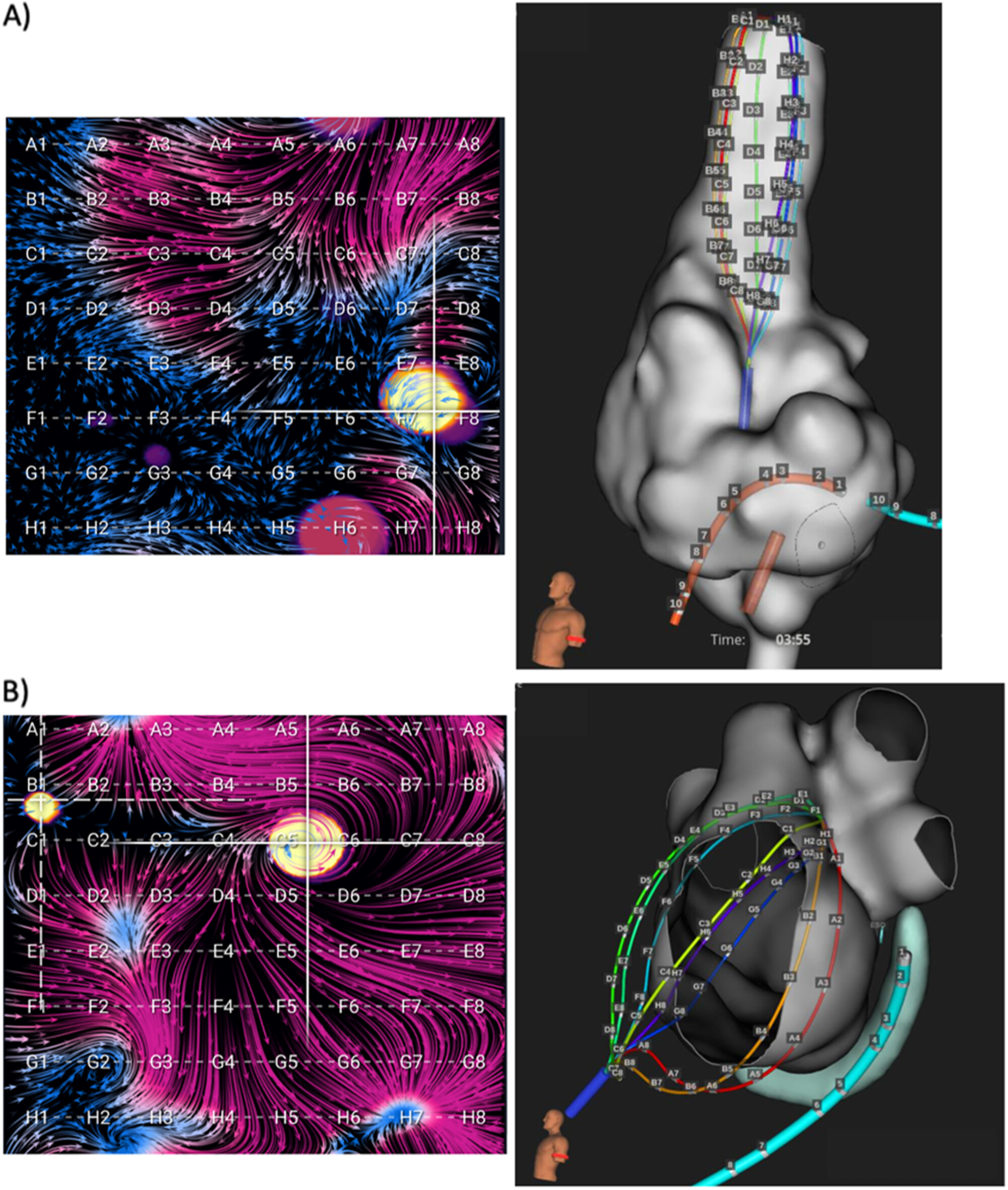

EGF mapping was generally performed by obtaining 1-min recordings from the 64-pole basket catheter placed in multiple standardized positions within each atrium as well as additional recordings after any source ablations to confirm elimination. In the left atrium (LA), there were typically two standardized basket positions: (1) posterosuperior LA with the dome of the basket aiming toward the left PVs and LA appendage (LAA); (2) lateral LA with basket dome pointing toward LAA and the mitral valve. In the right atrium (RA), there were generally three standardized basket positions: (1) superior vena cava (SVC)/RA junction with basket position at least halfway into the SVC; (2) central RA with basket dome pointing to SVC with vertical catheter shaft orientation and basket expanded to fill RA; (3) anterolateral RA with basket dome pointing to RA appendage and tricuspid valve and catheter deflected anterior and lateral from SVC. Mapping in additional basket positions in either atrium was performed if necessary to obtain complete endocardial atrial coverage. Example EGF maps in each atrium with accompanying electroanatomic maps are shown in Figure 1.

Sources were defined as origins of divergent flow with source activity (SAC) quantified as the percentage of 2 s segments within a recording during which the source was emanating flow. If EGF mapping identified an extra-PV source with a SAC ≥ 25%, which was the prespecified threshold for clinical significance, EGF-guided ablation at the target location of the focal source was advised. Repeat EGF mapping was recommended to confirm the elimination of the source via reduction of SAC below 25%. If additional sources were unmasked during repeat mapping, additional ablation was advised until all sources were eliminated.

2.4 Near-Field Score Calculations From EGM Traces

To compute the conduction component, neighboring channels of all electrodes were first determined. In so doing, the 64-electrode basket mapping catheter EGM channels were rearranged into an 8 × 8 grid such that splines became rows A, B, …, H and electrode rings became columns 1, 2, …, 8. For every EGM channel, four neighbors were then extracted. For channels on the A and H splines, channels with the same column number on the opposite spline were considered neighbors to account for the circular boundary. Lastly, to account for polar boundary conditions, artificial polar electrodes were computed as averages of electrodes A1, B1, …, H1 and A8, B8, …, H8 as neighbors to A1, B1, …, H1 and A8, B8, …, H8, respectively.

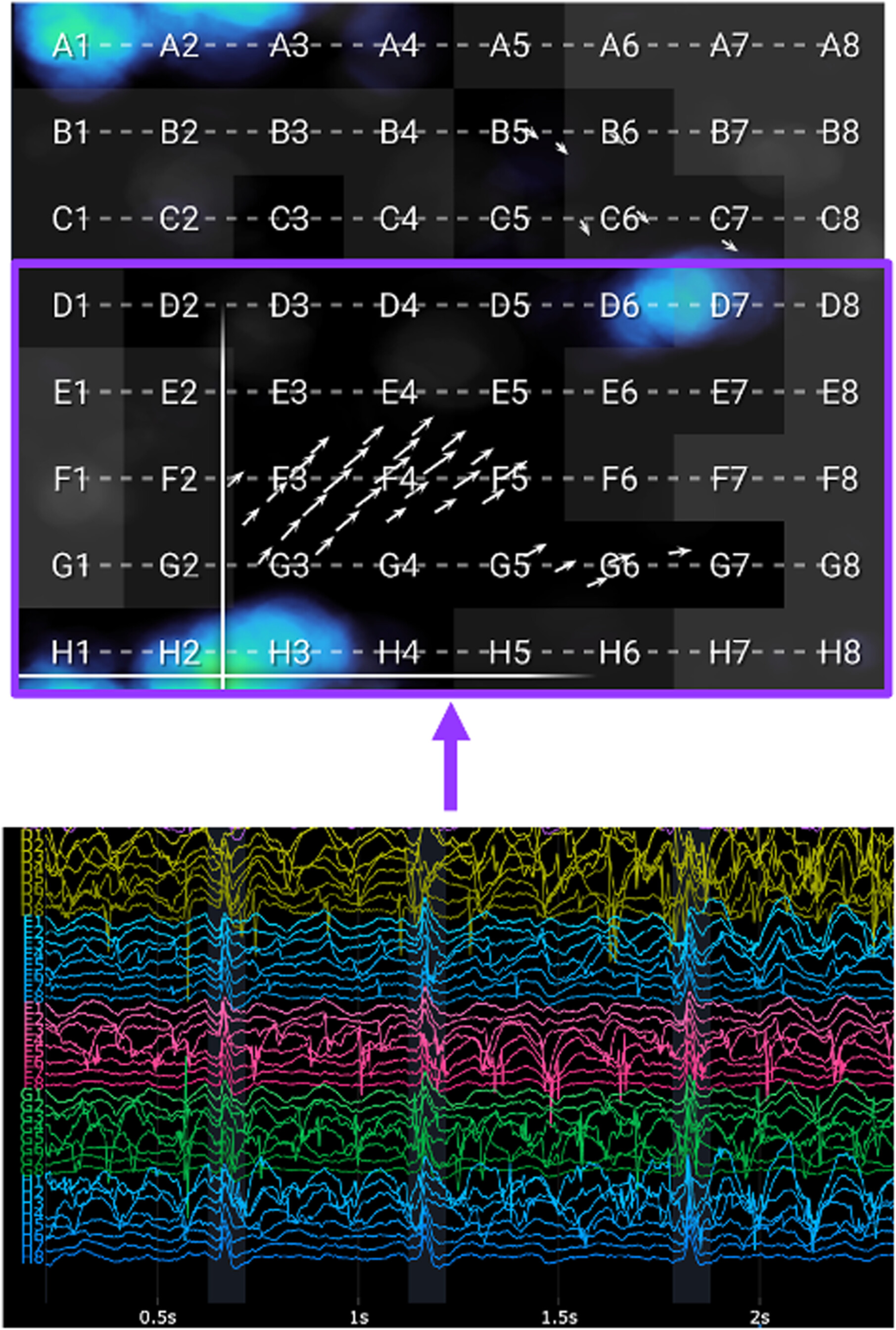

The near-field score per segment was ultimately defined as a binary mask: 1 if $<math altimg="urn:x-wiley:10453873:media:jce16568:jce16568-math-0017" wiley:location="equation/jce16568-math-0017.png" display="inline" xmlns="http://www.w3.org/1998/Math/MathML"><mrow><mrow><msub><mi>RE</mi><mi>inst</mi></msub></mrow></mrow></math>$ < 0.3 and 0 otherwise. All computations were performed by segment, so aggregation for the whole recording was lastly done by averaging along the segment axis. Thus, the summative near-field score per electrode showed the percentage of segments at a given location when the near-field score equaled 1. Contact was considered poor when the summative near-field score was < 0.7. An example EGF summary map with constituent EGMs from electrodes above and below this near-field score threshold is shown in Figure 2.

2.5 EGFC Calculations From EGF Maps

EGFC was computed for each recording from the Euclidean length of vector field estimates across all basket electrodes over 60 s of recording time, thereby providing a measure of the overall magnitude of flow averaged in arbitrary units. Importantly, electrodes with low contact—defined as a near-field score < 0.7—were removed from the calculation because of artificially low local EGFC values that were observed at non-contacting electrode positions.

After calculating EGFC for each recording, an overall EGFC was also computed for each patient in either AF or SR. The EGFCs from each recording position during a given rhythm were first averaged to compute positional EGFC means per patient. These positional EGFCs were then averaged within each atrium to generate a mean EGFC per atrium per patient. Such a method allowed all recording positions to be given equal weight.

Each patient's two atrial EGFCs were then averaged again to generate an overall mean EGFC per patient. When generated from AF recordings, this overall mean EGFC was employed in phenotyping. When no AF recordings were available, the mean EGFC was computed in SR and converted to an AF EGFC using a linear equation developed previously [16, 17].

2.6 Phenotyping

Patients were phenotyped based on EGF map properties. Type I patients had SAC < 25% in all recordings and EGFC overall mean ≥ EGFC median of all patients; Type II had active sources with SAC ≥ 25% and EGFC overall mean ≥ EGFC median of all patients; Type III had active sources with SAC ≥ 25% and low EGFC < EGFC median; and Type IV had SAC < 25% and EGFC overall mean < EGFC median.

2.7 Voltage Map Analysis

Bipolar voltage maps were collected with standardized mapping parameters so that voltages greater than 0.5 mV were purple, voltages less than 0.1 mV were grey, and intermediate voltages ranged from blue to red as voltage decreased. Accordingly, a color detector was built using OpenCV 4.7.0 in Python 3.12 to quantify the number of pixels in each color. The fraction of purple pixels divided by all other colored pixels was then calculated to determine the percentage of high voltage surface area in each voltage map. The threshold for high vs. low voltage was deemed to be 0.5 mV in accordance with it being the established cutoff regarded in the literature [16, 17, 19-21]. The high voltage percent was then plotted against the mean atrial EGFC that had been calculated contemporaneously from the same atrium of the same patient in the same rhythm.

2.8 Statistical Analysis

Summary data are expressed as mean value ± one standard deviation. p values for group comparisons were computed using one-tailed, independent t-tests for continuous variables and one-tailed z-tests for proportions, as appropriate. Linear regression was calculated using a line of best fit, and the coefficient of determination (r²) and the p value for the F-test of significance of the slope were reported. For all statistical tests, the null hypothesis was rejected at the level of p < 0.05.

3.1 Patient and Procedure Characteristics

A total of 25 patients were enrolled with a mean age of 64 ± 11 years. Nine (36%) patients were female. Mean LA diameter was 4.4 ± 0.8 cm, and mean left ventricular ejection fraction was 57% ± 8%. Sixteen (64%) patients were de novo ablations, while 10 (36%) were redo. Nine (36%) had PAF, 14 (56%) had PeAF, and two (8%) had LS-PeAF. Baseline patient characteristics are summarized in Table 1. The PAF group had significantly fewer patients with history of prior ablation (2/9 vs. 13/16, p = 0.002) and history of cardioversion (2/9 vs. 12/16, p = 0.005).

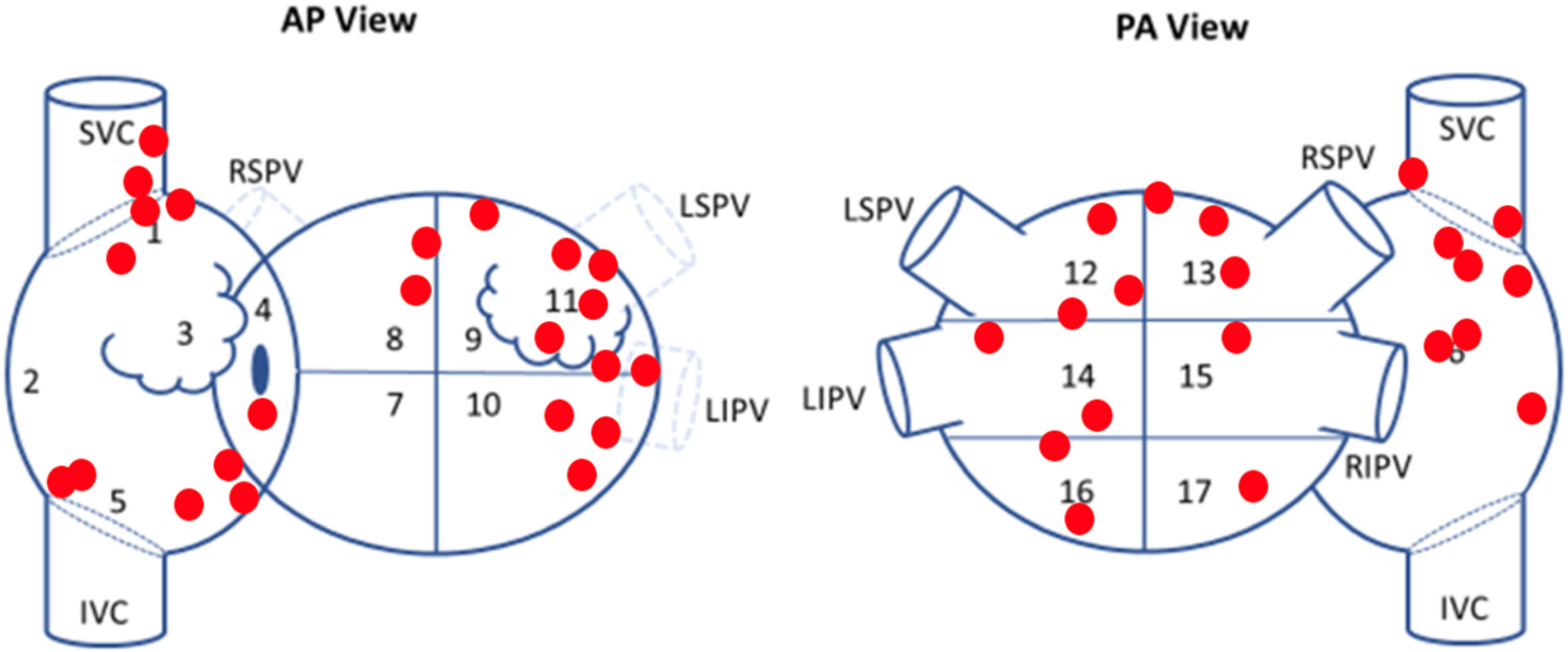

All patients received PVI and had isolation confirmed after at least a 20-min waiting period. At the time of PVI, 13 (52%) patients were in spontaneous AF, and 12 (48%) required AF induction with rapid or decremental atrial burst pacing. After PVI, 6 (24%) patients were non-inducible. Overall, 43 total sources were identified by EGF mapping in the anatomic distribution shown in Figure 3. At least one extra-PV source was found in 64% (16/25) of patients, 81% (13/16) of whom received at least one EGF-guided ablation at the physician's discretion. However, only 19% (3/16) had all EGF-identified sources with SAC ≥ 25% ablated. These 3 patients and the additional 9 patients with no extra-PV sources were therefore considered to be treated optimally per protocol, while the remaining 13 (52%) patients were not. Procedural characteristics are summarized in Table 2. PAF patients presented less often in AF (0/9 vs. 13/16, p < 0.001) and were more often non-inducible (6/9 vs. 0/16, p < 0.001). They accordingly had fewer EGF-identified sources (0.9 ± 1.2 vs. 2.2 ± 1.3, p = 0.011) and were more often treated per protocol (7/9 vs. 5/16, p = 0.013).

3.2 Clinical Outcomes Provide Support for EGF-Mapping as an AF Phenotyping Tool

Twenty-one (84%) patients completed 12-month follow-up, and 13 (62%) had FFAF while 9 (38%) had documented recurrence. When broken down by AF type, 6/8 (75%) PAF patients had FFAF, while 5/11 (45%) PeAF patients and 1/2 (50%) LS-PeAF patients had FFAF. Collectively, PAF vs. PeAF and LS-PeAF recurrences were not significantly different (p = 0.10). However, when analyzed by procedure type, 11/13 (85%) de novo patients had FFAF, while 2/8 (25%) redo patients had FFAF (p = 0.003). Accordingly, there was significantly higher FFAF in de novo PAF vs. redo PAF patients (5/5 vs. 1/3, p = 0.017) and significantly higher FFAF in de novo PeAF and LS-PeAF vs. redo PeAF and LS-PeAF patients (6/8 vs. 1/5, p = 0.026). There were no significant differences observed in post-procedure outcomes in men vs. women.

The median global EGFC across all patients was 0.548. When patients who completed 12-month follow-up were split such that those with global EGFC greater than the median were compared to those with global EGFC less than the median, the high EGFC patients had significantly higher FFAF than those with low EGFC (9/10 vs. 5/11, p = 0.015). EGFC and source presence could then be collectively incorporated to split the patients by phenotype, as shown in Table 3. FFAF decreased with increasing phenotype from Type I (high EGFC, no sources) with 3/3 (100%) FFAF to Type II (high EGFC, sources) with 6/7 (86%) FFAF to Type III (low EGFC, sources) with 4/7 (43%) FFAF to Type IV (low EGFC, no sources) with 1/4 (25%) FFAF.

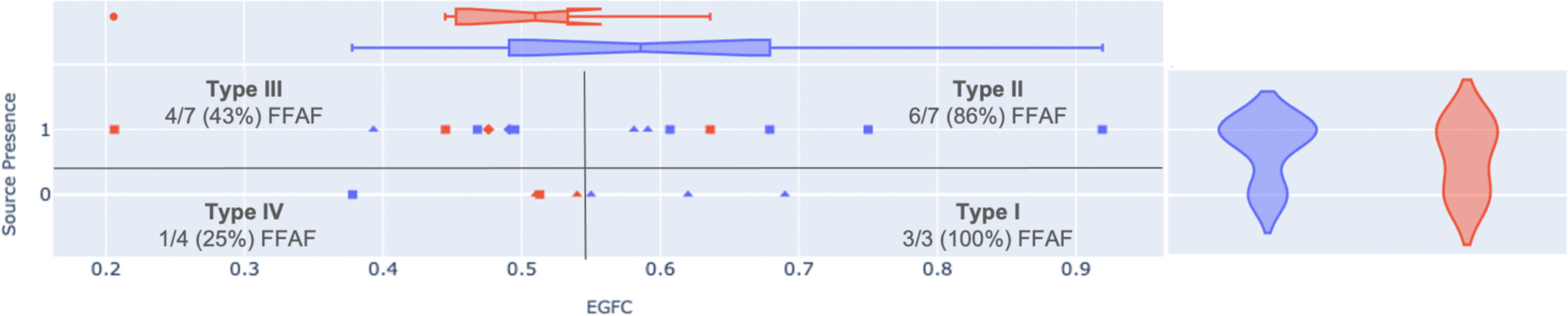

Source presence vs. EGFC is plotted and divided by phenotype in Figure 4. Notably, most patients with sources had some, but not all, sources ablated, so they were not treated per protocol. Of the three patients who had all EGF-identified sources ablated, 1 was a Type II patient who had FFAF, 1 was a Type III patient who had FFAF, and 1 was a Type III patient who was LTFU.

Patient phenotype was also related to patient AF status and procedure type. As shown in Figure 4, PAF patients were more likely to be Type I than PeAF and LS-PeAF patients (3/9 vs. 1/16, p = 0.038) with other phenotypes not significantly different by AF type. De novo percentage also decreased with increasing phenotype from Type I with 4/4 (100%) de novo procedures to Types II and III each with 5/8 (63%) de novo procedures to Type IV with 2/5 (40%) de novo procedures.

3.3 EGFC is Correlated to Bipolar Voltage

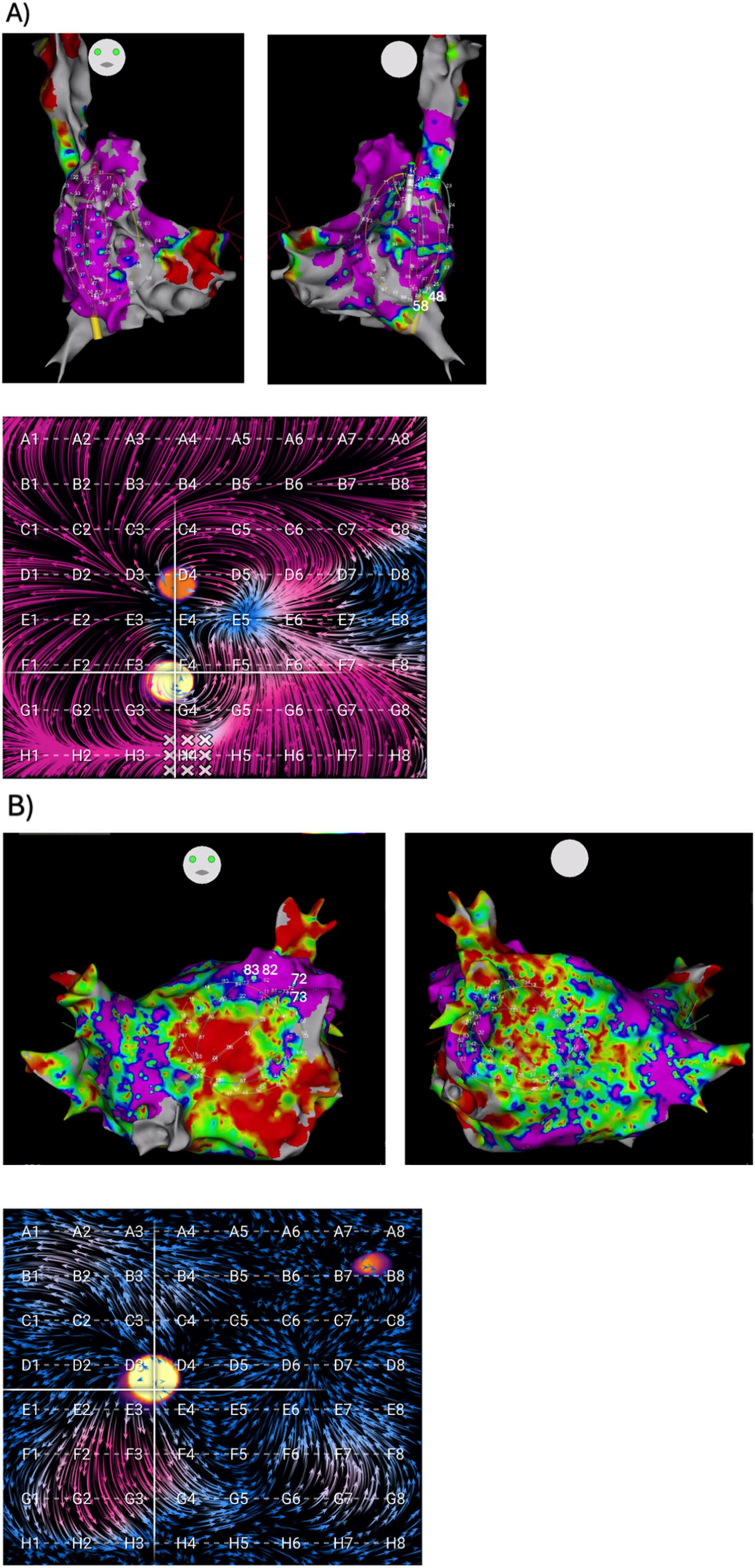

Across all patients, EGFC was related to bipolar voltage. Visually, bipolar voltages aligned with EGFC in both atria in both AF and SR. Following the splines of the basket catheter across the EGF maps and voltage maps particularly revealed similar trends in bipolar voltage and EGFC at the same locations. As shown in Figure 5, both overall trends in map EGFC and voltage patterns, as well as specific electrode-by-electrode alignment, corresponded closely between the two metrics. Bipolar voltage and EGFC were also both higher in SR than AF, such that percent healthy voltage was 52% ± 15% vs. 44% ± 11% (p = 0.042) and EGFC was 0.69 ± 0.21 vs. 0.57 ± 0.21 (p = 0.045). There was no significant difference between percent healthy voltage or EGFC in the RA vs. LA.

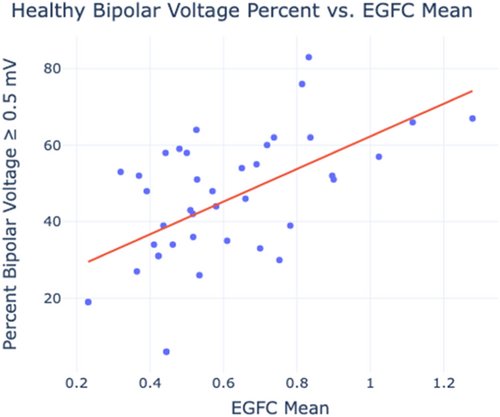

To quantify the relationship between EGFC and voltage, bipolar voltage from the voltage maps was compared to global EGFC. The percentage of high voltage surface area across each atrium in each rhythm was plotted against the mean EGFC of the concomitant EGF maps recorded from the same atria in the same rhythm. As shown in Figure 6, healthy voltage percent increased linearly with EGFC (r = 0.651, p < 0.001) in the analyzed zone of healthy voltage percentages between 30% and 70% and EGFC between 0.3 and 1.2. This relationship was maintained across SR and AF in both the LA and RA.

4.1 Limitations

The major limitation of this study is the lack of a fixed protocol for all patients because the study was an open registry, which resulted in physicians not fully ablating all sources visualized. This limitation was compounded by the low number of patients enrolled. The ongoing RESOLVE-AF trial is designed to rectify these limitations by analyzing and phenotyping a larger sample of over 200 redo and de novo patients for the purpose of phenotyping and measuring outcomes. Another limitation of this study is that during the alignment of EGF maps and bipolar voltage maps, the sampling of tissue was not equal across both mapping systems. Some regions of the atria were EGF mapped multiple times as the catheters were moved into the standardized positions, and other areas (e.g., the PVs beyond the ostia) were not mapped at all. Bipolar voltage mapping similarly did not always cover the full atria and was impacted by the orientation of the mapping catheter. Despite this limitation, a robust relationship between bipolar voltage and EGFC was still found.
