1 INTRODUCTION

Alopecia-intellectual disability syndrome (APMR) is a rare clinical condition defined by loss of scalp hair, absence of eyebrows, eyelashes, axillary and pubic hair in combination with mild to severe intellectual disability.¹ APMR is classified into four subtypes based on the degree of intellectual disability and the associated clinical manifestations.¹ Alopecia-intellectual disability syndrome type 4 (APMR4, OMIM #618840) is a very rare, neuro-ectodermal syndrome caused by biallelic variants in LSS located on chromosome 21q22.²

Lanosterol synthase (LSS) is an enzyme involved in the biosynthesis of cholesterol, steroid hormones, and vitamin D.³ It catalyzes the rate-limiting step in the conversion of (S)-2,3-oxidosqualene into lanosterol.⁴ LSS is expressed in many tissues, including the brain, glomerular podocytes, and skin, potentially explaining multi-system involvement and pleiotropic phenotypic manifestations.⁵ Biallelic LSS variants are associated with three autosomal recessive rare diseases including congenital cataracts type 44, hypotrichosis simplex type 14, and APMR4 (OMIM #616509, #618275, #618840, respectively). APMR4 is characterized by alopecia universalis, scaly skin, and variable degrees of psychomotor delay.⁶

A total of 29 families with all three LSS-related disorders have been reported worldwide amongst which are 10 families with 15 affected individuals with the APMR4 phenotype.^{2, 5, 7-18}

We describe an Egyptian patient with biallelic novel variants in LSS and APMR4 to potentially expand the mutational and phenotypic spectrum of the syndrome.

2 CLINICAL REPORT

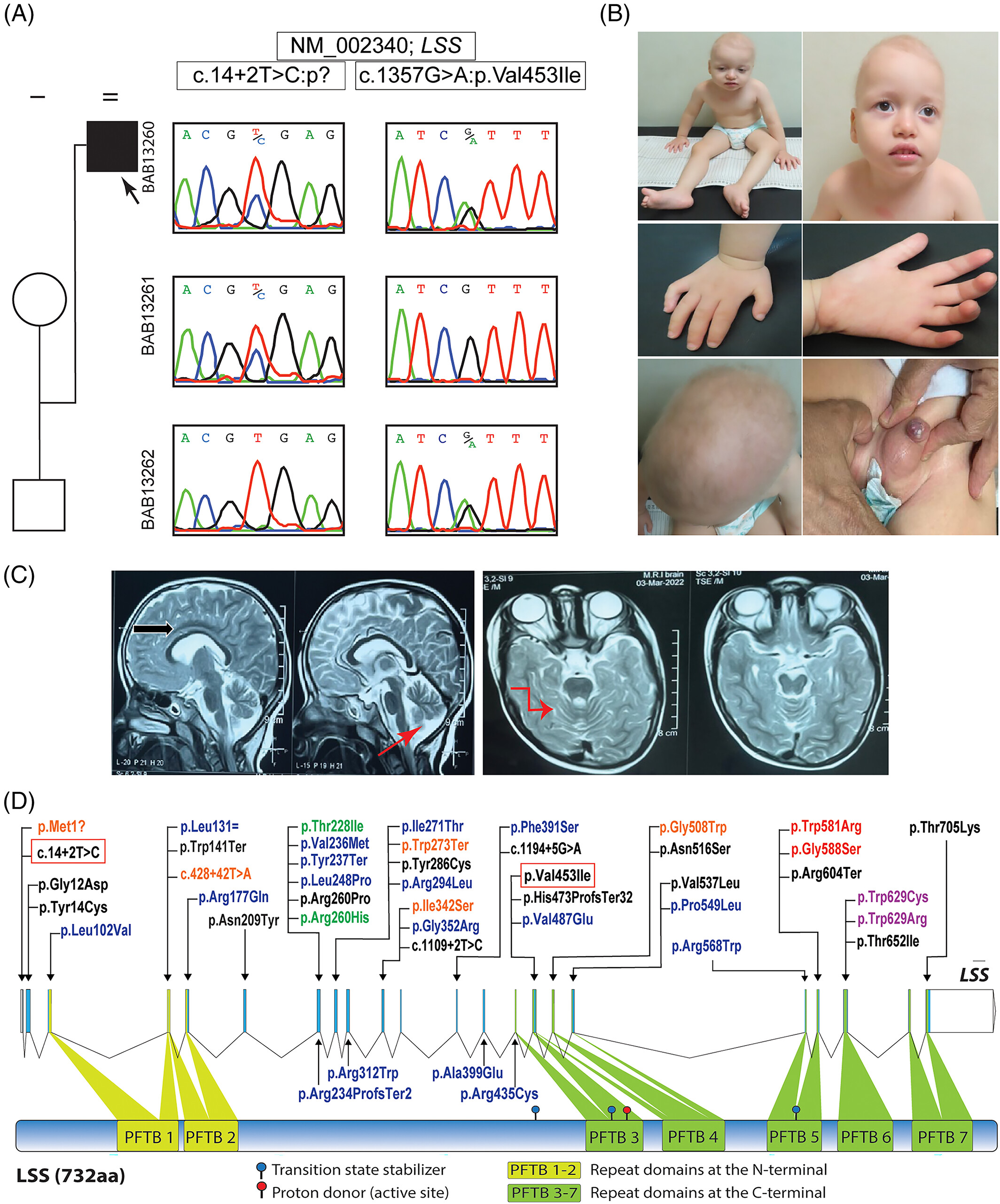

The proband is a four-year-old male and the first child of healthy non-consanguineous parents (Figure 1A–C). Normal pregnancy and delivery histories and birth growth parameters were recorded. Baldness and absence of eyebrows were noted since early infancy. At the age of 14 months, he presented with global developmental delay, myoclonic epilepsy, and alopecia. On clinical examination, he was able to support the head, recognized the mother and followed objects. His weight was 10 kg (−0.5SD), length 76 cm (−0.2SD), and head circumference 45 cm (−1.2SD). He had alopecia, sparse hair and eyebrows, prominent forehead, wide-spaced eyes, depressed nose, short philtrum and thin upper lip. Neurological evaluation showed generalized hypotonia with normal reflexes. The genitalia showed micropenis (1.5 cm) and bilateral cryptorchidism.

Brain MRI identified mildly dilated lateral ventricles, mild cortical volume loss, and cerebellar vermian hypoplasia. Other investigations as karyotyping, metabolic work up, biotinidase enzyme activity, EMG and NCV were normal. EEG revealed generalized multifocal epileptiform activity. Abdominopelvic ultrasound showed bilateral inguinal testicles.

During his last assessment at the age of 4 years, he was able to sit at 24 months old, and walk with a wide base gait at 40 months. Delayed cognitive function was still present and he achieved single syllables. Anthropometric measurements were 15 kg for weight (−0.8SD), 94 cm for height (−2 SD), and 47.5 cm (−2SD) for head circumference. Alopecia was evident. Follow-up brain MRI was quite similar to the previous scans. Ophthalmological and hearing evaluation were normal.

The family was enrolled after informed consent under an Institutional Review Board (IRB)- approved research protocol (H-29697) at the Baylor College of Medicine Genomics Research to Elucidate the Genetics of Rare (BCM-GREGoR) and Medical Research Ethics Committee of NRC, Egypt. Trio research exome sequencing was performed. Two novel compound heterozygous LSS variant alleles were identified in the proband: NM_002340:c.14+2T>C and NM_002340:c.1357G>A:p.(Val453Ile), of paternal and maternal origin, respectively. The missense variant c.1357G>A:p.(Val453Ile) was predicted deleterious by multiple prediction models including Polyphen, SIFT and LRT and had a CADD score of 24.5 and a REVEL score of 0.288. The splicing variant was predicted to cause donor loss with a score of 0.57 by SpliceAI. The variants were absent in homozygous state in available control databases (ARIC; GO-ESP; 1000 Genomes Project; and gnomAD v2.1.1) or in the in-house generated BCM-GREGoR database (~13 000 exomes) while the missense variant c.1357G>A:p.(Val453Ile) was present in the heterozygous state in a single control subject of South Asian origin in gnomAD v2.1.1 (minor allele frequency of 0.000004).

3 DISCUSSION

Pathogenic biallelic LSS variants cause three autosomal recessive rare diseases with a broad phenotypic spectrum: congenital cataracts 44 (OMIM #616509), hypotrichosis (HYPT14; OMIM#618275), and a severe neuro-ectodermal syndrome APMR4 (OMIM #618840). Table 1 summarizes variant and trait information for published cases with the three LSS-associated traits.

LSS pathogenic variants were first associated with a Mendelian trait to cause congenital cataract in rats and humans.^{7, 16, 19} In 2015, Zhao et al. reported two families of European origin with congenital cataract due to biallelic LSS variants.⁷ This was followed by a report of a Chinese male with an “intermediate phenotype” of co-existing cataract and hypotrichosis due to compound heterozygous missense variants in LSS.¹⁶ The first variant c.1025T>G:p.(lle342Ser) localized to the N-terminal domain while the second variant c.1887G>T: p.(Try629Cys) to the C-terminal domain.

Romano et al. described a number of cases from different ethnicity with the second Mendelian trait, hypotrichosis simplex, due to biallelic LSS variants.⁵ They hypothesized that the phenotype depends on the pathogenic variants localizing toward the N-terminus lead to hypotrichosis simplex (HS) while those near the C-terminus lead to congenital cataract.⁵ This assumption was later questioned after a family from China with both cataract and hypotrichosis and had biallelic LSS variants localized toward the N-terminus.¹³ Several families with the HS phenotype have been described with the variants spread across both domains.^{8-11, 14, 18} Then the phenotypic spectrum of LSS was expanded to include a third and more severe neuro-ectodermal phenotype, APMR4, with a report of 11 patients from seven unrelated families having alopecia and intellectual disability secondary to LSS biallelic variants.² The described LSS variants were distributed across both LSS domains thus providing no clear phenotype–genotype correlation (Figure 1D). Two more patients from Iraq and Egypt with APMR4 have been recently reported.^{10, 12}

Our proband displayed the core clinical features of APMR4 syndrome including alopecia, developmental delay, and early onset seizures in absence of cataract, hearing loss, nail dysplasia or skin lesions. Early-onset epilepsy is a common feature in reported subjects (8/15; 53%). Additional common features observed in our subject are absent or poor speech (10/13; 77%) and hypotonia (8/15; 53%).^{2, 10, 12}

Our proband had micropenis, reported in four males with APMR4 and one male with the intermediate phenotype.^{2, 16} It is proposed to result from the impairment in the cholesterol biosynthesis pathway due to defective LSS which is essential for the development of normal genitalia in early fetal life.²⁰ Interestingly, normal plasma cholesterol level was reported in several patients with LSS-related disorders supporting an alternative pathway for cholesterol synthesis (Table S1).^{2, 5, 12}

Similar to our subject, patients of Wada et al. had partial agenesis of the corpus callosum; however, their motor and mental developments were normal. Also, the brain MRI of both our subject and Elaraby et al. showed dilated lateral ventricles and thin corpus callosum.¹² Nevertheless, no specific neuroimaging findings were reported by Besnard et al. series.² Our patient had a small cerebellar vermis with prominent vermian folia, not previously described with APMR4.

Lately, a more severe end-of-spectrum phenotype, palmoplantar keratoderma with congenital alopecia (PPKCA2), was reported with biallelic LSS variants, with in addition, severe hand and feet skin involvement.¹⁵ Palmoplantar keratoderma was a finding in the family described by Ho et al. and initially thought to have “the intermediate phenotype.”¹³ Interestingly, the variant c.1025T>C;p.(Ile342Ser) is shared among four unrelated Chinese Han subjects with PPKCA2 and “the intermediate phenotype” in trans with another different variant: c.818G>A ;p.(Trp273Ter), c.3G>A;p.(Met1?) and c.1887G>T;p.(Trp629Cys) respectively.^{13, 15, 16} The p.(Ile342Ser) variant was found to significantly reduce LSS protein expression and completely abolish its enzymatic activity resulting in no lanosterol production.^{13, 15} The p.(Ile342Ser) variant might represent a founder allele in the Chinese Han population possibly predisposing to the intermediate or PPKCA2 phenotypes. Recently, a Chinese subject has been reported with two novel missense LSS variants and solely mutilating palmoplantar keratoderma (PPK) confirming the association with PPK but also further adding to the complexity and plethora of LSS-related phenotypic spectrum.¹⁷

Here, we report a novel splice site variant and a novel missense variant. The majority of the reported pathogenic variants were missense. Splicing, frameshift and nonsense variants have been also reported as pathogenic in 9/15 (60%) patients with APMR4, 2/3 (67%) with PPKCA2 and only 2/22 (9%) with hypotrichosis phenotype in trans, with another missense variant. Murata et al. thought that a combination of mutations with their locations can be important for determining the severity of phenotypes.¹¹ Hua et al. inferred that epigenetic and other modifier genes might be responsible for phenotypic heterogeneity of LSS.¹⁴ By reviewing the reported mutations in aggregate and their associated phenotypes in an attempt to find a phenotype–genotype correlation, we found that the map positions of the individual pathogenic variant alleles were not related to the observed clinical disease. However, cases with a more severe phenotype were more likely to have a biallelic combination of a LoF allele plus a missense. Future studies should evaluate the functional impact of the variants as it is still unclear whether the different phenotypes represent different diseases or a continuum of one disorder due to allelic combinations and allelic severity at the locus.¹³

Our report provides novel LSS variants to be added to the list of APMR4 and highlights the clinical heterogeneity of LSS-related disorders. Moreover, we suggest that some neuroimaging clues can be relevant for an early diagnosis. We also encourage further studies of the allelic series at this locus to better understand the mechanisms and functions of the altered proteins and the neurectoderm phenotypic variability that arises from LSS mutations.

CONFLICT OF INTEREST STATEMENT

JRL has stock ownership in 23andMe and is a consultant for Genome International.
