Cell lines and culture

NSCLC cell lines A549 and H1299 were preserved in our laboratory and maintained in RPMI-1640 medium (Gibco) supplemented with 10% fetal bovine serum (FBS; Gibco), 100 U/ml penicillin, and 100 mg/ml streptomycin. The cells were incubated at 37°C in a humid incubator with 5% CO₂. The cells with confluence of 80% were used for the experiments.

METTL14 or CSF1R knockdown and cell transfection

Small interfering RNA (siRNA) against METTL14 (si-METTL14-1, si-METTL14-2, si-METTL14-3) or CSF1R (si-CSF1R-1, si-CSF1R—2, si-CSF1R-3) and negative control (si-NC) were synthesized by Shanghai Gene Pharma Co., Ltd. The siRNA sequences were:

METTLE14-siRNA1.

Sense: GGAUGAGUUAAUAGCUAAAUC.

Antisense: UUUAGCUAUUAACUCAUCCUU.

METTLE14-siRNA2.

Sense: GGAUGAUAUUAUGAAGUUAGA.

Antisense: UAACUUCAUAAUAUCAUCCCA.

METTLE14-siRNA3.

Sense: GACUGGUUGUACAGAAGAAAU.

Antisense: UUCUUCUGUACAACCAGUCAA.

CSF1R—siRNA1.

Sense: GCGUUGAUGUUAACUUUGAUGUCUUdtdt.

Antisense: AAGACAUCAAAGUUAACAUCAACGCdtdt.

CSF1R—siRNA2.

Sense: CUCAACAAUCUGACUUUCAUAAUdtdt.

Antisense: AUUAUGAAAGUCAGAUUGUUGAGdtdt.

CSF1R—siRNA3:

Sense: CCCAGGAGCUACACUGAUAdtdt.

Antisense: UAUCAGUGUAGCUCCUGGGdtdt.

The cells were cultured in 6-well plates. When the cells reached 75% confluence, SiRNAs were transfected at a final concentration of 50 nM using GeneMut reagent (SignaGen Laboratories).

Lentiviruses from Sangon Biotech (NM_001715.3) were used to overexpress METTL14. Stabling overexpression lentivirus or control lentivirus were transfected into H1299 cells by using lipofectamine 3000 reagent (Invitrogen). Then, H1299 cells were grown in DMEM with 10% FBS added.

RNA extraction and qRT-PCR

After transfection, cells were extracted using TRIzol reagent. The total cellular RNA was extracted, and reverse transcribed into cDNA using a PrimeScript RT reagent kit. The expression levels of METTL14 were detected by quantitative reverse transcription polymerase chain reaction (qRT-PCR) and the reaction system used 5 μl of extracted RNA. The glyceraldehyde 3-phosphate dehydrogenase (GAPDH) gene was used as an internal control, and each sample was performed in triplicate. The METTL14 and GAPHD primer sequences were:

METTL14 forward primer sequence (5′—> 3′): AGTGCCGACAGCATTGGTG; Reverse primerGGAGCAGAGGTATCATAGGAAGC;

GAPDH forward primer sequence (5′—> 3′): GGAGCGAGATCCCTCCAAAAT; Reverse primerGGCTGTTGTCATACTTCTCATGG;

Western blot (WB) analysis

H1299 cells were lysed with a mixed buffer that contained RIPA, NaF, and PMSF (Beyotime) on ice for 30 min. Then, the collected protein was denatured in a 95°C water bath for 10 min and centrifuged at 12 000 rpm at 4°C for 10 min. The upper clear cell lysates were transferred to new tubes. Equal amounts of protein were loaded on gels and separated by SDS-PAGE. Then, proteins were transferred to PVDF membranes (Immobilon-P; Millipore) and blocked with 5% milk or bovine serum albumin, followed by incubation with primary and secondary antibodies.²³ Primary antibodies were METTLE14 (1:2000, CST, 51104), CSF1R (1:1000, abcam, ab229188), and GAPDH (1:10000, abcam, ab181602) antibodies.

Cell counting kit-8 (CCK8) assay

SiRNAs transfected A549 and H1299 cells were placed in a 96-well plate and the serum-free medium was replaced after being cultured for 24, 48 and 72 h. Then, 10 μl of cell counting kit-8 (CCK8) reagent was added to each well. The plates were incubated for 2 h, and the optical density (OD) value was measured at 450 nm. Each measurement was repeated in triplicate.

Colony formation assay

After trypsin digestion of cells in logarithmic growth stage, complete medium (basic medium +10% fetal bovine serum) was resuspended into cell suspension and counted. We inoculated 400–1000 cells / well in each experimental group in 6-well culture plates (generally 700 cells/well according to cell growth). These were cultured until 14 days or the number of cells in most single clones was greater than 50, and the solution was changed every 3 days and the cell state observed. After cloning, the cells were photographed under a microscope, and then washed with PBS once. Then, 1 ml of 4% paraformaldehyde was added to each well, they were fixed for 30–60 min, and washed with PBS once. Next, we added 1 ml of crystal violet dye solution to each well and dyed the cells for 10–20 min. Finally, PBS was used to wash the cells several times, they were air dried, and photographed with a digital camera (taking images of the whole six well plate and each hole separately).

Cell cycle analysis

To determine the function of METTL14 in the cell cycle, H1299 cells were transfected with METTL14 siRNAs. This was achieved by starving the cells in serum-free DMEM for 24 h. The cells were then fixed in 70% ice-cold ethanol overnight and subsequently treated with DNase-free ribonuclease (Takara Bio), stained with propidium iodide (Sigma-Aldrich), and subjected to a FACSAria flow cytometer (BD Biosciences USA). The data were analyzed using ModFit LT software (Topsham).

Cell death analysis

Then, annexin V fluorescein isothiocyanate (FITC)/propidium iodide (PI) detection kit (Invitrogen) was added to each sample for 15 min in the dark, according to the manufacturer's protocol. The fluorescent signals reflecting cell apoptosis were evaluated by flow cytometry within 1 h. Annexin V + cells were apoptotic cells.

Transwell assay

A transwell assay were performed to assess cell invasion and migration. For the invasion, Matrigel was used to coat the porous membrane and cells were seeded into the upper chamber. The 3 × 10⁵ (without Matrigel) or 5 × 10⁵ cells (with Matrigel) in serum-free medium were seeded into the upper chamber. The lower chamber was filled with medium supplemented with 10% FBS as a chemoattractant. After 48 h of incubation, the cells on the upper surface of the filter were removed with a cotton swab, and cells that invaded through the filter or Matrigel stuck to the lower surface of the filter were fixed and stained with 0.5% crystal violet, and counted under a light microscope.

Wound healing assay

The confluent cell monolayer was manually damaged by scraping the cells with a 200 μl pipette tip. Photographs were taken using an optical microscope (Olympus) at 0, 24, and 48 h, respectively. The distances were measured by Image-Pro Plus 6.0 software.

Tissue microarray and immunohistochemistry (IHC)

Tissue microarray was obtained from Outdo Biotech Co., Ltd. Immunohistochemistry was performed to assess the expression of proteins METTL14 in NSCLC samples of tissue microarray. Following deparaffinization and rehydration, sections were blocked for endogenous peroxidase by incubating in 3% H₂O₂ and then washed in PBS containing 0.05 mol/l EDTA followed by 4% paraformaldehyde. Tissues were incubated in 4% dry milk and 0.3% goat serum in PBS solution for 20 min to block nonspecific binding. Then, 4-μm sections were incubated overnight at room temperature with anti-Ki67 (Santa Cruz) antibody in the presence of 10% rabbit serum. After washing, sections were then incubated for another 2 h with horseradish peroxidase (HRP) goat anti-rabbit IgG secondary antibody. Slides were counterstained with hematoxylin to stain cell nuclei and examined under a light microscope (Olympus).

A PANNORAMIC panoramic slice scanner was used to put the tissue slices on the machine and the slices were gradually move under the lens of the scanner. While moving and imaging, all the tissue information on the tissue slices was scanned and imaged to form a folder containing all tissue information on the tissue section. After the folder is opened with CaseViewer2.4 software, it can be magnified at any multiple of 1–400 times for observation. All tissue points on the tissue chip are scored with the same standard for positive comprehensive score, which is the product of the staining intensity of the target cell and the percentage of positive cells. Positive cells need to be distinguished from background or nonspecific staining. The staining intensity is scored based on the staining characteristics of the target cells: 0 points for no staining (no negative in this experiment), 1 point for light yellow (bottom 1), 2 points for brown (bottom 2), and 3 points for dark brown (bottom 3). Scoring is based on the positive rate of cells: 0 to 5%, 1 to 6%–25%, 2 to 26%–50%, 3 to 51%–75%, and 4 to >75%. Each tissue point on the tissue chip is scored for staining intensity and percentage of positive cells. The positive comprehensive score is the product of the staining intensity and the percentage of positive cells. We defined the expression level of METTL14 according to the median of mean value of METTL14 gene expression in IHC staining scores (=8). We divided the samples with IHC staining scores > = 8 into the high expression group and <8 into the low expression group.

RNA sequencing

Total RNA was isolated from METTL14 silencing and control H1299 cells. The quantity and quality of RNA were assessed by the NanoDrop ND-1000 spectrophotometer (Thermo Fisher Scientific). RNA integrity was determined by RNA integrity number with the 2200 TapeStation analyzer (Agilent Technologies), and samples that had an RNA integrity number above 7.0 were considered acceptable. The isolated RNAs were used for preparing cDNA libraries by NEBNext Ultra RNA Library Prep Kit for Illumina (ENB). Products were purified with Agencourt AMPure XP beads (Beckman) and diluted to 10 pM for cluster generation in situ on a HiSeq 3000 paired-end flow cell. The clustering of the index-coded samples was carried out using a HiSeq Rapid PE Cluster Kit V2 (Illumina). After cluster generation, the libraries were sequenced (2 × 150 bp) on the HiSeq 3000 platform.

RNA immunoprecipitation sequencing (RIP-Seq)

RIP was performed using the Magna RIP RNA-binding protein immunoprecipitation kit (Millipore), according to the manufacturer's protocol. Briefly, H1299 cells were washed in PBS and lysed in 10 mM Hepes 7.4, 150 mM KCl, 3 mM MgCl2, 2 mM DTT, 0.5% NP-40, 1 mM PMSF, and 10% glycerol with protease and RNase inhibitors (Roche). Immunoprecipitation were performed overnight at 4°C with 500–1000 μg of lysate and 5 μg of the following antibodies: Rabbit or mouse total IgG and METTL14 antibody (Santa Cruz Biotechnology). For each IP, 25 μl of protein A/G magnetic beads (Thermo-Fisher) were added to each sample and incubated for an additional 2 h. Beads were washed 5× with the lysis buffer specified above, and split for RNA and protein analysis. Sequencing reads were aligned to the human genome GRCh37/hg19 by HISAT2.¹⁶ The resulting p-values were adjusted using Benjamin and Hochberg's approach for controlling the false discovery rate (FDR). The DESeq R package was used to enrich genes with the criterion of Log2[fold change (FC)] > 1 and FDR <0.05.

M6A RNA methylation sequencing (MeRIP-Seq)

MeRIP and library preparation were conducted according to a previously published protocol with minor revisions.²⁴ Briefly, poly-A-purified RNA was fragmented and incubated with an anti-m6A antibody. The mixture was immunoprecipitated via incubation with protein A beads (Thermo Fisher Scientific). The captured RNA was washed and purified with the RNA clean and concentrator kit (Zymo Research). Total mRNA and 200 ng of immunoprecipitated RNA from each sample were sequenced and used for library construction using the Illumina Hiseq 2000 platform, as per the manufacturer's instructions The completed libraries, qualified by an Agilent 2100 bioanalyzer, were denatured, and diluted to the loading volume of a loading concentration. Clustered libraries were loaded onto a reagent cartridge and forwarded for sequencing runs on an Illumina Hiseq 4000 system by Novogene Biotech Co., Ltd. Sequencing peaks were annotated to the Ensembl database. Sequence motifs were identified using MEME-ChIP analysis.²⁵

Statistical analysis

Data were analyzed by Graphpad version 7.0 software and are presented as the mean ± SD. Data comparison was performed by Student's t-test for two groups and two-way ANOVA with Bonferroni post-test for multiple groups. A p-value < 0.05 was considered to indicate a statistically significant difference.

Clinical significance of RNA methyl-transferase METTL14 in NSCLC

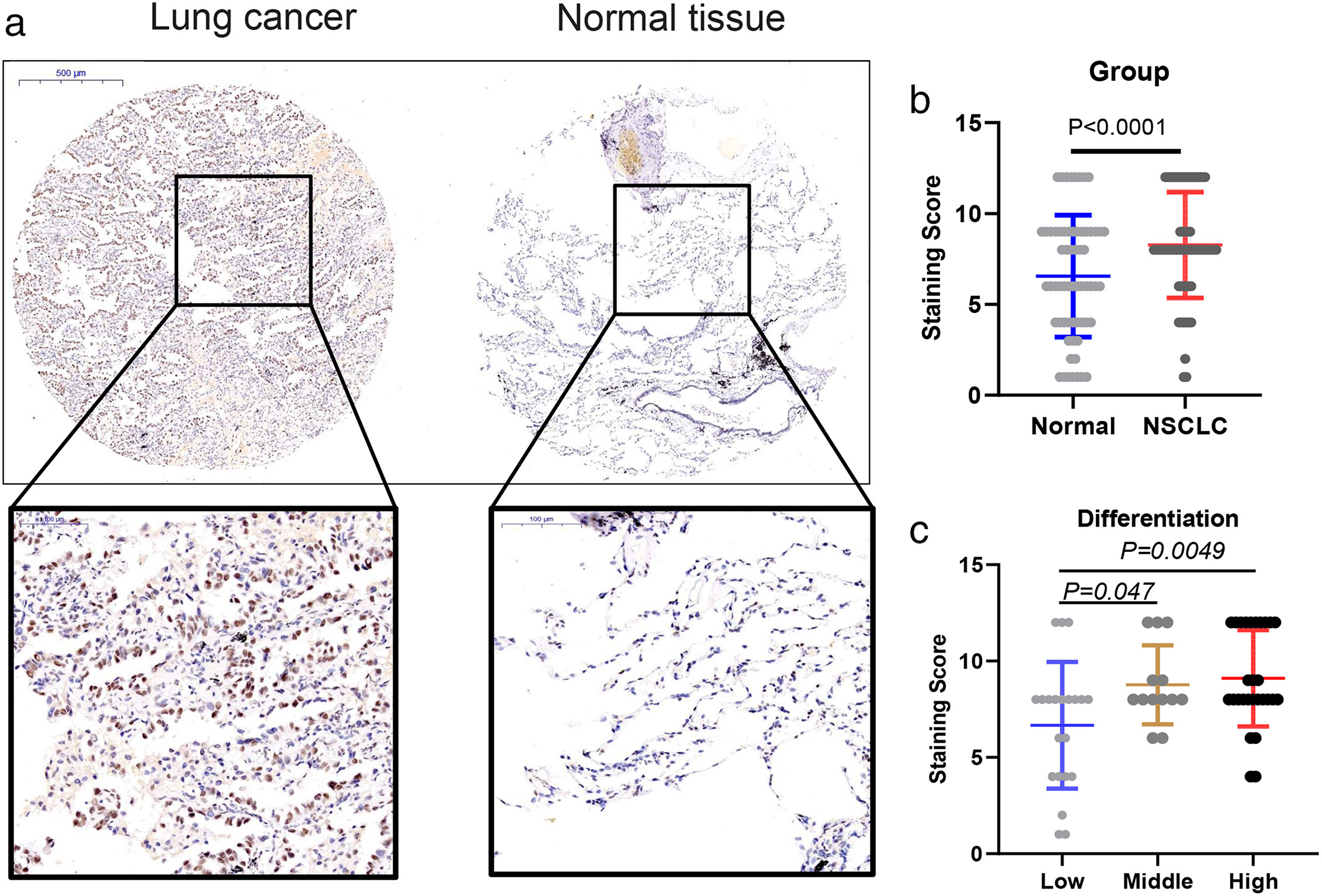

To explore the clinical significance of METTL14 in NSCLC, we conducted IHC staining of METTL14 protein in 63 paired lung cancer samples of tissue microarray (TMA, Figure S1). The staining score of METTL14 was compared in normal and tumor groups. As a result, METLL14 showed significantly higher expression in the tumor than in the normal group (Figure 1a). Then we analyzed the staining score of METLL14 protein with clinical pathological parameters. As shown in Table 1 and Figure 1b,c, METTL14 was significantly correlated with gender (p = 0.0354) and differentiation (p = 0.0488).

METTL14 promotes NSCLC promotion and metastasis in vitro

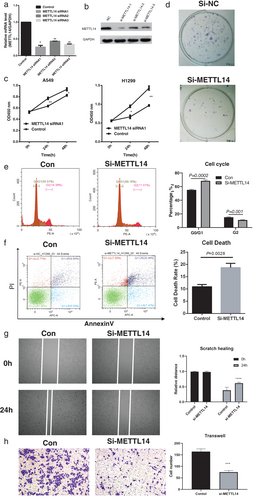

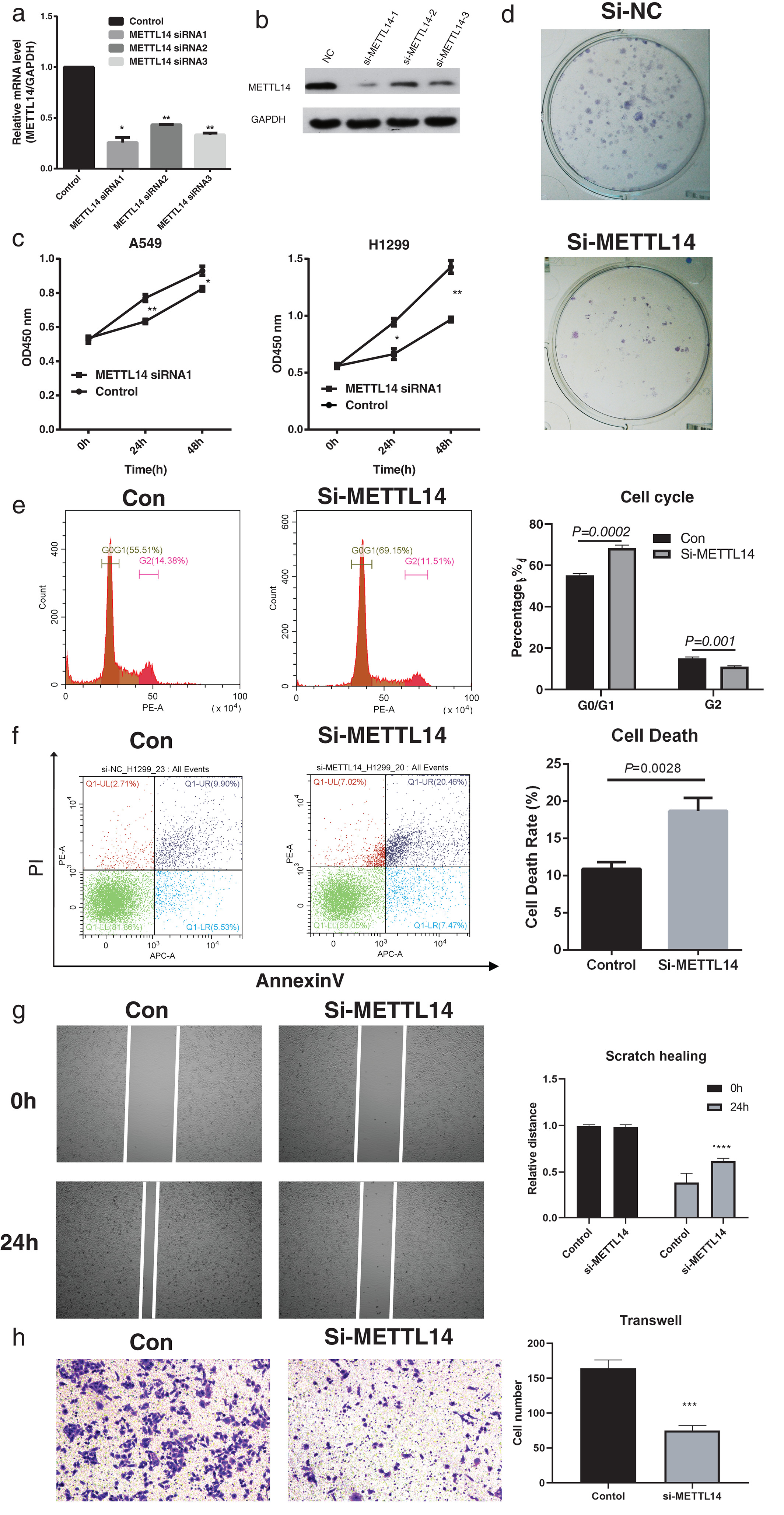

To investigate the function of METTL14 in NSCLC, three small interference RNAs (siRNAs) targeting METTL14 (METTL14 siRNA1-3) were designed, and their interference efficiency was analyzed with qRT-PCR and WB. As shown in Figure 2a,b, siRNA1 showed the best METTL14 silencing efficiency in H1299 cells, and was used for subsequent functional analysis. To explore the function of METTL14 on NSCLC cell proliferation, CCK8 assay was conducted on two cell lines A549 and H1299, respectively. For both cell lines, METTL14 knockdown significantly inhibited the number of cells, especially in H1299 cell line (Figure 2c). Furthermore, we verified that the si-METTL14 remarkably inhibited the cell proliferation through colony formation assay (Figure 2d), which was consistent with CCK-8 results. Additionally, cell cycle and cell apoptosis rate were analyzed by FACS. The cell cycle analysis results revealed that METTL14 knockdown significantly induced G0/G1 phase arrest (METTL14 KD 68.35% vs. control 55.14%), and reduced the proportion of G2 phase cells (METTL14 KD 11.03% compared with control 15.02%) (Figure 2e). Furthermore, METTL14 knockdown induced the H1299 cell death rate (METTL14 KD 20.46% vs. control 9.90%, Figure 2f). Then, the function of METTL14 on cell invasion and migration was investigated using transwell and wound healing assays, respectively. As shown in Figure 2g,h, METTL14 knockdown significantly reduced cell invasion and migration. Taken together, the above results suggested that METTL14 knockdown inhibited NSCLC cell proliferation, invasion, and migration in vitro.

Transcriptome and MeRIP-sequencing reveals oncogenic mechanism of METTL14

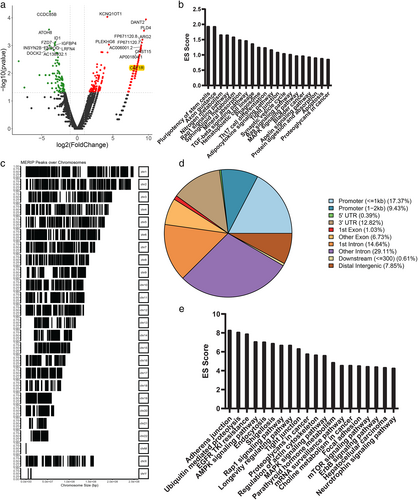

To uncover the pathways and potential mechanism of METTL14 in NSCLC, we conducted RNA sequencing and methylated RNA immunoprecipitation (MeRIP) sequencing in H1299 cells. As shown in Figure 3a and Table S1, 574 differential expression genes were explored (fold change > = 2 or < =0.5 and p-adj < =0.05) in H1299 cells, including 269 protein coding genes, 187 lncRNAs and 118 other type RNAs (processed pseudogenes, snoRNAs and misc_RNAs), suggesting a pervasive role of METTL14 on RNA types. Of all 574 differentially expressed genes (DEGs), 455 were upregulated and 119 were downregulated. Then, we analyzed the function of the coding genes and found that well-known cancer related pathways such as the Rap1 signaling pathway²⁶ (genes like CSF1R and MRAS) and TGF-beta signaling pathway^{27, 28} (genes like ID2 and THBS1) were significantly enriched (Figure 3b). Interestingly, we also observed several deregulated lncRNAs with oncogenic or tumor suppressing function in lung cancer, such as KCNQ1OT1,²⁹ DHRS4-AS1³⁰ and NEAT1.^{31, 32}

For MeRIP sequencing result, differential analysis enriched 7158 peaks of 4480 genes in H1299 cells (Figure 3c and Table S2). Gene body analysis of these peaks showed that these peaks locate mainly in introns, 3'UTR and promoter regions of protein coding and noncoding genes (Figure 3d and Table S2). Functionally, protein-coding genes were mainly involved in well-known cancer related pathways like Rap1 signaling pathway (genes like ITGB1, CTNND1 and IGF1R), Proteoglycans in cancer (genes like RAC1, PRKCG and WNT5B) and MAPK signaling pathway (genes like FLT3, HSPB1and ARRB2) (Figure 3e). Similar to RNA sequencing results, oncogenic or tumor suppressing lncRNAs were also identified, and contained SNHG3,³³ MALAT1^{34, 35} and TUG1.³⁶ Finally, we explored the 65 common genes in both differential expression and peak, including 46 protein-coding genes and 14 lncRNAs (Table S3).

RIP-sequencing highlights CSF1R and AKR1C1 as targets of METTL14

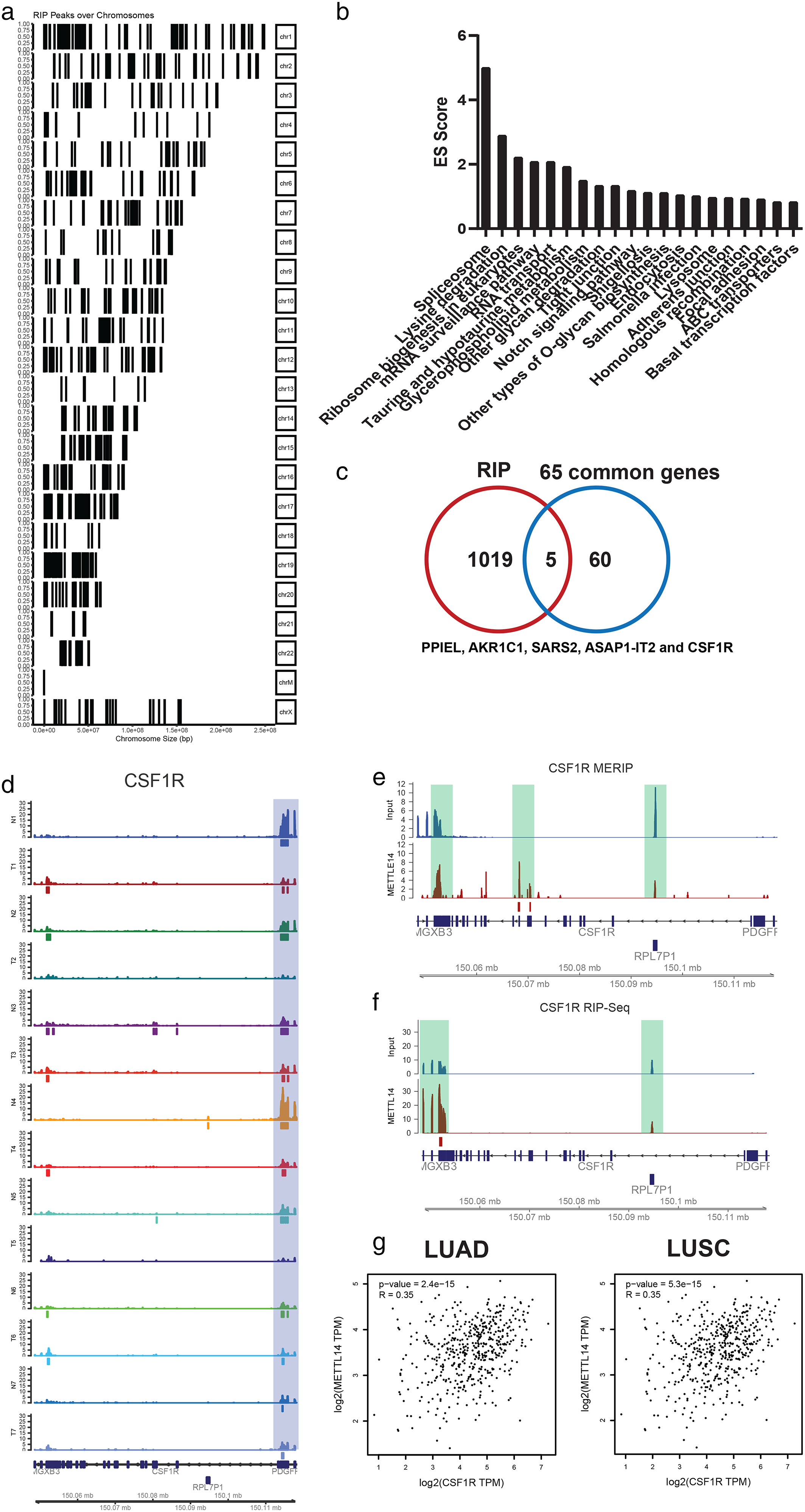

Furthermore, to identify RNAs bound by METTL14, RNA immunoprecipitation (RIP) sequencing of METTL14 was conducted in H1299 cells. As a result, 2100 peaks of 1024 genes were identified, including 906 protein-coding mRNAs and 28 lncRNAs (Figure 4a and Table S4). As expected, the protein-coding mRNAs were involved in RNA metabolism pathways like spliceosome, mRNA surveillance pathway and RNA transport. Additionally, genes in the Notch signaling pathway (NCOR2, CREBBP, KAT2A, EP300 and DVL3) were one of the top10 enriched items (Figure 4b). For lncRNAs, METTL14 bound oncogenic or tumor suppressing lncRNAs were also identified, exemplified by HOXB-AS3³⁷ and PVT1.³⁸ Next, we compared the METTL14 binding mRNAs with 65 common genes by RNA sequencing and MeRIP sequencing. Five genes were commonly identified, including four protein coding genes (PPIEL, AKR1C1, SARS2 and CSF1R) and one lncRNA ASAP1-IT2 (Figure 4c). Then, the m6A methylation level of 5 genes were analyzed in the above mentioned 7 paired NSCLC tissue samples, and only CSF1R showed differential methylation level (Figures 4d–f and S2). Therefore, CSF1R was presumed to be the target of METTl14 in lung cancer. In cancer cells, aldo-keto reductase family 1 member C1 (AKR1C1) showed robust role in tumor genesis,^39-41 including lung cancer.^42-44 Colony stimulating factor 1 receptor (CSF1R) is a cytokine which controls the production, differentiation, and function of macrophages. Notably, CSF1R also showed oncogenic function and performed as prognostic marker in lung cancer, which is consistent with the function and clinical significance of METTL14. Finally, to validate CSF1R as the target of METTL14, METTL14/CSF1R coexpression was calculated in TCGA lung cancer datasets. Both genes showed significant positive coefficient in lung adenocarcinoma (R = 0.35, p = 2.4 e−15) and lung squamous carcinoma (R = 0.35, p = 5.3 e−15) samples (Figure 4g). Altogether, we uncovered an m6A RNA modification atlas, revealed the function and clinical significance of METTL14 in lung cancer.

METTL14 in the involvement of CSF1R in NSCLC proliferation and metastasis

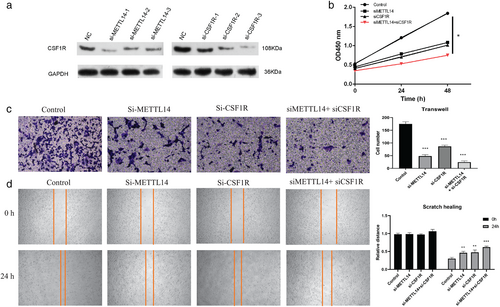

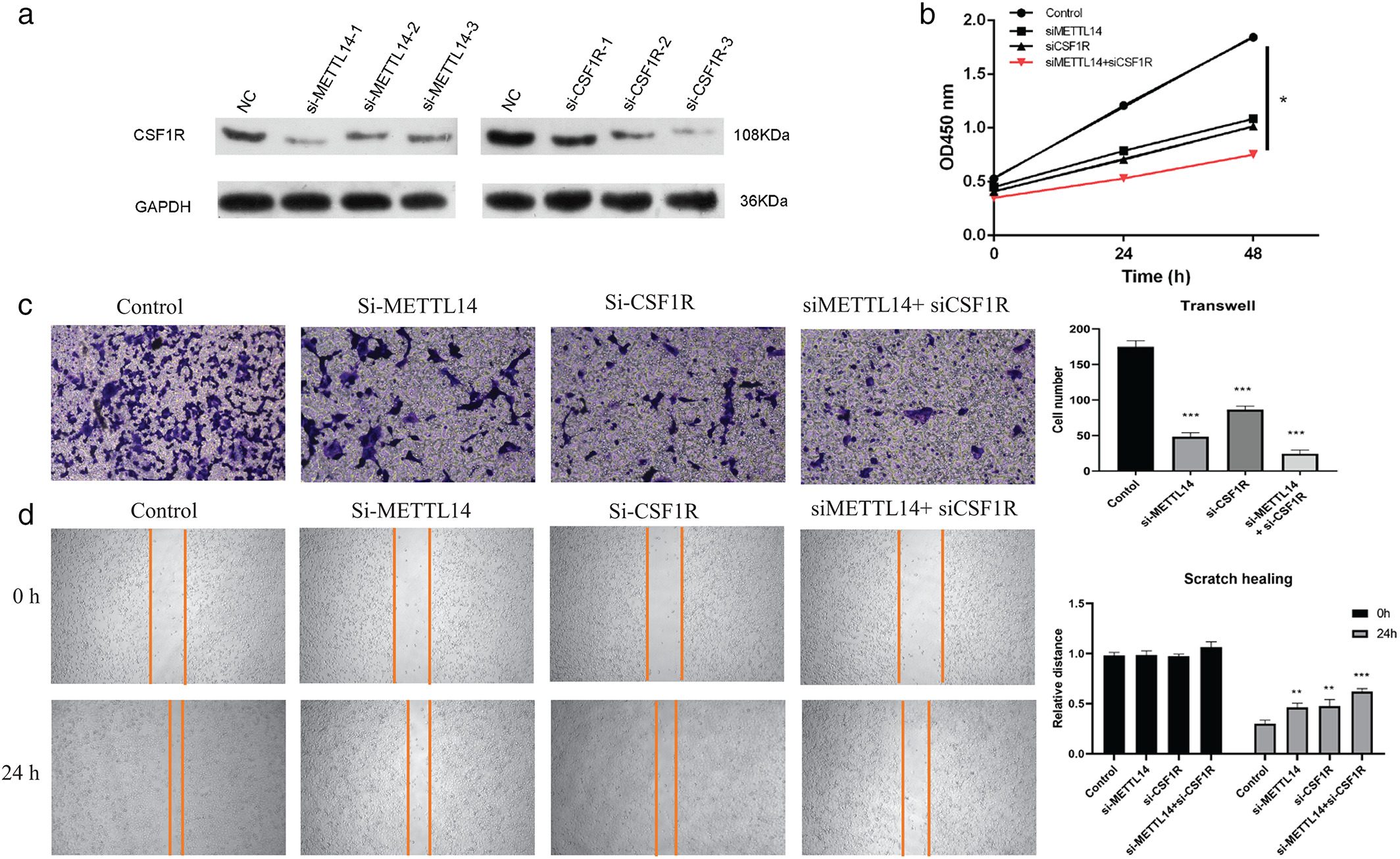

Finally, we conducted cellular experiments for validation of the function of CSF1R in NSCLC proliferation and metastasis. Three siRNAs targeting CSF1R (si-CSF1R 1–3) were designed, and their interference efficiency was detected by WB. As shown in Figure 5a, WB analysis showed that si-CSF1R-3 significantly decreased the expression of CSF1R, and si-METTL14-1 also remarkably suppressed its expression, thus the si-CSF1R-3 and si-METTL14-1 were selected for further experiments. The CCK-8 analysis showed that H1299 cells treated with si-CSF1R and si-METTL14 at the same time significantly inhibited cell proliferation compared to the control group (Figure 5b). In addition, the transwell and wound healing assays demonstrated that CSF1R knockdown significantly reduced the invasion cell number and migration distance (Figure 5c,d), and METTL14 was involved in this process. In addition, we detected the mRNA level after the overexpression of METTL14. As shown in Figure 6a, overexpression of METTL14 could enhance the CSF1R expression. According to the CCK-8 analysis, transwell and wound healing assays, CSF1R knockdown can block the proliferation and metastasis effect of METTL14 overexpression in H1299 cell line (p < 0.05, Figure 6b–d). In summary, these results revealed that the siCSF1R significantly inhibited the proliferation, migration, and invasion of HT1299 cells, which involved with the regulation of METTL14.
