2.1 Sampling and Pool-Seq sequencing

Samples used in this study were collected in 2012 for the study of Henriques et al. (2016), from fisheries surveys by the Department of Forestry, Fisheries and Environment (DFFE – South Africa) and the Ministry of Fisheries (Namibia), and ethical clearance for data usage was obtained from the University of Pretoria (NAS217/2021). The sampling design mimicked the main oceanographic features of the Benguela Current system, with samples collected from north and south of the perennial upwelling cell, as well as past Cape Point towards the east in South Africa (Figure 1a). For M. capensis, samples were obtained from northern Namibia to the southern West Coast of South Africa, as previous findings reported a single population break across the Orange River. For M. paradoxus, sampling took place from northern Namibia to south-western South Africa, as von der Heyden et al. (2007) reported a putative genetic break across Cape Point in South Africa, which was not detected by Henriques et al. (2016). A reduced representation, pooled sequencing approach was employed (ezRAD Pool-Seq—Toonen et al., 2013) to generate SNPs, as this methodology is a cost-effective way to accurately obtain population-based allele frequencies (Dorant et al., 2019).

Muscle tissue was sampled from 20 to 40 individuals for each pool per species, and their DNA was pooled based on average latitude and depth of the sampling sites, as well as the genotypes of M. capensis individuals obtained from microsatellite data (Henriques et al., 2016), meaning that for this species, northern and southern Benguela pools contained individuals with either a northern or southern genotype. Four M. capensis pools were obtained: northern Namibia (CNN), central Namibia (CCN), northern South African west coast (CWC) and southern South African west coast (CWC2). The five M. paradoxus pools included northern Namibia (PNN), central Namibia (PCN), northern South Africa west coast (PWC), southern South African west coast (PWC2) and South African southwest coast (PSW). DNA was extracted using the chlorophorm:isoamyl alcohol method of Winnepenninckx et al. (1993) and quantified using a broad-range QUBIT assay (Invitrogen) at the Central Analytical Facilities of Stellenbosch University. DNA samples were pooled in equal concentrations and sent for paired-end sequencing at the Hawai'i Institute of Marine Biology (HIIMB), following the protocol of Knapp et al. (2016). This method employs a high-frequency restriction enzyme (DpnII—5′ GATC 3′) to shear DNA and uses the Kapa Hyper Prep kit for library preparation. Sequencing was conducted on an Illumina MiSeq platform for 600 cycles, generating paired-end reads of 300 bp.

2.2 Bioinformatic pipeline

Raw reads were received in fastq format and checked for quality in FASTQC (Andrews, 2010). Three trimming and quality checks were done sequentially to improve read quality in TrimGalore! 0.6.5, namely, reads with a low Phred quality score (Q < 25), shorter than 50 base pairs (bp) and containing uncalled bases (‘N’) were removed from the data sets. A final trimming of 5 bp from both 5′ and 3′ ends of all reads was performed to improve per base sequence content. The cleaned and trimmed reads were merged using FLASH 1.2.11 (Magoč & Salzberg, 2011) with default parameters, as this significantly improves read alignment to reference genomes (Li & Durbin, 2009).

To create a nuclear DNA (nDNA) data set for further downstream analyses, mitochondrial reads were identified and removed. As there are no available mitochondrial genomes for either of the study species, the cleaned reads were mapped to the mitochondrial genome of the European hake M. merluccius (accession number FR751402), using BWA-MEM 0.7.17 alignment program with default parameters (Li, 2013; Li & Durbin, 2009). The resulting SAM files were used to extract reads that mapped to the reference mitogenome in samtools 1.9 (Li et al., 2009; Li, 2021), using the ‘filterbyname’ script in BBmap (Barnett et al., 2011). The nDNA-only data sets were mapped to the available reference genome of M. capensis (accession number GCA_900312945.1, total size 414.3 Mb) in BWA-MEM, with resulting SAM files sorted, indexed, merged (combined and non-combined FLASH reads) and converted into BAM files. In order to decrease the possibility of secondary alignments (i.e. where reads map to more than one location in the reference), the BAM files were filtered further, retaining only reads with mapping quality (MAPQ) ≥ 20, and subsampled all bam files in samtools 1.9 (Li et al., 2009; Li, 2021) to the minimum number of reads across pools to ensure equal representation of each pool in downstream analyses.

SNP calling was first performed in samtools 0.1.18, generating an mpilup file per species, which was then converted to sync files using the ‘mpileup2sync.py’ script from PoPoolation (Kofler, Orozco-terWengel, et al., 2011). Pooling and sequencing error biases are accounted for when using PoPoolation as it is designed specifically for Pool-seq data. Further SNP filtering was done using the ‘snp-frequency-diff.pl’ script from PoPoolation2 (Kofler, Pandey, & Schlötterer, 2011), and SNPs were retained if they had a minimum allele count of 3, minimum coverage of 20 reads and a maximum coverage of 300 reads, to minimize the possibility of called SNPs resulting from sequencing errors as well as over-merging, that is, collapsing reads of different RAD-loci into a single RAD-locus. This approach ensured that for a SNP to be called, all pools had to have at least three reads in that region. Therefore, if a SNP had an allele frequency of zero in any particular pool, it would result from that pool having the reference allele and not from missing data. Further filtering was conducted using custom scripts (Data S1) to retain only biallelic SNPs and SNPs between populations for M. paradoxus, to avoid capturing SNPs against the M. capensis reference in this data set. Given the type of data and the aim to understand if natural selection may play a role in shaping the evolutionary history of these two species, the data were not filtered for linkage disequilibrium.

2.3 Estimates of genomic diversity and population differentiation

To characterize genome-wide levels of diversity for each pool and species, several metrics were calculated (Table S1). First, the minor allele frequencies were obtained from the sync files using a custom-built command (Data S1), to obtain the number of total and private SNPs (as a measure of uniqueness) per pool and species, in R Core Team (2021). Second, nucleotide diversity (π), Watterson's theta estimator (θ) and Tajima's D were calculated for each species and each pool in PoPoolation (Kofler, Orozco-terWengel, et al., 2011). These metrics were calculated in 500 bp windows, as recommended by Kofler, Orozco-terWengel, et al. (2011) for pools with low-sequencing coverage (<50×), with a minimum read count of 2, minimum coverage of 20 reads, maximum coverage of 300 reads, minimum percentage of sites having sufficient coverage in the given window of 60% and a minimum mapping quality of 20, using the ‘Variance-sliding.pl’ script of Popoolation, per pool and species, and their average calculated for intervals where SNPs were present (number of SNPs different from zero and metric different from zero, to avoid calculating diversity for SNPs that might be fixed against the reference). The pool size was specified as the median number of gene copies (Table S2). In order to understand if obtained metrics of diversity were significantly different between species, a Mann–Whitney–Wilcoxon test was performed in R Core Team (2021).

To assess patterns of population substructuring in the two species, principal component analyses (PCA) were performed based on the exact allele counts generated by PoPoolation2 (Kofler, Pandey, & Schlötterer, 2011), using the packages ‘dplyr’, ‘ade4’, ‘FactoMineR’, ‘factoextra’, ‘gridExtra’ and ‘utils’ in R (Auguie, 2017; Kassambara & Mundt, 2021; Lê et al., 2008; R Core Team, 2021; Thioulouse et al., 2018; Wickham et al., 2021). Preliminary PCAs for M. paradoxus, and to a lesser extent M. capensis, revealed a clustering pattern which coincided with the grouping of pools for sequencing, that is, a batch effect. Batch effects are variation patterns observed between subgrouped data due to technical variables, and can drastically influence the conclusions drawn from a study (Leek et al., 2010; Lou & Therkildsen, 2021). They can occur at three different stages: during DNA extraction, library preparation and sequencing. Sequencing batch effects are likely due to differences in sequencing chemistry, read type, sequencing run, read length, DNA degradation level and sequencing depth (Lou & Therkildsen, 2021). During the DNA extraction and pooling step, DNA extraction protocols were standardized, pooling samples with similar DNA concentrations and qualities across pools, in order to minimize variability. Although it is not possible to discard the possibility that problems arose during library preparation, the same protocol has been used for different studies on different taxa by our group (Nielsen et al., 2018, 2020; Schulze et al., 2020) without similar effects being observed. The most likely explanation might be linked with differences in DNA degradation and/or sequencing chemistry across pools, as the observed effect accurately mimicked the order in which the samples were sequenced particularly for M. paradoxus. Lou and Therkildsen (2021) noticed a similar effect when comparing low coverage whole genome data from different studies, and suggested developing batch effect resistant bioinformatic pipelines, particularly during the SNP calling phase. In this study, to assess the possibility of a batch effect, the contribution of each SNP to the differentiation along the PC 1 was computed from the PCAs using the entire data sets and extracted into a data frame. The top 1%, 5%, 10% and 15% of SNPs causing the differentiation observed in the individual PCAs were identified. These four sets of SNPs were sequentially removed from the original data sets to evaluate their impact in the population substructuring patterns identified. Results indicated that the top 5% for M. capensis and the top 10% M. paradoxus contributing SNPs should be removed to adequately eliminate the observed batch effect (Data S3), while still retaining enough information for population-based inference, and this was completed using the R package ‘dplyr’. The filtered data sets were then used in all downstream analyses and are hereafter named the final data sets.

Overall and pairwise F_ST were calculated for each species using the R package ‘Poolfstat’ (Hivert et al., 2018). The filtered sync files were converted to a ‘pooldata’ object using ‘popsync2pooldata’, with additional filtering steps including exact pool size (haploid number of individuals per pool), and a minimum minor allele frequency (MAF) of 1%. Overall F_ST was calculated using the command ‘computeFST’, while pairwise F_ST were calculated using the ‘compute.pairwiseFST’ command, specifying ANOVA as method for the analysis of variance and with a block-jackknife of 2 SNPs per block, given the number of contigs present in the reference genome (Hivert et al., 2018). In order to understand if using different number of individuals per pools would significantly impact our estimates of divergence, F_ST was estimated for (i) original number of individuals per pool; (ii) minimum number of individuals per pool (20 for M. capensis and 35 for M. paradoxus); and (iii) using the median number of individuals per pool (35 for both species). Statistical significance among pairwise estimates for each scenario was determined using a Kruskal–Wallis test in R.

Finally, to assess genome-wide patterns of F_ST for each of the Southern African hakes, the sliding F_ST values were calculated using ‘fst-sliding.pl’ in PoPoolation2 (Kofler, Pandey, & Schlötterer, 2011). F_ST was calculated per SNP only for variable SNPs, with the same parameters as before. Visualization of the genome-wide distribution of SNP-specific pairwise F_ST was done using a scatterplot in the R package ‘ggplot2’ (Wickham, 2016) for only the most genetically (M. capensis) or geographically (M. paradoxus) distant pools of each species as previously identified (i.e. CNN vs. CWC2 and PNN vs. PSW2, as per Figure 1).

2.4 Demographic history

Reconstruction of demographic history for the southern African hakes was performed based on two simple models, a single panmictic population (PAN) or derived from two structured populations connected by gene flow (IM), using the demographic modelling approach implemented in moments (Jouganous et al., 2017). This software uses a likelihood approximation approach to infer the demographic history between two sets of individuals from the joint site frequency spectrum (jSFS). This statistic only requires the allele counts sampled in a given location and does not use individual-based information, making it perfectly suited for Pool-Seq data. In the absence of an outgroup like in this case, the jSFS is computed in its folded version using only the allelic count obtained from the overall MAF. To bypass the effect of variable depth of sequencing across SNPs within and across all pools, allele counts were standardized as if 20 chromosomes were sequenced (~10 diploid individuals) prior to computing the jSFS, based on allele counts generated in Poolfstat as above, without enforcing a minor allele frequency. Then, the ability of the two models to reproduce the observed jSFS was compared: A situation where an ancestral population went through changes in population size sometime in the past without any population split (PAN model), and a classic island model with one ancestral population split in two derived populations, which have then diverged for a certain period of time (IM model; Figure S1). The two models were then adjusted to the data using the parameter optimization procedure initially developed by Portick et al. (2017) for dadi and adapted to moments in Momigliano et al. (2021) and Le Moan et al. (2021). This routine uses a four-step optimization procedure to infer the best parameters of each model. Each of the optimization steps was replicated 20, 20, 40 and 40 times, respectively, and the optimization routine was run 20 times for each model to control for convergence. The 10 best runs were kept for each model, and the best model was then selected based on the Akaike information criterion (AIC). A stringent threshold of four points of AIC differences with the best model (ΔAIC) was used to assess the significance of a model. For each species, the model comparison was run between each possible pair of pools, for a total of six and 10 pairwise comparison in M. capensis and M. paradoxus, respectively.

2.5 Environmental association analyses

Assessment of possible local adaptation and association of observed population substructuring patterns with environmental features were performed employing an environmental association analysis (EAA) in BayPass 2.31, which is specifically designed for Pool-Seq data (Gautier, 2015). Environmental data were obtained from Bio-Oracle (Assis et al., 2017), using the R packages ‘sdmpredictors’ (Bosch et al., 2022) and ‘leaflet’ (Cheng et al., 2021). Given the previous findings of Henriques et al. (2016), the environmental layers included: mean chlorophyll a concentration (mg/m³); current velocity (mean at mean depth; m/s); mean dissolved oxygen concentration at mean depth (mmol/m³), mean sea water temperature (SST) at mean depth (°C); mean primary production at mean depth (g/m³/day); maximum sea water salinity at mean depth (PSS); mean sea surface temperature (°C); and average depth of the seafloor (m). Collinearity between environmental variables was assessed using the ‘dudi.pca’ function and the ‘usdm’ R package (Naimi et al., 2014; Thioulouse et al., 2018), and variables that were found to be collinear were removed, based on PCA correlation circles, a variance inflation factor (VIF) > 10 and a Pearson correlation >0.7.

The ‘pooldata’ objects generated in the section above were then used to generate ‘genobaypass’ files in Poolfstat for BayPass 2.31. These were run through the standard covariate model of BayPass which allows to assess the extent that a population covariable (environmental variable, in this case) is associated with each SNP (Gautier, 2015), and the recommended model for studies with low number of samples (Gautier, personal comm.). Five independent runs were conducted per species, using the ‘scalecov’ option, to scale each covariable in the environmental database. Given the small number of pools and SNPs, the medians of resulting metrics were calculated for the five runs (Gautier, personal comm.). Detection of outliers in BayPass 2.31 were based in two different approaches: First, based on the XtX values, a metric analogous to F_ST corrected for the scaled covariance of allele frequencies of the populations; second, based on environmental associations. In the first approach, a pseudo-observed (POD) data set was created to estimate the posterior predictive distribution of the XtX values. In this case, outlier SNPs were selected if they fell within the 99% quantile of the POD XtX distribution (Gautier, 2015; Nielsen et al., 2020). In the second approach, environmental associated SNPs were obtained from the relationship between environmental covariates and allele frequencies, with significance assessed based on calculated Bayes Factors (BF) for each locus, where loci with a log10 BF (db) > 20 were identified as outliers (Nielsen et al., 2020).

In addition, redundancy analyses (RDA) were performed using the ‘vegan’ R package, to calculate linear regressions between allele frequencies and the environmental variables at the sites of interest while simultaneously being constrained using a PCA (Forester et al., 2018; Oksanen et al., 2020). Allele frequencies were obtained from the ‘genobaypass’ files generated above and subjected to a Hellinger transformation (Legendre & Gallagher, 2001). The environmental variables were centred and scaled using the ‘scale’ function (Forester et al., 2018). Using both the adjusted R² value and an ANOVA, the significance was tested. Putative adaptive loci were considered to have a loading score of ±3 standard deviation of the average loading for the first two axes (Forester et al., 2018). Preliminary results for M. paradoxus suggested the presence of a batch effect still, and thus, a partial RDA was conducted for this data set, using sequencing lane as a conditional categorical variable.

3.1 SNP calling and filtering

The average number of raw reads per pool was ~3,239,433 for M. capensis (four pools) and ~3,406,445 for M. paradoxus (five pools), and after quality control ~2,960,270 reads were retained for M. capensis and ~2,950,904 for M. paradoxus (Table S1). Very few reads mapped to the mtDNA of M. merluccius, with M. paradoxus showing, on average, a larger number of reads mapped than M. capensis (Table S1). The nuclear-only data sets for each species mapped to the reference genome with a success of 49.88% for M. capensis and 46.27% for M. paradoxus, for MAPQ >20. After subsampling to the lowest number of mapped reads per species, 6030 SNPs were retained for M. capensis and 4963 SNPs were retained for M. paradoxus, with average coverages of 16.81× and 26.58× respectively. Only 512 SNPs were common between both species, representing 8.5% of the M. capensis data set and 10.3% of the M. paradoxus data set.

3.2 Genomic diversity metrics and population substructuring

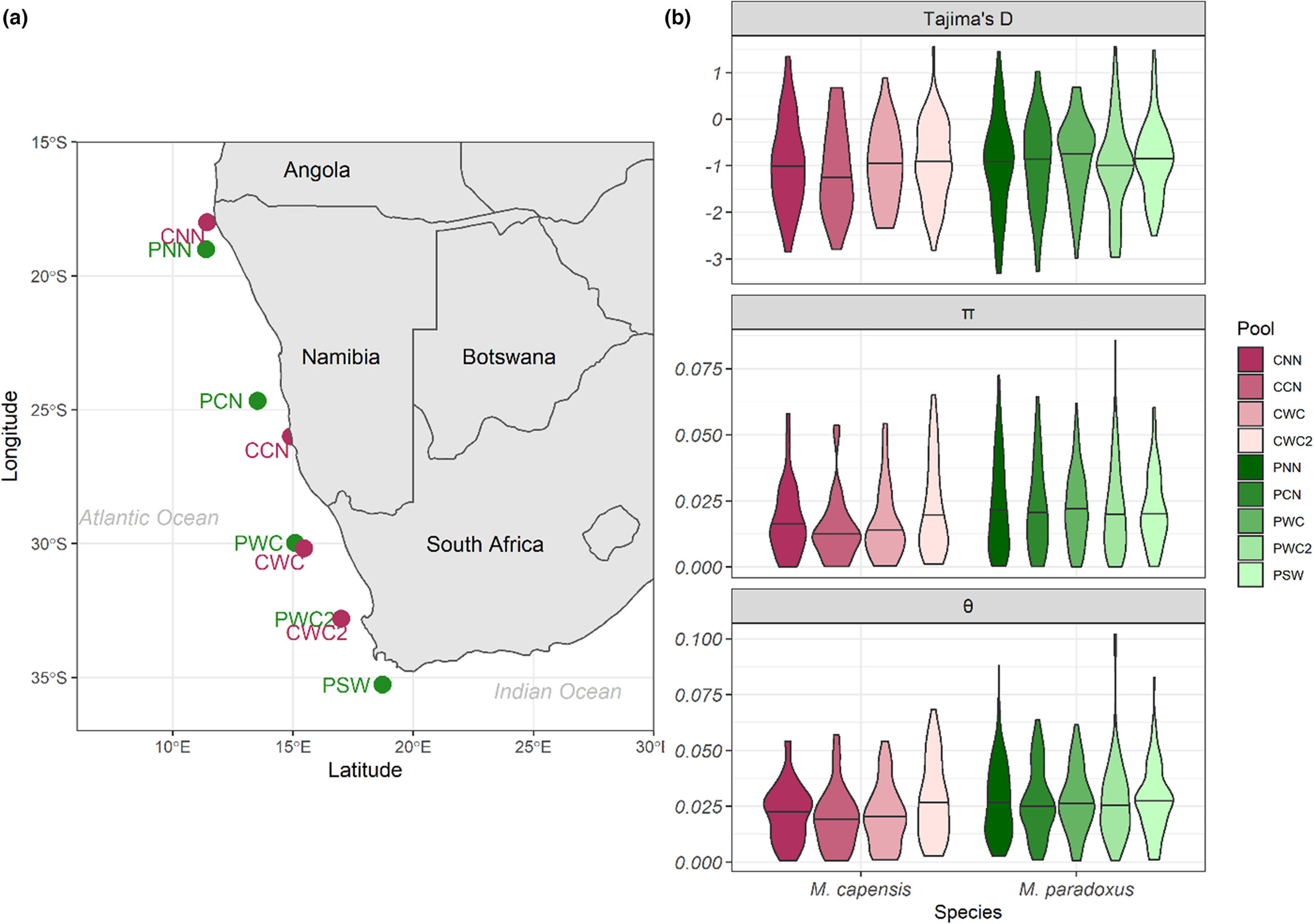

Overall, M. capensis showed a lower level of genomic diversity (θ = 0.019, π = 0.015), compared to M. paradoxus (θ = 0.026, π = 0.021; Figure 1b, Table S2). Merluccius capensis had a lower number of private SNPs, ranging from 522 to 2923 per pool, than M. paradoxus pools (1181–3493 private SNPs; Table S2). Within each species, diversity metrics did not vary greatly across pools, but Watterson's θ was consistently higher than π (Figure 1b, Table S2). Tajima's D was similar across species, with D = −0.839 and D = −0.913 for M. capensis and M. paradoxus, respectively (Table S2). Tajima's D per pool ranged from D = −0.951 (CNN) to D = −0.818 (CWC) in M. capensis and from D = −0.764 (PWC) to D = −0.983 (PWC2) in M. paradoxus (Table S2). The distribution of all metrics was similar across the southern African hakes but M. paradoxus pools did show the greatest variance (particularly π and θ, Figure 1b). Only the comparisons between nucleotide diversity were significantly different from zero between species (p < .05).

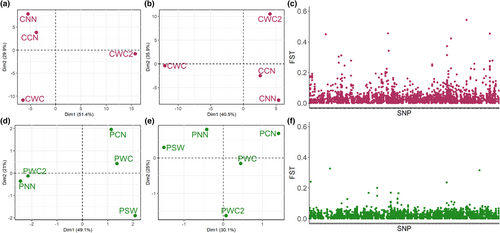

Patterns of population substructuring between the pools of each species were first visualized and assessed using a PCA (Figure 2a,b,d,e). A clear pattern emerged for M. capensis, where the Namibian pools (CNN and CCN) clustered together separately from the South African pools (CWC and CWC2), while the South African pools appeared isolated from each other (Figure 2a). This structuring pattern of the M. capensis pools remained the same even when loci that may have been involved in the batch effect were accounted for (305 loci removed, Figure 2b). On the contrary, using the complete data set resulted in a clear grouping of M. paradoxus pools which matched the sequencing lanes (PNN + PWC2 and PCN + PWC, with PSW somewhat isolated from the rest—Figure 2d). When these loci where removed (498 loci), there were no obvious geographical clustering patterns (Figure 2e).

Further filtering in poolfstat resulted in 3602 SNPs for M. capensis and 2388 SNPs for M. paradoxus (MAF > 0.01). No significant differences were observed between estimates of pairwise F_ST between scenarios (i)–(iii) for pool size for M. paradoxus. For M. capensis, only scenario (ii) all pools of minimum size 40 (20 individuals) were significantly different from the remaining scenarios (Data S3). Overall values of F_ST were not significantly different from 0 for either species (F_ST = 0.001, 95% CI = −0.001 to 0.004, for M. capensis and F_ST = −0.007 for M. paradoxus, 95% CI = −0.009 to 0.005), suggesting a higher within-pool than across-pool variability. This is most likely due to the fact that if there are no strong geographical structuring patterns, such as expected from marine fishes, then most of the genetic variability will be present within each pool, and private alleles in a given pool will be rare. For M. capensis, pairwise F_ST were only significantly different from zero for the CNN and CWC2 comparison (F_ST = 0.013, 95% CI = 0.0075–0.0189), despite a small divergence also observed for the CWC and CWC2 comparison (F_ST = 0.002, 95% CI = −0.0023 to 0.0070; Table S3). For M. paradoxus, no pairwise comparison was significantly different from zero (Table S4). The baseline F_ST for each identified SNP within each species was around zero (Figure 2c,f). However, there were SNPs with elevated values of F_ST in both species, with more observed for M. capensis (Figure 2c). The maximum SNP-specific F_ST was higher in M. capensis (F_ST = 0.543) compared to M. paradoxus (F_ST = 0.326; Figure 2c,f).

3.3 Demographic history

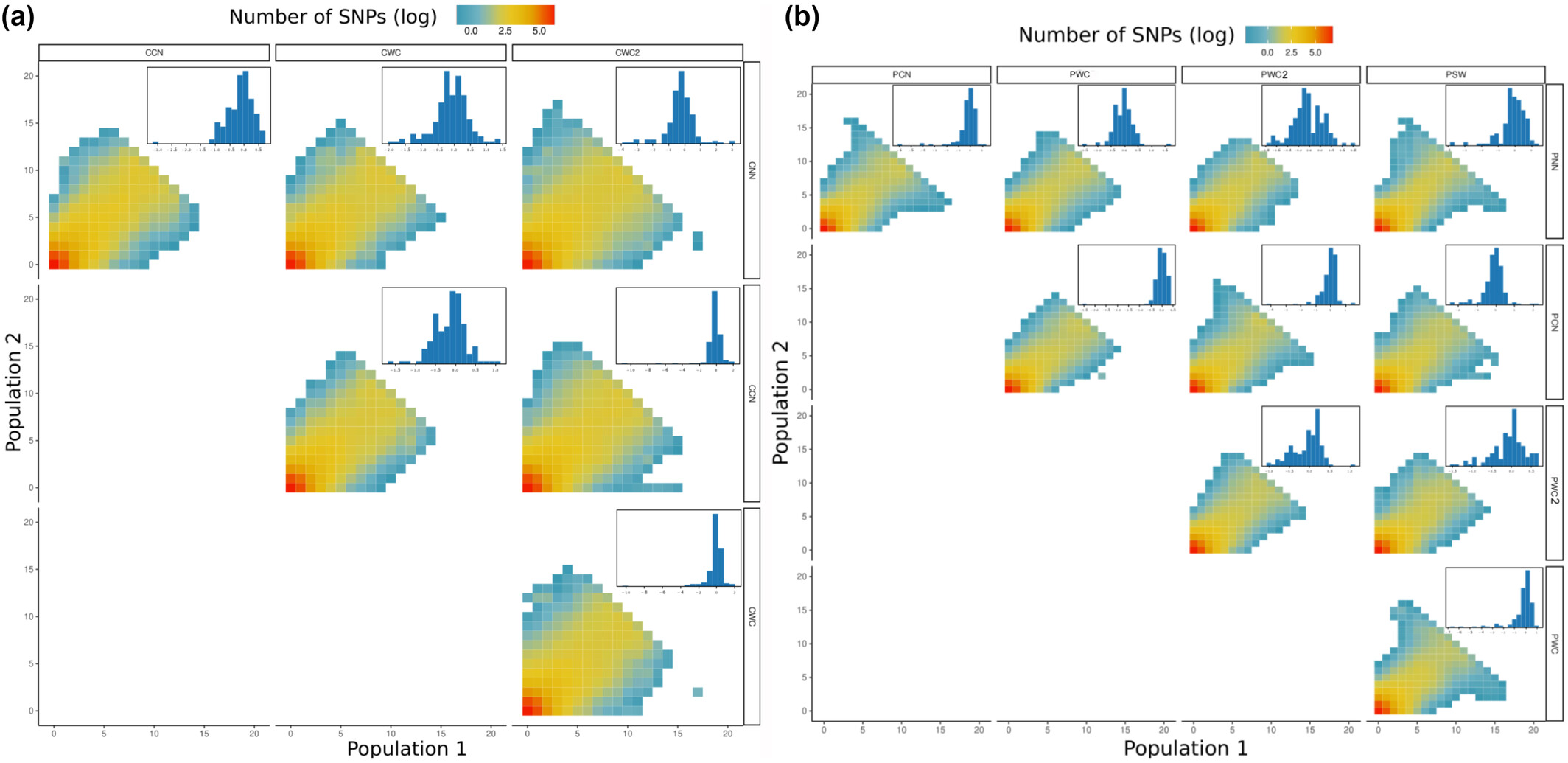

The jSFS is a half-matrix that allows to visualize how well the allelic count of each SNP in a given pool correlate with the allelic count of another pool. Each cell of the matrix is coloured according to the number of SNPs it contains. The cells on lower and left side of the matrix are associated with private alleles (allele only found in one pool), while the cells on the diagonal x = y are associated with SNPs in equal frequency in the two pools. Thus, the more concentrated around the diagonal the jSFS is, x = y, the more similar the pools are. Here, the jSFS showed clear differences between M. capensis and M. paradoxus (Figure 3a,b, Tables 1 and 2). Indeed, the jSFS between M. paradoxus pools was more restricted to the diagonal x = y than in M. capensis, suggesting more pronounced differences in the latter. In accordance with this observation, most of the M. paradoxus inferences showed similar support for IM and PAN model (4 of 10, Table 2) or supported a PAN model (2 of 10, Table 2), suggesting a lack of structure (on the more spatially robust level) in this species. Only the pairwise comparison involving the south-eastern most pool, PSW, showed consistent support for the IM model (3 of 4 pairwise comparison with ΔAIC >4 between IM and PAN, Table 2). In contrast, all but one inference showed support for an IM model in M. capensis, with only the two Namibian pools (CNN and CCN) showing support for the PAN model (Table 1). The details about the parameters estimated by each model are provided in Table S5.

3.4 Environmental associations

After controlling for collinearity and VIF, only two environmental variables were retained for M. capensis: mean dissolved oxygen (DOmean) and mean sea surface temperature (SSTmean), while three variables were retained for M. paradoxus: mean chlorophyll a concentration (CAmean), mean dissolved oxygen (DOmean) and mean sea salinity (SSmean; Tables S6–S8).

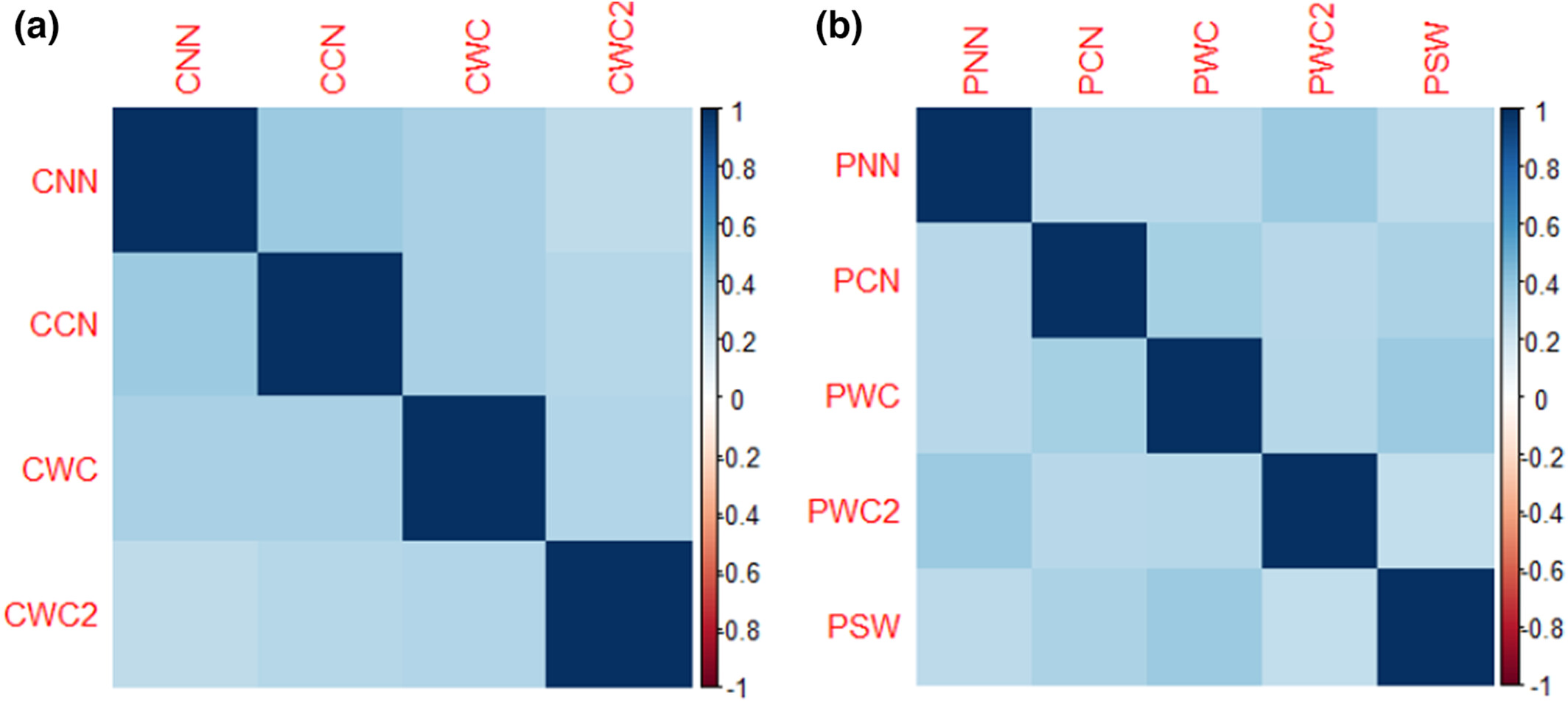

The population scaled covariance matrices (Ω) indicated some differentiation between pools of both species (Figure 4). Merluccius capensis pools which are geographically closer exhibited a higher correlation of scaled covariance; however, as before, there was no clear geospatial pattern observed for M. paradoxus. The hierarchical clustering trees showed three distinct clusters (one Namibian and two South African) observed for M. capensis and no obvious geographical pattern for M. paradoxus, as seen for the PCAs (Figure S2).

Although 37 of 3602 SNPs were indicated to be outliers for M. capensis based on the XtX metric, none exhibited a significant association with either of the environmental variables tested. For M. paradoxus, 24 of 2388 SNPs were identified as outliers based on the XtX metric, but again no significant associations were observed between these and the environmental variables used.

The RDAs showed adjusted R² values of .020 (p = .417) and .250 (p = .008) for M. capensis and M. paradoxus respectively. Therefore, no statistically significant environmental associations were found for M. capensis. On the contrary, although weak, M. paradoxus RDA appeared to show statistically significant associations between environmental conditions and allele frequencies, with 98 SNPs identified as outliers. However, when a partial RDA was conducted using sequencing lane as a conditional variable, the model was no longer statistically significant (adjusted R² = −.064, p > .05), suggesting that observed associations were still with sequencing lane and not environment. Redoing the analyses for the data set with 15% of batch effect loci removed did not change these findings (adjusted R² = .243, p < .05; conditional RDA adjusted R² = −.078, p > .05).

4.1 Genome-wide diversity levels for the southern hakes

Genome-wide diversity is fundamental for the long-term persistence of species. Marine fish tend to exhibit high levels of diversity due to historically high effective population sizes, reproductive potential and connectivity levels. Based on the neutral coalescence theory, the level of genomic diversity (θ) is proportional to the mutation rate (μ) and the effective population size (N_e), such that θ = μ2N_e, assuming an equilibrium has been reached between mutation and genetic drift (Kingman, 1983). However, recent work has shown that other factors, such as habitat and life-history features, can influence genetic diversity levels in marine fishes (Barry et al., 2021; Martinez et al., 2018). In particular, age at maturity, fecundity and variance in reproductive success (e.g. age-specific mortality) can all impact the ratio between census size (N) and N_e, leading to deviations of genomic diversity levels from theoretical predictions (Barry et al., 2021).

Henriques et al. (2016) first showed reduced contemporary genetic diversity levels for the southern African hakes, especially when compared with also the heavily exploited European hake (M. merluccius—Castillo et al., 2005): H_E = 0.518 for M. capensis; H_E = 0.692 for M. paradoxus and H_E = 0.871 for M. merluccius. Our present work further supports the findings of low genome-wide diversity for the southern African hakes, with M. capensis consistently showing lower values than M. paradoxus over 500 bp non-overlapping intervals (θ = 0.019, π = 0.015 vs. θ = 0.026, π = 0.021 respectively). However, only the comparisons involving nucleotide diversity between species were significantly different from zero (p < .05). As diversity metrics were calculated based on 500 bp intervals, it was not possible to extract batch effect loci, which may have affected the obtained estimates, particularly for M. paradoxus. Furthermore, since the reference used for mapping and SNP calling was M. capensis, it is possible that for calculation of windows-based metrics of diversity, M. paradoxus retained loci against the reference, instead of only population-based SNPs, inflating its estimates of diversity. It is thus possible that estimates for M. paradoxus may be overall lower than here documented, and we cannot at this time confidently reject the hypothesis that M. capensis and M. paradoxus have similar levels of genome-wide diversity. The observed differences between pairwise nucleotide diversity and Watterson's theta, as well as the negative Tajima's D, suggest an increase in rare alleles (there are more polymorphic sites than sequence diversity), pointing to a population expansion in both species. However, this expansion has likely occurred in the last thousands of years, and not in recent ecological time. Immediately after a bottleneck, Tajima's D is expected to be positive (loss of rare variants), and its value will decrease as the percentage of singletons increase with population growth (Tajima, 1989). Previous studies based on mtDNA data estimated population expansion to have occurred after the end of the Last Glacial Maximum for M. paradoxus (~6000 years, von der Heyden et al., 2010) and between 4000 and 75000 years for M. capensis, depending on the mtDNA locus, mutation rate and dating method used (Henriques et al., 2016; von der Heyden et al., 2007). Although different values can be observed between mtDNA and nDNA due to their different effective population sizes (Gattepaille et al., 2013), in this study, values of D were similar in range to the ones reported for mtDNA (M. capensis D = −1.687, M. paradoxus D = −1.036, Henriques et al., 2016), thus suggesting an historical expansion. Given the estimated time frame and life-history features of the species, it is likely that a historical population growth resulted from a range expansion as environmental conditions changed in the Benguela Current region during the Last Glacial Maximum (von der Heyden et al., 2007).

Although caution is warranted, these results, in combination with previous findings of Henriques et al. (2016), suggest that N_e for M. capensis should be similar in range to that of M. paradoxus. Interestingly, based on fishery-independent abundance indices, overall abundance levels of M. capensis are higher than M. paradoxus (DFFE, 2020). For example, in Namibia, the abundance of M. capensis is roughly three times higher than that of M. paradoxus, while in South Africa, although M. paradoxus is more abundant in the west coast, M. capensis dominates in the south and east coasts (DFFE, 2020). M. paradoxus also experiences intense predation of its juveniles by M. capensis adults (as they overlap in depth), leading to high natural mortality levels at this life stage (Ross-Gillespie, 2016), as well as years of poor recruitment levels (DFFE, 2020), both of which contribute to a higher variance in survivability for this species. Furthermore, although both southern African hakes experienced appreciable population declines between 1950 and 1970, with the biomass of both species declining to below maximum sustainable yield levels (MSYL), M. capensis recovered relatively quickly and its biomass has generally been well above MSYL since the 1980s (DFFE, 2020). The abundance of M. paradoxus, on the contrary, remained below MSYL until the 1990s (DFFE, 2020), only showing an increase in recruitment success between 2005 and 2010, which was not observed for M. capensis (Strømme et al., 2016).

These demographic and life-history features would thus be expected to result in lower population sizes (Barry et al., 2021) and consequently significantly lower genome-wide genetic diversity levels for M. paradoxus when compared to M. capensis, which does not appear to be the case based on our findings. However, while M. paradoxus has a life cycle showing one panmictic population that migrates and expands over a vast area, with juveniles having relatively good conditions for feeding, growth and survival (Mbatha et al., 2019; Strømme et al., 2016), M. capensis appears to be composed by multiple demographic units across southern Africa, with different life-history features and limited connectivity in between (Jansen et al., 2015; Strømme et al., 2016). Smaller populations that show a degree of genetic isolation are likely to be more vulnerable to loss of diversity due to genetic drift (Wright, 1931), which may explain the observed genome-wide estimates of the two southern African hakes.

Interestingly, observed values of genome-wide diversity of M. capensis are similar to those of another highly structured southern African demersal fish, kingklip (G. capensis — Schulze et al., 2020). Using the same sequencing and SNP-calling methodology, and mapping to a de novo assembly of kingklip, Schulze et al. (2020) reported genome-wide diversity levels of θ = 0.017, π = 0.017. Kingklip is currently caught as by-catch in the hake-directed fisheries, as there is a fishing ban for this species since 1994, due to an extreme population decline driven by overharvesting (Punt & Japp, 1994). It is thus possible that observed levels of genome-wide genetic diversity of the southern African hakes reflect a complex interplay between demographic and evolutionary history as well as historical exploitation levels. In order to properly assess the impact of historical fishing levels in the demographic history of the southern African hakes, it would thus be necessary to (i) evaluate the true extension of mapping M. paradoxus to a different species reference genome in estimates of genetic diversity; and (ii) obtain samples that predate the population collapse to compare genomic diversity and population structure levels through time (Manuzzi et al., 2022).

4.2 Patterns of population structuring of the southern African hakes across the Benguela region

Estimates of population structure between the two southern hakes revealed contrasting patterns and differentiation levels. After removal of loci that were likely associated with the sequencing lane (batch effect loci), three populations were observed for M. capensis, while no obvious geographic structuring pattern was retrieved for M. paradoxus. These results were consistent in the PCA analyses, pairwise F_ST (Tables S3 and S4), but also in the baseline level of SNP-specific F_ST, which showed higher variation and more outliers in M. capensis, compared to M. paradoxus. Although these differences in population structure between the two species were also shown in previous work (Henriques et al., 2016), the presence of a previously un-identified population within the southern Benguela region of M. capensis is new.

For M. capensis, overall pairwise F_ST levels were low and non-significant, except for the northern and southern pools (CNN vs. CWC2, F_ST = 0.013, 95% CI = 0.0075–0.0189), while the PCA retrieved three major clusters: northern Benguela region (CNN and CCN) and clearly differentiated between CWC (northern west coast) and CWC2 (southern west coast). Visualization of SNP-specific F_ST values for this comparison revealed four major areas with elevated levels across the genome, which might suggest the presence of barriers to gene flow in this species. Similar findings have been reported for loci putatively under selection in kingklip, with three populations also described across the region: one in northern Namibia and two in South Africa, albeit being a clear west coast versus east coast South Africa differentiation pattern (Schulze et al., 2020). These findings further support the hypothesis of multiple spawning populations of M. capensis in southern Africa, proposed by Jansen et al. (2015) based on a gonadosomatic indices. Here, the authors identified the presence of two spawning populations within the west coast of South Africa (31–32.5°S and 34.5–36°S), as well as spawning females on the south coast of South Africa (east of 20°E). Our results showed two populations both found within the west coast, albeit at different latitudes (30°S vs. 33°S) than those identified by Jansen et al. (2015). It is thus likely that the southern-most population here identified (CWC2) may represent the western edge of the spawning population occurring at 34.5–36°S, as proposed by Jansen et al. (2015). As the main aim of this study was to evaluate the genomic component of the previously described north–south Benguela differentiation in M. capensis, where the break was located off the Orange River in the border of Namibia and South Africa and no previous genetic structure was observed within South African waters, we did not include individuals caught on the south and east coasts of the country. Our new findings suggest that this will be necessary to truly understand the geographical distribution of these two populations. Furthermore, although we pooled individuals based on their northern–southern microsatellite genotypes (Henriques et al., 2016), the presence of a third population within this system requires an individual-based sequencing approach in future population genomic surveys.

Unexpectedly, the data showed an indication of spatial differences for M. paradoxus. However, there was no reasonable geographical pattern which could explain the observed grouping. Preliminary PCA analyses grouped the northern most pool (PNN) with the west coast of South Africa (PWC2) and the south-western most pool (PSW) with the middle-range pools (PCN and PWC). After controlling for a sequencing-driven batch effect, the PCA and pairwise F_ST comparisons suggested a single population throughout the Benguela region. Contrary to what was observed of M. capensis, visualization of SNP-specific pairwise F_ST between PNN and PSW did not reveal major areas of differentiation across the genome, with only a few, sporadic loci exhibiting higher F_ST levels, suggesting that genetic drift and gene flow are the major microevolutionary processes shaping the population structure of M. paradoxus.

4.3 Distinct evolutionary trajectories of co-distributed hake species

Based on the results obtained for population differentiation, we assessed two simple models of demographic history for the southern African hakes: panmixia (PAN) and isolation with gene flow (IM). As expected, M. capensis showed a deeply structured jSFS, where only the comparison involving the two northern Benguela pools (CNN and CCN) supported the PAN model. All other comparisons supported the IM model, thus further corroborating the hypothesis of three populations: one in northern Benguela and two within South Africa. On the contrary, M. paradoxus showed broad evidence of panmixia, with allele frequencies highly correlated across all pools. The only exception were the comparisons involving the south-eastern-most pool (SWC), and to a lesser extent PCN and PWC2. These results suggest that, as reported by von der Heyden et al. (2007), there might be a subtle population substructuring in M. paradoxus, between Atlantic (PNN, PCN, PWC, PWC2) and Indian Ocean sites (PSW). The southwest coast of South Africa is a known phylogeographic break within the region, with some species showing evidence of population substructuring across this area (Dalongeville et al., 2022; Teske et al., 2011). In fact, analyses of life-history features for M. paradoxus based on survey data suggest the presence of a single spawning ground off the west coast of South Africa, from 31° to 34°S, but large fish are also found off the East coast of South Africa between 26° and 27°E, which may indicate a small spawning ground in that area (Strømme et al., 2016). Merluccius paradoxus is not known to spawn in Namibia (Jansen et al., 2015), which further supports the hypothesis of an Atlantic–Indian Ocean separation. These results, combined with the reported PCA and F_ST levels, suggest that divergence between putative M. paradoxus populations is quite small, either due to gene flow, a recent isolation event or a combination of both (Andre et al., 2011). Marine species traditionally have large population sizes and high levels of gene flow, which can mask subtle levels of population isolation (Hauser & Carvalho, 2008). High-throughput sequencing, by generating thousands of genome-wide SNP markers, can thus assist in identifying subtle levels of differentiation in high gene flow species, as seen for both southern African hakes.

The observed differences in population substructuring patterns further suggest that M. capensis and M. paradoxus are not experiencing the same evolutionary trajectories despite being congeneric and sharing similar geographical distribution ranges (Irwin et al., 2016; Teske et al., 2019; van Doren et al., 2017). Interestingly, these differences may also assist in contextualizing the observed differences in genomic diversity levels between species. As M. capensis appears to be composed of at least three demographically independent populations, its N_e is likely to be smaller than expected in comparison to species with panmictic populations. Therefore, M. capensis might be more vulnerable to loss of genomic diversity due to genetic drift (Gagnaire, 2020) than M. paradoxus, which appears to be composed by two populations with highly correlated allele frequencies, implying higher genetic connectivity. These results suggest an evolutionary response that is species-specific and possibly related to the different environmental niches that the species occupy (Irwin et al., 2016; Teske et al., 2019; van Doren et al., 2017), with similar findings reported among four flatfish species sampled along the Baltic Sea transition zone (Le Moan et al., 2019), as well as stickleback species sampled along a latitudinal gradient (Reeve et al., 2022).

4.4 Environmental association analyses: The relative irrelevance of the environment in shaping the evolutionary history of the southern African hakes?

Genome-wide patterns of population differentiation varied between M. capensis and M. paradoxus. In particular, M. capensis exhibited not only overall higher levels of differentiation, but also four areas of the genome with elevated F_ST, while for M. paradoxus only a few loci were found with elevated levels of F_ST. These results suggest that adaptation to local environmental features might be driving the observed patterns of differentiation in the former, while genetic drift and gene flow might be the dominant microevolutionary forces shaping the evolutionary history of the latter. In fact, studies have reported associations between local oceanographic features and patterns of demersal fish population structuring (White et al., 2010). For example, in North Atlantic roundnose grenadier (Coryphaenoides rupestris), population differentiation is in part driven by a locus under depth-mediated selection (White et al., 2010). The oceanographic features of the Benguela system are stratified by depth so that different depths experience varying water temperatures and current movement. The southern African hakes are only partially sympatric with a preferential depth overlap at 110–500 m for all life stages (Durholtz et al., 2015; Henriques et al., 2016). Therefore, we hypothesized that species-specific population substructuring is likely influenced by different local oceanographic conditions, which however did not seem to be supported by the results for the gene–environment association analyses.

Despite the observed elevated F_ST in regions of the genome of M. capensis, and the detection of outlier loci in BayPass, there was no correlation between these and the environmental variables. Similarly, the RDA did not show a significant association between allele frequencies and dissolved oxygen and SST, suggesting that these are not mediating the observed genetic divergence across the Benguela current in this species. A smaller number of outlier loci were identified for M. paradoxus in BayPass, but as seen for M. capensis, no significant associations were found neither with BayPass nor with the RDA once sequencing lane (i.e. batch effect) was used as a conditional variable. This is somewhat unexpected given that those loci were removed from the data set and the demographic history results suggesting an Atlantic–Indian Ocean divergence. Nevertheless, our results do not support strong gene–environment associations for either species.

These results seem to be in contradiction with previous findings for these species, as dbRDA analyses conducted by Henriques et al. (2016) based on microsatellite data suggested that upwelling events (high concentration of Chlorophyll a and low dissolved oxygen) might explain the differentiation patterns between northern and southern Benguela population of M. capensis, while Mbatha et al. (2019) demonstrated a clear impact of environmental variables in the distribution patterns of juvenile M. paradoxus. In addition, Nielsen et al. (2020) using the same genomic methodology, and a smaller number of SNPs, detected significant associations between SST and SSS for three inshore invertebrates across the South African coastline. It is thus possible that our data sets did not contain enough geographical resolution to detect significant associations between genotypes and environmental conditions.

4.5 Implications for conservation and sustainable management of the southern African hakes

The assessment of stock structure, where a stock represents a demographically cohesive unit that can be exploited (Benestan, 2019), is the central tenet of fisheries management for sustainable conservation of resources. Molecular data, with its ability to identify demographically independent populations, has provided vital information for stock management and conservation for several commercially important species. The traditional example is the ‘real-time’ genomic monitoring of salmonids in the North America for allocating fishing quotas (Waples et al., 2008). This approach has recently been implemented in Norway to manage the very abundant North East Artic cod and the vulnerable Norwegian Coastal cod (Gadus morhua) stocks—where genotyping of landed samples allowed to establish fishing quotas that are actively being used in the management of this mixed-stock fishery (Dahle et al., 2018). The description of previously unknown winter and spring spawning populations in the Atlantic cod in the Gulf of Maine (Clucas, Kerr, et al., 2019; Clucas, Lou, et al., 2019), which do not match current fishing regulations, as well as the physical mixing of two genetically divergent Atlantic cod populations in the Baltic Sea indicating the presence of a mixed-fishery (Hemmer-Hansen et al., 2019), demonstrates that molecular data can successfully lead to improvements of current fisheries management strategies.

It is well known that harvesting mixed populations as a single unit can lead to depletion of the least abundant (more vulnerable) population (Ovenden et al., 2015), and also result in losses of genomic diversity (Pinsky & Palumbi, 2014) and differentiation (Gandra et al., 2020). Prior to the 1970s, the southern African hakes were initially commercially exploited as a single unit throughout their distribution range. The resources are now managed separately in South African and Namibian waters. Within South Africa, the hake resources have been managed primarily with a species-combined total allowable catch (TAC) restriction, calculated using an operational management plan (OMP) approach since 1991 (Rademeyer et al., 2008). As a result of the substantial overlap in distribution and the difficulty of distinguishing between the two hake species, species-specific catch and effort data are not available from the commercial fishery, and the two species were initially assessed and managed as a single resource. However, algorithms to apportion the commercial hake between the two species were developed during 2005 using research survey data, enabling the development of species-disaggregated assessment models. In Namibia, the two hake species are still treated as a single stock, and the assessment procedure includes information about biomass supporting the maximum sustainable yield (BSMY), the replacement yield and the catch corresponding to the harvest control rule (HCR).

Our findings suggest that M. capensis is composed of one population in Namibia, but two populations within South African jurisdictional waters, and thus point to a possible mixed-stock scenario in this region, which should be addressed with new fishing regulations. If the species is indeed composed of two populations that are mixed in their distribution, but have different demographic histories, then harvesting them as a single unit may well contribute towards maintaining low levels of genomic diversity, as observed in this study. Genomic diversity (both neutral and adaptive) is fundamental for the long-term persistence of species, particularly in a climate change context (Nielsen et al., 2021). Therefore, accurate fishing management policies are fundamental to ensure the conservation of M. capensis. Further studies should be conducted using individual-based sequencing approaches to assess the geographical (and possibly temporal) boundaries of these populations, taking into consideration possible migration patterns, in order to understand if they might be geographically based (west vs. south coast) or constitute a true mixed stock.

Similarly, the reconstruction of demographic history in M. paradoxus revealed the presence of two highly connected populations, with a break detected across Cape Point, as first reported for mtDNA in von der Heyden et al. (2007). The Atlantic M. paradoxus putative stock appears to extend from Cape Town, South Africa, to northern Namibia, suggesting a transboundary stock. Within South African waters, the genomic break is already considered to a certain extent in the assessment of the species (west and south coast-specific input data) and hence in subsequent management measures, but further research on the extent of mixing between the various populations/stocks, followed by an evaluation of the impacts of this on stock dynamics and exploitation is required to establish whether or not the current management strategies need to be reconsidered. In either case, the current country-wide OPM and TAC might need to be revised to reflect the presence of two previously undescribed populations of southern hakes in South Africa.
