1 Introduction

Silicon (Si) has recently garnered significant attention as a potential replacement for conventional graphite anodes owing to its impressive gravimetric capacity (4200 mAh g⁻¹) and volumetric capacity (2400 mAh cm⁻³) when utilized at low discharge potentials.^[1-3] The key to the high discharge capacity of Si is its unique chemical properties. Si can form bonds with up to four lithium (Li) atoms, leading to the creation of a Li_4.4Si/Li₂₂Si₅ alloy, whereas graphite can only bond one Li atom to six carbon (C) atoms (LiC₆).^{[4, 5]} Furthermore, Si possesses a lower discharge potential of ≈0.2 V versus Li/Li⁺, cost-effectiveness, natural abundance, and eco-friendliness.^[6] Despite its promising attributes, the widespread adoption of Si as an anode material presents significant challenges, primarily due to its densely packed crystal structure, which results in substantial volume expansion (≈400%) during the charge–discharge processes.^[7] This expansion can have detrimental effects, including pulverization and amorphization of the active Si material within an electrode. Consequently, the active material is lost, and the battery undergoes capacity degradation over time. Another complication arises from the formation of a continuously grown thick solid electrolyte interphase (SEI) due to electrolyte decomposition at low potentials.^[8] This diminishes the electrochemical activity of the electrode, which further impairs the cycling performance and overall lifespan of the battery.

To overcome these challenges, researchers have been actively exploring several nanostructure design strategies which encompass a range of innovative approaches, including the development of Si composites M_xSi_y (where M represents elements like Mg, Ni, Fe, Co, Ca, and x or y can take values of 1 or 2),^[9-11] dispersion of Si nanoparticles within highly conductive architectures like reduced graphene oxide,^{[12, 13]} creation of hollow or yolk-shell nanostructures to accommodate significant volume expansion of Si,^[14-16] and binder modification,^{[17, 18]} among other methods.^{[7, 19, 20]} Transition metal oxides (TMOs), denoted as M_xO_y (where M represents a transition metal), have also been rigorously assessed as advanced anode materials for lithium-ion batteries (LIBs).^[21-23] Unlike Si, TMOs do not form alloys with Li metal; instead, they establish a metallic network that offers multielectron transmission per transition metal during the conversion process (TMOs → TM⁰).^[24] This characteristic results in high theoretical discharge capacities with minimal volume fluctuations (<100%); a marked improvement over alloy-type materials (>300%).^[25] Consequently, the integration of high-capacity Si with low-capacity TMOs in a hybrid composite is a facile strategy for achieving a stable and long-lasting advanced anode. In such hybrid composites, both components contribute to the attainment of high discharge capacities (depending on the voltage window), whereas the TMO component plays a crucial role in stabilizing the SEI film and synergistically improving the overall electrochemical properties. For instance, Wang et al. prepared Fe₂O₃/C-modified Si nanoparticles, which delivered a high discharge capacity at low current density (2942 mAh g⁻¹ at 100 mA g⁻¹), good rate capability (423 mAh g⁻¹ at 10 A g⁻¹), and stable cycling performance (680 mAh g⁻¹ at 1.0 A g⁻¹ after 300 cycles).^[26] Despite these promising outcomes, several challenges remain. For instance, the low electronic conductivities of both Si and TMO, as well as their composites, need to be carefully considered to achieve further improvements in the rate capability and cycling performance. Additionally, controlling the crystal growth in TMO during the synthesis process is another critical aspect that requires focused attention in the quest for advanced LIB anodes.

Metal selenite nanostructures, which form heterostructures encompassing both metal oxide and selenide phases, have demonstrated remarkable properties including high electronic conductivities and superior redox reaction capabilities.^{[27, 28]} Moreover, the built-in electric fields at different types of heterointerfaces present within the heterostructure resulted in better acceleration of charge transport. For instance, Kang et al. reported the synthesis of binary metal (Ni, Co) selenite ((NiCo)SeO₃) as a LIB anode with an enhanced cycling performance (680 mAh g⁻¹ at 5.0 A g⁻¹ after 1500 cycles).^[28] Likewise, Liu et al. also synthesized hierarchical CoSeO₃·2H₂O nanoflowers, which show a discharge capacity of 626 mAh g⁻¹ at 0.5 A g⁻¹ after 180 cycles. This unsatisfactory cycling performance was mainly due to uncontrolled crystal growth.^[29] However, there have been no reports on the development of a hybrid porous conductive anode that combines Si owing to its high-capacity properties, an amorphous selenite phase to enhance structural integrity, and a highly conductive framework to bolster the overall conductivity.

Based on the above discussion, we introduce an efficient synthesis approach for crafting sophisticated multicomponent anode materials. This material consists of porous microspheres comprising a biphasic silicon-amorphous iron selenite (Si/FeSeO_x) phase enveloped within an N-doped graphitic carbon (NGC) matrix, which also incorporates well-grown, highly intertwined N-doped carbon nanotubes (CNTs) (denoted as Si/FeSeO_x@NGC/N-CNT). Depending on the voltage window range, both the FeSeO_x and Si nanoparticles contribute to the overall discharge capacity of the composite material. The FeSeO_x nanoparticles improve the structural integrity of the nanostructures via effective volume channelization of Si through the different lithiation/delithiation voltage range, and facilitate rapid Li-ion diffusion, thereby promoting kinetically favored redox reactions. Additionally, to further enhance the overall conductivity and charge transfer characteristics of Si-based nanostructures, in-depth optimization is performed to the formation of NGC matrix and well-grown N-CNT networks. The NGC matrix surrounding Si/FeSeO_x nanocrystals serves as the primary pathway for efficient and fast electron transfer. Notably, N-CNT networks act as a secondary pathway between the structures improving diffusion kinetics in the hybrid nanostructure, and maintaining the electrical contact by preventing the fragments of the compromised structure from completely detaching in the microsphere. The porosity of the composite nanostructures was introduced through the selective removal of amorphous carbon (AC) species. It facilitates smooth diffusion of charged species by shortening the effective charge diffusion length and accommodates severe volume changes during the lithiation/delithiation processes.

Benefitted from the rational nanostructural strategy introduced in this study, the hybrid multicomponent Si/FeSeO_x@NGC/N-CNT anodes have exhibited a significant enhancement in the overall electrochemical performance, such as high-rate capability (up to 30 A g⁻¹) and long-term cycling stability at low and high current densities (0.5, 1.0, and 3.0 A g⁻¹). As a result of these remarkable structural and electrochemical advancements, we firmly believe that our findings will serve as a cornerstone for the development of highly conductive and multicomponent hybrid anode materials to find application in a diverse range of energy storage and beyond.

2 Results and Discussion

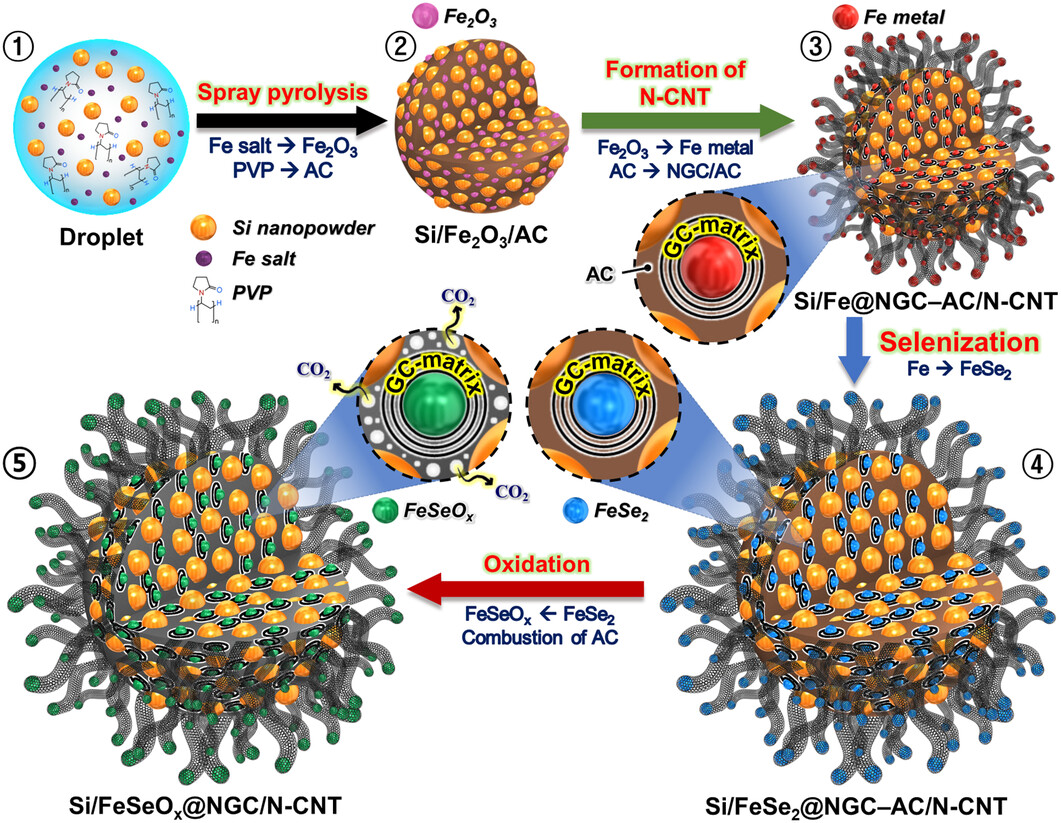

The porous microspheres comprising biphasic silicon-amorphous iron selenite (Si/FeSeO_x) nanocrystals enveloped within an NGC matrix with well-grown and highly intertwined N-CNTs (Si/FeSeO_x@NGC/N-CNT) were prepared using a facile spray pyrolysis technique and multistep heat treatment. The detailed formation mechanism of the Si/FeSeO_x@NGC/N-CNT microspheres is shown in Scheme 1. The precursor colloidal solution consisting of Si nanopowders, Fe nitrate, and PVP was uniformly dropletized by the ultrasonic nebulizer (Scheme 1-➀). Fe nitrate served as the Fe precursor for the formation of the FeSeO_x phase, whereas amphiphilic PVP simultaneously served as a carbon source to form the NGC matrix and as a surface functionalizer for the Si nanopowders. This PVP-induced functionalization ensured uniform dispersion of Si in the solution. The generated precursor droplets were subjected to pyrolysis within a vertical quartz reactor maintained at 700 °C, using N₂ as the carrier gas. During pyrolysis, the N-rich species present in PVP decomposed into an N-doped AC matrix, whereas Fe₂O₃ nanoparticles were formed due to the presence of O-containing nitrate (NO₃⁻) anion groups in the precursor salt and carboxyl groups in PVP, despite the inert atmosphere. This process resulted in the formation of microspheres containing Si and Fe₂O₃ nanoparticles uniformly embedded within an AC matrix, referred to as Si/Fe₂O₃/AC microspheres (Scheme 1-➁). During the initial heat treatment, Si/Fe₂O₃/AC precursor microspheres were exposed to DCDA at 800 °C under a N₂ atmosphere. This step resulted in the reduction of the Fe₂O₃ nanoparticles to metallic Fe nanocrystals. The surrounding PVP-derived N-doped AC matrix restricted the grain growth and aggregation of metallic Fe nanocrystals, while the matrix itself was transformed into NGC owing to the catalytic effect of the Fe nuclei. The NGC matrix served as the primary pathway for rapid electron transfer. Additionally, N-CNTs were grown on the microsphere surfaces using metallic Fe nanocrystals as catalysts, which acted as secondary conductive pathways. These N-CNTs emerged through catalytic chemical vapor deposition, utilizing CH_x and NH₃ gases generated from DCDA (Scheme 1-➂). In the second heat treatment step, selenization was performed at 300 °C under H₂/Ar (vol = 5:95%) atmosphere, as shown in Scheme 1-➃. Excess Se was used in a similar manner. During this step, a phase conversion from metallic Fe to FeSe₂ occurred in an H₂Se atmosphere, which was formed due to the combination of H₂ with Se. This process resulted in the formation of microspheres comprising biphasic Si-FeSe₂ nanocrystals enveloped within an NGC–AC matrix along with well-grown N-CNTs, referred to as Si/FeSe₂@NGC–AC/N-CNT microspheres. In the final step, a third heat treatment was carried out at 300 °C under air atmosphere (Scheme 1-➄). During the oxidation process, the FeSe₂ phase transformed into an amorphous FeSeO_x phase. This phase change characterizes a kinetically favored redox reaction owing to fast Li-ion diffusion and high structural integrity.^[30] Simultaneously, AC was selectively removed from the carbon matrix, creating micropores that enhanced the overall electrochemical performance. The porous structure not only facilitated efficient electrolyte infiltration, but also mitigated undesirable volume expansion.

A comprehensive analysis was conducted to characterize the nanostructures obtained at various stages of the synthesis and to elucidate the formation mechanism. Figure S1, Supporting Information, shows the physical characterization of the commercial Si nanopowder employed in the spray solution. The field-emission scanning electron microscopy (FE-SEM) image in Figure S1a, Supporting Information, shows the spherical Si nanoparticles with diameters ranging from 40 to 120 nm. The X-ray diffraction (XRD) pattern of the nanopowder (Figure S1b, Supporting Information) exhibits three distinct diffraction peaks at 2θ = 28, 47, and 56°, corresponding to the (111), (022), and (311) crystallographic planes, respectively, and are indicative of the presence of pure Si. Furthermore, Figure S2, Supporting Information, provides insights into the morphology and crystal structure of the as-prepared microspheres obtained after spray pyrolysis. The FE-SEM image (Figure S2a, Supporting Information) shows the uniform formation of nonaggregated microspheres with an average diameter of ≈1.5 μm. Closer examination using a high-magnification FE-SEM image (Figure S2b, Supporting Information) revealed that all the constituents were well confined within the microsphere. In addition, the rough surface of the microspheres was also apparent, which was attributed to the presence of Si nanoparticles. Additionally, a fractured surface view of the microspheres (Figure S2c, Supporting Information) confirmed the uniform distribution of nanosized Si particles within the internal structure. The XRD pattern (Figure S2d, Supporting Information) shows distinct high-intensity peaks at the same positions as those observed for pure Si (Figure S1b, Supporting Information), confirming the presence of Si in the as-sprayed powder. Furthermore, diffraction peaks corresponding to different Fe₂O₃ crystal phases were also observed. These peaks appear due to the reaction of Fe³⁺ cations with the O-containing species present in both the Fe salt and PVP molecules.

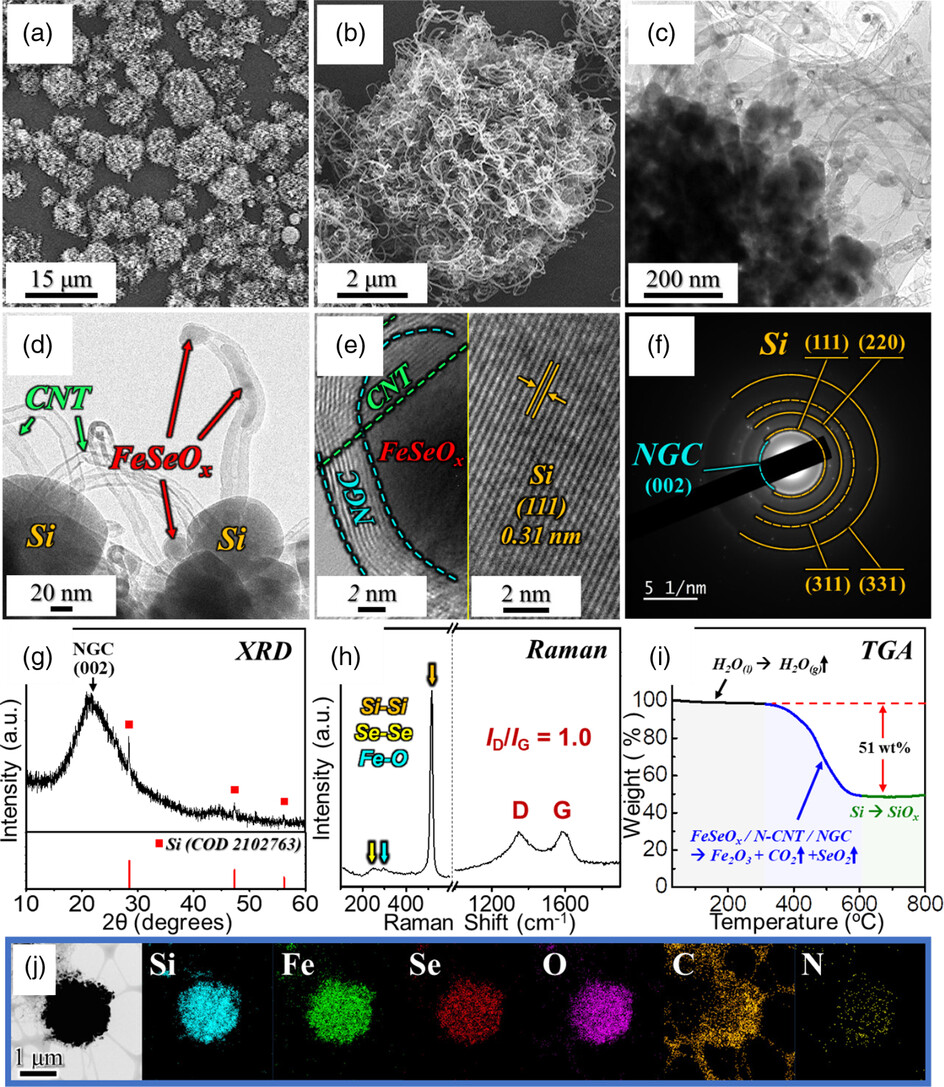

The as-sprayed Si/Fe₂O₃/AC microspheres obtained above underwent an initial heat treatment at 800 °C for 5 h under a N₂ atmosphere in the presence of DCDA which acted as the carbon source, leading to the formation of highly densified N-CNTs that became intricately intertwined with the microspheres. The posttreatment morphological and crystal structure changes in the microspheres are depicted in Figure 1. The spherical morphology of the microspheres remained unaltered after the treatment, as evident from the FE-SEM image shown in Figure 1a. However, a significant transformation occurred on the surface of the microspheres, which became fully covered with well-grafted N-CNTs due to the reaction of the metallic Fe catalyst with the CH_x and NH₃ gases generated during the decomposition of DCDA. Notably, the Fe₂O₃ nanocrystals within the microspheres were reduced to metallic Fe nanoparticles via a carbo-reduction process. The magnified transmission electron microscopy (TEM) image in Figure 1b firmly indicated the presence of well-grown N-CNTs. The high-magnification TEM image in Figure 1c reveals that the formed N-CNTs have an outer diameter of ≈20–30 nm and a length of up to several hundred nanometers. Additionally, the aspect ratio of N-CNTs grown on the surface of Si/Fe@NGC–AC/N-CNT microspheres was investigated and respective ratio distribution of N-CNTs was shown in Figure S3, Supporting Information. As a result, the aspect ratio distribution of N-CNTs exhibited a Gaussian normal distribution with a ratio center of 58, with a high average aspect ratio of 75, which could facilitate a more efficient electrical network within the electrode, leading to a reduction in internal resistance. Additionally, well-implanted metallic Fe nanoparticles (ϕ = 14 nm) inside the CNT wall (thickness of ≈2.5 nm) were apparent along with the Si nanoparticles (ϕ = 40 nm), as evident from Figure 1c. The high-resolution TEM (HR-TEM) images in Figure 1 d reveal lattice fringes with separation of 0.21 nm corresponding to the (110) plane of the metallic Fe nanoparticles. Furthermore, an NGC layer was also observed with a lattice fringe distance of 0.34 nm, corresponding to the (002) plane of the GC surrounding the Fe nanoparticles. Lattice fringes were also found with a separation of 0.31 nm corresponding to the (111) plane of the Si nanocrystals. The NGC layer was produced by the graphitization of PVP-derived N-doped carbon species through the catalytic effect of metallic Fe. N-doping of CNTs and the GC matrix enhanced the overall electrical conductivity of the nanostructure owing to its smaller atomic radius and higher electronegativity compared with carbon.^{[31, 32]} Furthermore, the NGC layer and well-grafted N-CNTs acted as primary and secondary transport pathways, respectively, for rapid and continuous electron transfer, thereby supporting swift redox processes during the electrochemical process. Moreover, to support the above discussions, Raman and EA analysis of N-CNTs well-grafted microspheres were performed, and their characterization results were compared with Si/Fe@NGC–AC microspheres without N-CNT obtained by DCDA-free carbonization of as-prepared Si/Fe₂O₃/AC microspheres (Figure S4, Supporting Information). The FE-SEM image of Si/Fe@NGC–AC microspheres displayed the spherical morphologies with no growth of N-CNTs (Figure S4a, Supporting Information). In the Raman analysis results (Figure S4b, Supporting Information), the Si/Fe@NGC–AC/N-CNT microspheres exhibited a peak at 2685 cm⁻¹ corresponding to 2D-band attributed to the overtone of the D-band,^[33] while no peak was observed in the Si/Fe@NGC–AC microspheres. The 2D-band is a result of the double resonance effect related to the bonding structure of CNTs,^[34] and its presence in the Raman analysis of Si/Fe@NGC–AC/N-CNT microspheres strongly suggests the successful growth of N-CNTs unlike Si/Fe@NGC–AC microspheres. Furthermore, the I_D/I_G ratio of Si/Fe@NGC–AC/N-CNT microspheres was 0.90, lower than that of Si/Fe@NGC–AC (I_D/I_G ratio = 0.95), clearly indicating the high crystallinity of the formed N-CNTs. Additionally, the N-contents in Si/Fe@NGC–AC and Si/Fe@NGC–AC/N-CNT microspheres were quantified to be 1.3 and 2.4 wt%, respectively, through the EA results (Figure S4c, Supporting Information). After standardizing the C and N-contents in Si/Fe@NGC–AC/N-CNT microspheres under the assumption that the Si and Fe-species contents in the two microspheres are identical, the N-content in Si/Fe@NGC–AC/N-CNT microspheres was 3.9 wt%, along with the N-content in the grown CNTs was calculated to be 2.6 wt%. These results support the successful formation of highly crystalline N-doped CNTs on the microsphere surface, which can serve as conductive electron transport networks supporting swift redox processes and improving the overall electrical conductivity of the nanostructure. The selected area electron diffraction (SAED) pattern in Figure 1e displays well-resolved diffraction rings of pure Si, metallic Fe, and carbonaceous materials, such as CNT and NGC, in the nanostructure, supporting the above results. Similarly, the XRD pattern in Figure 1f shows sharp diffraction peaks associated with pure Si, metallic Fe, and graphitic carbon, which are consistent with the HR-TEM and SAED results. Additionally, the mean crystallite sizes of Si and metallic Fe were calculated to be 36 and 15 nm, respectively, using the Scherrer equation by considering the high-intensity reflection of the (111) plane for Si and the (110) plane for metallic Fe. A few low-intensity diffraction peaks of Fe₂O₃ attributed to the surface oxidation of metallic Fe were also observed. The elemental mapping images in Figure 1g show the homogeneous distribution of Si, Fe, O, C, and N elements in the microspheres, confirming the formation of Si/Fe@NGC–AC/N-CNT. The trivial presence of the O element was attributed to the surface oxidation of metallic Fe nanoparticles.

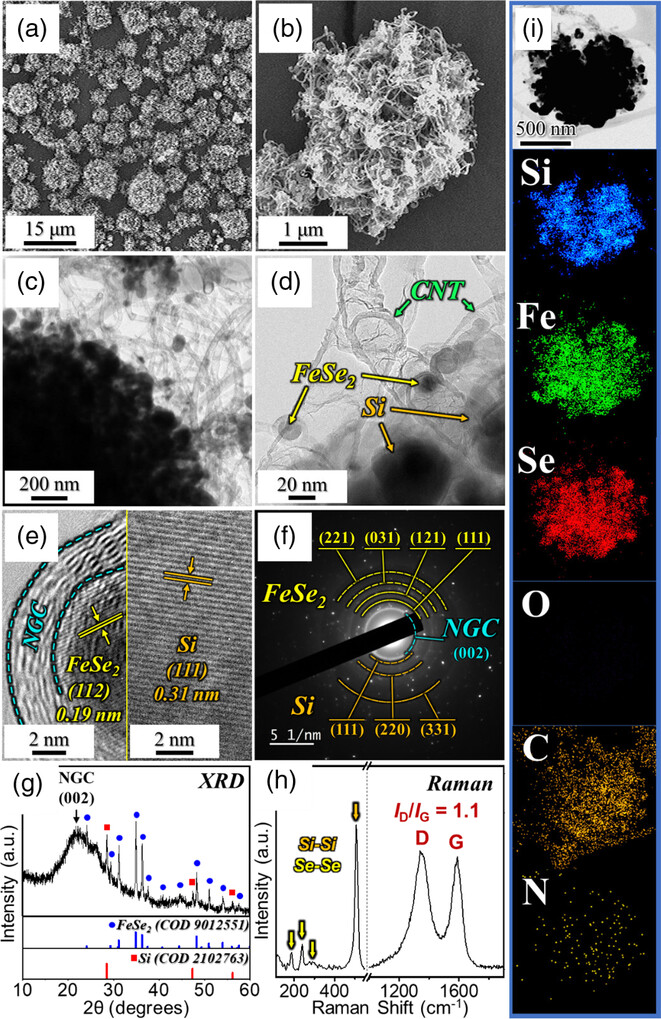

The Si/Fe@NGC–AC/N-CNT microspheres obtained above were further subjected to an additional selenization process at 300 °C for 6 h under a gas mixture of H₂/Ar (vol = 5:95%). The corresponding microstructural and phase changes are shown in Figure 2. Remarkably, the overall structure of microspheres, with well-grafted N-CNTs, remained intact after the heat treatment, as evidenced by the images in Figure 2a–c. Upon closer examination using magnified TEM images in Figure 2d, metallic Fe nanoparticles (ϕ = 20 nm) inside the N-CNTs along with the Si nanoparticles (ϕ = 60 nm) were observed. Furthermore, during selenization, the FeSe₂ phase was successfully formed through the reaction of metallic Fe and Fe₂O₃ with H₂Se gas generated by the combination of H₂ and Se precursor. The HR-TEM image in Figure 2e reveals well-resolved lattice fringes separated by 0.19 nm corresponding to the (112) plane of the FeSe₂ crystal lattice. Moreover, an NGC layer surrounding the FeSe₂ nanoparticles is evident along with Si nanoparticles with lattice fringes separated by 0.31 nm, corresponding to the (111) crystallographic plane. The SAED (Figure 2f) and XRD patterns (Figure 2g) exhibit the respective diffraction rings and diffraction peaks of FeSe₂, Si, and graphitic carbon, thus supporting the aforementioned results. Additionally, the crystallite size of FeSe₂ in the Si/FeSe₂@NGC–AC/N-CNT microspheres was calculated to be 32 nm using the Scherrer equation considering the highly intense (111) diffraction peak in the XRD pattern. Raman spectroscopy was employed to analyze the crystalline properties of the carbonaceous materials in the Si/FeSe₂@NGC–AC/N-CNT microspheres. The Raman spectrum (Figure 2h) reveals peaks at 187, 240, and 292 cm⁻¹, corresponding to SeSe bonds, and a highly intense peak at 506 cm⁻¹, indicating SiSi bonds.^[35-37] Additionally, characteristic peaks at 1348 and 1586 cm⁻¹ were observed, assigned to the D- and G-bands of the carbonaceous materials, respectively.^{[23, 38, 39]} The relative intensity ratio of the D- and G-band (I_D/I_G) served as an indicator of the crystallinity of the carbonaceous matrix. Interestingly, a high I_D/I_G value of 1.1 for the Si/FeSe₂@NGC–AC/N-CNT microspheres implies an increase in disorderedness, primarily attributed to the presence of abundant N-atom-doped sites in the carbonaceous matrix, resulting in low crystallinity of the nanostructure. Consistent with the Raman results, the elemental mapping images in Figure 2i show the uniform dispersion of Si, Fe, Se, C, and N elements in Si/FeSe₂@NGC–AC/N-CNT, indicating the formation of the desired selenide phase with a highly conductive N-doped carbon matrix. Furthermore, the absence of O element indicates a complete phase conversion from Fe₂O₃ to FeSe₂ during the selenization process, which is consistent with the XRD results in Figure 2g.

Precise temperature control for the formation of the FeSeO_x phase and selective removal of AC in NGC matrix is critical for producing the Si/FeSeO_x@NGC/N-CNT microspheres. To determine the optimal oxidation temperature, thermogravimetric (TG) analysis of the Si/FeSe₂@NGC–AC/N-CNT microspheres was conducted in an air atmosphere (Figure S5, Supporting Information). In the TG results, a weight gain was observed up to 250 °C, attributed to the phase conversion of FeSe₂ to FeSeO_x, followed by a rapid weight loss, signifying the decomposition of AC into the gaseous product. Based on this analysis, Si/FeSeO_x@NGC/N-CNT microspheres were synthesized through an oxidation process at 250 °C for 3 h under the air atmosphere, and the corresponding physical characterization results are presented in Figure 3. The FE-SEM images (Figure 3a,b) demonstrate that the spherical morphology, along with the highly intertwined N-CNTs, was preserved even after the multistep heat treatment process, including oxidation. TEM images in Figure 3c,d revealed FeSeO_x nanoparticles (ϕ = 20 nm) from the oxidation of FeSe₂, and these nanoparticles were located at each N-CNT, which is consistent with the previous results (Figure 1c and 2c). Furthermore, the magnified TEM image in Figure 3d manifests the presence of Si nanoparticles with an average size of 80 nm. No significant lattice fringes corresponding to FeSeO_x nanoparticles were observed, suggesting an amorphous phase. This also implies that the amorphous FeSeO_x phase was formed as an intermediate between FeSe₂ and Fe₂O₃, as previously reported.^{[30, 40]} The HR-TEM image in Figure 3e also displays a lattice fringe spacing of 0.31 nm, corresponding to the (111) plane of Si. Besides, a lattice fringe corresponding to the NGC layer surrounding the FeSeO_x nanoparticles was also evident. Corroborating this, the SAED (Figure 3f) and XRD patterns (Figure 3g) exclusively display diffraction patterns associated with Si and NGC. The XRD pattern differed from that of the Si/FeSe₂@NGC–AC/N-CNT microspheres (Figure 2g), primarily due to the absence of FeSe₂ diffraction peaks and the reduced intensity of the Si peaks, reflecting the presence of the amorphous FeSeO_x phase. The existence of amorphous FeSeO_x within the nanostructure was further confirmed by Raman spectroscopy (Figure 3h), which exhibited low-intensity characteristic peaks at 248 and 296 cm⁻¹ corresponding to SeSe and FeO bonds, respectively.^{[41, 42]} Furthermore, the prominent peaks at 518, 1344, and 1579 cm⁻¹ were attributed to the SiSi bonds of the Si nanoparticles and the D-band and G-band of the carbonaceous material, respectively.^{[35, 38, 39]} The optimized oxidation process selectively removed the AC within the carbonaceous matrix, as evident from the slightly decreased I_D/I_G value of 1.0 compared to the Si/FeSe₂@NGC–AC/N-CNT microsphere (I_D/I_G = 1.1; Figure 2h). The Brunauer–Emmett–Teller (BET) surface area of the Si/FeSeO_x@NGC/N-CNT microsphere was measured using N₂ adsorption-desorption isotherms to validate the Raman results, as shown in Figure S6a, Supporting Information. The higher BET surface area of Si/FeSeO_x@NGC/N-CNT microspheres (86 m² g⁻¹) compared to that of Si/FeSe₂@NGC–AC/N-CNT microspheres (51 m² g⁻¹, Figure S7a, Supporting Information) resulted from the formation of micropores owing to AC combustion during oxidation. This agrees well with the pore-size distribution curve in Figure S6b, Supporting Information, and the micropore-size distribution curve in Figure S6c, Supporting Information. Additionally, mesopores (pore diameter = 40 nm) were observed in the pore-size distribution curves (Figure S6b and S7b, Supporting Information), originating from voids between the entangled N-CNTs. To further support the successful combustion of AC and formation of the FeSeO_x phase, TG results for the Si/FeSeO_x@NGC/N-CNT microspheres were obtained (Figure 3i). The TG curve revealed weight loss up to 150 °C due to the evaporation of water within the nanostructure, followed by a plateau until 310 °C. This is not consistent with the TG results observed for the Si/FeSe₂@NGC–AC/N-CNT microspheres (Figure S5, Supporting Information), suggesting the formation of an amorphous FeSeO_x phase during oxidation. Furthermore, the weight loss region from 310 to 610 °C (Δm = –51 wt%) was attributed to the sublimation of SeO₂, as well as the combustion of N-CNTs and the NGC matrix. The weight loss difference of ≈5 wt% between Si/FeSeO_x@NGC/N-CNT and Si/FeSe₂@NGC–AC/N-CNT microspheres (Δm = –56 wt%) is due to the absence of AC after oxidation. Furthermore, the weight increase observed at temperatures exceeding 610 °C was attributed to the gradual oxidation of Si. The elemental analysis (EA) results presented in Table S1, Supporting Information, further verify the TG results, with estimated C and N contents of 44 and 2.9 wt%, respectively, for Si/FeSeO_x@NGC/N-CNT microspheres. Furthermore, the contents of Fe, Se, and Si are confirmed by wavelength dispersive X-ray fluorescence (WD-XRF) analysis, with values of 38, 26, and 36 wt% (100 wt% equivalent), respectively (Table S2, Supporting Information). Based on the EA (Table S1, Supporting Information) and WD-XRF (Table S2, Supporting Information) analysis results, the calculated contents of Si, FeSeO_x, and N-doped carbonaceous materials in Si/FeSeO_x@NGC/N-CNT microspheres are 19, 34, and 47 wt%, respectively. The elemental mapping results of the Si/FeSeO_x@NGC/N-CNT microspheres (Figure 3j) demonstrated a homogeneous distribution of Si, Fe, Se, O, C, and N elements in the structure, providing evidence for the successful formation of a Si and FeSeO_x composite within an N-doped carbon matrix.

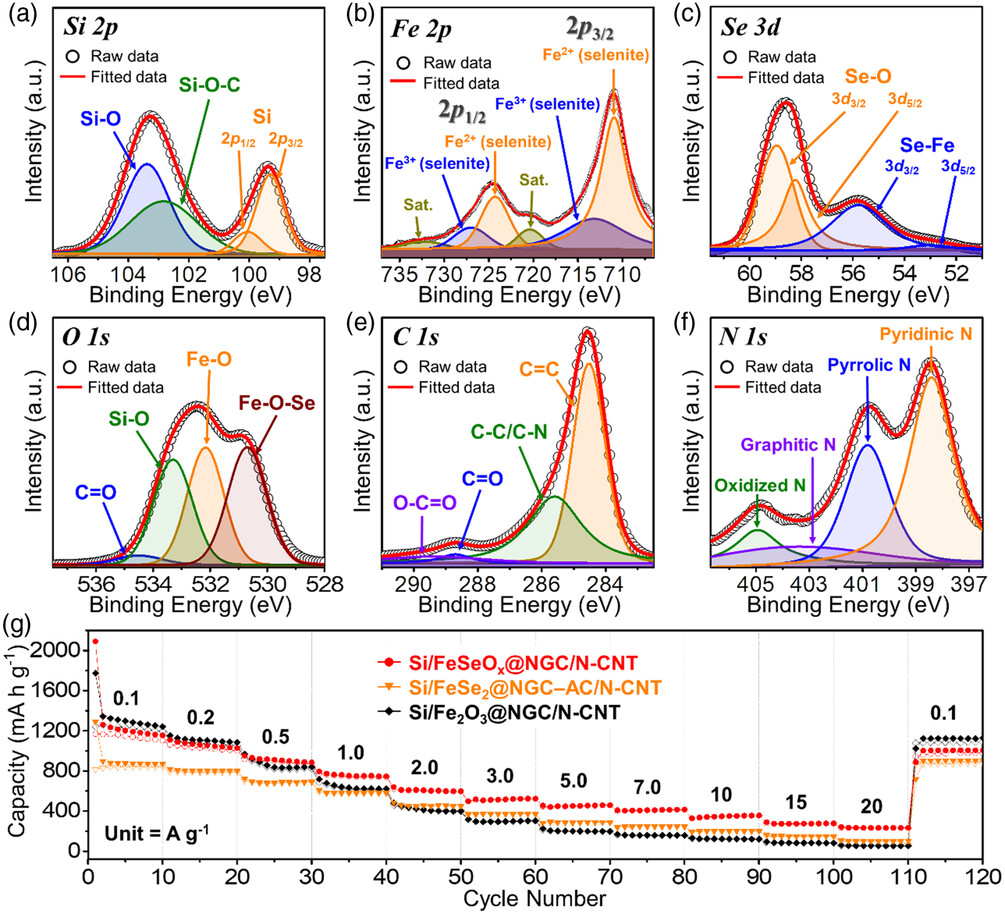

The bonding states and chemical environments of the elements within the Si/FeSeO_x@NGC/N-CNT microspheres were determined using X-ray photoelectron spectroscopy (XPS) to provide further evidence for FeSeO_x formation. The XPS survey spectrum reveals the presence of Si 2p, Fe 2p, Se 3d, O 1s, C 1s, and N 1s (Figure S8, Supporting Information). The Si 2p core-level XPS spectrum (Figure 4a) exhibited well-fitted peaks corresponding to the two spin-orbital doublets, Si 2p_3/2 and Si 2p_1/2, at binding energies of 99.3 and 100.1 eV, respectively.^{[43, 44]} Additionally, peaks related to SiOC and SiO were observed at 102.8 and 103.4 eV, attributed to the surface oxidation of Si nanopowder under ambient conditions.^{[43, 44]} The deconvoluted Fe 2p XPS spectrum (Figure 4b) reveals distinct Fe 2p_3/2 and Fe 2p_1/2 doublets. The peaks located at binding energies of 711.0/713.2 (Fe 2p_3/2) and 724.3/727.0 eV (Fe 2p_1/2) were ascribed to the Fe²⁺/Fe³⁺ states in FeSeO_x.^[45-47] Furthermore, the two shake-up satellite peaks of the Fe 2p signal (denoted as “Sat.”) were confirmed at 720.5 and 732.3 eV corresponding to the antibonding orbitals between multiple anions (Se and O) and Fe atoms.^{[48, 49]} In the Se 3d core-level XPS spectrum (Figure 4c), four peaks associated with different bonding orbitals in FeSeO_x were observed at 53.0/55.9 and 58.2/59.0 eV, corresponding to SeFe (Se 3d_3/2/Se 3d_5/2) and SeO (Se 3d_3/2/Se 3d_5/2) bonds, respectively.^{[50, 51]} The O 1s XPS spectrum (Figure 4d) shows accurately resolved peaks at 530.7, 532.2, 533.3, and 534.5 eV corresponding to FeOSe, FeO, SiO, and CO bonds, respectively.^[52-54] The peaks at 284.5, 285.6, 288.7, and 289.4 eV in the C 1s XPS spectrum (Figure 4e) are associated with CC, CC/CN, CO, and OCO bonds, respectively.^[48] In particular, the high-intensity peaks of the CC and CC/CN bonds indicate the presence of the NGC matrix and N-CNTs formed through the catalytic influence of metallic Fe. Furthermore, the N 1s core-level XPS spectrum (Figure 4f) featured deconvoluted peaks at 398.4 (pyridinic-N), 400.8 (pyrrolic-N), 403.6 (graphitic-N), and 405.0 eV (oxidized-N), confirming the formation of N-doped carbon.^{[48, 55]} Overall, the systematic multistep process resulted in the formation of highly stable and conductive porous microspheres composed of biphasic Si/amorphous FeSeO_x nanocrystals surrounded by an NGC matrix with highly intertwined N-CNTs. Furthermore, to highlight the advantages of the amorphous FeSeO_x phase with its multianionic heterostructure, Si/FeSeO_x@NGC/N-CNT microspheres were compared to two samples sharing a similar morphology but featuring distinct crystalline phases, namely, Fe₂O₃ and FeSe₂. The Si/Fe₂O₃@NGC/N-CNT microspheres were synthesized through the oxidation of Si/Fe@NGC–AC/N-CNT microspheres at 250 °C for 3 h under an ambient air atmosphere. Changes in the microstructural and crystal phases are shown in Figure S9, Supporting Information, followed by a detailed discussion. To verify the merits of the crystallographic phase of the Si/FeSeO_x@NGC/N-CNT microspheres, preliminary electrochemical tests (rate capabilities) were compared with those of the Si/FeSe₂@NGC/N-CNT and Si/Fe₂O₃@NGC/N-CNT microspheres, as shown in Figure 4g. At low current densities (below 0.2 A g⁻¹), the S @NGC/N-CNT microspheres demonstrated the highest discharge capacity owing to the high theoretical discharge capacity of Fe₂O₃ (1005 mAh g⁻¹).^[56] However, the slow conversion rate of Li₂O formed during the conversion reaction between Fe₂O₃ and Li resulted in inferior rate performance, especially at higher current densities. In contrast, despite FeSe₂ having a lower theoretical discharge capacity (502 mAh g⁻¹) than Fe₂O₃, the discharge capacities of the Si/FeSe₂@NGC–AC/N-CNT microspheres exceeded those of the sample containing Fe₂O₃, particularly at current densities above 2.0 A g⁻¹.^[57] This is due to the faster conversion rate of Li₂Se than that of Li₂O during the redox processes. Conspicuously, the amorphous FeSeO_x phase is notable for its ability to enhance the electrochemical performance, which is attributed to the formation of nanoscale heterointerfaces within the structure. This phase offers effective harnessing of both the high capacity associated with Fe₂O₃ and improved rate properties of FeSe₂. In line with this, the Si/FeSeO_x@NGC/N-CNT microspheres outperformed the other two samples in terms of discharge capacities, particularly at current densities exceeding 0.5 A g⁻¹. Even when subjected to remarkably high current densities of up to 20 A g⁻¹, the Si/FeSeO_x@NGC/N-CNT microspheres exhibited a remarkable discharge capacity of 233 mAh g⁻¹, highlighting their exceptional rate performance. These results firmly support the strategy of selecting the amorphous FeSeO_x phase over oxide or selenide phases. Furthermore, to obtain the optimized ratio of Si and amorphous FeSeO_x phase, the comprehensive physical and electrochemical characterization of the Si/FeSeO_x@NGC/N-CNT composites obtained after varying the ratio of Si and Fe-species to 1:3, 1:6, and 1:12 were performed, and depicted in Figure S10 and S11, Supporting Information, along with the relevant discussion.

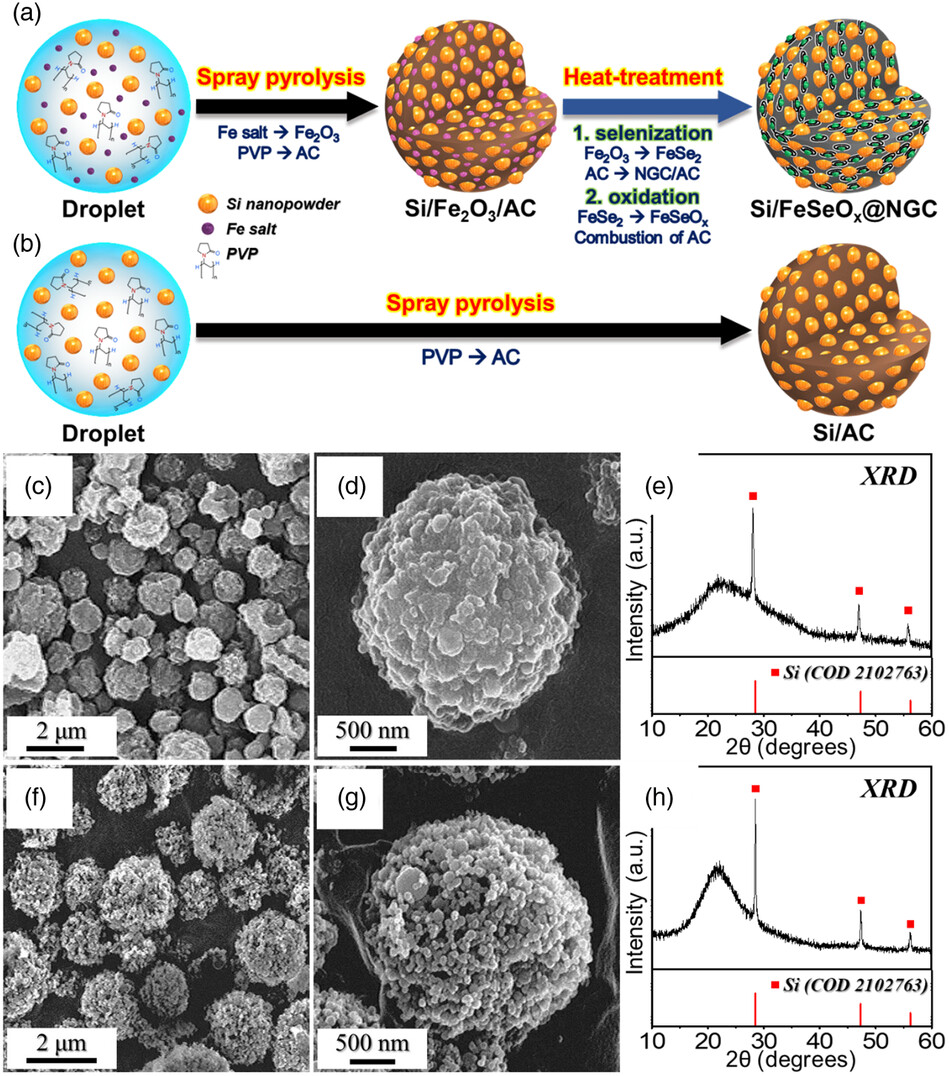

To further assess the influence of the grafted N-CNTs and amorphous FeSeO_x phases on the electrochemical performance of the Si/FeSeO_x@NGC/N-CNT microspheres, we synthesized microspheres composed of biphasic Si/amorphous FeSeO_x composite nanocrystals surrounded by an NGC matrix without N-CNT growth (denoted as Si/FeSeO_x@NGC). Another sample composed of Si nanoparticles within the AC matrix (denoted as Si/AC microspheres) was prepared for comparison. The formation mechanisms of these materials are depicted in Figure 5a,b. The synthesis of the Si/FeSeO_x/NGC microspheres, as shown in Figure 5a, involved spray pyrolysis followed by two heat treatments. The conditions during the spray solution and spray pyrolysis were identical to those for the Si/FeSeO_x@NGC/N-CNT microspheres. However, the powders obtained after spray pyrolysis underwent direct selenization and subsequent oxidation, skipping the N-CNT growth process. During selenization, the PVP-derived carbon matrix, which acted as a reducing agent, promoted the transformation of Fe₂O₃ into intermediate metallic Fe through a carbothermic reduction process. Subsequently, the FeSe₂ phase was formed by the reaction of the intermediate metallic Fe with H₂Se gas. During this process, the carbon matrix was graphitized using an intermediate metallic Fe catalyst. Finally, during the oxidation step, FeSe₂ transformed into an amorphous FeSeO_x phase with the simultaneous removal of AC, resulting in the formation of Si/FeSeO_x@NGC microspheres. Si/AC microspheres were also synthesized via one-pot spray pyrolysis (Figure 5b). The aqueous spray solution was prepared with PVP and Si nanopowder only, that is, without the Fe salt precursor. PVP was carbonized to AC during the spray pyrolysis process, resulting in the formation of Si/AC composite microspheres. The physical characterization results of Si/FeSeO_x@NGC microspheres are presented in Figure 5c–e. FE-SEM images in Figure 5c,d revealed the spherical morphology of the prepared powder (with an average size of 1.5 μm). In addition, a rough and densely packed surface was evident due to the Si nanoparticles and Fe compounds. The XRD pattern in Figure 5e indicates the presence of a distinct nanocrystalline Si phase, whereas no peaks corresponding to the FeSeO_x phase were observed, confirming its amorphous nature, as discussed earlier. The Fe 2p core-level XPS spectrum (Figure S12a, Supporting Information) shows well-defined peaks corresponding to two spin-orbital doublets, Fe 2p_3/2 (711.1 eV) and Fe 2p_1/2 (724.6 eV), along with two shake-up satellite peaks for Fe.^[45-47] The deconvoluted spectrum revealed well-resolved peaks at binding energies of 724.4/727.4 eV (Fe 2p_3/2) and 710.9/713.3 eV (Fe 2p_1/2), which were assigned to the Fe²⁺/Fe³⁺ species in the FeSeO_x phase.^[45-47] The deconvoluted Se 3d XPS spectrum shown in Figure S12b, Supporting Information, exhibited four well-fitted peaks at binding energies of 53.0/55.9 for Se 3d_3/2 and 58.2/59.0 eV for Se 3d_5/2, which were attributed to the SeFe/SeO bonds in FeSeO_x, respectively.^{[50, 51]} The O 1s spectrum (Figure S12c, Supporting Information) was deconvoluted into four distinct peaks at binding energies of 534.5, 533.2, 532.4, and 530.8 eV, corresponding to the CO, SiO, FeO, and FeOSe species, respectively.^[52-54] The FeO and FeOSe peaks indicate the formation of the FeSeO_x phase. Additionally, the appearance of SiO peaks indicates the partial oxidation of the Si surface under atmospheric conditions. The EA result of Si/FeSeO_x@NGC microspheres in Table S1, Supporting Information, indicates negligible traces of carbon (1.7 wt%) compared to Si/FeSeO_x@NGC/N-CNT microspheres. This suggests that the carbon in the structure was mainly consumed in the carbothermic reduction of Fe species due to the absence of a reducing agent such as DCDA, along with the combustion process during the oxidation step. Moreover, the Si/FeSeO_x@NGC microspheres exhibited a low BET surface area of 16 m² g⁻¹ (Figure S7c, Supporting Information) due to the absence of numerous N-CNTs throughout the structure. The Barrett–Joyner–Halenda pore-size distribution curve shown in Figure S7d, Supporting Information, suggests the presence of mesopores with a peak maximum centered at 22 nm, which can be attributed to voids between nanoparticles, such as Si and FeSeO_x. Similarly, physical analysis was also performed on the Si/AC microspheres, which were prepared as a comparison sample to validate the synergetic effect between amorphous FeSeO_x and Si in the Si/FeSeO_x@NGC/N-CNT microspheres, as shown in Figure 5f–h. The FE-SEM images in Figure 5f,g depicts the spherical morphology of the prepared sample with an average diameter of 2.0 μm. The microspheres were formed due to sparsely aggregated Si nanoparticles (ϕ = 85 nm) as primary constituent. The XRD pattern in Figure 5h reveals the coexistence of sharp and broad diffraction peaks corresponding to Si and AC, respectively. The carbon content of the Si/AC microspheres was quantified using a TG curve (Figure S13, Supporting Information). The result suggests a gradual weight loss until 550 °C due to the removal of moisture and the decomposition of AC in the microsphere. Based on the TG analysis, the estimated carbon content in the Si/AC microspheres was ≈5.9 wt%, which is consistent with the EA results (Table S1, Supporting Information).

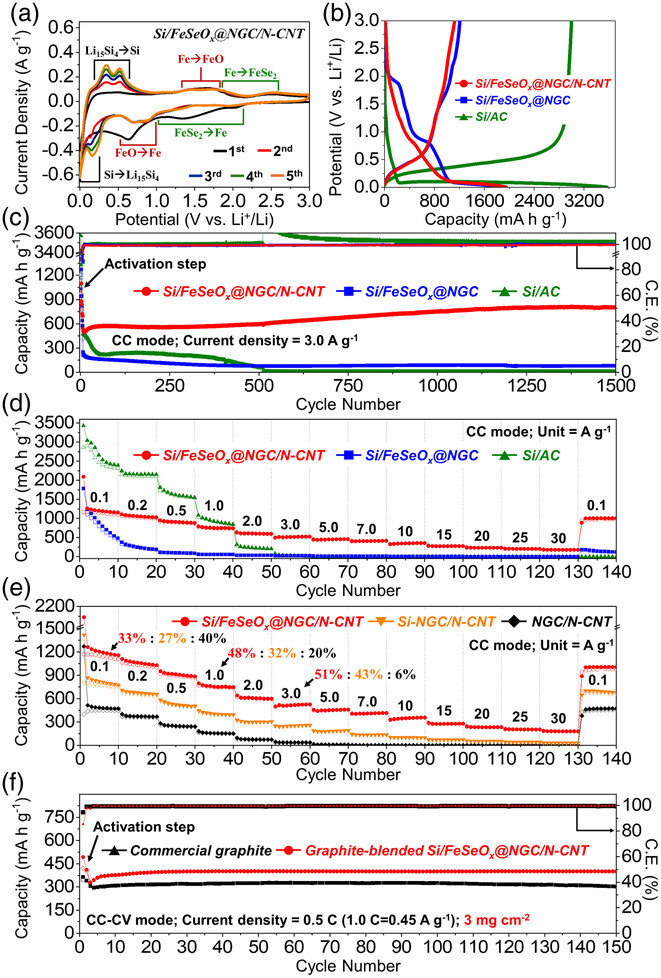

Well-designed Si/FeSeO_x@NGC/N-CNT microspheres were assembled as anodes inside a CR2032 coin cell and subjected to a series of electrochemical characterizations. For a better comparison, cells utilizing Si/FeSeO_x@NGC and Si/AC microspheres as anodes were also prepared. Moreover, overall electrochemical results were evaluated based on the active material mass. The cyclic voltammetry (CV) curves for Si/FeSeO_x@NGC/N-CNT microspheres during the initial five cycles, obtained at a scan rate of 0.1 mV s⁻¹ within the voltage range of 0.001 and 3.0 V, are illustrated in Figure 6a. In the first cathodic sweep, the weak and broad region at 2.01 V corresponds to the formation of lithium iron selenide as an intermediate, resulting from the insertion of Li-ions into amorphous iron selenide in FeSeO_x.^{[57, 58]} The subsequent broad peak at 1.36 V indicates the conversion of lithium iron selenide into metallic Fe and Li₂Se, accompanied by the activation of intermediate iron oxide.^[56-59] The broad reduction peak at 0.63 V is attributed to the conversion reaction of iron oxide into metallic Fe and Li₂O, along with the formation of a stable SEI layer through electrolyte decomposition.^{[30, 56, 60]} Additionally, the sharp peak at 0.01 V implies the formation of an amorphous Li₁₅Si₄ alloy phase and the insertion of Li-ions into the NGC matrix.^[61-63] During the first anodic scan, the weak and broad oxidation region from 0.19 to 0.50 V indicates the phase transformation of Li₁₅Si₄ to amorphous Si and extraction of Li-ions from the NGC matrix.^[61-63] The broad peak at 1.64 V is assigned to the electrochemical reaction of Li₂O and metallic Fe to form the FeO phase.^{[56, 60]} The subsequent peaks at 1.87 and 2.51 V suggest the formation of FeSe intermediates from metallic Fe and Li₂Se, and the subsequent formation of FeSe₂ and Li-ions from FeSe intermediates, respectively.^{[57, 58]} From the second cycle onward, slightly different redox processes were observed because of the formation of an amorphous FeO/FeSe₂ phase, which was distinct from the amorphous FeSeO_x heterointerface phase.^[64] The broad peaks at 1.95 and 1.22 V indicate the conversion of FeSe₂ and Li-ions to form metallic Fe and Li₂Se, while the closely spaced peaks at 0.86 and 0.70 V correspond to the reaction of FeO and Li-ions.^{[56-58, 60]} The corresponding anodic peaks were also observed during the first anodic sweep. Furthermore, the broad and indistinct nature of the peaks associated with the Fe compound can be attributed to the amorphous nature of this phase. The cathodic and anodic peaks of Si at 0.16/0.01 and 0.34/0.53 V, respectively, became more distinct and their intensity increased due to the gradual activation of Si during subsequent cycles, which is consistent with previous studies.^{[62, 63]} The CV curves of Si/FeSeO_x@NGC in Figure S14a, Supporting Information, exhibited similar CV characteristics with a few exceptions. For instance, the cell exhibits high-intensity redox peaks associated with the FeSeO_x phase owing to the absence of CNTs. This resulted in the uncontrolled crystal growth of FeSeO_x with increased insertion of Li-ions. The redox reactions involved were similar to those observed for the Si/FeSeO_x@NGC/N-CNT microspheres. The complex redox reactions arising from the FeSeO_x phase are firmly supported by the CV results of the Si/FeSe₂@NGC–AC/N-CNT and Si/Fe₂O₃@NGC/N-CNT microspheres, as shown in Figure S15, Supporting Information. Based on the above discussion, the complete reaction mechanisms involved in the discharge and charge processes of the Si/FeSeO_x@NGC/N-CNT microspheres are summarized below:

By contrast, the CV curves of the Si/AC microspheres in Figure S14b, Supporting Information, exhibited redox peaks exclusively for Si. During the initial cathodic sweep, a peak and broad region at 1.4 and 1.0–0.4 V correspond to the formation of SEI layer and the Li-insertion process of crystalline Si, respectively, leading to the formation of an amorphous Li_xSi phase.^{[65, 66]} Additionally, the cathodic peak at 0.13 V during the second cycle gradually shifted to lower voltages during subsequent cycles. This peak shift indicates a sluggish current response during cycling, resulting from the absence of CNTs and NGC matrix. To verify the CV results, initial galvanostatic discharge–charge profiles were obtained for the prepared microspheres at a current density of 0.1 A g⁻¹, as shown in Figure 6b. The plateaus at which the electrochemical reactions occurred were consistent with the peak positions recorded in the CV curves. For the Si/FeSeO_x@NGC/N-CNT microspheres, a sloppy and ambiguous charge and discharge voltage profile was obtained, which was related to the multistep reaction of Li-ions with the amorphous FeSeO_x phase at different voltage potentials. The initial discharge/charge capacities of the Si/FeSeO_x@NGC/N-CNT, Si/FeSeO_x@NGC, and Si/AC microspheres were 1954/1125, 1854/1209, and 3571/3001 mAh g⁻¹, respectively, resulting in initial Coulombic efficiencies (ICEs) of 58, 65, and 84%, respectively. The slightly lower ICEs for Si/FeSeO_x@NGC/N-CNT and Si/FeSeO_x@NGC compared to those of the Si/AC microspheres are attributed to the presence of a conversion-based anode material (FeSeO_x in the present case), resulting in a high initial irreversible capacity loss. Notably, FeO_x with Fe³⁺ and Fe²⁺ cation within FeSeO_x is converted into metallic-Fe and Li₂O by reacting with Li-ions during the initial discharge process; however, during the charging process, the metallic Fe is converted to the FeO phase with only Fe²⁺ cation forming residual Li₂O, and the irreversible reactions result in the reduction of ICE, as reported previously.^[67] Additionally, the low ICE for Si/FeSeO_x@NGC/N-CNT could be attributed to the irreversible reactions forming residual Li₂O on the surface of N-CNT networks and surface side reactions, such as irreversible electrolyte degradation leading to the formation of the SEI layer, due to micropores in the structure and heterointerfaces of FeSeO_x.^[67-69] Although the ICE for the Si/FeSeO_x@NGC/N-CNT anode was low for the first cycle, it immediately increased to 96% after four cycles of activation and maintained high Coulombic efficiency (CE) values (>99%) throughout the cycling process, indicating the formation of a stable SEI layer. Furthermore, an increase in the effective C content of the structure generally leads to a relatively lower discharge capacity of the materials, and the Si/FeSeO_x@NGC/N-CNT microspheres exhibit a higher carbon content of 44 wt% than the Si/FeSeO_x@NGC microspheres (1.7 wt%) due to the presence of N-CNTs. Nevertheless, the almost similar or slightly higher initial discharge capacity of Si/FeSeO_x@NGC/N-CNTs than that of Si/FeSeO_x@NGC microspheres attests to the enhanced rate characteristics due to the N-CNTs, providing numerous conductive pathways for better charge transfer characteristics and improved diffusion kinetics. Overall, the CV and initial discharge–charge voltage profiles suggest that the structural merits induced by the coherent design strategy in the Si/FeSeO_x@NGC/N-CNT microspheres enhanced Li-ion redox kinetics and improved cell performance.

To validate the CV and initial voltage profile results, the cycling and rate performances of Si/FeSeO_x@NGC/N-CNT, Si/FeSeO_x@NGC, and Si/AC microspheres were evaluated. The cycling performance of different cells featuring prepared anodes with different structural and phase characteristics was investigated at current densities of 0.5, 1.0, and 3.0 A g⁻¹ (Figure 6c and S16, Supporting Information). Before assessing the cycling properties at 0.5 A g⁻¹, activation steps were carried out at 0.1 A g⁻¹ for two consecutive cycles. As observed, the Si/FeSeO_x@NGC/N-CNT anode exhibited stable cycling performance until 400 cycles, delivering a reversible discharge capacity of 954 mAh g⁻¹ with a high CE of 99.8% (Figure S16a, Supporting Information). This indicates a capacity retention of 85% with an average decay rate of 0.038% per cycle. The excellent cycling performance of the cell with the Si/FeSeO_x@NGC/N-CNT anode was attributed to the synergistic effect between multiple components. For instance, after the initial discharge/charge process, FeO_x/FeSe_x nanoparticles with heterointerfaces were formed from FeSeO_x nanoparticles. Subsequently, the Si and FeO_x/FeSe_x nanoparticles mitigated the volume expansion of each other owing to their different redox reaction voltages during the charge/discharge process, resulting in a stable cycling performance. Additionally, the NGC matrix enhanced the structural integrity of the nanostructure by restraining the volume expansion of the Si and Fe species. Although numerous strategies have been employed to mitigate volume expansion, anodes that include Si may still undergo pulverization and delamination from the Cu current collector owing to volumetric stress during the discharge/charge process. Therefore, N-CNTs were introduced onto the surface of the Si/FeSeO_x@NGC microspheres to prevent the fragments of the compromised structure from completely detaching, enabling stable and continuous electrochemical reactions. Comparatively, the discharge capacities of the Si/FeSeO_x@NGC microspheres decrease rapidly until the 50th cycle and stabilize thereafter. The sharp decrease is attributed to various factors, namely, the lowest surface area (Figure S7c, Supporting Information) resulting in sluggish Li-ion diffusion kinetics, insufficient NGC matrix (Table S1, Supporting Information) to suppress the volume expansion of electroactive materials such as Si and Fe species, and finally, absence of N-CNTs, which hinders the fast charge transfer characteristics during the redox processes. Correspondingly, the cell with Si/FeSeO_x@NGC anode displayed a discharge capacity of only 80 mAh g⁻¹ and a CE of 99.7% at the end of 400th cycle, resulting in a capacity retention of just 8% with an average decay rate of 0.23% per cycle. Similarly, the Si/AC microspheres initially exhibited the highest capacity because of the high theoretical capacity of Si (4200 mAh g⁻¹). However, they demonstrated poor cycling performance because the microspheres lack FeSeO_x nanoparticles and carbonaceous materials to accommodate the volumetric stress caused by the Si nanoparticles. Consequently, the Si/AC microsphere anode delivers a reversible capacity of 430 mAh g⁻¹ at the end of 400th cycle (CE of 99.0%). The capacity retention was only 18% with an average decay rate of 0.21% per cycle. Similar capacity trends were observed at a high current density of 1.0 A g⁻¹, as shown in Figure S16b, Supporting Information. To evaluate the cycling performance at the current density of 1.0 A g⁻¹, multiple activation steps were carried out at 0.1, 0.2, and 0.5 A g⁻¹ for two cycles each. At the end of 700th cycle, Si/FeSeO_x@NGC/N-CNT anode maintains a discharge capacity of 615 mAh g⁻¹ with a CE of 99.5% and a capacity retention of 99% (with an average capacity decay rate of just 0.0021%). In contrast, Si/FeSeO_x@NGC and Si/AC anodes exhibit discharge capacities of 68 and 4 mAh g⁻¹ with capacity retention of 15% and 0.2%, respectively, at the end of the 700th cycle. Furthermore, Si/FeSeO_x@NGC/N-CNT microspheres exhibit outstanding cycling performance even at a high current density of 3.0 A g⁻¹ compared to Si/FeSeO_x@NGC and Si/AC microspheres (Figure 6c). After the activation steps at 0.1, 0.5, and 1.0 A g⁻¹, cells utilizing Si/FeSeO_x@NGC/N-CNT, Si/FeSeO_x@NGC, and Si/AC anodes exhibit reversible discharge capacities of 806, 81, and 5 mAh g⁻¹, respectively, at the end of the 1500th cycle. As evident, the initial capacity of the Si/FeSeO_x@NGC/N-CNT microsphere increases for the first 50 cycles by the activation process of the electrode material, involving initially unavailable electroactive sites gradually becoming exposed and fully activated, especially at the high current density of 3.0 A g⁻¹.^{[70, 71]} Notably, the average CE of the Si/FeSeO_x@NGC/N-CNT microsphere up to the initial 50 cycles was calculated to be 99.1% (Figure S17, Supporting Information). The result supports the occurrence of irreversible reactions during the initial activation process, contributing to the increase in capacity. Moreover, the average CE was further improved through the graphite-blending method utilized in actual commercial processes, and the detail results are discussed later. Compared to cycling performance at 0.5 and 1.0 A g⁻¹, the Si/AC anode revealed a lower discharge capacity despite the high theoretical capacity of Si. This is due to the low intrinsic electrical conductivity of Si, resulting in poor redox kinetics especially at the high current density of 3.0 A g⁻¹. During cycling at different current densities, the Si/FeSeO_x@NGC/N-CNT anode showed a gradual increase in discharge capacity with repeated cycling. This is due to the expansion of the heterointerfaces within the heterostructured-FeSeO_x nanocrystals and the reversible growth of a gel-like polymeric SEI film due to electrolyte degradation. As cycling progresses, a gradual expansion of the heterointerfaces in the form of the FeO_x/FeSe_x ultrafine crystals within the FeSeO_x crystal occurs, which facilitates the insertion and extraction of Li-ions during cycling, allowing for more effective utilization of the electroactive sites. Additionally, more Li-ions could be stored due to the multilayer formation effect of Li-ion at the edge sites of the heterointerfaces, resulting in a gradual increase in capacity.^{[72, 73]} Besides, the expanded heterointerface of the electroactive material induces the formation of a stable gel-like polymeric SEI film in the form of a reversible SEI layer, turning favors fast redox kinetics; hence, an increase in capacity was observed.^{[22, 61, 74]} Moreover, the electrochemical characterization of the Si/FeSeO_x@NGC/N-CNT anodes under higher loading condition of 1.5 mg cm⁻² were performed, and depicted in Figure S18 and S19, Supporting Information, along with the relevant discussion.

To further verify the structural merits, rate performances of the prepared microspheres were assessed at different current densities ranging from 0.1 to 30 A g⁻¹, as presented in Figure 6d. The Si/FeSeO_x@NGC/N-CNT microspheres exhibited discharge capacities of 1155, 1029, 885, 747, 600, 524, 459, 416, 356, 277, 233, 203, and 179 mAh g⁻¹ for the 10th cycle at current densities of 0.1, 0.2, 0.5, 1.0, 2.0, 3.0, 5.0, 7.0, 10, 15, 20, 25, and 30 A g⁻¹, respectively. When the current density was reverted to 0.1 A g⁻¹, the capacity returned to 1006 mAh g⁻¹ (87% retention). In contrast, cells with Si/FeSeO_x@NGC and Si/AC anodes exhibited inferior rate properties, with discharge capacities of 486/2390, 189/2153, 90/1552, 57/849, 33/208, and 24/8 mAh g⁻¹ at current densities of 0.1, 0.2, 0.5, 1.0, 2.0, and 3.0 A g⁻¹, respectively. At current densities higher than 3.0 A g⁻¹, Si/FeSeO_x@NGC and Si/AC anodes showed almost zero capacities due to their structural instability and sluggish redox reaction kinetics. Furthermore, in the case of Si/AC microspheres, the capacity did not recover even after reverting the current density to 0.1 A g⁻¹, indicating the complete collapse of the structure especially at high current densities. To clarify the contribution for battery performance of each FeSeO_x, Si, and carbon components (i.e., NGC and N-CNT) in the Si/FeSeO_x@NGC/N-CNT anode, two-step acid treatments of microspheres were carried out using hydrochloric acid and hydrofluoric acid to selectively etch FeSeO_x and Si, respectively (Figure 6e and S20, Supporting Information). The morphology, CV characteristics, and voltage profiles of the powders obtained after hydrochloric acid and hydrofluoric acid treatment were demonstrated in Figure S20a–f, Supporting Information. From the CV curves, the complete removal of FeSeO_x and Si/FeSeO_x in the composite was confirmed, respectively (Figure S20b,e, Supporting Information). The Si-NGC/N-CNT composite and NGC/N-CNT microspheres exhibited a reversible discharge capacity of 617, and 259 mAh g⁻¹ at a current density of 1.0 A g⁻¹ for the 5th cycle (Figure S20c,f, Supporting Information). As results of rate test, the capacity contributions of FeSeO_x, Si, and NGC/N-CNT matrix at current densities of 0.1/1.0/3.0 A g⁻¹ were estimated at 33/48/51, 27/32/43, and 40/20/6%, respectively (Figure 6e). In other words, the capacity contributions of FeSeO_x and Si increased with increasing current density (notably, FeSeO_x increased the most), while that of the carbon matrix decreased. The reversal of the capacity contributions of Si and FeSeO_x, and the carbon matrix with increasing current density is attributed to the sluggish Li-ion diffusion into the carbon matrix at high current density as already reported,^{[75, 76]} as well as the promotion of rapid redox reactions of Si and FeSeO_x by the N-CNT and NGC conductive frameworks serving as efficient electron transport pathways. The cycling test results at a current density of 1.0 A g⁻¹ also supported the rate results, exhibiting 41, 30, and 29% capacity contribution of FeSeO_x, Si, and NGC/N-CNT after 200 cycles, respectively (Figure S20g, Supporting Information). Therefore, the remarkable rate capability of the Si/FeSeO_x@NGC/N-CNT microspheres in comparison to the Si/FeSeO_x@NGC and Si/AC microspheres stems from the synergetic effect of hetero-structured FeSeO_x and Si, followed by supporting of the highly entangled N-CNTs and NGC matrix. The heterointerface resulting from amorphous FeSeO_x enhanced the redox reaction kinetics by allowing easy penetration of the electrolyte and improving the diffusion rate of Li-ions. Moreover, the microporous NGC matrix and highly entangled N-CNTs facilitate efficient and rapid charge transfer by improving the electrical contact between the active sites of FeO_x/FeSe_x and Si nanoparticles inside the electrode. The electrochemical performance of the Si/FeSeO_x@NGC/N-CNT anode was better than that of other Si/carbon and Si/Fe_xO_y-based anode materials with different morphologies, as summarized in Table S3, Supporting Information.

Moreover, to evaluate the level for practical application of Si/FeSeO_x@NGC/N-CNT anodes, commercial graphite-blended Si/FeSeO_x@NGC/N-CNT anodes with a high active material loading mass of ≈3.0 mg cm⁻² were prepared. The blend ratio of commercial graphite and Si/FeSeO_x@NGC/N-CNT was fixed to 10:90 weight ratio, and the electrochemical properties were evaluated under the constant current-constant voltage condition (Figure 6f and S17, Supporting Information). FE-SEM image and XRD result of commercial graphite are shown in Figure S21a,b, Supporting Information. The graphite-blended Si/FeSeO_x@NGC/N-CNT anode exhibited an initial discharge capacity of 420 mAh g⁻¹ and an ICE of 86% at current density of 0.1 C (1.0 C = 450 mA g⁻¹; Figure S21c, Supporting Information). As a result of the cycling test in Figure 6f, the graphite-blended Si/FeSeO_x@NGC/N-CNT anode showed a reversible discharge capacity of 400 mAh g⁻¹ after 150 cycles at a current density of 0.5 C, which is 33% higher than that of commercial graphite (302 mAh g⁻¹). Significantly, the average CE over the initial 50 cycles of the graphite-blended Si/FeSeO_x@NGC/N-CNT anode was calculated to be 99.7% (Figure S17, Supporting Information), which is higher than the one before graphite-blending (99.1%), highlighting the potential of Si/FeSeO_x@NGC/N-CNT anode for practical application. Furthermore, all discharge capacities of graphite-blended Si/FeSeO_x@NGC/N-CNT anodes were much higher that of commercial graphite at various current densities from 0.1 to 5.0 C, indicating the superior rate properties of the anodes (Figure S21d, Supporting Information).

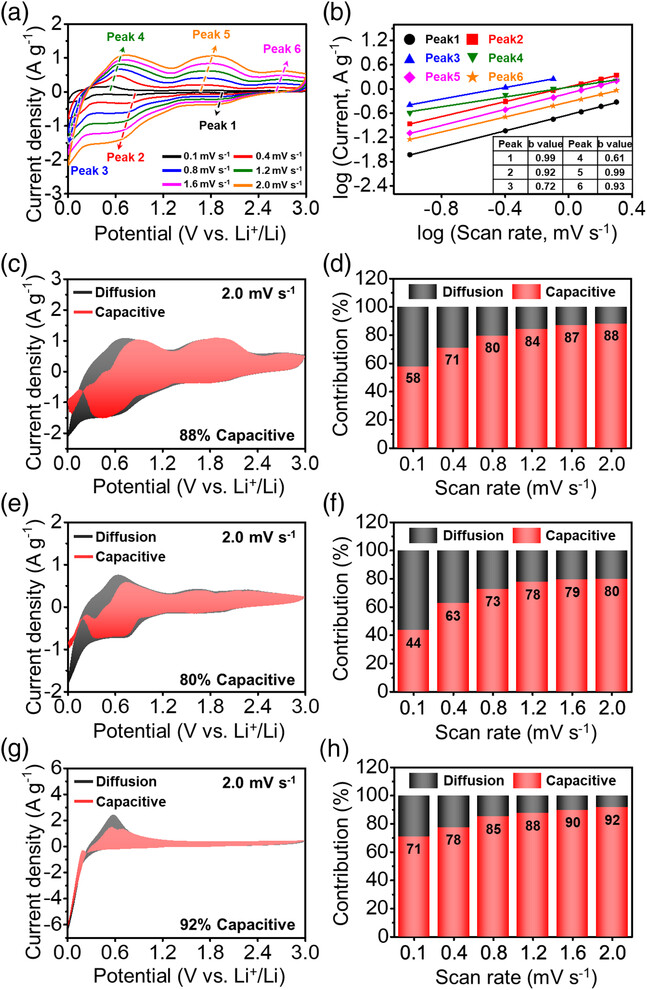

The first term on the right-hand side (k₁v) represents the current generated by a surface-capacitive reaction, whereas the second term (k₂v^1/2) signifies the current from a diffusion- controlled reaction. The proportions of capacitive reactions relative to the total current for Si/FeSeO_x@NGC/N-CNT, Si/FeSeO_x@NGC, and Si/AC microspheres at a scan rate of 2.0 mV s⁻¹ were 88, 80, and 92%, respectively (Figure 7c,e,g). The measurement of capacitive contribution at different scan rates ranging from 0.1 to 2.0 mV s⁻¹ is depicted in Figure 7d,f,h. The results of Si/FeSeO_x@NGC/N-CNTs, Si/FeSeO_x@NGC, and Si/AC anodes can be attributed to the multicomponents such as Si, FeSeO_x, AC, NGC, and N-CNTs, which are expected to have complex interactions between them. For example, AC is characterized with capacitive-dominant reactions by Li-ion insertion through numerous defects in the structure.^[80] Moreover, N-CNTs have capacitive-controlled mechanisms by limitation of Li-ion diffusion into the interior due to their closed structure, which promotes adsorption of Li-ion onto the N-sites of the N-CNT outer wall.^[81] In the case of FeSeO_x, the intrinsic heterointerfaces in the structure induces the capacitive-controlled reaction at the numerous interfaces, and the heterointerface-driven mechanism further enhances the rapid surface reaction.^{[28, 64]} In contrast, Si features diffusion-controlled Li-ion storage mechanism by Li-ion diffusion within its crystal structure, followed by alloying reaction. Additionally, NGCs store Li-ion through the intercalation mechanism, which is diffusion of Li-ion into their layered structure.^[82] Therefore, the higher percentage of capacitive reactions for Si/FeSeO_x@NGC/N-CNT (88%) compared with the Si/FeSeO_x@NGC microspheres (80%) can be attributed to the presence of entangled N-CNTs on the surface of the microspheres. The highly entangled N-CNTs, with their intrinsically high electrical conductivity, not only served as a secondary electronic transport pathway but also enhanced the contact between microspheres, resulting in excellent Li-ion reaction kinetics. However, Si/AC anodes exhibited a higher capacitive-controlled reaction (92%) than Si/FeSeO_x@NGC/N-CNT anodes, consistent with b-value fitting results (Figure S22b, Supporting Information), attributed to the structural characteristics of Si/AC microsphere despite the absence of N-CNTs and FeSeO_x. Briefly, the capacitive-controlled reaction of Si/AC anodes can be contributed to the loosely packed structure, as shown in the FE-SEM image (Figure 5g), and the presence of AC matrix constituting the microsphere along with the hindered diffusion-controlled reaction of Si by the absence of highly conductive NGC and N-CNTs, and heterostructured-FeSeO_x.

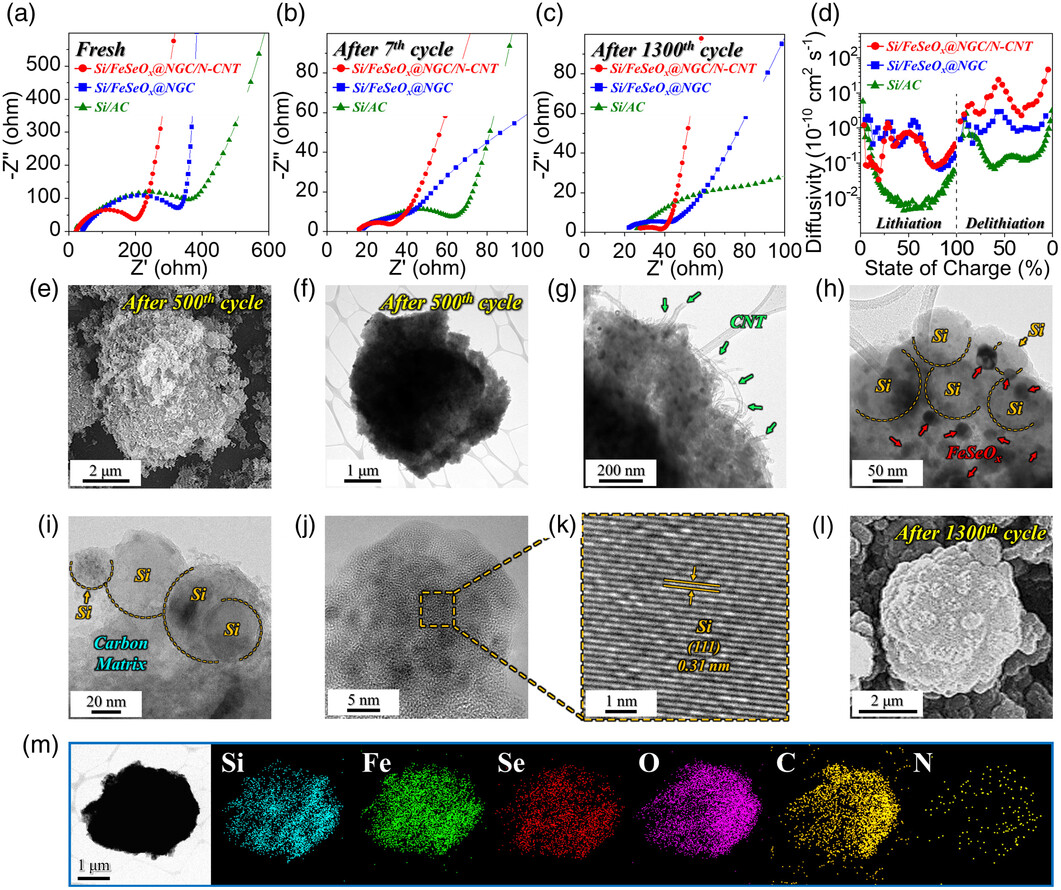

Overall, we have designed an advanced anode in the form of Si/FeSeO_x@NGC/N-CNT microspheres with high-rate properties and prolonged cycling performance, well supported by the synchronization strategy between the various components. This synergy successfully addresses the critical issues associated with the Si-based composite anodes and, therefore, could be applied for other nanostructures employed for wide range of applications.

3 Conclusion

We successfully synthesized a silicon hybrid anode material using a facile spray pyrolysis technique and multistep heat treatment. This multicomponent anode material consists of porous microspheres containing biphasic silicon-amorphous iron selenite nanocrystals enveloped within an NGC matrix and encased by well-grown highly intertwined N-doped CNTs. Comprehensive physical and electrochemical analyses revealed synergistic effects between the various components within the hybrid anode. These interactions facilitate swift charge transfer and unhindered movement of the charged species, thus supporting superior redox reaction capabilities. The amorphous metal selenite phase not only bolsters the structural integrity of the overall nanoarchitecture, but also expedites the diffusion of lithium ions, thereby promoting kinetically favored electrochemical processes. Benefited from the structural merits, Si/FeSeO_x@NGC/N-CNT, as a hybrid anode, exhibited outstanding electrochemical properties, including an impressive high-rate capability of up to 30 A g⁻¹, prolonged cycling stability across different current densities (0.5, 1.0, and 3.0 A g⁻¹), and improved lithium-ion diffusion characteristics. Moreover, graphite-blended Si/FeSeO_x@NGC/N-CNT anodes with a high active material loading mass of ≈3.0 mg cm⁻² were evaluated the level for practical application, exhibited an initial CE of 86, and 33% higher reversible discharge capacity than that of commercial graphite. Therefore, the microstructural and electrochemical insights gained in this work are poised to chart new frontiers in the development of hybrid multicomponent anodes for diverse energy storage systems.
