Among the most common congenital diseases in humans are the different types of red blood cell malformations. In North America and Northern Europe, the most common inherited red blood cell disorder is hereditary spherocytosis (HS). Approximately 1:2000 individuals of Northern European ancestry are diagnosed with HS every year in the United States (Da Costa et al., 2013). However, given that spherocytosis symptoms are sometimes mild, the incidence is likely underestimated (Da Costa et al., 2013). The most common symptoms of spherocytosis include anemia, splenomegaly, jaundice, and, in severe forms, iron overload and gallstones (Delaunay, 2007).

Red blood cells are the only human cell type without nuclei, naturally lacking DNA. The red blood cell membranes consist of approximately 20 major proteins and 850 minor ones (Pesciotta et al., 2012). These proteins are scattered in at least three separate red blood cell membrane-penetrating complexes: unbound band 3, ankyrin complex, and the actin junctional complex (Lux, 2016). The unbound band 3 complex associates with the ankyrin complex via glycophorin A. The ankyrin complex is anchored to α- and β-spectrin proteins (Lux, 2016). Disruption of any major protein in these complexes, such as those caused by germline variants in the associated genes, will result in defects in the red blood cell membrane and lead to diseases of the red blood cells (Gallagher, 2013). In HS patients, pathogenic variants have been reported in five genes, leading to five different types of the disease. HS type 1 is caused by mutations in the ankyrin1 (ANK1) gene. HS type 2 and type 3 are associated with variants in the spectrin beta, erythrocytic (SPTB, OMIM accession number 182870), and spectrin alpha, erythrocytic 1 (SPTA1) genes, respectively. HS type 4 is caused by mutations in the solute carrier family 4 member 1 (SLC4A1) gene and type 5 is caused by mutations in the erythrocyte membrane protein band 4.2 (EPB42) gene (Andolfo et al.,).

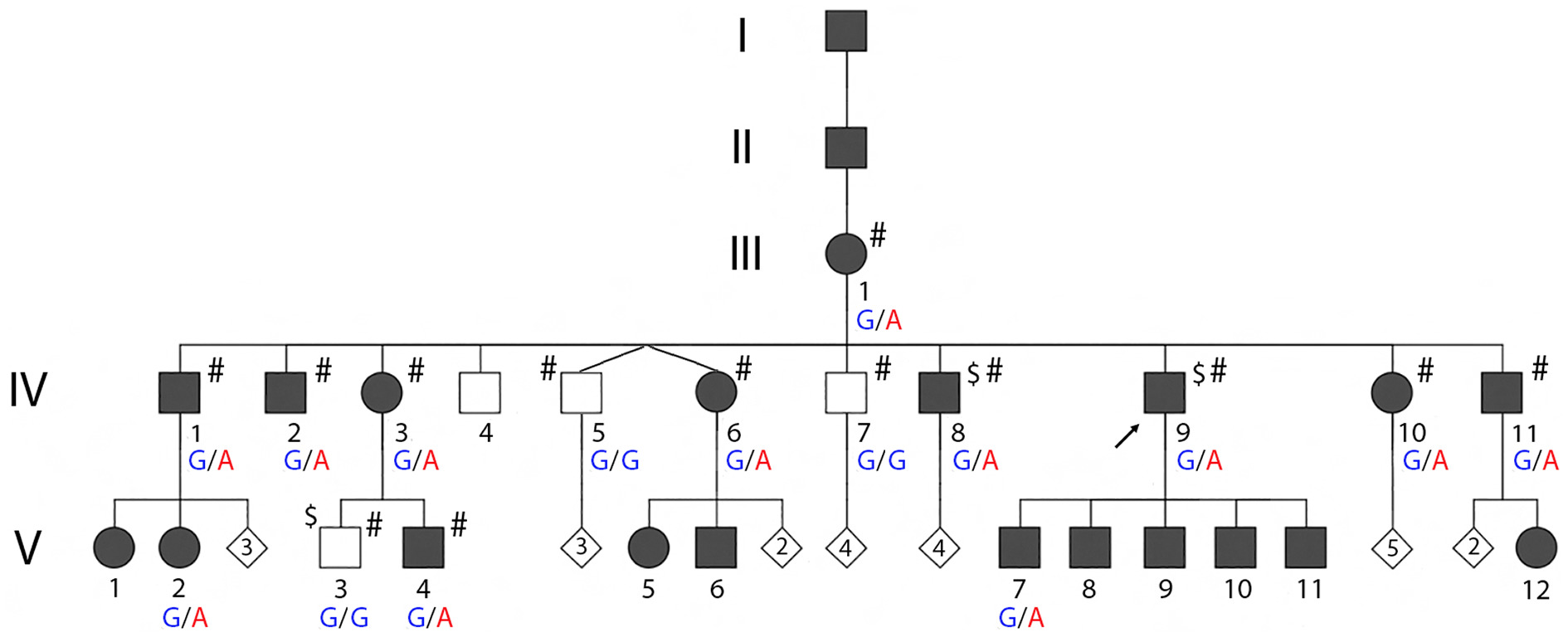

We report a large family with 22 individuals affected with HS demonstrating autosomal dominant inheritance (Figure 1). The family is of Caucasian ancestry and its members reside mainly in the Midwest of the United States. The typical clinical features in affected family members include anemia and splenomegaly. Almost all affected individuals in the family had jaundice within the first 24–48 h after birth. They often have developed severe anemia later in the newborn period. The clinical characteristics of the investigated family members are provided in Table 1. In addition, 12 individuals in the same family were diagnosed with non-medullary thyroid cancer (NMTC). There are eight individuals with both NMTC and HS. This family was included in our previous genomic analysis of NMTC families (Wang et al., 2019). As is suggested by the data in the pedigree, HS and NMTC are genetically different and presumably unrelated (Wang et al., 2019). This was confirmed by a linkage analysis in which no common peak was shared between HS and NMTC. In this report, we focus only on HS. All samples used in this analysis were obtained under protocols approved by the Cancer Institutional Review Board at the Ohio State University Medical Center.

We performed genome-wide linkage analysis using genotypes obtained with HumanCytoSNP-12 BeadChip (Illumina) in 13 samples (10 affected and three unaffected) (Figure 1). Non-parametric linkage analysis with MERLIN v1.1.2 revealed at least four linkage peaks in 5p13, 9p24, 14q23, and 19p13, with similar linkage scores (maximum Z-scores of 16.5, 17.6, 16.8, and 16.8, respectively). We performed whole-genome sequencing (WGS) on blood genomic DNA from three family members (two affected and one unaffected) as depicted in Figure 1. After initial WGS data analyses with the Churchill method and BasePlayer 1.0.2 (Katainen et al., 2018; Kelly et al., 2015), we filtered variants with the following criteria: shared by the two HS patients, not present in the unaffected individual, and the minor allele frequency <0.001 in gnomAD database. We selected non-synonymous coding and splicing site variants and obtained 61 candidates, including 59 single-nucleotide variants and two small insertion/deletions. Fifty-nine of the variants were missense variants and two were potential splicing variants. To help choose between the candidate variants, we combined WGS with linkage analysis. Notably, we identified a heterozygous G>A transition in the 14q23 locus, at position +1 of the intron 8 donor splice site of the SPTB gene (NM_001024858.4:c.1064+1G>A).

To validate the SPTB c.1064+1G>A variant in the family, we performed Sanger sequencing on all the available DNA samples (n = 15) from the family (Table 1). Indeed, the variant was found in all the 12 HS patients we tested but was not present in the three non-affected individuals (Figure 1).

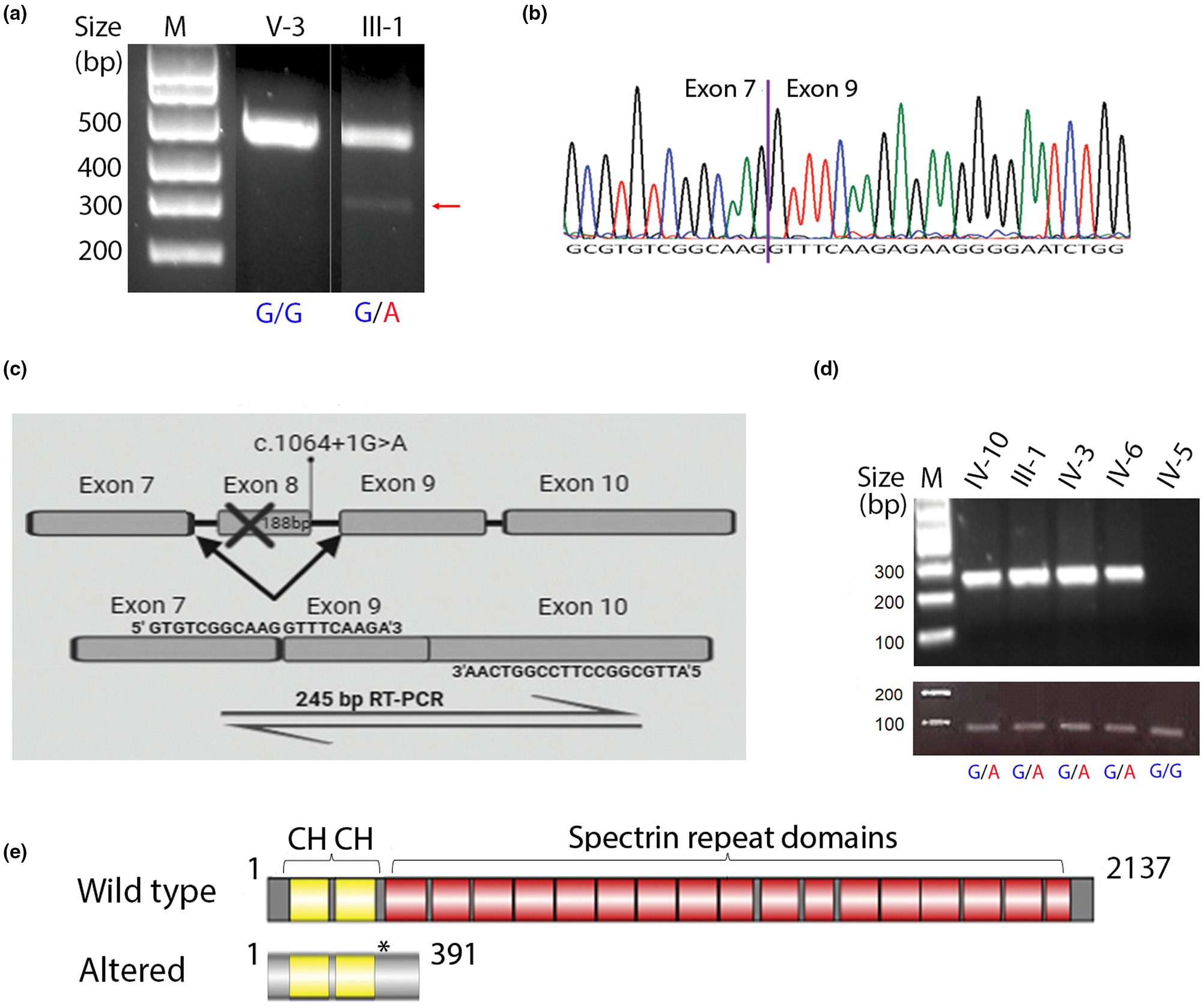

The c.1064+1G>A variant resides in the 5’ essential splice site of intron 8 in the SPTB gene, which alters the canonical splice donor sequence and may cause exon skipping (Krawczak et al., 1992). To test whether the c.1064+1G>A variant affects SPTB splicing, we performed RT-PCR reactions with RNAs prepared from blood samples from family members. Samples of an unaffected individual and a HS patient produced an expected band of 584 bp in size, while cDNA of the HS patient produced an additional faint smaller sized band (Figure 2a). TOPO cloning and Sanger sequencing of this extra PCR product revealed exon 8 skipping (Figure 2b). To further validate exon 8 skipping, we designed a primer pair spanning the junction between SPTB exons 7 and 9 (Figure 2c). RT-PCR analysis revealed the presence of an approximately 245 bp amplicon in four HS patients as expected, but not in the unaffected individual (Figure 2d). Overall, the variant leads to the exclusion of exon 8 and subsequent frameshift in exon 9 and a premature stop codon. This variant is named SPTB NP_001020029.1: p.Ile294Serfs*35 according to the recommended variant nomenclature by the Human Genome Variation Society (Dunnen et al., 2016). The aberrantly spliced mRNA produced by the altered allele appeared to be unstable as it occurs as a very faint band compared with the wild type (Figure 2a). This observation suggests that the aberrant SPTB mRNA is subject to nonsense-mediated mRNA decay (Kurosaki & Maquat,). As seen in Figure 2e, translation of the altered allele would lead to a truncation with a loss of all spectrin repeat domains, making it likely that haploinsufficiency of SPTB is underlying the HS risk (He et al., 2018). SPTB is an essential component of a complex spectrin-actin scaffold at the inner surface of the erythrocyte membrane and protects the stability of erythrocyte membranes (Machnicka et al., 2014). Pathogenic variants in the SPTB gene that have been associated with spherocytosis type 2 include nonsense, frame shift, splicing, and missense variants (Park et al., 2016; Salas et al., 2015).

In summary, we report a large five-generation family with 22 HS patients. A novel splicing variant (c.1064+1G>A) in the SPTB gene was detected by WGS and linkage analysis. Sanger sequencing of available genomic DNAs in 15 family members indicated that the variant was present in the 12 HS patients we tested, but not in the three unaffected individuals. The variant leads to the exclusion of exon 8 and subsequent frameshift and a premature stop codon. Different variants in the SPTB gene leading to HS have been reported, but this variant is novel and has not been found in any databases (Kopanos et al., 2018). We propose that this splice variant explains the spherocytosis phenotype observed in this large family.

CONFLICT OF INTEREST

The authors have no conflict of interest to declare.

AUTHOR CONTRIBUTIONS

T.T.N. and D.F.C. designed and performed the molecular experiments. P.B. helped with patient recruitment and clinical information. Y.W., W.L., and I.V.H. performed the experiments. T.T.N. and S.L. performed computer data analysis. T.T.N. and H.H. wrote the paper with input from D.F.C., S.L., P.B., and A.dlC. A.dlC. and H.H. conceived and designed the study.
