Nano-calcipotriol as a potent anti-hepatic fibrosis agent
Abstract
Calcipotriol (CAL) has been widely studied as a fibrosis inhibitor and used to treat plaque psoriasis via transdermal administration. The clinical application of CAL to treat liver fibrosis is bottlenecked by its unsatisfactory pharmacokinetics, biodistribution, and side effects, such as hypercalcemia in patients. The exploration of CAL as a safe and effective antifibrotic agent remains a major challenge. Therefore, we rationally designed and synthesized a self-assembled drug nanoparticle encapsulating CAL in its internal hydrophobic core for systematic injection (termed NPs/CAL) and further investigated the beneficial effect of the nanomaterial on liver fibrosis. C57BL/6 mice were used as the animal model, and human hepatic stellate cell line LX-2 was used as the cellular model of hepatic fibrogenesis. Immunofluorescence staining, flow cytometry, western blotting, immunohistochemical staining, and in vitro imaging were used for evaluating the efficacy of NPs/CAL treatment. We found NPs/CAL can be quickly internalized in vitro, thus potently deactivating LX-2 cells. In addition, NPs/CAL improved blood circulation and the accumulation of CAL in liver tissue. Importantly, NPs/CAL strongly contributed to the remission of liver fibrosis without inducing hypercalcemia. Overall, our work identifies a promising paradigm for the development of nanomaterial-based agents for liver fibrosis therapy.
1 INTRODUCTION
Liver fibrosis represents a growing global health concern that is secondary to liver damage caused by multiple pathogenic factors. Chronic infection with hepatitis B and C virus (HBV and HCV) is widely believed to be the main cause of hepatic fibrogenesis,1 in addition, alcoholics and patients who suffer from fatty liver and some rare diseases are also prone to liver fibrosis.2-5 With progressive injury, the majority of patients with liver fibrosis will eventually develop cirrhosis, which leads to over one million deaths globally each year.3, 6 The most prominent hallmark of liver fibrosis is the overproduction of extracellular matrix (ECM) by activated hepatic stellate cells (HSCs).7 When triggered by various profibrotic factors, quiescent HSCs are transformed into myofibroblast-like cells, which secrete excessive amounts of ECM and proinflammatory cytokines, resulting in hepatic fibrogenesis.8, 9 Currently, liver transplantation is the optimal method for end-stage cirrhosis; however, the effectiveness and adaptability of liver transplantation are greatly limited.10 Moreover, a standard and coherent treatment regimen for liver fibrosis has not yet been approved.11
Calcipotriol (CAL), the most widely studied synthetic vitamin D analog, has nearly the same affinity for vitamin D receptor (VDR) as 1,25(OH)2D3.12 Recently, the antifibrotic activity of CAL has attracted much attention. A plethora of studies have shown that CAL can negatively regulate phenotypes associated with HSC activation to alleviate fibrotic lesions of the liver.13-15 Although CAL has a potential therapeutic effect, its systemic administration is usually less effective due to its short half-life. The property of low water solubility causes CAL to lack an appropriate administration route. The widespread distribution of VDR also reduces the amount of CAL arriving at the targeted site and induces possible adverse effects, such as hypercalcemia. To date, few examples of nano-based formulations of CAL for hepatic fibrosis therapy have been reported. Motivated by the application prospects in the clinical field along with the hypercalcemia of CAL in patients, we envisioned that a rational nanoengineering strategy could enable CAL to exert sufficient antifibrotic activity while reducing the systemic effects of the upregulation of blood calcium to a tolerable degree.
Therefore, we sought to synthesize a self-assembled polymer nanocarrier delivering CAL (termed NPs/CAL). The key design feature of this polymer was that we found a planar and hydrophobic stabilizer, that was, cholesterol, and introduced it into the polymer framework to ensure efficient packaging of CAL. In this study, enabling insoluble CAL to become an injectable drug with the help of nanocarriers prolonged the blood circulation of CAL. At the tissular and cellular level, in addition to the high accumulation of NPs in the liver uncovered by near-infrared fluorescence imaging, flow cytometry and confocal laser-scanning microscopy (CLSM) also showed efficient uptake of NPs by the human HSC line LX-2. Then, we found NPs/CAL had significant antifibrotic activity, both in vitro and a murine liver fibrosis model. Most notably, NPs/CAL, unlike the positive control CAL, did not cause hypercalcemia in the body. Therefore, the nano-enabled approach that we designed and developed to encapsulate and deliver CAL may represent a promising paradigm as an effective liver fibrosis therapy, as evidenced by their high efficacy and safety.
2 RESULTS
2.1 Synthesis and characterization of NPs/CAL

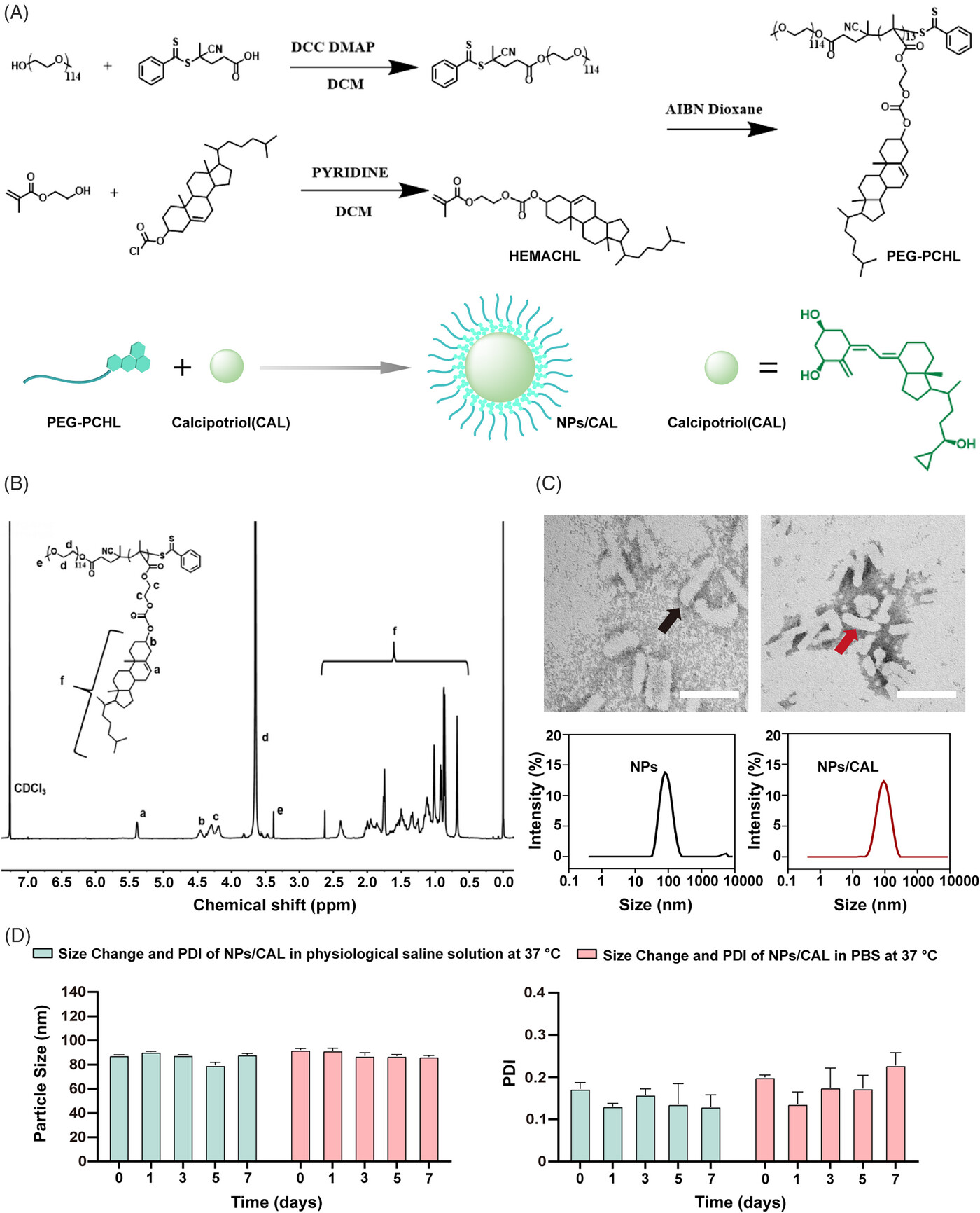

The reversible addition-fragmentation chain transfer (RAFT) agent, 4-Cyano-4-(2-phenylethanesulfanyl-thiocarbonyl) sulfanylpentanoic acid (PETTC), the macro-RAFT agent, polyethylene glycol (PEG)-PETTC, and the methacrylate ester of cholesterol (HEMACHL) monomer were synthesized first according to previous studies,16, 17 and the 1H-NMR spectrum of cholesterol monomer is shown in Figure S1. The PEG5K-P(HEMACHL)7K amphiphilic polymer was synthesized by RAFT from the macro-RAFT agent PEG-PETTC and HEMACHL, and the detailed synthetic route of the amphiphilic polymer is shown in Figure 1A. The chemical composition of PEG5K-P(HEMACHL)7K was fully determined by 1H- NMR spectrum (Figure 1B) and gel permeation chromatography (GPC, Figure S2). The results enabled us to confirm the number of cholesterol monomers in each polymer, that was, 13 units of cholesterol domain in PEG5K-P(HEMACHL)7K. According to a previous study by our laboratory,16 CAL could be loaded in the nanoparticle with the help of the cholesterol domain, and the solubility of CAL increased to 0.49 mg/mL. The NPs/CAL was fabricated with PEG5K-P(HEMACHL)7K. The drug loading (DL) and encapsulation rate of NPs/CAL were approximately 5% and 87%, respectively. The critical micelle concentration (CMC) of the copolymer was 39.7688 μg/mL by Nile red method (Figure S3). Transmission electron microscopy (TEM) imaging revealed that NPs and NPs/CAL were uniformly rod-like particles with an average diameter of 90 nm. The size and shape of the nanoparticles were not influenced after loading CAL (Figure 1C). The zeta potential of NPs was −16.93 mv and that of NPs/CAL was −9.89 mv (Figure S4), indicating that the loading of CAL was successful. Next, we evaluated the stability of NPs/CAL by mixing the nanoparticles with equal amounts of normal saline (sodium chloride solution, 0.9%, w/v) or phosphate-buffered saline (PBS) (pH = 7.4) at 37°C. As shown in Figure 1D, the size and polydispersity (PDI) of NPs/CAL determined by dynamic light scattering (DLS) were basically unchanged over 7 days, indicating the good dimensional stability of the NPs/CAL in physiological condition. Then, we studied the release of CAL from the inner core in the Tris buffer at 37°C. in vitro drug release profile of NPs/CAL was performed by high-performance liquid chromatography (HPLC) and the result showed that ∼30% CAL released from the nanoparticle at 24 h (Figure S5). In conclusion, we rationally designed and synthesized a self-assembled drug nanoparticle encapsulating CAL in its internal hydrophobic core for systematic injection and further characterized the synthesized polymers by measuring the shape, size, stability, and drug release profile of Cal in the micelles.
2.2 NPs/CAL had good biocompatibility, high cell uptake efficiency, and significant in vitro antifibrosis effect

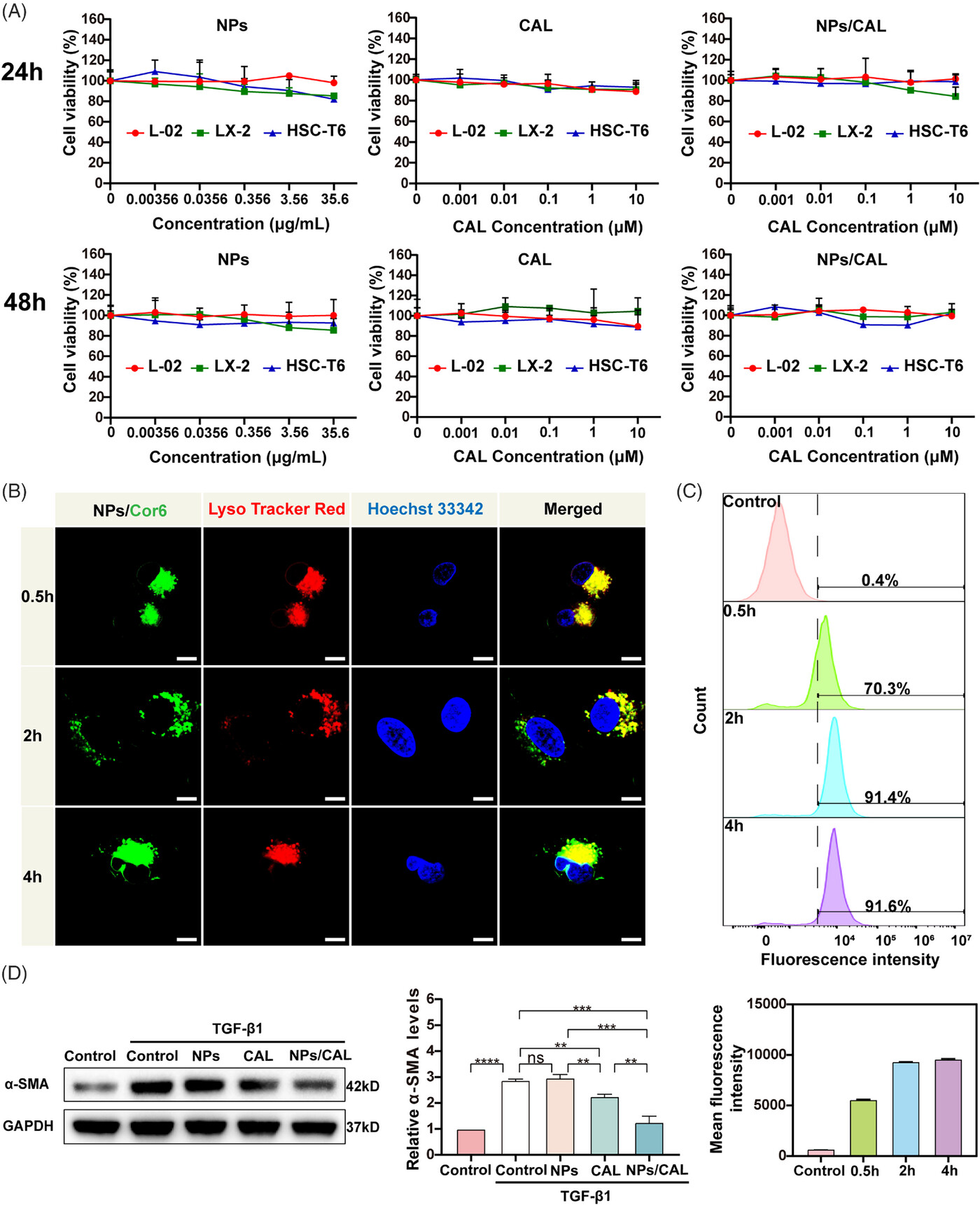

The cell viability assays of NPs, CAL, and NPs/CAL in normal hepatocyte line L-02, LX-2, and rat HSC line HSC-T6 were determined by 3-(4,5-Dimethyl-2-thiazolyl)−2,5-diphenyltetrazolium bromide (MTT) method (Figure 2A). When the concentration of NPs was 35.6 μg/mL, the viability of all three kinds of cells was still higher than 80% following a 24 or 48 h in vitro incubation, demonstrating the good biocompatibility of NPs at a high polymer concentration. The viability of all cell types treated with free CAL and NPs/CAL was further studied. It seemed that free CAL and NPs/CAL showed little cytotoxicity to all three cells which were treated with CAL at a concentration below 10 μM, indicating the good biocompatibility of NPs/CAL at these concentrations.
Next, choosing coumarin-6 (Cor6) as a fluorescent dye, we then tested the intracellular distribution of the PEG5K-P(HEMACHL)7K amphiphilic polymer by using CLSM (Figure 2B). LysoTracker Red and Hoechst 33342 were able to label lysosomes/late endosomes and nucleus with red and blue pseudocolors, respectively. CLSM images clearly showed strong colocalization of Cor6 (green) with LysoTracker Red (red) after half an hour of incubation, which indicated that NPs/Cor6 entered the lysosome via the endocytic mechanism at a quick rate. After 2 h, we observed a faint green fluorescent signal in the cytoplasm of LX-2 cells, indicating a subsequent fast release from the lysosome of Cor6 following internalization. Surprisingly, a stronger green fluorescent signal was observed throughout the cytoplasm another 2 h later. Hence, one can see that the NPs designed in this study not only had a high endocytosis speed but also exhibited a manifest intracellular release efficiency, which was particularly critical for NPs to transport CAL to achieve antifibrotic effects. We next attempted to comprehensively evaluate the efficiency of NPs/Cor6 uptake by LX-2 using flow cytometric examination and found that the fluorescence intensity was detected in more than 90% of LX-2 cells after a 2 h incubation (Figure 2C). in vitro, to define the inhibitory effects of NPs/CAL on fibrogenic protein induction by TGF-β1 stimulation in HSCs, we conducted immunoblotting to verify the level of α-smooth muscle actin (α-SMA), a typical marker in activated HSCs (Figure 2D). As expected, incubation with CAL or NPs/CAL reduced TGF-β1-induced overexpression of α-SMA, which revealed that CAL was able to restore activated HSCs to a resting state, whereas downregulation in α-SMA expression was more significant after incubation with NPs/CAL, suggesting that NPs/CAL had good anti-hepatic fibrosis efficacy in vitro. In summary, NPs/CAL exhibited good biological compatibility in vitro, and was able to be rapidly internalized by cells to display an excellent anti-hepatic fibrosis effect.
2.3 NPs increased the accumulation of CAL in the liver and prolonged CAL circulation in the blood
Before studying the tissue distribution of NPs, we assessed the blood compatibility of NPs by a hemolytic activity assay (Figure S6). Compared with the positive control which resulted in complete lysis and no remaining red blood cells at the bottom of the tube, NPs caused no hemolysis and negligible erythrocyte membrane disturbance even if the concentration was as high as 100 μg/mL, indicating that NPs had high blood compatibility.

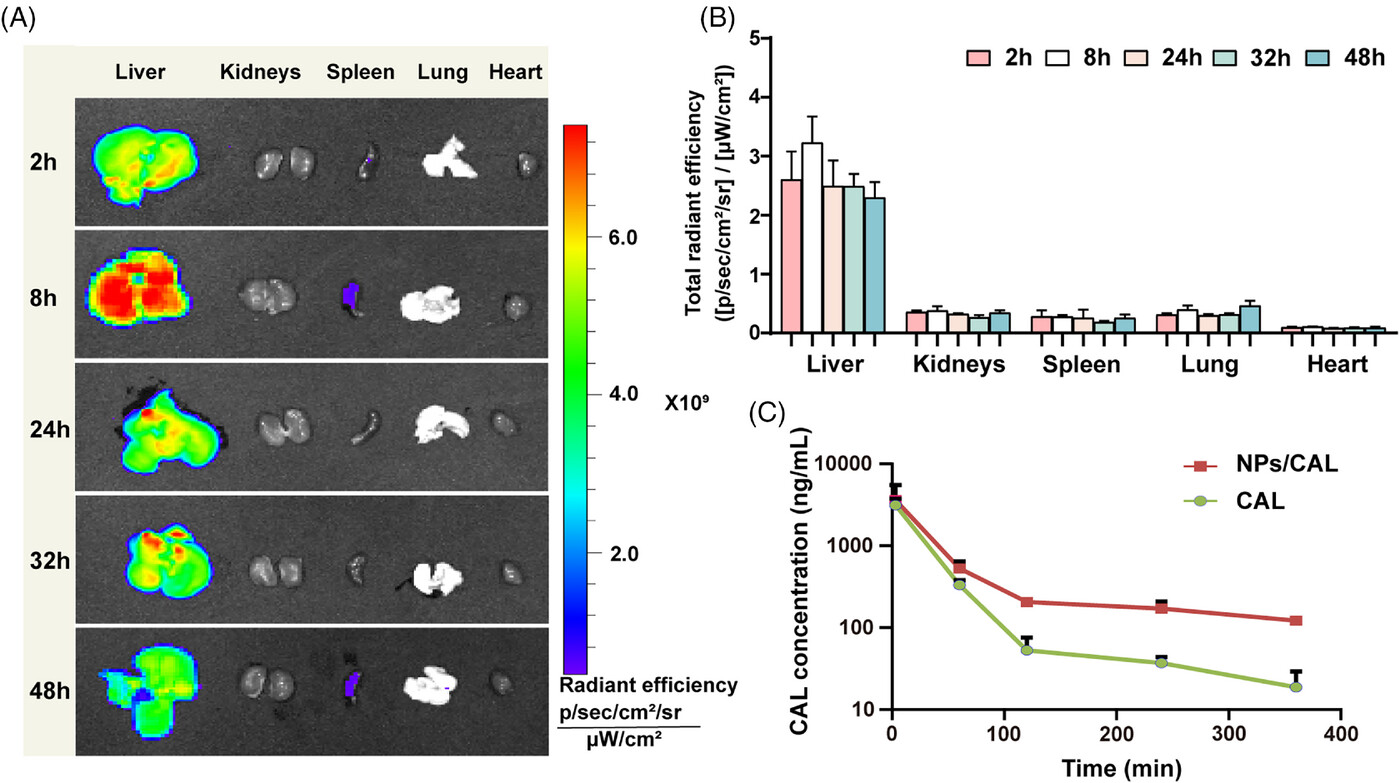

To evaluate the targeting ability of the nanomedicine, we tracked its biodistribution through fluorescence imaging. The tissue distribution was validated using NPs attached with the hydrophobic fluorochrome 1,1-dioctadecyl-3,3,3,3-tetramethylindocarbocyanine iodide (DiI) instead of NPs/CAL. As depicted in Figure 3A and B, we found significantly higher accumulation of NPs/DiI in the liver than that in other organs and the fluorescence emission measured by ex vivo imaging reached a peak in livers at 8 h, which may be due to the natural advantage of passive accumulation of nanomedicine in the liver, which was conducive to increasing the concentration of CAL in the liver.
We then further evaluated whether the polymeric micelles were located in HSCs. We injected NPs/DiI into healthy mice through the tail vein and then collected the liver tissues of the mice 24 h later. After the liver samples were embedded and sectioned, immunofluorescence staining was performed with an anti-desmin antibody, a biomarker of HSC. As shown in Figure S7, strong yellow signals were found to appear in HSCs, which was the result of the fluorescent color merging of DiI (red) and desmin (green). Taken together, these results clearly indicated that NPs/CAL had a high liver accumulation and could be taken up by HSCs in vivo.
To verify whether our NPs/CAL-formulated NP scaffold enabled CAL circulation to be extended in the blood, we performed pharmacokinetic analysis by a single intravenous (i.v.) injection of NPs/CAL or free CAL in C57BL/6 mice. The pharmacokinetic characteristics of NPs/CAL and free CAL are shown in Figure 3C. The elimination phase of free Cal appeared steeper than that of Cal in NPs/CAL. As expected, in comparison with the clearance rate of free CAL, NPs/CAL greatly extended the blood circulation time of the free CAL agent. For instance, at 2 h, the ratio of plasma CAL concentration in the mice receiving NPs/CAL to plasma CAL concentration in the mice receiving free CAL was approximately 4.62 times, and at 6 h, the ratio rose to 6.47 times. In addition, the areas under the concentration–time curve (AUC0-t) for NPs/CAL was 13 times higher than that of the free CAL-dosed group. In summary, the above results indicated that NPs improved the persistence of CAL in the systemic circulation.
2.4 NPs/CAL attenuated carbon tetrachloride (CCl4)-induced liver fibrosis

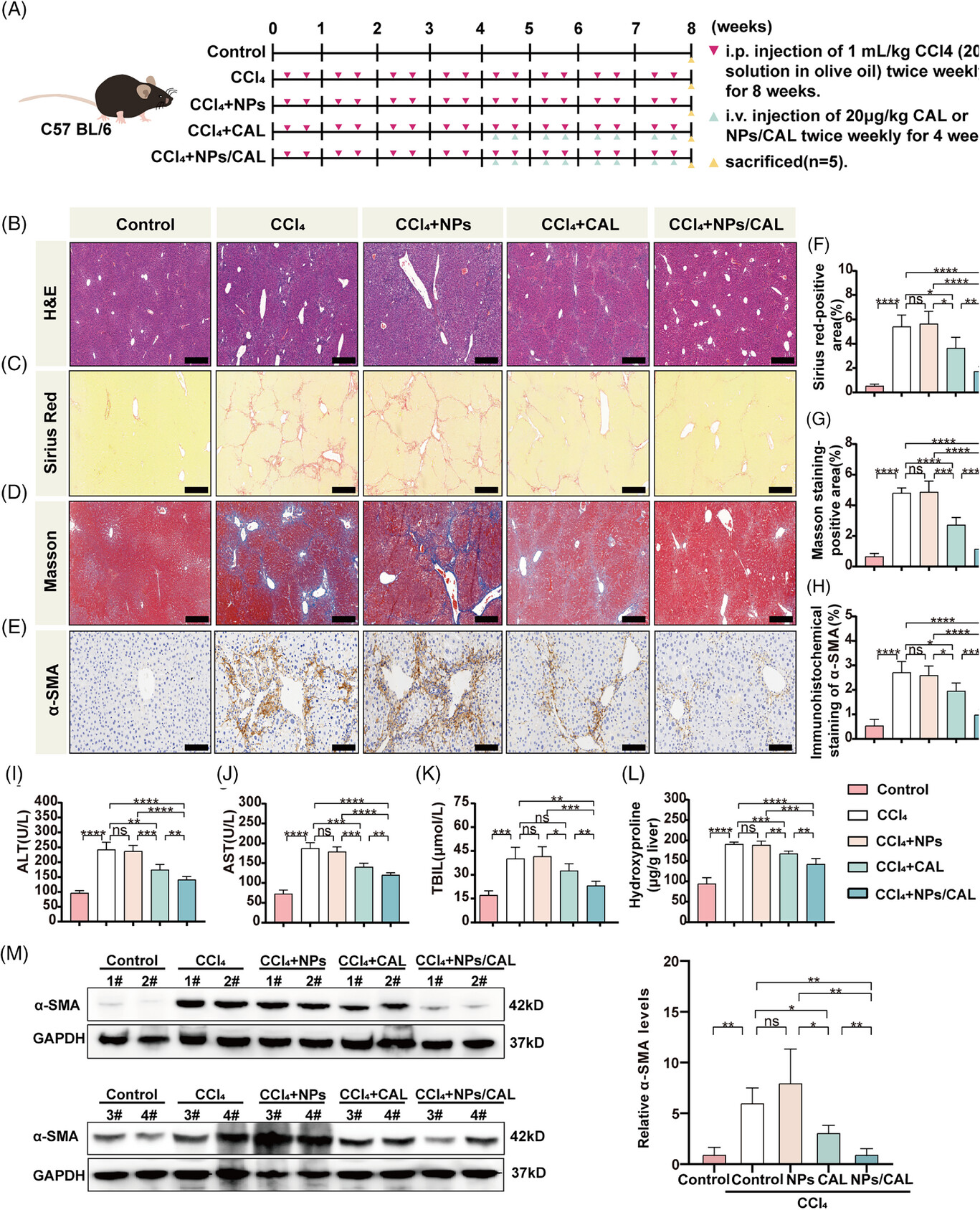

To investigate whether NPs/CAL can ameliorate fibrotic foci in vivo, we generated a mouse liver fibrosis model by intraperitoneal (i.p.) injection of 20% CCl4 for 8 weeks. C57BL/6 mice were treated as described in Figure 4A. As evidenced by hematoxylin–eosin (H&E), Sirius red, and Masson staining (Figure 4B, C, D, F, G), higher expression of collagen deposition in the liver was observed in mice that received either CCl4 or CCl4+NPs compared with controls. However, there was no difference in the accumulation of collagen between CCl4-injured mice and CCl4+NPs mice. Interestingly, injection of NPs/CAL into the tail vein of CCl4-injured mice substantially alleviated hepatic lesions and collagen accumulation in the liver tissues, with significantly stronger potency than CAL. Additionally, we examined the hydroxyproline content of liver tissue, which is a major component of collagen and is an index for collagen metabolism and the degree of fibrosis.18, 19 As shown in Figure 4L, the content of hydroxyproline was markedly decreased when mice were treated with NPs/CAL compared with the CAL group (p < 0.01). In terms of the results of immunochemical staining (Figure 4E, H), the α-SMA was dramatically decreased in the NPs/CAL group compared to model groups and the CAL group. In concordance, we also observed that the protein signal of α-SMA was weaker in the NPs/CAL group than that in CCl4-injured mice with CAL treatment according to the immunoblotting result (Figure4M). As depicted in Figure 4I, J, and K, we then observed that the contents of serum alanine aminotransferase (ALT), aspartate aminotransferase (AST), and total bilirubin (TBIL) were all elevated remarkably in either the CCl4 or CCl4+NPs group when the control group was included for comparison purpose. NPs/CAL treatment prominently reduced the levels of these biomarkers, moreover, the nanodrug displayed better results than CAL (p < 0.01). Taken together, all these data suggested that NPs/CAL not only effectively alleviated liver fibrosis but also protected the liver from impairment.
2.5 NPs/CAL exhibited a good biosafety

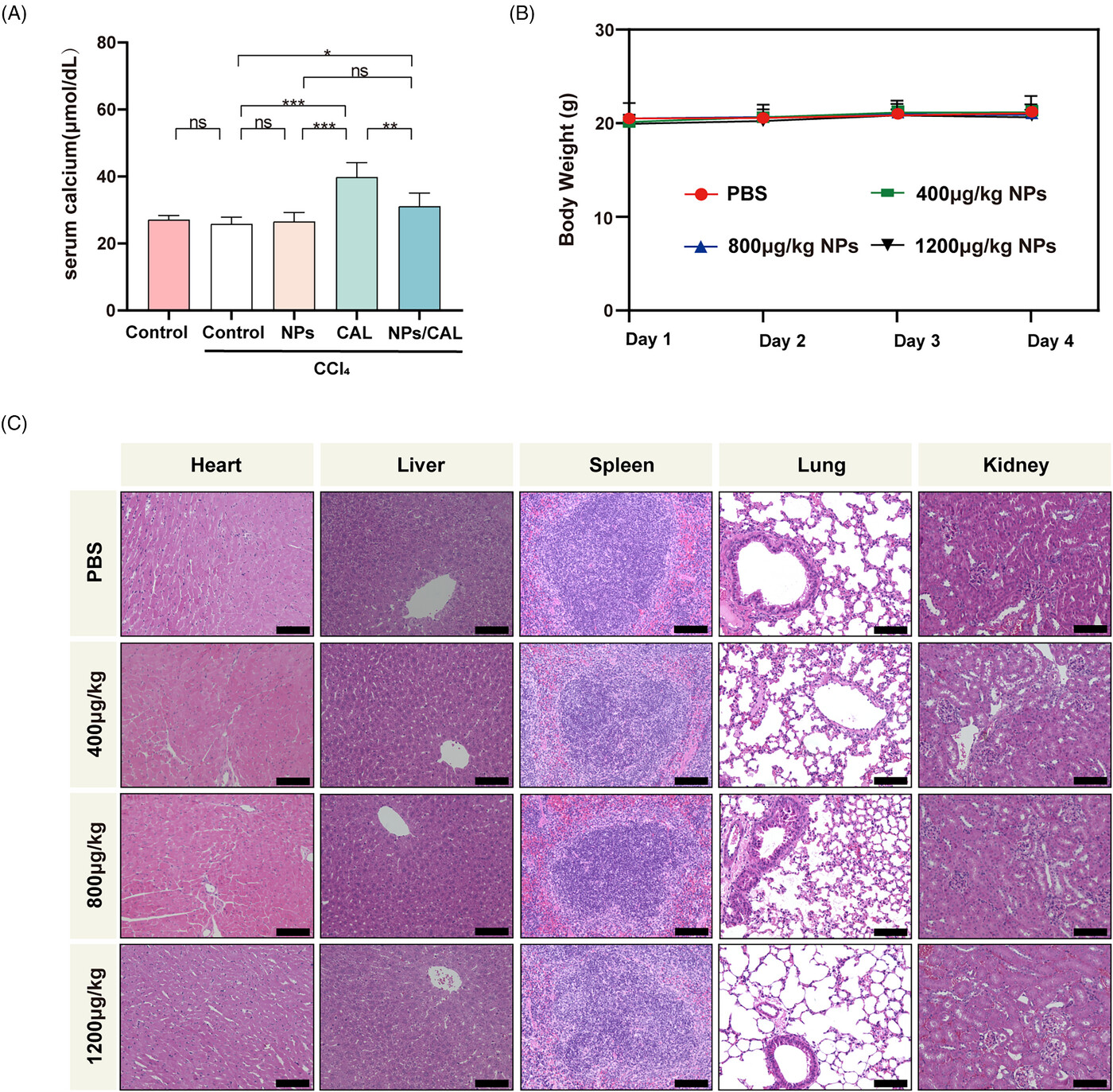

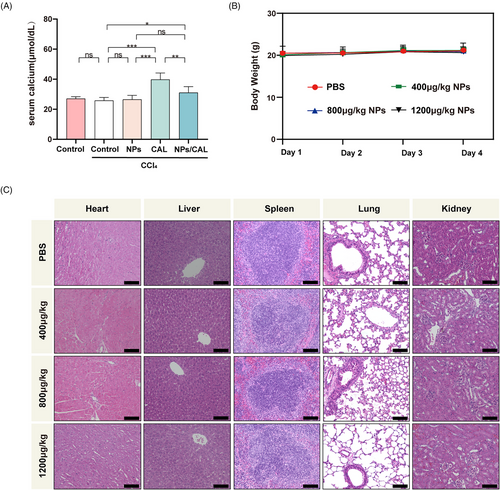

CAL may cause the risk of hypercalcemia that imposes restrictions on the application of its maximal dose in clinical practice. However, we hypothesized that our strategy was able to alleviate the serum calcium caused by the side effect of free CAL. In order to verify this assumption, we collected plasma from CCl4-injured mice receiving NPs/CAL or free CAL at the end of an 8-week model of liver fibrosis and then detected the serum calcium concentration. As the data illustrated in Figure 5A, CCl4-injured mice receiving free CAL exhibited significantly elevated serum calcium levels (39.88 ± 4.27 μmol/dL) compared with those of the control and model groups. This result was in agreement with the clinical observation that CAL could cause the elevation of serum calcium levels. However, to our delight, the serum calcium concentration of CCl4-injured mice following NPs/CAL treatment was proven to be manifestly lower than that of the CAL-dosed group (p < 0.01). This discrepancy avoided the potential risk of organ damage and attested to the biosafety of NPs/CAL in vivo.
The biosafety study of NPs was further conducted by intravenously injecting the NPs at concentrations of 0, 400, 800, and 1200 μg/kg into the tail vein of healthy mice once a day for 3 consecutive days. During this period, body weight changes were measured daily in each group. We found that different concentrations of NPs did not cause obvious weight loss in each group of mice (Figure 5B). Next, we collected the major organs in healthy mice and conducted a histological study. The representative images depicting H&E staining of the major organs are presented in Figure 5C. Obviously, the results revealed that no injury was observed in the major organs in normal mice treated with different concentrations of polymeric micelles, and the histological characteristics were no different from those in PBS-treated mice. Therefore, all these observations indicated that NPs/CAL was a safe nanotherapy and that the hypercalcemia of free CAL obtained using our approach was ameliorated.
3 DISCUSSION
CAL has been extensively studied as a synthetic VDR agonist that can neutralize TGF-β1 and reduce liver fibrosis. The differential expression of VDR in liver parenchymal and nonparenchymal cells also determined that CAL could restrict this inhibition only to VDR-positive cells of the liver (mainly in nonparenchymal cells), rather than unnecessarily blocking TGF-β1 in nondiseased sites, suggesting a safer antifibrotic strategy.13, 20 Despite this potency, CAL-based therapy has achieved only limited improvements in the clinic. Currently, CAL is only approved by the U.S. Food and Drug Administration as a specific drug for psoriasis.21 CAL is extremely insoluble in aqueous solutions, and its solubility in solvent can only be increased by the action of some surfactants. Notably, in addition to the liver, VDR is also widely distributed in other tissues, which reduces the amount of CAL reaching the target site and results in possible adverse effects, such as hypercalcemia.
Nanomedicine may provide a feasible solution to the above-mentioned problems that limit the clinical application of CAL. In this context, our group synthesized a self-assembled polymeric nanocarrier for delivering CAL to fibrotic lesions, which retained pharmacological efficacy while improving safety. Molecular simulations found high binding energy of cholesterol to CAL, and then, we incorporated this planar hydrophobic stabilizer into the polymer framework to ensure efficient encapsulation of CAL. In a CCl4-induced liver fibrosis mouse model, we found that NPs/CAL therapy not only effectively prevented the progression of liver fibrosis but also showed significant potency in reducing liver injury. However, the efficacy of NPs/CAL in other mouse models of liver fibrosis remains to be determined, such as bile duct ligation, methionine- and choline-deficient diet, and choline-deficient amino acid-defined diet models.
PEGylation technology is often used to create a “stealth” outer shell for nanoparticles, which significantly improves the solubility of drug molecules, reduces immunogenicity, prolongs half-life, and so on.22 Our study found that the long-term circulation of CAL was improved with the help of PEGylated nanoparticles, and that NPs showed the best accumulation in the liver of mice and were able to quickly and efficiently release cargo in HSCs. Our future work will focus on coupling targeting ligands on the surface of the nanoparticles to further improve their cell or tissue targeting specificity.
To date, many inorganic or organic nanoparticles have been described as promising and useful strategies for the diagnosis and treatment of hepatic fibrogenesis.23-26 For example, both titanium dioxide nanoparticles and silica nanoparticles were able to exhibit potential antifibrotic activity in vitro.27 However, the toxicity of nanomaterials should be considered before the widespread use of nano-based delivery systems, especially inorganic nanoparticles.28, 29 In this regard, the risk associated with NPs/CAL seemed to be less problematic because they were made from a highly biocompatible polymer PEG. Further exploration revealed that NPs/CAL in vivo did not cause an obvious increase in serum calcium levels. The high degree of separation of the antifibrosis effect of NPs/CAL from its calcemic effect might be due to the fact that CAL was primarily transported to the liver by nanocarriers and ultimately utilized by liver cells, so as to prevent a large amount of CAL from reaching other organs, such as the small intestine and bone, to exert its biological effect. Thus, the intestinal absorption of calcium and phosphorus and the release of bone calcium were effectively reduced.30 Overall, the preclinical data of the injectable nanomedicine fully displayed a design strategy for simultaneously improving the efficacy and safety of CAL against liver fibrosis.
4 MATERIALS AND METHODS
4.1 Chemicals and instruments
CAL was acquired from Puyi Chemical Co. Azobisisobutyronitrile (AIBN > 98%), 2-hydroxyethyl methacrylate and cholesteryl chloroformate were obtained from Aladdin. All other chemical reagents and solvents were purchased from Macklin Chemical Reagent Co., Ltd. Elemental mapping images were photographed by TEM using an HT-7700 electron microscope (Hitachi Ltd.) and an X-MAXn65T CCD camera (Oxford Instruments). The size distribution and zeta potential of nanoparticles were measured using a Malvern Zetasizer Nano-ZS for DLS. The Malvern Zetasizer Nano-ZS system consisted of a laser operating at 633 nm and a multi-tau digital correlator electronics system.
4.2 Synthesis of PEG5K-P(HEMACHL)7K and NPs/CAL
PEG5K-P(HEMACHL)7K was synthesized by RAFT. Briefly, 213 mg PEG-PETTC, 300 mg HEMACHL, and 3.3 mg AIBN were placed into a Schlenk flask, which connected a set of degassing devices. After 1 mL of dried DMF and 1 mL of dried 1,4-dioxane were added, the flask underwent a freeze-evacuate-thaw process of degassing three times. The solution was kept at 70°C for 16 h. Then, 10 mL of DMF was added, and the solution obtained was dialyzed against 3 × 0.25 L of DMF, and 1 L of ddH2O for three times. Finally, PEG5K-P(HEMACHL)7K was obtained through lyophilization (white powder, yield of 54%).
The NPs/CAL was manufactured with a similar method. Briefly, 5 mg PEG5K-P(HEMACHL)7K and an amount of CAL were dissolved in 1.5 mL of DMF, and 1.5 mL of water was added dropwise and then stirred completely through a magnetic stirrer at an appropriate rate. After homogenization by sonication, we loaded a dialysis bag (Mw = 3500 Da) with the solution against 3 × 1 L of ddH2O for 12 h of dialysis. The obtained solution was concentrated by rotary evaporation, homogenized by sonication, and filtered to screen the bacteria out and stored in 4°C before use. NPs/Cor6 and NPs/DiI were fabricated similarly.
4.3 Detection of DL, encapsulation rate, and CMC
The DL and encapsulation rate were performed by HPLC. After the baseline was basically balanced, an automatic injection of a 20 μL sample at 30°C was conducted. The mobile phase was a mixture of pure methanol: 0.1% trifluoroacetic acid aqueous solution = 85:15 (v/v %). The UV detector was used to detect CAL at 265 nm wavelength. The CMC of nanoparticles was detected as previously described.31
4.4 in vitro CAL release kinetics
NPs/CAL was incubated in the appropriate buffer solution (100 mM Tris buffer, 100 mM NaCl, pH = 7.4, 1% Tween 80) at 37°C and added to a dialysis bag (molecular weight = 3500 Da). Then, the sealed dialysis bag was incubated in 50 mL of buffer solution with agitation for 24 h. At 0, 0.5, 2, 6, 12, and 24 h, 0.1 mL solution was extracted and replaced with an equal volume of fresh medium. The concentrations of CAL in samples were determined by the HPLC method described above.
4.5 Hemolytic activity assay
Hemolytic activity was assessed as previously reported.32, 33 In brief, 200 μL of diluted blood was added to 800 μL PBS (pH 7.4) which contained different amounts of NPs (25, 50, 75, and 100 μg). After an additional 4 h incubation at 37°C, the samples were centrifuged and 200 μL of each supernatant was added to a single well of the 96-well plate. We selected the optical density (OD) near the 540 nm wavelength by a microplate reader to quantitatively analyze the hemolytic activity. Relative hemolysis rate (%) was calculated as [(As-An)/(Ap-An)] × 100%, where As represented the OD of the sample, An represented the negative control (the OD of blood mixed PBS), and Ap represented the positive control (the OD of PBS containing Triton X-100).
4.6 Cell-based evaluative experiments
4.6.1 Cell culture and drug treatment
L-02, LX-2, and HSC-T6 cells were cultured in Dulbecco's modified Eagle's medium (DMEM; HyCloneTM #AE29431636) with 10% fetal bovine serum (FBS; Corning #35081006) at 37°C in a 5% CO2 incubator. LX-2 cells were seeded in 6-well plates and incubated with 100 nM CAL or NPs/CAL and 5 ng/mL TGF-β1 (R&D Systems #240-B-002) for 48 h.
4.6.2 Cell survival assay
The chemical MTT was used for cell survival assay as previously described.16
4.6.3 Cellular uptake and intracellular distribution
LX-2 cells were incubated with NPs/Cor6 for 0.5, 2, and 4 h, respectively. The cell entry rate of nanoparticles was determined using flow cytometry. Intracellular distribution was observed by a Leica SP8 DIVE CLSM (Leica, Germany). Lysosomes were labeled with LysoTracker Red DND-99 (100 nM, Thermo Fisher Scientific #L7528), and the nucleus was labeled with Hoechst 33342 (Thermo Fisher Scientific #R37605).
4.7 Animal-based studies
4.7.1 Murine liver fibrosis model construction and treatment
C57BL/6 male mice (8 weeks old, 20−25 g) were obtained from Shanghai SLAC Laboratory Animal Co., Ltd. All works and animal protocols performed on animals were approved by the Ethics Review and Scientific Investigation Board of the First Affiliated Hospital, Zhejiang University (No. 20201086). To induce liver fibrosis, mice were administered with 1 mL/kg CCl4 (Adamas-beta #65805; 20% solution in olive oil from Sangon Biotech Co., Ltd., # A502795) by i.p. injection twice weekly for 8 weeks. The control mice received a vehicle instead. CAL or NPs/CAL (CAL concentration, 20 μg/kg body weight) was injected intravenously twice a week for a total of eight doses, commencing 4 weeks after the first i.p. injection of CCl4. Mice were sacrificed 3 days after the animals had received their last injection of CCl4, and then, further analysis was conducted on liver tissue and blood samples.
4.7.2 Tissue distribution study
We intravenously administered NPs/DiI into C57BL/6 normal mice. At 2, 8, 24, 32, and 48 h post-administration, mice (n = 3 at each time point) were terminated, and the liver, kidney, spleen, lung, and heart were collected for the determination of the fluorescence emission by ex vivo imaging.
4.7.3 Pharmacokinetic study
After a single i.v. injection of NPs/CAL or free CAL (at a CAL equivalent dose of 5 mg/kg) into the tail vein of C57BL/6 mice (n = 3/group), orbital blood sampling was performed at the indicated time points. Subsequently, 50 μL of plasma sample at each time point was then transferred to a 1.5 mL centrifuge tube containing 150 μL of methanol and vortically mixed for 5 min, followed by high-speed centrifugation. Eventually, the plasma drug concentration was analyzed by HPLC-mass spectrometry.
4.7.4 Immunohistochemistry analysis
Immunohistochemistry was used to detect in vivo α-SMA expression which was performed according to a standard protocol.34 Ten random fields were selected for each section and quantified by Image-Pro Plus software.
4.7.5 Lab data detection of blood plasma and serum samples
ALT, AST, and TBIL were detected using commercial kits (Fujifilm #3250, #3150, #2150). The serum calcium concentration was detected by a micro blood calcium concentration assay kit (Beijing Solarbio Science & Technology Co., Ltd., #BC0725).
4.7.6 Hydroxyproline content measurement
According to the experimental steps described in the instructions of a kit (Beijing Solarbio Science & Technology Co., Ltd., #BC0255), we evaluated the content of hydroxyproline in liver tissue.
4.7.7 Western blotting
Western blotting was performed as previously described.35 The specific primary antibodies used here included α-SMA (1:1000, CST #19245), and GAPDH (1:1000, CST #5174).
4.7.8 Immunofluorescence staining
Mice were injected with a single dose of NPs/DiI through the tail vein. At 24 h post-administration, liver tissue samples were collected and paraffin-embedded. Sections were incubated at 4°C overnight with a rabbit anti-desmin antibody (1:200, proteintech #16520-1-AP) and then with an AlexaFluor 488-labeled goat anti-rabbit secondary antibody at room temperature for about 1 h. Next, nuclei were labeled by staining with 4,6-diamidino-2-phenylindole (DAPI). Finally, the frozen sections were photographed and scanned for colocalization analysis.
4.8 Statistical analysis
All statistical analyses were calculated using the SPSS 22.0 program. Values were expressed as mean ± SD. Differences between multiple groups of data were analyzed by one-way analysis of variance (ANOVA) with Bonferroni correction. Generally, p < 0.05 was considered statistically significant.
AUTHOR CONTRIBUTIONS
Yina Zhang: Conceptualization, data curation, formal analysis, visualization, investigation, project administration, writing—original draft. Liying Wang: Investigation, conceptualization, methodology, data curation, supervision, writing—original draft. Jiajia Shao: Data curation, formal analysis, investigation, writing—review and editing. Yanning Liu: Writing—review and editing, investigation. Yining Lu: Formal analysis, investigation. Jing Yang, Siduo Xu, Jingkang Zhang, and Minwei Li: Investigation. Xiangrui Liu: Conceptualization, investigation, project administration, funding acquisition, supervision, writing—review and editing. Min Zheng: Conceptualization, funding acquisition, supervision, writing—review and editing. All authors have read and approved the final manuscript.
ACKNOWLEDGMENTS
This study was supported by the Key R & D Program of Zhejiang Province (2021C03039), the Ten-Thousands Talents Program of Zhejiang Province (2020R52010), the National Natural Science Foundation of China (U20A20348), the Fundamental Research Funds for the Central Universities (2021FZZX001-41).
CONFLICT OF INTEREST STATEMENT
The authors have no conflict of interest to declare.
ETHICS APPROVAL AND CONSENT TO PARTICIPATE
This research was allowed by the Medical Ethics Committee of the First Affiliated Hospital of Zhejiang University. All protocols of animal experiments were approved by the Animal Experimental Ethics Committee of the First Affiliated Hospital of Zhejiang University (No. 20201086).
