STAC3 variants cause a congenital myopathy with distinctive dysmorphic features and malignant hyperthermia susceptibility

1 INTRODUCTION

Excitation–contraction coupling (ECC) is a process in which consecutive events lead from the depolarization of the muscle fiber membrane to increased cytosolic Ca²⁺ release and initiation of muscle contraction. ECC occurs at specialized structures, termed triads, composed of a T-tubule and two lateral sacs of sarcoplasmic reticulum. The two major components of the ECC protein complex are the L-type voltage-sensitive Ca²⁺ channel (DHPR) and the sarcoplasmic reticulum Ca²⁺ release channel RyR1 (Rios & Pizarro, 1991). Although the role of DHPR and RyR1 in ECC has been extensively investigated, the precise regulatory mechanism underlying the mechanical coupling in skeletal muscle ECC and whether additional protein components are required is currently not entirely understood.

SH3 and cysteine-rich domain-containing protein 3 (STAC3; MIM# 615521) is essential for muscle contraction by facilitating ECC through a not completely understood mechanism (Horstick et al., 2013; Nelson et al., 2013). STAC3 (Uniprot# Q96MF2) is specifically expressed in skeletal muscle (Bower et al., 2012; Horstick et al., 2013; Reinholt, Ge, Cong, Gerrard, & Jiang, 2013), it is localized to the triads (Horstick et al., 2013; Nelson et al., 2013), and interacts with RyR1 and the DHPR complex (Horstick et al., 2013). More recently it was shown that STAC3 interacts with the Ca_V1.1 II-III loop (Polster, Nelson, Papadopoulos, Olson, & Beam, 2018; Wong King Yuen, Campiglio, Tung, Flucher, & Van Petegem, 2017), a region previously identified as critical for the conformational coupling with RyR1 and for skeletal muscle ECC (Grabner, Dirksen, Suda, & Beam, 1999; Nakai, Tanabe, Konno, Adams, & Beam, 1998).

The relevance of STAC3 in coupling the membrane depolarization to Ca²⁺ release from the sarcoplasmic reticulum has been demonstrated using mouse and zebrafish models. Homozygous Stac3 knockout mice (KO) are paralyzed and die shortly after birth due to hypoxia as a result of paralyzed respiratory muscles (Nelson et al., 2013), a phenotype similar to other animal models with disrupted ECC (Flucher, Phillips, & Powell, 1991; Nishi, 1995). The complete lack of Stac3 in the spontaneous zebrafish mutant mi34 led to an aberrant locomotor phenotype and lethality of fish at the larval stage (Horstick et al., 2013). Notably, the skeletal muscles from zebrafish and mouse Stac3-null animals displayed null (Nelson et al., 2013; Reinholt et al., 2013) or significantly reduced (Cong, Doering, Mazala, et al., 2016; Horstick et al., 2013) ability to contract following membrane depolarization. In the mutant animals neither the contractile apparatus nor RyR1 function appeared directly affected as addition of RyR1 agonists, such as 4-CMC or caffeine, were able to induce muscle contraction with similar force magnitude compared to the wild-type animals (Horstick et al., 2013; Nelson et al., 2013). Defects in the nervous system were also unlikely since tactile stimulation induced synaptic responses in the mutant mi34 zebrafish (Horstick et al., 2013). These data indicated that the abolished ability of stac3-null muscles to contract in response to depolarization was a result of defective ECC caused by the lack of Stac3.

The role of STAC3 in ECC has further been investigated in several recent studies. In heterologous cells (tsA201) Stac3 has been shown to be important for the trafficking of Ca_V1.1 (the pore-forming subunit of DHPR) to the plasma membrane (Polster, Perni, Bichraoui, & Beam, 2015). Subsequent studies from the same group and others, however reported that in Stac3 KO myotubes, the failure of ECC was not a result of a trafficking defect of Ca_V1.1. Albeit at reduced levels, Ca_V1.1 was present on the plasma membrane but was not able to generate ECC Ca²⁺ currents (Linsley, Hsu, Wang, & Kuwada, 2017; Polster, Nelson, Olson, & Beam, 2016). The ECC was only restored after expression of the WT Stac3, demonstrating that Stac3 is important for the functional link between Ca_V1.1 and RyR1 (Linsley, Hsu, Wang, et al., 2017; Polster et al., 2016).

The first report linking variants in STAC3 to a human disorder described a homozygous missense STAC3 variant p.(Trp284Ser) as causative for Native American myopathy (NAM; MIM# 255995; Horstick et al., 2013). NAM is an autosomal recessive disorder found in the Lumbee Indian population of North Carolina and characterized by congenital muscle weakness, delayed motor development, susceptibility to malignant hyperthermia (MH), multiple joint contractures, short statue, scoliosis, and distinctive facial features such as ptosis, palate abnormalities, and long and narrow face (Stamm et al., 2008). Recently, recessive variants in STAC3 have been reported in patients with features overlapping Carey–Fineman–Ziter and Moebius syndrome (Grzybowski et al., 2017; Telegrafi et al., 2017).

Here, we describe 18 patients carrying STAC3 pathogenic variants, the largest cohort of patients with STAC3-related congenital myopathy studied up to now. Importantly, the patients investigated here were not of Native American origin. Seventeen patients, of African, Middle Eastern, Afro-Caribbean, Comorian, and South American descent, carried the previously described homozygous NAM p.Trp284Ser STAC3 variant and one patient, of African/Afro-Caribbean descent, was compound heterozygous for the NAM variant in one allele and a novel c.997-1G > T splice site variant in the other allele.

2 MATERIALS AND METHODS

3 RESULTS

3.1 Identification of patients carrying STAC3 variants

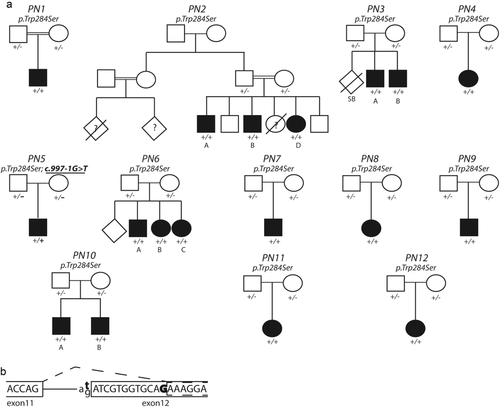

WES analysis in patient PN1 (Figure 1) revealed a homozygous c.851G > C, p.(Trp284Ser) variant in exon 10 of the STAC3 gene (NM_145064.2). Sanger sequencing of STAC3 exon 10 or panel sequencing of known neuromuscular genes was carried out in cases PN2D, PN4, PN5, and PN6A, presenting with distinctive clinical features similar to those noted in PN1. All patients, apart from PN5, carried the same homozygous missense c.851G > C, p.(Trp284Ser) STAC3 variant. Compound heterozygous STAC3 c.851G > C, p.(Trp284Ser) and an acceptor splice site c.997-1G > T variant was detected in PN5. The c.997-1G > T variant abolishes the acceptor splice site of the last exon of STAC3 (exon 12), leading to activation of a cryptic acceptor site within exon 12 (Figure 1b). cDNA sequencing confirmed a deletion of 12 nucleotides from the mature STAC3 RNA. This in-frame deletion eliminates four amino acids from the second STAC3 SH3 domain.

We further identified seven families (Figure 1) with nine affected members carrying the homozygous STAC3 c.851G > C p.(Trp284Ser) variant.

Sanger sequencing in additional affected and healthy family members confirmed the segregation of the STAC3 variants with the disease following an autosomal recessive inheritance pattern. The families are apparently unrelated and of African, Afro-Caribbean, Comorian, Middle Eastern, or South American origin (Table 1).

Table 1. Clinical characteristics of the patients with STAC3 variants

	PN1	PN2A	PN2B	PN2D	PN3A	PN3B	PN4	PN5	PN6A	PN6B	PN6C	PN7	PN8	PN9	PN10A	PN10B	PN11	PN12
Gender	Male	Male	Male	Female	Male	Male	Female	Male	Male	Female	Female	Male	Female	Male	Male	Male	Female	Female
Geographic origin	AF	ME	ME	ME	AF	AF	AC	AF/AC	AF	AF	AF	CO	AF	ME	ME	ME	AF	SAm
Age last seen (years)	16	20	14	9	9	5	23	2.2	12	4.5	2.5	3	0.5	13.8	14	13	2.9	5
Prenatal features	↓FM	NR	NR	↓FM	–	–	–	Talipes, polyhydramnios	NR	–	Polyhydramnios	Polyhydramnios	–	Breech	NR	NR	IUGR, ↓FM	–
Features at birth and infancy
Contractures	BT	BT	MT	BT	BT, camptodactyly	Wrists	BT	Multiple contractures, BT	–	Overriding toes	–	BT	–	Mild neck contracture	BT, knee, camptodactyly 5th finger, CHD	BT, knee, camptodactyly 5th finger	BT, thumb	CHD, BT
Hypotonia	+	NR	NR	NR	+	+	+	+	+	+	+	+	+	+	+	+	+	+
Respiratory impairment	–	–	–	–	–	–	–	+	CPAP 48h	–	CPAP 48h, oxygen for 3 weeks	+	+	–	+	+	CPAP 48h	–
Feeding difficulties	+	NR	+	+	–	+	+	+	+	+	+	–	+	PEG	+	+	+	+
Palate anomalies	–	CP	HP	CP	CP, HP	CP, HP	–	BU	–	–	–	–	–	HP	CP	HP	HP	HP
Failure to thrive	+	+	+	+	+	+	–	+	–	–	+	+	–	+	–	+	+	–
Further features at birth	Neck pterygium	NR	NR	↓ BW	↓BW			Elbow pterygium, elevated hemidiaphragm				Facial weakness	↓BW, prematurity	_	R diaphragmatic eventration	Inguinal hernia	↓ BW
Clinical features at last assessment
Motor delay	+	+	+	+	+	+	+	+	+	+	+	+	+	–	+	+	+	+
Muscle weaknessa	Facial, axial, proximal	+	Facial, axial, proximal	Facial, axial, proximal	Facial, neck, proximal, distal, UL, LL	Proximal	Facial, axial, proximal, UL, LL	Facial, axial, proximal, and distal	Facial, axial, proximal, LL	Axial	Facial, axial	Axial, proximal	Axial, proximal, distal	Facial, proximal, distal	Mild distal	Mild distal	Facial, axial, proximal, distal	Axial, proximal, LL
Course of weakness	Static	NR	↗	Static	Static	↙	NR	↗	↗	↗	↗	↗	NR	Static	Static	Static	↗	Static
Maximum motor ability	Short walk	Walk	Walk	Walk	Walk	Walk	Walk	TY	Walk	Walk	TY	Sit	TY	Run	Walk	Walk	Short walk	Walk
Muscle atrophy/wasting	+	+	+	UL and LL	Calves		Calves	Calves	–	–	–	Calves	–	+	+	+	–	–
Muscle tone	NR	NR	↓	↓	↓	↓	NR	↓	↓	↓	↓	↓	↓	↓	↓	↓	↓	↓
Contractures	Neck, spine, FF, thumb	Ankles	–	Spine, FF, ankles	FF, ankles	R ankle	Ankles	Elbow, FF, ankles	–	–	–	Ankles	Knees	Neck, wrist, FF	FF, ankle	FF, ankle	FF, ankle	Hips, feet
Joint hyperlaxitya	Elbows, knees, FF	NR	–	+	–	–	+	–	+	+	+	NR	NR	Thumbs	–	–	–	–
Scoliosis/kyphosis	K and S	K and S	S	K and S	–	K and S		K and S	–	–	K and S	S	–	+	S	S	–	–
Short stature	+	+	+	+	+	–	–	–	–	–	–	–	–	+	+	+	–	–
Facial featuresa	Ptosis, myopathic face	Ptosis, myopathic face	Myopathic face	Ptosis, myopathic face	Ptosis, myopathic face	Ptosis, myopathic face	Ptosis, myopathic face	Ptosis, myopathic face	Ptosis, myopathic face	Ptosis, myopathic face	Ptosis, myopathic face	Myopathic face	Myopathic face	Ptosis, myopathic face	Ptosis, myopathic face, high forehead, thick lower lips	Ptosis, myopathic face, high forehead, thick lower lips	Myopathic face	Ptosis, myopathic face
Dental problems	Malocclusion, prominent jaw	Caries, malar hypoplasia	Caries, malar hypoplasia	Malar hypoplasia	Crowded teeth	–	–	TY	–	–	–	Malocclusion, prominent jaw	TY	–	Maxillary hypoplasia	Maxillary hypoplasia	–	–
Feeding difficulties	+	+	+	+	PEG	+	–	PEG	+	+	+	PEG	+	–	–	–	+	–
Respiratory findings	Chest infections	Restrictive lung disease, NIV	–	Obstructive lung disease	–	–	–	Tracheostomy, NIV	–	–	–	NIV	NIV	–	↓ FVC	↓ Respiratory function	–	–
Hearing loss	–	Conductive	+	Conductive	–	–	Mild	Conductive	Conductive	–	Conductive (resolved)	–	–	–	NR	–	–	–
Speech problems	Dysarthria	Dysarthria	Dysarthria	+	–	Dysarthria	–	TY	–	–	TY	Dysarthria	TY	–	–	Nasal speech	Nasal speech	Speech delay
Malignant hyperthermia	+	–	+	+	+	–	+	+	+	–	–	–	–	–	+	+	–	+
Cryptorchidism	+	–	–		+	+		+	+			+		–	+	–
Other	Cervical vertebral fusion, SCD, MLD				Ventriculomegaly, HCM (resolved)		Patella stabilization, MLD, proptosis	AHE, systemic hypertension, recurrent bradycardias						Mild limitation right eye abduction

• ^a Details specified where available; “-”: not present; “+”: present; ↑: increased; ↓: decreased; “↗”: slow improvement; “↙”: slow deterioration; AC: Afro-Caribbean; AF: African; AHE: acute hemorrhagic encephalomyelitis; BM: birth weight; BT: bilateral talipes; CHD: congenital hip dislocation; CO: Comoro Islands; CP: cleft palate; CPAP = continuous positive airway pressure; CR = cryptorchidism; FF = finger flexion; FM = fetal movements; FVC = forced vital capacity; HCM = hypertrophic cardiomyopathy; HP: high palate, BU: bifid uvula; IUGR: intrauterine growth retardation; K: kyphosis; L: left; LL: lower limb; ME: Middle East; MLD: mild learning difficulties; MT: monolateral talipes; NIV: noninvasive ventilation; NR: not recorded; PEG: percutaneous endoscopic gastrostomy; R: right; S: scoliosis; SAm: South American; SCD: sickle cell disease; TY: too young; UI: under investigation; UL: upper limb.

3.2 Clinical features of cohort members

Detailed clinical information was available for 18 patients (12 families) with confirmed STAC3 variants (Table 1). A sister and two maternal cousins in family PN2 were affected by a similar condition but more rapidly progressive that led to early death in two of them. These patients were not available for assessment and were therefore not included in the study.

Onset was at birth in all cases. Clinical severity ranged from a more severe prenatal/neonatal onset, to a milder slowly progressive, congenital myopathy phenotype, as documented in at least three children. Polyhydramnios was recorded in three pregnancies and reduced fetal movements were noted in three additional pregnancies. The majority of the patients presented with hypotonia at birth and talipes (uni- or bilateral). Neck, elbows, wrists, fingers, or toes contractures were noted in six infants. Ten patients had cleft or high palate, one infant had a bifid uvula and an elevated right hemidiaphragm (PN5). Four infants presented with low birth weight. Feeding difficulties at birth and/or in infancy were documented in 15 patients. Eight infants had a variable degree of respiratory difficulties at birth and in the first days or life, with one (PN5) suffering severe perinatal asphyxia and cardiac arrest.

At last assessment, all patients were able to walk at least for short distances. All patients show mild to moderate, proximal more than distal upper and lower limb weakness, with axial weakness in 12 of them. Lower leg muscle atrophy was observed in 11 patients. Ptosis and facial weakness was present in all patients, while none had ophthalmoplegia. Contractures, in particular of fingers and ankles, were reported in 14 patients. Joint laxity was documented in seven patients, three of whom without associated contractures (PN6A-B-C). Scoliosis, kyphosis, and spinal rigidity were reported in 11 patients. Eight individuals showed dental malocclusion, malar hypoplasia, and jaw prominence (Figure 2). Respiratory compromise was reported in eight patients. At the time of last assessment, four children received noninvasive ventilatory support. During infancy, 13 children had failure to thrive, and six needed nasogastric tube or gastrostomy feeding. Recurrent bradycardia and ventricular hypertrophy (resolved after age 1 year) were reported in two patients. Six children had speech delay or dysarthria and seven had documented hearing loss. Seven of the 11 male patients had cryptorchidism.

3.2.1 Malignant hyperthermia

Adverse reaction to anesthetics was reported in 10 patients after general anesthetics (GA). Detailed description of the full course of MH is available for patient PN5. Following five uneventful GAs, at a GA at age 6 months, because of difficult intravenous access, inhalational induction of anesthesia (with sevoflurane 8%, nitrous oxide 50%, and oxygen 50%) was carried out until successfully securing intravenous access approximately 45 min later. During this period, upper limb tone increased, end-tidal carbon dioxide increased, and attempts were made to increase minute ventilation manually. Heart rate had initially dropped from 164 bpm to 139 bpm at induction, but after 50 min induction was 208 bpm with a mean blood pressure of 53 mmHg. One hour after induction, core temperature was 39.6°C, and both upper and lower limb tone was markedly increased. Dantrolene was given and vital signs immediately improved with steady decrease in heart rate, temperature, and reduction of muscle tone. Post-event biochemistry failed to detect myoglobinuria, raise in serum creatine kinase (CK), or potassium. The highest CK levels were 69 IU/L at 14 h post event.

PN6A had CK levels of about 600 IU/L and normal myoglobin levels after the MH-like event. Normal post-event CK and myoglobin levels were documented in two further patients.

3.4 Histopathological features

Muscle biopsies from quadriceps from patients PN2D (taken at 9 years), PN3A (at 8 years), PN4 (at 1 year), PN5 (at 1 month), PN7 (at 2 months), and PN8 (at 3 months) showed myopathic changes (Figure 3). All biopsies showed variation in fiber size, no excess fat or connective tissue (Figure 3a,b) with predominance of type I/slow myosin fibers in most (Figure 3c–f). Although both fiber types showed variation in size, the smaller fibers were frequently type I/slow myosin fibers. Some biopsies also showed occasional fibers with internal nuclei, whorled and split fibers. Some very small fibers expressed fetal myosin, but not developmental myosin, suggesting that they were not regenerating fibers. These very small fibers expressing fetal myosin occur in a number of myopathic conditions and are currently of unknown origin (Dubowitz, Sewry, & Oldfors, 2013).

Electron microscopy analysis showed myofibrillar loss, irregular and broken Z-lines with mini-core areas with disrupted sarcomeres (Figure 3g,h). Mitochondria were of variable size, shape, and distribution. Swollen sarcoplasmic reticulum was present in some samples. The structure of triads appeared preserved, but the T-tubule component was often prominent and a little swollen.

3.5 STAC3 variants affect ECC and RyR1-mediated calcium release

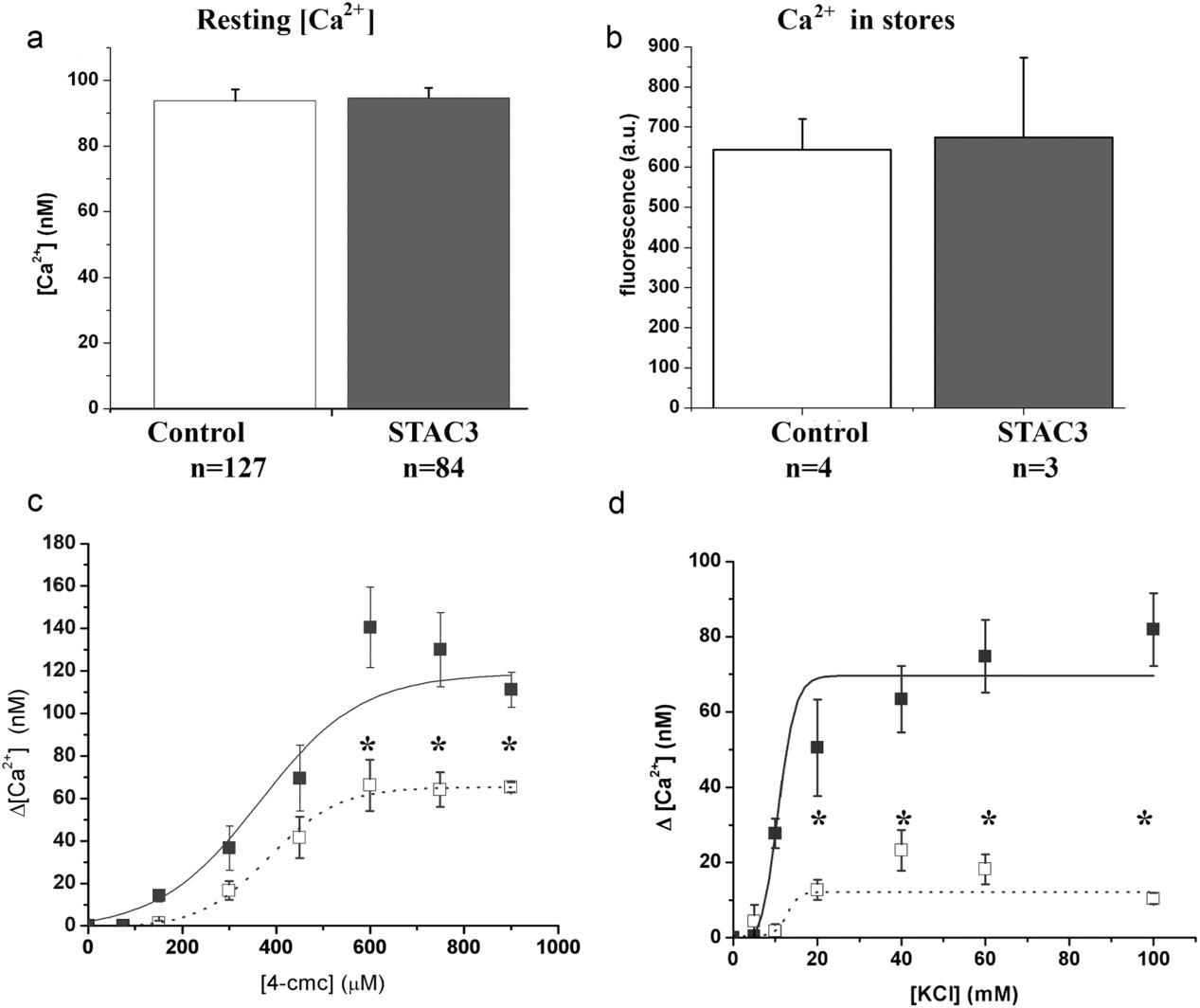

To investigate the functional consequences of the detected STAC3 variants, we studied Ca²⁺ homeostasis in myotubes from STAC3 patients. Primary myoblasts were available from patients PN2D and PN5, however, cells from patient PN2D failed to differentiate and form multinucleated myotubes so that the functional assessment of the STAC3 variants could only be carried out on cells from patient PN5. The resting cytosolic [Ca²⁺]_i levels, measured with the ratiometric fluorescent Ca²⁺ indicator fura-2, did not show significant differences between PN5 and control myotubes (Figure 4a), nor there were differences in the size of the intracellular Ca²⁺ stores (Figure 4b).

Next, we assessed whether myotubes from PN5 displayed differences in their dose response curves to 4-CMC and KCl-induced Ca²⁺ release, a typical feature associated with the MH-susceptible phenotype due to dominant RYR1 variants. The presence of the mutated STAC3 did not significantly affect the EC₅₀ for 4-CMC in control (363.7 ± 44 μM) and PN5 myotubes (384.2 ± 30 μM) or for KCl in control (10.6 ± 0.6 mM) and PN5 myotubes (12.7 ± 1.2 mM). However, the peak Ca²⁺ in response to 4-CMC was significantly reduced (Figure 4c) as was the KCl-induced Ca²⁺ release, which was reduced to approximately 10% of that observed in control myotubes (Figure 4d).

3.6 Cellular localization of RyR1 and Ca_V1.1 in myotubes from STAC3 patients

Confocal microscopy analysis of differentiated myotubes derived from patient PN5 and controls demonstrated no changes in the localization of RyR1 and Ca_V1.1 (Figure 5a).

Similar patterns of Ca_V1.1 and RyR1 distribution in patients’ muscle samples compared to controls was also detected by immunohistochemical analysis showing that in STAC3 patients Ca_V1.1 and RyR1 co-localized in the muscle fibers (Figure 5b). In patient muscle samples, intense Ca_V1.1 and RyR1 staining was noted in some small fibers, which are possibly extremely atrophic fibers or fibers with fetal myosin heavy chain (MHC) expression.

3.7 Effect of p.(Trp284Ser) and c.997-1G > T variants on STAC3 protein structure

The guanine to cytosine transversion at position c.851 (c.851G > C), observed in the patients, results in a substitution of the highly conserved tryptophan (Trp) with serine (Ser). Trp284 is located in the first SH3 domain of STAC3. The SH3 domains have been found in signal-transducing adaptor proteins (Mayer & Baltimore, 1993) and likely serve as anchoring sites for recruitment of substrates or mediate the formation of large protein complexes (Morton & Campbell, 1994). The ligand-binding site of the SH3 domains is a hydrophobic surface with three shallow grooves formed by highly conserved aromatic residues, one of which is Trp284. These conserved aromatic residues are important for peptide binding as they establish hydrophobic interactions with key residues in the SH3-binding ligands (Lim & Richards, 1994; Zafra-Ruano & Luque, 2012).

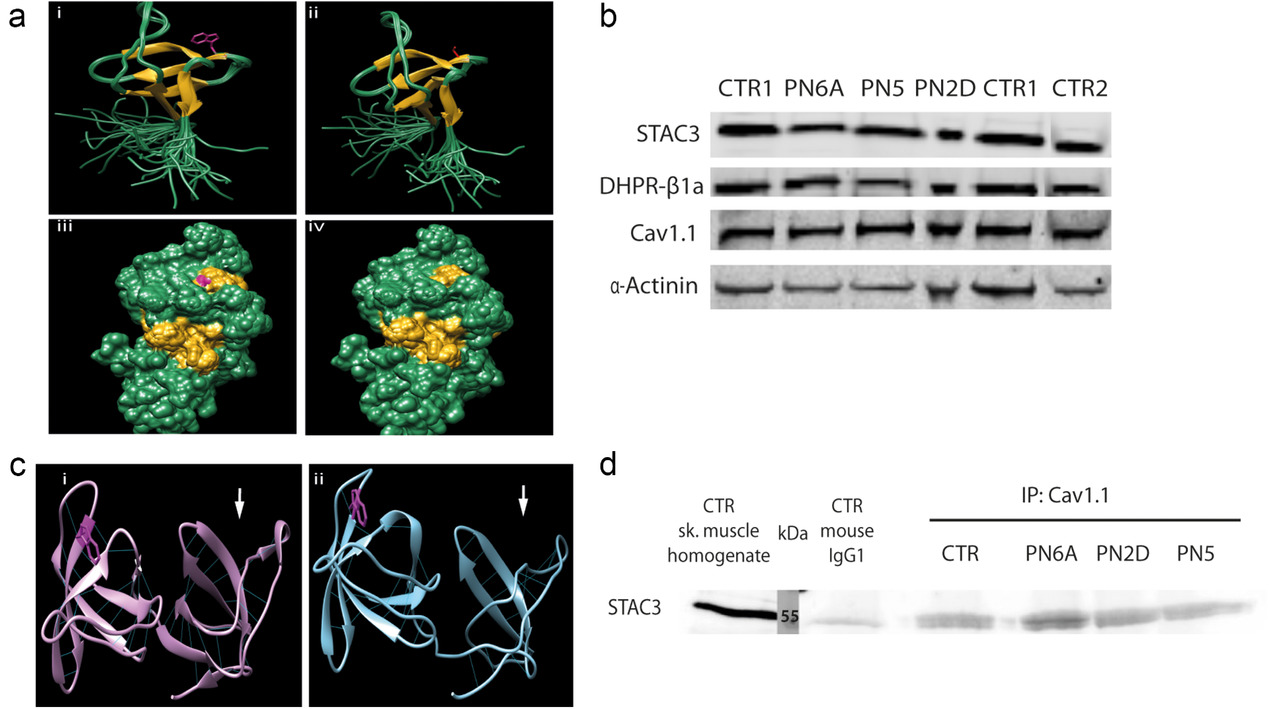

To predict the effect of the substitution of Trp284 with Ser, we used the NMR structure of the first SH3 domain of STAC protein (PDB ID: 2DL4). The change of Trp to Ser side chain did not appear to lead to clashes that could disrupt packing of the STAC3 protein (Figure 6a(ii)). However, the Trp to Ser change at 284 removes the conserved aromatic residue at the surface of the ligand-binding site (Figure 6a(iii,iv)), indicating that the mutant STAC3 could have impaired protein-binding properties.

The c.997-1G > T acceptor splice site variant leads to in-frame deletion of four amino acids (Ile333-Val334-Val335-Gln336) from the second SH3 domain in STAC3. To predict the consequence of the deletion, we carried out homology modeling based on the structure of the tandem SH3 domains of human STAC1 (6B25). The data showed that the in-frame deletion affects the structure of the second SH3 domain by eliminating several β-strands and disturbing the five-stranded β-sheet (Figure 6c).

4 DISCUSSION

In this study we report 18 patients of non-Native American ethnicity affected by congenital myopathy of variable severity due to recessive STAC3 variants. In childhood, the patients at the severe end of the clinical spectrum developed progressive contractures, scoliosis, and significant feeding and respiratory difficulties. Patients with the milder form often showed improvement of respiratory and feeding difficulties with age.

A recognizable facial “Gestalt”, with weakness, ptosis, downslanting palpebral fissures, downturned corners of the mouth, and high-arched and/or cleft palate, specifically guided diagnosis in four families. Weakness was predominantly axial and proximal, static, or slowly progressive. Cryptorchidism was reported in almost half of the male patients. Interestingly, a high number of patients had hearing loss (mostly conductive) and speech delay. As STAC3 is not expressed in the heart, the observation of cardiac problems in two individuals is likely to be unrelated. Long-term follow-up and description of further patients with STAC3 variants will clarify this issue.

Adverse reaction to anesthetics was common. Where detailed documentation was available, myoglobinuria, high increase in CK or potassium levels were absent and the onset of symptoms was more gradual. “Classic” MH often occurs rapidly with subsequent cardiovascular collapse and almost invariably results in post-event laboratory findings, indicating significant muscle breakdown (raised CK, urine myoglobin, and serum potassium). The responsiveness to intravenous dantrolene and the other clinical parameters observed in our patients were suggestive of an MH-like reaction. Larger cohort of patients will be required to determine if there are consistent clinical differences between STAC3-related and “classical” MH and to elucidate the molecular basis of these differences.

The phenotype of this cohort overlaps with that previously reported in STAC3 patients but also expands the clinical spectrum. We observed patients with rather severe congenital presentations, with pterygium, feeding, and respiratory complications. One patient with severe presentation (PN5) was compound heterozygous for the recurrent NAM and a novel splice site variant. Similarly, three other reported previously patients with a more severe phenotype carried variants other than the recurrent NAM variant (frameshift or splice site variants; Grzybowski et al., 2017; Telegrafi et al., 2017). However, it is worth noting that a degree of clinical variability is also observed among patients with homozygous NAM variant and among members of the same family, suggesting that factors other than the type of variants could contribute to the phenotypic variability.

The majority of the families included in this study were of known African, Afro-Caribbean, or Middle Eastern descent. The descent of the Lumbee Native American tribe is controversial, but has been speculated to include an admixture of Native Americans, European settlers, and African Americans (Zhang et al., 2015). The observation of the NAM variant in various populations often of African descent could point toward a common ancestor of possible African origin. Interestingly, Telegrafi et al. (2017) found that the NAM variant was not in linkage with the same haplotype in their two families, implying that these variants originated from unrelated mutational events. Further studies and haplotype analysis might help to further clarify this point.

The functional analysis of the consequence of endogenously expressed STAC3 variants were performed in patient PN5, carrying the compound heterozygous p.(Trp284Ser) and c.997-1G>T variants, inducing in-frame deletion of four amino acids from the second SH3 domain. The two SH3 domains in STAC3 have a unique organization compared to other SH3-containing proteins; the two domains are connected through a short linker thus forming rigid interaction between the domains and an extensive interdomain interface (Wong King Yuen et al., 2017). Modeling of the in-frame deletion demonstrated that it disturbs the structure of the second STAC3 SH3 domain, affects the hydrogen bonds between the residues, and thus likely destabilizes the structure of STAC3 SH3 domains.

The functional data strongly support the notion that the STAC3 variants lead to impaired ECC. Indeed, application of KCl caused a small release of sarcoplasmic reticulum Ca²⁺, a result consistent with previous observations in animal models (Cong, Doering, Grange, & Jiang, 2016; Linsley, Hsu, Groom, et al., 2017; Nelson et al., 2013; Polster et al., 2016). Our results, however, are not fully supportive of previously published data on Ca²⁺ release mediated by direct RyR1 activators. In the PN5 myotubes, application of the direct RyR1 agonist 4-CMC (Zorzato, Scutari, Tegazzin, Clementi, & Treves, 1993) induced lower Ca²⁺ release compared to that observed in control myotubes. This is in contrast to results of Cong, Doering, Grange, et al. (2016) that demonstrated that in Stac3^−/− mouse myotubes the peak calcium transient, induced by 5 mM 4-CMC and 25 mM caffeine, were similar to controls. It should be pointed out however, that 5 mM 4-CMC is a supramaximal concentration that may activate calcium release by RyR3 and/or other intracellular channels, which are also expressed in mouse myotubes (Ward et al., 2000). The calcium peak in response to caffeine was reportedly similar in myotubes from stac3^−/− zebrafish and controls (Linsley, Hsu, Groom, et al., 2017; of note in the supplementary Figure 5, the peak calcium induced by caffeine is reduced by about 25%), but in stac3^NAM fibers, the peak calcium response was significantly enhanced, with no change in the EC₅₀ for caffeine. Our results in patient myotubes also showed no shift in sensitivity to either KCl or 4-CMC-mediated Ca²⁺ release in cells harboring mutant STAC3. These findings suggest that the cellular events underlying the MH-like reactions appear to be different from those underlying “classical” MH, in that (a) there is no shift in sensitivity to activating stimuli and (b) no significant increase in the resting [Ca²⁺]. Nevertheless the STAC3 variants affect both depolarization-induced Ca²⁺ release as well as Ca²⁺ release triggered by direct activation of RyR1. Interestingly, a recent study on myotubes from patients with CACNA1S variants, reported a decreased KCl-induced Ca²⁺ release, without altered resting [Ca²⁺] or size of intracellular sarcoplasmic reticulum stores (Schartner et al., 2017). In this case, the decreased response was caused by decreased content of Ca_V1.1.

A role of STAC3 in regulating Ca_V1.1 trafficking and localization to the sarcolemma has been shown (Polster et al., 2015). However, our data in STAC3 patient myotubes demonstrated that both Ca_V1.1 and RyR1 were present and co-localized correctly in the patient's cells, indicating that the pathomechanism of STAC3 variants is not through impaired Ca_V1.1 trafficking. The data is in agreement with studies on mouse Stac3^NAM myotubes in which ECC was impaired without the membrane targeting of Ca_V1.1 being affected (Polster et al., 2016).

As STAC3 has been shown to be a part of the DHPR complex and to stably interact with Ca_V1.1 (Campiglio & Flucher, 2017; Horstick et al., 2013; Linsley, Hsu, Groom, et al., 2017), we hypothesized that the defective ECC in STAC3 patients was a result of impaired binding to Ca_V1.1. Nevertheless, co-immunoprecipitation of STAC3 with Ca_V1.1 in patient and control muscle samples pulled down STAC3 to equal extent and demonstrated that the protein interaction between STAC3 and Ca_V1.1 was not significantly affected by the STAC3 variants. In agreement, Campiglio and Flucher (2017) identified that the interaction between STAC3 and Ca_V1.1 is through a protein-binding pocket in the C1 domain of STAC3, and the p.(Trp284Ser) variant does not impair the stable STAC3-Ca_V1.1 interaction. An additional STAC3-Ca_V1.1-binding site has been identified in a recent study, which demonstrated that STAC3 interacts with the Ca_V1.1 linker connecting transmembrane domains II-III (Wong King Yuen et al., 2017). While the p.(Trp284Ser) variant did not cause misfolding of the STAC3 protein, it abolished the interaction with the Ca_V1.1 II-III loop, which was previously identified as essential for the Ca_V1.1-RyR1 functional interaction (Grabner et al., 1999). This additional interaction could lead to loss of the functional interaction with RyR1 and possibly could explain the impaired ECC in STAC3 patients.

In conclusion, in view of our results, the recently published data describing STAC3 variants in patients of non-Native American ethnicity, and the rather homogenous clinical presentations in patients of different ethnicities, we propose to name this condition as STAC3-related congenital myopathy, to highlight its wider distribution. STAC3 gene analysis should be included in the diagnostic work up of patients of any ethnicity presenting with a congenital myopathy, in particular if a history of MH is reported. While the precise underlying pathomechanism remains to be elucidated, functional characterization of p.(Trp284Ser) in myotubes and muscle biopsy samples from STAC3 patients demonstrated that the defective ECC is not a result of Ca_V1.1 sarcolemma mislocalization or impaired STAC3-Ca_V1.1 interaction.
