1 INTRODUCTION

Functional magnetic resonance imaging (fMRI) using the blood oxygen level-dependent (BOLD) (Ogawa et al., 1990) contrast has become the most powerful and ubiquitous method to investigate brain function during task processing and at rest. BOLD signals are corrupted, however, by non-white noise arising from scanner instability, head motion and physiological fluctuations related to the cardiac and respiratory cycles (Caballero-Gaudes & Reynolds, 2017; Liu, 2016; Lund et al., 2006; Reynaud et al., 2017). These decrease the temporal signal-to-noise-ratio (tSNR), limit the tSNR gain associated with increasing static magnetic field (Triantafyllou et al., 2005) and reduce sensitivity to BOLD activation (Biswal et al., 1996; Lund et al., 2006).

Respiration and cardiac-related fluctuations in echo-planar imaging (EPI)-based BOLD fMRI are responsible for most of the variance in gray matter and cerebrospinal fluid (CSF) (Bianciardi et al., 2009; Jezzard et al., 1993; Weisskoff et al., 1993; Windischberger et al., 2002). Susceptibility variations during breathing engender small changes in the magnetic field which lead to artifacts in the BOLD signal (Raj et al., 2001), as do signals related to the chest moving at the respiration frequency, which also translates into head motion (Birn et al., 2008; Krüger & Glover, 2001). Moreover, the pulsatile nature of the cardiac cycle causes variations in the blood flow as well as tissue movements which can contaminate the measured MR signal in voxels containing major blood vessels (Dagli et al., 1999), while the brainstem is particularly affected by physiological noise due to its proximity to the fourth ventricle and arteries (Beissner et al., 2011; Harvey et al., 2008; Matt et al., 2019).

Several methods have been developed to remove physiological perturbations and increase statistical power and statistical validity. Filtering approaches (Biswal et al., 1996; Chuang & Chen, 2001) and statistical models (Agrawal et al., 2020) perform well with fast fMRI but can fail when the frequency of the physiological noise exceeds the Nyquist rate, which is generally $2/{\mathit{TR}}_{\mathit{vol}}$, where ${\mathit{TR}}_{\mathit{vol}}$ is the volume repetition time. Despite the more rapid acquisition allowed by simultaneous multi-slice (SMS) EPI (Barth et al., 2016; Feinberg et al., 2010; Feinberg & Setsompop, 2013; Setsompop et al., 2012), ${\mathit{TR}}_{\mathit{vol}}$ is still generally in excess of what would be needed to critically sample cardiac fluctuations, which is, for example, 400 ms for a heart rate of 75 bpm. However, slice time series can be reordered into temporal rather than spatial order to critically sample physiological noise (Frank et al., 2001). Alternative techniques involve the simultaneous acquisition of physiological signals during the fMRI experiment. RETROICOR (Glover et al., 2000; Harvey et al., 2008) models physiological noise using Fourier expansions of the physiological recordings while other approaches model the respiration and cardiac response functions of lower frequency fluctuations (Birn et al., 2006; Birn et al., 2008; Chang et al., 2009). Yet, many MR sequences do not allow easy integration of physiological measurements. For instance, this is currently impossible with Siemens multiband EPI sequences. An alternative solution for recording traces on the scanner exist (e.g., for Siemens' scanners, based on commands issued to the Physiological Monitoring Unit [PMU] via telnet) but this also requires coordination of the signal trace with the dicom images and trigger events from the scanner, which can be problematic. Besides, external recordings increase the time overhead in subject handling and can be unreliable if the breathing belt becomes loose or slips (leading to signal loss) or is too tight (leading to a saturation in values) (Kasper et al., 2017), or, in the case of photoplethysmography, if noise (e.g., high-frequency, power-line interference, baseline drift, motion artifact) corrupt the signal (Elgendi, 2012). Databases like the Human Connectome Project (HCP) (Glasser et al., 2013) also contain corrupted physiological recordings which can require manual screening of the physiological noise signals (Aslan et al., 2019).

As physiological fluctuations are clearly identified in specific anatomical regions of the brain, many authors have explored the possibility of isolating cardiac and respiration signals directly from the fMRI data. Most common unsupervised data-driven methods generate physiological regressors using component analysis techniques (Behzadi et al., 2007; Beissner et al., 2014; Churchill & Strother, 2013; Perlbarg et al., 2007) of noise regions of interests (ventricles, brainstem, and major blood vessels or in the CSF and white matter) or the whole brain (Beall, 2010; Beall & Lowe, 2007; Salimi-Khorshidi et al., 2014; Thomas et al., 2002) to identify voxels dominated by physiological noise. For example, PESTICA (Beall, 2010; Beall & Lowe, 2007; Shin et al., 2016) correlates temporal-ICA components with a prior spatial physiological noise distribution to extract the component with highest correlation in each slice. By reordering the selected components into a single time series (Frank et al., 2001), PESTICA increases the sampling rate, enabling the recovery of aliased signals. Other methods like FIX (Salimi-Khorshidi et al., 2014) use prior information in existing trained datasets to automatically classify spatial-ICA components as noise, or can be trained through by-hand classification to improve performance. This process, and the need to check that the components identified by FIX as noise, makes the process onerous in studies with large numbers of subjects.

Most widely used physiological noise removal techniques only use magnitude fMRI data. However, data-driven physiological correction stands to benefit from the use of phase information, as the phase of the MR signal is highly sensitive to the changes in B₀ which accompany respiration (Hagberg et al., 2008; Hagberg et al., 2012; Petridou et al., 2009). Phase images are not generally saved in fMRI experiments, but this information is available as the inherent counterpart of the magnitude in the complex MRI data and can be reconstructed and used for physiological noise correction. Indeed, there is a growing interest in the information carried by the phase in fMRI to increase the statistical power in fMRI analysis (Rowe, 2005), for dynamic distortion correction (Dymerska et al., 2018; Robinson et al., 2021), quantitative susceptibility mapping (QSM) (Sun & Wilman, 2015), and functional QSM (Balla et al., 2014).

Using EPI phase poses some challenges, however: the need to find a solution to the phase-sensitive combination of RF coil signals, particularly at ultrahigh field (Robinson et al., 2017), to unwrap phase images quickly and effectively and to remove unwanted signals from sources such as the cold-head helium pump which affect the phase signal to a larger extent than the magnitude (Hagberg et al., 2012). While a small number of methods have made limited use of phase—to identify Gaussian-distributed independent and identically distributed noise (Vizioli et al., 2021), for respiration (Cheng & Li, 2010; Le & Hu, 1996; Zahneisen et al., 2014), combined with ICA (Curtis & Menon, 2014)—none has taken full advantage of the sensitivity of phase to physiological fluctuations in a correction method for both respiratory and cardiac noise.

We propose a method which leverages phase and magnitude information, and obviates the need for external physiological signals and user interaction. This unsupervised, physiological data-free and automatic Physiological Regressor Estimation from Phase and mAgnItude sub-tR (PREPAIR) approach reveals both respiration and cardiac signals present in the fMRI time series for a wide range of TRs despite cardiac fluctuations being—considering the volume TR—critically sampled or undersampled. We adopt recently developed approaches to coil combination (Eckstein et al., 2018) and unwrapping (Dymerska et al., 2021) combined with temporal reordering and slice filtering to derive physiological signals sampled at the slice repetition interval rather than the volume repetition interval. High-frequency fluctuations due to breathing motion and cardiac pulsatility are identified via nuisance signal variation. PREPAIR is compared with three commonly used physiological noise removal tools in both the cerebrum and the brainstem at 3 and 7 T; RETROICOR using external physiological recordings (hereafter RETROICOR-EXT), and the ICA-based methods FIX and PESTICA at 3 and 7 T.

2 MATERIALS AND METHODS

This section comprises descriptions of subjects, MR measurements and external physiological recordings (Sections 2.1 and 2.2), the PREPAIR algorithm for estimating physiological noise regressors (Section 2.3), data processing steps (Section 2.4), and comparison with other methods (Section 2.5).

2.3 Estimation of the physiological regressors

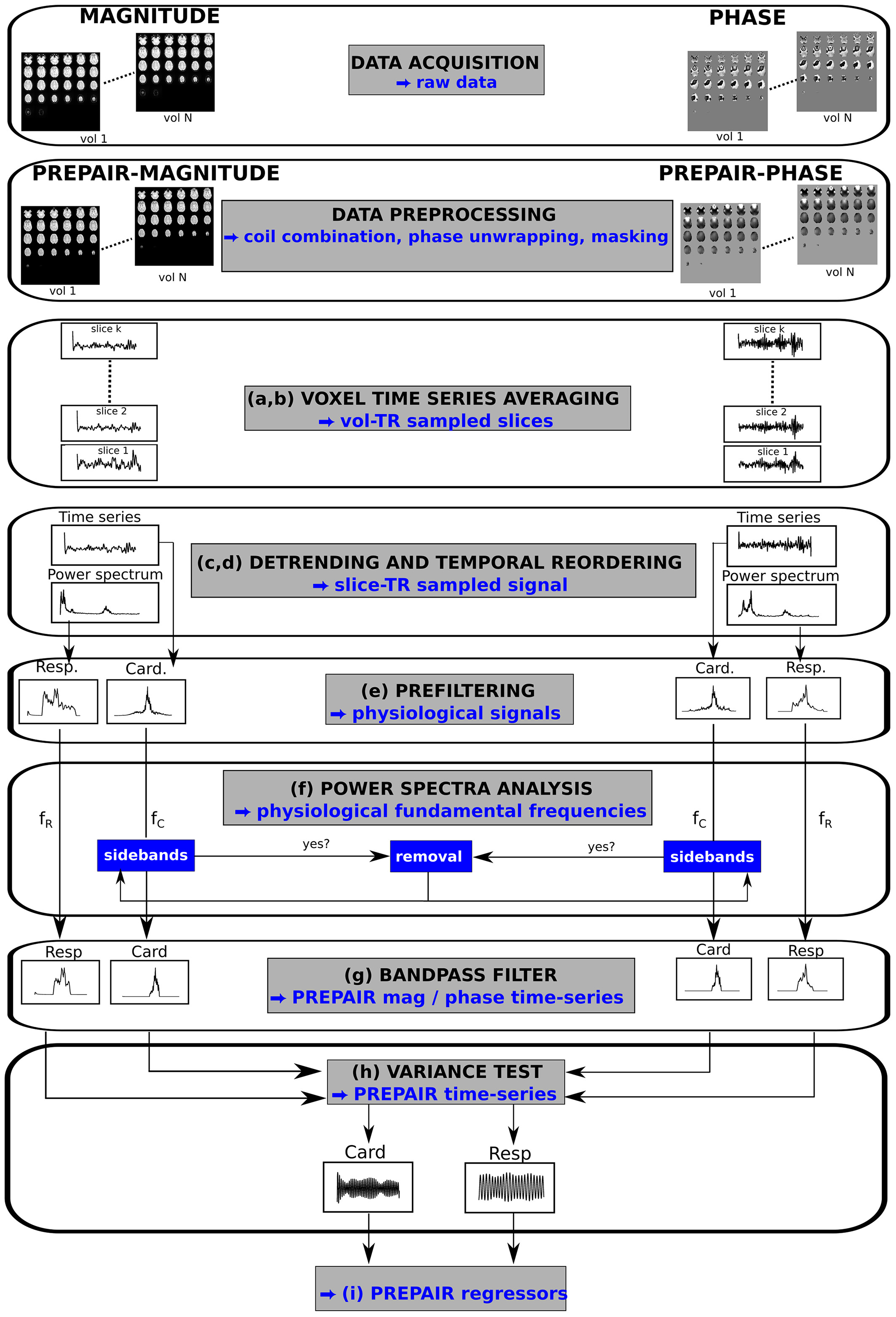

The central aim of the PREPAIR approach is to generate two scalar signals sampled at ${\mathit{TR}}_{\mathit{\text{slice}}}$ (rather than ${\mathit{TR}}_{\mathit{vol}}$)—one from the magnitude and one from the phase of the EPI data—and select from the two that which better describes respiration and cardiac fluctuations. These are used to generate physiological noise regressors for correction of the magnitude EPI data. The process consists of the following steps (illustrated in Figure 1, in which the letters below appear):

1. Voxels with high SNR were identified using the criteria that their mean intensity over time in the magnitude was above 20% of the robust maximum defined as the 98th percentile of the values in the magnitude data over all voxels (Aslan et al., 2019).
2. High SNR voxel values were averaged over each slice. For the phase, a weighted mean was used, in which weights were the corresponding magnitude values. This yielded a magnitude and phase time series for each slice, sampled at ${\mathit{TR}}_{\mathit{vol}}$.
3. The dependence of the magnitude and phase values on imaging slice, which stems from different coverage and tissue composition, was eliminated by fitting and subtracting a third-order polynomial to each slice time series.
4. For phase and magnitude separately, signals derived from each slice were combined according to the acquisition order of each contributing slice. For SMS data, the signal in simultaneously acquired slices was averaged and the number of slices was reduced to NS = N/MB, with NS the reduced number of slices, where the reduction is by the number of simultaneously acquired slices, which is also equal to the number of RF excitations per TR. This resulted in a magnitude and phase time series with length NR × NS and sampling rate NS/TR.
5. A “prefiltering” step, consisting of a band-pass filter with typical ranges of [9–30] cpm (cycle per minute) for respiration and [42–96] bpm for cardiac, was applied to select physiological noise contributions to the magnitude and phase signals.
6. The fundamental frequencies of the respiratory and cardiac noise, f_R and f_C, respectively, were then identified with an iterative procedure in which the frequency with the highest power in the respective power spectrum was compared with signals with frequencies unrelated to physiological noise. Because band-pass filters can be very aggressive, using filtering during this step would reduce or cancel out the power of signals of interests (stimulations, cardiac fundamental frequency, etc.) which can lie close to unrelated physiological signal frequencies. To prevent that, unrelated physiological noise frequencies were removed by setting their power to zero rather than applying a band-pass filter to the time series.
7. The respiratory and cardiac frequency spectra were then reduced in width by applying a band-pass filter to the time series to retain only frequencies within a certain range around the fundamental frequencies.
8. To determine whether the PREPAIR-magnitude or PREPAIR-phase physiological time series better represented physiological fluctuations in the data, the variance improvement after separately removing the respiratory and cardiac noise by linear regression was estimated and compared for both magnitude-derived and phase-derived signals. This led to the selection of either the PREPAIR-magnitude or PREPAIR-phase time series for respiratory-related fluctuations, and the same for cardiac-related fluctuations.
9. Slice-wise physiological noise regressors were modeled from the PREPAIR respiratory and cardiac time series as sine and cosine functions of the two first harmonics of the cardiac and respiratory cycle using the AFNI version of RETROICOR-EXT.

3 RESULTS

In this section, we illustrate the physiological signals generated with PREPAIR and compare physiological noise correction between PREPAIR, RETROICOR-EXT, PESTICA and FIX. In Section 3.1, the quality of physiological waveforms obtained with each method is compared with that from the external signals. The efficacy of the noise removal with each method is shown in Section 3.2 and its effectiveness in the improvement of the magnitude image in Section 3.3.

Because all intermediate data needed for this assessment are not available with FIX (e.g., slice TR-sampled physiological regressors), the comparison between PREPAIR and FIX was limited to the analysis of the corrected magnitude image (Section 3.2).

3.1 Physiological noise identification

3.1.1 Illustration of the PREPAIR algorithm

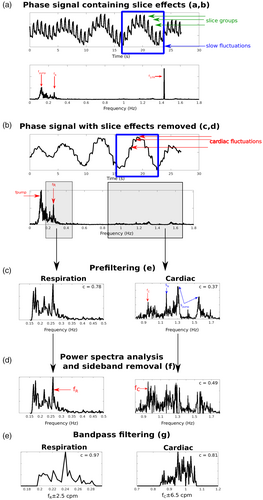

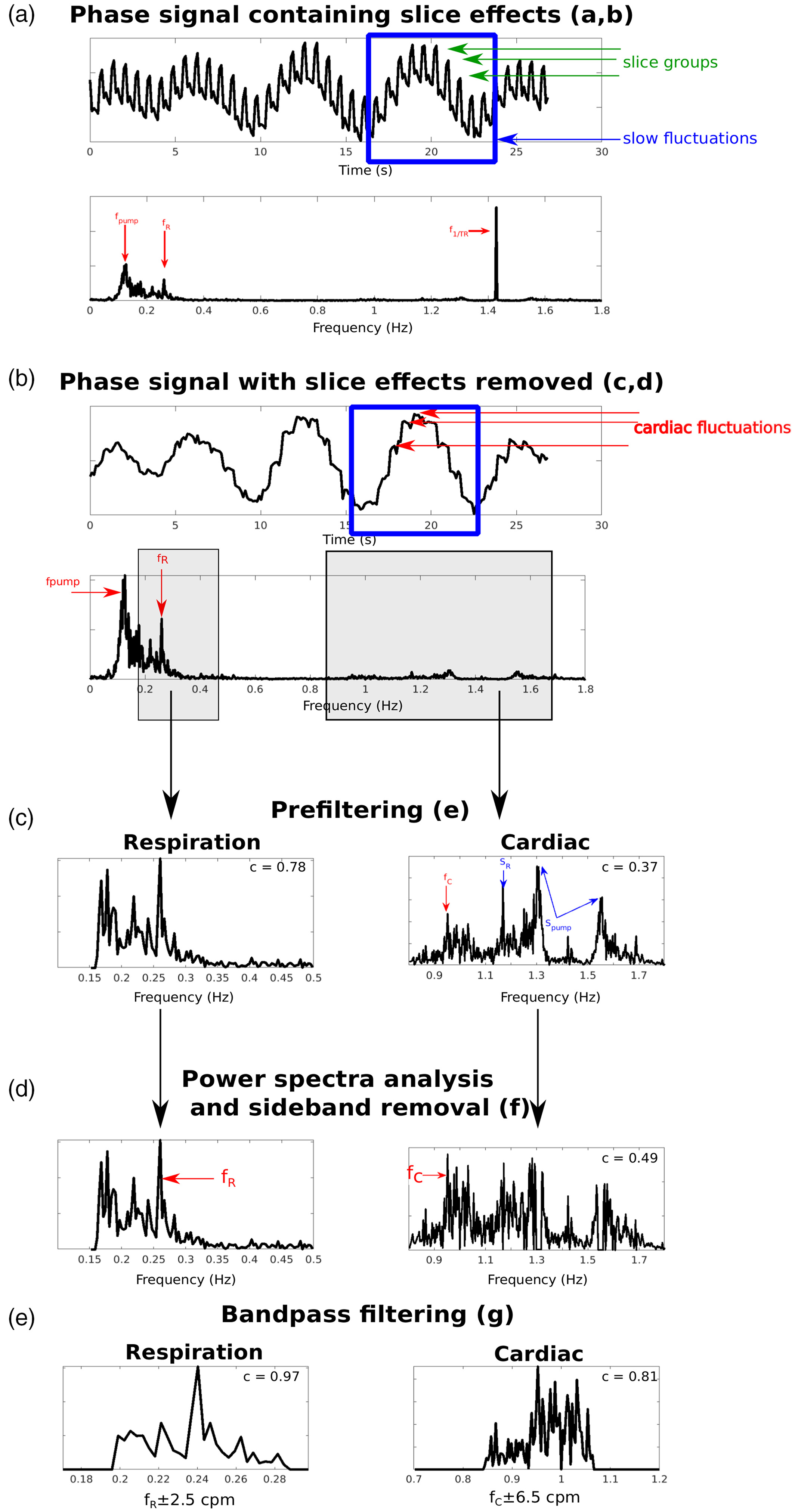

The effect of the steps detailed in Section 2.3 for physiological noise identification is illustrated in Figure 2 with the phase data of one subject (S6, 3T_TR_700). Panel (a) shows the slice TR sampled phase signal (top). Before removing slice effects, both slow fluctuations (blue square) and faster fluctuations (slice groups, green arrows) are apparent. The Fourier spectrum (bottom) is dominated by three peaks: f_pump at 0.13 Hz, a disturbance related to the cold-head helium pump affecting the flow of the gradient cooling water (as described in Hagberg et al. (2012)), f_R, the respiratory fundamental at 0.25 Hz and f_1/TR at ~1.43 Hz caused by slice reordering. Slice effects were removed by detrending (Section 2.3, c and d) (panel (b)), reducing the power of f_1/TR and revealing rapid variations of cardiac origin (red arrows). In panel (c), respiratory fluctuations (left) were band-pass filtered from the power spectrum (Section 2.3, e), resulting in a correlation of 0.78 with the external signal for the case illustrated. The cardiac fluctuations (right) extracted from the time series by applying a second-order Butterworth band-pass filter had a correlation value of 0.37 with the external signal. This Butterworth filter includes frequencies beyond the chosen interval so that unusual cardiac rhythms can be identified. In this cardiac power spectrum, we observe multiple peaks: the cardiac fundamental f_C and sidebands caused by f_pump located at S_pump = f_1/TR ± f_pump and by f_R located at S_R = f_1/TR ± f_R, respectively (the upper sideband does not appear as it lies outside the cardiac range). Here, f_C was well below S_pump and S_R which would be wrongly identified as the fundamental. After filtering out all sidebands (Section 2.3, f), f_C was correctly identified (panel (d)) which improved the correlation with the external signals to 0.49. In panel (e), the intervals of the respiratory and cardiac frequencies were reduced to ranges around f_R and f_C (Section 2.3, g). These ranges were established by computing the average standard deviation of the respiration and cardiac rates in the signals obtained from the external signals over all subjects, protocols and field strengths, which yielded 2.5 cpm and 6.5 bpm for respiration and cardiac, respectively. Frequencies outside the ranges f_R ± 2.5 cpm and f_C ± 6.5 bpm were eliminated with a band-pass filter, leading to correlation for respiration and cardiac with the external signals of 0.97 and 0.81, respectively.

3.1.2 Comparison of the physiological waveforms

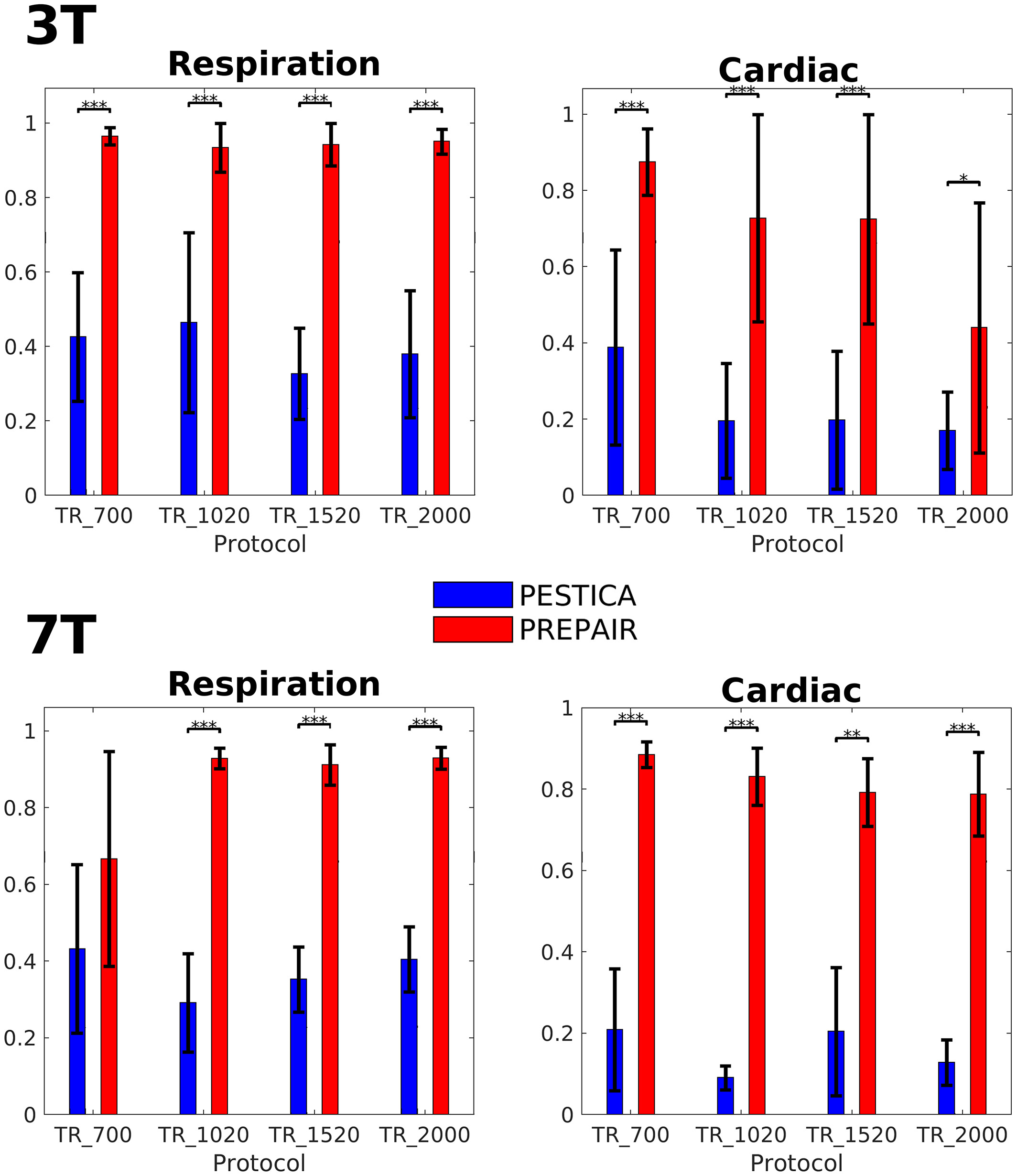

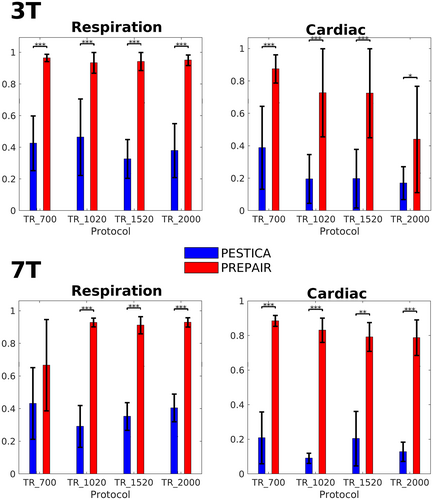

Table 2 lists the mean correlation over subjects of PREPAIR-magnitude and PREPAIR-phase waveforms with the external signals and the proportions of cases in which the PREPAIR-magnitude and PREPAIR-phase regressors were selected for respiratory and cardiac noise. For the 3 T study, PREPAIR-phase matched extremely well the external signals and modeled respiration fluctuations better than PREPAIR-magnitude for all subjects and protocols. For cardiac, correlation values with PREPAIR-phase were lower, and were identified as the best regressor in 40% of cases for 3T_TR_700 and 3T_TR_1020 and 60% for 3T_TR _1520 and 3T_TR_2000 protocols. For the 7 T study, PREPAIR-phase also provided a better description of respiration-related fluctuations for all subjects and protocols. For cardiac, the PREPAIR-magnitude waveform was used to build the cardiac regressors in all subjects and protocols.

Given the important contribution of the phase and magnitude data in the process of noise identification, we compared, in Figure 3, the correlation of the PREPAIR respiratory and cardiac waveforms selected by the algorithm with that of PESTICA (all PESTICA estimators are presented in Supplementary Information, Figures S8 and S9). For the 3 and 7 T studies, PREPAIR performed significantly better (*p < .05; **p < .01; ***p < .001) than PESTICA except for 7T_TR_700 for respiration.

The results of this section demonstrate that PREPAIR can accurately detect respiratory and cardiac fluctuations in the fMRI data. The respiratory and cardiac waveforms selected by the algorithm were used to produce physiological noise regressors for image correction.

3.2 Physiological noise removal

3.2.1 Comparison of uncorrected versus corrected power spectra

The effectiveness of noise removal with the methods under consideration was investigated by performing a spectral analysis of the magnitude data prior to and following correction. In the analysis below, we compare the power reduction of physiological noise bands with the three methods for three selected subjects in the 3 T study who had low (top: S10, 3T_TR_700), normal (middle: S5, 3T_TR _1520) and high (bottom: S4, 3T_TR_1020) cardiac heart rate. In Figure 4, the variation of the respiratory and cardiac fluctuations over time obtained with the external recordings is indicated with a black and red arrows (two if the second harmonic is visible) in the uncorrected magnitude image (left panel), respectively. Spectrograms were scaled to the same minimum and maximum power expressed in decibels (color scale).

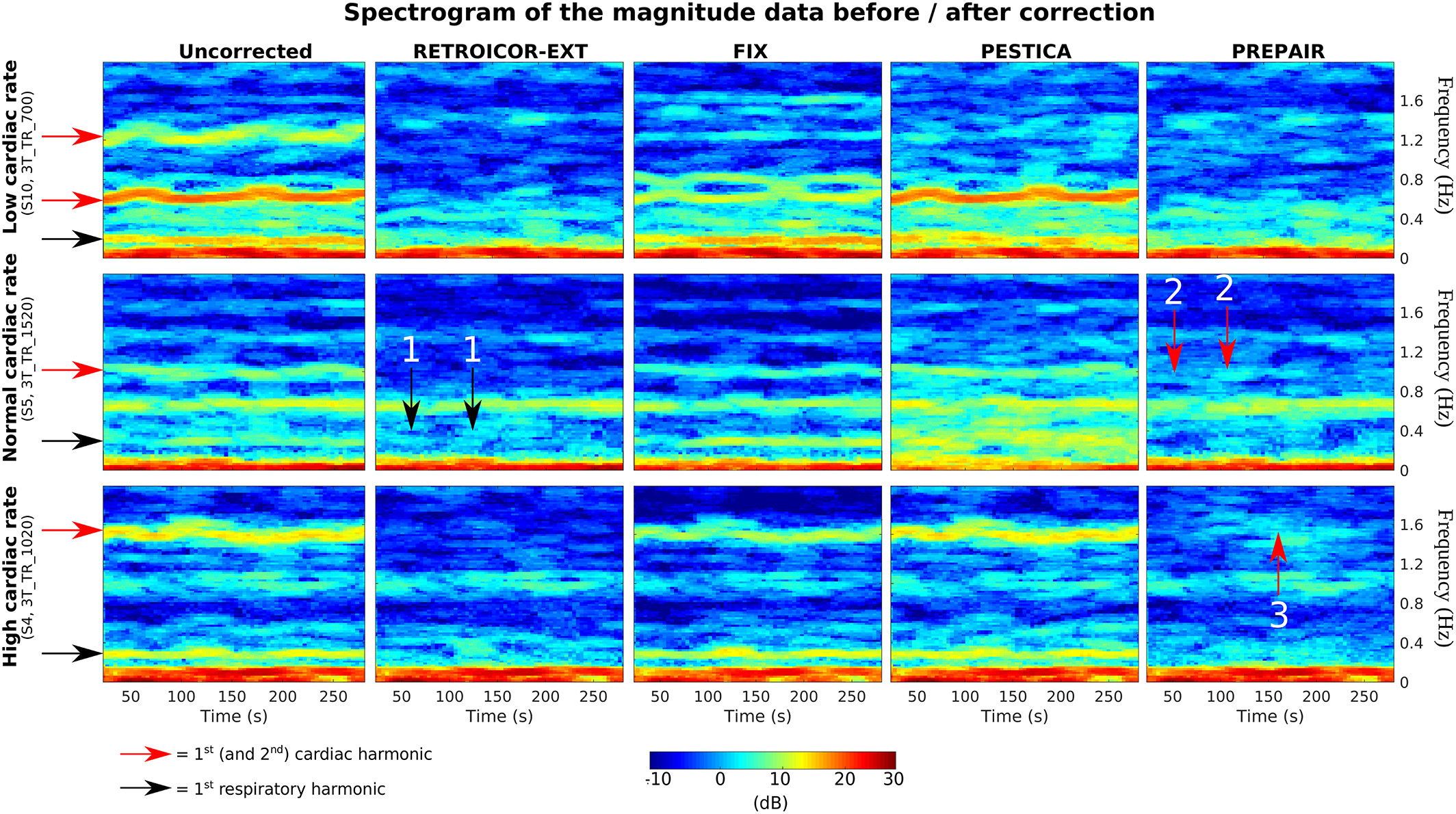

1. In the top panel, showing results for a subject with a slow pulse, the respiratory noise was close to 0.3 Hz and the cardiac first and second harmonics were at ~0.6 and 1.2 Hz. The respiratory removal was as effective with PREPAIR and RETROICOR-EXT, while in PESTICA, the correction was partial, and in FIX noneffective. The contributions of the first and second cardiac harmonics were completely removed by correction with PREPAIR and RETROICOR-EXT while PESTICA and FIX only removed the second harmonic.
2. In the middle panel, showing results for a subject with a typical pulse, the respiratory noise lies near 0.3 Hz and the cardiac first harmonic around 1.0 Hz. Concerning the respiration, PREPAIR slightly outperformed RETROICOR-EXT, for which some islets of power remain in the spectrograms (black arrows with label 1), and PESTICA and FIX added noise. As for the cardiac noise, remaining power is visible in the spectrogram of PREPAIR compared to RETROICOR (red arrows with label 2), but neither FIX nor PESTICA filtered this noise out.
3. In the bottom panel, showing results for a subject with a fast pulse, the respiratory noise peak was around 0.3 Hz and the cardiac first harmonic around 1.6 Hz. Physiological noise removal was only successful with RETROICOR-EXT and PREPAIR, albeit with one islet of residual power (red arrow with label 3) in PREPAIR's spectrogram.

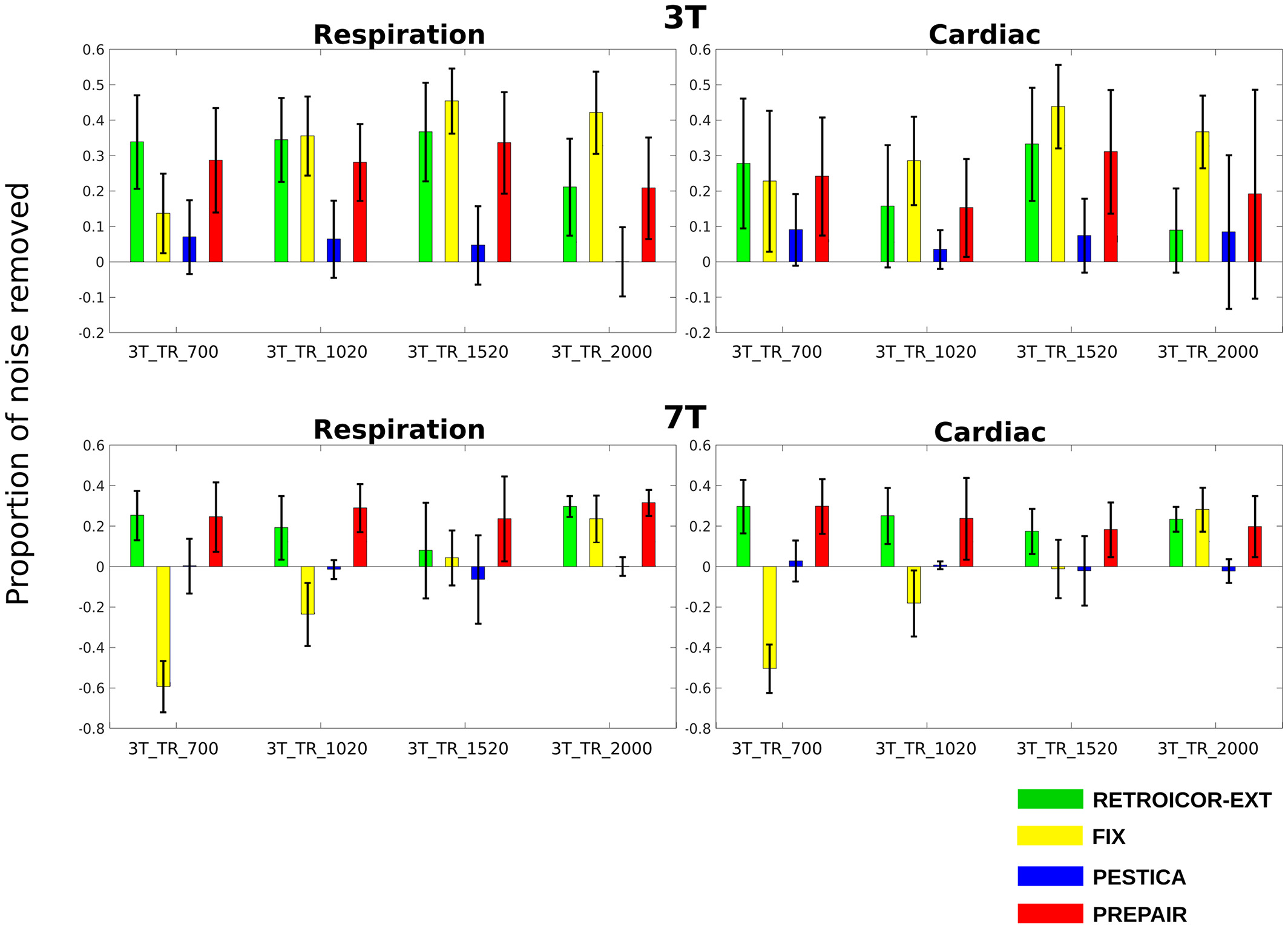

To estimate the overall performance of each method after physiological noise correction, we computed the mean proportion of physiological noise removed and of fluctuation outside the physiological noise regions. Figure 5 shows the mean proportion of physiological noise removed in the 3 T (top panel) and 7 T (bottom panel) studies across subjects. For the 3 T study, PREPAIR gave a correction which was as effective as RETROICOR-EXT, slightly less effective with FIX for some protocols, but more effective than PESTICA. For the 7 T study, PREPAIR performed better than PESTICA and FIX for all protocols, and similarly to RETROICOR-EXT. Table 3 compiles the mean and standard deviation (in percentage) of the total noise removed by each method over all subjects and protocols for the 3 T study. For respiration (first row), PREPAIR (30.0%) was as effective as RETROICOR-EXT (32.1%) and slightly less than FIX (33.7%), with the performance of PESTICA (4.8%) being significantly lower (p < .001). For cardiac (second row), PREPAIR (20.0%) performed similarly to RETROICOR-EXT (20.7%), significantly better than PESTICA (6.0%: p < .001). However, FIX (33.7) removed significantly more cardiac noise than PREPAIR (p < .001). Table 4 shows similar results for the 7 T study. For respiration, PREPAIR (27.3%) was as effective as RETROICOR-EXT (28.7%), and removed significantly more respiratory signals than FIX (−17.1%: p < .001) and PESTICA (−2.0%: p < .001). For cardiac, PREPAIR (22.3%) also performed significantly better than FIX (−10.1%: p < .001) and PESTICA (0.0%: p < .001), and similarly to RETROICOR-EXT (23.6%).

A reliable physiological noise correction method should be effective in removing the narrowband physiological noise and leave signal outside these regions unchanged. To assess the extent to which all methods modified signal power outside the physiological bands, we estimated the proportion of power fluctuation outside physiological noise regions. For the 3 T study (last row of Table 3), PREPAIR only altered the magnitude signal by 1.9%, comparable to RETROICOR-EXT (1.4%), which was significantly less than FIX (28.4%, p < .001) and PESTICA (3.3%, p < .01). For the 7 T study (last row of Table 4), PREPAIR (2.5%), RETROICOR-EXT (1.1%), and PESTICA (1.5%) all reduced the power fluctuation to similar level, whereas the change of power outside the physiological bands was significantly larger with FIX (−27.8%: p < .001).

This section demonstrates that PREPAIR effectively removed physiological fluctuations from magnitude time series data while preserving signal of interests, which is crucial for the detection of task-driven voxels.

3.3 tSNR improvement in anatomical regions

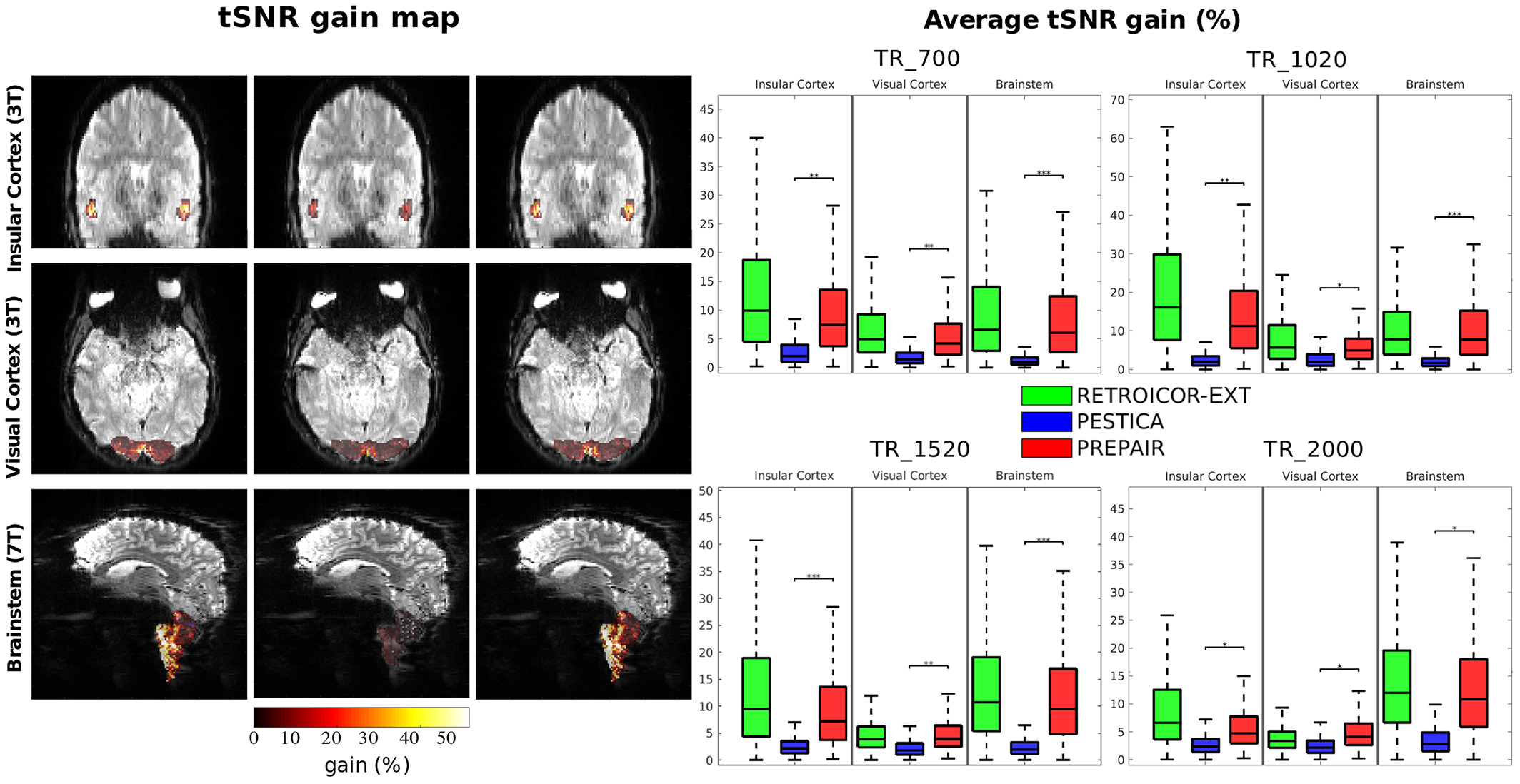

tSNR increases in the insular cortex, visual cortex and brainstem for S2, TR_700 are illustrated in the left panel of Figure 6. The improvement in tSNR was similar with RETROICOR-EXT and PREPAIR, and larger than PESTICA, particularly in the brainstem. In the assessment over all subjects, shown in the boxplots in the right part of the same figure, it is apparent that the mean tSNR increase with PESTICA was less than 5% for all protocols, with significant differences between PESTICA and PREPAIR in all protocols and anatomical regions. The mean for RETROICOR-EXT and PREPAIR was above 5% in all cases. In the 3 T study, RETROICOR-EXT was slightly more effective than PREPAIR in the insular cortex (by a few percent) for all protocols. In the visual cortex, tSNR gain with PREPAIR was slightly lower for 3T_TR_700 and 3T_TR_1020, comparable to RETROICOR-EXT for 3T_TR_1520 and slightly better than RETROICOR-EXT for 3T_TR _2000. In the brainstem, 50th percentiles of PREPAIR were always similar to those of RETROICOR-EXT for all protocols, although 75th percentiles of RETROICOR-EXT for 7T_TR_700, 7T_TR_1520, and 7T_2000 were slightly higher.

We excluded FIX from this comparison, as we found a wide spread of standard deviations in the mean variance improvement across subjects (Supplementary Information, Figure S5), suggesting that other sources of noise and signal variation have been removed. Thus, tSNR improvements through FIX may not stem from the removal of the physiological noise, but from other signal and noise components. This was verified by identifying the FIX components that were not physiological-related, that is, when one of the main three peaks of the power spectra did not correspond to the physiological fundamental frequency (or was aliased) with a tolerance of 10% around it. Over all protocols and subjects of the 3 T study, we found that 35% of the components selected by FIX were not physiological noise-related but related either to eye motion (Supplementary Information, Figure S6) or to a resting state network (Supplementary Information, Figure S7).

4 DISCUSSION

We have developed a physiological data estimation and correction method called PREPAIR, which identifies physiological fluctuations from fMRI data without the need for supplementary external physiological recordings. The novel aspects of PREPAIR are that it uses both magnitude and phase information, physiological noise is sampled at the slice TR rather than the volume TR—so high frequency cardiac fluctuations are critically sampled—and it does not require user interaction to generate the magnitude or phase regressors or select which of the two best captures respiratory and cardiac fluctuations.

We attribute the utility of the phase in identifying respiration-related signals as being due to the sensitivity of the phase to change in the ΔB₀ field where there is motion of structures with large susceptibility differences; primarily in this case the chest (Raj et al., 2001). Cardiac changes were generally better identified with the magnitude—50% of the subjects and protocols at 3 T and 95% at 7 T (see Table 2)—because of the large changes to the magnitude generated by spin history effects. In a few cases where the correlation between the phase and the external recordings was much higher than with the magnitude, PREPAIR would have failed if only the magnitude data had been used (see Supplementary Information, Figure S1). Besides, physiological signals can have different shape, behavior, and offsets compared to signal changes we extract from images. Therefore, they will never perfectly match. When the signals do not match perfectly, less variance related to physiological will be removed compared to signals which match better, as illustrated in Figure B-11 (Supplementary Information).

Reliance on phase data could be viewed as a limitation of the PREPAIR approach, as phase images are not currently routinely reconstructed and stored in fMRI experiments. The use of phase requires a solution for the phase-sensitive combination of RF coil signals, but also phase unwrapping and the removal of unwanted signals from sources such as the cold-head helium pump which affect the phase signal to a larger extent than the magnitude fMRI signal (Hagberg et al., 2012). However, increasing interest in methods which use the phase for dynamic distortion correction (Dymerska et al., 2018), QSM (Sun & Wilman, 2015), and functional QSM (Balla et al., 2014) have led to the development of effective solutions to these problems.

Considering coil combination, MRI scanner vendors have effective coil combination methods for systems with a body coil (e.g., SENSE (Pruessmann et al., 1999) and prescan normalize combined with adaptive combination (Jellus & Kanengiesser, 2014)). For 7 T systems, a multi-echo ASPIRE prescan can be used to calculate phase offsets needed to combine separate channel EPI data (Eckstein et al., 2018) as was done here, with alternatives being offered by the CMRR sequence (Xu et al., 2013), which uses SENSE, and implementations of the VRC approach (Parker et al., 2014), to give a few examples.

For phase unwrapping, recent faster methods (Dymerska et al., 2021; Karsa & Shmueli, 2019) mean that this step can be performed sufficiently quickly and reliably that no longer poses an obstacle to phase imaging with EPI.

In regards to signals which disrupt the phase, the main frequency generated by the pump lies near the respiratory fundamental frequency for TR = 700 ms but without overlap, as seen in Figure 2. Our results have revealed that this perturbation would move away from the frequency range occupied by respiratory fluctuations with increasing TR, which agrees with Figure 1 in Hagberg et al. (2012) where the main cold pump peak lies at 0.67 Hz for a faster TR (180 ms), between typical respiration and cardiac frequency ranges. Protocols with TR below 700 ms would move this major perturbation to higher frequencies, which could limit the detection of the respiration fundamental frequency in the phase time series. Furthermore, the presence of sidebands can make it difficult to identify the fundamental physiological frequencies. Sidebands occur when a carrier signal is modulated by a lower frequency with high power, producing mirrored signals around the carrier. For instance, the coupling of the respiratory and the cardiac cycles—caused by the respiratory modulation of arterial-induced pulsations—leads to frequency contributions at the sum of and the difference between the fundamental cardiac frequency (the carrier) (Brooks et al., 2008; Raitamaa et al., 2021). The reordering process can also engender sidebands at f_n/TR ± f_m due to the amplitude modulation of the carrier signal f_n/TR (i.e., 1/TR and its harmonics) by a lower frequency f_m, which can either be respiratory and helium cold pump frequencies in the case of phase data, or scanner drifts in the magnitude data. Those f_m frequencies are known to be dominant in fMRI data. This step can be critical for long TRs if the width of f_m is large (which is the case for respiratory signals but not for scanner drifts) as the resulting sidebands can lie much lower than typical cardiac frequencies and reach the respiratory domain. Because these only affect the phase signal, the magnitude time series will enable PREPAIR to overcome these challenges in either situation in case the phase fails to capture physiological signals. Indeed, for fast and low TRs, the magnitude component of PREPAIR proved to be able to detect respiratory and cardiac fluctuations with a very good agreement with the external recordings acquired at both 3 and 7 T (see Table 2).

Generally, the bandwidth in EPI is chosen to be as low as possible while still allowing the TE to be reached, with the avoidance of forbidden frequencies and minimization of ghosting being other considerations. Here, we selected the bandwidth according to these criteria, rather than selecting the bandwidth due to any influence it would have on the phase. Other than the generally behavior that the bandwidth affects the SNR (inversely proportional to the square root) it only affects eddy currents, generating, in the phase, a (quasi)-linear gradient in the readout direction, which is the same for all volumes, so it does not affect the time series.

A potential important advance in the use of phase data that is brought out in Table 2 for the 3 T study. Correlation of the PREPAIR-magnitude to external signals seems to decrease with longer TRs, when they remain almost constant with PREPAIR-phase. This would suggest that the coupling of physiological noise in BOLD data is much stronger in less undersampled magnitude data whereas the phase signal coupling is not affected by the number of samples. A preliminary conclusion would be that phase data provide more consistent and reliable physiological fluctuations than the magnitude data especially in undersampled data. This would explain the higher proportion of PREPAIR-phase waveforms selected by the algorithm for TR greater than 1520 ms (see Table C-3 in Supplementary Information).

Regarding the 7 T study limited to the brainstem, we chose an arbitrary value of 3000 based on our image intensity to include part of the brainstem (including part of the spinal cord in our FOV) which would have been excluded with classical masking methods such as AFNI. This threshold could be generalized to a certain percentile (here 75th percentile), however studies specifically dedicated to the brainstem would certainly benefit from more robust masks, for example, the probabilistic mask from the Harvard-Oxford brain atlas (Desikan et al., 2006; Frazier et al., 2005; Goldstein et al., 2007; Makris et al., 2006).

The slice signal detrending used slice TR sampling of physiological noise, but some volume TR dependency remains, and PREPAIR could fail to detect cardiac fundamental frequencies when they are too close to 1/TR frequency or harmonics thereof, especially for TR = 1020 ms (1/TR = 0.98 Hz) with subjects having a cardiac heart rate near 1 Hz, which is quite typical, or include the remains of this perturbation in the physiological waveforms. This could explain the poor correlation with the external physiological signals for TR_2000 (see Figure 3). Despite that, PREPAIR never significantly performed less well than RETROICOR-EXT in tSNR improvement and even performed comparably to RETROICOR-EXT in the brainstem (see Figure 6).

The default option in the PhysIO Toolbox is to downsample regressors to a reference slice used in a single GLM applied to the whole 3D brain as in SPM (the PhysIO toolbox is integrated in SPM in default mode). Alternatively, slice-specific regressors can be computed by generating as many text files as the number of slices as mentioned in Kasper et al. (2017). We decided to apply the PhysIO toolbox as it is implemented and used in current practice by users of SPM or FSL and compare the PREPAIR regression to that of RETROICOR-EXT from physiological noise regressors obtained from the default mode of the PhysIO toolbox. However, the use of slice-wise regressors is highly recommended as they might improve the performance of the regression in targeted structures of the brain like the brainstem as in Harvey et al. (2008).

Our model did not include physiological noise originating in fluctuations in the heart rate (Akselrod et al., 1981; Cohen & Taylor, 2002; Otzenberger et al., 1998) and subtle changes in the depth and rate of breathing (Wise et al., 2004), which occur at much lower frequencies (<0.1 Hz) than that of the cardiac cycle (~1 Hz) and respiration (~0.3 Hz). Including these slower fluctuations as regressors in the analysis can improve the statistical power of fMRI studies and the detection of task-related BOLD signal changes (Birn et al., 2006; Chang et al., 2009; Shmueli et al., 2007); something which could be added to the PREPAIR output without any fundamental changes to the processing.

In our experiment, no special instructions were given to the participants on how to breathe, so the breathing here was a natural breathing, typical of that which would be encountered in other fMRI experiments. We noticed that the widespread range of frequencies (±2.5 cpm around the respiratory frequency fundamental) in the respiration power spectrum reflect the irregular amplitude of the chest motion during breathing. However, if a breathing task requires too extreme breathing conditions (deep breathing and fast breathing for instance) PREPAIR might fail because the two main peaks would be too far from each other to be contained in the ±2.5 cpm frequency range around the main peak. If the breathing task is such that the two peaks are not too far from each other, PREPAIR will remove them from the magnitude data.

Cardiac and to a lesser extent respiratory effects on image intensity will not be synchronized across the imaged volume. For instance, cardiac-driven signals will have phase offsets from one slice location that is dependent on the relative distances from the heart and the position of the measured signals through the cardiac cycle. Estimated blood velocities in the Circle of Willis (Ahn et al., 1991) are generally between 11.7 cm/s (ophthalmic artery) and 58.5 cm/s (middle cerebral artery), which could create a time offset of about 100–500 ms for an imaging slab of 12 cm and MB = 2. That delay could, potentially, reduce the accuracy of estimates generated from slice-averaged signals. Thus, one can question if deriving cardiac estimates from slice-averaged signals (as in our method) might reduce sensitivity, since simultaneously sampled cardiac processes will be at different positions in the cardiac cycle. This was checked by calculating, for all subjects and protocols, the proportion of cardiac and respiratory noise removed with regressors obtained without averaging slices and compared that with the proportion of cardiac and respiratory noise removed with regressors obtained without averaging slices (our approach). There was a small lag (of between 70 and 150 ms) between the averaged slices (see Supplementary Information, Figure A-10 and Table A-1). This did not impact the image correction as we found that proportions of respiratory and noise removed without slice-averaging were statistically similar to values with averaged slices. We attribute the slightly higher performance of our original approach (with slice averaging) to the fact that the influence of the edge slices, which are susceptible to motion, is reduced when averaged with simultaneously acquired slices at the center of the brain, making the contribution of physiological signals more important in the time series.

An important criterion for selecting a physiological noise correction method for multisubject studies is whether the approach can be executed without user intervention/unsupervised. FIX is challenging to use in a study with a large number of subjects. First, it is very time consuming, because MELODIC-ICA must be run prior to classification. Second, the appropriate training data set used for the classification should be carefully chosen as it depends on the scanner, sequence type, set of subjects, voxel size, and TR. We ran FIX with a training dataset corresponding to our in-plane resolution (1.6 mm × 1.6 mm), 7 T scanner, and sequence type (CMRR as used in the HCP). Also, it is recommended to train classifiers on our own data sets prior to classification, then extend to a larger sample, which is also time consuming and would require scanning more subjects. Thirdly, FIX is prone to include components of interest (i.e., signal changes related to activation) because of the dependence on the threshold parameter (see Supplementary Information, Figure S5), which controls the ratio of good to bad components, and which is subject dependent, as seen from the number of components labeled as physiological noise (see Section 2.5). This would explain the low performance of FIX at 7 T compared to 3 T. Finally, but importantly, an optimal noise removal procedure with FIX requires manual checks that activation-related components are not excluded, which can be onerous. PESTICA can be run in either unsupervised or supervised mode. Running it in supervised mode involves defining the range of frequencies suspected to be physiological noise-related and may have improved its performance. The performance which could be achieved was assessed by inspecting all the power spectra of respiratory and cardiac estimators generated by PESTICA software (Supplementary Information, Figures S8 and S9; delta values are for the dispersion of the fundamental physiological frequencies with respect to those from the external recordings). Among these, narrowing the frequency distribution would have been challenging for 48 power spectra (60%) because either there was no obvious distribution (for instance, Cardiac: S5_3T_TR_700, S9_3T_TR700; Respiration: S4_3T_TR_2000, S9_3T_TR_1520), or there were multiple distributions (for instance, Cardiac: S2_3T_TR_1520, S2_3T_TR_2000; Respiration: S9_3T_TR_1020, S10_3T_TR_2000), or there was a unique peak but this did not correlate with the expected fundamental physiological frequency (for instance, Cardiac: S1_3T_TR_1520, S4_3T_TR_2000; Respiration: S3_3T_TR_1020, S9_3T_TR_700). Filtering the power spectra of 19 runs (23.75%) (for instance, Cardiac: S2_3T_TR_700, S6_3T_TR_1020; Respiration: S2_3T_TR_1520, S7_3T_TR_1020) may have improved the quality of the estimators. Although the main peak was wrongly estimated, filtering around it would have included the expected value in the distribution. Finally, the quality of the power spectrum of 13 runs (16.25%) could likely have been improved because the fundamental physiological frequencies were correctly assessed (for instance, Respiration: S1_3T_TR700, S6_3T_TR1020; Cardiac: S1_3T_TR_2000, S6_3T_TR_1520) and defining a narrower window, by hand, would have reduced the contribution of other nonphysiological contributions to regressors (Respiration: S1_3T_TR_700 and S1_3T_TR_2000).

Standard fMRI studies generally involve the whole brain with conventional protocols as those used in the HCP, e.g., larger in-plane resolution or no distance factor (see Supplementary Information, Table C-2). Correlation of PREPAIR-magnitude and PREPAIR-phase waveforms with the external signals (Supplementary Information, Table C-3) are consistent with our strategy to use both phase and magnitude data, that is, PREPAIR can accurately detect physiological fluctuations in the fMRI data in the whole-brain single subject study. The removal of those fluctuations is also a success as PREPAIR achieves similar proportion of respiratory and cardiac noise removed as RETROICOR-EXT, and better than PESTICA (Supplementary Information, Table C-4). PREPAIR also remains the best tool to limit the addition of noise in the whole-brain fMRI data after regression of the respiratory and cardiac regressors (last row of Supplementary Information, Table C-4).

Finally, PREPAIR proved to be efficient in improving the variance in regions outside the cerebrum where imaging and the identification of the anatomical structure is challenging. The brainstem, for instance, is involved in disorders affecting autonomic dysfunctions (Brook & Julius, 2000), affective disorders (Paul & Lowry, 2013), migraine (Denuelle & Fabre, 2013), and Parkinson's disease (Braak et al., 2003; Holiga et al., 2015; Tison & Meissner, 2014), but is subject to high levels of physiological noise. The proximity of the brainstem to the fourth ventricle and arteries has made it the focus of effort to reduce the variance of contaminated voxels and improve sensitivity (Beissner et al., 2011; Harvey et al., 2008; Matt et al., 2019) to allow the depiction of quite small nuclei (D'Ardenne et al., 2008; Thompson et al., 2006). This can be achieved without the need for external physiological recordings using an anatomically defined mask of brainstem and ICA (Beissner et al., 2014). Combining this with temporal noise regression would reduce variance further, provided that the physiological noise removal tools did not remove signals of interests or add noise to the data, which would impede the detection of neurally driven responses, as shown by Agrawal et al. (2020) with the method CompCor (Behzadi et al., 2007). Our results have demonstrated that PREPAIR performed similarly to RETROICOR-EXT and PESTICA, and significantly better than FIX, in the preservation of the integrity of the magnitude signal outside areas affected by physiological noise in the 3 and 7 T studies (see Tables 3 and 4).

5 CONCLUSIONS

The proposed physiological noise correction method PREPAIR uses time series phase and magnitude images to identify respiratory and cardiac fluctuations in fMRI, unsupervised and without external recordings. The physiological signals identified by PREPAIR agreed well with those from the respiratory bellows and photoplethysmography and led to a similar quality of correction to a method based on external recordings—RETROICOR-EXT—and ICA-based FIX (performed in unsupervised mode) at 3 T, and better than other recording-free noise correction method PESTICA (performed in unsupervised mode), at both 3 and 7 T.
