Drosophila ClC-a is required in glia of the stem cell niche for proper neurogenesis and wiring of neural circuits

Genetics

Flies were grown in standard medium at 25°C except for RNAi experiments, which were performed at 29°C. All genotypes analyzed are specified in the Supplementary Information.

Stocks used to characterize ClC-a expression and phenotype were: MiMIC 05423 (Bloomington Drosophila Stock Center, BDSC 43680), 05423 ^ClC-a-GAL4 (BDSC 66801), MiMIC 14,007 (BDSC 59247), Df(3R)PS2 (BDSC 37742), mir8-GAL4 (DGRC 104917), R54H02-GAL4 (BDSC 45784), wrapper932i-LexA, wrapper932i-GAL80 (Coutinho-Budd et al., 2017), repo-GAL4 on II (Lee & Jones, 2005), repo-GAL4 on III (BDSC 7415), UAS-Dcr2 (Vienna Drosophila Resource Center, VDRC 60009), UAS-ClC-a-RNAi (VDRC 110394), UAS-ClC-a and UAS-ClCN2 (this study), UAS-slit-RNAi (VDRC 108853), slit ^dui (BDSC 9284), Slit-GFP (BDSC 64472), and R9D11-tdtom (BDSC 35847). Additional stocks used in Supplementary Figures were: ClC-a-GFP (BDSC 59296), slit-lacZ (Slit ⁰⁵⁴²⁸) (BDSC 12189), Rh1GAL4 (BDSC 68385), Rh4EGFP (BDSC 7462), Rh6-lacZ (BDSC 8117), GMR-GAL4 (BDSC 1104), R43H01-LexA (BDSC 47931) and R25A01-GAL4 (BDSC 49102), gcm-lacZ (BDSC 5445), EGUF/hid FRT82B (BDSC 5253).

To label membranes and nucleus, we used UAS-mCD8-GFP (BDSC 5137), UAS-mCD8-RFP.LG (BDSC 27398), UAS-mCD8GFP, lexAop-CD2-RFP (BDSC 67093), UAS-H2B-RFP (Mayer, Emery, Berdnik, Wirtz-Peitz, & Knoblich, 2005), and UAS-H2B-YFP (Bellaïche, Gho, Kaltschmidt, Brand, & Schweisguth, 2001), as specified in the genotype list. In experiments where nuclear labeling was used for quantification, the same transgene was employed for control and mutant samples (Figure 5m, Supplementary Figure 6A).

To generate and label neurogenic tissue clones in control and ClC-a mutant backgrounds (Figures 4d,e and 9j-o), the following stocks were crossed: hs-FLP, tub-Gal80, FRT19A; tub-GAL4, UAS-mCD8-GFP/CyODfYFP; 14,007/+ to FRT19A; +; + and hs-FLP, tub-Gal80, FRT19A; tub-GAL4, UAS-mCD8-GFP/CyODfYFP; 14,007/+ to FRT19A; +; Df(3R)PS2/TM6B. Three-hour egg lays were maintained at 25°C and clone induction was performed at the late L1/early L2 transition in a 37°C water bath. The heat shock protocol for neuroepithelium and neuroblast clones was 30 min and 3 hrs respectively. Brains were dissected 48 hrs after clone induction.

For lineage-tracing experiments (Figure 6, Supplementary Figure 10D-G), we used G-TRACE (UAS-RedStinger, UAS-FLP, Ubi-FRT-stop-FRT-Stinger, BDSC 28280 (Evans et al., 2009) combined with specific GAL4 drivers.

To perform the surface associated cortex glia and cortex glia-specific rescue experiments (Figures 4j,k and 8b,c), we devised an intersectional genetic strategy to generate a specific driver. In addition to surface-associated cortex glia on the OPC, mir8-GAL4, labels cortex glia and neurons in the brain, as well as other cells in the animal. To restrict mir-8 expression exclusively to surface-associated cortex glia and cortex glia, we combined the following transgenes: repo-FLP6.2 (Stork, Sheehan, Tasdemir-Yilmaz, & Freeman, 2014), tub > GAL80 > (BDSC 38879), and mir8-GAL4. In this combination, GAL4 is only expressed in cortex glia since the GAL80 repressor has only been flipped out in this cell type but persists in non-glial mir-8 expressing cells (Supplementary Figure 9). For the sake of simplicity, we refer to this combination as the mir-8 ^cxg driver.

2.1 DNA constructs

For UAS-ClC-a and UAS-CLCN2 transgenes, we used the Gateway cloning system (Invitrogene) and cloned their respective cDNAs, to which a 3xFLAG tag had been previously added in the C-terminus, into the ΦC31 integrase compatible pBID-UASC-G plasmid (Addgene plasmid # 35202, a gift from Brian McCabe [J. W. Wang, Beck, & McCabe, 2012]). The FLAG tag does not alter the electrophysiological properties of these channels. For the ClC-a construct, we used the isoform C (a gift from P. Cid) since its electrophysiological properties have already been studied in Xenopus oocytes and HEK-293 cells (Flores, Niemeyer, Sepúlveda, & Cid, 2009; Jeworutzki et al., 2012), and it is known to be expressed in Drosophila head and body (Flores et al., 2009). The final constructs were injected into the attp40 (25C6) landing site on the second chromosome.

2.2 Immunohistochemistry

Fly brains were dissected in Schneider medium and fixed in 4% PFA in PBL (75 mM lysine, 37 mM sodium phosphate buffer, pH 7.4) for 25 min. After fixation, the tissue was washed in PBS with 0.5%Triton-X-100 (PBST) and blocked with PBST with 10% normal goat serum. Primary and secondary antibody incubations were performed in PBST and 10% normal goat serum, typically overnight at 4°C. The following primary antibodies were used for immunohistochemistry: mouse anti-Chaoptin (1:50, 24B10, Developmental Studies Hybridoma Bank, DSHB), rat anti-DE-cadherin (1:50, DCAD2, DSHB), mouse anti-Repo (1:50, 8D12, DSHB), rabbit anti-ClC-a (1:100 this study, see Supplementary Information, and 1:100 a gift from J. Dow), guinea pig anti-Deadpan (1:2000, gift from A. Carmena), rat anti-Lethal of Scute (1:5000, gift from A. Brand), rabbit anti-Mira (1:500, gift from C. González), chicken anti-GFP (1:800, ab13970, Abcam, Cambridge, UK), rabbit anti-RFP (1:200, 632,496, Clontech, Mountain View, CA), mouse anti-β-galactosidase (1:1000, Z3783, Promega, Madison, WI), rabbit anti-β-galactosidase (1:1000, 0855976, Cappel, Malvern, PA), rabbit anti-Dcp-1 (1:200, Asp216, Cell Signaling Technology, Danvers, MA), mouse anti-Prospero (1:10, MR1A, DSHB), mouse anti-Cut (1:250, 2B10, DSHB) and mouse anti-Boss (1:100, gift from H. Kremer). Alexa Fluor 488, 568, and 647 secondary antibodies raised in rabbit, mouse, rat, guinea pig, or chicken (Life Technologies, Carlsbad, CA) were used at 1:250 concentration. Nuclei were labeled using TOPRO-3 (1:1000, T3605, Life Technologies). Brains were mounted for confocal microscopy in Vectashield (Vector Laboratories, Burlingame, CA). Samples were analyzed with Leica TCS SPE and Zeiss LSM880 confocal microscopes.

2.3 Photoreceptor phenotype classification

We classified brains as having a strong, medium, or weak photoreceptor phenotype based on the OL that out of the two had the most severe phenotype. If not the same, the two OLs tended to be in consecutive categories (i.e., strong/medium, medium/weak, weak/no phenotype). For experiments involving photoreceptor phenotypes, we always analyzed at least 17 brains.

2.4 Measurements and quantifications

To assess adult OL and CB size, we took two confocal images of each brain in the appropriate orientations to measure the antero-posterior and dorso-ventral axis of each structure at their widest part. We multiplied those two measurements to obtain a relative value in arbitrary units (a.u). The number of brains analyzed ranged from 6 to 44 for OL (to obtain fully independent measurements, only one OL per brain was quantified), and from 3 to 22 for CB when assessing phenotype (Figures 2c,l,m and 4h,i). In rescue experiments (Figures 2d and 4j,k), the number of brains analyzed ranged from 12 to 32.

To assess brain size at different larval stages (Figure 4g), the diameter of one larval brain hemisphere per animal was measured in the antero-posterior axis. The n ranged from 23 to 37 animals analyzed.

To measure neuroepithelia volume, the tissue was stained with anti-E-cadherin antibody and manually segmented using the “SURFACE” tool included in Imaris software. This tool provides the volume in μm³ of the surfaces generated (Figure 4b). The n for this experiment was between eight and nine brains.

To quantify the number of cells in OPC, IPC, and CB neuroblast clones (Figure 4d,e), we performed manual counting in confocal stacks. Cells in the clone were identified as TOPRO+ nuclei surrounded by labeled membrane. We counted as many clones as possible per brain provided that they were identifiable as individual clones. The number of clones analyzed was 52 (control) and 31(mutant) in the OPC and 18 (control and mutant) in the IPC, and the number of type I neuroblast clones was 39 (control) and 22 (mutant).

To assess cell death in developing OLs (Figure 4f), we manually counted Dcp-1⁺/TOPRO ⁺ puncta per brain hemisphere. This value was divided by the hemisphere volume obtained through manual segmentation of the structure and using the “SURFACE” tool included in Imaris software. The n for this experiment was six brains.

To quantify the subset of medulla glia among glial cells in the chiasm region at different stages, we manually counted ClC-a⁺/Repo⁺ nuclei (Figure 5m). The n for this experiment was five brains.

To quantify the DL1 lineages nuclear green G-TRACE signal was manually counted in confocal stacks and glial cells identified by coexpression of the glial marker Repo (Figure 6g,h). The n for this quantification was between 11–13 clones for the control and 9–10 clones for the mutant.

To quantify mature INPs in the DL1 and DL2 lineages (Figure 6l), we manually counted Dpn⁺ positive nuclei surrounded by tdtom⁺ membranes of the R9D11-tdtomato marker. To differentiate DL1 from DL2, we used gcm-lacZ, which specifically labels the DL2 lineage (Supplementary Figure 10). The n for this experiment was between 11 and 12 brains.

To quantify the number of total glial cells in the future chiasm region in mid L3 (Figure 8b), we manually counted Repo⁺ nuclei in confocal stacks. The following criteria were used to limit the area where we performed the counting: distally, we avoided counting flattened nuclei characteristic of surface glia and big round nuclei characteristic of surface-associated cortex glia; the proximal limit was set the signal gap generated by the presence of the IPC. The n for this experiment was between 5 and 8 brains.

2.5 Image processing

Fiji or Imaris 8.0 (Bitplane, South Windsor, CT) were used to process confocal data as specified in figure legends. Figures were assembled using Adobe Illustrator (Adobe, San Jose, CA).

2.6 Statistics

Statistical analysis was carried out using Prism 6 (GraphPad Software Inc, San Diego, CA). When data did not follow a normal distribution or resulted from a previous mathematical computation (i.e., ratio to volume), we used nonparametric tests. For group comparisons, we used Kruskal-Wallis followed by planned pairwise comparisons with the Mann–Whitney post hoc test to obtain P-values (Figures 2c,d,l,m; 4b,h,i; 5m; and 8b). For pairwise comparisons, we used Mann–Whitney's test (Figures 4d-f,j,k and 6g,h,l; comparison of control and mutant DL1 and comparison of control and mutant DL2). For paired comparisons, we used the Wilcoxon matched-pairs squad rank test (Figure 6l, DL1 to DL2 comparison inside controls and inside mutants).

Data are shown in box plots where the median is given between the first and third quartiles. Whiskers represent the maximum and minimum values of the data. When all data in the analysis were suitable for a parametric analysis, we performed one-way ANOVA followed by Turkey's post hoc test to obtain P-values (Figure 4g). P-values for pairwise comparisons relevant to our biological inquiry are shown in the bar graph. Data is represented as the mean, and error bars show standard deviation.

To evaluate the statistical significance of enhancements in qualitatively categorized photoreceptor phenotypes (i.e., strong, medium, weak, no phenotype) (Figure 7l,m), we performed a Chi-squared test of independence between phenotype categories and genotypes to obtain P-values.

3.1 ClC-a is expressed in various glial types in the developing brain: Surface-associated cortex glia, cortex glia and ensheathing glia

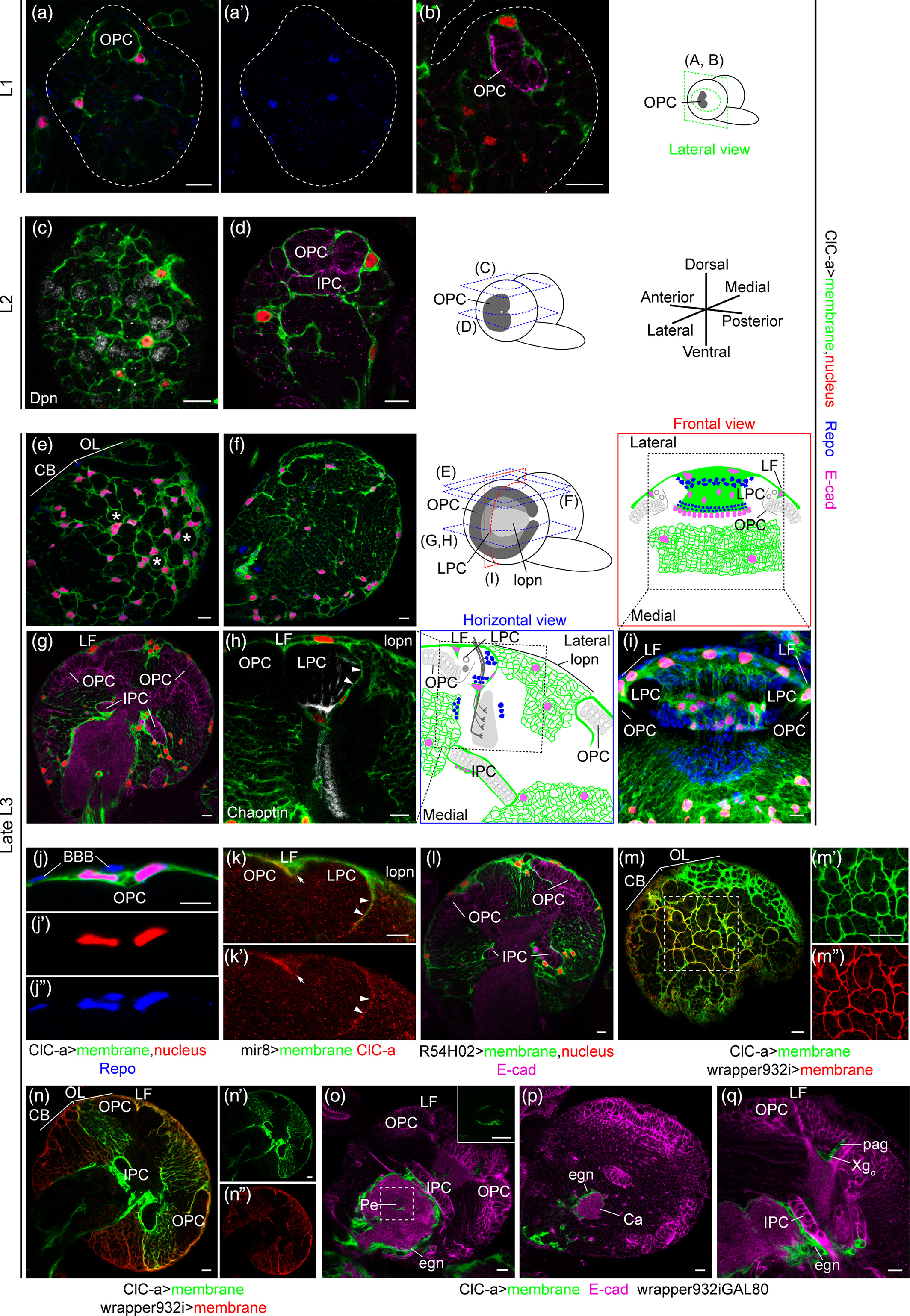

To characterize ClC-a expression in the developing brain at different larval stages (first instar larva: L1; second instar larva: L2; and third instar larva: L3), we used reporter lines and antibodies. One of these reporter lines expresses GAL4 under the ClC-a endogenous regulatory sequences (see below) and recapitulates the previously reported ClC-a expression pattern in Malpighian tubule stellate cells observed with an antibody against ClC-a (this study and Cabrero et al., 2014) and a ClC-a protein trap (ClC-a-GFP) (Supplementary Information and Supplementary Figure 1A-C). To visualize and monitor ClC-a expressing cells throughout development, we combined the ClC-a-GAL4 line with UAS transgenes that outlined the membrane and labeled the nucleus. ClC-a expression was detected in L1 brains on membranes in contact with the developing OPC neuroepithelium (Figure 1a, b). Colocalization of the nuclear RFP signal with the pan glial nuclear marker Repo indicated that ClC-a was expressed in a subset of glial cells (Figure 1a, a'). In L2 brains, glial membranes started encasing CB neuroblasts (Figure 1c), and more membrane processes were observed deeper in the brain (Figure 1d). By late L3, the number of ClC-a⁺ glial nuclei in the CB had greatly increased and their glial membranes confined neuroblasts and their lineages in chambers (Figure 1e, Supplementary Figure 1J-K). A slightly deeper section showed ClC-a⁺ glial processes forming a smaller mesh (Figure 1f) which ensheathed mature neurons. In the OL, neuroblasts and progenitors were still being produced by the OPC and IPC, which continued to be surrounded by ClC-a⁺ glial membranes (Figure 1g). We also observed a glial process between the developing lamina (i.e., lamina precursor cells or LPC) and the adjacent region containing lobula plate neurons (lopn) (Figure 1h), establishing a boundary between these two regions, which are innervated by neurons of different origin (i.e., photoreceptors generated in the eye disc and innervating the OL through the LPC area, and distal neurons generated from the distal-IPC, a region of the IPC) (Figure 1i). Similar expression patterns were observed with anti-ClC-a antibodies and the ClC-a protein trap, confirming the specificity of the ClC-a-GAL4 driver line in the brain (Supplementary Figure 1D-I).

We next aimed to identify which types of glial cells expressed ClC-a, using cell-type-specific markers and nuclei position. We found that superficial ClC-a⁺ nuclei on top of the OPC neuroepithelium corresponded to a subtype of cortex glia called surface-associated cortex glia (Morante et al., 2013), which lie beneath perineural and subperineural glia (Figure 1j). miRNA mir-8 (Karres, Hilgers, Carrera, Treisman, & Cohen, 2007), a marker for this subtype of cortex glia (Morante et al., 2013), colocalized with ClC-a protein in cells covering the OPC and the process separating the LPC from the lopn (Figure 1k). Additional experiments indicated that ClC-a⁺ nuclei present on the surface of the CB and in cortical areas belonged to cortex glia. The membrane and nuclear patterns of ClC-a⁺ cells were consistent with the nuclear patterns and the membrane scaffold, also known as the trophospongium (Hoyle, Williams, & Phillips, 1986), observed with the recently described cortex glia driver wrapper (Coutinho-Budd et al., 2017) (compare Figure 1g with Figure 1l). In fact, there was extensive colocalization between ClC-a⁺ and wrapper⁺ membranes in the CB and OL (Figure 1m,n), including surface-associated cortex glia on the OPC (Figure 1n,n'').

In order to assess the presence of glial types other than surface-associated cortex glia and cortex glia, we used an intersectional strategy whereby only ClC-a⁺/wrapper⁻ cells (i.e., noncortex glia cells) were labeled. This revealed that ClC-a was also expressed in different subtypes of ensheathing glia such as neuropil- and tract-ensheathing glia. ClC-a was expressed in neuropil-ensheathing glia surrounding CB neuropils, including the mushroom body calyx (Figure 1o,p). For tract-ensheathing glia, ClC-a was expressed in glia around the mushroom body peduncle (Figure 1o), and in the OL in the outer (Xg_o) (Figure 1q) and inner (Xg_i) (Supplementary Figure 2E-G) chiasm glia, cell types that wrap axonal tracts between the lamina and medulla, and the medulla and lobula complex, respectively. A detailed developmental analysis revealed expression in other glial cells in the OL, as well as in the VNC and peripheral nervous system (Supplementary Figure 2). Most of the ClC-a⁺ glial types observed in the late L3 stage persisted in the adult (Supplementary Figure 2G).

With regards to ClC-a subcellular distribution, similar to the vertebrate channel and as previously described in stellate cells (Cabrero et al., 2014), the channel is localized in the plasma membrane of glia as shown by co-localization of the antibody signal with a membrane marker (Figure 1k).

Together, these data indicate that ClC-a is already expressed in early development in the plasma membrane of surface-associated cortex glia and cortex glia cells, which are in direct contact with and wrap proliferative tissues such as the neuroepithelia of the OL (OPC, IPC) and neuroblasts in the CB, forming part of the niche. ClC-a is also expressed in different types of ensheathing glia whose processes contribute to compartmentalization of the brain by demarcating different neuropils and neuronal tracts.

3.2 MiMIC insertions in the ClC-a locus generate strong loss-of-function alleles

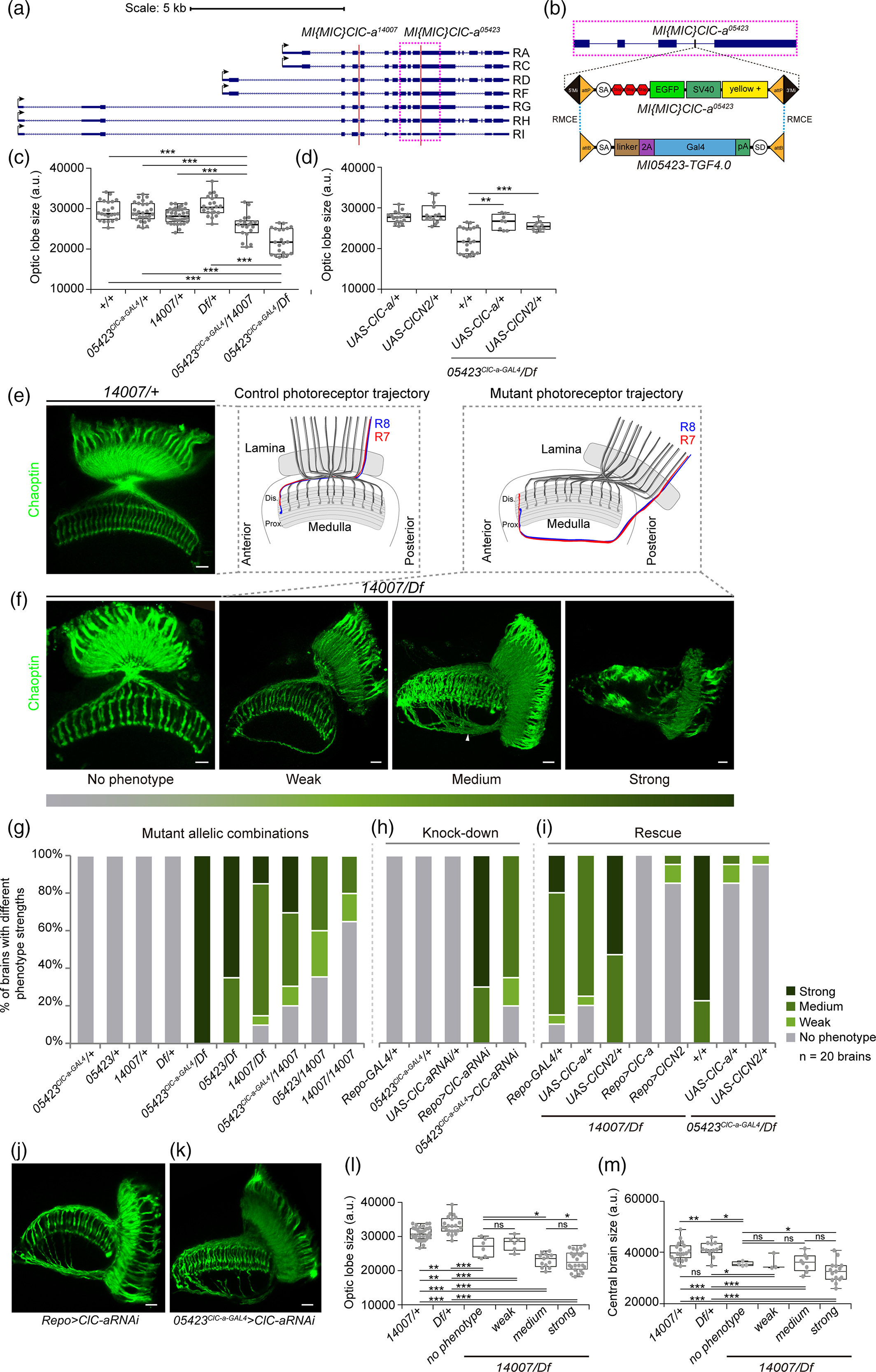

To explore the role of ClC-a in glia, we characterized a set of Minos-mediated integration cassette [Mi(MIC)] insertions in the ClC-a locus (Figure 2a). This transposon contains a gene trap cassette that leads to the formation of truncated transcripts (Venken et al., 2011) (Figure 2b). We focused on Mi(MIC)ClC-a⁰⁵⁴²³ and Mi(MIC)ClC-a¹⁴⁰⁰⁷ alleles (from now on referred to as 05423 and 14,007), since their insertion, sites were predicted to interrupt all isoforms of the ClC-a gene. The ClC-a-GAL4 line we used was derived from Mi(MIC)ClC-a⁰⁵⁴²³ by the Gene Disruption Project (Nagarkar-Jaiswal et al., 2015; Nagarkar-Jaiswal et al., 2015) through recombinase-mediated cassette exchange (RMCE) replacement of the MiMIC gene trap cassette for a GAL4 cassette (Diao et al., 2015) (Figure 2b). Hence, a mutant allele is generated that expresses GAL4 under the control of ClC-a regulatory sequences. From now on, we will refer to it as 05423^ClC-a-GAL4. To classify these insertions in an allelic series and identify the strongest allelic combinations, we crossed them to the Df(3R)PS2 deficiency (Df) and among themselves, and used viability as the readout. For example, the very few 05423/Df animals that emerged from the pupal case did so 48 hrs later than heterozygote controls, and remained immobile on the food before dying shortly after eclosure. The proportion of 05423^ClC-a-GAL4/Df emerging escapers was even lower than the one observed for 05423/Df. Escapers of the 14,007/Df allelic combination emerged with a delay of around 24 hrs, but compared to 05423/Df were more abundant and healthier, all emerging from the pupal case. Similar to 14,007/Df animals, 05423^ClC-a-GAL4/14007 also had a 24-hr developmental delay with respect to controls. Thus, based on these viability observations we could order by strength the analyzed allelic combinations in the following sequence: 05423^ClC-a-GAL4/Df > 05423/Df > 14,007/Df = 05423^ClC-a-GAL4/14007 > 05423/14007 > 14,007/14007. This analysis also allowed us to identify the best allelic combination to use for phenotype analysis and to correlate control and mutant developmental time points (Supplementary Information). Since it is difficult to obtain 05423^ClC-a-GAL4/Df or 05423/Df animals in sufficient numbers, we mainly used 14,007/Df and 05423^ClC-a-GAL4/14007 flies in our experiments. These two allelic combinations behave in a very similar fashion and represent a good compromise in terms of phenotypic strength and mutant animal availability. In addition, the 05423^ClC-a-GAL4/14007 combination enables visualization in the mutant background of the glial cells that express ClC-a in wild type.

The predicted loss-of-function nature of the MiMIC insertions characterized was confirmed by immunostaining and western blot. The ClC-a expression pattern observed with anti-ClC-a antibody in wild type L3 stellate cells of the Malpighian tubules and brain was not detected in any of the mutant allelic combinations tested (Supplementary Figure 3A-D). Western blots revealed that with a very low frequency, the splice machinery used the endogenous splice acceptor instead of the MiMIC one, and that there was a remnant, albeit very low, of wild type protein in mutants that was only detectable in immunoblots (Supplementary Figure 3E, F).

In summary, here we have characterized the first ClC-a mutants, which are strong loss-of-function alleles.

3.3 Mutations in ClC-a result in smaller brains with photoreceptor guidance defects

To explore the effect of ClC-a mutations on brain development, we started by dissecting adult brains and searching for defects that could have a developmental origin based on ClC-a expression patterns in the larval brain. The observation that ClC-a was expressed in glia on proliferative tissues in the brain (i.e., neuroepithelia and neuroblasts) led us to hypothesize that mutant brains might be smaller than control ones, and to test this idea we measured OLs from control and mutant animals. We did indeed observe a reduction in OL size in mutants, which was particularly evident in 05423^ClC-a-GAL4/Df, the strongest allelic combination, and was also present in 05423^ClC-a-GAL4/14007 (Figure 2c) and 14,007/Df (Figure 4h,i).

Given that we detected ClC-a expression in glial processes separating the developing lamina from the lopn and in outer chiasm glial cells (Figure 1h,k,q), we labeled photoreceptors to assess their innervation path. The compound eye of the fly is formed by some 800 units called ommatidia. Each ommatidium contains eight photoreceptors; R1-6, which terminate in the lamina forming the lamina plexus; and R7 and R8, which extend to the medulla. As rows of ommatidia form in the eye disc, photoreceptors extend axons and sequentially innervate the OL. This forms a retinotopic map and each ommatidium in the eye generates a corresponding processing unit in the lamina and the medulla neuropils. In control adult OLs (Figure 2e, schematic), R-cell axons from the posterior edge of the eye enter through the posterior lamina where R1-6 stop. R7 and R8 axons traverse the outer optic chiasm and project into the anterior-most medulla; similarly, R-cell axons from the anterior region of the eye project into the posterior medulla. All R7 and R8 axons enter the medulla neuropil from its distal face and their projections align in a stereotyped array forming a retinotopic map (Figure 2e).

Analysis of ClC-a mutant adult OLs using a pan photoreceptor marker revealed photoreceptor guidance defects. The guidance phenotypes observed could be classified into three levels of severity based on the proportion of R-cell axons affected (Figure 2f). In brains with phenotypes classified as medium, a significant portion of posterior R-cell axons bypassed the outer chiasm, projected along the posterior edge of the medulla neuropil turning anteriorly, and extended for variable distances before innervating the medulla neuropil from its proximal face. In many cases, this resulted in posterior misplacement of the lamina neuropil. Despite the presence of these discreet bundles of misprojected axons that originate posteriorly, the photoreceptor array was maintained and mostly regular. We classified instances of few misprojected posterior axons as weak phenotypes. Strong phenotypes were characterized by severe disruption of the photoreceptor array and a posteriorly located, disorganized lamina. Despite the difficulty in identifying discreet bundles of photoreceptor axons, distal innervation was evident. Eye disc development was normal (Supplementary Figure 4 A-I) and these three degrees of severity showed variable penetrance and expressivity depending on the allelic combination analyzed (Figure 2c). This variability could be explained by the fact that ClC-a mutants were not complete nulls. A detailed analysis of mutant photoreceptors also revealed layer selection defects for R8 and R1-R6 neurons (Supplementary Figure 5).

In order to confirm the requirement of ClC-a in glia, we performed cell-type-specific knock down and rescue experiments. In addition to the ClC-a driver, we also used the general glial driver Repo-GAL4 to directly support the conclusion that the channel is required in glia. Using these two drivers, ClC-a knockdown by RNAi phenocopied the photoreceptor phenotypes seen in the mutant (Figure 2h,j,k). Moreover, expression with both drivers of ClC-a and rat CLCN2 cDNA rescued the photoreceptor phenotypes in whole mutant animals (Figure 2i). Although it has been suggested that pupal photoreceptors express ClC-a (Ugarte et al., 2005), we did not observe this in larval, pupal, or adult stages with the antibodies (Supplementary Figure 4 J-M) or reporters used in this study (Supplementary Figure 2D-G). In addition, the absence of phenotype when knocking down ClC-a in the eye disc or generating a full eye mutant for ClC-a, together with the inability to rescue the guidance phenotype when expressing ClC-a in photoreceptors (Supplementary Figure 4 N-R), confirmed that ClC-a was required in glia for photoreceptor guidance.

Remarkably, taking advantage of the 05423^ClC-a-GAL4 allele, we observed a rescue of both OL size and photoreceptor guidance phenotypes in 05423^ClC-a-GAL4/Df, the strongest allelic combination, with ClC-a and CLCN2 cDNA transgenes alike (Figure 2d,i). Together with the results obtained with Repo-GAL4, this finding supports the idea that brain size reduction and photoreceptor guidance phenotypes in ClC-a mutants are nonautonomous and dependent on chloride channel expression in glia, and that the fly and rat channels have equivalent functions.

To understand the relationship between the brain size and photoreceptor phenotypes we investigated if there was a correlation between them by measuring the CB and OL of mutant brains with different strengths of the photoreceptor phenotype. Analysis of the 14,007/Df allelic combination revealed that mutant brains are significantly smaller, both at the level of OL (Figure 2l) and CB (Figure 2m), than controls regardless of the photoreceptor phenotype. Remarkably, mutant brains with no phenotype were already smaller than controls. We also observed that for the OL, brains with the medium or strong photoreceptor phenotype tend to be slightly smaller. However, despite the qualitative jump in the severity of guidance defects between the medium and strong photoreceptor phenotype classification, the OL size of these animals is not significantly different. Thus, taken together these results suggest that the brain size phenotype is independent of the photoreceptor phenotype.

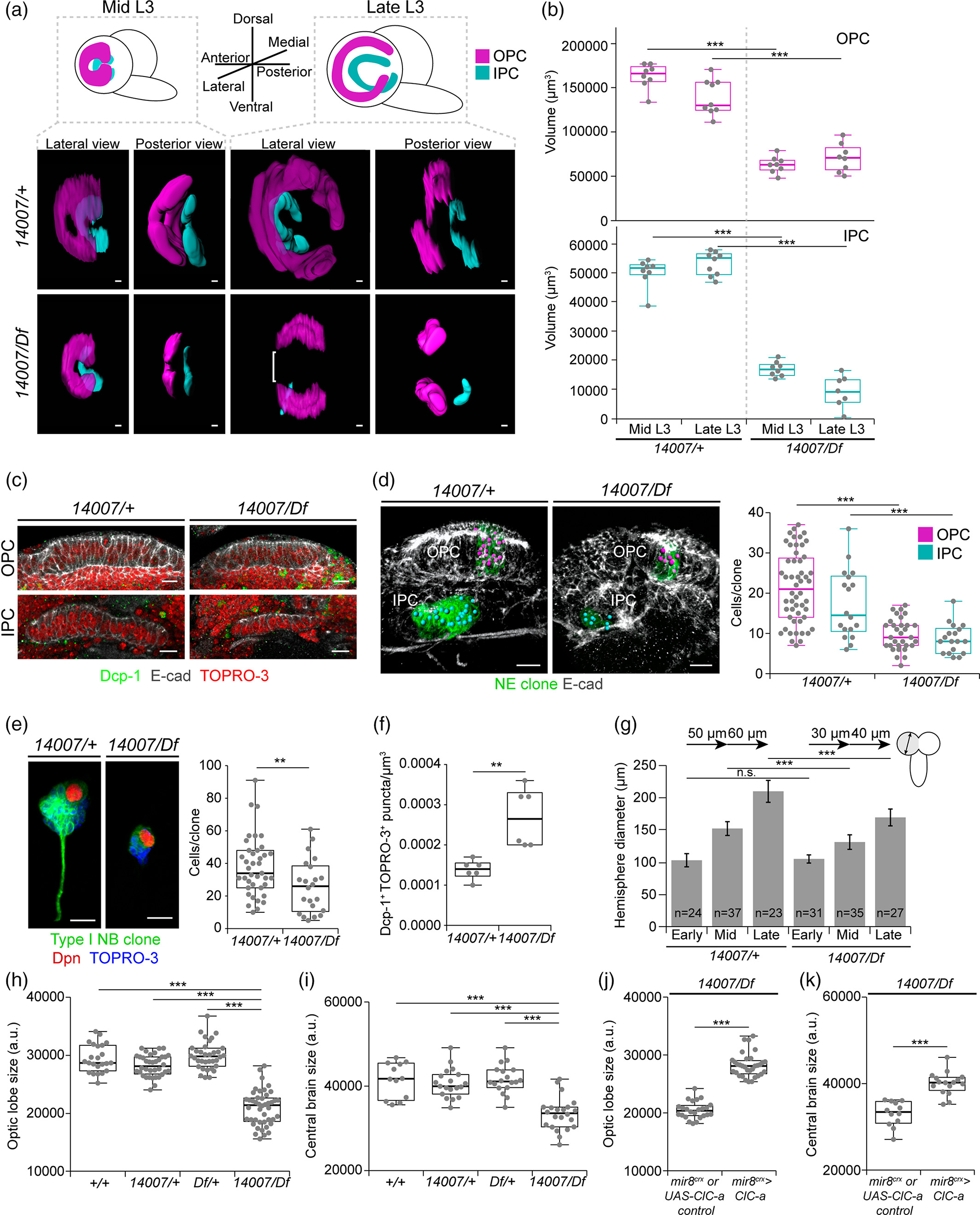

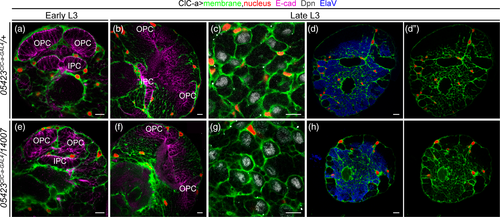

3.4 Expression of ClC-a in surface-associated cortex glia and cortex glia is required for neuroepithelial expansion and the generation of neuroblast lineages, and is sufficient to restore brain size

In order to unravel how mutations in ClC-a resulted in smaller brains, we first assessed the status of glia in ClC-a mutants. We used the 05423^ClC-a-GAL4/14007 allelic combination to visualize glia membranes and nuclei in the mutant background. Our analysis showed that the distribution pattern of glial cell bodies on the brain surface and deep in the cortex was similar in control and mutant animals. Although the number of nuclei/hemisphere volume ratio in the mutant was slightly reduced compared to control (Supplementary Figure 6A), importantly, the membrane scaffold appeared indistinguishable from the one observed in controls covering the whole hemisphere. As in control animals, ClC-a mutant surface-associated cortex glia and cortex glia processes were in close contact with the OPC and IPC neuroepithelia respectively (Figure 3a,b,e,f). In addition, in the OL and the CB alike, cortex glia processes formed the trophospongium. Thus, individual neuroblasts were enclosed in chambers that enlarged to adapt to their lineage expansion (Figure 3c,g), and mature neuronal cell bodies were progressively enwrapped by cortex glia processes (Figure 3d,d',h,h'). From these observations, we conclude that mutations in the channel do not result in major morphological changes in the trophospongium formed by cortex glia.

In turn, these results suggested that ClC-a was instead required for the proper physiology of surface-associated cortex glia and cortex glia. Cortex glia have been shown to be essential for neurogenesis (Dumstrei et al., 2003), and since surface-associated cortex glia processes are tightly associated with the OPC (Morante et al., 2013) and cortex glia to the IPC, we set out to examine whether the small OLs in mutant adult brains (Figure 2c,l) were a consequence of defects in these neuroepithelia. Neuroepithelia in the OL start as sheets of cells that divide symmetrically and expand until mid L3 (Ngo et al., 2010). As they do so, they bend along the dorso-ventral axis, creating a crescent shaped structure with the opening pointing posteriorly (Nassif, Noveen, & Hartenstein, 2003). Already in late L2, while the OPC neuroepithelium is still growing to expand the pool of prospective neuroblasts, neuroepithelium to neuroblast transition starts taking place. The lateral edge gives rise to LPC and the medial edge to neuroblasts that will produce medulla neurons and glia (B. Egger, Gold, & Brand, 2010; Boris Egger, Boone, Stevens, Brand, & Doe, 2007; Ngo et al., 2010; Orihara-Ono, Toriya, Nakao, & Okano, 2011; Reddy, Rauskolb, & Irvine, 2010; Wang et al., 2011; Wang, Li, Zhou, Yue, & Luo, 2011; Weng, Haenfler, & Lee, 2012; Yasugi, Sugie, Umetsu, & Tabata, 2010; Yasugi, Umetsu, Murakami, Sato, & Tabata, 2008). Once neuroepithelium divisions stop and the wave of differentiation continues, the OPC neuroepithelium starts reducing in size and disappears in early pupal stages, when it is all converted into precursors and neuroblasts. A similar process takes place in the IPC, where different domains generate neuroblasts or migrating progenitors (Apitz & Salecker, 2015; Hofbauer & Campos-Ortega, 1990) until the neuroepithelium disappears.

We first checked if there were differences in neuroepithelia between control and mutant animals. For this, we stained brains with the neuroepithelium marker E-cadherin and manually segmented the tissue to generate a 3D reconstruction of these structures, which yielded information about their morphology (Figure 4a) and size (Figure 4b). In control animals in the mid L3 stage, the ends of the OPC and IPC neuroepithelia crescents were close together. In late L3, with the addition of progeny from neuroblasts, the OL was larger and neuroepithelia crescents were wider and thinner. In comparison, in mid L3 mutant animals, neuroepithelia maintained the same crescent shape as in controls but were already clearly smaller (Figure 4b). By late L3, in most cases the OPC neuroepithelium appeared as two separate dorsal and ventral domains with the central part absent. Similarly, part of the IPC was also missing (Figure 4a).

We next wondered whether the reduction in the size of the neuroepithelial sheets was due to cell death. To test this idea, we stained larval brains with an antibody against the apoptosis marker Dcp-1 (cleaved death caspase protein-1). Although developmental cell death was taking place generally in the brain, we did not observe apoptotic cells either in control or mutant neuroepithelial cells in mid or late L3 stages (Figure 4c). Thus, the absence of cell death in this tissue suggested that defects in neuroepithelium expansion could be responsible for the reduction in size of the OPC and IPC neuroepitheliums at mid L3, and also for the morphological defects in late L3. In the latter, the lack of neuroepithelial cells in the OPC central domain could be explained by neuroepithelium to neuroblast transition taking place in the already reduced neuroepithelium, which would result in a premature disappearance of central domain of the OPC neuroepithelium (Supplementary Figure 7) since that is where the transition starts. To examine neuroepithelium expansion defects, we carried out a clonal analysis study. With this technique, once mitotic recombination has been induced in a dividing neuroepithelial cell, its progeny is labeled, and can thus be counted. Clones were generated in the L1/L2 transition and their size was assessed 48 hrs later at mid L3. Neuroepithelia clones generated in the control background (brains where cortex glia expressed ClC-a) presented a median size of 21 cells for OPC clones and 14.5 cells for IPC clones. Conversely, clones generated in the mutant background (brains where cortex glia did not express ClC-a) were significantly reduced, with a median size of nine and eight cells for OPC and IPC clones, respectively (Figure 4d). Differences between control and mutant animals were also observed in an EdU labeling experiment (Supplementary Figure 8). Thus, based on these results we proposed that ClC-a was necessary in surface-associated cortex glia for neuroepithelial expansion.

Given that neuroblasts originated from the OPC and the central brain are close contact with ClC-a expressing glia, we also used clonal analysis to assess how neuroblasts generated their lineages in ClC-a mutants. For this analysis, we focused on neuroblasts of the CB since it allowed us to address the origin of CB size reduction in mutants. Importantly, both control and mutant animals showed the same number of neuroblasts; thus, CB size reduction in mutants was not due to a decrease in neuroblasts (Supplementary Figure 6B). Using a similar clone induction protocol as for neuroepithelial clones, the median size of type I neuroblast clones in the control background was 34 cells, whereas the median size for clones in the mutant background was reduced to 26 cells (Figure 4e). In addition, at this same mid L3 stage, we also detected more dispersed cell death in mutant than control brains (Figure 4f) in regions other than the neuroepithelia, which we had shown were death free (Figure 4c). This result is consistent with the described trophic role of cortex glia processes that wrap the cell bodies of the more mature neurons of the lineage (Coutinho-Budd et al., 2017; Dumstrei et al., 2003; Pereanu et al., 2005; Read, 2018; Spéder & Brand, 2018), and suggests that alterations in the physiology of cortex glia in ClC-a mutants affects the viability of mature neurons. Hence, although evenly distributed in the brain, we cannot rule out that some of this cell death contributes to the reduction in size of type I neuroblast clones in the ClC-a mutant background.

Together, these data suggest that the lack of ClC-a in surface-associated cortex glia and cortex glia in the niche affects neuroepithelial expansion, neuroblast lineages, as well as mature neuron viability outside the niche. Consistent with both these observations, the size and growth rate of larval hemispheres was reduced in the mutant background (Figure 4g). Thus, these results are in accordance with a smaller OL (Figure 4h) and CB (Figure 4i) in adult ClC-a mutant brains than in those of control flies. Importantly, expression of ClC-a exclusively in surface-associated cortex glia and cortex glia was sufficient to rescue the size of both structures in the adult (Figure 4j,k).

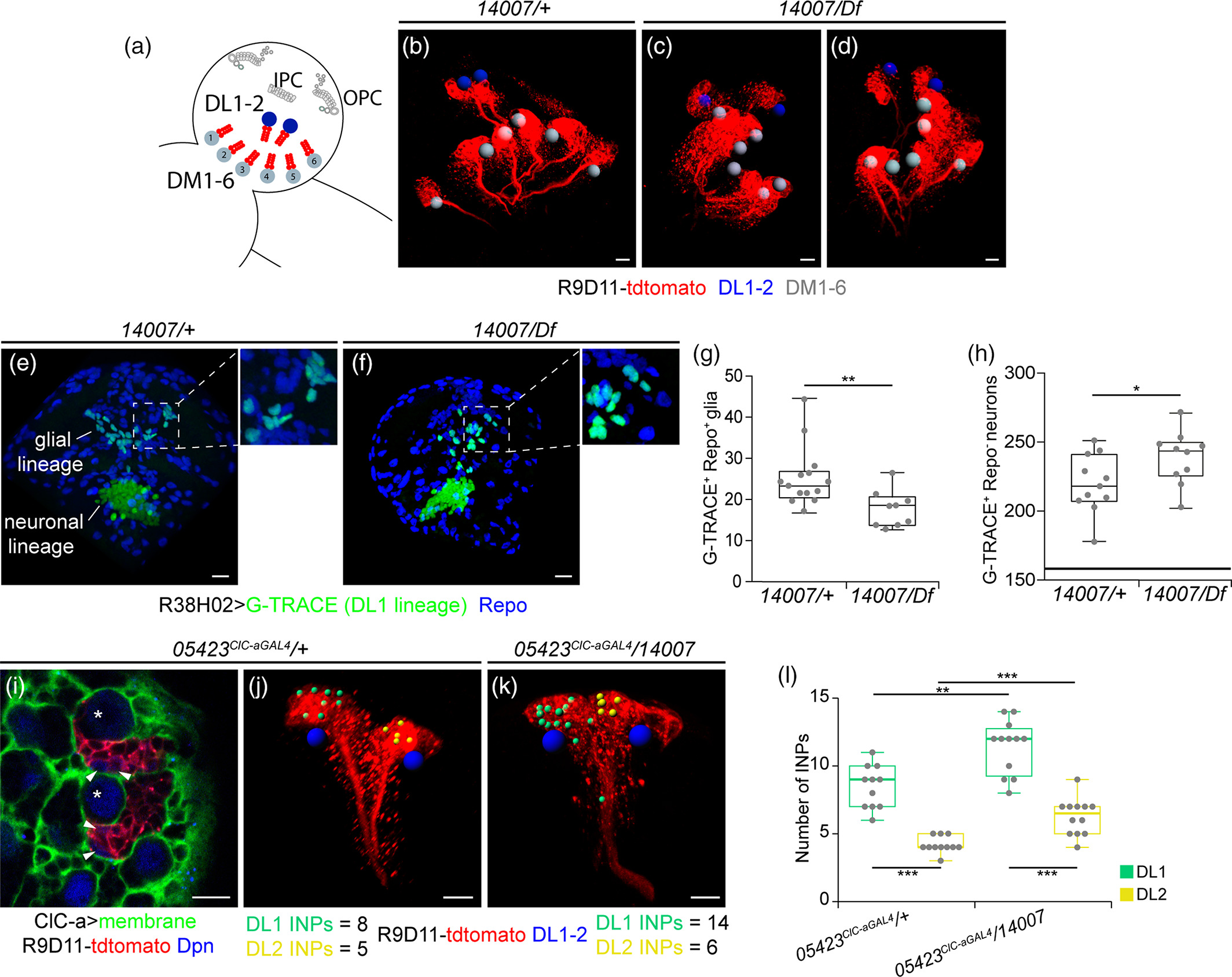

3.5 Defects are also observed in the neuroblast lineage that gives rise to ClC-a⁺ ensheathing glia, which are necessary guideposts for photoreceptor axons innervating the medulla

In an attempt to understand how the nonautonomous photoreceptor guidance phenotype is related to ClC-a expression in the OL, we performed a detailed developmental expression analysis in the region where photoreceptor innervation takes place. In control L2 brains, horizontal views showed that the OPC and IPC were still juxtaposed and that ClC-a⁺ cell bodies were present on the surface of the brain and in the CB (Figure 1d). In L3 frontal views, we observed that a population of glia, which preceded the arrival of photoreceptor axons in the lamina (Dearborn, 2004; Perez & Steller, 1996), progressively positioned amid the expanding region between the OPC and IPC during the early to mid L3 stages (Figure 5a,b) and ended up forming a barrier between the developing lamina and the lopn (Fan et al., 2005). Taking advantage of the recent availability of markers for different glial cell types we have been able to accurately characterize the ClC-a⁺ cells forming the barrier. The aforementioned glial population could be divided into two sets of nuclei, the ClC-a⁻ nuclei of satellite glia (Supplementary Figure 10A, B) and a population of ClC-a⁺ nuclei, with lower expression than cortex glia, known as medulla glial cells (Chotard & Salecker, 2008) (Figure 5b). From this seemingly homogenous mid L3 medulla glia population (ClC-a⁺), two cell types could be distinguished in late L3 brains in frontal (Figure 5c) and horizontal views (Figure 5d, Supplementary Figure 10C): the Xg_o and a glial type that had been classified before as satellite glia based on position (Fan et al., 2005). Based on cell type specific drivers and co-localization experiments (Supplementary Figure 10A-C) we concluded that the latter glial type did not belong to the satellite glia population and we named it palisade glia (pag). They were positioned on the same plane as the cortex glia projection and the Xg_o, forming a continuous ClC-a⁺ glial barrier between the developing lamina and the lopn. We do not know if pag persist or which type they are in the adult (Figure 5e). Xg_o are considered tract-ensheathing glia, and one glial cell enwraps an average of 15 lamina-medulla fiber tracts (Kremer, Jung, Batelli, Rubin, & Gaul, 2017). Two independent studies have shown that Xg_o and Xg_i originate from the type II DL1 neuroblast lineage and migrate to the OL (Ren, Awasaki, Wang, Huang, & Lee, 2018; Viktorin, Riebli, & Reichert, 2013). We repeated DL1 lineage-tracing experiments and observed that progeny from the DL1 populated the OL following the same temporal pattern as ClC-a⁺ medulla glial cells (Supplementary Figure 10D-F). Hence, our data support the idea that medulla glial cells are DL1 progeny that differentiate into the newly described pag and Xg_o. Quantification of medulla glia in control brains showed that their numbers increased from early to mid L3 and then dropped at late L3 (Figure 5m, Supplementary Figure 10G, H). In mutant brains, however, we observed a striking reduction in the number of medulla glial cells in mid and late L3 stages (Figure 5g-j,m). Given that no glial apoptosis was observed in the region (Supplementary Figure 10I, J), this result indicated that only very few medulla glial cells reached the OL in ClC-a mutants.

To study the cause of this marked reduction, we first used the earmuff R09D11 genomic enhancer-fragment driven reporter CD4-tdtomato (Han, Jan, & Jan, 2011) to selectively label all type II neuroblast lineages and assess DL1. Type II neuroblast lineages are characterized by the generation of intermediate neural progenitors (INP) that can undergo several rounds of additional asymmetric divisions before they disappear (Boone & Doe, 2008). Within an INP sublineage, which is temporally patterned, gliogenesis is most likely taking place in progeny of the last INP divisions (Bayraktar & Doe, 2013). In control brains, there are eight type II neuroblasts, six of which are positioned medially (DM1-6) and two laterally (DL1/2), closer to the OL (Figure 6a,b). In mutants, although we observed some brains with instances of DM mispositioning, the DL1/2 cluster was found together and laterally located with respect to the rest of the DM neuroblasts (Figure 6c,d). However, its position with respect to the OL was sometimes changed. To assess proliferation defects in the lineage, our initial approach was to compare control to mutant DL1 clones. However, even though the clonal analysis protocol used in our study was very similar to those employed in other studies analyzing type II clones, which are identified by the presence of INPs (Dpn positive cells in the lineage), we obtained hardly any type II clones (2 out of 116 analyzed clones) and none in the DL1/2 cluster. We thus opted to perform lineage tracing to compare the DL1 glial progeny in control and mutant animals (Figure 6e,f). This analysis showed that in the mutant background there was strong reduction of Repo⁺/DL1⁺ cells (Figure 6f,g). Interestingly, the DL1 neuronal lineage was slightly increased in mutants compared to controls (Figure 6h). In an attempt to understand how these results came about we reasoned that we could use the number of INPs in the lineage as a readout (Figure 6i). Since DL1 and DL2 secondary axon tracts are extremely similar, we differentiated the two lineages through expression of gcm-LacZ in the DL2 lineage (Viktorin et al., 2013) (Supplementary Figure 11A), which consistently contained fewer INPs than DL1 (Supplementary Figure 11B). A comparison between control and mutant revealed that both DL1 and DL2 lineages contained a higher number of INPs in the mutant condition (Figure 6j-l). This observation suggests that defects in the INP division rate, which could lead to INP accumulation, and/or defects in temporal specification, which could result in the generation of neurons instead of glia, could be responsible for the strong reduction in marginal glia in the OL. In addition, we cannot discard that migration defects could also be one of the contributing factors to the marked reduction in medulla glia in mutant OLs. Since the DL1/2 cluster was found at different relative positions with respect to the OL, and that the IPC, which is the region where these cells enter the OL in normal conditions, is defective in mutants, medulla glia could be hindered from reaching their final destination. However, during the DL1 G-TRACE lineage analysis in mutant animals we have not detected glial cells in regions other than the optic lobe, which suggests that migrations defects would not be the major contributing factor to the reduced number of medulla glial cells in ClC-a mutant optic lobes.

At this point, the question arises of how the marked reduction in medulla glia affects photoreceptor guidance. Since the presence of medulla glia in mid L3 coincides with the beginning of photoreceptor innervation, we next explored the spatiotemporal relationship between these two cell types in control flies. As rows of ommatidia form in the eye disc, photoreceptors extend axons that reach the OL through the optic stalk. In mid L3 stages, R8s from the first rows of ommatidia projected into the posterior part of the LPC field and their axons were located very close to medulla glia as they continued to the medulla (Figure 7a,b). Photoreceptor innervation coincided with cellular rearrangements, when medulla glia started to separate into pag and Xg_o glia. Thus, in slightly older brains, R1-6 axons stopped and formed the lamina plexus above the medulla glia cells that would become Xg_o, and R8 axons traversed the outer optic chiasm, passing very close to the Xg_o (Figure 7c,d) and continued to the medulla, innervating it through its distal face (Figure 5f). Hence, photoreceptors are in close proximity to pag and Xg_o. Conversely, in mutant brains, the marked reduction in medulla glia, and consequently in Xg_o, caused posterior R8 axons to skip the outer chiasm and innervate the medulla from its proximal face (Figure 5l). The severity of initial photoreceptor guidance errors determined the strength of the adult guidance phenotypes. Consistent with Xg_o and Xg_i originating from DL1, in ClC-a mutants chiasms did not properly form, which resulted in altered positioning of OL neuropils in the adult brain (compare Figure 5e with Figure 5k).

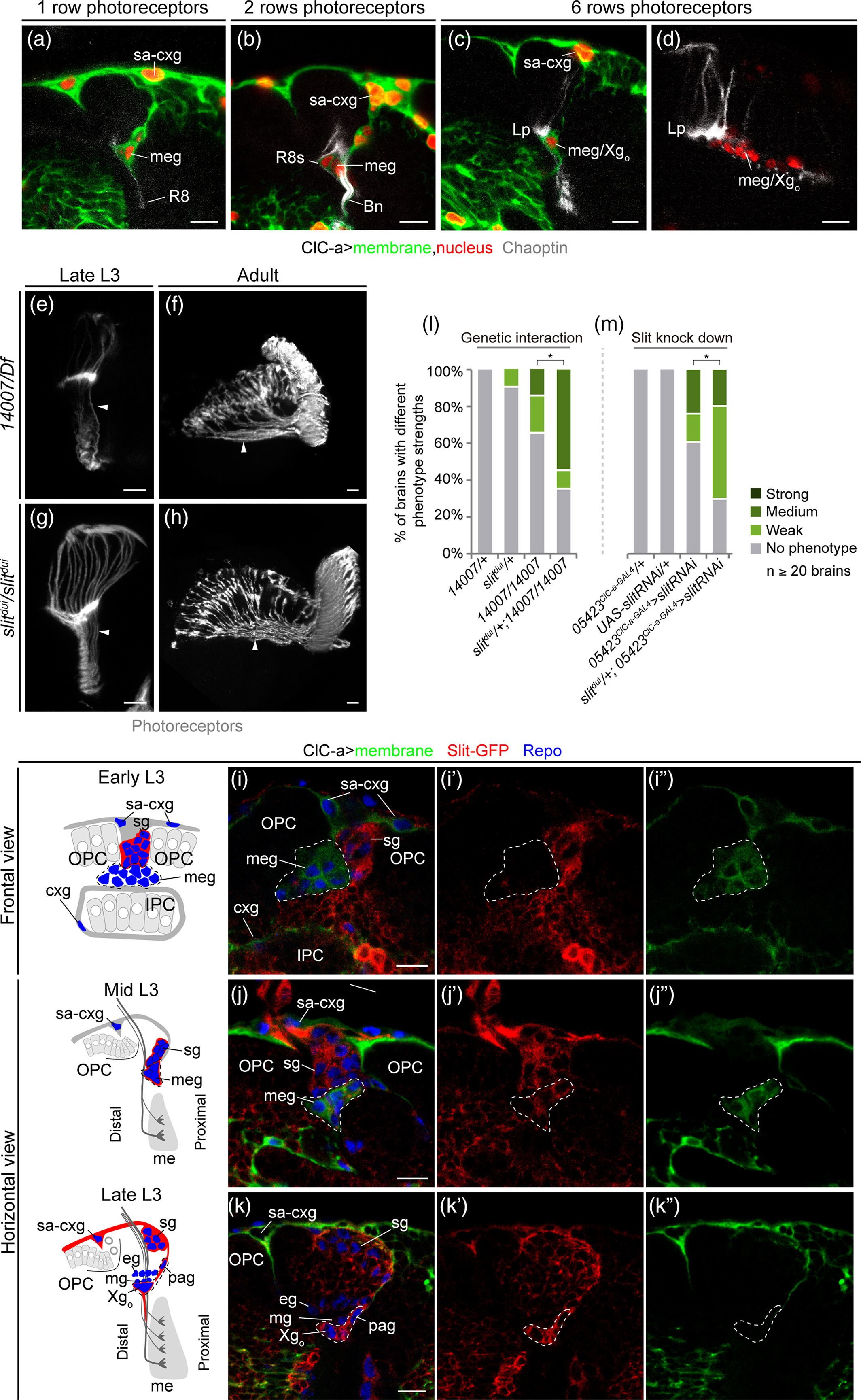

Developmental guidance defects and adult outcomes of ClC-a mutants are both extremely similar to OL specific slit mutants (Figure 7e–h) and robo3 mutants (Pappu et al., 2011; Tayler, Robixaux, & Garrity, 2004). The secreted chemorepellent molecule Slit and the Robo family of receptors (Robo, Robo2, Robo3) have been implicated in preventing photoreceptor axons from mixing with distal neuron axons from the lopn during development, hence maintaining compartmentalization of this region of the developing brain (Tayler et al., 2004). While receptors have been shown to be required in neurons, slit reporters suggest that Slit protein in the region could be contributed by Xg_o (Pappu et al., 2011; Tayler et al., 2004). A detailed developmental analysis of glial barrier assembly allowed us to unequivocally characterize the temporal and cellular expression pattern of slit with respect to photoreceptor innervation. To this end, we characterized and used a MiMIC-based protein trap line for Slit (Supplementary Information, Supplementary Figure 12). Our analysis indicated that Slit was already being expressed in medulla glia in mid L3 (Figure 7i–k), when photoreceptors innervate the brain and their axons come into close proximity with these glial cells. Removal of one copy of slit slightly enhanced the ClC-a photoreceptor guidance phenotype when assessed in an allelic combination with few brains showing only medium and weak photoreceptor phenotypes (and presumably with just a slight reduction in medulla glia) (Figure 7l). In addition, knocking down slit in ClC-a⁺ glia in the barrier recapitulated photoreceptor guidance defects (Figure 7m).

Based on our results and previously published studies (Fan et al., 2005; Pappu et al., 2011; Suzuki et al., 2016; Tayler et al., 2004), we propose that the substantial reduction in medulla glia is most probably due to a combination of DL1 lineage proliferation and/or temporal specification defects, which results in a significant reduction in Slit protein in the region. As a consequence, photoreceptors that innervate the OL close to the glial boundary fasciculate with the axons of distal cells (C2, C3, T2 and T3) which derive from the IPC and are known to innervate the medulla from its proximal site (Hofbauer & Campos-Ortega, 1990; Meinertzhagen & Hansen, 1993).

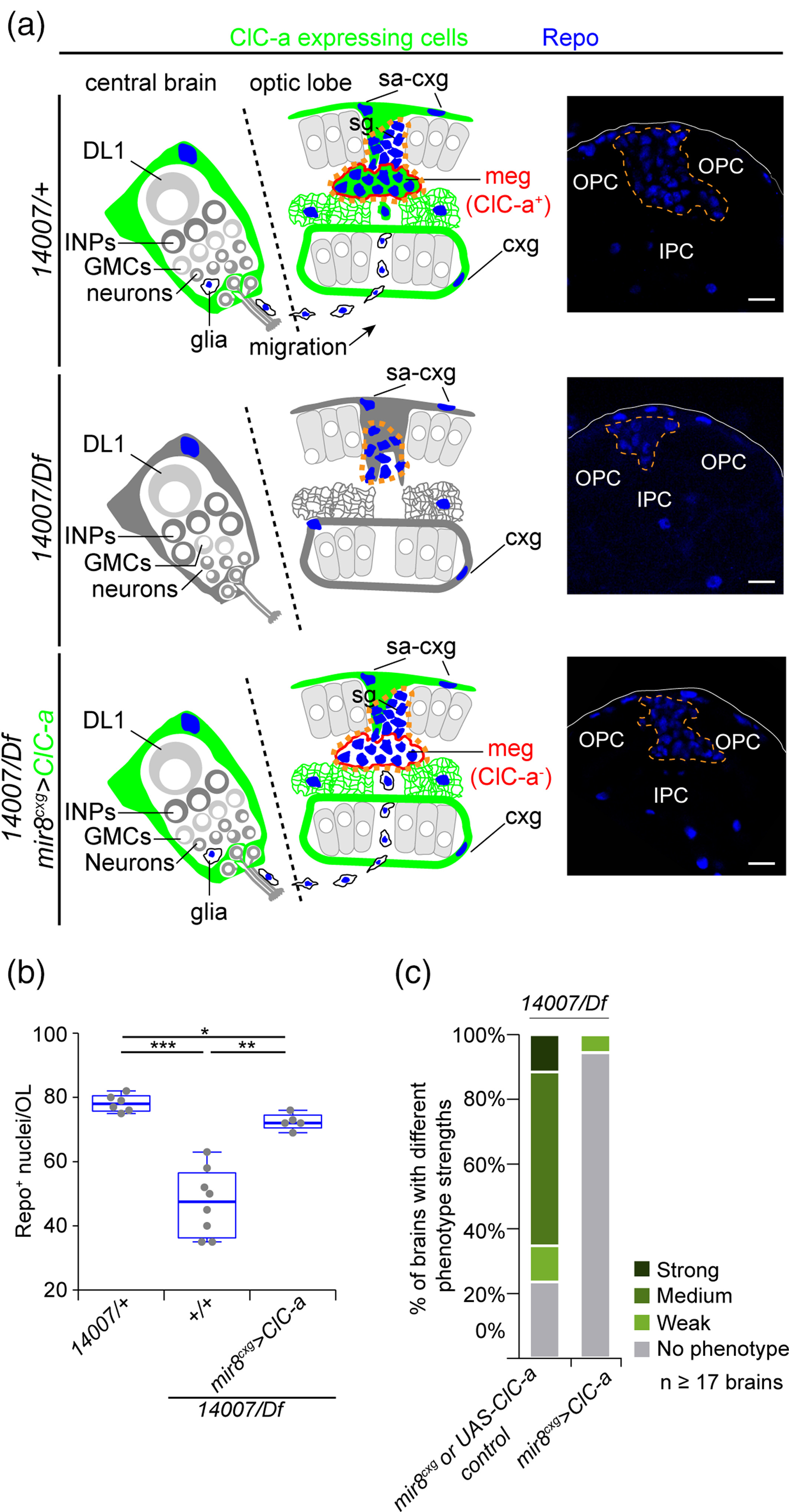

3.6 Expression of ClC-a in cortex glia is sufficient to restore ensheathing glia guidepost cells and rescue photoreceptor guidance defects

To test whether ClC-a expression in cortex glia was sufficient to regulate DL1 proliferation, and assess if ClC-a expression in medulla glia (cell type classified as ensheathing glia) played any role in photoreceptor guidance, we performed a cell-type-specific rescue experiment. We carried out a surface-associated cortex glia and cortex glia-specific rescue. We reasoned that with such a specific driver, we could rescue the generation of medulla glia from DL1 and at the same time avoid ClC-a expression in medulla glia (Figure 8a). Since it was not possible to specifically label medulla glia in this experiment, we used Repo to mark and count glial nuclei in the region in mid L3, when the first photoreceptors begin to innervate the brain. At this time, the glial population is compact and easy to identify, whereas in late L3, additional ClC-a⁻ glia such as epithelial and marginal glia appear in high numbers and complicate counting. In control animals, mid L3 glia nuclei included ClC-a⁻ satellite glia and medulla glia (Figure 8a,b). In mutants, the number of glial cells was reduced to half due to the marked reduction in medulla glial cells (Figure 8a,b), but expression of ClC-a exclusively in surface-associated cortex glia and cortex glia resulted in an almost complete rescue in the number of glial cells present in the barrier region in mid L3 (Figure 8a,b). More importantly, this medulla glia rescue also rescued the photoreceptor guidance phenotype (Figure 8c). Surprisingly, autonomous ClC-a expression in medulla glia was not necessary for their viability, for migration from their point of origin in the CB to position themselves in the OL, or for Slit secretion, since photoreceptor guidance defects were fully rescued when medulla glia were in their position but did not express ClC-a. Thus, we conclude that the strong reduction in medulla glia and the photoreceptor guidance phenotypes are a secondary consequence of the ClC-a requirement in cortex glia and its none autonomous role in neurogenesis.

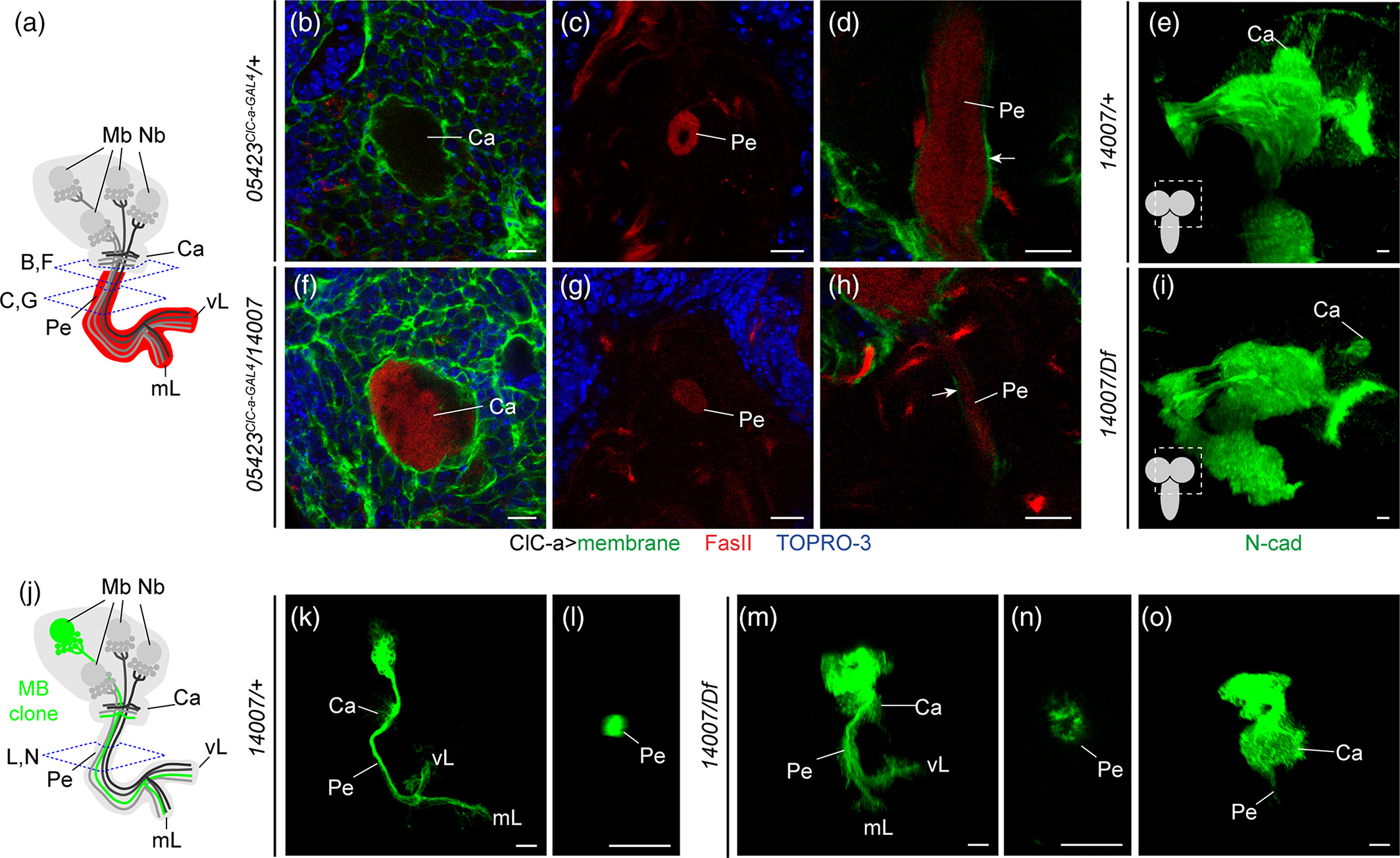

3.7 Mutations in ClC-a result in widespread wiring defects

Although we have characterized the origin of the guidance defects seen in photoreceptors, wiring defects are not restricted to this cell type. The position and morphology of neuropils in the visual system of ClC-a animals indicate that the wiring of many other neurons in this system is also probably affected (compare Figure 5e with Figure 5k). Moreover, we also observed defects in CB structures such as mushroom bodies (MBs). Each hemisphere contains one MB, which is formed by the neurons derived from four special type I neuroblasts that never enter quiescence. These neurons extend dendrites forming the calyx, and axons project into a fascicle called the peduncle that splits into two branches called lobes (Figure 9a). Similar to photoreceptors, mushroom bodies are neural structures that are highly dependent on glia–neuron interactions. It has been shown that glia wrap the peduncle and the lobes during development (Spindler, Ortiz, Fung, Takashima, & Hartenstein, 2009) and in the adult (Kremer et al., 2017), and that different type II DM neuroblasts contribute glia that associate with the mushroom body (Ren et al., 2018). In control animals, ClC-a⁺ glia surrounded the MB calyx (Figure 9b) and the peduncle (Figure 9d). Newly differentiated, FasII⁻ neurons projected their axons through the center of the peduncle, generating a ring-like FasII⁺ pattern labeling the oldest neurons (Figure 9c). In ClC-a mutant animals, axons often misprojected into the calyx (Figure 9f) and FasII staining filled the center of the peduncle, suggesting that newly generated axons did not project through the center of this structure (Figure 9g). In addition, the peduncle was much thinner (Figure 9g), although it seemed that ClC-a⁺ glia continued to surround it. Comparison of control and mutant brains stained with antibody against N-cadherin, which labels neuropils, revealed that the calyx, which in controls appeared deep in the brain (Figure 9e), was more superficial in mutants (Figure 9i). MB clones (Figure 9j) confirmed defects in the calyx and the peduncle (compare Figure 9k-m with Figure 9o). In MB clones in the control background, axons from the clone stayed together in a bundle and extended into the center of the peduncle (Figure 9l). In instances where MB clones in the mutant background extended axons into the peduncle (Figure 9m), these axons defasciculated and projected into the peduncle through its periphery, leaving older axons in the center (Figure 9n). In clones with strong phenotypes, almost all axons terminated in the calyx and the peduncle was barely visible (Figure 9m). Interestingly, these defects are very similar to those observed when cortex glia and neuropil glia are eliminated: abnormal mushroom body morphologies including splaying of axons and misguidance, and a misshapen superficial calyx due to premature fusion of the four MB lineages in the cortical region (Spindler et al., 2009). Thus, as observed for photoreceptor guidance phenotypes, MB defects in ClC-a mutants may be due to reduced production of glia associated with MB circuitry, whether that glia is ClC-a⁺ or not. In summary, since guidance defects in the ClC-a mutant seem to be widespread, we propose that the ClC-a requirement for proper circuit assembly is not restricted to the OL but is general to the brain.
