Optimization of butter, xylitol, and high-amylose maize flour on developing a low-sugar cookie

2.1 Materials

Flour and starch from normal wheat and high-amylose maize grains were obtained from Key Laboratory of Biology and Genetic Improvement of Maize in Arid Area of Northwest Region, Ministry of Agriculture, College of Agronomy, Northwest A&F University, Yangling, Shaanxi, China. Butter, xylitol, and eggs were purchased from Luwang Company. High-amylose maize flour and starch were defined as HAMF and HAMS, separately. Pancreatin from porcine pancreas (Cat. No. P7545) and amyloglucosidase (Cat. No. A7095, activity 300 unit/ml) were purchased from Sigma-Aldrich Chemical Co. Glucose oxidase–peroxidase (GOPOD) was from Megazyme Company, Ireland.

2.2 Molecular structure of high-amylose starch

The weight size distributions of debranched normal wheat starch (NWS) and high-amylose maize starch (HAMS) were analyzed by gel permeation chromatography (GPC) system (Agilent 1260 series, Agilent Technologies) equipped with a refractive index detector (Optilab T-rEX; WYATT Corp.) and a differential pressure detector (Viscostar II; WYATT Corp.), by the method of (Li, Prakash, Nicholson, Fitzgerald, & Gilbert, 2016). Debranching of starch was conducted by the isoamylase as described (Kuang, Xu, Wang, Zhou, & Liu, 2016). Weight distribution, W(logV_h), was plotted to present the molecular size distribution of samples, and the degree of polymerization (DP X) of debranched starch was calculated following the method described (Li et al., 2016).

2.3 Preparation of cookie

High-amylose maize flour (HAMF) and normal wheat flour (NWF) passing through 180-μm sieve were used. The dough was prepared with 500 g of mixed flour, 50–150 g xylitol, two eggs, and distilled water, to get final hydration of 24% (dough basis). According to the experimental design, the amount of HAMF addition was ranged from 150 g to 350 g. After mixing butter with liquid ingredients (two eggs, xylitol, and water), a liquid mixture was creamed and mixed with flour. The dough was then stirred in a domestic blender for 5 min before standing the dough for 20 min. After laminating the dough to a height of 2 mm using a pasta roller attachment, the dough was cut into circles with a circular mold (3 cm diameter) and baked in a baking oven at 180°C for 18 min. Finally, the cookies were cooled for 2 hr and stored in different airtight plastic bags at room temperature.

2.4 Sensory evaluation of cookie

A 40-member untrained panel (20 males and 20 females between 20 and 40 years old) was used to evaluate sensory profiles: the appearance, color, flavor, taste, mouthfeel, and overall acceptability of cookies using a nine-point hedonic scale by filling out a scoring form with scores from 1 to 9.

2.5 Texture of cookie

The texture of cookies was determined using a texture analyzer (TVT 6700; Perten Swiss) and a single-cycle compression test. A P-BP70A probe and a R-TPBR pedestal were used. The parameters were set as follows: 80% compression degree, 2.5 mm/s pretest speed, 2.0 mm/s test speed, 10.0 mm/s retraction speed, and 20 g trigger force. The hardness and flexibility of the cookies were determined using TexCalc software in the texture analyzer. Five different cookies were conducted for each trial in the RSM.

2.6 Digestibility of cookie

The cookies were ground and filtered through a 1.0-mm sieve, and the contents of soluble starch (SS) and resistant starch (RS) were measured using AACC method (McCleary, Sloane, & Draga, 2015). The first step was to hydrolyze cookie by pancreatic α-amylase and amyloglucosidase (AMG) at 37°C. Then, SS and RS were determined separately. RS was dissolved in KOH solution and then mixed with sodium acetate buffer before adding AMG to hydrolyze the RS. The determination of SS was performed by prewashing cookies by 8 ml of aqueous industrial methylated spirits (IMS) (80% v/v) before adding pancreatic α-amylase and AMG. Then, GOPOD assay was used to measure the hydrolyzed glucose content of RS and SS, respectively, and transferred to RS and SS content. Triplicate was conducted for each formula.

2.7 Experimental design and statistical analysis

Response surface methodology was adopted to evaluate the effects of three independent variables, butter (A), xylitol (B), and HAMF (C), on sensory attributes, texture, and digestibility (dependent variables) of cookies. The central composite design was used, and the experimental design was generated by Design-Expert (Stat-Ease). After selecting the approximate range for each independent variable by preliminary experiments, the final experimental design was confirmed and is shown in Table 1. The data of three types of responses, including sensory attributes (appearance, color, flavor, taste, mouthfeel, and overall acceptability), texture (hardness and flexibility), and digestibility (soluble starch and resistant starch), are shown in Table 2 and were statistically analyzed by Design-Expert. The independent and dependent variables were fitted by a second-order model equation, and the goodness of fit was examined. Analysis of variances was conducted to analyze the lack of fit and the significance of the linear, quadratic, and interaction effects of the independent variables on each response. The optimized amounts of butter, xylitol, and HAMF for preparing cookies with optimal responses were calculated as described (Yun et al., 2008).

3.1 Chain length distribution of high-amylose maize starch

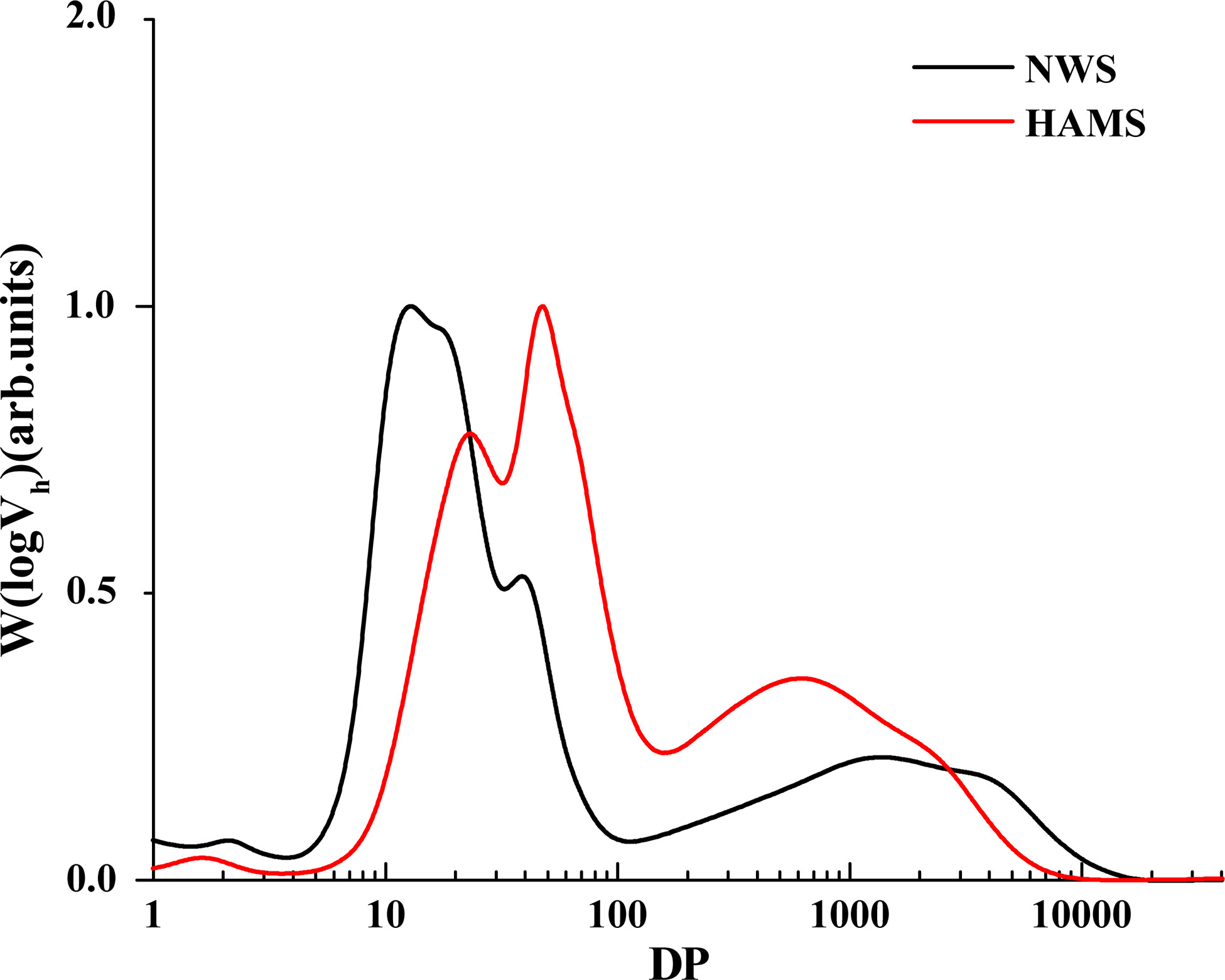

Typical GPC weight distributions, W(logV_h), of individual chains obtained from debranched NWS and HAMS are shown in Figure 1, after normalizing to the peak maximum. The components of DP <100 are defined as amylopectin chains and those of DP >100 are amylose chains (Bertoft, 2017). NWS and HAMS both showed two peaks of AP branches and a peak of AM branches. The first AP peak (AP1) was composed of the short amylopectin branches with DPs ranging from 3 to 36, and the second peak (AP2) was composed of long amylopectin branches with DP lengths from 36 to 100 (Xu et al., 2017). HAMS showed higher peaks of AP2 and AM and lower peaks of AP1 than NWS, indicating higher proportions of long amylopectin and amylose chains and lower short amylopectin chains in HAMS (Xu et al., 2017). Moreover, AP1 and AP2 peaks of HAMS exhibited higher DP than NWS, suggesting a smaller molecular size of short and long amylopectin chains of HMAS; however, the lower DP of HAMS in AM peaks also suggested its smaller amylose molecular size.

3.2 Evaluation of fitted model

After acquiring all data of responses (sensory profiles, texture properties, and digestibility), a mathematical equation was fitted by Design-Expert to describe the behavior of the responses. To evaluate the reliability of the model, analysis of variance (ANOVA) was conducted. Briefly, a reliable model should display a significant regression and a nonsignificant lack of fit (Bezerra, Santelli, Oliveira, Villar, & Escaleira, 2008). The former can be used to describe the major part of the variation, and the latter can be used to observe the remainder of the variation (Bezerra et al., 2008). The model equation and regression of all responses, including sensory attributes (appearance, color, flavor, taste, mouthfeel, and overall acceptability), texture (hardness and flexibility), and digestibility (soluble starch and resistant starch), were analyzed by Design-Expert and are presented in Table 2. Further analysis of the significance of independent variables to responses and lack of fit is shown in Table 3. On the basis of the principle of significance in regression (p < .05) and nonsignificance in lack of fit (p > .05), it was concluded that the quadratic models for appearance, flavor, taste, mouthfeel, overall acceptability, hardness, soluble starch content, and resistant starch content were reliable. The models for color and flexibility were not reliable, and they were not further discussed below.

3.3 Effects of HAMF, butter, and xylitol on sensory properties of cookies

The models for appearance, flavor, taste, mouthfeel, and overall acceptability were all significant (p < .05), and their correlation coefficients were all higher than .80 (Table 3). Therefore, the proposed model is accurate for predicting changes in these responses within the experimental domain. As shown in Table 4, ANOVA demonstrated that the sensory attributes were significantly influenced by xylitol and butter (p < .05), while HAMF was not significant for these attributes (p > .05).

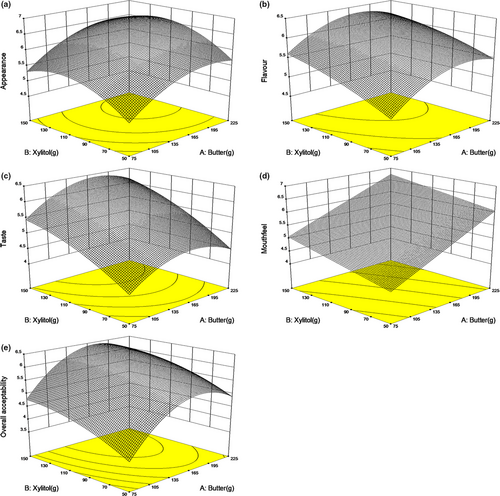

The response surfaces of butter and xylitol on these sensory properties (Figure 2) show butter and xylitol were positively related to the appearance, mouthfeel, flavor, taste, and overall acceptability of cookies. Butter imparted shortening, richness, and tenderness during baking (Zoulias, Oreopoulou, & Tzia, 2002). Butter can prevent the interaction of the water or sugar solution with the flour protein, thereby influencing the continuity of the protein and starch structure and the textural properties of the cookie (Pareyt & Delcour, 2008). Xylitol is a good substitute for sucrose by providing the same texture and more finely taste than sucrose (Ur-Rehman et al., 2015). The great potential of xylitol in producing bakery food with high acceptance has also reported (Kutyła-Kupidura et al., 2016; Nourmohammadi & Peighambardoust, 2016).

3.4 Effects of butter, xylitol, and HAMF on the texture of cookies

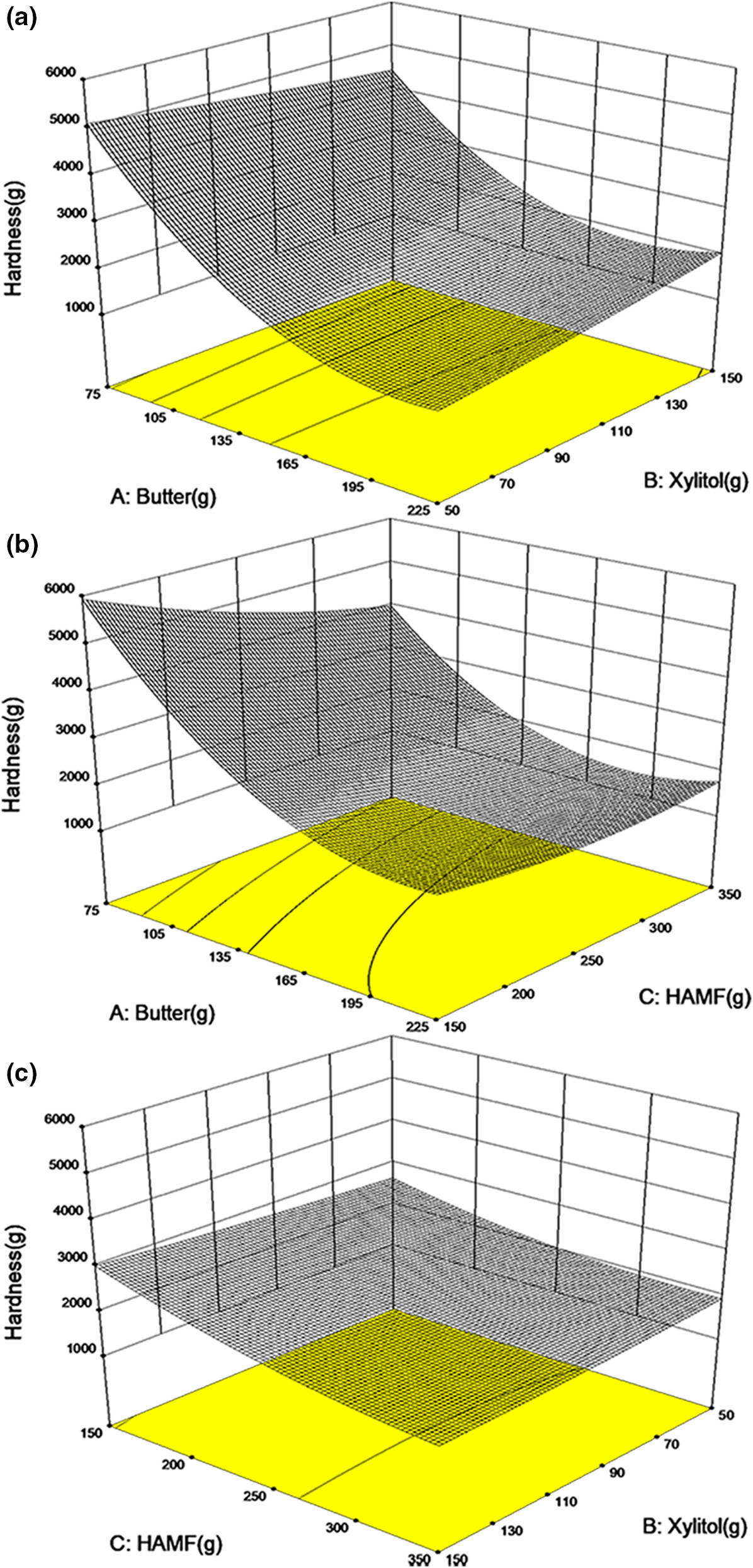

The model of hardness here was significant here, with a correlation coefficient of .9590 and a p-value <.005 (Table 3). ANOVA suggested that hardness was mainly influenced by butter and HAMF (p < .05), while xylitol was not significant here (Table 4). Both butter and HAMF were negatively correlated with the hardness of cookie (p < .05) (Figure 3). As mentioned (Pareyt & Delcour, 2008), butter prevented the continuity of the protein and starch structure, thereby decreasing the hardness of cookies. It is important to mention that HAMF had the negative effect on hardness of cookies in this butter–xylitol–HAMF system. It is already known the significant effects of HAMS on increasing hardness of bakery products by recrystallization of amylose chains (Giuberti et al., 2016; Hung et al., 2005; Zhong et al., 2018). The decrease of hardness in HAMF may be attributed to the lower gluten content in the cookie. Gluten, the main component of wheat flour, is responsible for building structures of cookie and providing good gas-holding ability and crumb structure of cookie (Gallagher et al., 2004). Fustier et al. (2008) studied the effects of gluten, starch, and water-soluble fractions in wheat flour on quality of semi-sweet biscuit, and found hardness of biscuit was mainly impacted by gluten concentration. HAMF is gluten-free, and thus, using HAMF as substitution of wheat flour reduced the gluten concentration in dough inducing decreased hardness of cookie, although starch in HAMF may offset the decrease in the hardness to some content.

3.5 Effects of butter, xylitol, and HAMF on digestibility of cookies

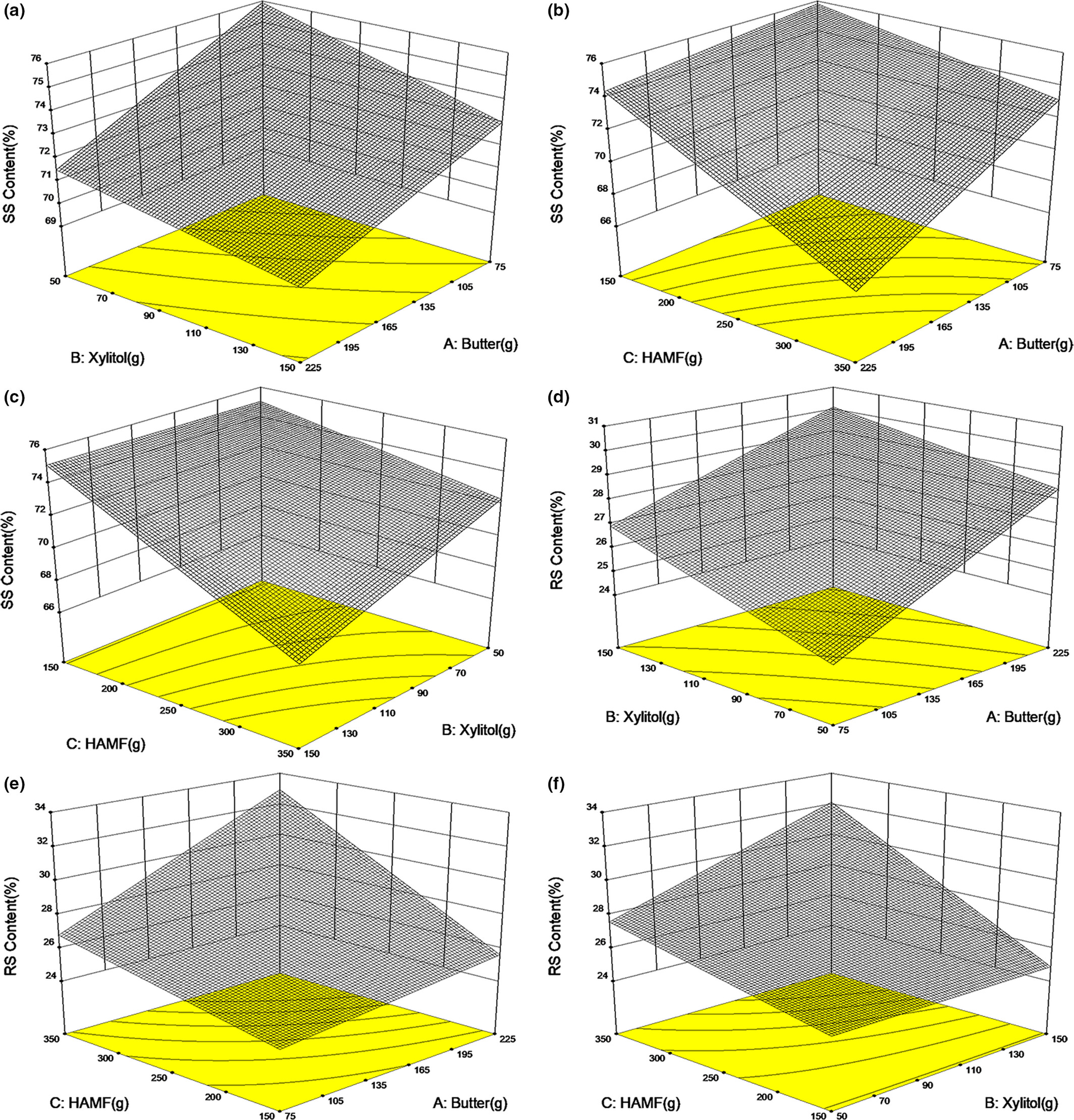

ANOVA showed models of soluble starch (SS) and resistant starch (RS) were both reliable (Table 2), and butter, xylitol, and HAMF were all significant for SS and RS (Table 3), within the experimental domain. Contents of SS and RS are negatively correlated, so that only RS was discussed to explain the changes in digestibility. Results showed butter, xylitol, and HAMF were all positively related to the RS content of cookies (Figure 4).

During the baking process, starch underwent gelatinization and retrogradation (Le-Bail, Hesso, & Le-Bail, 2018). During gelatinization, granular and crystalline structures of starch were disrupted. During retrogradation, starch molecules recrystallized and RS III formed. The formation of RSIII is highly related to the proportions of amylose and long amylopectin chains (You, Oh, Kim, & Chung, 2015). The molecular structure analysis (Figure 1) showed HAMS had higher amounts of long amylopectin and amylose chains than NWS, suggesting more enzymatic-resistant double-helix structure formed by amylose chains and long amylopectin chains during cooling process of baking (Jane, 1984; Witt, Gidley, & Gilbert, 2010). V-type crystalline, which is complexes of amylose and lipid, was also formed during baking HAMF cake (Zhong et al., 2018).

The effect of xylitol on affecting RS content is possibly related to its ability on restricting the swelling of starch granules and retarding the gelatinization of starch (Martínez, Pico, & Gómez, 2015), by preventing the disruption of partial RS II residues (semi-crystalline structure in HAMS) (Jiang, Campbell, Blanco, & Jane, 2010).

Butter is mainly composed of fatty acid and triacylglycerol (Foubert, Vanrolleghem, Thas, & Dewettinck, 2004). Amylose can form amylase-resistant single-helical complexes with fatty acid and triacylglycerol, especially in HAMS (Ai, Hasjim, & Jane, 2013). These complexes (RS V) can contribute to substantially less postprandial plasma glucose and insulin responses in human subjects (Hasjim et al., 2010).

3.6 Optimal combinations of butter, xylitol, and HAMF on producing low-sugar cookie

The optimum parameters obtained from RSM can be used to achieve any given functional properties. As shown in Table 5, the optimal amounts of butter, xylitol, and HAMF to obtain cookies with the highest sensory acceptability, the highest RS content, the lowest hardness, and their combinations were selected through numerical optimization of a canonical model by Design-Expert. The optimal amounts of three ingredients to prepare a cookie with minimum hardness and maximum overall sensory acceptability and RS content are 183 g butter, 150 g xylitol, and 341 g HAMF, respectively.

3.7 Functions of HAMF on a cookie-baking system containing butter and xylitol

Effects of HAMS and/or HAMF on bakery foods have been widely studied in bread (Hoebler, Karinthi, Chiron, Champ, & Barry, 1999), cake (Zhong et al., 2018), and cookie (Luhovyy et al., 2014). Adding HAMS and HAMF can significantly increase RS content of these foods (Hoebler et al., 1999; Luhovyy et al., 2014; Zhong et al., 2018). However, the replacement of wheat flour with HAMS and HAMF decreased the sensory attributes and texture of these bakery products to some content in some studies (Giuberti et al., 2016; Luhovyy et al., 2014), thereby affecting the development of high-amylose maize in the food industry. The results suggested HAMF did not affect sensory profiles of cookie significantly when butter and xylitol were also set as variables. The information implies HAMF/HAMS had insignificant effects on decreasing sensory properties and increasing hardness of cookie through introducing other important ingredients for sensory properties and hardness, such as butter and xylitol.

It is worth noting that HAMF content was negatively related to the hardness of cookie. In our hypothesis, the hardness of cookie should decrease after adding HAMF due to increased recrystallization of amylose chains from HAMS. The converse result suggests that HAMS was not the main factor affecting the texture of cookie, while gluten-free characteristic of HAMF may be responsible for the decrease in hardness. The increase in the cookie texture after adding HAMF was also found in another study (Giuberti et al., 2016).

High-amylose maize flour, butter, and xylitol all increased RS content of cookies. Due to the higher amylose and long amylopectin contents of HAMS than NWS, high proportions of enzymatic-resistant double helices formed during baking of HAMF-based cookie. Moreover, during baking, xylitol restricted the swelling of starch granules and retarded the gelatinization, and protected some RS II residues. Butter increased RS by forming enzymatic-resistant complexes with amylose. The results imply the interactions among HAMF, xylitol, and butter in the cookie, resulting in the increasing of RS content.

Overall, in the cookie system containing butter and xylitol, HAMF was a potential ingredient to partially replace normal wheat flour. Analysis of optimal combinations of butter, xylitol, and HAMF (Table 5) showed there were various combinations of three ingredients to produce cookies with different attributes. For instance, when the purpose was only to maximize the sensory attributes of the cookie, the combination of ingredients was predicted as intermediate butter content (176 g), high xylitol content (150 g), and low HAMF content (196 g); while the purpose was to maximize sensory acceptability, minimize hardness, and maximize RS content meanwhile, the combination was intermediate butter content (183 g), high content of xylitol (150 g), and high HAMF content (341 g). In this system, with the addition of HAMF, RS content increased, and hardness decreased. The increase in RS content was due to the high-amylose content of HAMF, and the decrease in hardness was related to the gluten-free characteristics of HAMF. Sensory attributes of the cookie can be significantly improved by adding butter and xylitol, while adding HAMF had no effects on sensory properties. However, in bakery systems without ingredients such as butter and xylitol, HAMF/HAMS had significant effects on decreasing sensory attributes and increasing hardness of bakery foods (Giuberti et al., 2016; Hung et al., 2005; Zhong et al., 2018). Therefore, we suggest butter and xylitol can be added as other ingredients when HAMF-based cookies are prepared, in order to improve sensory properties and decrease hardness.
