2.1 In the destabilization of the medial meniscus-induced OA mouse model, hypoxia accelerates the progression of OA

The destabilization of the medial meniscus (DMM) method to induce OA in mice to investigate the effects of hypoxia on the progression of OA. The two groups of mice were housed in normoxic and hypoxic environments, respectively. After model establishment, sections of the knee from mice in each experimental group were stained with Safranin-O and Fast Green to explore the structural changes in the articular cartilage, subchondral bone, and bone tissue. The results showed a thinner and less smooth cartilage layer in OA mice raised in the hypoxic environment compared to OA mice raised in the normoxic environment (Figure 1A). Moreover, the Osteoarthritis Research Society International (OARSI) score was significantly lower in OA mice raised in the normoxic environment compared to the OA mice raised in the hypoxic environment (Figure 1B). Furthermore, micro-computed tomography (micro-CT) was performed to examine osteophyte formation in the mice from each experimental group. Notably, significantly smaller osteophytes were formed in the OA mice raised in the normoxic environment compared to those in the OA mice raised in the hypoxic environment (Figure 1A,C). Furthermore, the differences in the expression of different proteins in each group of mice were explored by immunofluorescence staining on the knee sections. The results indicated that the expressions of ECM proteins (COL2A1 and ACAN) in the OA mice raised in the hypoxic environment were significantly decreased, while the expressions of ECM-degradation-related proteases (MMP13 and ADAMTS5) were significantly increased compared with OA mice raised in the normoxic environment (Figure 1A,D). These findings suggest that the hypoxic environment effectively accelerated the progression of OA.

Moreover, enzyme-linked immunosorbent assay (ELISA) was performed on the knee joint homogenates of mice in each group. The results revealed that the levels of IL-1β and IL-18 in the OA mice raised in the hypoxic environment were significantly higher compared to those in the OA mice raised in the normoxic environment. However, the levels of TNF-α showed no significant difference between the two groups (Figure 1E). Considering that IL-1β and IL-18 are downstream inflammatory factors of NLRP3 and can reflect the activity of NLRP3 to a certain extent, hypoxia may accelerate the progression of OA through NLRP3.

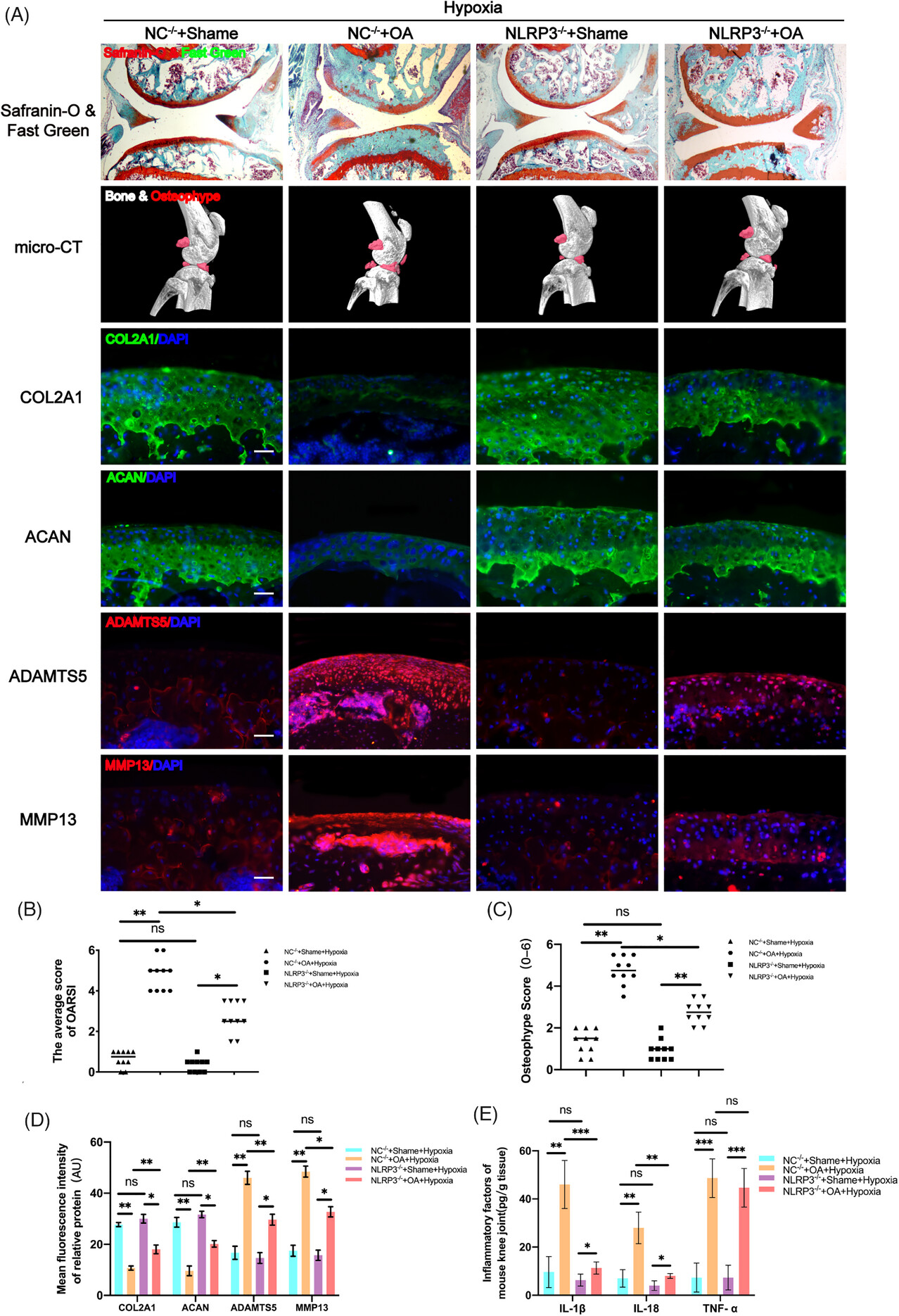

2.2 In the DMM-induced OA NLRP3 knockout mouse model, hypoxia did not accelerate the progression of OA

As mentioned above, hypoxia may accelerate the progression of OA through NLRP3. To verify this hypothesis, OA was induced in both normal mice (NC^−/− mice) and NLRP3 knockout mice (NLRP3^−/− mice) in a hypoxic environment. The Safranin O-Fast Green staining results revealed that compared to NC^−/− OA mice, the cartilage layer of NLRP3^−/− OA mice was thicker and smoother (Figure 2A), and the OARSI score of NLRP3^−/− OA mice was significantly lower (Figure 2B). Furthermore, micro-CT results of NLRP3^−/− OA mice also showed a significant decrease in osteophyte volume and osteophyte scores (Figure 2A and C). Additionally, immunofluorescence staining results indicated a significant increase in ECM protein (COL2A1 and ACAN) expression and a significant decrease in the expression of ECM-degradation-related proteases (MMP13 and ADAMTS5) in NLRP3^−/− OA mice compared to NC^−/− OA mice (Figure 2A,D). All these findings indicate that the effect of hypoxia on accelerating the progression of OA disappeared when NLRP3 was knocked out, indirectly demonstrating that hypoxia may exert its effect on promoting the progression of OA through NLRP3. The ELISA results further confirmed our hypothesis, showing a significant decrease in the expression of IL-1β and IL-18 in NLRP3^−/− OA mice compared to NC^−/− OA mice (Figure 2E).

2.3 Hypoxia increases the ubiquitination level of NLRP3 by suppressing the activity of deubiquitinase through PGK1

Proteins that interact with NLRP3 were detected to investigate the signalling mechanism underlying NLRP3 inflammasome activation. Proteins were extracted from the knee joint homogenates of the mouse OA model reared in a hypoxic environment and flag immunoprecipitation was performed to pull down NLRP3-associated proteins, which were evaluated using liquid chromatography-mass spectrometry. The results revealed that three kinds of proteins directly interacted with NLRP3 and were related to hypoxia, including PGK1, 3-phosphoinositide dependent protein kinase-1 (PDK1) and DEAD-box helicase 17 (DDX17), as shown in Figure 3A. Subsequently, small-interfering RNA (siRNA) was used to knock down these three proteins in mouse-derived bone marrow-derived macrophages (BMDMs) cultured in a hypoxic environment. The results revealed significantly decreased expression levels of caspase-1 cleavage and IL-1β when PGK1 was knocked down (Figure 3B). This indicates that the activity of NLRP3 decreases when PGK1 is knocked down. In mouse-derived BMDMs cultured in a hypoxic environment, the interaction between NLRP3 and PGK1 was confirmed through endogenous immunoassay (Figure 3C). Moreover, the co-localization of these proteins in synovial tissue was observed in the immunofluorescence assay(Figure 3D). PGK1 was also knocked down in THP-1 cells using siRNA, and the results pointed towards the same conclusion as that obtained from mouse-derived BMDMs (Figure 3E). The level of ubiquitination is often highly correlated with the activity of NLRP3. PGK1 was speculated to affect the ubiquitination level of NLRP3, thereby affecting its activity.^{17, 19, 24, 25} To verify this speculation, a decrease in ubiquitinated NLRP3 was observed in LPS-treated PGK1 knockdown BMDMs (PGK1^KD BMDMs) cultured in the hypoxic environment (Figure 3F), indicating the potential involvement of PGK1 in NLRP3 ubiquitination. The decrease in NLRP3 ubiquitination levels is mainly achieved through two mechanisms: by increasing the activity of its deubiquitinases (DUBs) and by decreasing the activity of its ubiquitinase.^25-27 To investigate the mechanisms underlying the inhibitory effects of PGK1 on NLRP3 ubiquitination levels, the DUB inhibitor G5 was applied to BMDMs cultured in a hypoxic environment. The results showed that when G5 inhibited the DUB activity, similar ubiquitination levels were observed in NLRP3 in NC^KD BMDMs and PGK1^KD BMDMs (Figure 3G), which indirectly confirmed that PGK1 exerts its NLRP3-activating effect by reducing DUBs activity.

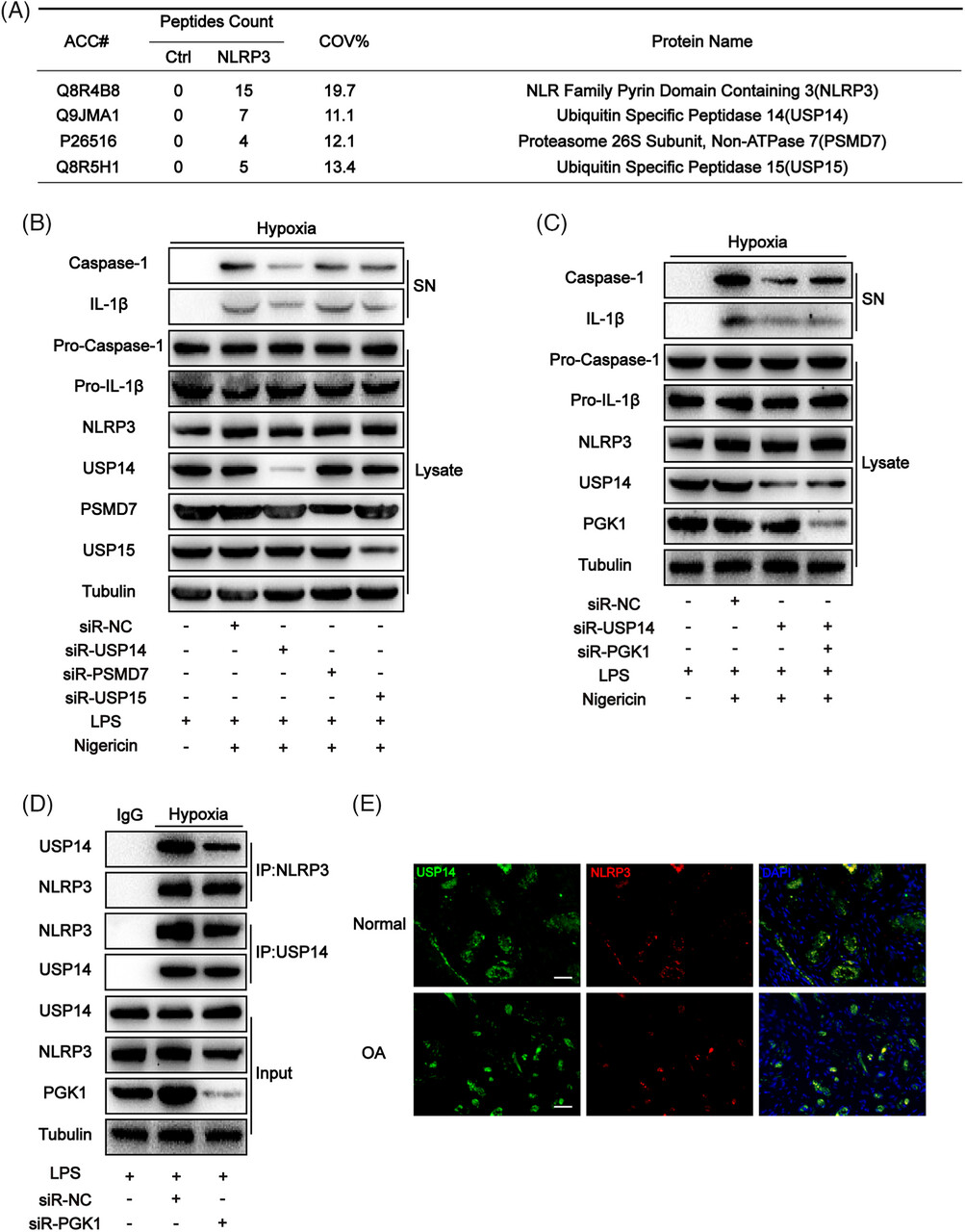

2.4 In a hypoxic environment, PGK1 reduced the binding between USP14 and NLRP3

The previous results of liquid chromatography-mass spectrometry were reanalyzed to investigate which DUB is specifically involved in the hypoxia-mediated enhancement of NLRP3 activity. The results showed that three proteins directly interacted with NLRP3 and acted as DUBs, including USP14, proteasome 26S subunit-non-ATPase 7 (PSMD7), and ubiquitin-specific peptidase 15 (USP15) (Figure 4A). siRNA was used to knock down USP14, PSMD7 and USP15 in BMDMs cultured in a hypoxic environment. When USP14 was knocked down, only the expression of caspase-1 cleavage and IL-1β decreased, indicating that hypoxia may enhance NLRP3 activity through USP14 (Figure 4B). Furthermore, an intriguing phenomenon was observed. Simultaneously knocking down PGK1 and USP14 in mouse-derived BMDMs cultured in a hypoxic environment showed no significant difference in the expression levels of caspase-1 cleavage and IL-1β compared to BMDMs where only USP14 was knocked down (Figure 4D). These findings suggest that PGK1 and USP14 may collectively contribute to the regulation of NLRP3 activity under hypoxic conditions, as evidenced by the co-localization of these proteins in synovial tissue in the immunofluorescence assay (Figure 4E).

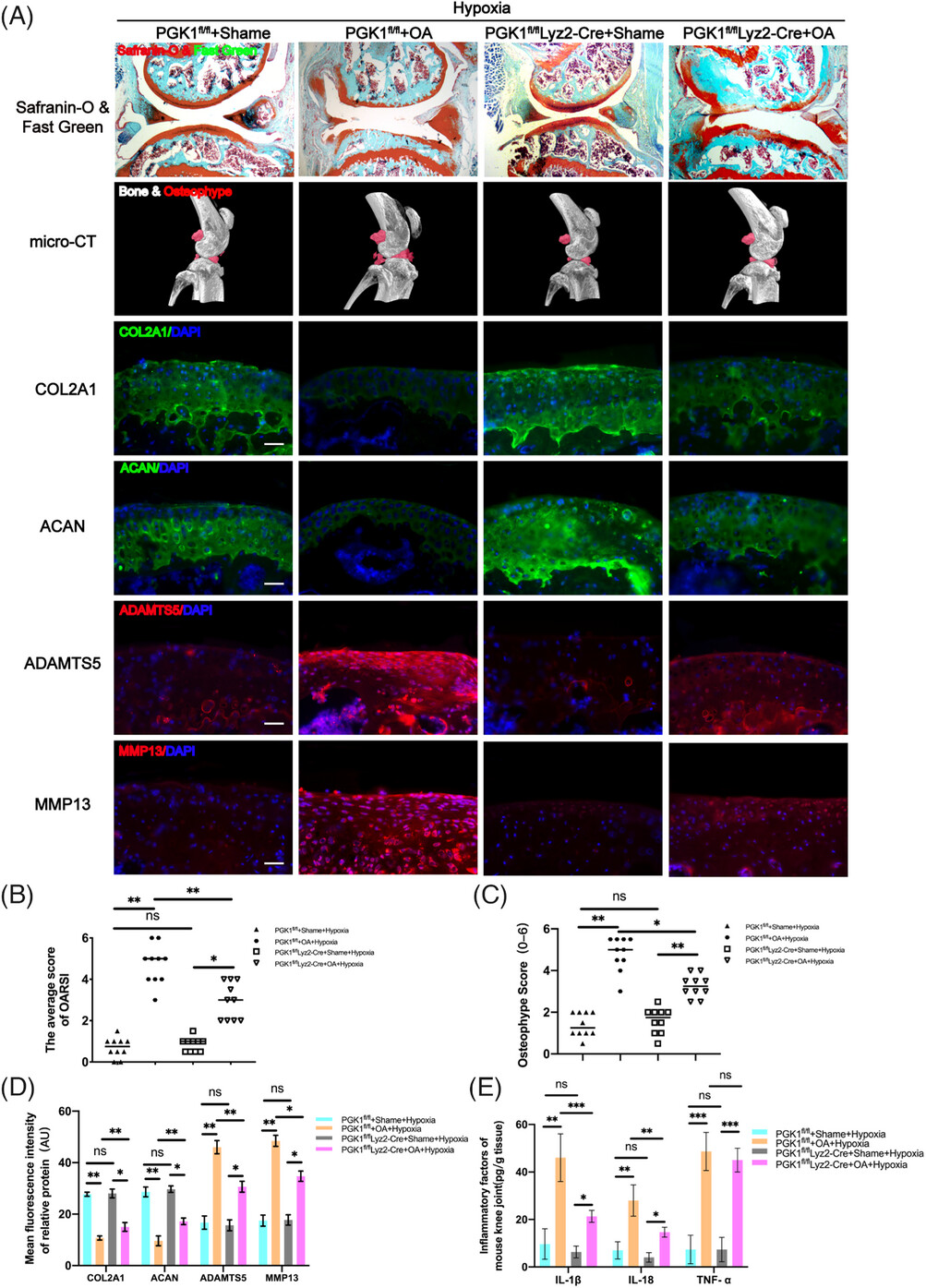

2.5 In the DMM-induced OA PGK1^fl/flLyz2-Cre mouse model, hypoxia did not accelerate OA progression

As mentioned earlier, hypoxia may contribute to OA progression by enhancing NLRP3 activity through PGK1. To test this hypothesis, OA was induced in normal mice (PGK1^fl/fl mice) and PGK1 conditional knockout mice (PGK1^fl/flLyz2-Cre mice) in a hypoxic environment. The Safranin O-Fast Green staining results revealed that the cartilage layer of PGK1^fl/flLyz2-Cre OA mice was thicker and smoother compared to PGK1^fl/fl OA mice (Figure 5A), and the OARSI score of PGK1^fl/flLyz2-Cre OA mice was significantly lower (Figure 5B). Additionally, the micro-CT results of the PGK1^fl/flLyz2-Cre OA mice showed a notable decrease in osteophyte volume and scores (Figure 5A,C). Immunofluorescence staining also indicated a significant increase in ECM protein expression (COL2A1 and ACAN) and a decrease in the expressions of ECM-degradation-related proteases (MMP13 and ADAMTS5) in PGK1^fl/flLyz2-Cre OA mice compared to PGK1^fl/fl OA mice (Figure 5A,D). These findings suggest that the influence of hypoxia on OA progression was effectively eliminated when PGK1 was knocked out, demonstrating that hypoxia may promote OA progression through PGK1. The ELISA results further supported our hypothesis, revealing a significant decrease in the expression of IL-1β and IL-18 in PGK1^fl/flLyz2-Cre OA mice compared to PGK1^fl/fl OA mice (Figure 5E).

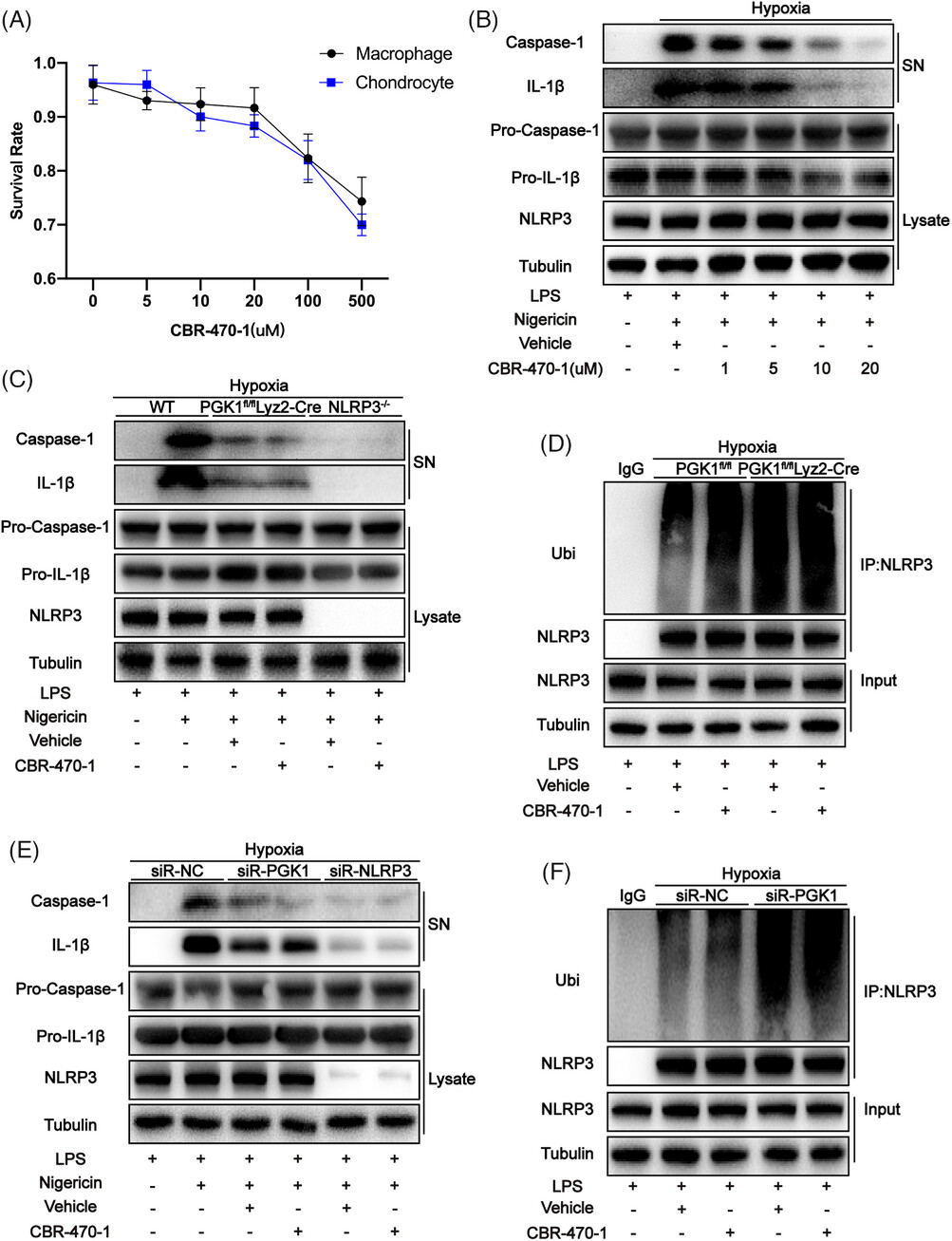

2.6 CBR-470-1 reduces NLRP3 activity by inhibiting PGK1 activity

As a specific inhibitor of PGK1, CBR-470-1 was added to the co-culture system of THP-1 and human chondrocytes at different concentrations. After 24 h of treatment, the cell viability of each group was measured using the Cell Counting Kit-8 assay. The results revealed that the viability of both THP-1 and chondrocytes significantly decreased when the concentration of CBR-470-1 exceeded 20 µM (Figure 6A). Moreover, when the concentration of CBR-470-1 reached 20 µM, the expression of caspase-1 cleavage and IL-1β were significantly reduced (Figure 6B). Therefore, the concentration of CBR-470-1 for cell treatment was set to 20 µM. In mouse-derived BMDMs cultured in a hypoxic environment, the effect of CBR-470-1 in reducing the expression of caspase-1 cleavage and IL-1β was found to disappear when either PGK1 or NLRP3 was knocked out (Figure 6C). Furthermore, when PGK1 is knocked out, the effect of CBR-470-1 in increasing the ubiquitination level of NLRP3 also disappears (Figure 6D). This indicates that CBR-470-1 can inhibit NLRP3 activity by inhibiting the activity of PGK1. This phenomenon was also observed in the THP-1 cell line (Figure 6E,F), demonstrating that this conclusion is also applicable to human-derived cells.

2.7 CBR-470-1 exerted no inhibitory effect on OA progression in the DMM-induced OA PGK1^fl/flLyz2-Cre mouse model

In vitro cell experiments confirmed that CBR-470-1 can reduce the expression of caspase-1 cleavage and IL-1β, thereby exerting an anti-inflammatory effect. Therefore, CBR-470-1 was speculated to have a therapeutic effect on OA in mice. The safranin O-fast green staining results revealed that PGK1^fl/fl OA mice treated with CBR-470-1 exhibited a thicker and smoother articular cartilage layer (Figure 7A), with significantly decreased OARSI scores (Figure 7B). Furthermore, the micro-CT results of the PGK1^fl/fl OA mice showed a notable decrease in osteophyte volume and scores (Figure 7A,B) after treatment with CBR-470-1. Immunofluorescence staining also indicated a significant increase in ECM protein expression (COL2A1 and ACAN) and a decrease in the expressions of ECM-degradation-related proteases (MMP13 and ADAMTS5) in PGK1^fl/fl OA mice after treatment with CBR-470-1(Figure 7A,D). Moreover, the ELISA results indicated significantly reduced levels of IL-1β and IL-18 in the joint fluid after CBR-470-1 treatment (Figure 7E). These findings all suggest that CBR-470-1 can inhibit the disease progression of OA caused by hypoxia. However, no significant difference in the above indicators was observed following PGK1 knockout in PGK1^fl/flLyz2-Cre OA mice, irrespective of CBR-470-1 treatment.

2.8 CBR-470-1 promoted chondrocyte proliferation in the co-culture system of THP-1 and chondrocytes

THP-1 and human chondrocytes were co-cultured to investigate the effect of CBR-470-1 on human cells. The chondrocyte proliferation rate was assessed by flow cytometry analysis, suggesting that chondrocytes treated with CBR-470-1 alone had no significant effect on the proliferation rate of chondrocytes (Figure 8A,C). In the co-culture system, CBR-470-1 could significantly improve the proliferation rate initially reduced by macrophage activation (Figure 8A,C). Interestingly, when PGK1 was knocked down in THP-1, the effect of CBR-470-1 on promoting chondrocyte proliferation disappeared (Figure 8A,C). Furthermore, an EdU assay was performed on chondrocytes and yielded findings consistent with flow cytometry results (Figure 8B,D). These results indicated that CBR-470-1 could increase the proliferation rate of chondrocytes by inhibiting NLRP3 activity in THP-1 in the co-culture system.

2.9 CBR-470-1 reduced the apoptosis rate of chondrocytes in the co-culture system of THP-1 and chondrocytes

The chondrocyte apoptosis rate assessed by flow cytometry revealed that treatment with CBR-470-1 alone had no significant effect on the apoptosis rate of chondrocytes (Figure 8E,G). Notably, the activation of the macrophages in the co-culture system significantly increased the chondrocyte apoptosis rate, while CBR-470-1 reduced the chondrocyte apoptosis rate (Figure 8E,G). However, this effect was no longer observed when PGK1 was knocked down in THP-1 (Figure 8E,G). The TUNEL assay performed on chondrocytes in each group yielded results consistent with flow cytometry analysis of apoptotic chondrocytes (Figure 8F,H). These results confirmed that CBR-470-1 could reduce the apoptosis rate of chondrocytes by inhibiting NLRP3 activity in THP-1 in the co-culture system.

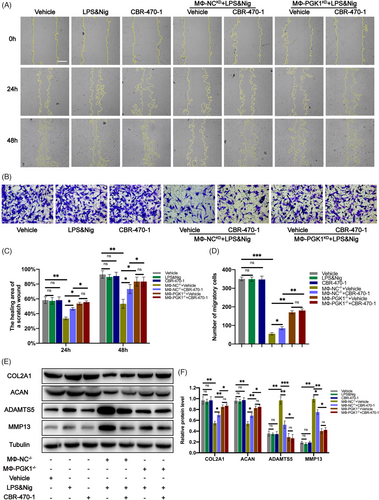

2.10 CBR-470-1 improved chondrocyte migration ability in the co-culture system of THP-1 and chondrocytes

Cell scratch and transwell experiments were performed to investigate the impact of CBR-470-1 on chondrocyte migration in co-culture systems. The cell scratch experiments revealed that treating chondrocytes with CBR-470-1 alone did not significantly affect their migration ability (Figure 9A,C). A significant decrease in chondrocyte migration was observed, which was mitigated by CBR-470-1 (Figure 9A,C). Nonetheless, this effect was lost when PGK1 was knocked down in THP-1 (Figure 9A,C). The results of the Transwell experiment were in accordance with the cell scratch experiments (Figure 9B,D), suggesting that CBR-470-1 can enhance chondrocyte migration by inhibiting NLRP3 activity in THP-1 in the co-culture system.

2.11 CBR-470-1 regulated the expression of chondrocyte-related proteins in the co-culture system of THP-1 and chondrocytes

Western blot analysis was performed to detect the expression of chondrocyte-related proteins in each group, and the results showed that CBR-470-1 treatment alone had no significant impact on the expression of their associated chondrocyte matrix proteins (Figure 9E,F). However, in the co-culture system, the expression of chondrocyte ECM proteins (COL2A1 and ACAN) decreased significantly, and the expression of ECM-degradation-related proteases (MMP13 and ADAMTS5) increased significantly (Figure 9E,F). As expected, this regulatory effect was reversed when CBR-470-1 was added to the co-culture system (Figure 9E,F). Still, PGK1 knockout in macrophages inhibited the reversal effect of CBR-470-1 on ECM homeostasis. No significant difference was observed in the regulation of associated chondrocyte matrix proteins between groups treated with and without CBR-470-1 in the co-culture systems (Figure 9E,F). The above results indicate that in the co-culture system, CBR-470-1 can enhance the expression of chondrocyte ECM proteins (COL2A1 and ACAN) and reduce the expression of ECM-degradation-related proteases (MMP13 and ADAMTS5) by inhibiting NLRP3 activity in THP-1.

4.1 Isolation and incubation of human chondrocytes

In this study, human chondrocytes were extracted from articular cartilage tissues obtained during total knee replacement surgery. The study was approved by the Ethics Committee of West China Hospital and informed consent was obtained from all donors. The method for collecting human articular chondrocytes was consistent with previous descriptions. The isolated chondrocytes were cultured in Dulbecco's Modified Eagle Medium/Nutrient Mixture F-12 (DMEM/F12; Gibco) supplemented with 20% fetal bovine serum (FBS) and 1% penicillin-streptomycin (Gibco).

4.2 Isolation and incubation of mouse BMDMs

The femurs and tibias of mice were isolated and sterilized by immersion in 70% alcohol. Both ends of the bones were then removed and rinsed thoroughly with cold phosphate-buffered saline (PBS) using a 25-G needle. Cells were cultured in DMEM with 10% FBS, 1% penicillin/streptomycin, and 10% (v/v) conditioned medium from L929 mouse fibroblasts for 6 days, and the medium was replaced every 3 days. Subsequently, the cells were centrifuged at 1000×g for 5 min, resuspended in RPMI with 10% (v/v) FBS, and incubated at 37°C. For the inflammasome activation assay, the cells were primed with 200 ng/mL LPS (Sigma) for 4 h, followed by stimulation with 10 µM nigericin for 1 h (Sigma).

4.3 Experimental animals and procedures

In this study, 8-week-old male C57BL/6 mice were obtained from the Animal Medicine Center at West China Medical College, Sichuan University. Nlrp3^−/− mice were provided by Dr. Vishva M. Dixit from Genentech, and PGK1^fl/flLyz2-Cre mice were obtained from the laboratory of Yunzi Chen. All animal procedures were conducted in accordance with the guidelines set by the Animal Care and Use Committee of West China Hospital and were approved by the Animal Protection and Ethics Committee of Sichuan University. The DMM in the right knee joint was destabilized to induce the OA model. In the operation group, the anterior cruciate ligament and medial meniscus were removed during the DMM surgery to reduce knee joint stability. Conversely, only the skin and muscle were incised in the sham group, without removing any ligaments or menisci. To alleviate postoperative pain, all mice received 0.05 mg/kg buprenorphine treatment, and 5 mg/kg gentamicin was administered to prevent postoperative infections. Starting from 3 days after surgery, all mice were subjected to forced jogging for 40 min/day using a specific mice treadmill. Mice were given either CBR-470-1 or vehicle intragastric at 5 mg/kg once daily according to their groups. All mice that require hypoxic breeding are gradually acclimated to an oxygen concentration of 12.95% (simulating the oxygen level at an altitude of 5000 m) after a one-week adaptation period following weaning at 3 weeks of age. They are raised until 8 weeks of age to simulate long-term living conditions at high altitudes, after which they are used for subsequent experiments.

4.4 Micro-CT joint imaging

Mice knee joint tissues were scanned using a Skyscan 1176 Micro-CT equipment (Bruker). Subsequently, the 3D image reconstruction was carried out using SkyScan volumetric NRecon reconstruction software version 1.6 (Bruker). Regions of interest (ROIs) in the subchondral bone were selected after the 3D reconstruction. Osteophyte scores were evaluated by two experimenters who were blinded to the treatment groups.

4.5 Immunofluorescence staining

The paraffin was then cut into 4µm thick sections and incubated overnight with the primary indicated antibodies followed by the secondary antibody incubation. The immunostaining results were examined by two independent researchers. Primary antibodies used in the experiments included anti-COL2A1 (1: 200, Abcam, ab34712), anti-aggrecan (1:200, Proteintech, 13880-1-AP), anti-ADAMTS5 (1:200; Abcam, ab182795) and anti-MMP13 (1:200, Proteintech, 18165-1-AP), anti-NLRP3, (1:200, Adipogen, AG-20B-0014), anti-PGK1(1:200; Abcam, ab199438), anti-USP14(1:200, Abcam, ab192618).

4.6 Safranin-O and Fast Green staining

The knee tissue sections from the mice were dewaxed and hydrated following the manufacturer's instructions for the Safranin-O and Fast Green FCF Stain Kit (Solarbio). Afterwards, the stained sections of mouse knee tissue were observed and photographed using a microscope (Olympus).

4.7 Enzyme-linked immunosorbent assay

ELISA was used to evaluate the levels of inflammatory factors in the knee tissue of mice, following standard procedures. The joint tissue of mice was homogenized in RIPA buffer and then centrifuged at 12 000 rpm for 30 min. The resulting supernatant (SN) was used for ELISA analysis. Levels of IL-1β, IL-18, and TNF-α were determined using ELISA kits (Cloud-Clone Corp, SEA563Hu, SEA064Hu and SEA133Hu).

4.8 Western blotting and co-immunoprecipitation

The Western blotting and co-immunoprecipitation (co-IP) methods were carried out as previously described. Primary antibodies used in the experiment included anti-COL2A1 (1:2000, Abcam, ab34712), anti-aggrecan (1:2000, Proteintech, 13880-1-AP), anti-ADAMTS5 (1:2000, Abcam, ab182795), anti-MMP13 (1:2000, Proteintech, 18165-1-AP), Anti-NLRP3 (1:1000, Adipogen, AG-20B-0014), Anti-IL-1β (1:1000, R&D Systems, AF-401-NA), Anti-Caspase-1 (1:1000, Abcam, ab108362), Anti-Ubiquitin (1:1000, Santa Cruz, sc-8017), Anti-PGK1 (1:200; Abcam, ab199438), Anti-PDK1 (1:1000, Abcam, ab202468), Anti-DDX17 (1:1000, Abcam, ab180190), Anti-USP14 (1:1000, Abcam, ab192618), Anti-PSMD7 (1:1000, Abcam, ab178417), Anti-USP15 (1:200; Abcam, ab71713) and Anti-Tubulin (1:1000, Proteintech, 11224-1-AP).

4.9 Transfection of small interfering RNA

siRNA targeting PGK1 (siRNA-PGK1), PDK1 (siRNA-PDK1), DDX17 (siRNA-DDX17), USP14 (siRNA-USP14), PSMD7 (siRNA-PSMD7), USP15 (siRNA-USP15) and NLRP3 (siRNA-NLRP3), along with their corresponding scrambled control siRNAs (siRNA-NC), were obtained from TSINGKE (Nanjing, China). Cell transfections were carried out using Lipofectamine 2000 reagent (Invitrogen) following the manufacturer's instructions.

4.10 Proliferation assay of chondrocytes

Initially, a co-culture system of chondrocytes with NC^KD macrophages or PGK1^KD macrophages was established. After 24 h of co-culture, the experiment proceeded in accordance with the instructions of the BeyoClick™EdU-594 Cell Proliferation Detection Kit (Beyotime). Subsequently, chondrocytes were trypsin-digested to obtain suspension cells. The proliferation rate of chondrocytes in each group was assessed using flow cytometry as per the BeyoClick™EdU-594 Cell Proliferation Detection Kit instructions. Additionally, chondrocytes in each group were observed and photographed using fluorescence microscopy.

4.11 Apoptosis assay of chondrocytes

As mentioned earlier, a co-culture system of chondrocytes with NC^KD macrophages or PGK1^KD macrophages was established. After 24 h of co-culture, chondrocytes were trypsin-digested to obtain suspension cells. The apoptosis rate of chondrocytes in each group was determined using flow cytometry following the instructions of the Annexin V-FITC/PI Apoptosis Detection Kit (Vazyme). Additionally, to ensure the objectivity and reliability of the results, chondrocytes in each group were assessed using the TUNEL Bright Green Apoptosis Detection Kit (Vazyme). According to the kit's instructions, TUNEL-positive cells in each group were identified, observed, and photographed under a fluorescence microscope.

4.12 Migration assay of chondrocytes

To perform the scratch assay, the co-culture system was set up as described in the proliferation assay section. Cells were incubated for 48 h to minimize the impact of cell proliferation on the results. Prior to the experiment, chondrocytes were treated with mitomycin (1µg/mL) for 1 h. After a 24-h incubation, a sterile pipette tip (200 µL) was used to create a scratch on the cell layer. The cells were then washed 3 times with PBS, and images were taken at 0, 24 and 48 h using a microscope.

To ensure the reliability of the experimental results, a dual verification approach was used. Macrophages were seeded onto 24-well plates to establish a co-culture system. After a 24-h incubation, chondrocytes were fixed with 4% paraformaldehyde for 15 min, stained with 0.5% crystal violet for 30 min and washed three times with PBS. The upper surface of the upper chamber was swabbed to remove cells that had not migrated to the surface of the lower chamber. The chondrocyte migration rate of each group was observed under a microscope, and four fields were randomly selected for analysis.

4.13 Statistical analyses

All experiments were performed in at least three independent biological replicates. Data were expressed as mean ± standard deviation. GraphPad software 7.0 and SPSS 19.0 were used for statistical analysis. We used the Student's t-test for two-group comparisons and one-way or two-way analysis of variance for more than two-group comparisons to assess the significance of differences. A p-value   <  0.05 was statistically significant.
