Research trends in pharmacological modulation of tumor-associated macrophages

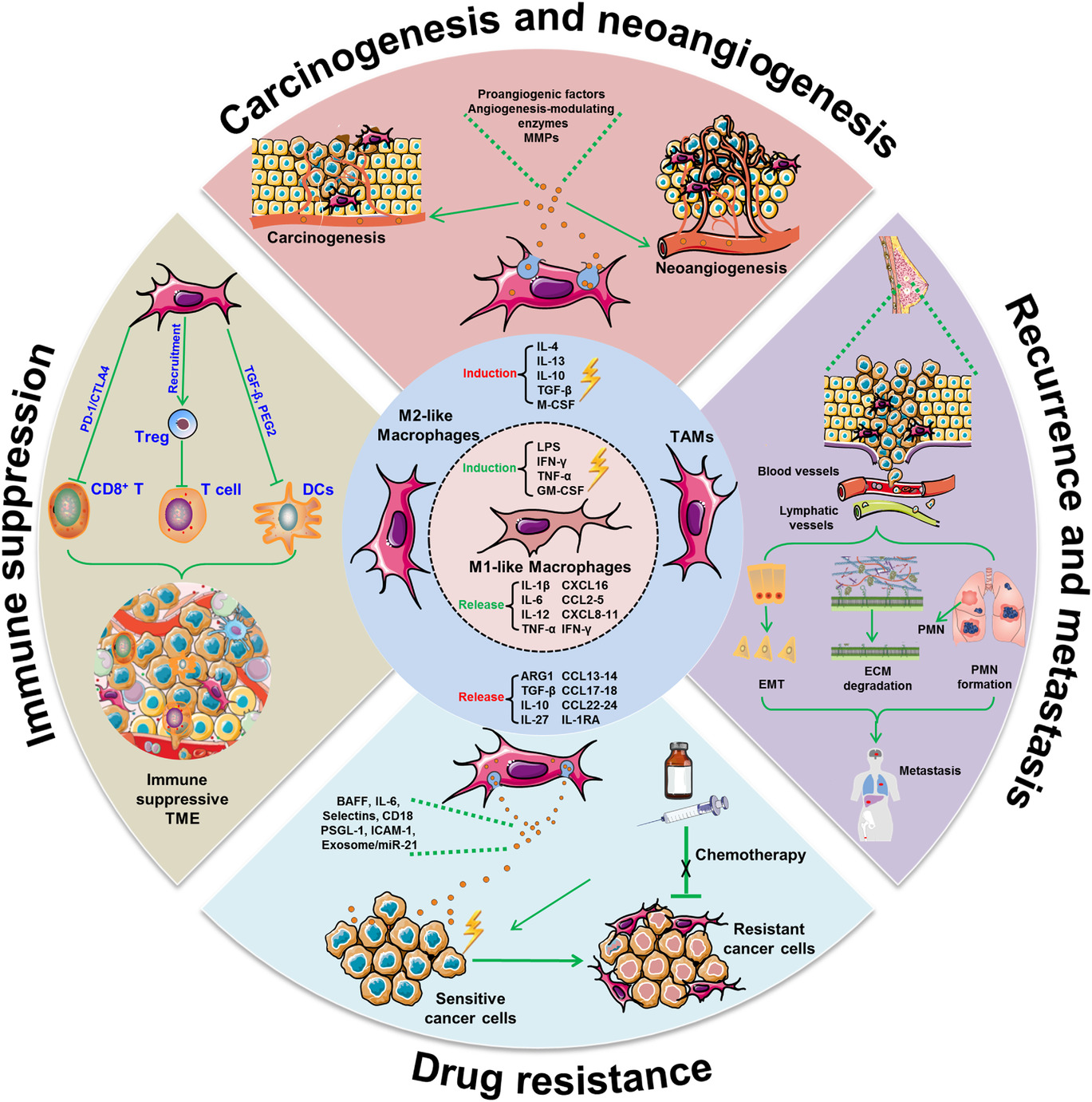

3.1 TAMs contribute to carcinogenesis and neoangiogenesis

TAMs have been found to be involved in the first step of carcinogenic lesion formation during neoplasia. Macrophage infiltration has been found to be upregulated in a murine chemically induced skin carcinogenesis model.²⁹ Similarly, a massive accumulation of CD206⁺ or ARG1⁺ macrophages has also been found in an inflammation-mediated skin tumorigenesis mice model, while macrophage ablation has been shown to significantly reduce tumor incidence.³⁰ In an EGFR-driven lung carcinogenesis model, sustained macrophage recruitment has been observed and macrophage depletion causes a significant reduction in tumor burden.³¹ Neoangiogenesis is also a critical step during carcinogenesis, in which macrophage infiltration is also involved. Various studies have suggested that TAMs are predominantly located near the blood vessels of malignant solid tumors, and TAMs numbers are usually positively correlated with blood vessel density.^32-35 Functional studies have also demonstrated that TAMs elimination causes the reduction of neoangiogenesis,³⁶ while TAMs enhancement aggravates this process.³⁶ Mechanistic studies imply that TAMs can release multiple proangiogenic factors, such as vascular endothelial growth factor A (VEGF-A), macrophage-inhibitory factor (MIF), adrenomedullin (ADM), platelet-activating factor (PAF), platelet-derived growth factor (PDGF), basic fibroblast growth factor (bFGF), and TGF-β, as well as numerous cytokines such as TNF-α, IL-1, IL-8, and monocyte chemoattractant protein-1 (MCP-1).^37-40 Additionally, TAMs also release numerous angiogenesis-modulating enzymes including iNOS,⁴¹ COX-2, and matrix metalloproteinases (MMPs),^42-44 all of which have been associated in matrix degradation and endothelial cell invasion.

3.2 TAMs facilitate the formation of the immune-suppressive microenvironment

TAMs recruitment not only supports cancer growth via neoangiogenesis induction but also facilitates the establishment of the immune-suppressive microenvironment. Recent studies have suggested that TAMs express PD-L1, PD-L2, CD86, and CD80, all of which induce CD8⁺ T cell dysfunction upon binding to immune-checkpoint receptors such as PD1 or cytotoxic T-lymphocyte-associated protein 4 (CTLA4).^{44, 45} In addition, TAMs release multiple cytokines, enzymes, and chemokines that inhibit T-cell activity through natural regulatory T cell recruitment or L-arginine depletion in the TME. For example, IL-10 produced by TAMs could suppress IL-12 secretion from myeloid cells and promote Th2-type immune response.⁴⁶ The secretion of TGF-β and PGE2 can impair the maturation process of dendritic cells, which subsequently compromise the balance between innate and adaptive immunity.^{47, 48} Immune-checkpoint inhibitors have revealed successful therapeutic responses in multiple malignant tumors such as melanoma and lung cancers.⁴⁹ Unfortunately, only approximately 20% of cancer patients respond to immunotherapy, and mixed responses can limit therapeutic efficacies and lead to local recurrences and/or distant metastases.⁵⁰ Given the abundance and immune-suppressive properties of TAMs, targeting TAMs has been suggested as a promising approach to promote the efficacy of checkpoint antagonists. For example, anti-PD1/anti-CTLA4 treatment can decrease pancreatic tumor growth by approximately 50%, while their combination with PLX3397 (CSF1R inhibitor) can dramatically attenuate tumor expansion and even results in tumor regression by 15%.⁵¹ FcγR is a receptor typically expressed by TAMs. Similarly, a PD1 antibody also results in tumor growth inhibition in colon cancer xenografts, although this efficacy typically varies among mice. Strikingly, when a PD1 antibody and FcγR antagonist were simultaneously administrated, tumor growth was completely inhibited in all mice.⁵² Additionally, suppressing IL-10 signaling in TAMs can promote CD8⁺ T cell-mediated antitumor immune responses in breast cancer receiving chemotherapy.⁴⁶ Given these encouraging preclinical results, utilization of TAMs-targeting strategies is promising for future clinical application as a combination therapy with checkpoint inhibitors.

3.3 TAMs aggravate cancer drug resistance

TAMs density is also closely correlated with therapeutic responses and is highlighted in cancer drug resistance. Multiple studies have found that TAMs populations are enriched following toxic cancer-killing treatments. In aromatase-inhibitor–resistant breast cancer, TAMs density is much higher in primary tumor tissues and significantly correlates with decreased disease-free survival (DFS) and overall survival (OS).⁵³ TAMs infiltration was also found to be elevated following chemotherapy in a pancreatic ductal adenocarcinoma model, and TAMs pretreatment could render pancreatic cancer cells resistant to gemcitabine whereas this efficacy was strikingly enhanced by TAMs depletion via clodronate liposomes.⁵⁴ In colon cancer, TAMs infiltration has frequently detected been in chemoresistant patients and is significantly associated with poor survival.⁵⁵ The macrophage marker, CD68, is positively correlated with the expression of MDR1. Notably, blocking IL-6 secreted from TAMs is capable of resensitizing colon cancer cells to chemotherapeutic drugs. Meanwhile, B-cell activating factor released by TAMs is also effective in mediating bortezomib resistance in myeloma. In addition to cytokine secretion, ligand–receptor interactions between cells are also involved in mediating chemoresistance.⁵⁶ In a macrophage–myeloma contact model, plasma-membrane protein/gene profiling assays have demonstrated that CD18 and selectins in macrophages remarkably contribute to chemoresistance via combining with intracellular cell adhesion molecule-1 (ICAM-1) and P-selectin glycoprotein ligand-1 (PSGL-1), respectively, in myeloma cells. Pharmacological inhibition or genetic knockdown of PSGL-1 or ICAM-1 signaling in these myeloma cells can diminish the protective effects of TAMs from cytotoxic cancer-killing agents including melphalan, doxorubicin, and bortezomib. Recent findings also suggest that exosomes are also implicated in TAMs-induced chemoresistance. It is found that macrophages-derived exosomal miR-21 signal could be directly delivered into gastric cancer cells, and thus results in apoptosis inhibition and cisplatin resistance of gastric cancer cells.⁵⁷ Therefore, it may be worthwhile to apply TAMs-targeting therapies with traditional cancer-killing strategies in future clinical applications.

3.4 TAMs accelerate cancer recurrence and metastasis

Local recurrence and distant metastasis are not solely determined by the malignant behavior of cancer cells because recent studies have suggested that stromal cells, particularly TAMs, act as an important driving force in these processes. For example, Giurisato et al. proved that extracellular-regulated protein kinase 5 (ERK5)-mediated macrophage proliferation could support melanoma invasiveness and metastasis in vivo, suggesting TAMs renewal as an integral component of tumor metastasis.⁵⁸ Mechanistically, numerous researches have demonstrated the crucial role of TAMs in regulating the epithelial–mesenchymal transition (EMT) process.^59-61 Cocultured hepatocellular cancer cells with TAMs could enhance the expression levels of mesenchymal markers including N-cadherin and vimentin, whereas attenuating the epithelial marker E-cadherin.⁶⁰ A similar phenomenon was also observed in breast, gastric, colon, and pancreatic malignancies.⁶² Biologically, multiple TAMs-secreted cytokines including IL-1β, IL-8, EGF, TNF-α, and TGF-β have been validated to promote the EMT process.^{60, 63, 64} Meanwhile, TAMs can secrete various kinds of proteolytic enzymes including MMPs, cathepsins, and serine proteases to degrade the extracellular matrix (ECM).^{65, 66} For instance, cathepsin B and S secreted by TAMs were found to be critical in promoting pancreatic cancer invasion.⁶⁷ An earlier study also demonstrated that TAMs synthesize SPARC/osteonectin to deposit collagen IV, resulting in enhanced tumor invasion and adhesion to other ECM components.⁶⁸ TAMs have also been shown to be necessary for facilitating cancer cell intravasation and extravasation. Multiphoton intravital imaging techniques have shown that intravasating cancer cells are invariably accompanied by a macrophage within one cell diameter.⁶⁹ Interestingly, macrophages loss can significantly impair the extravasation rates and metastasis of cancer cells.⁷⁰ Additionally, TAMs have also been found to be critical in supporting the survival of cancer cells in the circulation. TAMs depletion via genetic methods can dramatically suppress cancer cell survival in pulmonary capillaries as well as the subsequent lung metastasis formation.^{71, 72} The underlying molecular mechanisms of their synergistic interaction are as follows. First, TAMs may trigger PI3K/Akt survival signaling in cancer cells to circumvent proapoptotic cytokines such as TRAIL.⁷³ Second, TAMs may alleviate survival stress from NK or cytotoxic T cells in the circulation.⁷² Following extravasation, it has been found that TAMs are one of the key determinants in establishing the premetastatic niche (PMN).⁷⁴ Circulatory or residential TAMs can release chemokines that guide the localization of cancer cells into the PMN with increased expression levels of MMPs, fibronectins, S100A8, and S100A9.^75-77 Our recent report demonstrated that TAMs-derived CXCL1 exerted an important role in recruiting breast cancer cells into the PMN.⁷⁸ Thus, TAMs act as an indispensable factor in fostering cancer cells traveling from the primary site to metastatic lesions. Molecular elucidation of TAMs regulation in cancer development is thus warranted and critical for further developing cancer-targeting strategies.

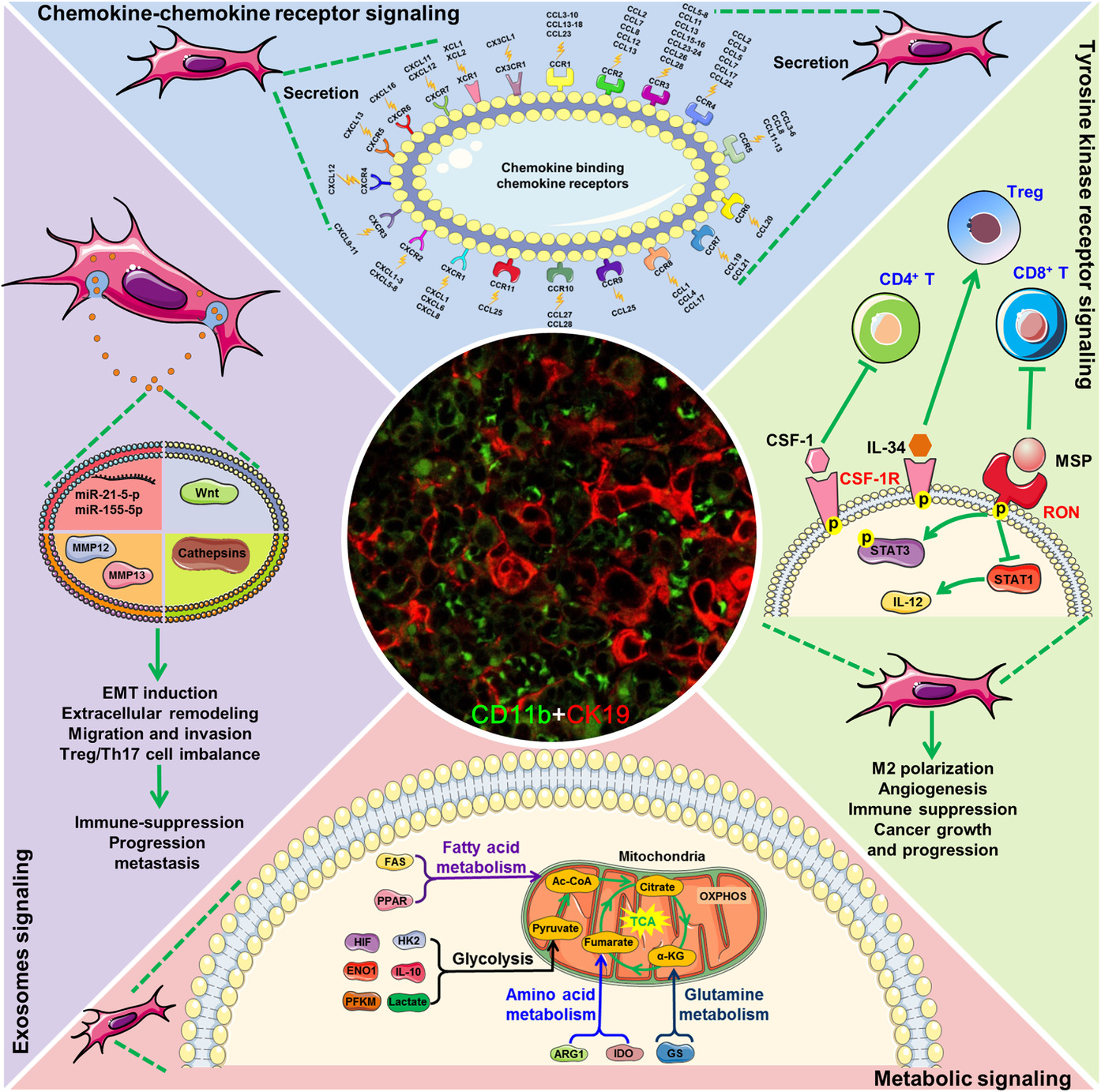

4.1 Chemokine–chemokine receptor signaling

Chemokines, which are small and soluble (8–14 kDa) signaling proteins, are a family of chemotactic cytokines responsible for cellular trafficking. More than 50 kinds of chemokines and 20 kinds of chemokine receptors have been identified until now.⁷⁹ According to the positions of conserved cysteine residues, chemokines can be classified into four groups including CXC, CC, CX3C, and C.⁸⁰ Correspondingly, chemokine receptor nomenclature essentially follows that of chemokines. Eleven kinds of CC chemokine receptors (CCR1–CCR11) recognize the CC subfamily chemokines, while seven kinds of CXC receptors (CXCR1–CXCR7) recognize the CXC subfamily chemokines, respectively.⁸⁰ Similarly, the CX3C subfamily chemokine (CX3CL1) only binds to CX3CR1 receptor while the C subfamily chemokines (XCL1/2) only bind to XCR1 receptor, respectively. Chemokine receptors are typical G-protein-coupled receptors (GPCRs) with seven transmembrane domains. Chemokine receptors can relay their signals through heterotrimeric G proteins that result in the directional migration of cells along a concentration gradient of ligands.⁷⁹ The interactions between chemokine and chemokine receptors are summarized in Figure 2 and Table 1. In the TME, TAMs are considered as the main stromal cells that secrete chemokines. As indicated by chemokine arrays, highly expressed chemokines of TAMs have been reported to consist of CCL2, CCL3, CCL5, CCL18, CXCL1, and CXCL12. Currently, the ligand receptor for CCL2 has been identified as CCR2. CCR1 and CCR5 have been found to be the receptors for both CCL3 and CCL5. Meanwhile, CCR3 has also been identified as a receptor for CCL5. By immunoprecipitation methods, the cognate receptor for CCL18 has been identified as PITPNM3, which has been suggested to be a putative six-transmembrane protein that is sufficient to exert GPCR-related functions. Additionally, the receptors for CXCL1 and CXCL12 have been identified to be CXCR2 and CXCR4, respectively.

Chemokines and chemokine receptors are important for attracting infiltrating leukocytes to the TME. CCL2 and CCL5 are the primary chemokines responsible for monocytic precursors recruitment in tumors.^81-83 Their expression levels are closely associated with TAMs infiltration, lymph-node metastasis, as well as unfavorable prognosis. CCL2 production from macrophages is critical for recruiting myeloid-derived suppressor cells (MDSCs) to build a local immunosuppressive microenvironment in gliomas.⁸⁴ Moreover, in mixed-bone marrow chimeric assays, CCR2-deficient MDSCs failed to accumulate in gliomas.⁸⁴ In addition, the CCL2-CCR2 axis was also found to be critical in mobilizing dendritic cell-like antigen-presenting cells into fibrosarcomas, as well as tumor-infiltrating lymphocytes.⁸⁵ Multiple studies have demonstrated that CCL5 can inhibit the antitumor immune response and is correlated with poor outcomes in multiple malignancies.^86-89 CCL5/CCR3 signaling has been found to promote Th2 immune polarization and results in luminal breast cancer.⁹⁰ The CCL5/CCR5 chemokine axis is also capable of enhancing TGF-β-mediated killing of cytotoxic CD8⁺ T cells in colon cancer through regulatory T cells.⁹¹ With regard to CXC chemokines, CXCL1 chemokines have been demonstrated to be effective in recruiting CXCR2⁺ Treg cells and lead to metastasis in nonsmall cell lung cancer.⁹² CXCL1 is also critical in facilitating PMN formation in colorectal cancer by recruiting CXCR2⁺ MDSCs.⁹³ Meanwhile, CXCL12/CXCR4 signaling has been reported to induce the recruitment of MDSCs in the TME of human ovarian cancer.⁹⁴ Besides shaping the tumor immune milieu, chemokine axis is also critical in regulating the neoangiogenic process. CXC chemokines have been reported to be directly chemotactic for endothelial cells and to stimulate angiogenesis in vivo.⁹⁵ CXCR4 receptor is expressed on endothelial cells and its activation after CXCL12 binding can induce the proliferation and migration of endothelial cells. Moreover, CXCL12 recruits CXCR4⁺ circulating or bone-marrow endothelial precursors and therefore promotes tumor angiogenesis.⁹⁶ Similarly, CXCL1 was also reported to promote neoangiogenesis in breast, liver, and colorectal cancers.^97-99 Finally, chemokine signaling can directly act on chemokine receptors expressed on the plasma membrane of cancer cells, thus controlling their malignancy-related functions. For example, a variety of chemokine receptors—including CXCR2, CXCR4, CCR1, CCR2, and CCR5—have been found in breast tumor cells.^100-104 It is found that CXCL1 can induce chemoresistance and metastasis of breast cancer via CXCR2 activation.¹⁰⁵ Furthermore, CCL2 induces hepatocellular carcinoma invasion and EMT via CCR2 activation.¹⁰⁶ CXCL12 is also capable of regulating glioblastoma-stem-like cells by modulating CXCR4.¹⁰⁷ Moreover, CXCL12-CXCR4 signaling has also been highlighted in guiding the homing of cancer cells to their specific metastatic organs.¹⁰⁸ Altogether, these diverse chemokine functions establish crosstalk between cancer cells and the TME, which represents a promising target for the successful development of novel therapeutic strategies.

It should be pointed out that multiple chemokines play multifaceted roles within the complicated TME, usually dividing into two directions: paracrine signaling for immune activation and autocrine signaling for proliferation and metastasis of cancer cells.^109-111 For example, the CXCL9-10 axis could induce the migration, differentiation, and activation of the CXCR3⁺ activated T or NK cells, leading to increased antitumor immune response.¹¹² Additionally, CCL5/CCR5 axis is also a double-edged sword in cancer. On one hand, CCL5 could promote CSCs self-renewal and recruit the immunosuppressive cells (such as CCR5⁺ TAMs and Tregs) to form a tumor-protecting TME. On the other hand, CCL5 could also promote antitumor immunity by recruiting CCR5⁺ activated T cells and DCs to the TME and therefore enhances the immunotherapy response in different tumor types.^{110, 111}

TAMs-related chemokine signals have been widely investigated in skin area because of their reliable prognosis and therapeutic values for skin tumors. For example, Wu et al. reported that TAMs-related chemokine signals played key roles in the development and progression of cutaneous T-cell lymphoma (CTCL). Compared with normal controls, mycosis fungoides (the most common variant of CTCL) skin displayed abundant TAMs infiltration as well as increased expression of a subset of macrophage-related chemokines and associated receptors.¹¹³ Selective depletion of M2-phenotype TAMs using clodronate-containing liposomes remarkably delayed mycosis fungoides development in vivo. Interferons (IFNs) have been widely used for mycosis fungoides and malignant melanoma treatment in the clinic. Growing evidence has suggested that modulating TAMs-related chemokine signals may be the possible mechanism of the therapeutic effects of IFNs. For example, Furudate et al. reported that IFN-α2a and IFN-γ stimulation could decrease the release of CCL17/18, whereas elevating the production of CXCL10/11 in monocyte-derived TAMs in vitro. More importantly, the subcutaneous administration of IFN-α2a could increase the CXCL11-secreting cell population in the lesional skin of advanced mycosis fungoides patients.¹¹⁴ Kakizaki et al. reported that peritumoral injection of IFN-β remarkably suppressed the recruitment of PD-L1⁺ TAMs in B16F10 melanoma xenograft in vivo.¹¹⁵ Meanwhile, IFN-β administration dramatically attenuated the production of CCL17/22, whereas elevated the secretion of CXCL9/11 from TAMs. More importantly, these immunomodulatory effects of IFN-β on TAMs were also observed in the lesional skin of patients with in-transit melanoma. It should be noted that the clinical application of IFNs for the treatment of cancer is still controversial. For example, Numerous clinical trials have examined the antitumor potential of recombinant IFN-γ as an adjuvant to surgery or conventional chemotherapy.¹¹⁶ However, these clinical trials often reported conflicting outcomes in patients with the same tumor type.¹¹⁶ Extensive efforts are still needed to better understand the complex roles of IFNs in cancer treatment.

4.2 RTK signaling

RTKs play a vital role in signal transduction that supports cellular communication and survival. Dysregulation of RTKs, such as receptor mutation or overexpression, contributes to the initiation, tumorigenesis, and progression of multiple malignancies. To date, it has been reported that 58 kinds of RTKs are edited by the human genome.^{117, 118} Notably, colony stimulation factor-1 receptor (CSF-1R), one of the most important members of the RTKs family, is highly expressed by TAMs.¹¹⁹ Upon binding to its ligands including CSF-1 or IL-34, CSF-1R undergoes dimerization and therefore causes a signaling cascade that facilitates the proliferation, functioning, and survival of macrophages. High expression of CSF-1 has been found in breast, prostate, pancreatic, gastric, and many other types of cancers, and its level has been closely associated with TAMs density and poor prognosis.^120-123 It is found that CSF-1-positive cancer cells colocalize with abundant CSF-1R-positive TAMs in invasive breast cancer, and the CSF-1/CSF-1R axis is significantly correlated with a higher grade, basal-like phenotype, and lymph node metastasis.¹²⁴ In CSF-1-knockout MMTV-PyMT^+/- spontaneous breast cancer mice, the perivascular macrophage density was declined with a sixfold reduction, accompanied by a 16-fold decrease of circulating tumor cells in the blood.¹²⁵ Moreover, CSF-1/CSF-1R signaling of macrophages could suppress CD4⁺ T-cell responses and induce the generation of Treg cells, which facilitated the immune-suppressive TME.¹²⁶ Additionally, CSF-1 is also involved in the pro-angiogenic process since it promotes M2-like polarization of macrophages and secretes a variety of angiogenic factors.¹²⁷ Therefore, blocking CSF-1/CSF-1R activation is becoming an important therapeutic strategy to inhibit cancer growth and metastasis.

RON is another RTK expressed on macrophages surface that specifically recognizes macrophage-stimulating protein (MSP). Overexpression of RON has been implicated in the progression and metastasis of diverse malignancies. In breast cancer, MSP/RON overactivation is sufficient to promote cancer growth as well as metastasis to the lungs, liver, brain, and bone. Conversely, RON inactivation is capable of inhibiting the growth, angiogenesis, and metastasis of breast cancer xenografts.¹²⁸ The cancer-promoting effects of MSP/RON signaling are mainly attributed to the M2-like phenotype polarization of macrophages. RON activation can cause the phosphorylation of STAT3, which is essential for the tumor-promoting efficacies and immunosuppressive functions of TAMs.¹²⁹ By contrast, the MSP/RON pathway can downregulate STAT1 activity, which actively participates in antitumor immune responses via up-regulating IL-12.¹³⁰ Eyob et al. has demonstrated that RON signaling in macrophages is capable of impairing antitumor functions of CD8⁺ T cells.¹³¹ Altogether, both STAT3 activation and STAT1 inactivation induced by MSP/RON signaling may contribute to tumor immune tolerance and lead to cancer progression. Considering the important role of RON receptor signaling in TAMs modulation, pharmacological inhibition of RON kinases has received more attention from research groups around the world.

Mer tyrosine kinase (MerTK) is also a macrophage-specific RTK and its overexpression usually correlates with poor prognosis in cancer.¹³² MerTK signaling activation can promote tumor immune tolerance by initiating macrophages efferocytosis and promoting the clearance of immunogenic antigens. Meanwhile, MerTK signaling activation can suppress inflammatory cytokines production and polarize macrophages toward the anti-inflammatory M2-like phenotype.¹³³ In contrast, macrophages MerTK signaling blockage can induce the repolarization of macrophages toward the M1-like phenotype and enhance antitumor immunogenic cell death, a crucial step in T-cell priming and activation.¹³⁴ Thus, MerTK blockade may represent a promising antitumor strategy that could significantly increase tumor immunogenicity and potentiate antitumor immunity. It has been reported that MerTK knockdown or MerTK neutralizing antibody treatment could remodel the cellular immune profile, bringing a more inflamed TME with increased T cell infiltration and T cell-mediated cytotoxicity.¹³² Additionally, anti-MerTK antibody treatment could stimulate T cell activation and synergize with anti-PD-1 or anti-PD-L1 therapies in tumor-bearing mice.¹³⁵ Altogether, macrophages MerTK blockade could promote tumor immunogenicity and potentiate antitumor immunity, which represents a promising strategy for tumor immunotherapy.

4.3 Metabolic signaling

A typical feature of cancer cells is their abnormal metabolism caused by oxygen deprivation and nutrient limitation.¹³⁶ Hypoxic TME not only induces the metabolism pattern shifting of cancer cells but also reprograms the polarization balance and metabolic mode of macrophages, which facilitate the formation of immune-suppressive TME. In hypoxic regions of tumors, a more dominant M2-like phenotype is observed, which might indicate the potential effects of hypoxia on macrophage polarization.¹³⁷ Hypoxia-inducible factors (HIFs) are major transcriptional factors that are responsive to hypoxia and control aerobic glycolysis.¹³⁸ Enhanced glycolytic activity allows macrophages to synthesize sufficient ATP and various biosynthetic intermediates to maintain their tumor-prone functions. A recent study demonstrated the enhanced glycolytic activity of TAMs when compared with that of bone marrow–derived macrophages (BMDMs). Glycolytic proteins, such as hexokinase-2, phosphofructokinase, and enolase 1, were all increased in TAMs.¹³⁹ Similar findings were also observed in a transwell co-culture model of macrophages with cancer cells or tumor-extract solutions.¹⁴⁰ In addition to intrinsic HIF activation, cytokines and lactate released from cancer cells under hypoxic conditions also contribute to the glycolytic phenotype of TAMs. In hypoxic melanoma cells, HIF-1α accumulation induces HMGB1 translocation that causes IL-10 production, which consequently promotes M2-like macrophage activation.¹⁴¹ Cancer-cell–derived lactate has also been reported to reprogram macrophages to a tumor-prone phenotype by inhibiting the NF-κB pathway that in turn may impair M1-like activation and suppress the immune surveillance functions of infiltrating T cells and NK cells.^142-144 Interestingly, the OXPHOS chain has also been found to be elevated in a coculture model of thyroid-carcinoma cells and macrophages, characterized by enhanced oxygen consumption rate.¹⁴⁰ The concentrations of AcCoA and succinate are significantly increased in the mitochondria of M2-like macrophages, suggesting that TAMs have an intact OXPHOS despite an impaired TCA cycle.¹⁴⁵ The enhanced OXPHOS chain may not only yield ROS-induced DNA damage but may also provide citrates for fatty acid synthesis. However, more studies are still required to reveal the precise switching mechanisms between glycolysis and OXPHOS in TAMs depending on cancer types and stages.

Fatty acid metabolism is important in cancer development. It has been suggested that increased fatty acid metabolism provides cancer cells with sufficient membranes and energy to support cancer growth.¹⁴⁶ It is found that fatty acid oxidation is necessary for IL-4-induced macrophage activation, as CPT1 suppression could attenuate the expression of the M2-like marker proteins, CD301, and CD206.¹⁴⁷ Meanwhile, fatty acid oxidation can activate the downstream COX2/PGE2 pathway to promote cancer growth and metastasis. TAMs express high levels of fatty acid synthase and increased PPAR signaling, which promote fatty acid oxidation and tumor growth.¹⁴⁸ PPARs are composed of three isoforms including PPAR-α, PPAR-β/δ, and PPAR-γ. PPAR-α manages lipid oxidation and clearance. PPAR-γ facilitates lipogenesis while PPAR-β/δ controls lipid uptake and storage.¹⁴⁹ PPAR-β/δ plays a crucial role in mediating M2-like polarization.¹⁵⁰ Ovarian cancer patient-derived TAMs exhibited increased expression levels of multiple PPAR-β/δ target genes when compared with that of monocyte-derived macrophages.¹⁵¹ Lipidomic analysis revealed that the deregulation of PPAR-β/δ target genes did not result from PPAR-β/δ overexpression or its promotion effect on target genes, but was attributed to high levels of polyunsaturated fatty acids, especially arachidonic acid and linoleic acid in tumor ascites.¹⁵¹ The internalization of polyunsaturated fatty acids and the subsequent lipid droplet formation may provide a reservoir of PPAR-β/δ ligands to TAMs, leading to a consistent activation of PPAR-β/δ target genes, such as pyruvate dehydrogenase kinase 4 (PDK4). Interestingly, PDK4 can induce glucose catabolism shifting toward aerobic glycolysis, further rendering TAMs to adapt to hypoxic TME.¹⁵¹ PPAR-γ is also known to regulate metabolic pathways and M2-like polarization. Macrophage deficiencies in PPAR-γ and δ and their coactivator, PGC1β, are ineffective for IL-4-induced fatty acid oxidation and M2-like polarization.¹⁵² Hence, targeting of PPAR signaling is a promising approach to control macrophage activation and cancer progression.

In addition to enhanced glycolysis and fatty acid oxidation, M2-like macrophages have also been found to increase glutamine synthesis through glutamate, which has not been demonstrated in M1-like macrophages.¹⁵³ Inhibition of glutamine syntheses results in a 50% reduction of M2-like polarization, which might be ascribed to the role of glutamine in protein glycosylation.¹⁵⁴ Meanwhile, glutamine is extensively fluxed into the TCA cycle to provide enough carbons to satisfy energetic needs.¹⁵⁵ Besides glutamate, another amino acid, arginine, is also required in the ARG1 pathway of M2-like macrophages.¹⁵⁶ Interestingly, ARG1 is also the downstream gene of HIF-1α. ARG1 overexpression not only enables cancer cells to rapidly adapt to the hypoxic microenvironment but also results in the production of ornithine and urea.¹⁵⁶ Ornithine can be further utilized in the synthesis of proline and polyamine, which are required for cellular proliferation, tissue remodeling, and collagen biogenesis.¹⁵⁷ Moreover, the arginine clearance by ARG1 suppresses T-cell immune responses, favoring the establishment of the immunosuppression microenvironment.¹⁵⁷ Besides, tryptophan metabolism has been shown to be deregulated in cancers. It was found that the enzyme accounting for tryptophan catabolism, indoleamine-2, 3-dioxygenase (IDO), was frequently overexpressed in M2-like macrophages.¹⁵⁸ IDO upregulation was reported to inhibit T-cell functions, whereas tryptophan treatment or administration of IDO inhibitors could restore T-cell proliferation.¹⁵⁸

RAGE (receptor for advanced glycation end-product) is a member of the immunoglobulin superfamily and has been reported to be highly expressed on the surface of macrophages.¹⁵⁹ It has been reported that RAGE overexpression could induce the accumulation of TAMs and thus accelerate the growth of lung cancer xenografts in vivo.¹⁶⁰ Mechanistically, RAGE expression strictly correlates to the metabolic switch in cancer and immune cells. For example, cancer cells usually exhibit a metabolism switch characterized by decreased mitochondrial oxidative phosphorylation as well as elevated glycolysis, leading to the overproduction of toxic glucose metabolites.¹⁶¹ The toxic glucose metabolites such as lactate, sorbitol, diacylglycerol (DAG), and methylglyoxal (MG) could further contribute to the development of advanced glycation end products (AGEs). On one hand, the formation of AGEs could impair the phagocytosis function of M1-like macrophages within the TME.¹⁶² On the other hand, AGEs could induce RAGE expression in macrophages and their interaction could further promote cancer progression and metastasis by recruiting TAMs.^{160, 163} Therefore, AGEs/RAGE signaling may also represent a metabolism-related target for the pharmacological modulation of TAMs, which still needs further investigations. Collectively, the above findings suggest that the metabolic pathways and targets can also be applied to modulate the biological functions of TAMs, which may provide valuable opportunities for treating multiple malignancies (Figure 2 and Table 1).

4.4 Exosomal signaling

In recent years, exosomal signaling has evoked increased interest in cancer research. Exosomes are defined as small extracellular vesicles that are 30–100 nm in diameter.¹⁶⁴ Similar to cells, exosomes are composed of a lipid bilayer containing all known molecular components including DNA, RNA, and proteins.¹⁶⁵ Exosomes can be released by all cell types and widely exist in human bodily fluids such as blood, urine, amniotic fluid, bronchoalveolar lavage fluid, and malignant fluid. In particular, normal human blood is expected to contain approximately 2,000 trillion exosomes, while this value is elevated to 4,000 trillion in the blood of cancer patients.^166-168 Therefore, exosomal signaling is highly implicated in intercellular communication and carcinogenesis. Recent studies have also demonstrated that exosomal signaling plays a vital role in tumor angiogenesis,¹⁶⁹ metastasis,¹⁷⁰ drug resistance,¹⁷¹ and immune regulation,¹⁷² particularly for exosomes derived from macrophages. It has been reported that TAMs-derived exosomes exhibit high expression levels of miR-21-5-p and miR-155-5p, which significantly promote cellular migration and invasion of colorectal cancer cells.¹⁶⁴ Besides, exosomes from macrophages also contain a high level of Wnt, which is considered to provide critical signaling in EMT induction and mesenchymal-phenotype maintenance.^{173, 174} In addition to metastasis, TAMs-derived exosomes also contribute to extracellular-matrix remodeling. It has been shown that MMP-12 and MMP-13, as well as cathepsin B, D, K, L, S, and Z, are all upregulated in TAMs-derived exosomes, suggesting their positive roles in extracellular remodeling.¹⁷⁵ Notably, exosomes released from TAMs also contain miRNAs that lead to Treg/Th17 cell imbalance in ovarian cancer, resulting in the generation of an immune-suppressive TME and thus promoting cancer progression and metastasis.¹⁷⁶ Altogether, targeting TAMs-derived exosomal signaling represents a novel and promising approach for cancer treatment (Table 1).

5.1 Agents targeting chemokine–chemokine receptors

Chemokine–chemokine receptor signaling constitutes an important network that regulates cancer growth, angiogenesis, immune suppression, and metastasis. Targeting of chemokine–chemokine receptor networks has been evaluated in multiple preclinical models and clinical trials, particularly in terms of the CCL2-CCR2, CCL5-CCR5, and CXCL12-CXCR4 axes (Table 2). Blockade of CCL2 with a neutralizing antibody inhibited inflammatory monocyte recruitment, reduced lung metastasis, and prolonged OS in breast cancer–bearing mice.³¹⁵ In a metastatic prostate cancer model, combined treatment with an anti-CCL2 antibody and docetaxel caused reduced tumor burden and bone resorption, as well as an improved survival period.³¹⁶ The development of CCR2 inhibitors has also yielded encouraging results in cancer treatments. Oral administration of the CCR2 inhibitor, PF-04136309, in a preclinical pancreatic cancer model reduced the number of tumor-infiltrating macrophages and inflammatory monocytes.³¹⁷ Significantly, PF-04136309 acted synergistically with the chemotherapeutic drug, gemcitabine, to inhibit metastasis, increase anti-tumor T-cell responses, and ultimately lead to an enhanced chemotherapeutic efficacy.³¹⁸ Similarly, the synergistic effects between PF-04136309 and paclitaxel or the standard chemotherapy, FOLFIRINOX, have also been reported in pancreatic cancer patients.³¹⁹ Another CCR2 inhibitor, CCX872, was demonstrated to improve anti-PD-1 treatment in preclinical settings and positive results were also obtained when used in combination with the FOLFIRINOX strategy in pancreatic cancer patients.³²⁰ In murine models of hepatocellular carcinoma, combined treatment with the CCR2 antagonists, RDC018 or 747, with sorafenib was validated to inhibit tumor growth and metastasis, accompanied by a significant reduction of macrophage infiltration.^{321, 322} It should be pointed out that there are also some disappointing results in the clinical trials of CCL2/CCR2 blockers. For example, carlumab, a human IgG1κ anti-CCL2 mAb, did not show antitumor activity as a single agent in metastatic castration-resistant prostate cancer patients in a phase II study.³²³ Overall, the above results suggest that the CCL2-CCR2 axis may be a promising target for cancer treatment, especially when used in combination with traditional cancer-killing strategies or immunotherapies. However, the successful pharmaceutical development of CCL2/CCR2 blockers still has a long way to go.

With regard to CCL5-CCR5 signaling, systemic treatment of mice with CCL5-directed antibodies inhibit colon cancer growth, lung metastasis, and peritoneal dissemination.³²⁴ CD45-immunoreactive cells in tumor tissues and adjacent healthy tissues have been found to be upregulated following CCL5 blockade. Meanwhile, CCL5 neutralization renders colon tumors more sensitive to PDGFRβ-targeted therapy.³²⁴ CCL5-targeted blockade has also been demonstrated to be effective in several malignancies including breast,³²⁵ gastric,³²⁶ and prostate cancers.³²⁷ Concurrently, much attention has been paid to the discovery of CCR5 antagonists. Maraviroc, an FDA-approved CCR5 antagonist, has been applied as an antiretroviral therapy strategy for HIV infection.³²⁸ Recent studies have demonstrated its efficacy to suppress cancer cell invasiveness in a variety of cancers. Maraviroc administration resulted in cell-cycle arrest and apoptosis in both colorectal and breast cancer cell lines in vitro.^{325, 329} In gastric cancer, treatment with maraviroc effectively reduced tumor burden, inhibited peritoneal dissemination, and prolonged the survival period.³²⁶ It was also observed that maraviroc significantly inhibited pancreatic cancer liver metastasis, accompanied by marked cell-cycle arrest at the G1/S checkpoint.³³⁰ TAK779 is another synthetic CCR5 antagonist that was initially developed for HIV treatments.³³¹ Menu et al. demonstrated that TAK779 has direct inhibitory effects on melanoma growth in vitro and in vivo.³³² Another study suggested that TAK779 could efficiently block CCR-5-dependent T-cell migration.³³³ In a pancreatic cancer mouse model, TAK779 administration resulted in significant suppression of Treg recruitment and cancer growth.³³⁴ Compared to synthetic CCR5 inhibitors, aibamine is the first natural CCR5 antagonist with an IC₅₀ of 1 μM.³³⁵ Alibamine was found to suppress the invasion and metastasis of prostate cancer cells in mice.³²⁷ By analyzing the chemical structure differences between anibamine and other CCR5 inhibitors, the main difference has been shown to consist of the side chains of anibamine being simple, undecorated, and aliphatic chains.³³⁶ Therefore, further drug development based on the structure of anibamine may bring a novel candidate drug for cancer treatment.

CXCL12-CXCR4 is the most commonly overexpressed signaling pathway in a variety of cancers and a number of small-molecule drugs and peptide inhibitors that target CXCR4 have been developed. AMD3100 is the first CXCR4 antagonist that is used for hematopoietic stem cell mobilization during transplantation in patients with non-Hodgkin's lymphoma or multiple myeloma.³³⁷ Furthermore, AMD3100 and its derivate, AMD3465, are also capable of mobilizing cancer cells in the bone marrow to ultimately enhance the efficacies of conventional therapies.³³⁸ AMD3100 treatment in leukemic mice induced a ninefold increase in circulating leukemic cells.³³⁹ The combined treatment of chemotherapy and AMD3100 led to a reduced tumor burden and improved OS compared with those in mice received chemotherapy alone. A similar phenomenon was also observed in a phase 1/2 study of refractory acute myeloid leukemia.³³⁹ In addition to its chemosensitizing effects, AMD3100 synergistically interacts with antibodies targeting PD-L1 and CTLA-4 results in enhanced T-cell infiltration into tumor tissues, yielding a greater anticancer response.³⁴⁰ Another CXCR4 antagonist, LY2510924, is also able of suppressing cancer growth and metastasis in multiple preclinical models.^{341, 342} Notably, LY2510924 was demonstrated to be clinically safe and well-tolerated in advanced solid cancers including colorectal, lung, breast, and prostate cancers.³⁴³ Meanwhile, several CXCR4 small-molecule antagonists—such as BKT140, PRX177561, and POL5551—are also capable of inhibiting cancer growth and metastasis.^344-346 Recent studies have also suggested that peptide inhibitors targeting the amino-terminal region of CXCR4 are also effective in inhibiting cancer growth, such as T22, TN14003, and CTCE-9908.^347-349 In preclinical models, TN14003 significantly inhibited pulmonary metastasis of melanomas, as well as breast cancers.^{350, 351} Similarly, CTCE-9908 showed considerable inhibitory effects on cancer growth and metastasis in malignancies including osteosarcomas and melanomas, as well as breast and prostate cancers.^{347, 352, 353} These results suggest that disrupting the CXCL12-CXCR4 axis represents a viable strategy for further anticancer drug developments. However, most of the above-mentioned studies were carried out in the early course of cancer progression, and preclinical models may not fully simulate the clinical pathological process. Therefore, further clinical trials investigating the efficacies and safeties of CXCR4 antagonists are urgently needed in the context of advanced cancers.

5.2 Agents targeting tyrosine kinases

Given the activated CSF-1/CSF-1R signaling in multiple malignancies and their significant implications in predicting poor prognoses, developing agents to block the CSF-1/CSF-1R axis has attracted increasing research attention. Currently, both CSF-1/CSF-1R antibodies and CSF-1R kinase inhibitors have been successfully developed for therapeutic regulation of macrophages. The key advantage of antibodies over kinase inhibitors is their higher selectivity and safety. Currently, several CSF-1/CSF-1R targeted antibodies have been developed. H27K15 is a novel competitive monoclonal antibody for CSF-1 blockage that has been generated for cancer immunotherapy. Enzyme-linked immunosorbent assays (ELISAs) have shown that H27K15 produces no cross-reaction with other tyrosine kinases and can inhibit CSF-1R phosphorylation by blocking CSF-1.³⁶² In preclinical models, H27K15 can decrease the secretion of both MCP-1 and IL-6, which play important roles in recruiting M2-like macrophages. H27K15 is also capable of preventing monocyte differentiation into CD163⁺CD64⁺ M2-like macrophages and induces their differentiation into CD14^-CD1a⁺ dendritic cells.³⁶³ RG7155 is designed as a humanized monoclonal antibody against CSF-1R, with an IC₅₀ of 0.3 nM.³⁶⁴ RG7155 can suppress CSF-1R dimerization and therefore interrupt the formation of the CSF1/CSF1-R complex. Consequently, RG7155 results in a significant reduction of CD68/CD163 macrophages.³⁶³ It has been reported that objective responses were observed in 83% of patients with diffuse-type tenosynovial giant-cell tumors (dt-GCTs) following RG7155 treatment, even during a short-course treatment in patients who are unable to undergo surgery.³⁶⁵ Additionally, RG7155 is also effective in increasing the CD8/CD4 ratio in multiple solid malignancies.^{363, 364} FPA008 is also a monoclonal antibody that disrupts the binding of CSF-1R to its ligands and thus suppressing downstream receptor activation. The modulatory effects of FPA008 on macrophages and other immune cells in a variety of cancers are currently under evaluation by phase-Ia/Ib clinical trials.³⁶³ With regard to adverse effects, increases in short-lived enzymes (e.g., AST, LDH) are detected, which might be due to spontaneous inhibitory effects of antibodies on CSF-1R⁺ Kupffer cells.³⁶⁶ Furthermore, common adverse effects also include fatigue, asthenia, facial edema, rash, and pruritus, but most of the events are only of grade 1 or 2 severities.

In addition to antibody therapies, multiple CSF-1/CSF-1R inhibitors are under development at clinical stages (Table 3). JNJ-40346527 is a selective inhibitor of CSF-1R with an IC₅₀ of 3.2 nM. In a phase-I/II clinical study of relapsed or refractory Hodgkin lymphoma, one patient out of 21 showed complete remission after JNJ-40346527 treatment (150 mg/day) for approximately 1 year. Furthermore, 11 patients remained with disease stabilization.³⁶⁷ Notably, in vivo pharmacological activity showed that CSF-1R phosphorylation was inhibited by 95% following JNJ-40346527 treatment (150 mg/day). Meanwhile, higher doses (150–600 mg/day) also demonstrated acceptable tolerability and safety in healthy volunteers.³⁶³ GW2580 is an orally bioavailable CSF-1R inhibitor with an IC₅₀ of 60 nM.³⁶⁸ However, GW2580 shows limited inhibitory effects on macrophage recruitment and tumor growth. Priceman et al.³⁶⁹ treated mice to test the effects of GW2580 in blocking TAMs infiltration into growing tumors. Despite the concentration reaching as high as 160 mg/kg, only a slight decrease in TAMs was observed, while no notable changes in monocytes infiltration levels were observed in peripheral tissues including bone marrow, blood, and the spleen. Nevertheless, the combination treatment of GW2580 and VEGFR2 antibody efficiently abrogated the recruitment of TAMs and monocytic MDSCs and synergistically enhanced the antiangiogenesis response.³⁶⁹ Meanwhile, GW2580 was also found to increase gemcitabine therapeutic efficacy in pancreatic cancer compared to that of GW2580 alone.³⁷⁰ GW2580 was found to inhibit gemcitabine-induced CSF-1 overproduction in cancer cells and thus inhibited the recruitment of immunosuppressive myeloid cells into tumors.³⁷⁰

Apart from the above highly selective CSF-1R inhibitors, several CSF-1R inhibitors with lower specificity have been identified, which also exhibit broader inhibitory activity on other kinases (Table 3). PLX3397 represents one such inhibitor and has an IC₅₀ of 13 nM on CSF-1R. Additionally, PLX3397 also exhibits activities against KIT, FLT3, and PDGFRβ.^{364, 371, 372} PLX3397 displays anticancer effects in multiple malignancies. In patients with tenosynovial giant-cell tumors, 52% of cases significantly responded to PLX3397 treatment with the disease control period lasting more than 8 months.³⁷³ In glioblastoma, PLX3397 not only prolonged the survival time but also slowed the disease progression rate.³⁷⁴ PLX3397 can easily cross the blood-brain barrier and reach glioblastoma tissue, resulting in a significant reduction of macrophage numbers and invasiveness of cancer cells. In a phase-II study of recurrent glioblastoma, PLX3397 treatment at a daily dose of 1000 mg showed acceptable tolerability and led to both CSF-1R activity inhibition and TAMs infiltration reduction in tumor tissues.³⁷² At present, multiple clinical trials are being designed and conducted to test the clinical efficacies of CSF-1R inhibitors on cancer inhibition. However, CSF-1R blockade alone usually achieves marginal therapeutic benefit, leading to the delay of tumor growth at most. Therefore, more clinical trials are of an urgent need to evaluate the combined effects of CSF-1/CSF-1R blockage and other treatment approaches including immunotherapies and standard treatment modalities. Particularly, results for combinations of CSF-1/CSF-1R blockage with immune-checkpoint inhibitors or other immunotherapeutic strategies are eagerly expected.

Several investigators have focused on the development of inhibitors targeting RON receptors (Table 3). The small-molecule ASLAN002 is a selective inhibitor of RON receptor with an IC₅₀ < 500 nM.³⁷⁵ ASLAN002 can block MSP-induced phosphorylation of RON. In a PyMT-MSP breast cancer mouse model, ASLAN002 administration (50 mg/kg) remarkably inhibited lung metastasis by two- to threefold.³⁷⁶ Even when ASLAN002 was administrated after the formation of metastatic colonization, a four-fold inhibitory response was observed, indicating that RON inhibition might be a novel therapeutic option to inhibit metastatic growth as an adjuvant treatment. A mechanistic study found that ASLAN002 resulted in a proinflammatory milieu in the TME, particularly in terms of an increase in TNF-α-positive macrophages.³⁷⁶ Additionally, CD8⁺ T cells act as critical factors influencing the efficacy of ASLAN002. The anti-tumor colonization ability of ASLAN002 was greatly suppressed in the absence of cytotoxic CD8⁺ T cells, indicating the immune-regulating cells may be primarily responsible for the anti-cancer effects of ASLAN002. However, future research is necessary to explore the synergistic effects between ASLAN002 and immune-checkpoint inhibitors. Another study revealed that in breast tumors harboring PIK3CA mutations, the anticancer effects of ASLAN002 were greatly limited, which were overcome by treatment with the PI3K inhibitor, NVP-BKM120.³⁷⁷ Meanwhile, concurrent inhibition of RON and PI3K provided a more durable response in PIK3CA-wild-type breast cancer. These results suggest that further investigation focusing on the combined applications of small-molecule inhibitors is worthwhile for improving clinical prognoses of cancer patients.

5.3 Bisphosphonates

Bisphosphonates are a family of inhibitors of osteoclast-mediated bone resorption and are widely applied in the treatment of bone diseases including postmenopausal osteoporosis, Paget disease, and bone metastasis. The first generation of nonamino bisphosphonates, such as etidronate and clodronate, are metabolized intracellularly into cytotoxic adenosine-triphosphate analogs that induce osteoclast cell death.³⁸⁸ Conversely, the second and third generations of bisphosphonates—such as ibandronate, risedronate, pamidronate, and zoledronic acid—are much more potent than nonamino compounds by inhibiting farnesyl-pyrophosphate synthases, which also results in osteoclast apoptosis.³⁸⁹ Moreover, preclinical studies demonstrate that bisphosphonates may also exhibit extraskeletal therapeutic effects in mouse breast cancer xenografts.³⁹⁰ For example, zoledronic acid was found to be phagocyted by TAMs and thus induced TAMs apoptosis and repolarization toward M1-like phenotype.⁹ In breast cancer patients, radiolabeled bisphosphonate was also found in the resected tumor infiltrated with TAMs and microcalcifications. Several studies have demonstrated the proinflammatory activity of amino-bisphosphonates in vitro. Ibandronate was found to enhance LPS-stimulated IL-6 and IL-1β secretion from mouse Raw264.7 macrophages.³⁹¹ A remarkable elevation in TNFα expression was also observed following pamidronate and zoledronic-acid administrations.³⁹² In mouse xenografts, ibandronate treatment led to increased infiltration of extravasated leukocytes and rolling leukocytes, accompanied by the stimulated production of TNFα and IFN-γ in peripheral blood, indicating its proinflammatory effects in vivo.³⁹³ In cancer patients treated with zoledronic acid, it was also found that the circulating concentrations of IFN-γ, TNFα, and IL-6 were all significantly elevated following drug administration, further confirming that amino-bisphosphonates might promote M2-like to M1-like repolarization to trigger inflammatory responses.³⁹⁴ By contrast, nonamino bisphosphonates have been demonstrated to inhibit cancer progression via suppressing the growth of macrophages. Clodronate inhibits iNOS expression in Raw264.7 macrophages, accompanied by a significant reduction of IL-6, IL-1β, TNFα, and NO secretions at noncytotoxic concentrations.³⁹⁵ Therefore, nonamino bisphosphonates might suppress macrophages in a cytostatic but not cytotoxic manner. Based on the above findings, bisphosphonates have been commonly applied to deplete TAMs in preclinical models. Although bisphosphonates have yielded improved survival in various kinds of preclinical animal models, bisphosphonates treatment alone is not able to induce complete regression of tumors. In fact, the application of bisphosphonates may induce side effects on residential macrophages in normal tissues, thereby influencing antitumor innate immunity. Considering that the complete depletion of macrophages in tumors could lead to worse therapeutic outcomes in some cases, TAMs-targeted reprogramming strategies that spare the potentially beneficial macrophages may be more preferable in the future.

5.4 Nanoparticle or exosomal-targeted delivery

Although pharmaceutical inhibitors and monoclonal antibodies have been developed for TAMs-targeting treatments, their therapeutic efficacies have been greatly limited by difficulties in penetrating biological barriers. Progress in nanotechnology has provided a valuable opportunity for improving drug-loading/drug-releasing parameters, biocompatibilities, and drug-circulation time. The engineering of new nanoparticles with the ability to target and kill or reeducate TAMs has stood up as a promising strategy for cancer treatment in recent years. As an important member of the mononuclear phagocytic system, macrophages play a major role in nanomaterials recognition, uptake, processing, and clearance.³⁹⁶ Therefore, the loading of macrophages with nanomedicines may be used to profit from the high infiltration and the innate tumor homing abilities of macrophages, allowing the drug release in the bulk of the tumor. For example, Rao et al. reported that the magnetic nanoparticles can be used to promote the repolarization of the M2-like TAMs as well as the systemic circulation and tumor accumulation of the loaded drugs.³⁹⁷ Notably, there are still some challenges for the effective targeting of TAMs with nanoparticles and their application in the clinic. The major one can be attributed to the undesirable clearance of nanoparticles by the mononuclear phagocyte system (macrophages) in clearance organs (liver, lung, or spleen) upon their intravenous injection. In vivo studies have demonstrated high nanomaterials sequestration by macrophages in clearance organs such as liver, spleen, and kidney.³⁹⁶ This is because that the immune system may recognize the components of nanoparticles (e.g., shell, core, surface-decorating moieties, and cargoes) as foreign, and initiates an immune response through a complex process.³⁹⁸ Therefore, because of the synthetic origin, nanoparticles are usually recognized by the host immune system and are preferentially sequestered by macrophages in filtering organs.

Recently, exosomes have emerged as natural nano-sized vesicles for drug delivery. Given their nanoscale size, excellent biocompatibility, potential capacity to express targeting ligands, and natural capacity to carry macromolecules, the use of exosomes for cancer treatment has raised considerable interest.^{399, 400} Due to the lipid bilayered membrane, exosomes exhibit good permeability and can cross most biological membranes, including the blood-brain barrier.⁴⁰¹ After reaching recipient cells, exosomes can activate certain signaling pathways by fusion to the plasma membrane and subsequent secretion of the contents into the cytoplasm of recipient cells. Alternatively, exosomes can enter cells through endocytic processes including receptor-mediated endocytosis, micropinocytosis, and phagocytosis. Moreover, exosomes have significant advantages in drug delivery areas without inducing proinflammatory responses or adverse immune reactions. More importantly, the composition of exosomal surfaces permits modifications for enhancing interactions between recipient cells and exosomes. Surface modification of naturally purified exosomes with GE11, an epidermal growth factor, was demonstrated to increase the targeting potential of exosomes to EGFR⁺ breast cancer cells both in vitro and in vivo.⁴⁰² Given these priorities, exosomes represent a promising candidate tool for the delivery of chemotherapeutics, as well as nucleic acids and phytochemicals. For example, doxorubicin treatment through the exosome delivery system induced a 10-fold increase in cancer cell death when compared with free doxorubicin.⁴⁰³ Similarly, exosome-loaded anti-miR-214 led to a remarkable inhibition of gastric tumor growth.⁴⁰⁴ Interestingly, curcumin has also been shown to be encapsulated into exosomes and to interfere with colon carcinogenesis (NCT01294072).

Given that exosomes can be preferentially sequestered by macrophages,^{405, 406} it is becoming an attractive vehicle for delivering genetic drugs or cytotoxic agents to inhibit TAMs. Exosomes containing miRNA-155 and 125b2 derived from pancreatic cancer cells induced macrophage differentiation to the M1-like phenotype.⁴⁰⁷ Similarly, exosomes transfected with wt-p53 and miRNA-125b secreted from colon cancer cells also mediated macrophage repolarization toward the M1-like phenotype.⁴⁰⁸ Interestingly, epigallocatechin-gallate-treated breast cancer cells-derived exosomes were also found to impair tumor growth by suppressing TAMs infiltration and M2-like phenotype polarization.¹³⁷ Recently, a commercialized engineered exosome carrying antisense oligonucleotide (exoASO) was developed by Codiak Bioscience. It was designed to deliver ASO to TAMs and to specifically inhibit the expression of immune-suppressive transcription factors, including STAT6 and C/EBPT.¹³⁷ Preclinical studies demonstrate that exoASO effectively reprograms M2-like macrophages to a pro-inflammatory M1-like phenotype, promoting targeted anti-tumor activity in vivo. In vitro, exoASO is preferentially taken up by M2-like macrophages to a significantly greater extent than that of free ASO, resulting in a greater decrease of STAT6 and C/EBPβ mRNA levels. Subsequent gene expression analysis and cytokine assays showed a 40-fold increase in TNFα and a 29-fold decrease in IL-10 associated with exoASO treatment, consistent with repolarization from immunosuppressive M2-like macrophages to immune-stimulatory M1-like macrophages. All of these findings suggest that exosomes may represent promising drug-delivery systems for modulating the biological functions of TAMs. Notably, there are still many difficulties to overcome before the successful application of the exosomal delivery system for TAMs modulation in the future. The most prominent one may be that different exosome isolation techniques have reported poor yield and loss of functional properties.⁴⁰⁹ To solve this limitation, reengineering TAMs-targeted exosomes with the synthetic liposomes as a refined biomimetic nanostructure is suggested.⁴⁰⁹

5.5 Other therapeutic strategies

In recent years, multiple novel TAMs reprogramming strategies have been reported with promising future. For example, Christopher B et al. reported that R848, an agonist of toll-like receptor 7 and 8 (TRL7/8), could significantly induce the M1-like phenotype polarization of macrophages in vitro, while the R848-loaded β-cyclodextrin nanoparticles could promote the repolarization of TAMs toward an M1-like phenotype in multiple tumor models in vivo.⁴¹⁰ Feng et al. synthesized the novel TLR agonist of acGM using glucomannan polysaccharide with acetyl modification, which could specifically activate the TLR2 signaling and thus induce TAMs repolarization into an antitumor phenotype.⁴¹¹ Macrophages can also be targeted via CD40 agonists to boost the antitumor response. Gregory et al. reported that the CD40 agonist FGK45 could reactivate TAMs, which became tumoricidal and thus rapidly facilitated the depletion of tumor stroma and the tumor regression of pancreatic ductal adenocarcinoma.⁴¹² Blocking checkpoints on T cells have recently shown unprecedented, durable cures in the clinic. A similar strategy targeting macrophages is also developing by blocking CD47 from binding its receptor signal regulatory protein-α (SIRPα) on macrophage surface.⁴¹³ It has been reported that interfering of CD47-SIRPα interaction by blocking antibodies could promote the phagocytosis of TAMs and consequently suppresses cholangiocarcinoma growth and metastasis.⁴¹⁴ Nowadays, a number of CD47-SIRPα axis blockers, such as Hu5F9-G4, CC-90002, SRF231, ALX148, and IBI188, are under clinical trials.⁴¹³
