Recovery of Al, Co, Cu, Fe, Mn, and Ni from spent LIBs after Li selective separation by COOL-Process – Part 2: Solvent Extraction from Sulphate Leaching Solution

2.1 Leachate Composition and Reagents

Solvent extraction experiments were done with an aqueous phase the elemental composition of which is given in Tab. 1. The solid residue was treated with aqua regia in a liquid/solid ratio (L/S) of 100 at 180 ± 2 °C for 30 min using a Microwave MARS 6, CEM Corporation, London, UK. The metals concentration was determined by atomic emission spectrometry with inductively coupled plasma (ICP-OES, Optima 4300 DV, Perkin Elmer, MA, USA).

Preliminary tests were conducted using different kinds of organic extractants to find the most suitable one for the selective separation of Al/Co/Cu/Fe/Mn/Ni mixture. Commercial extractants such as D2EHPA (Sigma-Aldrich, MO, USA), tributyl phosphate (TBP, Merck KGaA, Darmstadt, Germany), Cyanex 923 (Cy923, a mixture of four trialkylphosphine oxides, Cytec Canada Industries Inc., NJ, USA), trioctylmethylammonium chloride (Aliquat 336, Ali336, Merck KGaA, Darmstadt, Germany), and 1,3-diphenyl-1,3-propandione (DPPD, Sigma-Aldrich, MO, USA) were the five extractants used in the screening experiment. Kerosene was used as a diluent (Sigma-Aldrich, MO, USA).

2.2 Solvent Extraction

10 mL of the aqueous phase (AP) were equilibrated with 10 mL of organic phase (OP) into a separatory funnel. The experiments were conducted using a horizontal mechanical shaker (Gesellschaft für Labortechnik mbH, model 3017, Burgwedel, Germany) at 180 rpm at room temperature (20 ± 2 °C) for 30 min to ensure that the equilibrium has been reached. The aqueous phase was removed and stored for further analyses once both phases were separated after the shaking. Afterwards, the equilibrium pH was measured by pH meter Hanna Instruments edge® blu HI2202-02 (RI, USA). The loaded phase was treated with a stripping solution, which depends on the extractant type and its extraction mechanisms. Water, HCl (37 %, VWR International, PA, USA) and H₂SO₄ (95 %, Thermo Fischer Scientific, MA, USA) were the stripping reagents used for re-extracting the metal ², ⁵, ^16-18. This stripping stage was performed using the same procedure that the extraction stage. Each experiment was carried out two times. Metal concentrations in the aqueous phases were determined by atomic emission spectrometry with inductively coupled plasma (ICP-OES, Optima 4300 DV, Perkin Elmer, MA, USA). If not stated otherwise, all experiments were done in duplicate.

Extraction efficiency (%E), stripping efficiency (%S), distribution ratio (D), as well as separation factor (β), were calculated as defined in Eqs. 1–4:

(1)

(2)

(3)

(4)

where [Me]₀ and [Me]_aq refer to the initial and the equilibrium concentration of the metal in the aqueous phase. V_aq is the volume of the aqueous phase under initial, equilibrium, and stripping conditions, as no volume variation was observed in extraction and stripping steps. is the concentration of the metal in the loaded organic phase obtained by mass balance and is the volume of the organic phase. [Me]_str is the metal concentration of the stripping phase once the equilibrium is reached.

3.1 Solvent Extraction

Whether or not metal recovery from back mass is economically viable depends on the ratio of the intrinsic metal value over process costs. It was therefore a major breakthrough to keep leaching costs low in using sulfuric acid as digestion acid, although a compromise had to be made in terms of leaching efficiency ¹⁵. One may clearly find leaching conditions that are suitable to get a somewhat higher overall leaching efficiency, yet at far higher costs that most likely overcompensate for the metal value and thus render at least the black mass recycling stage a minus business.

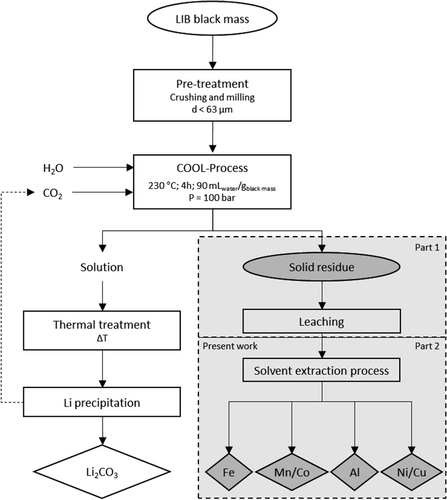

For the extraction of the accompanying metals extraction experiments were carried out with five different organic extractants, which had proven successful in other recycling processes ¹⁹. The leachate had been obtained from acid digesting the Li-free solid residue resulting from the COOL-Process (Fig. 1). It served as the aqueous phase in the SX experiments. Both leachate pH and speciation of the individual metals in the leachate play a significant role because this will determine which extractant(s) will be used: cationic exchanger (D2EHPA or DPPD under acidic conditions), solvating extractant (TBP and Cy923), or anionic exchanger (Ali336). Co, Fe, Ni, and Mn and to a minor extent also Cu and Al are the actual target metals of the extraction stage. Al and Fe are not valuable metals. But for being contained as minor components in the leachates (< 2 %), they must be removed efficiently as they interfere considerably with Co, Mn, and Ni separation. In order to design a process to be operated economically, the number of stages needs to be as few as possible. For the extraction efficiency of these six metals the initial pH of the leachate emerged crucial and was therefore considered in the course of process development. To avoid precipitation of Fe or Al hydroxides, the pH was kept between 0.3 and 3.0. As shown in Fig. 2, there is a complex interplay between sulfate salt formation, mixed salt formation, hydroxide formation, maturing to (mixed) oxides and precipitation, while all the various species of Al, Co, Cu, Fe, Mn, and Ni may be present as anionic, cationic, or neutral entities. Both parameters are directly related to the extraction mechanism and therefore, extraction reagent used in this stage. The concentrations of D2EHPA, TBP, Cy923, and Ali336 were fixed to 0.3 mol L⁻¹, while DPPD was 0.1 mol L⁻¹ with regard to its solubility in kerosene.

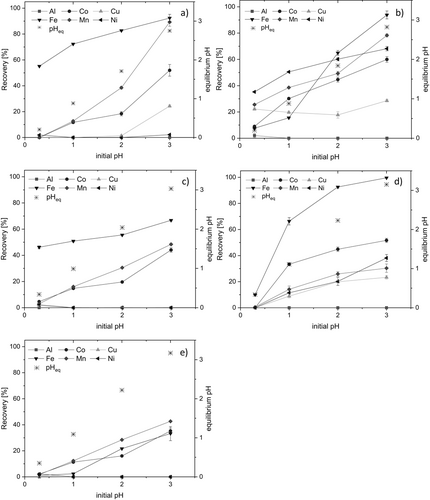

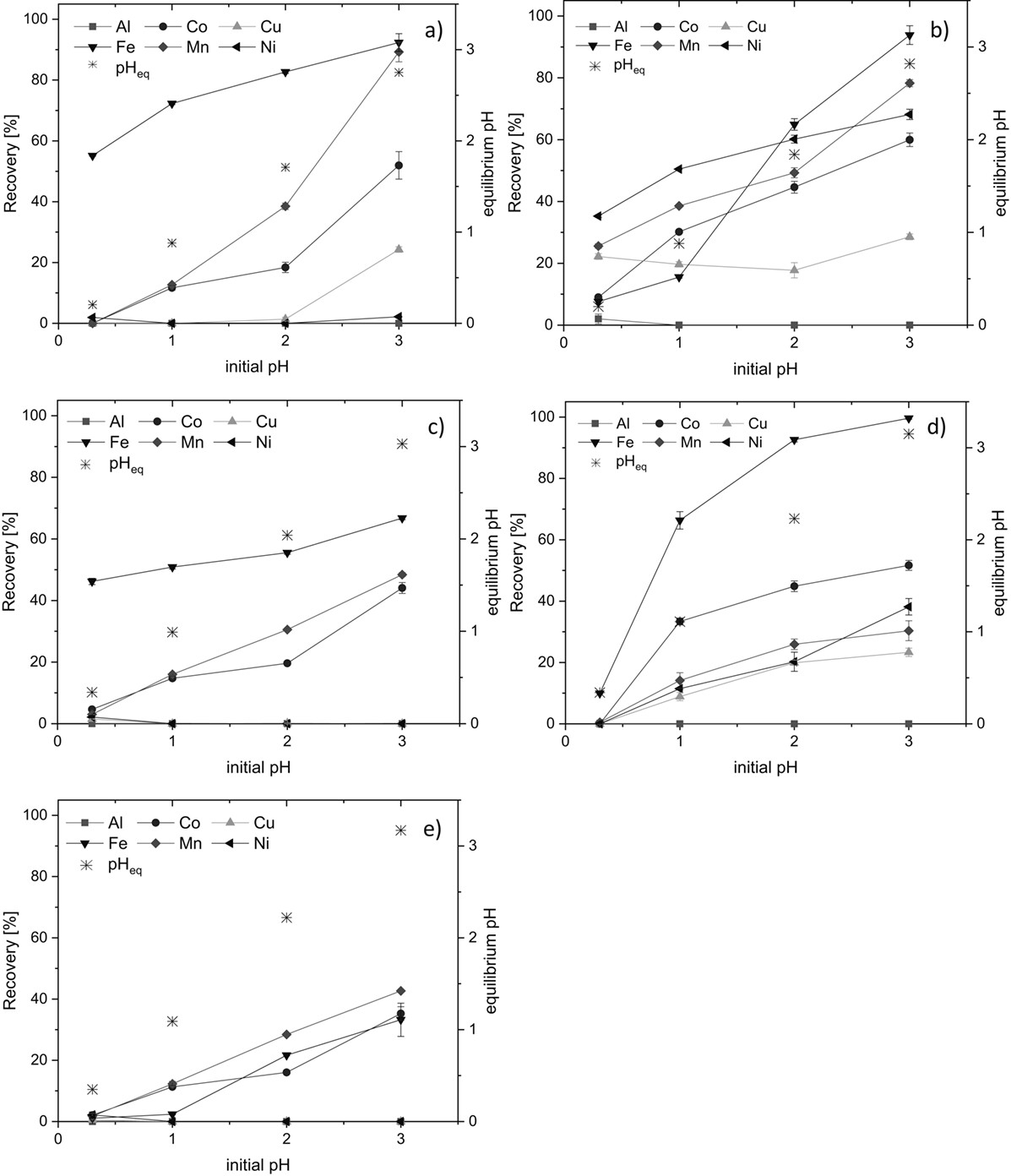

Fig. 3 shows the recovery results for the six metals with these five extractant reagents within a pH range between 0.3 and 3.0. The initial extraction experiment was done at pH = 0.3 which is the non-modified liquor obtained from sulfuric acid leaching of the Li-free black mass (0.5 mol L⁻¹ H₂SO₄). It was carried out without any pH conditioning. In order to select the best conditions, initial pH and extractant used, a balance between the metal recovery and the separation factor has to be considered. This means that although with extractants such as TBP or Ali336, the recovery efficiencies are lower (< 70 %) compared to those obtained with cationic exchangers, the separation factor has also been considered since the main purpose is to reach a selective metal separation.

Ni, Co, and Cu have been reported to profit from higher pH values, though, when extracted with cationic exchangers ⁵, ⁶, ¹⁸, ²¹. Ni and Co can be recovered by solvating extractants, too, but the concentration of TBP or Cy923 should be increased as reported by Wang and Lee who used 1.5 mol L⁻¹ of a mixture of Cyanex 301 and TBP ²².

At pH = 0.30 Fe recovery was 46.2 ± 1.01 % with TBP and 55.1 ± 0.21 % with D2EHPA, which is 19 % more. This is in line with similar results by Hu et al. for a chloride mixture of Fe/Ca/Mg/Ni/Co/Cu with D2EHPA ²³. In fact, Fe separation is optimal with 0.3 mol L⁻¹ of D2EHPA at pH = 0.3, where separation factors are highest (Tab. 2).

The theoretically required stages to separate Fe from the mixture using a counter-current or cross-flow solvent extraction process are provided by a McCabe-Thiele diagram once the extraction equilibria are known and the mass balance equations at all stages are solved. Considering chemicals consumption as well as industrial feasibility, the counter-current process was more effective than cross-flow.

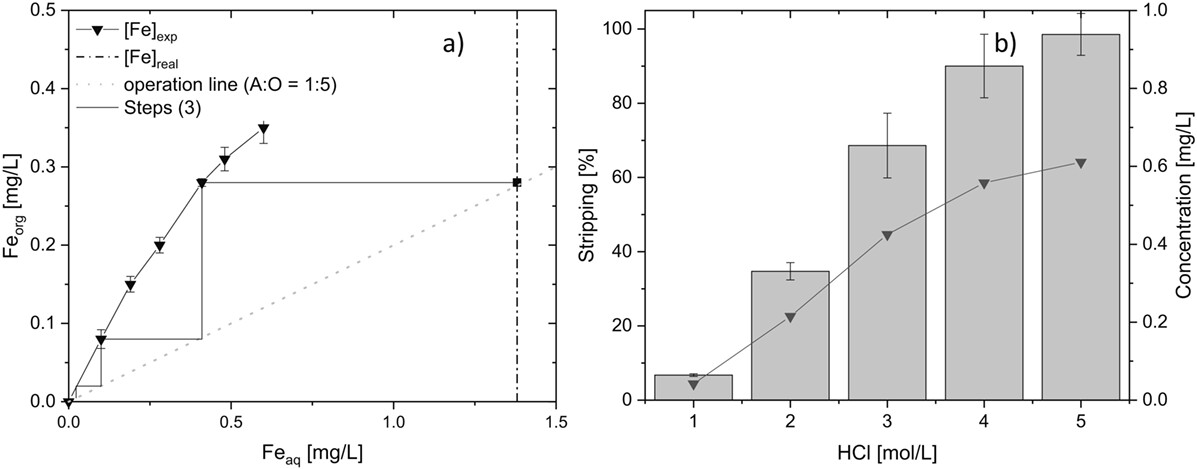

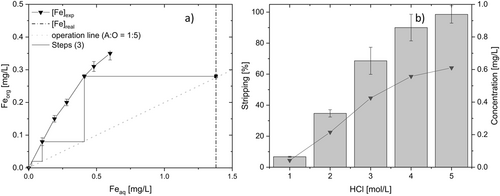

As shown in Fig. 4a, Fe can be eliminated from the aqueous phase by at least three stages of solvent extraction under an A/O ratio of 1:5. Iron separation is always in issue when separating polymetallic mixtures, and the same applies here. However, it has turned out that there is no general protocol available. Even worse, each individual separation problem requires an individual solution. At least, as a common feature, solvating extractants have emerged more powerful than cationic exchangers.

How complex this issue is, can nicely be illustrated by the following examples. For instance, the selective recovery of Fe was achieved by adding 2-octanol to an organic phase made from TBP and kerosene ²⁴. However, Yi et al. suggest working in chloride media to remove Fe from Fe/Ni/Co mixture by two-step extraction process. Fe was individually separated from Fe/Co/Zn mixture in presence of chloride and sulphate ions by two counter-current stages using 1 mol L⁻¹ TBP + 20 % methyl isobutyl ketone (MIBK) at an A/O ratio = 1:1 ²⁵. Cy923 was also used to selective recovery of Fe from Fe-Cr mixture from a tannery filtrate since FeCl₃ was the predominant species, which gets extracted by this solvating extractant ²⁶. The advantage of working with organic extractants such as TBP and Cy923 over D2EHPA is the lower concentration of stripping solutions (0.25 mol L⁻¹ H₂SO₄) for re-extracting the metal from the loaded phase. In a nutshell, Fe separation did not succeed reasonably with TBP or Cy923 under the studied conditions in the present work. Not less than 5 mol L⁻¹ HCl is required to strip Fe from the loaded phase (Fig. 4b). The concentration of the stripping reagent was reduced by at least 50 % compared to the one suggested by El-Nadi & El-Hefny ²⁷. 1.2 mol L⁻¹ H₂SO₄ were required to strip Mn and Cd with D2EHPA 30 % at pH = 2.5 ²⁸.

Considering the aim of the selective separation of the Al, Co, Cu, Mn, and Ni mixture, it can be seen in Fig. 3 that 0.1 mol L⁻¹ DPPD is not suitable for establishing a cost-efficient separation process. The results are according to those reported by Pavón et al. who had demonstrated that a similar extractant (2,4-pentanedione) is selective, but for rare earth elements ²⁹. It had turned out during these investigations that keto-enol tautomery exerts a decisive effect on extraction efficiency. DPPD is protonated at lower pH, and the proton can be replaced by the metal to be extracted (Fig. 5).

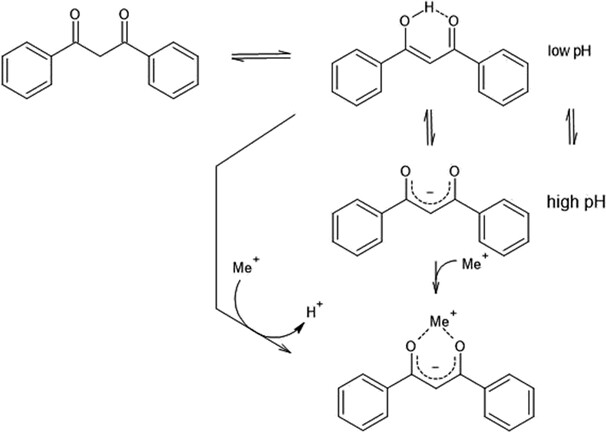

Under these conditions the extraction mechanism can be conceived of as comparable to D2EHPA. Both species formally behave like Brønstedt acids, where DPPD can be understood as a vinylogous carboxylic acid. Deprotonation yields the enolate anion, which through its higher electron density serves well as a complex forming agent. For the purposes of metal extraction however, DPPD is efficient for metal recovery, but it lacks the discriminatory power to selectively separate any of the metals studied here.

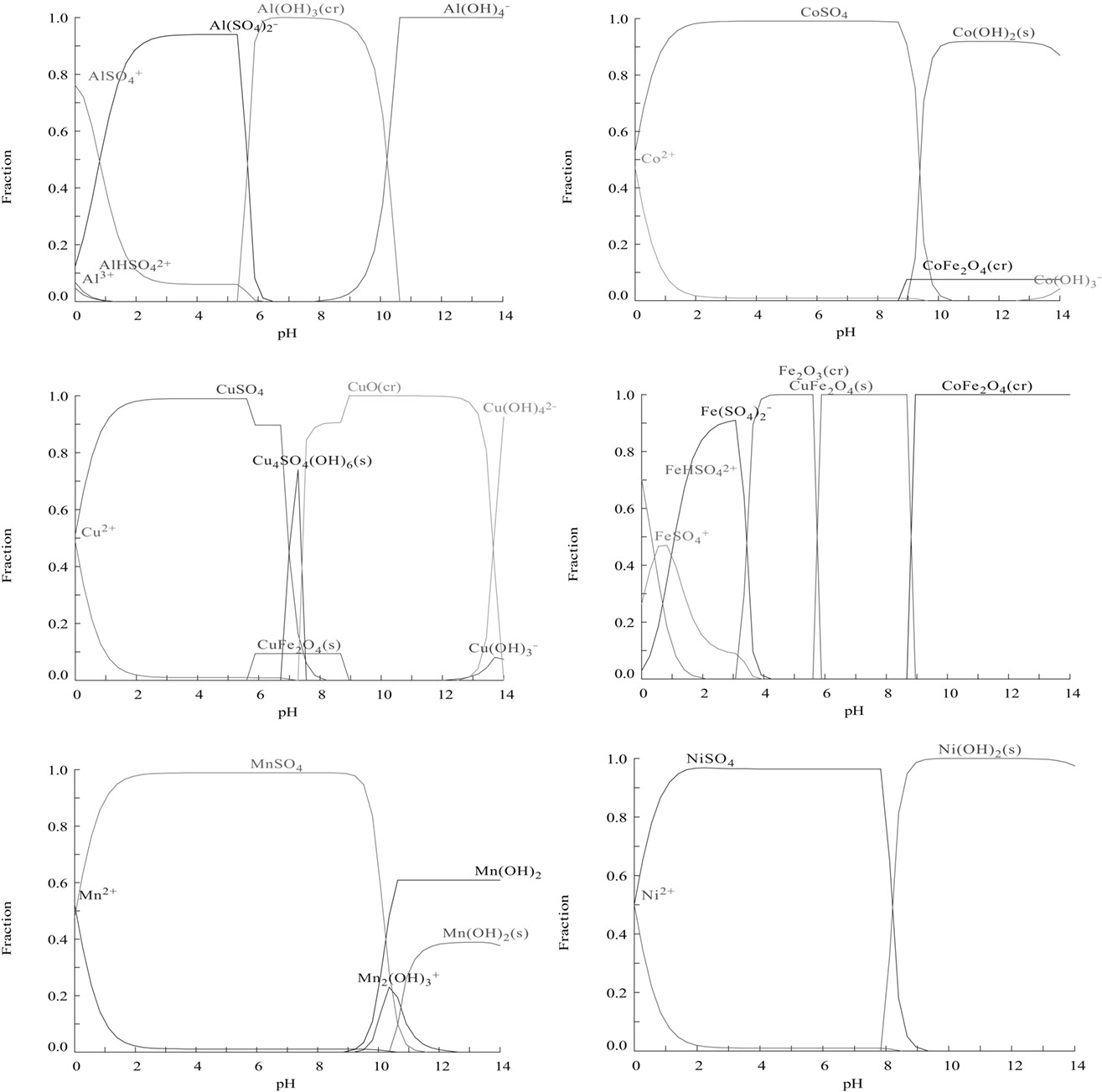

Considering that TBP and Cy923 are solvating extractants, the recovery percentage of any metal is expected to be maintained regardless of the initial pH of the aqueous phase ³⁰. However, since these extractants are capable of complexing protons, too, the number of available binding sites is reduced ³¹. Thus, their extractory power may be less under these conditions. As a result, extraction efficiencies increase with increasing pH. Furthermore, at pH 2-3, the neutral species are favored (Fig. 2), what in turn increases extraction efficiency for all metals studied.

According to the results depicted in Fig. 3, Mn can be separated from the mixture by TBP since the separation factors are higher compared to Cy923 (Tab. 2). It has been reported that Mn is selectively separated from a mixture of Mn-Zn because of the synergistic effects obtained from a mixture of TBP and Cyanex 301 ³². However, the concentration of the sulphate media is at least 10 times lower than the one used in the current work. They also demonstrated that this organic mixture extracts protons, too, due to the low initial pH value. D2EHPA as a cationic exchanger can be also used for this purpose ²⁸, but the extractant consumption was 3 times higher (0.9 mol L⁻¹) compared to the one used in the current work.

It is evident that under these conditions of pH and extractant, Co will be co-extracted, too, but afterwards the mixture of Mn-Co should undergo a further individual separation process ³³. Investigation of selective stripping reagents is also a possibility to be evaluated in further research. Although Mn separation can be achieved at pH = 2 or 3, less stages are required at pH = 3, where Mn recovery reached 48.4 ± 0.65 % (Fig. 3). Considering the 10-times higher Mn concentration in the solid residue (Tab. 1), the extraction isotherm was investigated referring to Mn (instead of Co). The McCable-Thiele plot (Fig. 6a) shows that at least three stages are necessary to reach full separation of Mn from the aqueous mixture phase at A/O ratio of 1:4.

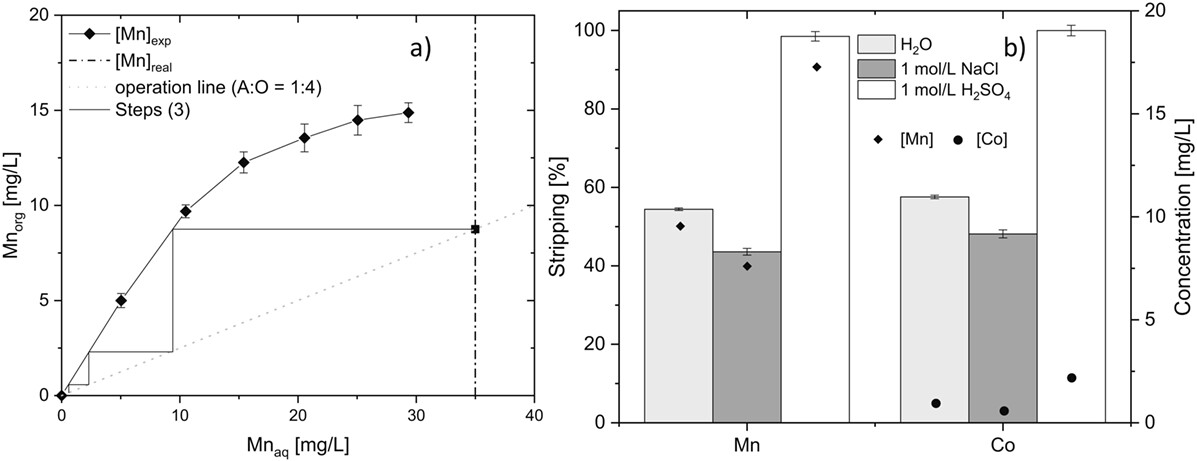

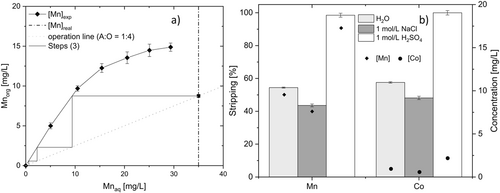

According to literature, water, NaCl and H₂SO₄ were chosen as stripping solution for re-extracting Mn from the organic phase into the aqueous phase, when TBP was used as an extractant ¹⁶, ^34-36. The stripping experiments were carried out with an A:O ratio of 1, and the results are depicted in Fig. 6b. All three reagents recover manganese from the loaded phase. However, more than one stage is needed to achieve full metal recovery when water and 1 mol L⁻¹ NaCl is used. Similar results were reported by Sarangi et. al. needing three counter-current stages with an A/O ratio of 1:2 to recover 11.8 kg m⁻³ iron ²⁵. With 1 mol L⁻¹ H₂SO_4, the Mn stripping reaches 98.5 ± 1.02 % in one stage.

Ali336 as anionic exchanger was also studied to investigate the selective separation of the Al, Co, Cu, Fe, Mn and Ni mixture. Nevertheless, the recovery efficiencies are similar for all these metals (Fig. 3). Chloride is replaced for other anions in the extraction mechanism for this kind of extractant. As depicted in the MEDUSA® diagrams, under these pH conditions, anionic species are not favored. Therefore, metal recovery is < 12 % between pH = 0 and 1. When anionic species such as HSO₄⁻ or SO₄²⁻ are present in the system (pH > 2), the recovery of all metals is increased. However, it can be also assumed that in the case of SO₄²⁻, two molecules of Ali336 are required for 1 molecule of this anionic species. As a result, the concentration of Ali336 should be increased to reach higher efficiencies or work under chloride or nitrate media instead of sulphate one ³⁷.

3.2 Separation Process Proposed

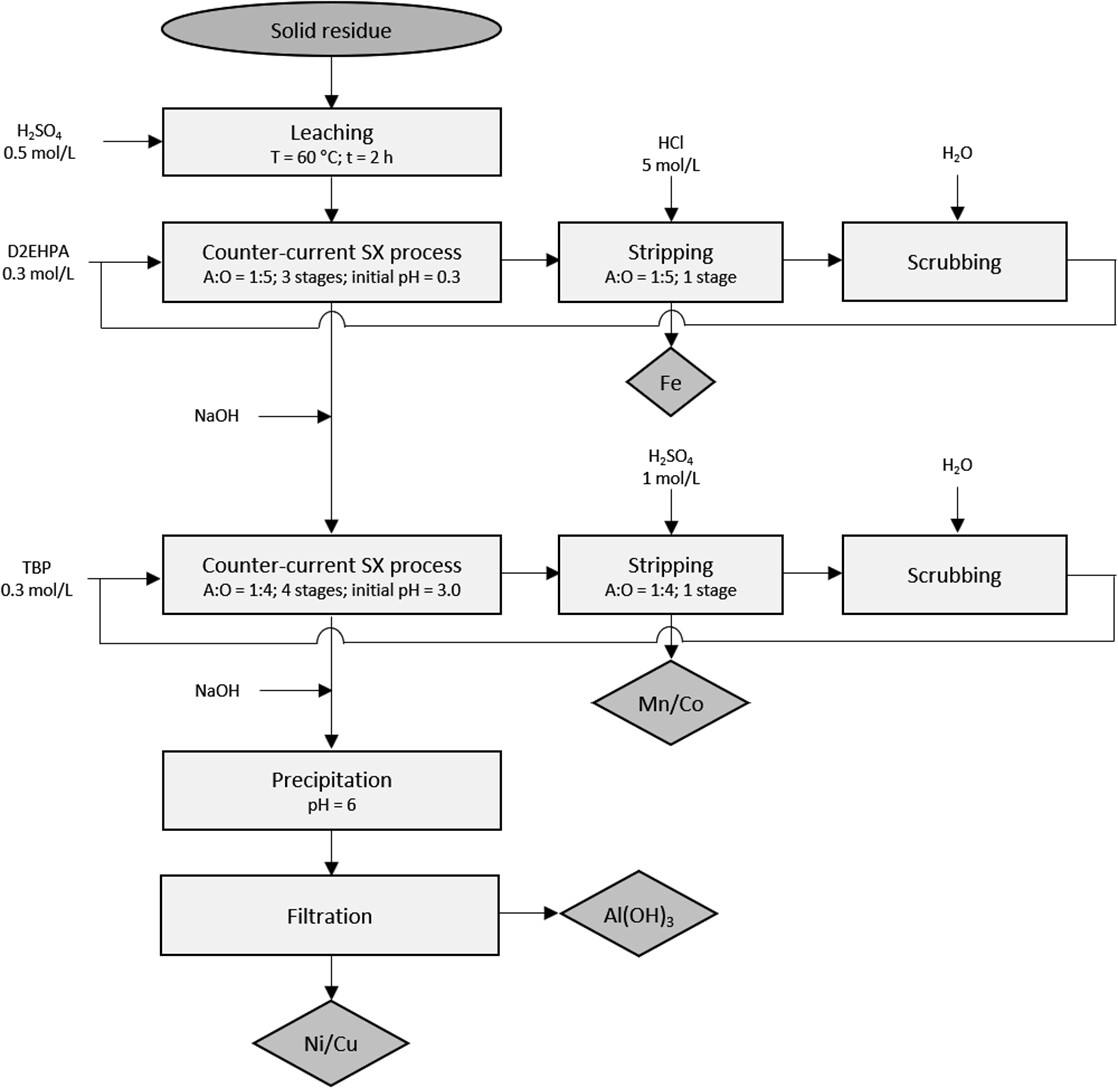

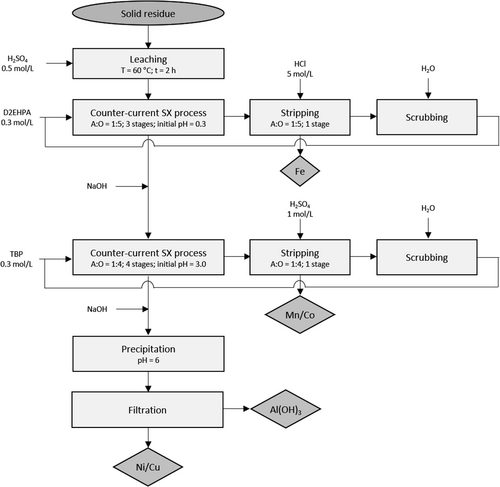

The flowsheet proposed for separating the metals contained in the solid residue subsequent to the COOL-process is depicted in Fig. 7. The digestion of this residue was carried out using 0.5 mol L⁻¹ H₂SO₄, hence the leachate pH was 0.3. Without any pH conditioning, > 98.5 ± 0.65 % Fe was recovered by a three-stages counter-current process using 0.3 mol L⁻¹ of D2EHPA diluted in kerosene with a A/O ratio = 1:5. This metal was fully stripped from the loaded phase using 5 mol L⁻¹ of HCl (same A/O ratio) to reach a concentration of Fe of 1.35 mg L⁻¹. D2EHPA can be used in further runs after the scrubbing step to clean properly the extractant avoiding loss of efficiency. To separate Mn/Co mixture from the aqueous solution (Fe-free), the pH value has to be increased to 3.0 by adding NaOH. TBP as solvating extractant was used with a concentration of 0.3 mol L⁻¹ in a four-stages counter-current solvent extraction process with A/O = 0.25 reaching ≥ 99.9 ± 1.11 % of Mn with full co-extraction of Co (99.8 ± 0.78 %). Four stages instead of three were applied to avoid 0.74 mg L⁻¹ Co as an impurity in the Ni/Cu mixture flow. The selective separation of this mixture requires further work. For instance, one option is finding selective conditions in the stripping process. This possibility will be addressed in follow-up research.

Mn, as well as Co, were stripped using a single stage from the loaded phase using 1 mol L⁻¹ of H₂SO₄ in an A:O ratio of 1. The concentration of both metals in the stripping solution were 38.3 ± 0.91 mg L⁻¹ of Mn and 3.7 ± 0.12 mg L⁻¹ of Co. The scrubbing step was required to recirculate the extractant saving chemical consumption and contributing to a circular economy. Afterwards, 1.2 mg L⁻¹ of Al (≥ 99.7 ± 1.07 %) was recovered as Al(OH)₃ (Fig. 2) at pH > 5.0. For this reason, the aqueous solution was conditioned increasing the pH value until 6.0. After filtration, a Ni/Cu mixture is obtained with 14.4 ± 2.1 and 3.1 ± 0.48 mg L⁻¹ of Ni and Cu (98.6 ± 1.32 % Ni; 97.8 ± 1.46 % Cu), respectively, the separation of which can be done selectively by different techniques such as electrodeposition ³⁸, aqueous two-phase system (ATPS) formed by copolymers ³⁹, solvent extraction using Chemorex CP-150 ⁴⁰, or else. However, it is evident that the initial conditions should be modified depending on which is the selected technique to reach this separation purpose.

The complete separation process needs to be evaluated from a technical, environmental, and economic point of view to contribute to a cost-efficiency process development. In this sense, adding supported liquid membrane technique, not only the chemicals consumption will be reduced but also the option to concentrate the aqueous flows in accordance with hollow fiber module configuration. Furthermore, the membrane techniques are more efficient compared to the solvent extraction process when the concentration of the metals is low ⁴¹, ⁴². Therefore, optimization of this process is matter of ongoing research.
