Immobilization of β-Galactosidase on Monolithic Discs for the Production of Prebiotics Galacto-oligosaccharides

2.1 Chemicals and Analytics

A commercial β-galactosidase, originated from B. circulans, was used. Carbohydrate content was analyzed via HPLC and the protein content was determined by using a biuret-based reaction ¹¹. More details are described in the Supporting Information (SI), Sect. S1.1.

2.2 Monolithic Enzyme Pore-through-flow Reactor and Enzyme Immobilization

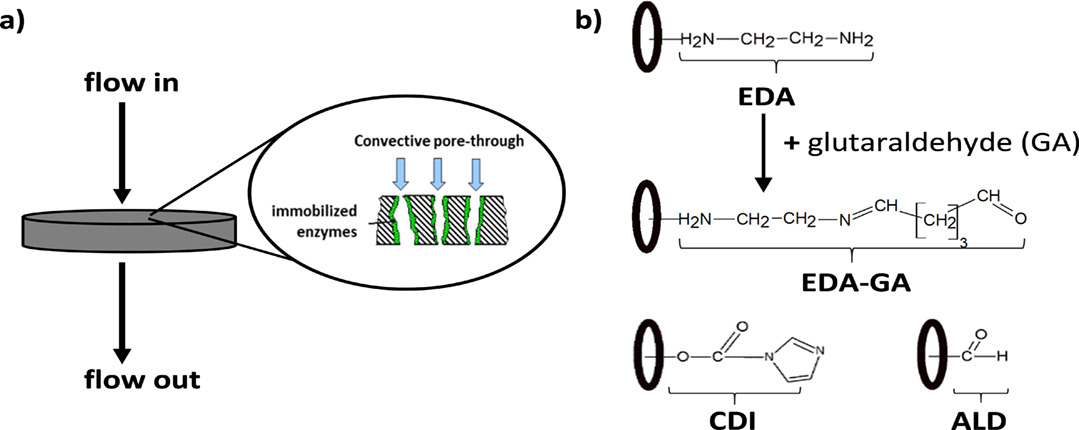

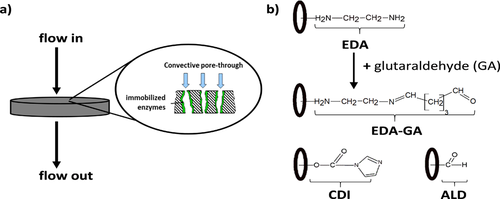

CIM® CDI, EDA and ALD monoliths (Fig. 2), purchased from BIA Separations, were used as supports for β-gal immobilization. The methacrylate monoliths in form of discs (Fig. 2a), volume of 0.34 mL for CDI and EDA discs (pore size 1.3 µm) and of 0.1 mL for the ALD disc (pore size 2 µm), were installed in specialized housings. The immobilization procedure was carried out in accordance with BIA Separations ⁷ as described Sect. S1.2 (SI). All preparation steps were performed at a flow rate of 0.5 mL min⁻¹, realized with a plunger pump (Knauer), at room temperature.

2.3 Experimental Configurations for the GOS Production

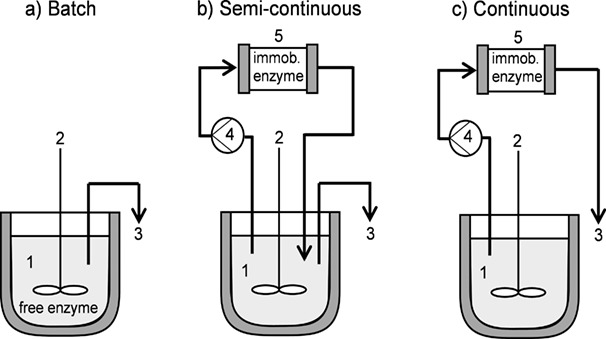

Three different reactor configurations for the GOS synthesis have been studied experimentally (Fig. 3): the conventional batch reactor (stirred tank) with free β-gal (Fig. 3a) as reference concept, the semi-continuous (Fig. 3b) and continuous systems (Fig. 3c) for the immobilized enzymes. The monolithic discs have been fed with substrate solution, which was pumped by means of a plunger pump (Knauer). A detailed description of the experimental procedure of the GOS synthesis with free and immobilized enzyme is provided in Sect. S1.3 (SI).

2.3.1 Determination of Performance and Kinetic Parameters

The comparison of all operating modes studied is based on appropriate residence times, the contact time of substrate with the enzyme. In case of the immobilized enzyme the residence time () is calculated according to Eq. 1:

()

wherein V_tot is the total volume of the monolith, ε is the estimated porosity (ε = 0.3 for CDI and EDA discs, ε = 0.6 for ALD disc) and is the flow rate through the disc. The calculation is performed for one cycle (semi-continuous system), defined as the required time to circulate the whole volume of substrate solution through the monolith or for one module pass-through in case of the continuous configuration.

The specific activity (U mg_enz⁻¹) was calculated immediately after immobilization of β-gal for each monolithic support at a flow rate of 0.5 mL min⁻¹ with the configuration setup shown in Fig. 3b and for long time experiments/storage up to 90 days after loading the monoliths. One unit is defined as the amount of enzyme that catalyzes the conversion of 1 µmol of lactose per minute in the liquid reactor volume (EDA, EDA-GA, CDI discs = 0.102 mL, ALD disc 0.06 mL, batch = 40 mL).

For all different chemical linkers (EDA, EDA-GA, CDI, ALD) used for immobilization on methacrylatic monoliths the kinetic model provided by Michaelis-Menten (Eq. 2) was parametrized for the transgalactosylation.

()

The maximal rate v_max (g_GOSL⁻¹min⁻¹), residence time, and Michaelis-Menten constant K_M (g_lacL⁻¹) were determined with Lineweaver-Burk methods, where r is the reaction rate of GOS formation, c is the concentration of GOS or lactose (g L⁻¹) and is the residence time of lactose in the reactor. Studies were performed at initial lactose concentrations (ILC) of 50, 100, 150, 200 and 220 g L⁻¹.

3.1 Kinetic Parameters and Evaluation of GOS Production with Immobilizedβ-gal

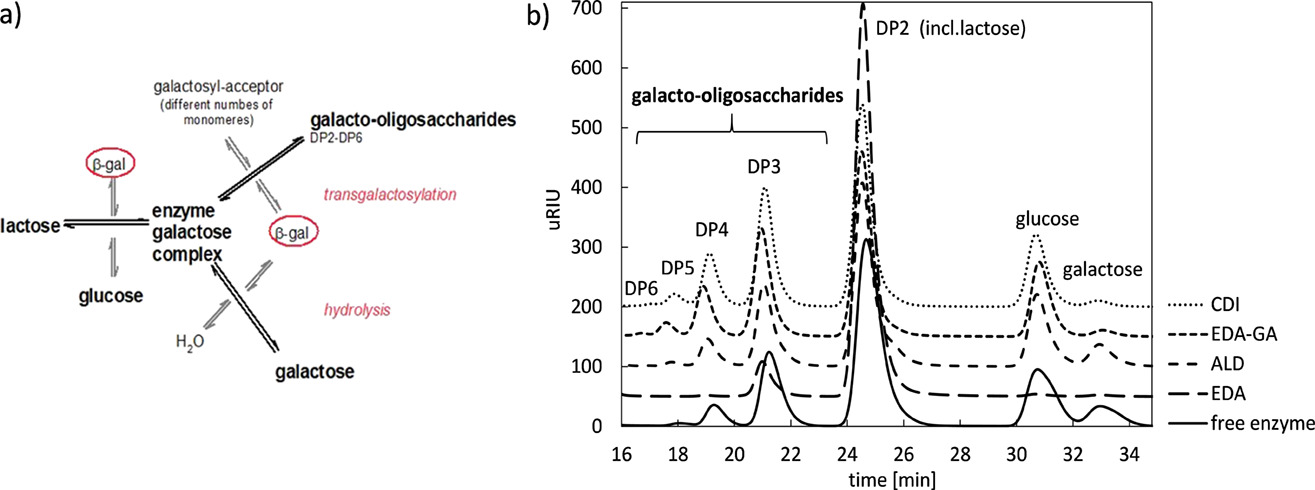

The analysis of produced GOS species with HPLC (Fig. 1b) reveals that it is possible to synthesize a higher amount of GOS – even with DP > 2 – with immobilized enzymes (semi-continuous system) than with free enzyme at the same lactose conversation level. Thereby, the EDA activated disc is an exception. The enzyme was supposed to bind via ionic interactions, but the preliminary experiments proved that most of the enzyme was washed out, so the amount and finally the activity of enzyme on disc was lower to produce GOS in a reasonable quantity. The amount of enzyme (Tab. 1) in the batch system comprised 9.02 mg in 40 mL reaction volume with a specific activity of 21.7 U mg_enz⁻¹. Shown as well in Tab. 1 is the theoretical possible amount of enzyme that might initially be bound to all the monolithic supports, which was determined by means of the protein assay only. As described in literature ⁴, ¹², ¹³ the specific activity of immobilized enzymes is lower than the activity measured within the free enzyme system. The decrease in activity might be explained with steric hindrances and conformational effects after the enzyme binding on the support. Bertrand et al. ¹² achieved a 40 times lower specific activity with an immobilized endodextranase on epoxy-activated discs and Tavernier et al. ¹³ characterized an activity that is even 1000 times lower for an immobilized glucuronan lyase also on an epoxy monolithic disc. For process modeling, design and optimization kinetic parameters for a Michaelis-Menten (Eq. 2) approach were estimated and summarized in Tab. 1.

The K_M value for the immobilized enzymes on the CDI and ALD activated discs are comparable to the value for the free enzyme, which is due to the lack of mass transfer limitation of the substrate into the reactor pores. This is well described in literature ⁴. Using EDA-GA disc v_max was 65 times, with CDI 6 times and with ALD 2 times higher compared to the free enzyme (Tab. 1), which includes limitations by diffusion corresponding to observations made by ¹³. As well as seen before, the enzyme on the EDA-GA activated monolith shows different results. The explanation for the higher v_max and specific activity is the longer spacer arm between enzyme and support (Fig. 2b) that improves enzyme mobility, facilitates the interaction of substrate and enzyme and leads to a higher activity ¹⁴. These interesting results are more obvious using v_max,spec for EDA-GA, CDI or ALD. The β-gal on the EDA disc without pre-activation with glutaraldehyde obtains a very low binding performance to the support. Therefore, the determination of the kinetic parameters was not possible. It should be noted that for the immobilized enzyme the enzyme substrate ratio (U g_lac⁻¹, Tab. 1) was significantly higher due to the much larger amount of bound β-gal in the active pore volume compared to the free enzyme system in 40-mL batch. This result of enzyme immobilization leads to higher reaction rates as reported in ⁸.

3.2 Performance of CDI, EDA-GA, EDA and ALD Activated Monoliths

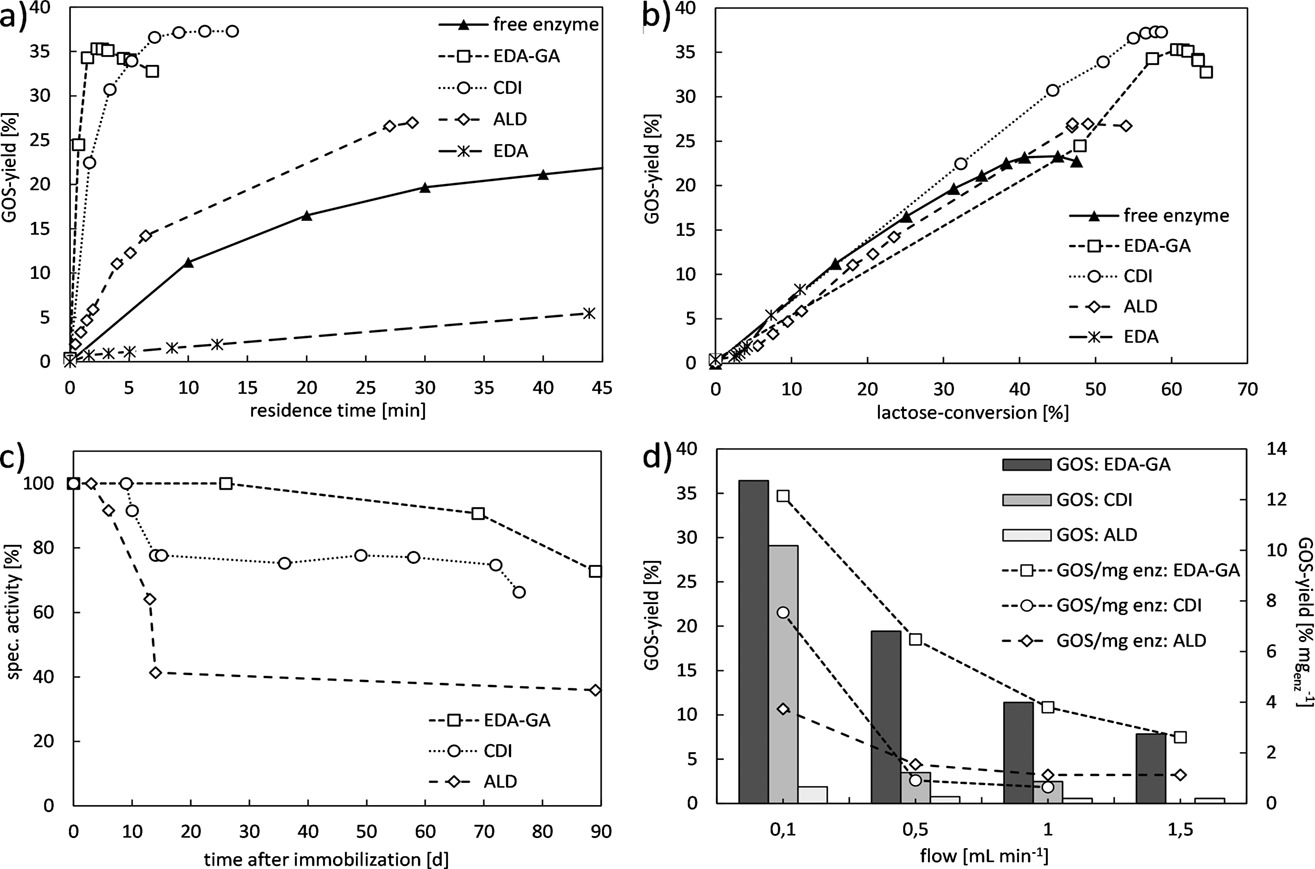

The results of the final application of the GOS synthesis with free and immobilized β-gal are presented in Fig. 4. Depending on the enzyme-substrate contact time a higher GOS yield can be achieved with immobilized enzymes even with the use of significantly low enzyme concentrations. With free enzyme a yield of 23 % GOS was reached. This can be significantly increased by 17 % with the ALD, 52 % with EDA-GA activated discs and by 61 % with the β-gal on the CDI disc in a semi-continuous system (Fig. 4a). With the less amount of enzyme on the EDA disc (Tab. 1), the GOS yield could not be increased, it achieved 5 % only after 42 min. So far there are no results of GOS synthesis with enzyme immobilized on a methacrylate-based monolithic support activated with EDA-GA, CDI or ALD. Other supports like gelatine nanofiber mats led to an increase of GOS yield from 23 % with the free enzyme from A. oryzae to 38 % with the immobilized enzyme ¹⁵. Urrutia et al. ¹⁶ achieved same GOS yield with free and immobilized enzymes from B. circulans.

The enzyme on the CDI activated disc obtained the highest GOS yield and should therefore be used for further experiments. Thus, the dominating convective flow in the monolithic pores can efficiently reduce the influence of the diffusion limitation occurring in batch with the free enzyme. Another important observation is the higher affinity of the immobilized enzyme towards the desired transgalactosylation reaction than to hydrolysis (Figs. 1a and 4b) and improved selectivity. This is comparable with results obtained in ¹⁷. The GOS degradation starts at a lactose conversion rate of 55 % for the immobilized β-gal and at 40 % lactose conversion with the free enzyme (Fig. 4b), which leads to the formation of GOS with a higher, favorable DP using the monolithic disc. Thus, the hydrolysis as an undesired side reaction (Fig. 1a) is efficiently suppressed.

The dependence on flow rate is well described by Naldi et al. ¹⁴. Higher flow rates, resulting in a shorter residence time of lactose in the pore-through-flow reactor and reducing the GOS yield synthesized by the immobilized β-gal (Fig. 4d). The EDA-GA activation delivers contradicting results. Of all three activations, the EDA-GA delivers the best results for the continuous configuration, this is not the case with the semi-continuous configuration (Fig. 4a and Fig. 4d). The increased activity of the enzymes, bound to a longer and more flexible EDA-GA linker, leads to an increased yield in the continuous configuration where only the fresh substrate flows once through the monolith. In the case of the semi-continuous configuration, where in addition to the substrate lactose the by-products (GOS and monosaccharides) also flow through the reactor, this increased activity seems to lead to a faster degradation of the GOS.

The first study of long-term stability provided in Fig. 4c shows a slightly reduction in activity depending on the immobilization chemistry. The loss of activity for the EDA-GA disc was 27 %, for the CDI disc 34 % and the enzyme on the ALD disc resulted in 64 % activity loss 80 days after immobilization. 17 days after immobilization the EDA disc exhibits a hardly measurable activity (data not shown).
