1 INTRODUCTION

Cancer has remained the primary focus of public health globally for several decades, as cancer incidence and mortality have increased or been consistent despite the decline of most other chronic diseases.^{1, 2} In particular, new cases or deaths of cancer occurred disproportionately over space.^{3, 4} Spatial understanding of cancer mortality and incidence may provide solutions to reduce the high burden of cancer. To improve understanding, many studies of cancer have applied spatial analysis to search for high mortality or incidence areas, referred as spatial clusters, and subsequent studies identified characteristics that are associated with clustering patterns.^{5, 6} Cancer cluster investigation has been indicated as a useful statistical tool that allows the exploration of high event areas which are less likely to appear at random over space without designating a hypothesized association. In addition, it serves as the best fulfillment to respond to community concerns in public health practice, although the resulting putative clusters may not directly indicate associated etiologic agents.⁷ For example, studies of colorectal cancer in North America and Europe attempted to identify spatial clusters and related various determinants in neighboring physical and built environments, health behaviors, and socioeconomic conditions.⁶ A study of lung cancer mortality in China investigated spatial clusters over 1973–2013 and showed high smoking rate and advanced industrial development in identified clusters compared to other areas.⁸

Cancer incidence and mortality exhibit different pathways and progression as well as interplay between the two, which could result in similar or different locations of clusters. While cancer incidence directly reflects anatomical and histological characteristics and is directly affected by various risk factors,⁹ cancer mortality is considered as a function of incidence and survivorship.¹⁰ Specifically, new cancer cases could increase with the high prevalence of health-related risk factors such as health behaviors, and environmental factors, or limited effectiveness of prevention programs to reduce these factors. On the contrary, cancer deaths could increase when medical intervention programs perform poorly, or fail to soften the impact of ongoing diseases or to avoid disabilities. The spatial variation in risk factors as well as prevention and intervention programs could result in spatial clusters of cancer incidence and mortality.

The identification of differences and similarities in clusters of cancer incidence and mortality over time can suggest future directions in evidence-based interventions for cancer control. The geographic gap between incidence and mortality clusters could suggest the shortcomings in different prevention stages. The areas identified as an incidence cluster may indicate the limited effectiveness of health-promoting and/or successful implementation of early-detection programs, whereas a mortality cluster could mean the limitation in preventing severe symptoms and avoidable disabilities related to cancer mortality. Besides, the overlap of incidence and mortality clusters could suggest the difficulty in all stages of cancer prevention activities. Furthermore, cluster distribution in incidence and mortality could be consistent or vary over time and by cancer type, which provides the insights into the prioritizing areas of future interventions and the identification of geographic risk factors.^{11, 12}

High burden of cancer and well-established cancer registry in South Korea allow us to investigate cluster patterns of cancer incidence and mortality over an extended period. In South Korea, cancer has been a leading cause of death since 1983.^{13, 14} The South Korean government established the Korea Central Cancer Registry in 1980, and expanded to include the entire population in 1999 when nationwide cancer control programs began. District-specific cancer incidence across 251–260 districts for 5-year periods over 1999–2013 is available since 2016.¹³ District-specific cancer mortality is also available since 1998 based on death certificate data. Using these spatially-resolved cancer statistics data in South Korea, our study aimed to investigate spatial clusters in both cancer incidence and mortality by seven major cancer types in each of the three periods for 1999–2013, to investigate the changes in the cluster locations over the three periods, and to examine geographic characteristics to explain the differences and similarities between clustered and non-clustered areas.

2 METHODS

3 RESULTS

3.1 Spatial distribution of cancer incidence and mortality

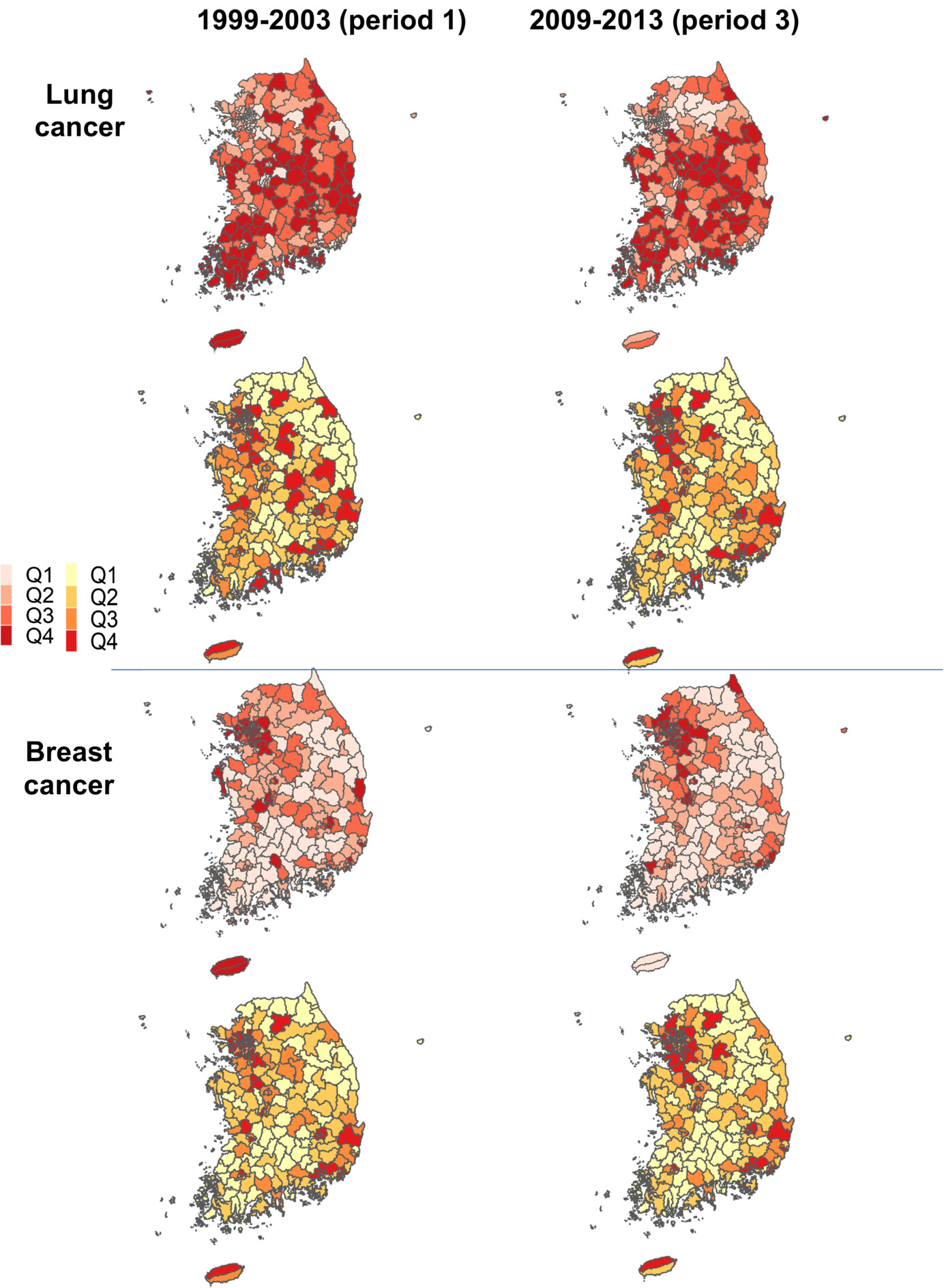

During the 15-year period from 1999 through 2013, the numbers of district-specific new cancer cases and cancer deaths in South Korea increased for all cancer types except cervical cancer for incidence and stomach cancer for mortality (Table S3 and Figure S2). Figure 1 shows the spatial distribution of incidence and mortality rates as the counts of new cases and deaths relative to the population for two cancers, lung and breast cancer. Both showed temporally consistent patterns of substantial increase in incidence and mortality rates, while spatially different patterns were observed in high incidence or mortality areas. For instance, lung cancer showed consistently high incidence and mortality in the southern region including mostly rural areas over time. In contrast, breast cancer displayed high incidence in Metropolitan Cities including Seoul. While stomach and liver cancers had similar patterns to those of lung cancer, sex-specific cancers such as cervical and prostate cancers showed different patterns (Figure S3).

3.2 Cluster locations of incidence and mortality over 15 years across cancer types

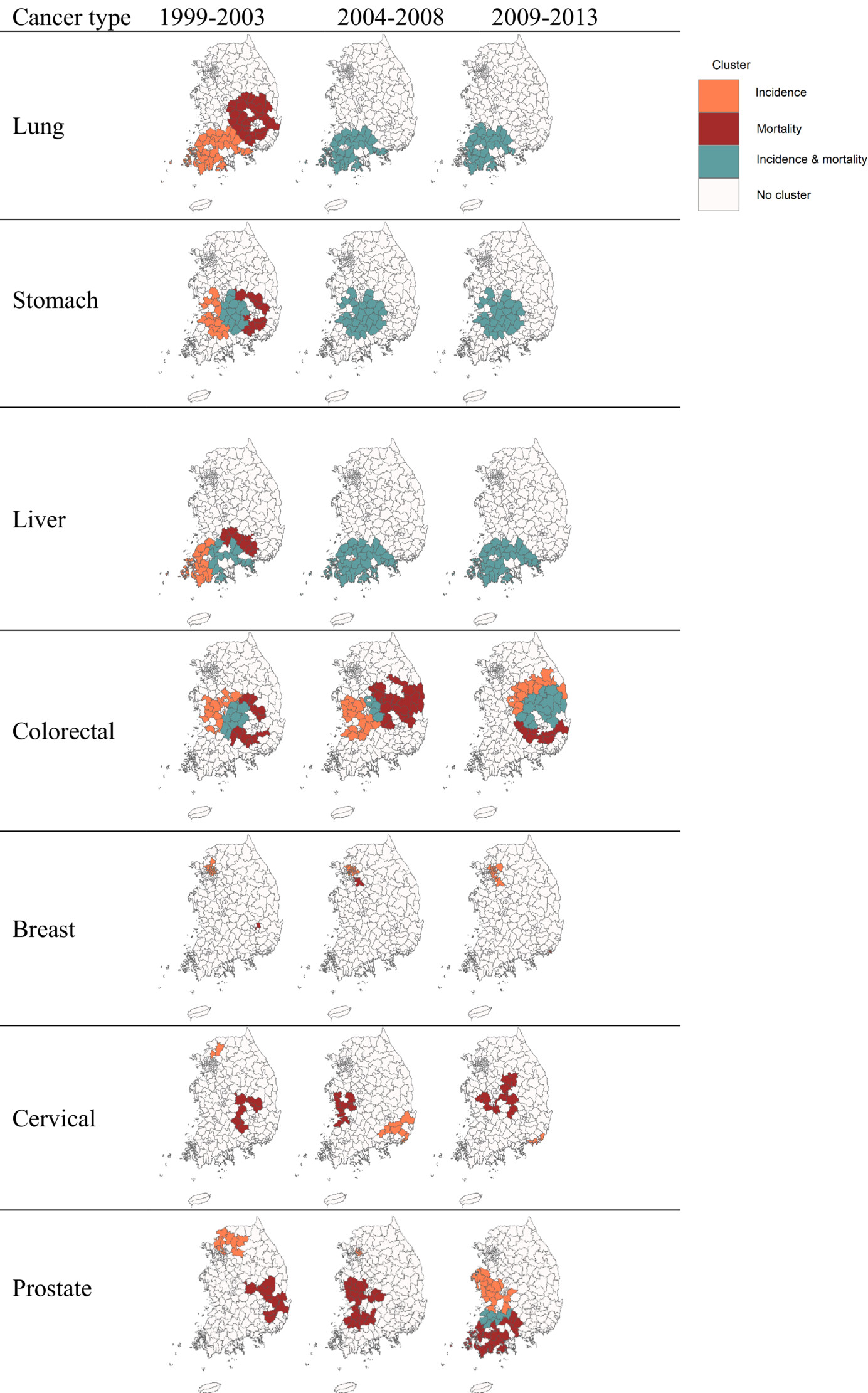

Locations of primary clusters were similar or different depending on the incidence and mortality as well as cancer type in the earliest period, period 1, for 1999–2003 (Figure 2). The clusters of lung and liver cancer incidence were found in the southwestern region, while stomach and colorectal cancer incidence showed the clusters in the central region. For reproductive cancers, the cluster of breast cancer incidence was seen in two Metropolitan Cities including Seoul and Daegu, whereas the clusters of cervical and prostate cancer incidence were located in the northern areas of Seoul. Mortality clusters were located in the neighboring regions of incidence clusters for lung, stomach, and liver cancer. However, reproductive cancer clusters were found in distant locations from incidence clusters.

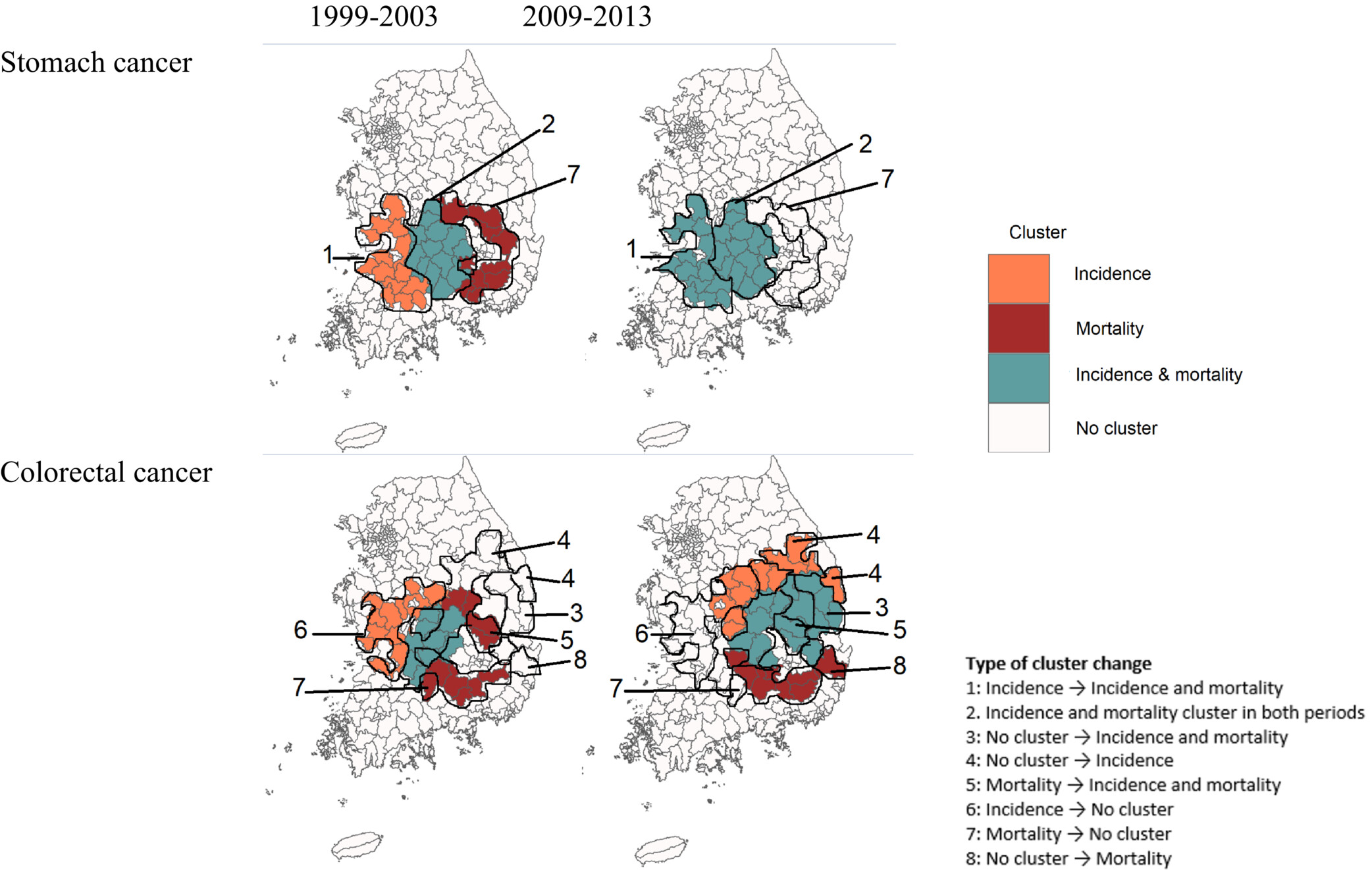

The changes of cluster locations in the later periods for 2004–2013 from the period 1 also varied by cancer outcomes and sites (Figures 2 and 3). For lung, stomach, and liver cancer, primary clusters of incidence seen in the southwestern region in the period 1 was also found in the same region in the periods 2 and 3, shown as the Types 1 and 2 of cluster change in Figures 3 and Figure S4. Moreover, mortality clusters in the eastern region in the period 1 did not exist any longer in the period 3 (Type 7) and remained in the same region as completely overlapped clusters with incidence (Type 2). Different from these cancers, colorectal cancer showed the change of cluster locations in both incidence and mortality. The incidence cluster found in the western region for the periods 1 and 2 was not displayed in the period 3 (Type 6) and new cluster areas appeared in the east (Types 4 and 5). The new cluster area is also found for mortality in the southeastern area (Type 8), while some mortality cluster areas remained and overlapped with the new incidence cluster (Type 7). Although it is not common, a few areas without any clusters in the period 1 became identified as the cluster for both incidence and mortality (Type 3) The change of cluster locations was most notable in reproductive cancer. Breast cancer showed the change of mortality cluster locations in the period 2 and the disappearance in the period 3, while incidence clusters were found in similar or new areas over time. Cervical and prostate cancer showed changes in both incidence and mortality clusters over time. These findings were generally consistent when we reduced the window size to 10% of the total number of districts in our sensitivity analysis (Figure S5). When we stratified by sex, the pattern was also consistent between males and females but with different locations of the clusters (Figure S6).

4 DISCUSSION

Our study applied a flexible approach to identify spatial clusters of cancer incidence and mortality, as potential high-risk areas, across seven major cancer types and to explore the changes over 15 years from 1999 through 2013. Incidence and mortality clusters showed different patterns in changes over time depending on the cancer type. For lung, stomach, and liver cancer, incidence clusters remained in the same areas, while mortality clusters disappeared or moved to similar areas to those of incidence. In contrast, colorectal, female breast, cervical, and prostate cancer generally displayed different locations of incidence and mortality clusters over time, indicating the presence of new clusters and the absence of existing clusters. The clustered areas were commonly characterized by older population, higher smoking rate, and higher participation rate in cancer screening compared to non-clustered areas, particularly for mortality.

This study adds important findings of the changing patterns of potential high-risk areas in cancer incidence and mortality jointly over time, which can improve our understanding of the relationships with cancer control programs and provide practical guidance for future interventions. While many studies investigated high-risk areas of cancer using cluster analysis, some studies focused on temporal changes.^{6, 11, 28, 29} However, there were few studies that looked at both incidence and mortality collectively with the consideration of multiple cancer types. Along with increasing cancer incidence and mortality worldwide over a few decades, there have been tremendous efforts of cancer control including various prevention and treatment interventions which affect the spatial patterns of incidence and mortality sequentially rather than simultaneously. As South Korea established the nationwide cancer control programs in late 1990s, cancer survival rate of 42.9% in 1993–1995 dramatically increased to 70.7% in 2015–2019^{30, 31} and cancer screening rates increased from 1.2%–4.2% to 33.6%–73.6% depending on the cancer type.³² Our investigation of incidence and mortality clusters over the following 15 years since this establishment can highlight the advances and challenges resulting from the expansion of cancer control efforts.

As an attempt to provide practical guidance based on our findings, we summarized in Figure S7 the eight types of cluster changes between periods 1 and 3, which are visualized in Figures 3 and S4, and provided their possible explanations related to cancer control. For example, the Type 1 indicates the areas found as the cancer incidence cluster in the period 1 and turned into the cluster of incidence as well as morality in the period 3, possibly suggesting the lagged effect of incidence increase on mortality reduction. Increased incidence might have resulted in mortality increase in a short time while effective treatment interventions were not yet implemented. Our finding of high proportion of cancer screening in incidence clusters and much higher proportion in mortality clusters may also mean this lag effect where effective cancer screening increases early detection but mortality decrease does not follow yet. The change from no cluster to incidence cluster in the Type 4 may suggest the increase in incidence resulting from active implementation of cancer screening or prolonged effect of early-life exposure.^{33, 34} The identification of these areas with less effective prevention and/or treatment environments can provide guidance to future cancer control. In contrast, the disappearance of incidence and mortality clusters may mean effective preventive interventions and improved treatment advances as the success of cancer control.

Our findings showed similar change patterns of cluster locations for one set of cancer types but different patterns for the other: lung, stomach, and liver cancer versus colorectal, breast, prostate, and cervical cancer. Over 15 years, lung, stomach, and liver cancer tended to show incidence clusters consistently in the same areas with some overlap for mortality clusters. However, colorectal, female breast, cervical, and prostate cancer generally displayed changes of cluster locations for both incidence and mortality clusters with little overlap. These two classes of cancer types align with preventable and treatable cancer mortality conceptualized by the Organization for Economic Co-operation and Development (OECD). Preventable death is defined as causes of death that can be avoided by implementing effective public health and primary preventive interventions before the stage of disease onsets, while treatable death is characterized as avoidable deaths through timely and effective health care interventions including secondary prevention and treatment after the onset of disease.³⁵ The OECD applied these concepts to cancer and classified cancer types into two classes: lung, stomach, and liver cancer as preventable mortality and colorectal, breast, cervical, and prostate cancer as treatable mortality.³⁶ Our findings of non-overlapping clusters such as high incidence but low mortality in the same area for cancers related to treatable mortality could be derived by their slow progress and favorable prognosis. These cancer types, in particular, generally showed increasing or consistent patterns in age-standardized incidence and mortality rates over time in most middle- and high-income countries, even though most other cancer sites displayed decreasing trends.^{30, 35} Furthermore, their survivorship has considerably improved compared to cancers in preventable mortality.³⁷ These recent patterns of cancers in treatable mortality suggest further attentions in cancer control.

Geographic characteristics partly explain the distinctive properties in cluster areas compared to non-cluster areas. The cluster areas of incidence in 2009–2013 were characterized by older population, higher unemployment, higher current smoking rate, and higher cancer screening rate than those of non-cluster areas in all but breast cancer. These patterns were found even stronger in mortality. Breast cancer was an exception in that cancer screening rate in incidence clusters was higher than non-cluster areas, while the lower rate was found in mortality clusters. These findings are consistent to previous literature. For example, lung cancer clusters were found in the areas with high smoking rate in China and low socioeconomic status in Pennsylvania, United states, while colorectal cancer clusters were detected in the areas with high screening rates in North Carolina, United states.^{38, 39} Another U.S. study of breast cancer incidence and mortality across more than 3000 counties showed that the counties with low socioeconomic status had low rates of breast cancer screening possibly resulting in low incidence and high mortality.³⁶

We applied flexible scan statistics that allow us to overcome the limitations of traditional scan methods.²⁴ Cancer could be developed over extended time periods related to built and/or physical environments and various geographic characteristics including socioeconomic conditions and public health interventions shared across neighboring administrative units, such as districts. Thus, the application of a window that identifies the cluster based on such commonly-affected areas could be a more favored approach compared to fixed shapes such as circles or elliptics used in traditional approaches. Moreover, the large variation of the district size with small districts in urban areas and large districts in rural areas of South Korea could make it difficult to apply a predefined shape to detect a cluster.

Our study includes several limitations that promote further studies. First, we investigated the patterns of changing clusters from 1999 through 2013, but this 15-year period may not be sufficient to observe the complete pattern of changes. The decreasing trend of nationwide cancer incidence and mortality rates beginning in the middle of 2010s, as interpreted as the achievement of nationwide cancer control programs, also suggests the need of the extended investigation. Future studies should re-examine the changes by adding the updated cancer data for the latest periods. Second, we did not account for age structure in our cluster detection. As cancer incidence and mortality tend to be high in the areas with high proportion of order adults, cluster analyses for cancer could have used age-standardized rate or have adjusted for age when aiming to identify new clusters or new risk factors after excluding the impact of age structure. However, our study focused on the temporal changes in the locations of spatial clusters and their potential relationships with cancer control actions which also include older adult population. Third, our investigation of geographic characteristics focused on the difference between clustered and non-clustered areas in the period 3 rather than the change of cluster locations across three periods, because of data limitation. The addition of geographic characteristics in addition to cancer incidence and mortality data in the latest periods can allow us to investigate the relationships of changes in geographic characteristics and changes in cancer clusters. Finally, the local characteristic description of cluster versus non-cluster areas may not confirm the causal relationship between health risk factors and cluster areas. Further studies could investigate whether cluster locations change depending on the adjustment and apply a novel approach to investigate the causal association with geographic risk factors.⁴⁰

5 CONCLUSIONS

Our study investigated the temporal changes in the spatial clusters of incidence and mortality over 15 years since nationwide cancer control programs began in South Korea and found various types of sequential changes depending on the cancer type. The change including persistence, relocation, removal, or introduction of clusters may suggest enhanced or limited effectiveness of cancer prevention and/or treatment interventions and provide practical guidance to future cancer control programs for such area.

AUTHOR CONTRIBUTIONS

Cham Thi Nguyen: Conceptualization (lead); data curation (lead); formal analysis (lead); investigation (lead); methodology (lead); validation (lead); visualization (lead); writing – original draft (lead). Insang Song: Methodology (supporting); validation (supporting); writing – review and editing (supporting). Inkyung Jung: Methodology (supporting); writing – review and editing (supporting). Yoon-Jung Choi: Investigation (supporting); writing – review and editing (supporting). Sun-Young Kim: Conceptualization (lead); formal analysis (supporting); funding acquisition (lead); investigation (supporting); methodology (supporting); resources (supporting); supervision (lead); writing – review and editing (lead).

FUNDING STATEMENT

This work was supported by the National Research Foundation of Korea (grant number: 2022R1A2C2009971) and the National Cancer Center of Korea (NCC-2110570, NCC-2310220).

CONFLICT OF INTEREST STATEMENT

The authors have no conflicts of interest to declare.

ETHICAL APPROVAL

Ethics approval and informed consent not applicable.
