Pivotal roles of tumor-draining lymph nodes in the abscopal effects from combined immunotherapy and radiotherapy

2.1 Mice and cell lines

Female C57BL/6J mice (age, 6-8 weeks) were purchased from Beijing Huafukang Biosciences Corporation (Beijing, China). Experiments involving animals were reviewed and approved by the Shandong Cancer Hospital according to Institute Animal Care and Use Committee guidelines (Permit number: SDTHEC2020001013). The mice were bred and maintained in our air-conditioned animal facility and housed in a climate-controlled (temperature = 24°C; humidity = 40%-60%) light-regulated room with a 12/12 h light/dark cycle and with ad libitum access to food and water. They were euthanized in a CO₂ chamber at an experimental or a humane endpoint (tumor size >1500 mm³), whichever occurred first.

The murine colon adenocarcinoma cell line MC38 and murine melanoma cell line B16F10 were generous gifts received from the laboratory of Professor Liufu Deng from the Shanghai Institute of Immunology, Shanghai Jiaotong University School of Medicine (Shanghai, China). The MC38 cells were cultured in Dulbecco's modified Eagle's medium (DMEM; ThermoFisher, Waltham, USA) and B16F10 cells in RPMI-1640 (ThermoFisher) supplemented with 10% fetal bovine serum (FBS; ThermoFisher), 100 U/mL penicillin/streptomycin (Solarbio, Beijing, China) at 37°C with 5% CO₂.

2.2 Subcutaneous tumor models and treatment

Unilateral or bilateral subcutaneous tumor models were established using MC38 and B16F10 cells. Briefly, C57BL/6J mice were subcutaneously inoculated with indicated tumor cells on the left flank (primary tumor: 1 × 10⁶ MC38 cells or 5 × 10⁵ B16F10 cells) and/or on the right flank (abscopal tumor: 0.3-0.4 × 10⁶ MC38 cells or 3 × 10⁵ B16F10 cells) on Day 0. After the diameter of the primary tumors reached 6-8 mm (approximately on Day 9 for MC38 tumors and on Day 7-8 for B16F10 tumors post tumor challenge), the mice were randomly allocated and subjected to various treatments. Tumors were monitored at least twice every week, and the mice were euthanized at indicated time points.

To determine the location of TDLN, methylene blue staining was performed as previously reported [31]. Briefly, 10 μL medical methylene blue injection was injected subcutaneously at the tumor site, and the mice were sacrificed and TDLN were dissected 5 min after injection. Unilateral or bilateral TDLN were surgically removed from mice on indicated days or sham surgery, and subsequently, anti-PD-1 (200 μg/mouse; #BE0146, BioXcell, West Lebanon, NH, USA) was intraperitoneally administrated to mice on the same day and every other day for a total of three times. One day after TDLN removal surgery or sham surgery, the primary tumors (on the left flank) were irradiated with one fraction of 12 Gy using the RS2000-225 Biological Irradiator (Rad Source Technologies, Inc. Buford, GA, USA), with the body of mice protected by a 4-mm-thick lead shield (Supplementary Figure S1A). Thereafter, the tumor volumes were monitored twice every week.

For in vivo depletion of CD8⁺ T cells, tumor-bearing mice were intraperitoneally injected with anti-mouse CD8α antibody (300 μg/mouse; #BE0061, BioXcell) 2 days before irradiation and twice weekly thereafter. In addition, tumor-bearing mice were intragastrically injected with FTY720 (20 μg/mouse; #S5002, Selleck, Houston, TX, USA) 1 day before tumor-directed irradiation and every day thereafter with a lavage needle as described previously [32]. Peripheral CD3⁺ T cells were detected 48 h after irradiation.

The mice were euthanized at indicated time points or after the cumulative tumor burden had reached 1500 mm³, and 60 days after tumor inoculation for CD8⁺ T cell deletion experiments.

2.3 Flow cytometry

Subcutaneous tumors were collected 6-7 days after tumor irradiation, minced with ophthalmic forceps, and subsequently digested with 1 mg/mL collagenase type 4 (LS004186, Worthington, New York, NY, USA) and 0.2 mg/mL Dnase I (DN25, Sigma-Aldrich, St Louis, MO, USA) at 37°C for 30 minutes. Digestion was terminated using RPMI-1640 with 2% FBS, and the solution was filtered using a 70 μm cell strainer (Corning, New York, NY, USA) to obtain single cell suspensions, followed by cell staining and flow cytometry. For surface staining, the single cell suspensions were incubated with anti-mouse CD16/CD32 antibody (1:50; #553141, BD Biosciences, Franklin Lakes, NJ, USA) for 15 minutes at 4°C to block nonspecific antibody binding, washed with FACS buffer (2% FBS in PBS), and subsequently stained with an antibody cocktail against CD45.2 (1:200; #109839, Biolegend, San Diego, CA, USA), Ly6C (1:200; #128035, Biolegend), Ly6G (1:200; #127643, Biolegend), CD11b (1:200; #101216, Biolegend), F4/80 (1:200; #123137, Biolegend), CD11c (1:200; #117310, Biolegend), MHC-II (1:200; #107625, Biolegend), CD86 (1:200; #553691, BD Biosciences), CD206 (1:200; #141706, Biolegend), CD8 (1:200; #100730 or #100753, Biolegend), and Fixable Viability Stain 780 (1:1000; #565388, BD Biosciences). For intracellular staining and evaluating the function of T cells in the tumor microenvironment, the single cell suspensions were treated with Cell Activation Cocktail (with Brefeldin A) (1:200; #423304, Biolegend) for 4 h before cell staining and stained with an antibody cocktail against CD45.2 (1:200; #109839, Biolegend) and CD8 (1:200; #100730 or #100753, Biolegend), The samples were fixed in fixation/permeabilization buffer (#562574, BD Biosciences) at 4°C for 1 h, washed with 1 × permeabilisation/wash buffer and incubated with the corresponding antibody cocktails including Granzyme B (1:200; #372204, Biolegend), and interferon-γ (IFN-γ,1:200; #505831, Biolegend) in permeabilization buffer in the dark at 4°C for 40-60 minutes. Flow cytometry was performed on an LSR Fortessa system (BD Biosciences), and the output was analyzed using the FlowJo software (version 10.4, TreeStar, Ashland, OR). CD8⁺ T cells were identified as CD45⁺ CD8⁺. IFN-γ⁺ and Granzyme B⁺ were used to define the cytotoxic function of CD8⁺ T cells. M1 tumor-associated macrophages (TAMs) were identified as CD45⁺Ly6C^lowLy6G^lowCD11b⁺F4/80⁺CD86⁺ or CD45⁺Ly6C^lowLy6G^lowCD11b⁺F4/80⁺ MHCII⁺, and M2 TAM were identified as CD45⁺Ly6C^lowLy6G^lowCD11b⁺F4/80⁺ CD206⁺.

2.4 RNA-sequencing (RNA-seq) and NanoString analysis

Single cell suspensions (prepared as mentioned above) were obtained 7 days after tumor irradiation. Tumor-infiltrating lymphocytes (TILs) were isolated via density gradient centrifugation using Ficoll (17-5442-02, GE Healthcare, Pittsburgh, PA, USA) as described previously [33]. Briefly, single cells were resuspended in 4 mL of Dulbecco's phosphate-buffered saline (DPBS; Solarbio, Beijing, China) and transferred to a 15 mL tube; subsequently, 2 mL of Ficoll was slowly pipetted on the bottom, and all samples were then centrifuged at 2000 rpm at 20°C for 20 minutes with no brake and acceleration. Cells in the interphase were collected, washed and subjected to RNA-seq. The total RNA of TILs was extracted using the RNeasy Mini Kit (Qiagen, Hilden, Germany). RNA libraries were prepared using the VAHTS mRNA-seq v2 Library Prep Kit (Vazyme, Nanjing, China), and sequencing was performed on the NovaSeq 6000 platform (Berry Genomics Co., Ltd. Beijing, China). Pathway analysis was performed via KEGG software. RNA-seq reads were aligned to NanoString of 770 immune-related genes and analyzed using the nCounter® analysis system (Fynn Biotechnologies Ltd, Jinan, China).

2.5 H&E staining and Immunofluorescence staining

TDLN were surgically removed from C57BL/6J mice, formalin-fixed and embedded in paraffin. For H&E staining, sections were processed by dewaxing, hydration, dyeing, dehydration, and sealing.

Tumor tissues were obtained 7 days after tumor irradiation, fixed in formalin, and embedded in paraffin. Immunofluorescence staining was performed according to the manufacturer's instructions (Opal^TM 7-Color Manual IHC Kit; NEL811001KT, Akoya Biosciences, Marlborough, MA, USA). Briefly, paraffin sections were incubated with sodium citrate for 10-25 minutes for antigen retrieval, blocked using BF block buffer containing 30%-40% goat serum for 1 h at room temperature, and subsequently incubated with primary antibodies against F4/80 (1:200; 70076, Cell Signaling Technology, Danvers, MA, USA, marker of mouse monocytes/macrophages), inducible nitric oxide synthase (iNOS, 1:200; ab3523, Abcam, Cambridge, MA, USA, a marker of mouse M1 TAM), CD206 (1:200; ab64693, Abcam, a marker of mouse M2 TAM), CD45 (1:200; 20103-1-AP, Proteintech, Chicago, IL, USA), and CD8 (1:200; 98941, Cell Signaling Technology) at room temperature for 2 h or 4°C overnight with an additional incubation of 0.5-2 h at room temperature. Thereafter, the sections were incubated with secondary antibodies (1 ×, ARH1001EA, Akoya Biosciences, Marlborough, MA, USA) for 10 minutes followed by incubation with appropriate opal fluorophore reagents at room temperature for 10 minutes. Finally, the sections were stained with 4′,6′-diamidino-2-phenylindole (DAPI) for 7 minutes at room temperature; and CD45⁺CD8⁺ T cells, F4/80⁺iNOS⁺ cells (M1 TAM) and F4/80⁺CD206⁺ cells (M2 TAM) were photographed and analyzed on a Vectra Polaris system (Akoya Biosciences).

2.6 Statistical analysis

Representative data were obtained from 2-3 independent experiments and are expressed as mean ± standard error (SE). Survival graphs were analyzed using the Kaplan-Meier method and compared using the log-rank tests. Two-way ANOVA was used for tumor growth comparison, and one-way ANOVA for multiple groups comparison, and all were followed by Tukey's multiple comparison test. P < 0.05 was considered to be statistically significant. All statistical analyses were performed using the GraphPad Prism software (v8.0.2; La Jolla, CA, USA).

3.1 Intact TDLN are essential for iRT-induced anti-tumor and abscopal effects

To examine the function of TDLN, methylene blue staining was performed in vivo to determine the location of TDLN in the tumor models. The location of TDLN was similar to that reported previously [21]. Subsequently, H&E staining of the surgically removed tissue revealed typical lymphoid nodal structure (Supplementary Figure S1B), indicating that TDLN were successfully removed from the mouse models when indicated.

To verify the hypothesis that TDLN were important for iRT, mice with unilateral subcutaneous tumors were subjected to either monotherapy (irradiation or anti-PD-1 treatment) or combinatorial iRT in the presence or absence of the corresponding TDLN (Figure 1A). Compared with radiotherapy or anti-PD-1 therapy, iRT augmented anti-tumor effects in both MC38 and B16F10 tumor models. Moreover, intact TDLN were required for iRT-induced anti-tumor effects (Figure 1B-C, Supplementary Figure S1C). Furthermore, administration of FTY720, which can block T cell egress from lymphoid tissues, dramatically decreased the proportion of peripheral T cells and eliminated iRT-induced anti-tumor effects (Figure 1D-G, Supplementary Figure S1D-E). Therefore, TDLN functioned as essential hubs of anti-tumor responses induced by iRT.

As previously reported, compared with radiotherapy, iRT dramatically stimulated abscopal effects, which requires adequate adaptive immune responses [34]. We next interrogated whether iRT-stimulated abscopal effects also require TDLN and found that a single fraction of 12 Gy on a primary tumor with systemic administration of anti-PD-1 antibody induced dominant abscopal effects in the bilateral subcutaneous tumor models (Supplementary Figure S1F). To further determine the functions of the TDLN of primary and abscopal tumors, unilateral or bilateral TDLN were surgically removed before anti-PD-1 administration and irradiation, and the contribution of TDLN to anti-tumor and abscopal effects induced by different treatments varied (Supplementary Figure S2A). Resection of unilateral or bilateral TDLN alone did not affect tumor growth (Supplementary Figure S2B), and it seemed that TDLN slightly influenced the anti-tumor effects induced by anti-PD-1 monotherapy (Supplementary Figure S2C). However, intact TDLN of the primary tumors (instead of the abscopal tumors) were found to be essential for irradiation monotherapy-induced primary and secondary tumor regression (Supplementary Figure S2D), and bilateral (instead of unilateral) TDLN deficiency dramatically attenuated iRT-stimulated abscopal effects (Figure 1H, Supplementary Figure S2E). In all, these results suggested that TDLN were essential for iRT-induced anti-tumor effects, and intact TDLN of both primary and abscopal tumors were essential for iRT-induced abscopal effects.

3.2 Transcriptomes of TILs in iRT-treated primary and abscopal tumors demonstrate different repertoires after removal of bilateral TDLN

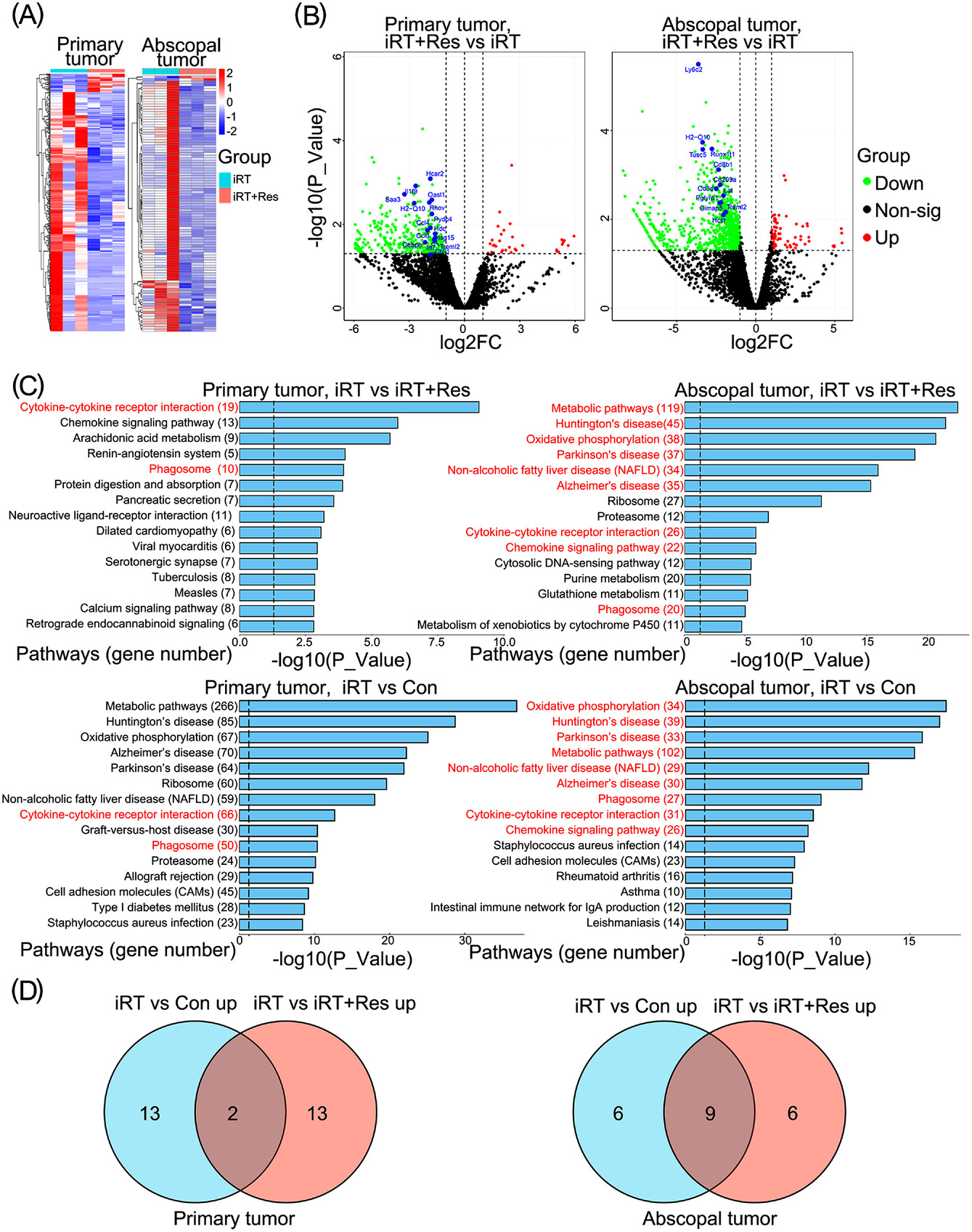

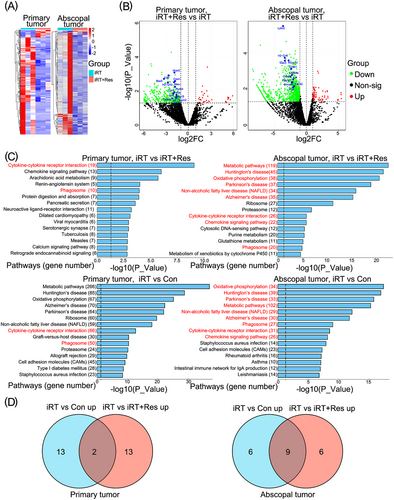

iRT-induced abscopal effects depend on adequate innate and adaptive immune responses, which are executed by immune cells in the tumor microenvironment. Therefore, to evaluate the impact of iRT on TILs, TILs were isolated from iRT-treated primary and abscopal tumors 7 days after irradiation and subjected to RNA-seq. TILs, isolated from either primary or abscopal tumors, showed distinct transcriptomes after iRT and subsequent TDLN removal (Figure 2A). Analysis of differentially expressed genes showed that several genes were downregulated after bilateral TDLN removal in the context of iRT in both primary and abscopal tumors when compared with the iRT group (Figure 2B). For example, Pydc4, Rhov, Oasl1, Hdc, Isg15, Il1f9, Saa3, Ccl4, Treml2, H2-Q10, and Cebpe in primary tumors and Ly6c2, CD8b1, Gimap5, Lat, Hcst, Cd3d, Pglyrp1, Tusc5 and H2-Q10 in abscopal tumors were significantly downregulated with the absence of TDLN. Because most of these genes are associated with T cell function [35-38], the finding indicated that the removal of bilateral TDLN might lead to impaired iRT-induced T cell responses.

Next, we further compared the pathways enriched in the iRT group vs. control group with those enriched in the iRT group vs. the group with iRT treatment combined with TDLN removal in primary tumors. Two overlapping pathways were found, one related to cytokine-cytokine receptor interaction and the other to phagosome (Figure 2C-D). Using similar comparison methods to examine the TILs of abscopal tumors, 9 overlapping pathways were found, including those related to the cytokine-cytokine receptor pathway and phagosome in addition to the chemokine signaling pathway (Figure 2C-D). Moreover, the genes downregulated in the absence of TDLN were also enriched in the pathways mentioned above. Of note, metabolic and oxidative phosphorylation pathways were significantly upregulated in the TILs of abscopal tumors after iRT, which were downregulated after TDLN removal, thus indicating a potential difference between the primary and abscopal tumor microenvironment (Figure 2C).

Furthermore, we examined the transcriptome of bilateral TDLN 1, 3, 5 and 7 days after iRT. Differentially expressed genes and enriched pathways in the TDLN of primary and abscopal tumors indicated that the TDLN of primary and abscopal tumors might contribute to anti-tumor immune responses through different mechanisms in a time-dependent manner (Supplementary Figure S3). In addition, the Thbs4 gene (associated with stem cell differentiation) was found to be significantly upregulated in the iRT groups vs. control groups in both primary and abscopal tumors. Tumor-reactive stem-like TILs are associated with complete cancer regression, and TDLN may be the source of stem-like cells in tumors [39, 40].

3.3 TDLN removal impairs iRT-induced anti-tumor immune responses mediated by CD8⁺ T cells

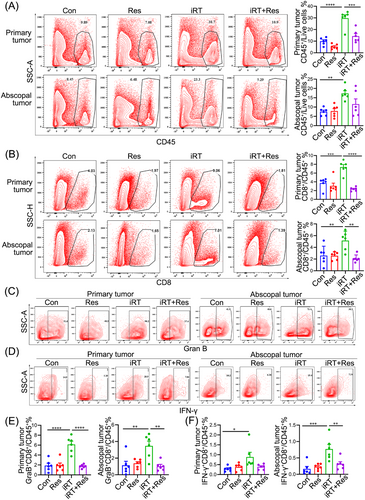

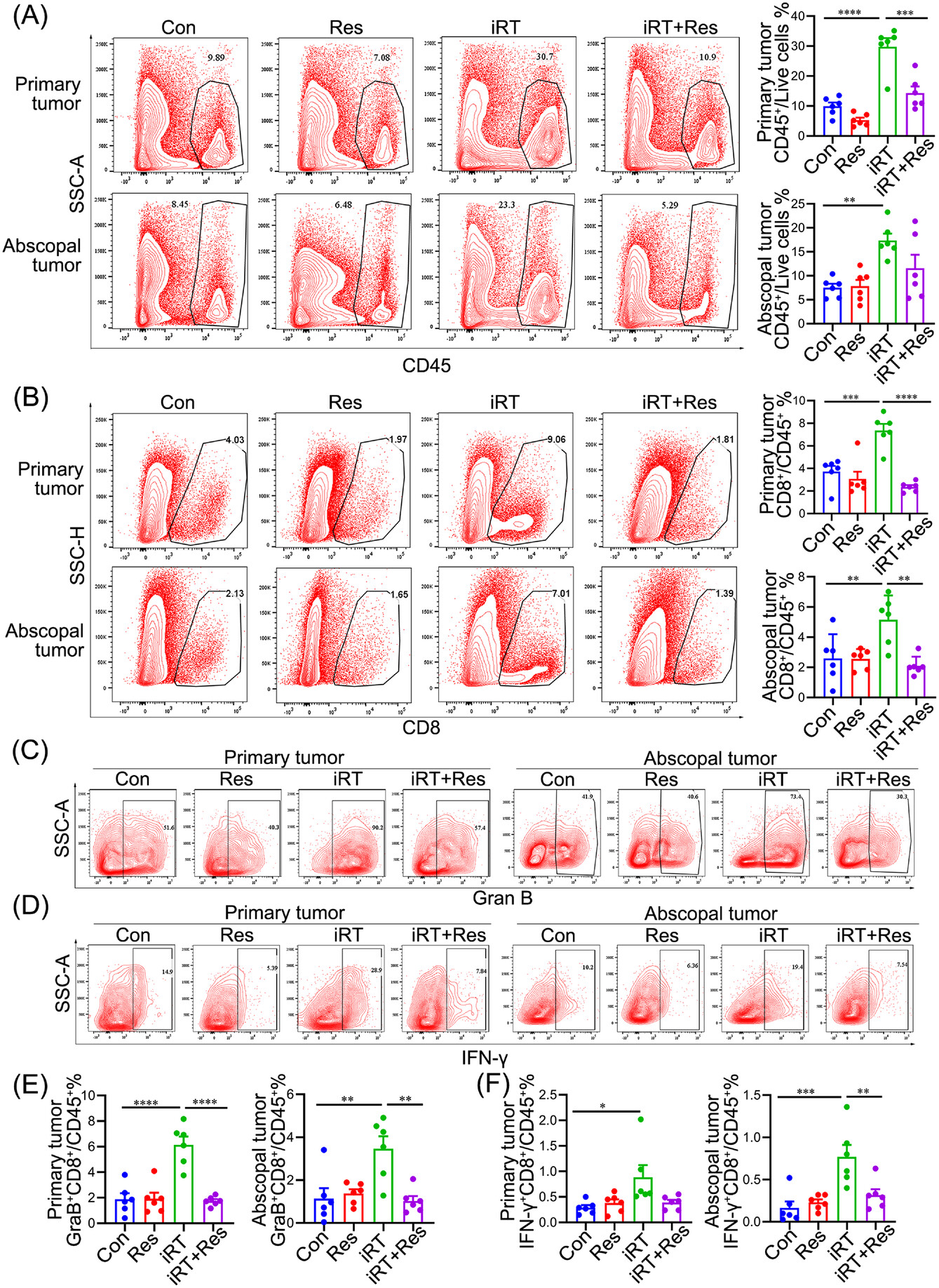

Owing to the importance of CD8⁺ T cells as “effector cells” for iRT-mediated immune responses and as indicated by the RNA-seq data (Figure 2B), we assessed whether TDLN promoted iRT-induced anti-tumor and abscopal effects via the filtration and function of CD8⁺ T cells in the tumor microenvironment. We first utilized the unilateral MC38 tumor models, which were subjected to irradiation and/or anti-PD-1 administration in the presence or absence of TDLN. Tumors were collected 7 days post irradiation, and the immune microenvironment was analyzed via flow cytometry using the gating strategy (Supplementary Figure S4). The results revealed that TDLN removal adversely affected iRT-induced CD45⁺ and CD8⁺ T cell infiltration, and monotherapy-stimulated CD45⁺ and CD8⁺ T cell infiltration was slightly altered by TDLN removal (Supplementary Figure S5A). These results suggested that iRT-induced CD8⁺ T cell infiltration relied on intact TDLN. Furthermore, bilateral MC38 tumor models were established and subjected to iRT treatment with or without bilateral TDLN removal. TDLN removal alone did not affect CD45⁺ and CD8⁺ T cell infiltration in either the primary or abscopal tumor microenvironment without iRT treatment. iRT treatment significantly increased the infiltration of CD8⁺ and CD45⁺ T cells, which were substantially reversed by bilateral TDLN removal (Figure 3A-B). Furthermore, the effects of TDLN removal on the function of CD8⁺ T cells (in the primary and abscopal tumor microenvironment) were examined. The results showed that iRT resulted in significant enrichment of IFN-γ⁺ and Granzyme B⁺ CD8⁺ T cells, which was diminished after bilateral TDLN removal (Figure 3C-F). To visualize the distribution of CD45⁺ and CD8⁺ T cells in primary and abscopal tumors, multiplex immunofluorescence staining was utilized, and evident enrichment of CD45⁺ and CD8⁺ T cells were detected after iRT. However, bilateral TDLN removal attenuated this phenomenon (Figure 4A).

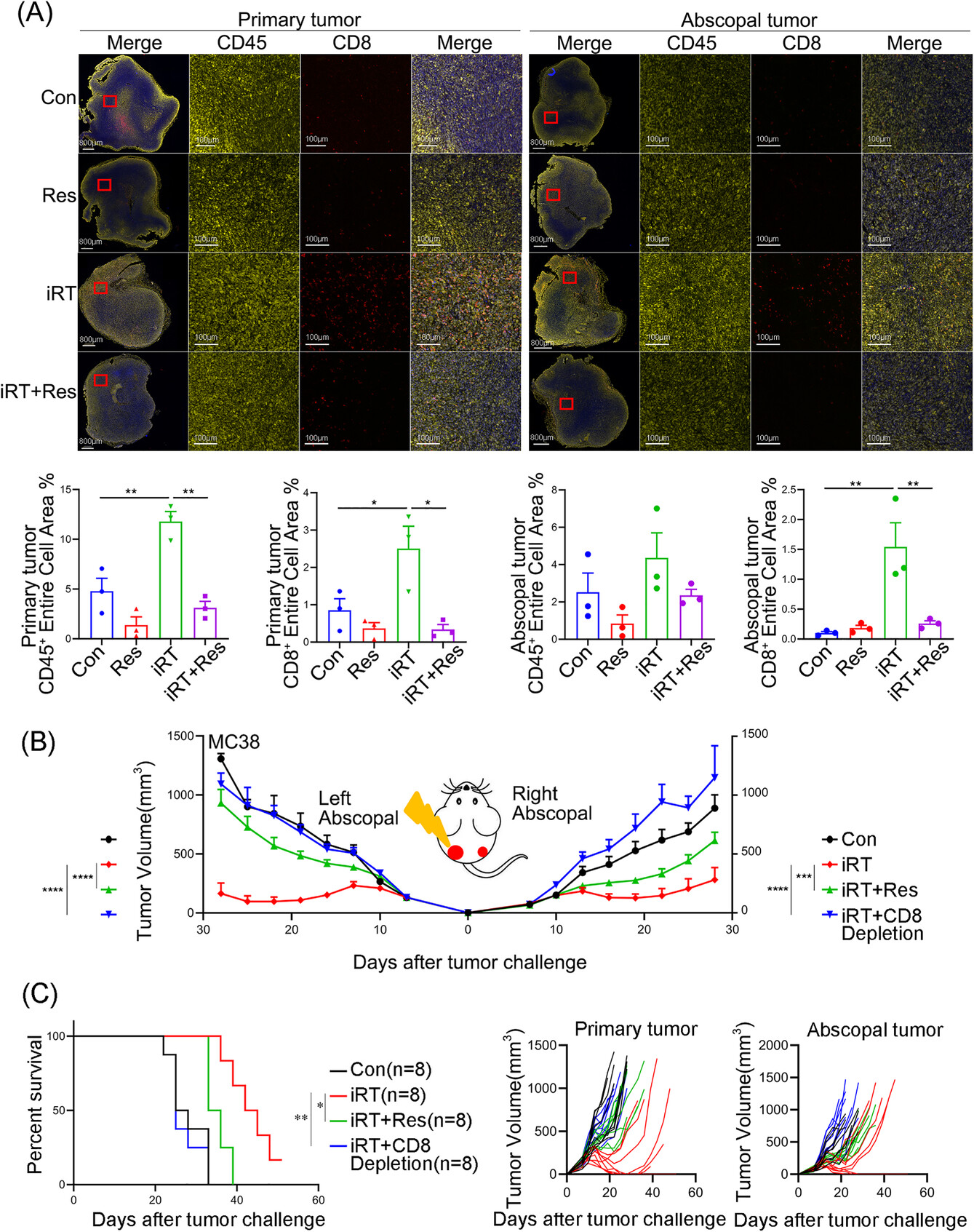

Additionally, to verify the involvement of CD8⁺ T cells in iRT-stimulated abscopal effects, the anti-CD8 neutralizing antibody was used in bilateral MC38 tumor models. The results revealed that CD8⁺ T cell depletion inhibited anti-tumor effects in both primary and abscopal tumors with compromised survival outcomes (Figure 4B-C). Altogether, these findings suggest that TDLN-mediated CD8⁺ T cell infiltration and function are essential for iRT-induced abscopal effects.

3.4 TDLN maintain TAM polarization in the primary and abscopal tumor microenvironment after iRT

As shown in Figure 2B, transcriptomic analysis showed that Chil1, Hcar2, Irf7, and Ccl3 (primary tumors) along with Treml2, Cd209a, and Runx1t1 (abscopal tumors) were significantly downregulated with the absence of TDLN. Because these genes are associated with macrophage enrichment and function [41, 42], it was hypothesized that TAM might be affected by TDLN deficiency. Bilateral tumor models were utilized herein. Compared with the control group, the iRT group had significant infiltration of polymorphonuclear-myeloid-derived suppressor cells (PMN-MDSCs) and monocytic MDSCs (M-MDSCs) in the primary tumor microenvironment, which was not affected by TDLN removal (Supplementary Figure S5B). In addition, the abundance of DCs was not dramatically altered after iRT treatment with or without TDLN (Supplementary Figure S5B). However, in the abscopal tumor microenvironment, although iRT did not affect the enrichment of PMN-MDSCs, M-MDSCs, and DCs compared with the control group, TDLN removal decreased the infiltration of these immune cells (Supplementary Figure S5C). Moreover, the infiltration of TAM was decreased in both primary and abscopal tumors after iRT, and TDLN removal reversed this phenomenon (Supplementary Figure S5D). Thus, TDLN removal influenced the reprogramming of the tumor microenvironment in both primary and abscopal tumors.

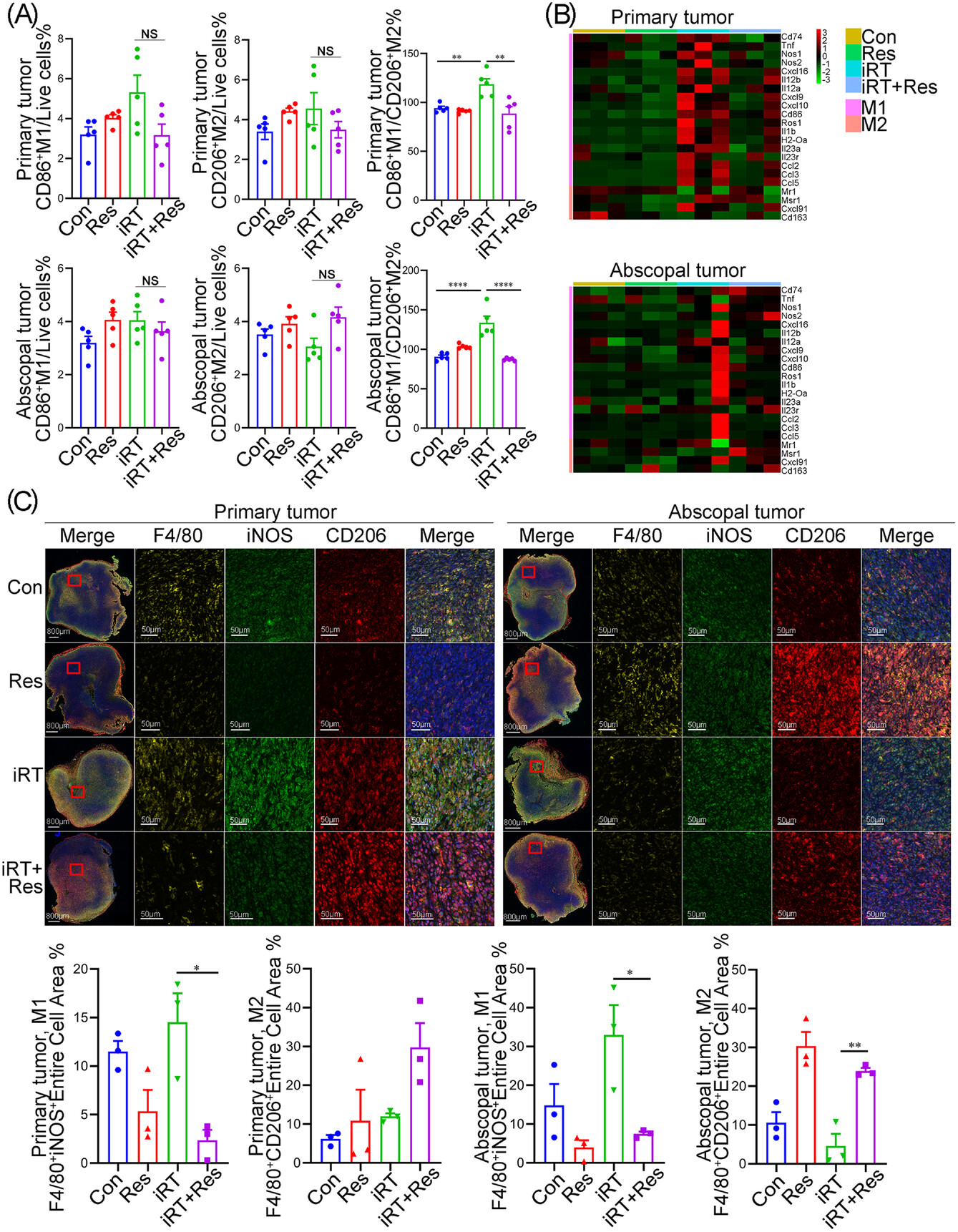

Given that the proportion of TAM consistently varied in primary and abscopal tumors with iRT in the absence of bilateral TDLN, we further analyzed the polarization of TAM. Using a similar gating strategy as mentioned above (Supplementary Figure S4), we found that compared with iRT alone, iRT with TDLN removal tended to decrease the infiltration of M1 TAM in primary tumors, but differences were not statistically significant (P = 0.05, Figure 5A). Although the proportion of M2 TAM did not significantly change, the CD86⁺M1/CD206⁺M2 and MHCII⁺M1/CD206⁺M2 ratios significantly decreased after iRT with TDLN removal (Figure 5A, Supplementary Figure S5E). In abscopal tumors, iRT failed to affect the infiltration of CD86⁺ M1 TAM, MHC-II⁺ M1 TAM or CD206⁺ M2 TAM in the presence or absence of TDLN. However, compared with Con group, iRT significantly upregulated M1/M2 ratio in the CD86⁺ M1/CD206⁺ M2 population in abscopal immune microenvironments, which depended on intact TDLN (Figure 5A, Supplementary Figure S5E). We then further analyzed the expression profile of M1 TAM-related genes based on the RNA-seq data using the NanoString molecular panels, and similar results were obtained. In both primary and abscopal tumors, iRT increased the expression of M1 TAM marker-related genes, whereas bilateral TDLN removal significantly reversed the increase in gene expression (Figure 5B). Additionally, to visualize the distribution and enrichment of M1 and M2 TAM in primary and abscopal tumors, multiplex immunofluorescence staining of primary and abscopal tumors was performed, and F4/80 was used to define total macrophages, whereas iNOS and CD206 were used to define M1 and M2 TAM, respectively. Consistent with the findings of flow cytometry, immunofluorescence staining revealed impaired enrichment of M1 TAM and abnormal infiltration of M2 TAM in primary and abscopal tumors after iRT with bilateral TDLN removal (Figure 5C). In summary, these results indicated that TDLN partially promoted iRT-induced abscopal effects by maintaining TAM polarization.
