2.1 Participants

The sample for this study was comprised of adolescents recruited from various schools in the Region of Madrid, as part of two independent longitudinal projects funded by the Spanish Ministerio de Sanidad in 2015 and 2017. Both projects followed the same assessment protocol (Figure 1A), consisting of two evaluation stages separated by a 2-year follow-up period. Prior to the experiment, all participants reported no history of alcohol consumption or familiar alcohol use disorder. In addition, all subjects successfully completed the alcohol use disorder identification test (AUDIT) (Guillamón, Solé, and Farran 1999), and individuals who reported prior alcohol use were excluded from the study. In the first stage (before alcohol use onset), 148 adolescents agreed to participate in the first arm of the study, undergoing a semi-structured interview about their drug use habits to exclude any potential consumers; later, they underwent an MEG study, consisting in 5-min eyes-closed resting-state, from which 142 also agreed to participate in an MRI study.

After a follow-up period of 2 years, in the second stage, 104 of these participants underwent the AUDIT test and a semi-structured interview again, aiming to measure their alcohol consumption habits. Using this information, we calculated the quantity of SAUs consumed during regular drinking episodes for each participant (with a mean consumption of 3.7 ± 2.98), considering the number of beverages consumed within a 2–3-h period (a histogram quantifying the values for each alcohol consumption group can be found in Figure S1). Tobacco and cannabis use were controlled by excluding those participants with regular use of these substances. Finally, after quality control of the MEG and MRI data, a final sample of 103 subjects (mean age 13.75 ± 0.64, 53 females) completed the entire protocol and were selected for analysis.

The sample consisted almost entirely of native-born participants and was balanced in terms of weight and height; elements such as parental education, participants' auto-informed quality of life, or dedication to the study were also controlled for (for a more detailed explanation of demographics, see Table S1). Informed consent was obtained from all participants and their parents or legal guardians during the first stage of the study, following the guidelines outlined in the Declaration of Helsinki. The ethical committee of Universidad Complutense de Madrid granted approval for the study.

2.2 MRI Recordings

The participants underwent a 3D T1-weighted high-resolution brain MRI scan with a power of 1.5 T from the Santa Elena Foundation (General Electric Optima MR450 w, echo time = 4.2 ms, repetition time = 11.2 ms, inversion time = 450 ms, flip angle = 12°, field of view = 100, acquisition matrix = 256 × 256, and slice thickness = 1 mm) or the Clinical Hospital of Madrid (General Electric Signa HDxt, echo time = 4.2 ms, repetition time = 11.2 ms, inversion time = 450 ms, flip angle = 20°, field of view = 100, acquisition matrix = 256 × 256, and slice thickness = 1 mm).

2.3 MEG Recordings

The recordings were conducted at the Cognitive and Computational Neuroscience Laboratory (UCM-UPM) of the Biomedical Technology Centre (CTB) (Madrid, Spain) using an Elekta Neuromag system with 306 channels (Elekta AB, Stockholm, Sweden) placed inside a magnetically shielded room (VacuumSchmelze GmbH, Hanau, Germany). We acquired 5 min of task-free (resting-state) data with eyes closed using an online bandpass filter between 0.1 and 330 Hz, and a sampling rate of 1000 Hz. The participants were asked to remain still, with eyes closed, during the time of the study, as relaxed as possible. After 5 min, the participants were instructed to open their eyes and look for a fixated cross for another 5 min.

To later calculate their electrical components and subtract them from the brain signal, we also acquired eye blinks and heartbeat using two sets of bipolar channels with the same configuration. To aid in the source reconstruction stage, the head shape of the participants was also obtained using a Fastrak three-dimensional digitizer (Polhemus, Colchester, and Vermont).

We initially preprocessed the data using a spatial filtering provided by the manufacturer (tSSS) (Taulu and Hari 2009) with MaxFilter software (v 2.2, Elekta AB, Sweden), tuning the parameters to 0.9 as correlation limit and 10 s as length of the correlation window. Then, we used the FieldTrip packages (Oostenveld et al. 2011) to detect artifacts and remove interfering signals (noise, heart beats, ocular activity) with a SOBI-based ICA (Belouchrani et al. 1997). Finally, we segmented the data into 4-second epochs, avoiding the artifacted segments.

2.4 Source Reconstruction

As a source model, we defined a homogeneous grid with 1 cm of separation between sources using the MNI template, yielding 2459 source positions inside the cranial cavity. These sources' positions were labeled using the AAL atlas (Tzourio-Mazoyer et al. 2002), and only those 1206 positions designated as 1 of the 78 cortical areas were considered for further analysis. With the help of a linear normalization between the MNI space standard T1 image and the subject-specific T1 image, we transformed this source model into a subject space, segmenting the image into the different tissues using the unified segmentation algorithm in SPM12 (Ashburner and Friston 2005). This combination was used to build a realistic single-shell interface representing the inner skull cavity. Then, we transformed this source and volume conduction model into the MEG space using the head shape as aid.

We solved the forward problem by building a lead field based on a modified spherical solution (Nolte 2003), and the inverse problem by using an LCMV beamformer (Van Veen et al. 1997), finally recreating the source-level activity. The spatial filter was build using LCMV and the covariance matrix generated from the broadband (2–45 Hz) sensor-space activity, filtered using a 1800th -order FIR filter. To avoid any possible distortion, data were filtered in two passes, and using 2 s (2000 samples) of real data at each side of the epoch as padding.

2.5 Power Spectrum

We estimated the relative source-level activity for specific frequencies of each band (theta (4–8 Hz), alpha (8–12 Hz), beta (12–20 Hz), and gamma (30–45)) using an mtmfft method with dpss as windowing function, with a 1 Hz smoothing. These data served as the precise dataset of brain activation in each of the AAL 78 cortical regions for each frequency band.

2.6 Functional Connectivity

We used the phase locking value (PLV), which examines consistency of the phase differences between two time series, to evaluate FC. To determine the PLV (Bruña, Maestú, and Pereda 2018; Lachaux et al. 1999) for each frequency and epoch, we used the Hilbert transformation to extract the instantaneous phase of each signal node at each specified time and then estimated the synchrony between each pair of signals using the difference of their phases. Both the band-pass and the Hilbert filters were applied over the epochs including 2 s of real data as padding (removed before continuing the analysis). We obtained the whole-brain FC matrix, estimating the PLV between each pair of cortical sources position. Then, we estimated the PLV between each pair of the 78 cortical regions using the root mean square of the PLVs. Finally, we calculated the FC strength of each ROI as the average PLV value of that ROI.

2.7 Unsupervised Machine Learning Workflow

Although the usage of independent variables (FC values, power spectrum, and alcohol consumption) was plausible, our work focused on the relationship between these variables, not the variables themselves. To this aim, we decided to work with Spearman correlation matrices between the electrophysiological variables and the alcohol consumption, as the relationships between variables are expected to be nonlinear.

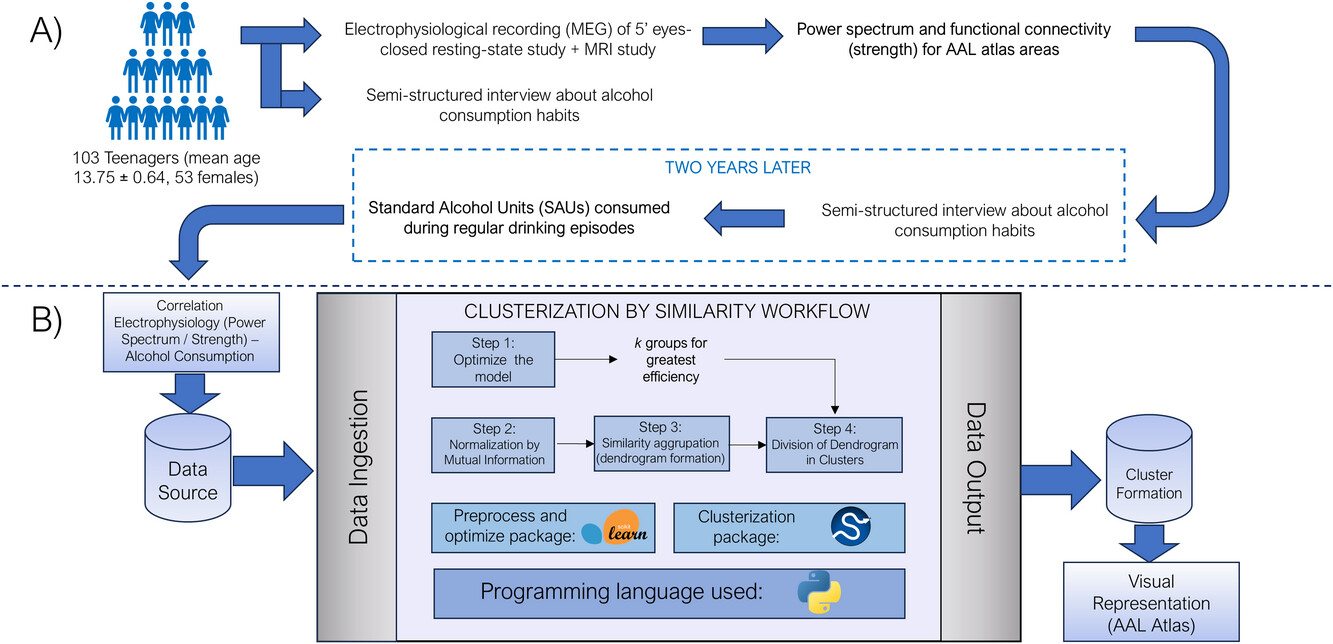

We followed a pipeline (Figure 1B) using predominantly Python libraries. First, to determine the optimal number of groups into which our dataset could be divided, we assessed the cluster quality with varying numbers of groups. This involved using k-means automatically grouping of the original dataset, iterating with a range of groups from 2 (the minimal number of groups possible) to 10 (a quantity estimated as large enough to be adequate). The efficiency of the groups produced was then assessed by computing the within-cluster sum of squares (WCSS), as well as cohesion measures such as Silhouette score (Rousseeuw 1987), the Calinski–Harabasz index (Caliński and Harabasz 1974), and the Davies–Bouldin index (Davies and Bouldin 1979). Consequently, the optimal number of groups was determined for the dataset, considering it not as the strictly best number but rather as the one yielding the highest consistency.

We performed this analysis using the tools provided by the Sci-kit learn metrics package (https://scikit-learn.org/stable/modules/classes.html#module-sklearn.metrics). All metric values for the range of groups k described above are depicted at large in Table S2.

To enhance the information contained within the working dataframe, as well as normalizing the data and reducing the internal noise, improving the coherence of the clustering, we added an additional step, performing a normalization of the data based on mutual information (Cover and Thomas 1991). This technique, emerged from information theory, characterizes the amount of information from a variable x within a variable y, measuring the redundancy between variables, and resulting in a measure of the uncertainty of all our variables by eliminating this redundant information. The correction applied to the original dataset, then, is based on this measurement, specifically from the variation of information (Meilă 2003) within the system, a measure of the total entropy (or novel information) each step of the correction. Applying a correction of the whole data (power spectra and FC variables) in each iteration, we filter the noise, increasing novel information content, thereby enhancing the system's stability. The package utilized to calculate the mutual information score was sourced from the Sci-kit learn package mentioned before.

The ultimate representation and analysis of the data following the data clustering process was carried out using dendrogram visualizations, tree-like structures where data are grouped based on the distance between variables. For each frequency band, we obtained a dendrogram, which identifies, within distinct groups, the cortical ROIs associated with each type of variable (strength-consumption or power spectrum-consumption).

All the methods utilized for unsupervised hierarchical agglomeration, as well as the representation in dendrograms, were sourced from the SciPy toolkit (https://docs.scipy.org/doc/scipy/index.html).

3.1 Theta Band

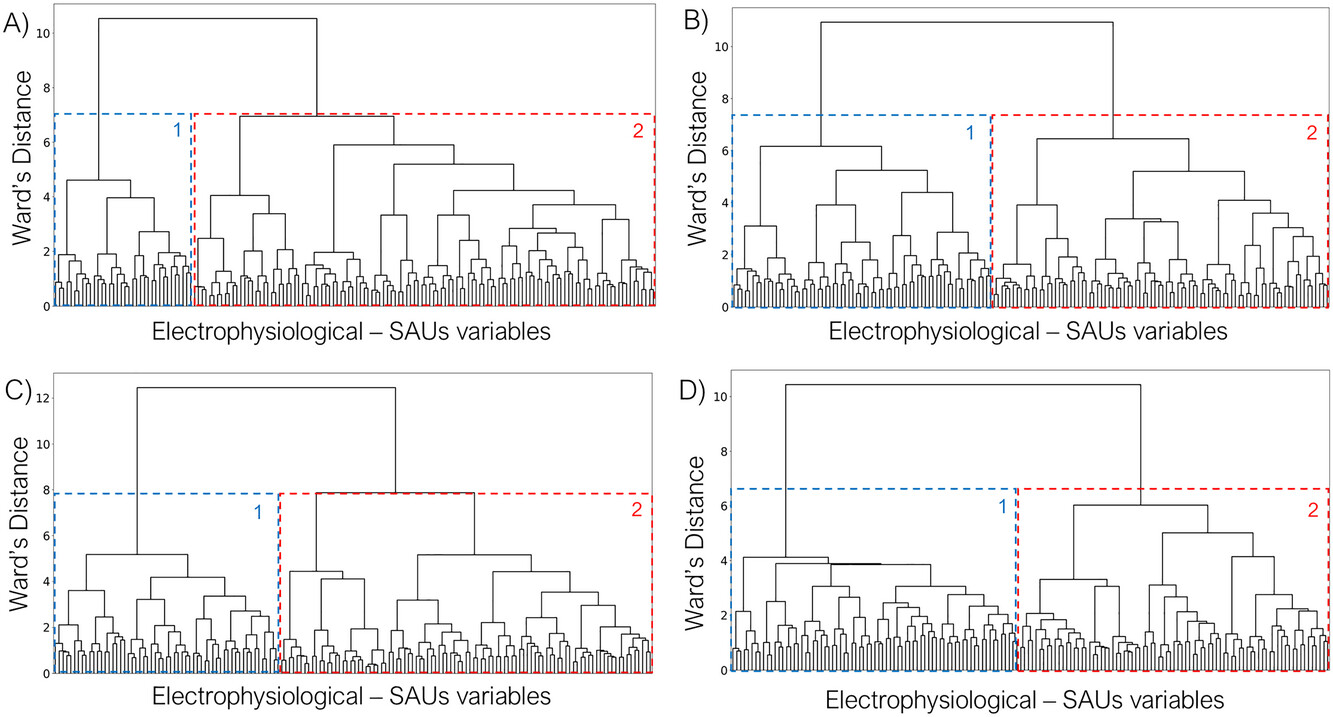

Theta band clustering defined two separate clusters with an evident and uneven separation (see Figure 2A).

Cluster 1 has an average intergroup distance of 1.41 ± 0.84 (SD), with a general cutoff at 4.62. We found that negative power–BD correlations appeared in this cluster in parietal cortex (somatosensorial cortex, supramarginal gyrus), as well as in the middle cingulate and temporal cortices. Specifically, the Heschl's and the superior temporal gyri were included only for the right hemisphere. On the other hand, we found that positive strength–BD variables appeared in the occipital regions (left lingual and inferior occipital gyri), as well as in the posterior cingulate cortex and superior parietal and angular gyri (see Figure 3A–C).

The vast majority of the variables were found within Cluster 2. This cluster is characterized by an average intergroup distance of 1.36 ± 1.08 (SD), breaking away from the general group at 6.95. Negative power–BD and positive strength–BD correlations overlapped, in this cluster, at the prefrontal regions, anterior cingulate cortex, superior temporal gyrus, and occipital lobe. Individually, negative power–BD correlations appeared at the angular gyrus, the posterior cingulate cortex and precuneus; on the other hand, positive strength–BD variables were found in the parietal cortex (somatosensorial cortex, supramarginal gyrus) as well as in the middle cingulate cortex and paracentral and fusiform gyri (see Figure 3B,C).

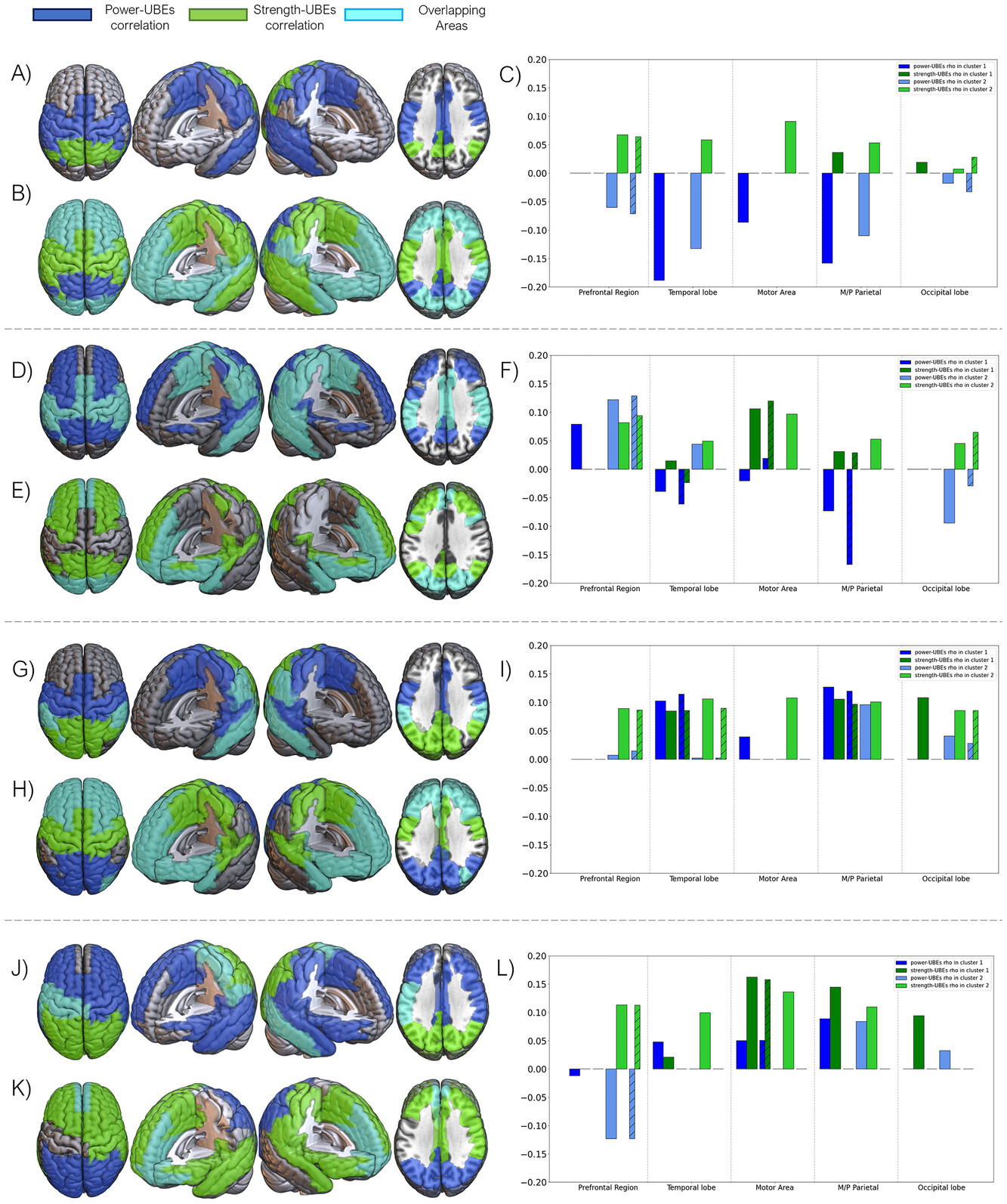

For a detailed report of each individual region in both clusters, see Figure S2A.

3.2 Alpha Band

Clustering in the alpha band represents an unbalanced division of variables (see Figure 2B).

Cluster 1 has an average intergroup distance of 1.44 ± 1.06 (SD), with a general block cutoff at 6.17. Negative power–BD correlations were found in parieto-temporal regions (including the precuneus, the posterior paracentral, and angular gyri), with the addiction of the positive power–BD correlations on the dorsal superior frontal gyrus. Positive strength–BD correlations appeared overlapping with power–BD variables in the supplementary motor area, middle cingulate cortex, parietal regions, and temporal areas (plus the hippocampus and parahippocampus) (see Figure 3D–F).

Regarding Cluster 2, it exhibits an average intergroup distance of 1.32 ± 1.05 (SD), with a general block cutoff occurring at 6.47. Positive power–BD variables were shown around occipital regions, as well as the temporal poles and the anterior cingulate cortex; negative power–BD correlations were found in the frontal lobe. On the other hand, positive strength–BD variables appeared in the same areas but taking all frontal lobe (with the exception of the right precentral gyrus) as well as all occipital lobe and part of the temporal poles. Both variables overlapped at the orbitofrontal gyri, as well as in the temporal poles and the most posterior part of the occipital lobe (see Figure 3E,F).

For a detailed report of each individual region in both clusters, see Figure S2B.

3.3 Beta Band

Clustering in the beta band represents an uneven but distributed clusterization (see Figure 2C).

Cluster 1 was identified as a highly cohesive cluster, with an average distance of 1.45 ± 0.93 (SD), breaking away from the general block at 5.18. Positive power–BD correlations appeared in parieto-temporal regions (all temporal gyri, as well as Heschl's gyrus), and the middle cingulate cortex. On the other hand, positive strength–BD correlations were found with a more occipital orientation, reaching also the posterior cingulate cortex, as well as the middle and inferior temporal gyri. Both variables overlapped there, as well as in the supramarginal and the fusiform gyri (see Figure 3G–I).

Cluster 2 has an average intergroup distance of 1.3 ± 1.13 (SD), with a cutoff of the general group at 7.88. Both positive power–BD and positive strength–BD correlations overlapped at the temporal poles, as well as in the frontal lobe (excepting for precentral gyrus, not present for power–BD) and in the anterior cingulate cortex and insula. Positive power–BD also appeared in the occipital lobe, as well as in the posterior cingulate cortex. Positive strength–BD, on the other hand, appears in the parietal lobe (superior parietal and angular gyri, and precuneus) and the middle cingulate cortex (see Figure 3H,I).

For a detailed report of each individual region in both clusters, see Figure S2C.

3.4 Gamma Band

Gamma band clustering defines an even and balanced division of variables (see Figure 2D).

Cluster 1 exhibits an exceptionally high internal coherence, with an average distance of 1.48 ± 0.76 (SD), and an early separation of the general block at 4.12. Positive power–BD correlations were shifted toward the right hemisphere, taking the entire frontal lobe (except for the middle and orbital gyri) as well as the temporal and the anterior part of the parietal lobe (paracentral, postcentral, and supramarginal gyri). Positive strength–BD correlations were shown at the occipital lobe completely. Both variables overlapped at the left precentral gyrus, as well as the left postcentral and supramarginal gyri, the paracentral gyrus, and the right middle temporal gyrus (see Figure 3J–L).

Cluster 2 has an average intergroup distance of 1.36 ± 0.96 (SD), diverging from the general block at 6.02. Positive power–BD correlations appeared in the occipital lobe, whereas negative power–BD correlations were found at orbitofrontal areas. On the other hand, positive strength–BD correlations are shifted toward the right hemisphere, appearing in the temporal lobes as well as in the frontal and right parietal regions (right postcentral and supramarginal gyri). Both variables overlapped at the anterior cingulate cortex, as well as in the orbitofrontal areas and the gyrus rectus (see Figure 3K,L).

For a detailed report of each individual region in both clusters, see Figure S2D.

3.5 General Analysis of Precision of Clustering

To ascertain the viability and explainability of the clustering performed, we replicated the general pipeline in a random set of data. The results, shown in the Figure S3, are a clear demonstration of a random patching of cerebral areas in both power–BD and strength–BD correlations, different from the results found in real electrophysiological data clustering. We also assessed the efficiency of different clustering criteria, choosing Ward's minimum variance as the most plausible algorithm we could use. The different clustering made by the different criterion can be visualized in Figure S4.

4.1 Machine Learning Results

Most of the technical analysis in this paper is based on the examination of the cohesion and coherence between the different variables under investigation. Electrophysiological brain activity presents nonlinear relationships that, when computed in association with environmental traits (like alcohol intake), increase its complexity, making it crucial to provide a new perspective other than classical statistics. The type of data we encounter in the various frequency bands is inherently distinct, as was demonstrated by the clustering results depicted above. Depending on the frequency range we are dealing with, the achieved cohesion varies from the maximum homogeneity observed in the slowest band (theta), to the maximum heterogeneity observed in the division of the fastest, and possibly noisiest, band (gamma). These unequal responses speak not only to the nature of the different frequencies but also to the precision of the algorithm's division; even when analyzing noisy frequency bands, the clustering depicted keep a consistency with ecological characteristics of the brain. In this sense, the richness in the nature of the different frequency bands does not reduce the explainability of the algorithm, finding plausible groups.

Applying rigorous clustering criteria such as the Ward's minimum variance method has proven highly suitable for the information considered in this work. As we can observe when comparing the results obtained from random data to those obtained from actual data, the separation and grouping of variables within the anatomically defined areas of the brain is coherent, while also maintaining bilateral symmetry. Other less stringent (yet not simplistic) algorithms (such as single linkage), or methods based on geometric criterion (like centroid or median linkage), yield less precise groupings. In fact, ad hoc analyses were performed, finding that, as we can observe in Figure S4, the clusterings found using these other different criteria are practically random; algorithms that apply weights to the clusterings (like weighted linkage) introduce smoothing in the divisions, subsequently losing information. It is necessary, therefore, to obtain groupings that consider not only the intragroup cohesion of each cluster but also the comparative coherence of one cluster with the next; in this sense, the Ward's algorithm provides both capabilities, rendering it ideal for our scenario (Murtagh and Legendre 2014).

4.2 Electrophysiological Results

Overall, our results indicate that power spectra and FC variables coalesce into two distinct similarity clusters, primarily characterized by four unique, anatomically driven patterns of activity: dorsolateral and medial prefrontal, sensorimotor and temporal, medial and posterior parietal, and occipital patterns. These patterns are uniformly distributed in the cortex across frequency bands, yet they exhibit diverse interactions among themselves. Notably, these patterns are in line with the disposition of resting-state networks identified in electrophysiological MEG data by Brookes et al. (2011), clustering cortical activity in crucial nodes of the default mode network: the frontoparietal network, the sensorimotor network, the medial parietal network, and the visual network. Concerning the relationship between power and strength variables with alcohol misuse, the distribution of these RSn within the two similarity clusters contrasts between each other, that is, regions pertinent to one variable in Cluster 1 correspond to those related to the other variable in Cluster 2. These results evidence the complex and nonlinear interactions between power and FC dynamics within cortical networks.

General results showed that patterns of higher FC across frequency bands and functional networks correspond to higher levels of alcohol use in the future. On the other hand, power exhibited diverse associations depending on the frequency and the cortical network. Interestingly, slower frequency bands tend to exhibit an inverse relationship of power and strength variables with alcohol use. Contrarily, within faster frequency bands both power and strength variables showed patterns of positive correlations with alcohol consumption. However, there are notable exceptions, concerning the prefrontal power within the alpha and gamma bands, which reversed these patterns. Such divergent patterns of prefrontal alpha and gamma bands are coincident with their unique distribution within the prefrontal cortex, separating the activity of medial and orbital regions from the dorsolateral part. Such regions have been demonstrated to be the core of the neuromaturative changes of the adolescence's brain (Blakemore and Choudhury 2006) and have been found to be particularly associated with the potential development of risk behaviors such as substance consumption (Blakemore and Choudhury 2006; Caballero, Granberg, and Tseng 2016; Crane et al. 2018).

4.3 Relevance and Relationship With Prior Findings

Prior studies have pointed the neurological underpinnings predisposing adolescents to substance consumption, often highlighting the differences of neural pathways regulating self-control and risk assessment (Crews, He, and Hodge 2007; Spear 2000). This relationship gains complexity when considering prior research indicating variances in RSn among adolescents, which are thought to underlie various cognitive and behavioral aspects of addiction. Studies have shown alterations in RSn in adolescents with substance abuse disorders, including those prone to BD (Antón-Toro et al. 2022; Chen and Lasek 2020; Correas et al. 2016; Sousa et al. 2019). These networks are instrumental in self-referential thinking, emotional regulation, and cognitive control, respectively, and their dysregulation has been associated with increased impulsivity and risk-taking behaviors, prevalent in individuals with adolescent alcohol misuse (Green et al. 2023). Our observation of the distinct cortical activity clusters coincides with these studies, suggesting a distinct interplay between various cortical networks and their developmental trajectories. For instance, the heightened sensitivity in the dorsolateral and medial prefrontal regions, as corroborated by our power and FC dynamics, resonates with their established role in decision-making and emotional regulation, faculties often compromised in adolescents prone to BD (Casey, Jones, and Hare 2008). Furthermore, this cortical complexity works as a potential mediator of behavior, reflecting the neuroadaptive processes, critical during adolescence (Blakemore and Choudhury 2006).

Research on the electrophysiological signatures of predisposition to BD is currently limited, and it is therefore challenging to connect present findings with existing literature. Nevertheless, the observed outcomes can be evaluated in the context of developmental trajectories. Established research has considered a typical neurodevelopment of electrophysiological markers during adolescence (Brookes et al. 2018; Hunt et al. 2019). Broadly, throughout adolescence, there is a decline in power–spectra density in the theta band (in posterior regions), whereas there is an increase in beta and gamma bands (in the latter, in the prefrontal regions), having a mixed evolution in the alpha band (increase in temporoparietal regions and reduction in prefrontal regions). Given this backdrop, our results suggest that a precocious maturation profile within specific cortical areas and frequency bands could correlate with increased future consumption tendencies. In contrast, patterns discerned in the alpha band for both prefrontal and parieto-occipital zones seem to present an inverse correlation with the conventional neuromaturational trajectory. This inverse correlation is also noticeable in the prefrontal pattern of power in the gamma band, suggesting a contradictory link between consumption and cortical power compared to standard neurodevelopmental progression. In relation to FC, a consistent increase across all frequency bands is noted during adolescence, with the exception of the gamma band, which exhibits a reduction with age. Interestingly, our results indicate that pronounced alcohol misuse aligns with elevated FC in the gamma band, especially within the frontal cortex. All these neuroadaptive mechanisms might identify individuals more susceptible to substance use as a function of both the unique neural maturational profiles and the concurrent psychosocial pressures typical of this developmental stage.

4.4 Relevancy of Machine Learning, Future Implications, and Limitations

The results obtained in this work underscore two key points regarding the utility of ML in the analysis of neurophysiological variables. First, it prompts consideration for the optimization and refinement of analyses that would involve a substantial effort, performing complementary analyses to those made by classical statistics. The use of such tools has successfully navigated studies that would otherwise have been impossible or exceedingly laborious and costly (Drysdale et al. 2017; Längkvist, Karlsson, and Loutfi 2012; Molano-Mazon et al. 2018). This also mitigates potential biases that researchers may introduce when analyzing or processing their data. Within the field of neuroscience, reducing noise and enhancing the coherence of analyses is important, and the application of these automated techniques might contribute to increase precision and objectivity (Glaser et al. 2019; Ullman 2019; Vu et al. 2018), giving support to the existing knowledge. Second, the study of neuroscience aims to go beyond the analysis of isolated variables, but rather the examination of interactions among them, with a holistic perspective. In this context, the application of non-linear methodologies that allow for the visualization or identification of links among variables is essential. Techniques such as those used in this work, or ML strategies like reinforcement learning (RL) (Botvinick et al. 2020; Matsuo et al. 2022), are invaluable. They significantly diminish the dimensionality and intricacy of the data, displaying the information into a comprehensible structure. These advanced approaches are crucial for refining complex datasets, particularly in studies dealing with multifaceted electrophysiological information and its behavioral outcomes.

The findings presented here are consistent with empirical observations in natural settings. The extraction of patterns could be used in the future as a foundational source of information for training convolutional neural networks (CNNs) that predict the occurrence of intensive alcohol consumption behaviors in adolescents solely using noninvasive neuroimaging measures. This would enable the identification of potential future consumers, allowing institutions to increase the resources provided to prevent these behaviors.

These findings, while pointing in a direction that aligns with prior knowledge and providing new insights into the next steps to be taken, have several limitations worth highlighting. The use of ML techniques, as employed in this article, poses significant issues regarding explainability. In neuroscience, the use of induction algorithms like these can be highly beneficial, but it is crucial to minimize reliance on the “black boxes” that ML algorithms rely on to function. Peering into these boxes to avoid being left with prediction values lacking relevant information can be costly and requires the use of simpler techniques or a thorough understanding of the methods employed. The use of UML or RL and deep RL techniques may be a step toward adding explainability, albeit at the expense of some efficiency and robustness compared to the more commonly used methods.
