A Dynamic and Responsive Host in Action: Light-Controlled Molecular Encapsulation

The encapsulation and active release of molecular species comprises an area of research that attracts constant attention and crosses both academic and industrial research interests, as encapsulation processes are ubiquitous in product synthesis and formulation.^{1, 2} One particular encapsulation strategy consists of the selective inclusion of guest compounds within the cavities of discrete, shape-persistent macrocycles and has been applied to the solubilization and/or stabilization of active ingredients and hazardous materials, sensing, separation, and purification technologies.^3-9 Owing to their dynamic nature, binding events in host–guest complexes can be controlled by a range of different stimuli. However, in spite of the many examples of noncovalent complexation, our ability to alter the interaction between a host and its guests is usually limited to invasive actions, such as the addition of strongly competing guest compounds or pH/redox switching.^{10, 11} Ideal triggering mechanisms should enable remote control over guest uptake and release in a well-defined spatiotemporal fashion by a practical and easily operated stimulus, such as light. Indeed, the concept of photocontrolled uptake and release of guest species has been achieved by exploiting light-responsive guests and, less frequently, host species.^12-14

A few groups have provided examples of both strategies by controlling the dynamic encapsulation properties of cyclodextrines, calixarenes, cucurbiturils, metal–organic cages, and other systems with molecular switches, either appended to the host or as a guest molecule.^15-26 Systems which rely on the rearrangement or isomerization of a guest compound have a relatively limited scope of applicability. In our view, light-switchable molecular containers may impact a much wider spectrum of technological applications. However, they also suffer from undesirable drawbacks, such as cumbersome synthesis and hindered isomerization properties by ring strain and molecular crowding.²⁷

We report, here, the synthesis of oAzoBox⁴⁺ (Figure 1), a photoresponsive molecular box produced by a facile three-step synthetic procedure. We have made use of two o-xylene-bridged bis(imidazolium)-azobenzene motifs to impart both light-responsiveness and receptor-like^{28, 29} properties to our macrocycle. In contrast to the rigid structure of more conventional azobenzene-containing macrocycles,^{27, 30} oAzoBox⁴⁺ exhibits a large and flexible architecture, which has two consequences: Firstly, the photochromic properties of oAzoBox⁴⁺ are largely unaffected in comparison to model compound, AzoBI²⁺ (Figure 1), by the embedment of the photoswitches in a cyclic architecture and secondly, its high flexibility is not detrimental to its recognition abilities. Therefore, oAzoBox⁴⁺ is ideal for the realization of light-controlled catch-and-release in solution.

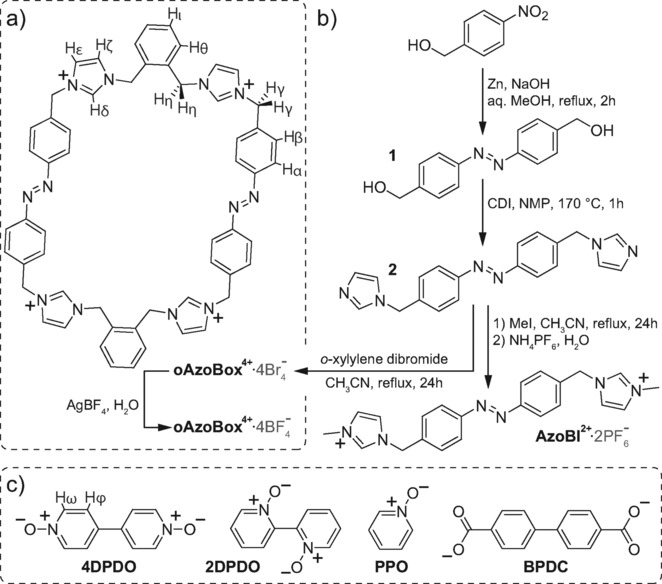

oAzoBox⁴⁺ was synthesized according to Figure 1 b. Firstly, the reduction of commercially available 4-nitrobenzyl alcohol and subsequent reaction with CDI yielded intermediate 2. Cyclization of 2 with an equimolar amount of α,α′-dibromo-o-xylene, followed by salt metathesis, afforded oAzoBox⋅4BF₄ in approximately 25 % yield after purification by recrystallization. The solid-state structure (Figure 2) reveals that oAzoBox⁴⁺ is substantially elongated, with a length of 21.05 Å, as measured by the distance between the centroids of the o-xylene bridges. The breadth of the box, measured as the average distance between the planes of the two sets of parallel azobenzene phenyl units, was found as 4.3 Å, affording an aspect ratio of approximately 5.

The photoisomerization properties of model azobenzene, AzoBI²⁺, were first examined by electronic absorption spectroscopy. AzoBI²⁺ (see Figure S1 in the Supporting Information) exhibits a characteristic strong π–π* absorption band at short wavelengths (λ_max=321 nm) and a weaker n–π* absorption band at longer wavelengths (λ_max=445 nm). Upon UV light irradiation (350 nm), the intensity of the band corresponding to the π–π* transition strongly decreased, whereas that of the n–π* transition slightly increased. These spectroscopic changes can be directly ascribed to the E→Z photoisomerization, which can be reverted using visible light (420 nm). The electronic absorption spectrum of oAzoBox⁴⁺ matches that of AzoBI²⁺. The spectral changes associated to the E→Z photoisomerization of oAzoBox⁴⁺ are analogous to those of AzoBI²⁺. Therefore, it was estimated that the E↔Z photoisomerization behaviors of AzoBI²⁺ and oAzoBox⁴⁺ should closely resemble one another.

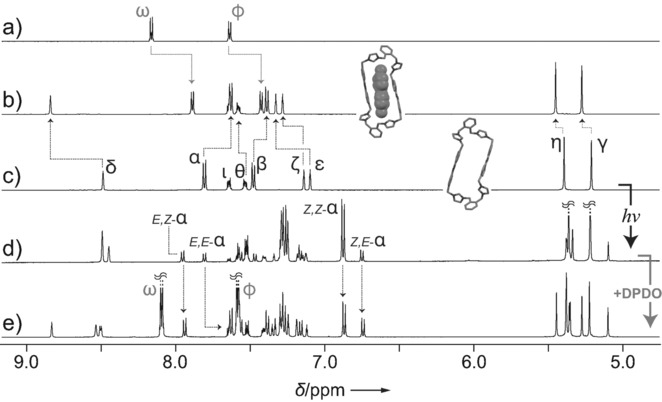

The ¹H NMR spectrum of a freshly prepared solution of oAzoBox⁴⁺ (Figure 3 c) shows nine distinct resonances, which are consistent with the all-trans E,E-oAzoBox⁴⁺ stereoisomer. When a solution of E,E-oAzoBox⁴⁺ is irradiated with UV light, a new set of signals arises, which evidences the generation of an isomeric mixture of multiple components. The new aliphatic signals in the 5.00–5.50 ppm region are shifted upfield relative to the Hη proton resonance of E,E-oAzoBox⁴⁺, which is consistent with the changes associated to the E→Z AzoBI²⁺ photoisomerization. Furthermore, the intensity of the Hα proton resonance of E,E-oAzoBox⁴⁺ decreases and three additional sharp and well-resolved resonances, which are associated to the same type of Hα resonance, appear at 7.95, 6.88, and 6.75 ppm. In combination, these results suggest that the UV-light-promoted E→Z isomerization generates a mixture of three distinct stereoisomers which, at the photostationary state, can be identified as E,E-oAzoBox⁴⁺ (18 %), E,Z-oAzoBox⁴⁺ (38 %), and Z,Z-oAzoBox⁴⁺ (44 %). The complete assignment of all proton resonances of each individual stereoisomer was achieved using two-dimensional COSY and ROESY ¹H NMR spectroscopy (Figures S3–S10). Irradiation with visible light largely restores the initial spectrum, which parallels our electronic absorption spectroscopy results (E,E-oAzoBox⁴⁺: 64 %, E,Z-oAzoBox⁴⁺: 28 %, and and Z,Z-oAzoBox⁴⁺: 9 %). Smooth cycling between the two E- and Z-predominant states was demonstrated without any noticeable degradation (Figure S11).

Thermal relaxation of the Z-predominant oAzoBox⁴⁺, via the stepwise pathway outlined in Figure S15, was monitored by thermal array ¹H NMR spectroscopy at 313, 318, 323, and 328 K, as their stabilities are important considerations with regard to the potential of oAzoBox⁴⁺ to act as a photoswitchable molecular container. Fitting the data to the appropriate kinetic models [Eqs. (S4)–(S7)] and the Eyring equation [Eqs. (S8), (S9)] allowed extraction of the rate constants κ₁ and κ₂ and the thermodynamic parameters ΔG^≠, ΔH^≠, and ΔS^≠ (Table 1, Figures S16–S34, Tables S1–S8).

The activation energy barrier (ΔG^≠) of Z,Z-oAzoBox⁴⁺→E,Z-oAzoBox⁴⁺ is very similar to that of Z-AzoBI²⁺→E-AzoBI²⁺ at 293 K (Figures S24, S34). ΔG^≠ of E,Z-oAzoBox⁴⁺→E,E-oAzoBox⁴⁺ is slightly higher at 22.24 kcal mol⁻¹ (Figure S25), likely on account of the length disparity of E- and Z-azobenzene. The magnitudes of the ΔG^≠ values were corroborated by computational studies (Tables S9, S10).

DFT calculations (B3LYP-D3(BJ)/TZVP, Figure S41) revealed that the lowest energy molecular configuration of Z,Z-oAzoBox⁴⁺ is 10.97 kcal mol⁻¹ greater than that of E,Z-oAzoBox⁴⁺, which is in turn 14.43 kcal mol⁻¹ greater than that of E,E-oAzoBox⁴⁺. Such a result, combined with the similarity of the ΔG^≠ values (Tables 1), indicates that ring strain³¹ does not play a significant role in affecting the thermal isomerization mechanism for oAzoBox⁴⁺.

The large size of E,E-oAzoBox⁴⁺ led us to consider whether small organic guest compounds could be accommodated within the cavity of the macrocycle. The representative compounds, 2,2′-dipyridyl N,N′-dioxide (2DPDO), 4,4′-dipyridyl N,N′-dioxide (4DPDO), 4-phenylpyridine N-oxide (PPO), and biphenyl-4,4′-dicarboxylate (BPDC) were chosen to test the interaction of E,E-oAzoBox⁴⁺ with hydrogen bond acceptor aromatic structures (Figure 1 c). ¹H NMR revealed a binding interaction between E,E-oAzoBox⁴⁺ with 4DPDO, PPO and BPDC (Figures 3 b, S36, and S37). However, no interaction was detected between E,E-oAzoBox⁴⁺ with 2DPDO, presumably on account of steric effects. All cases of binding exhibited upfield shift perturbations of the aromatic resonances, Hα and Hβ, whereas proton resonances Hγ-ι shifted downfield. The encapsulated guest proton resonances shifted upfield on account of the shielding by the azobenzene moieties at the long sides of E,E-oAzoBox⁴⁺.

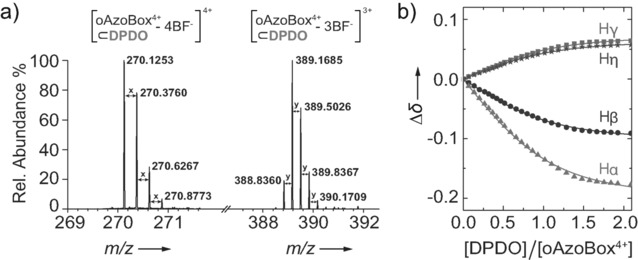

4DPDO was selected as a representative example to illustrate the encapsulation potential of E,E-oAzoBox⁴⁺ in acetonitrile. A ¹H NMR titration of 4DPDO into E,E-oAzoBox⁴⁺ provided an association constant on the order of 10³ m⁻¹ (Figure 4) corresponding to an association free energy of about −4 kcal mol⁻¹, which is consistent with the computationally obtained value of −4.06 kcal mol⁻¹ (see the Supporting Information). The formation of E,E-oAzoBox⁴⁺⊂4DPDO was also confirmed by mass spectrometry (Figures 4 a, S38). A control ¹H NMR experiment, whereby 4DPDO was mixed with an equimolar amount of E-AzoBI²⁺, showed no evidence of interaction, suggesting that macrocyclic preorganization is a requirement for strong binding in our system (Figure S13). Similar conclusions were obtained from an analogous experiment with 4DPDO and α,α′-bis[3-(1-methylimidazolium)]-o-xylene, a model subcomponent analog of the o-xylene bridging unit of oAzoBox⁴⁺ (Figure S14).

The inclusion geometry assigned to the bimolecular complex was corroborated by quantum-mechanical calculations (Figure 2). The energy-minimized structure of E,E-oAzoBox⁴⁺⊂4DPDO shows that the container adopts a cagelike conformation with the phenyl rings of the azobenzene moieties lying in parallel planes and the 4DPDO guest included in the cavity of the macrocycle. Each of the oxygen atoms of the guest are hydrogen-bonded to two of the four of acidic Hδ protons in an approximately symmetric fashion (Figure S42). This interpretation of the binding is supported by the significant downfield shift of the Hδ proton resonance and a series of ¹H NMR titration experiments (see the Supporting Information). Calculations also reveal that the macrocycle adopts a significantly expanded conformation in comparison to that of the solid-state structure upon guest sequestration with an appreciably reduced aspect ratio of about 3. Similar conclusions were also established by quantum-mechanical calculations for E,E-oAzoBox⁴⁺⊂BPDC (Figure S46).

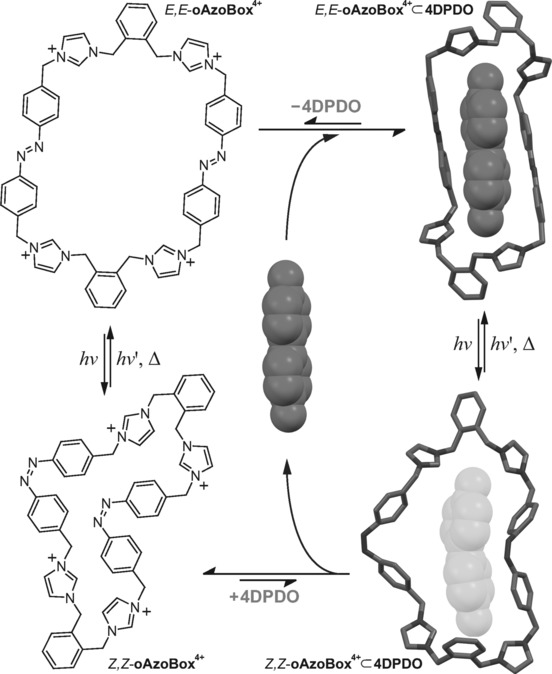

Exposure of E,E-oAzoBox⁴⁺⊂4DPDO to UV light induces the E→Z isomerization of the host and the release of 4DPDO, evidenced by the downfield shift of the Hω and Hϕ resonances (Figures 5 and S51). This result can be rationalized by assuming the 4DPDO affinity of E,Z-oAzoBox⁴⁺ and Z,Z-oAzoBox⁴⁺ is negligible in comparison to that of E,E-oAzoBox⁴⁺. Indeed, when excess 4DPDO was added into a Z-predominant oAzoBox⁴⁺ isomeric mixture, no evidence of interaction was detected between Z,Z-oAzoBox⁴⁺ and the guest molecule (unperturbed Z,Z-Hα resonances) and only extremely limited interaction was observed for E,Z- oAzoBox⁴⁺ (Figures 3 d,e). An attempt to quantify the 4DPDO affinity of the E,Z stereoisomers was unsuccessful on account of the limited interaction between the guest and the host after UV light irradiation. In any event, irradiating the mixture with visible light reverts the system back to the E,E-oAzoBox⁴⁺⊂4DPDO enriched state.

The thermal stability of Z-predominant oAzoBox⁴⁺ was unaffected by the presence of 4DPDO (Figure S35). The low 4DPDO affinity of E,Z-oAzoBox⁴⁺ and Z,Z-oAzoBox⁴⁺ can be attributed to a significant decrease in the size of the cavity of the macrocycle. Additionally, favorable orientation of the acidic Hδ protons towards the interior of the cavity is lost upon UV light irradiation, and consequently the possibility of establishing concerted hydrogen-bonding interactions between the host and guest. This was supported by calculated structures of E,Z-oAzoBox⁴⁺ and Z,Z-oAzoBox⁴⁺ (Figures S39, S40) and the high energy levels associated with the putative E,Z-oAzoBox⁴⁺⊂4DPDO and Z,Z-oAzoBox⁴⁺⊂4DPDO complexes (Figures S43–S45). The concept of photocontrolled catch-and-release was also demonstrated for BPDC (Figure S37).

In conclusion, we have demonstrated how the photochromic macrocycle, oAzoBox⁴⁺, may be synthesized in three simple steps and allows for the realization of the remote controlled catch-and-release concept mediated by a photoswitchable molecular container. Our work illustrates how the incorporation of photochromic switching elements into a flexible macrocyclic framework, which does not compromise light-induced isomerization, can also exhibit relevant recognition properties. These have been achieved by exploiting the hereto unreported complementary hydrogen-bonding H-donor imidizolium and H-acceptor N-oxide pairs, as well as the H-acceptor carboxylate. The incorporation of molecular switches into optimized organic container structures may be regarded as a general approach to regulate encapsulation, in a non-invasive fashion, of selected molecular species.

Such a strategy may also be used as a supramolecular host–guest logic system, as distinct switching between stereoisomeric mixtures may be achieved, where the predominant components posses association constants separated by orders of magnitude.
