A Multiple Working Electrode for Electrochemical Cells: A Tool for Current Density Distribution Studies^†

See-How Ng Dr.

Electrochemistry Laboratory, Paul Scherrer Institut, 5232 Villigen PSI (Switzerland), Fax: (+41) 56-310-4415 http://ecl.web.psi.ch/lithium

Search for more papers by this author

Fabio La Mantia Dr.,

Fabio La Mantia Dr.

Electrochemistry Laboratory, Paul Scherrer Institut, 5232 Villigen PSI (Switzerland), Fax: (+41) 56-310-4415 http://ecl.web.psi.ch/lithium

Search for more papers by this author

Petr Novák Priv.-Doz. Dr.,

Petr Novák Priv.-Doz. Dr.

[email protected]

Electrochemistry Laboratory, Paul Scherrer Institut, 5232 Villigen PSI (Switzerland), Fax: (+41) 56-310-4415 http://ecl.web.psi.ch/lithium

Search for more papers by this author

See-How Ng Dr.,

See-How Ng Dr.

Electrochemistry Laboratory, Paul Scherrer Institut, 5232 Villigen PSI (Switzerland), Fax: (+41) 56-310-4415 http://ecl.web.psi.ch/lithium

Search for more papers by this author

Fabio La Mantia Dr.,

Fabio La Mantia Dr.

Electrochemistry Laboratory, Paul Scherrer Institut, 5232 Villigen PSI (Switzerland), Fax: (+41) 56-310-4415 http://ecl.web.psi.ch/lithium

Search for more papers by this author

Petr Novák Priv.-Doz. Dr.,

Petr Novák Priv.-Doz. Dr.

[email protected]

Electrochemistry Laboratory, Paul Scherrer Institut, 5232 Villigen PSI (Switzerland), Fax: (+41) 56-310-4415 http://ecl.web.psi.ch/lithium

Search for more papers by this author

First published: 29 December 2008

https://doi.org/10.1002/anie.200803981

Citations: 43

^†

Financial support by the Swiss National Science Foundation is gratefully acknowledged. Technical assistance from W. Scheifele, H. Kaiser, and Dr. F. Rosciano is highly appreciated. Finally, we would like to thank TIMCAL SA for providing the SFG44 graphite samples for this study.

Share a link

Email
Wechat
Bluesky

Graphical Abstract

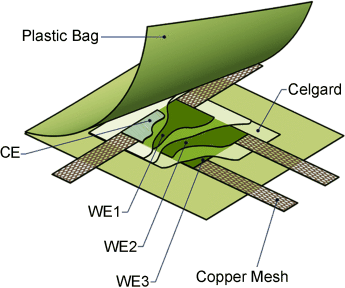

Uneven distribution: The multiple working electrode for electrochemical cells (see image) is a unique tool for the quantitative study of current density distribution in lithium-ion batteries. During the cycling of the cell even at a low C-rate of C/37, an inhomogeneity in the average current density distribution of more than 8 % is observed. WE=working electrode, CE=counter electrode.
