Mechanistic Insights from Computational Truncated Models

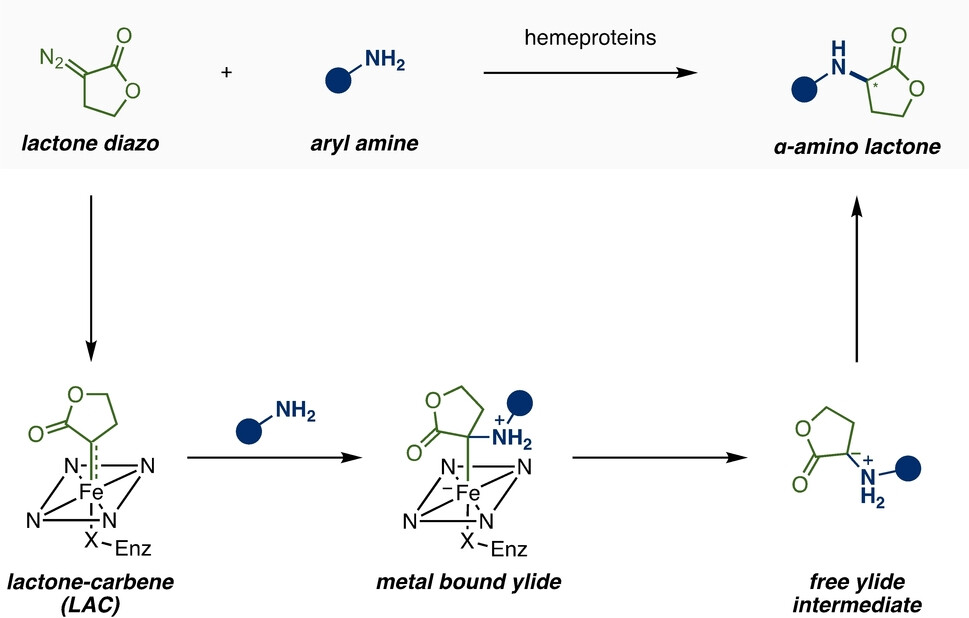

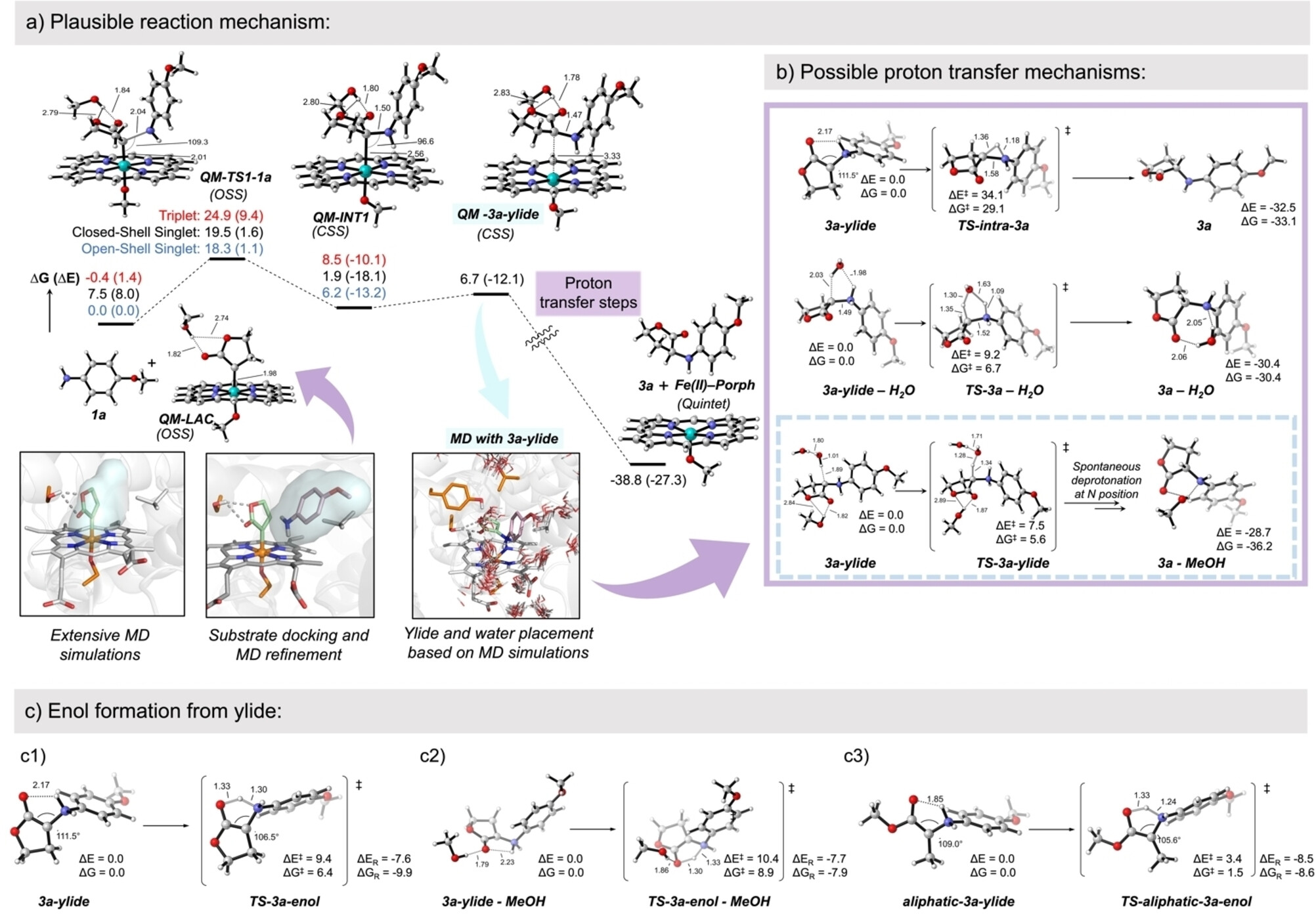

The intrinsic reaction mechanism of P411-catalyzed lactone-carbene N−H insertion was initially investigated²³ which provided essential insights to guide subsequent computational modeling and protein engineering (Scheme 1 and Figure 2). 4-Methoxy aniline 1 a and lactone diazo 2 were selected as the model substrates. Following the previous work from Shaik's group on the mechanism of P450 (cysteine ligated) catalyzed carbene N−H insertion using Density Functional Theory (DFT) calculations based on a truncated heme catalyst model,²⁴ we performed similar DFT calculations using 1 a as the amine substrate reacting with the lactone-carbene species.²³ The computational model, i.e. theozyme (truncated enzyme), included a methanol molecule H-bonded to the ester group of LAC in order to mimic the potential H-bond donors in the enzyme active site (e.g., S264 in the previously demonstrated L6_FL and L7_FL enzyme variants). Calculations showed that a plausible mechanism involves a first N-nucleophilic attack by the amine to the electrophilic iron lactone-carbene center (Figure 2a), forming an ylide intermediate covalently bound to the iron. The dissociation of the ylide from the iron was found to be energetically slightly uphill and barrierless. These results are in line with previous computational studies by the Shaik group on N−H insertion considering the acyclic ethyl diazoacetate (EDA) as the carbene precursor.²⁴

Different from the acyclic carbene system, which is proposed to involve the formation of an enol via the direct intramolecular proton transfer from the protonated nitrogen to the oxygen of the carbonyl group,²⁴ our calculations indicated that the ylide intermediate could directly dissociate from the iron center. With the LAC, the 5-membered transition state required for the enol formation from the ylide intermediate becomes disfavored as compared to the acyclic carbene system due to the geometric strain induced by the lactone ring (see Figure 2c3). Additionally, the H-bond interaction between the carbonyl group and the external H-bond donor (e.g., methanol in our model or S264 in the enzyme active site) is found to further disfavor the formation of this enol intermediate (see Figure 2c2). Calculations also showed that the direct proton transfer from the protonated amine to the vicinal carbon via a three-membered transition state is energetically highly disfavored.

Based on these observations, we proposed that the ylide rearrangement and the protonation of the carbon center should be facilitated by water molecules. Molecular Dynamics (MD) simulations carried out with the L6_FL variant having the ylide intermediate bound in a conformation that mimics the just dissociated complex characterized from DFT calculations revealed that a few water molecules are present in the active site. These water molecules approach the ylide intermediate bearing interactions with serine 264 from the top of the lactone ring, opposite face to the heme cofactor (see Figure 2).²³ Considering this arrangement of water molecules around the ylide intermediate in the active site, truncated model systems were built and DFT calculations were carried out. Model calculations indicated that these water molecules could effectively protonate the carbon center in a fast proton transfer step, right after the ylide dissociates from the iron and before this reactive intermediate leaves the enzyme active site (see Figure 2b). Therefore, the protonation step is proposed to be stereoselective, taking place from a specific face of the ylide intermediate and mediated by a water molecule. This step ultimately depends on the first N-nucleophilic attack, which determines which enantiotopic face of the ylide is oriented opposite to the heme cofactor and exposed to these active site water molecules.

Mechanism-Guided Protein Engineering: Controlling the Orientation of the Carbene Intermediate

With all these mechanistic and structural insights obtained from computational modeling, we sought to rationally engineer new enzyme variants to access opposite selectivities. To do so, we proposed to invert the orientation that the LAC can explore in the enzyme active site, to force the N-nucleophilic attack to take place from the opposite enantiotopic face of the lactone ring, which should eventually lead to the opposite product enantiomer following a rapid stereoselective water-assisted protonation.

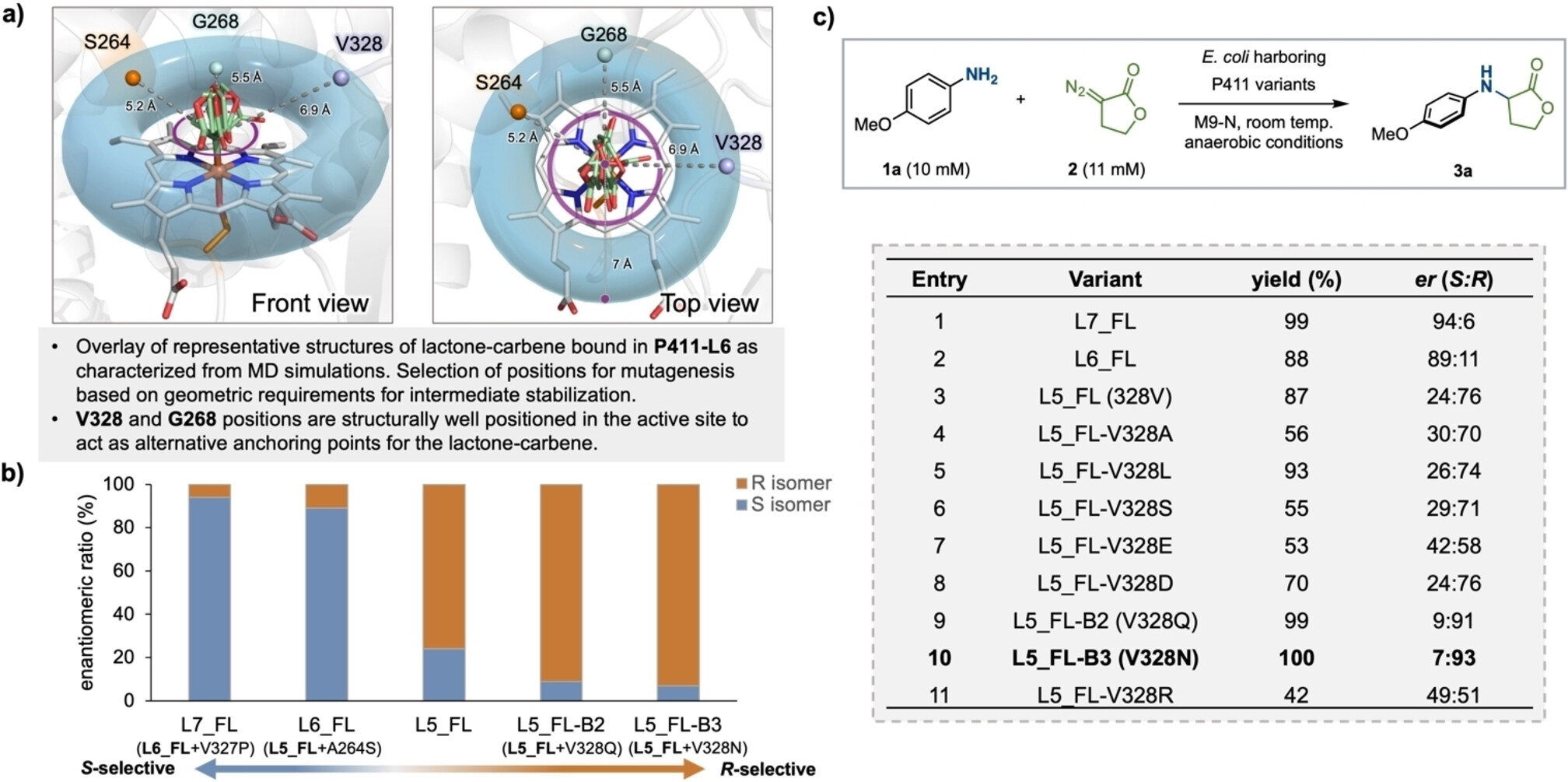

To alter the LAC orientation in the enzyme active site, we hypothesized that one could (1) replace the serine at position 264 in S-selective P411-L6/L7_FL variant with a non-polar residue to disrupt the original H-bond interaction; and (2) introduce a H-bond donor residue at the opposite side of the catalytic pocket that could serve as a new anchoring point for the LAC and invert its orientation in the enzyme active site. By analyzing the computational models generated for the LAC intermediate bound in the poorly selective L5 and the selective L6 variants (FAD domain truncated versions of L5_FL and L6_FL), we identified two positions that could accommodate alternative anchoring points to invert the LAC orientation: positions 268 and 328 (Figure 3a). These positions were selected based on geometric requirements, their spatial disposition on the equatorial plane and their appropriate distance with respect to the LAC intermediate, in order to ensure an effective interaction between the new H-bond donor and the LAC ester group. We first applied a distance threshold of 7.0 Å to select amino acid side chains that are found to directly interact with the LAC intermediate in L5 and L6 variants during MD simulations. The selection was limited to positions on the equatorial plane of the LAC ring. Then, we analyzed specific MD snapshots in which the LAC intermediate explores the targeted conformation that we were aiming to stabilize. From there, we identified positions 268 and 328 as suitable hosts for polar side chains with the appropriate directionality to stabilize this particular conformation of the LAC intermediate. To minimize disruption of the active site environment evolved for efficient and selective N-nucleophilic addition and protonation steps, L5_FL bearing a non-polar alanine residue at position 264 was used as the starting point for the engineering campaign.

L7_FL and L6_FL could catalyze the reaction between 4-methoxy aniline 1 a and lactone diazo 2, giving product 3 a in 94 : 6 and 89 : 11 er, respectively, favoring the formation of the S-enantiomer (Figure 3b).^{23, 26} Performing site-saturation mutagenesis (SSM) at the 328 and 268 positions using L5_FL as the parent and screening led to two R-selective variants. In both variants, L5_FL-B2 and L5_FL-B3, V328 was mutated to a protic residue, Q and N, respectively, which flipped the enantioselectivities to 9 : 91 and 7 : 93 er. Site-directed mutagenesis at 328 demonstrated that shorter polar residues (serine, Figure 3c entry 6) or charged amino acids (glutamic acid, aspartic acid or arginine, Figure 3c entries 7, 8 and 11) led to significantly lower enantioselectivities and yields. No selectivity-enhancing mutations were found at position 268 (Figure 3b), suggesting that polar residues at this position cannot establish an effective H-bond with the LAC intermediate while allowing a selective nucleophilic attack by the amine substrate.

Molecular Basis for R-Selectivity in L5_FL-B3

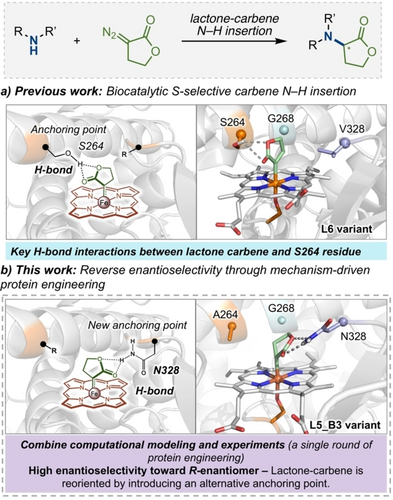

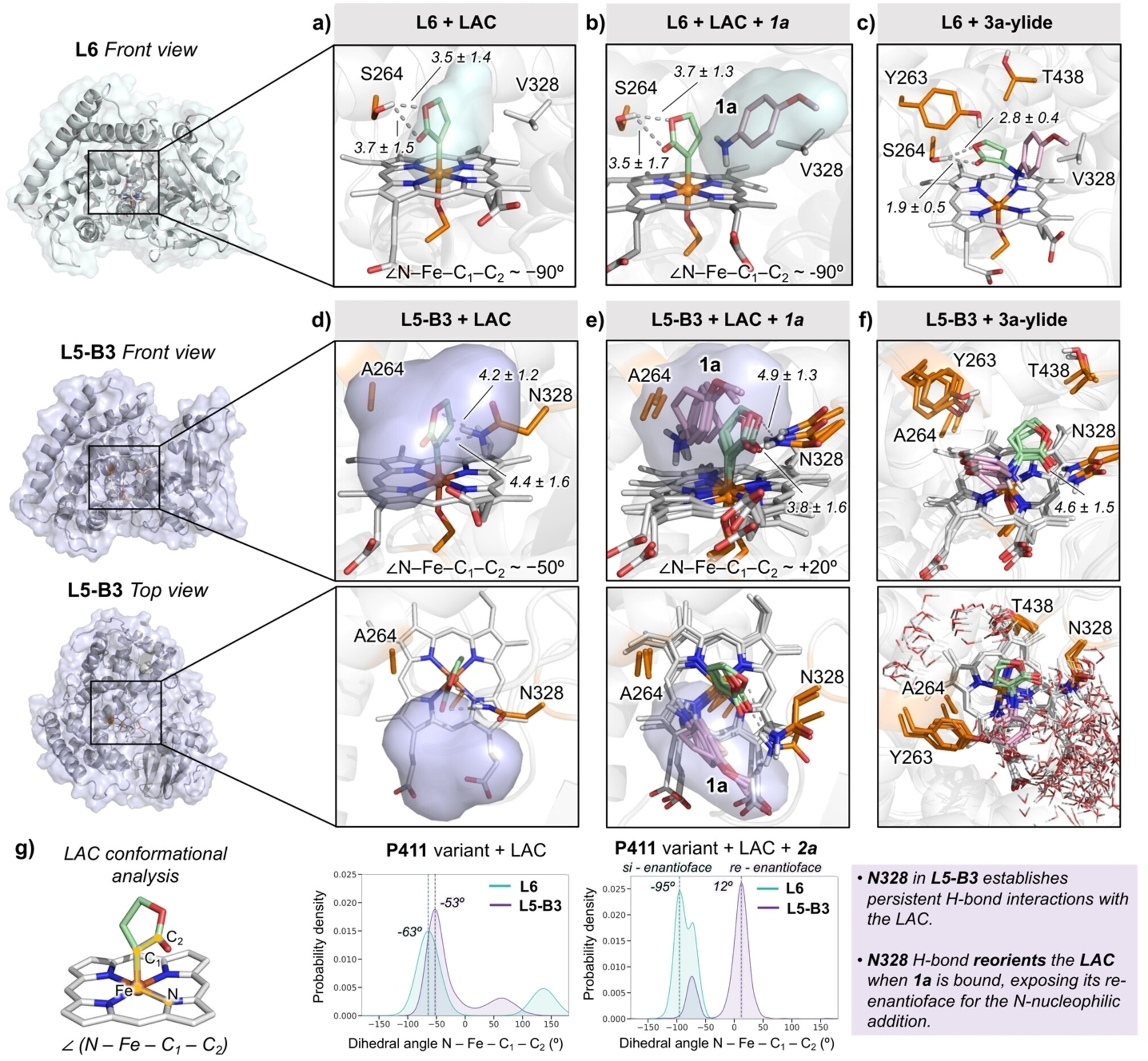

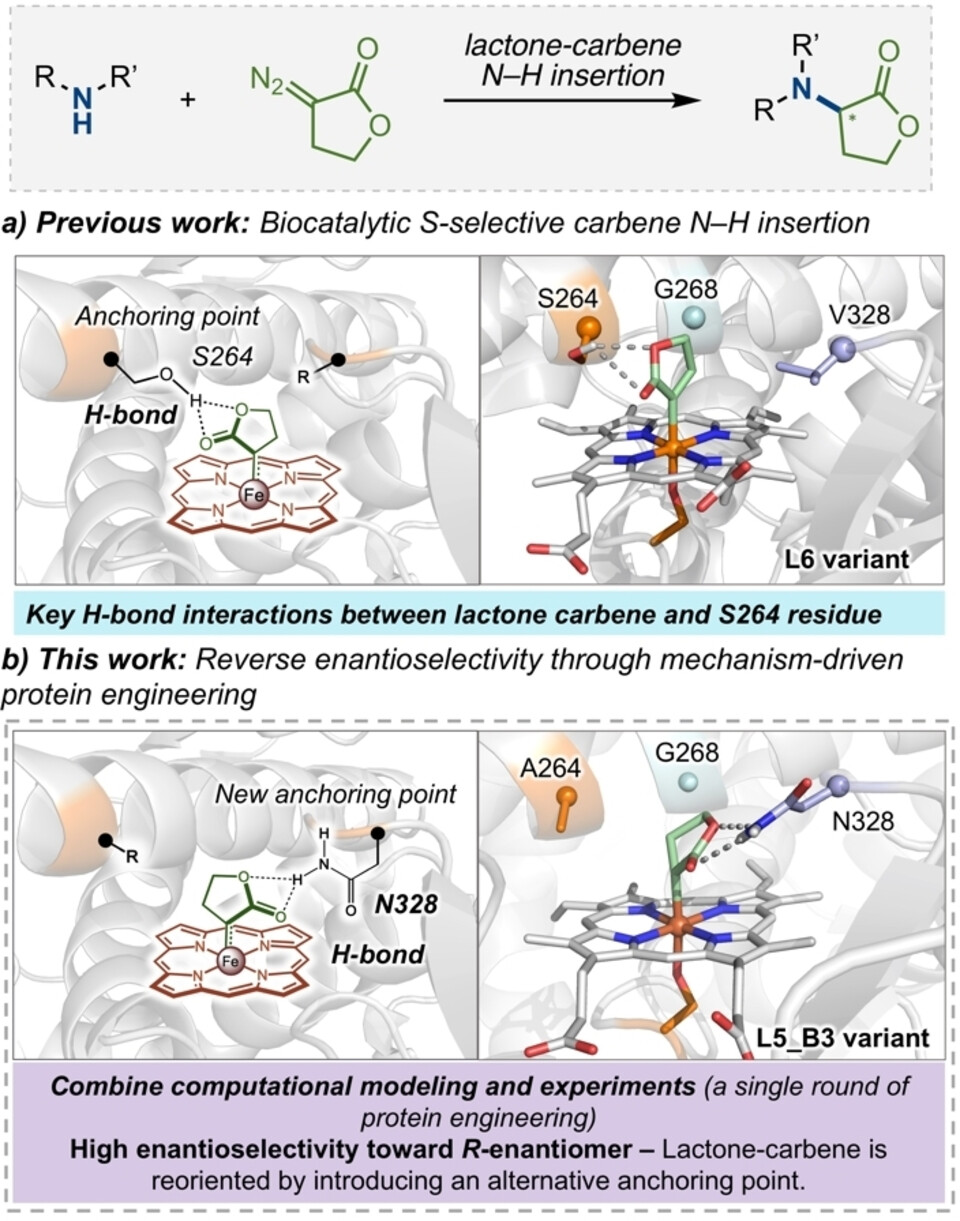

With the best R-selective variant, L5_FL-B3, we performed molecular dynamics (MD) simulations to unravel the role of mutation V328 N in driving the R-selective carbene N−H insertion. First, the L5-B3 variant was modeled considering the heme domain with the LAC bound. As expected, the newly introduced V328N residue establishes persistent H-bond interactions with the ester group of the LAC (Figure 4d and S3), and it is placed at the opposite side in the active site as compared to S264 in the L6 variant (Figure 1a and Figure 4a). The relative orientation of the LAC with respect to the heme (described by the ∠(N−Fe−C₁−C₂) dihedral angle) is similar in L5-B3 and L6 (Figure 4a,d,g). Nevertheless, the interaction between the lactone and the newly introduced N328 side chain only makes accessible the si face of the LAC for the N-nucleophilic attack (Figure 4b,e,g), which is opposite to the L6 variant.²³

Next, the amine substrate 1 a bound in the L5-B3 active site in the presence of the LAC was modeled, using restrained MD simulations to mimic near-attack conformations for the N-nucleophilic attack (see Supporting Information for details, see also ref. ²⁷). These simulations showed that the substrate bound in a catalytically relevant mode for the N-nucleophilic addition induces a slight reorientation of the LAC (rotation along the Fe−C bond from ca. −50° to ca. +15°, Figure 4d,e) that keeps the H-bond between the lactone ester group and the amide of N328. This H-bond interaction was previously shown to be also important for enhancing the electrophilicity of the LAC.^{23, 27, 28} Consequently, this binding mode of 1 a and LAC is expected to be more reactive than alternative ones lacking this H-bond interaction, thus biasing the reaction to happen from this characterized near-attack conformation. The amine substrate occupies the available space near the enantiotopic si face of the lactone and A264 (Figure 4d,e). This binding mode of the substrate is further stabilized by hydrophobic interactions with residues L75, P87, L437, and T438 (Figure 5c). All these factors synergistically favor the selective N-nucleophilic attack to the si face of the LAC ring. This is possible because the N328 side chain possesses the appropriate polarity and length to interact with the LAC via an H-bond in the absence but also in the presence of the substrate.

We then modeled the ylide intermediate in the L5-B3 active site formed from the characterized near attack conformation, using restrained MD simulations to study how the ylide is accommodated in the active site when it dissociates from the iron (see Supporting Information for details). Simulations indicate that the ylide intermediate, once formed, can maintain the hydrogen bond with the N328 side chain. This helps stabilize the ylide in the active site within a major binding mode where the lactone and amine aromatic rings occupy similar positions as in the substrate-bound complex (Figure 4f), without significant fluctuations or conformational changes (see Figure S10). In line with the previous observations for the L6 system,²³ the general hydrophobicity of L5-B3 active site is retained and only a few water molecules can access the active site from a predefined water channel (see Figure S9), from the top side of the lactone ring. Similar to the L6 variant, it is proposed that these water molecules can rapidly protonate the ylide at the C position from the top face (si face) of the lactone ring, thus forming the R-enantiomer of the product.

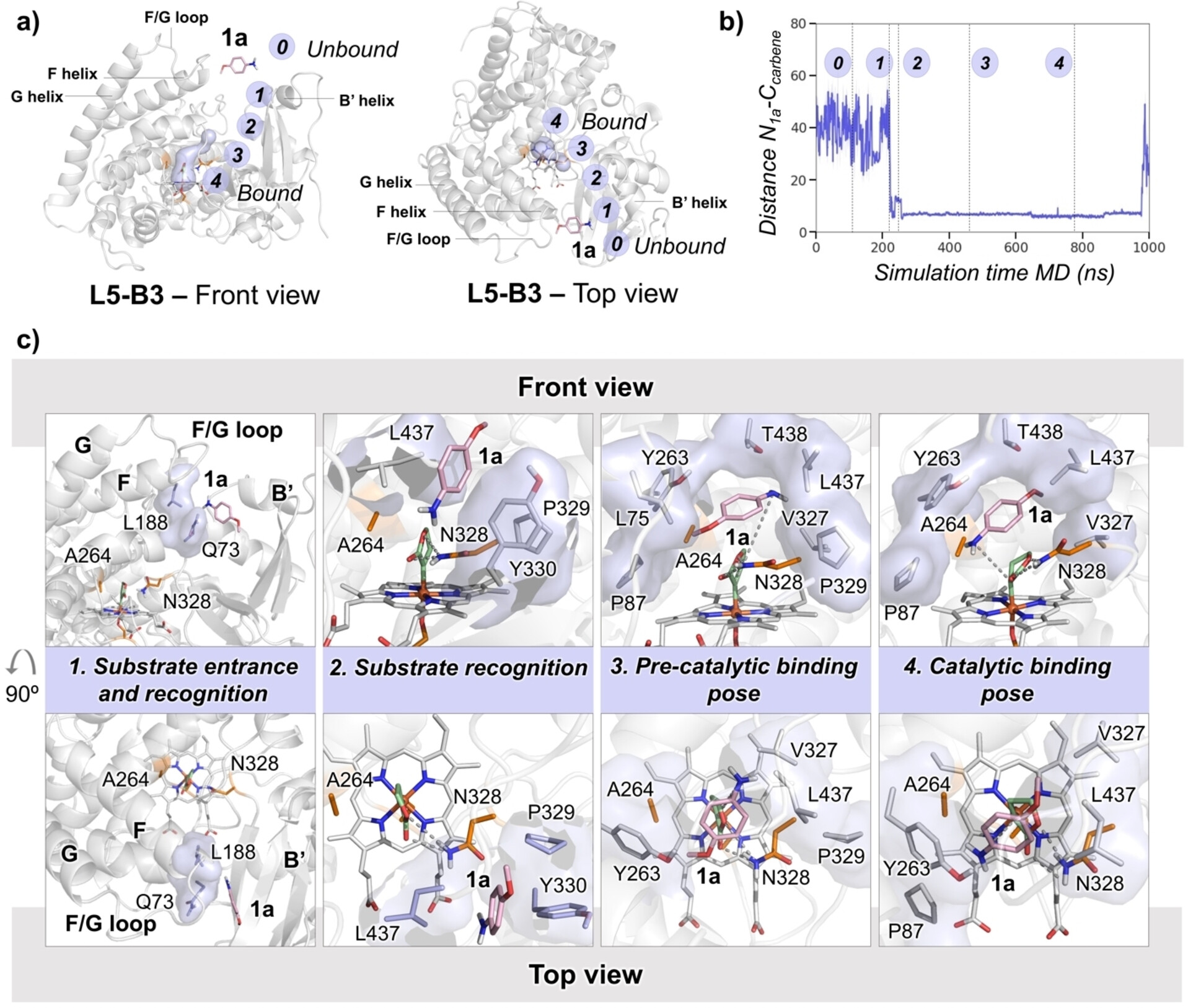

Finally, the spontaneous binding²⁹ pathway of amine 1 a from the bulk solvent to the active sites of L5-B3 and L6 variants with the LAC bound was characterized using extensive MD simulations (Figure 5, S12 and S13; see Supporting Information for details). These simulations were performed without imposing any restriction or potential bias. Starting with 4 molecules of the amine 1 a randomly placed in the bulk solvent, a total of 10 independent MD replicas for each variant were propagated for 250 ns, observing one spontaneous substrate binding event for L5-B3 and two for L6, in which the substrate accesses into the protein scaffold. These successful binding trajectories were then propagated up to 1000 ns. We observed that, in both L5-B3 and L6 cases, the amine substrate accesses the active site from the top side of the P411 protein. This corresponds to the substrate entrance channel previously characterized for the parent P450_BM3 and related P450 enzymes,^30-32 which is located between the F/G helices and FG loop region and the B′ helix (Figure 5a). Therefore, the substrate binding pathway is not altered by evolution or the presence of the reactive carbene species. Further structural analysis of the binding pathway in L5-B3 revealed that some of the mutations introduced in the previous engineering effort, A330Y and Q437L, participate in substrate recognition during binding (Figure 5c). These two residues are located in the substrate entrance channel. Specifically, Q437L is found to act as a gate that, once the substrate accesses the binding pocket in a pre-catalytic binding mode, closes the entrance channel and keeps the hydrophobicity of the active site by limiting the access of water molecules into it (Figure 5c, and Figure S14). Additionally, A330Y contributes to the precise positioning of the water molecules in the active site for stereoselective protonation. Both factors would be important for the enantioselective protonation of the ylide intermediate. Notably, the catalytically relevant binding poses characterized from these spontaneous substrate binding simulations (Figure 5c) are equivalent to the ones previously observed from the restrained MD simulations (see above, Figure 4e). These results further validate the utility of the computational approach used to study the catalytically relevant substrate binding modes based on sequential (restrained-)MD simulations (a first set of MD simulations with LAC bound, which are followed by substrate docking calculations and refined by restrained-MD simulations. See Supporting Information for details).

Finally, we also explored using MD simulations on why charged amino acids at 328 position led to significant decrease in yield and selectivity. We modeled L5-V328R variant with LAC bound in the active site and found that although R328 side chain can establish H-bond interactions with the LAC carbonyl group, the largest size of the side chain creates a highly packed active site environment for the LAC, thus hindering the approach of the amine to the carbene for an efficient N-nucleophilic attack (see Figure S15). Additionally, the charged side chain disrupts the polarity of the active site, altering the positioning of water molecules in the catalytic pocket, which is expected to have a huge impact in the final stereoselective proton transfer step. These results highlight that N328 (and Q328) have the appropriate size and polarity to interact with the LAC, while allowing its efficient interaction with the substrate and facilitate the subsequent protonation step.

Substrate Scope of the Newly Engineered Variant

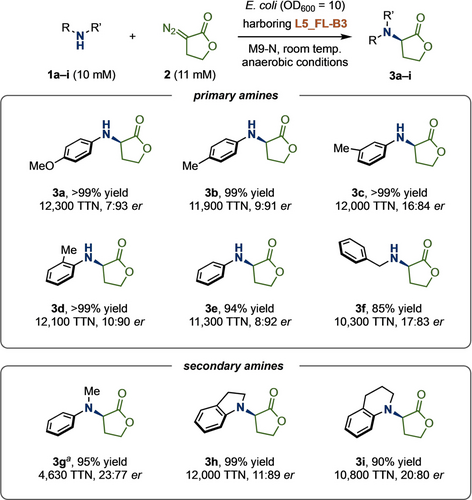

After obtaining mechanistic insights on the R-selective variant, we next explored the substrate scope using the full-length L5_FL-B3 variant (Figure 6). To our delight, L5_FL-B3 accepted a broad range of amine substrates bearing a variety of substitution patterns (3 a–i). All reactions were completed in excellent yields (up to >99 %), high total turnover numbers (TTN, 4630–12 300), and moderate to good enantioselectivities (up to 7 : 93 er).²⁶ It is notable that an aliphatic amine is also a competent substrate for this transformation (3 f), which is a challenging process in synthetic chemistry.³³ It is worth mentioning that L5_FL was only mildly selective for 3 a (24 : 76 er), and almost non-selective for 3 d (46.5 : 53.5 er) and 3 g (39.5 : 60.5 er) (see Supporting Information of ref.²³), indicating the key role of V328 N for achieving high R-selectivity. Together with the previously demonstrated variants, L6_FL and L7_FL, we are now able to achieve both enantiomers of the lactone-carbene N−H insertion products from a diverse range of aromatic and aliphatic amines.²³
