Non-Equilibrium Large-Scale Membrane Transformations Driven by MinDE Biochemical Reaction Cycles

Min Oscillations Induce Reversible Length Change of Free-Standing Membrane Tubes

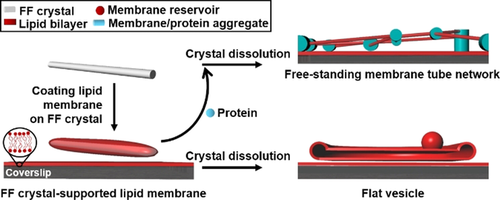

In all our assays for creating FF crystal-templated membrane structures, the coverslip was decorated with an SLB in advance and the FF crystal-templated membrane structures and the SLBs shared the same lipid composition. For its composition, we used DOPC50%/DOPE20%/DOPG30%, the negative net charge of which is necessary for the formation of Min patterns.¹⁰ The FF-crystal supported membranes were produced and the crystals dissolved as described in SI.^{9a, 9b} The types of structures produced could be regulated by the exact time points of protein addition. When initiating Min protein oscillations before dissolving the crystals, the supported membranes on the crystals deformed upon crystal dissolution into membrane tubule networks suspended between local protein-lipid aggregates (Scheme 1, Figure 1 a, Figure S1, Movie S1). These local aggregates could be used as fiducial markers to quantify changes in tube length.

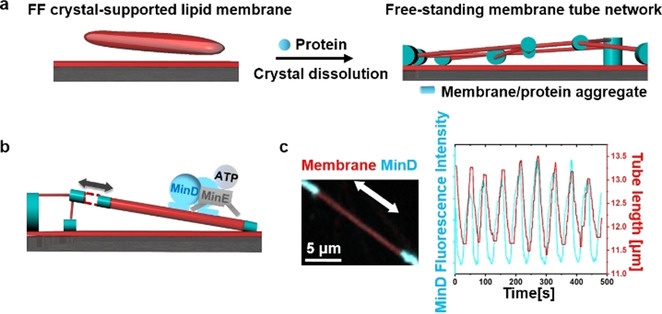

During MinDE reaction cycles involving reversible MinD-ATP membrane binding, dramatic local stretching of the tubes up to 20 % of their initial length could be observed, resulting in large-scale deformation of the network (Figure 1 b,c, Movie S2). The length increase followed the rise in local concentration of the membrane-bound MinD. MinD-ATP binds to the membrane with its C-terminal MTS, which forms an amphipathic helix, and is assumed to align parallel to the membrane surface.¹¹ The hydrophobic residues of the helix penetrate into the hydrophobic interior of the bilayer.¹¹ MinD-ATP is further known to form higher-order structures on membranes.² Therefore, MinD-ATP binding increases the length of the membrane tubule by directly increasing membrane surface area. This area increase is likely accommodated by inducing membrane elastic stress (thereby shrinking the tube diameter), although we cannot rule out the possibility of lipid extraction from the adjacent membrane-protein aggregates, which would in this case act as entropic springs (Figure S2).

Importantly, however, these length changes induced by MinD-ATP binding were fully reversible, and the tubes spontaneously retracted back to their original lengths after MinD dissociation (Figure 1 c), due to either membrane elasticity or lipid retraction into the spring-like aggregates. This indicates that MinD-ATP binding indeed exerts a mechanical force to repeatedly increase the length of the tube (Figure S3). To estimate this force, we assume for simplicity that the elastic response is determined by the membrane itself. If we thus simplify the tubule extension and define a point force F to be applied to the tubule, F can be calculated as F=2πκ/R¹² where κ is the membrane bending rigidity and R is the radius of a membrane tube. Adopting a typical value of κ=40 pN nm¹³ and a tube radius of 300 nm as shown in Figure 1 c, we obtained a force of F=0.84 pN. For tubule extension of 1 μm, the work 0.84×10⁻¹⁸ N m was done, that is 204 k_B T. It is worth mentioning that MinD-ATP binding can change the membrane spontaneous curvature, which will reduce the force required to extend the tube.^12d

Formation of Flat Vesicles by Dissolving FF Crystals

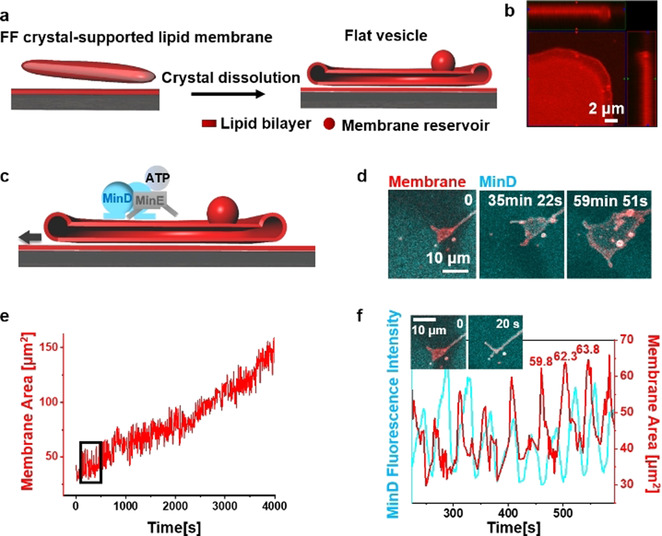

When FF crystals were dissolved in the absence of proteins, SLB-supported flat vesicles were obtained (Figure 2 a; Movie S3). They featured bulging rims, and stacks of double bilayers in the middle (Figure 2 b), often attached to membrane aggregates as membrane reservoirs. Fluorescence recovery after photobleaching (FRAP) measurements revealed that the apparent lipid diffusion in the flat vesicle stacks was higher than in SLBs, indicating increased membrane fluidity (Figure S4). The diffusion ratio between flat vesicles (1.1 μm² s⁻¹) and the SLB (0.3 μm² s⁻¹) was around 3.6.

Formation of flat vesicles has been documented as a result of vesicle spreading in a tank-thread motion on moderately adhesive substrates, such as MgF₂, avidin or Al₂O₃ surfaces.¹⁴ Hydrating a lump of phospholipid with high salt concentration has been shown to generate flat vesicles on top of a single bilayer.^15c High ionic strength shields the repulsive electrostatic interactions between negatively charged membranes, and KCl has been shown to promote adhesion between lipid membranes.¹⁵ Moreover, divalent cations can bind two negatively charged lipid membranes by charge bridging.^15a Therefore, the high cation concentration in the buffer (25 mM Tris, pH 7.5, 150 mM KCl and 5 mM MgCl₂) promotes membrane adhesion and facilitates membrane spreading.

To systemically elucidate the flat vesicle formation conditions in our system, we varied coverslip treatments, as well as lipid and buffer conditions. After passivating the coverslip with PLL-PEG (Poly(L-lysine)-graft-poly(ethyleneglycol)) resulting in no SLB to support the membrane spreading, the FF crystal-supported membranes deformed into membrane aggregates and tubules (Figure S5d). Flat vesicles formed at 10 mol %, 30 mol % and 50 mol % DOPG (Figure S5a–c) and their spreading speed appear to be tightly controlled by cation concentrations (Figure S5f–h, k). We further explored how FF crystal dissolution contributed to the flat vesicle formation. It has been shown that FF induced membrane permeation and depolarization at a sub-critical concentration (non-assembled FF),¹⁶ which can facilitate its diffusion across the membrane. In fact, we detected FF monomers in the solution by UV measurement (around 1 mM, see detail in SI). Diffusion of FF across the membrane will generate an osmotic shock, and in response, water influx into the flat vesicle. Because the high cation concentration promotes membrane adhesion,¹⁵ we propose that the inflowing water during FF crystal dissolution aids flat vesicle spreading.

Min Oscillations Promote Flat Vesicle Spreading and Tubule Deformation

After flat vesicle self-spreading upon FF crystal dissolution ceased, initiating Min oscillations initiated further continuous expansion of flat vesicles on SLBs (Figure 2 c–e, Movie S4), the morphology of which however differed from the osmotically driven self-spreading. MinD-ATP binding first deformed the rim of the flat vesicles into tubule-like structures, thereby temporarily reducing the covered area. When the tubules subsequently retracted back into the flat vesicle, however, the membrane area was significantly increased as compared to before (Figure 2 f). It is well known that peripheral binding of proteins or polymers to membranes can induce dramatic membrane deformations.¹⁷ However, these transformations are usually thermodynamically stable once binding reactions reach a steady state. Here, energy dissipating Min oscillations induced reversible membrane tubule deformation and, in combination with additional surface forces to prevent elastic retraction, promoted a progressive membrane spreading phenomenon that is not achievable under equilibrium conditions.

Further spreading of the membrane reservoir generated two-layer flat vesicle stacks, and different layers can be identified through their distinctive boundaries (Figure S6). In contrast to the limited tubulation of the bottom layer flat vesicle (Figure 2 d), the second layer showed even more robust tubule deformation (Figure S6; Movie S5). The reduced tubulation of the bottom layer flat vesicle likely results from their closer interactions with the substrate.

Min Oscillations Drive Membrane Extension from Membrane–Protein Aggregates on SLBs

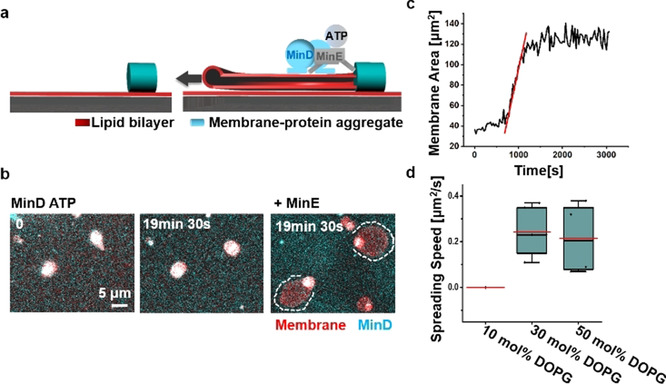

Moreover, we were able to observe the “de novo” membrane extension into flat vesicles from membrane-protein aggregates upon Min oscillations. We quantified it defining the aggregates as starting points (zero points) of membrane spreading. The membrane-protein aggregates were obtained by dissolving FF crystals with protein binding to the FF crystal-supported membranes as described above (Figure 1 a). Besides acting as pillars for free-standing membrane tubules, some isolated membrane-protein aggregates were located on SLBs (Figure 3 a). Min oscillations were able to extract membrane from these aggregates with increasing area (Figure 3 b).

We quantified the membrane spreading dynamics by analyzing the membrane area changes over time (Figure 3 c). Consistent with the previous results,^14a the spreading speed can be considered constant at early times. Linear fitting yielded the spreading speed driven by Min oscillations with a mean value of 0.24 μm² s⁻¹ (30 mol % DOPG; n=5; 2 independent experiments). The speed did not change markedly at 50 mol % DOPG (0.22 μm² s⁻¹; n=4; 3 independent experiments), but Min oscillations were not able to extract membrane at 10 mol % DOPG (3 independent experiments; Figure 3 d), which may be due to reduced membrane adhesion and protein binding to the membrane.^10b The speed was reduced after deleting MgCl₂ from the buffer (0.13 μm² s⁻¹) and further decreasing KCl concentration to 100 mM (without Mg²⁺ in the buffer; 0.08 μm² s⁻¹; Figure S7). It should however be noticed that 2.5 mM Mg²⁺ was always supplied from ATP solution, as described previously for the generation of Min oscillations.² The spreading speed was also reduced at higher Mg²⁺ concentration in the buffer (15 mM; 0.09 μm² s⁻¹; Figure S7). It has been shown that high concentrations of divalent ions cause flat vesicle shrinkage, due to long-range repulsive double-layer forces^15c and even rupture flat vesicles due to high adhesion energy,¹⁸ which could contribute to the decreased speed at high Mg²⁺ concentrations. Thus, membrane spreading driven by Min oscillations is controlled by both, lipid composition and cation concentrations.

Vesicle expansion on SLBs, driven by free energy released by ATP hydrolysis during Min oscillations and aided by membrane adhesion, has to overcome several forces. These are the elastic force of the flat membrane, the entropic force induced by the aggregate as mentioned above, as well as several friction forces, including the sliding between two monolayers, the friction between the two bilayers, and dissipation occurring by the forced penetration of water.^14b Among them, the best studied is probably the sliding between two monolayers.^14a When membrane moves with a constant velocity v, the friction F=πb h v, where b is the interfacial drag coefficient and h is the thickness of the monolayer.^14a Assuming b=5×10⁸ Ns m⁻¹,¹⁹ h=2×10⁻⁹ m^14a and v=0.24 μm² s⁻¹, we estimated F=0.75 pN (see details in SI). Considering the other potential opposing forces, this value would be the lower limit of what needs to be overcome by the Min proteins, being in the same range as what has been estimated above (0.84 pN).

Min Oscillations Promote Budding of Flat Vesicles at Reduced Concentration of DOPG or Mg²⁺

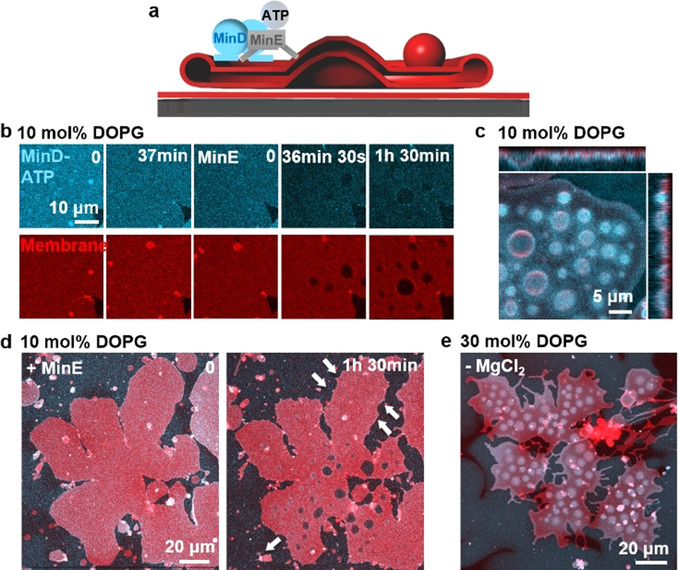

In order to deform the bottom layer of flat vesicles, adhesion forces between the flat vesicle lower surfaces and SLBs need to be overcome. To induce a transformation of this layer, we reduced the concentration of DOPG from 30 mol % to 10 mol % lowering Mg²⁺ bridging. Under this condition, Min protein binding to the membrane will also be reduced.^10b Unexpectedly, the Min oscillations now promoted robust vertical bud formation (Figure 4 b–d; Figure S8b, Movie S6). During bud formation, the contact area of the flat vesicle with SLB decreased (13 % for Figure 4 d). To better understand the factors driving bud formation, we separately reduced protein and Mg²⁺ concentration at 30 mol % DOPG. It turned out that deleting Mg²⁺ from the buffer effectively promoted bud formation (Figure 4 e) while reducing the concentrations of Min proteins did not (Min wave patterns still formed; Figure S9). Moreover, replenishing Mg²⁺ reduced already formed buds (Figure S10). Therefore, robust bud formation can be obtained by deleting Mg²⁺ from the buffer or reducing DOPG concentration.

Budding may be induced by a number of possible mechanisms, for example, a slight area difference between the two monolayer leaflets of the membrane, a change in the vesicle area-to-volume ratio and the interplay of bending rigidity and line tension of phase separated domains.²⁰ MinD-ATP binding can induce an area difference between the two monolayer leaflets and change the flat vesicle area-to-volume ratio. Moreover, MinD-ATP binding has been shown to induce a remarkable increase in membrane viscosity and the formation of acidic phospholipid-enriched domains in a mixed acidic-zwitterionic membrane.²¹ Surface viscous flows have been shown to provide a dominating energy dissipation mechanism for budding.²² Therefore, at reduced membrane adhesion, these factors may act in concert to promote robust bud formation. Because of the relatively low ATPase activity of MinD in the absence of MinE and the consequently slow detachment of MinD,²³ the budding effect of MinD-ATP in the absence of MinE will disappear when lipid mobility equilibrates changes in membrane curvature (Figure 4 b).^24a When MinE is added, however, Min oscillations can generate spatially and temporally inhomogeneous protein distributions on the flat vesicles,⁵ which may actively promote continuous bud formation.²⁴

A Versatile Model Membrane System to Study the Direct Coupling of Biochemical Energy Dissipation to Membrane Transformation

Compared with standard model membrane systems, the here introduced flat vesicle stacks on supported membranes have small internal volumes, resulting in large surface-to-volume ratios and facilitating the transportation and exchange of inside buffer²⁵ to enhance the dynamic responses. Moreover, the flat vesicles connect with membrane reservoirs, and the tension changes due to area expansion can therefore be accommodated. Importantly, flat vesicles stacks retain properties of free-standing membranes, such as the higher lateral lipid mobility and access of binders to both leaflets. At the same time, the presence of a supported membrane beneath the stacks promotes membrane adhesion between the SLBs and the flat vesicles, which is required to prevent elastic retraction and enables progressive membrane spreading. These features enable the straightforward coupling between biochemical reactions and mechanical work performed on the membrane, resulting in out-of-equilibrium large-scale membrane transformation. As the reaction-diffusion (RD) models that are paramount in the study of pattern formation do not traditionally include the possibility of a feedback between biochemical reactions and membrane elastic deformations,²⁶ this model membrane assay is an ideal starting point for studying the chemo-mechanical coupling of Min protein self-organization, and thus provides a unique tool to stimulate further experimental and theoretical studies on this interesting protein system.
