The Detection and Reactivity of Silanols and Silanes Using Hyperpolarized ²⁹Si Nuclear Magnetic Resonance

Silicon is one of the most abundant elements known to man. Silicon-based materials find use in a wide range of applications, from the synthesis of bulk materials through to roles in molecular transformations. Of its three naturally occurring isotopes, only ²⁹Si has a non-zero magnetic moment, and its nuclear magnetic resonance (NMR) detection is of wide interest. Its wide chemical shift dispersion makes it highly diagnostic for characterization purposes and allows the examination of dynamic processes in solution and the solid state.¹ However, ²⁹Si NMR spectroscopy has limitations that reduce its potential use,² primarily due to its low sensitivity that is dependent upon the small population differences that exist between nuclear spin energy levels within a magnetic field. These populations are governed by the Boltzmann distribution, and therefore, a ²⁹Si NMR signal reflects just 1 in 125 500 of these nuclei at 11.7 T. Its 4.7 % natural abundance and typically long T₁ values also hinder detection.¹ Furthermore, as it is found in materials that make up an NMR probe, and an NMR tube, the broad background signal can impede the detection of low-concentration species.

Hyperpolarization is a route to overcome this insensitivity and refers to a situation whereby the spin energy level populations are perturbed from Boltzmann equilibrium conditions. These techniques have been utilized in both medical and analytical science, and with respect to ²⁹Si, a number of hyperpolarized magnetic resonance applications using dynamic nuclear polarization (DNP) have been reported.³ The parahydrogen (p-H₂)⁴ based method, signal amplification of reversible exchange (SABRE),⁵ has been applied to the polarization of ¹H and a number of heteronuclei, including ²⁹Si.⁶ However, these studies were limited to N-heterocyclic functionalized silanes because of the need to bind the substrate to the transition-metal polarization transfer catalyst.

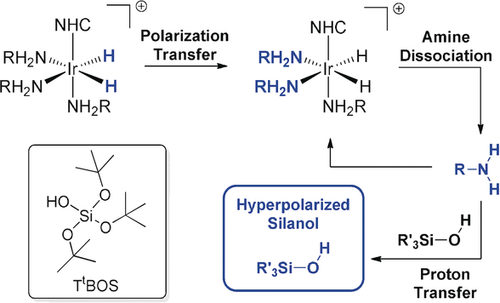

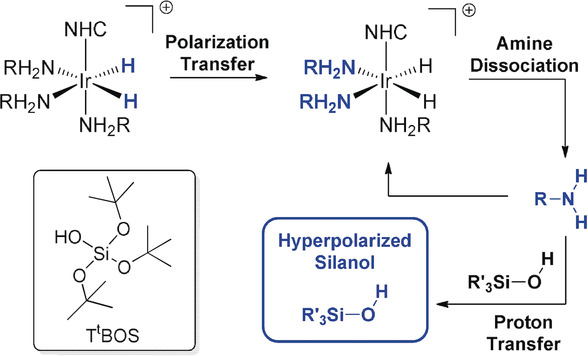

The SABRE-Relay technique⁷ overcomes this barrier, and consequently, the scope of p-H₂-based hyperpolarization has been greatly expanded.⁸ Now, a carrier agent, such as an amine, becomes hyperpolarized through the initial formation of an active polarization transfer catalyst of the type [Ir(H)₂(NHC)(RNH₂)₃]Cl as depicted in Scheme 1. The hyperpolarized carrier amine enhances the target substrate via proton transfer. Here, we develop the SABRE-Relay technique for the hyperpolarization of silanols by p-H₂ and direct silane polarization by SABRE.

The Stöber process⁹ is the method of choice for the synthesis of silica-based materials. It is a sol–gel process¹⁰ that begins with the hydrolysis of a tetra orthosilicate to give a mixture of silanols, which are subsequently condensed to form the material. The nature of the silanol intermediates determines the physical properties of these materials,¹¹ and therefore, methods for their rapid and cost-efficient detection and characterization are desirable. Our starting point was to take tris(tert-butoxy)silanol (T^tBOS; inset, Scheme 1) as a model substrate to develop the p-H₂-derived hyperpolarization of silanols. A 5 mm NMR tube fitted with a J. Young's tap containing a solution of [IrCl(COD)(IMes)] (1, 5 mm), benzylamine-d₇ (BnNH₂-d₇, 50 mm), and T^tBOS (50 mm) in CD₂Cl₂ (0.6 mL) was placed under a 3 bar atmosphere of H₂. After 1 h at 298 K, the resulting ¹H NMR spectrum showed clean conversion into [Ir(H)₂(IMes)(BnNH₂-d₇)₃]Cl.^{7, 8} No evidence for T^tBOS binding to this iridium center was observed by NMR or MS methods. After shaking this sample under 3 bar p-H₂ for 10 s at 298 K at 70 G, it was rapidly transferred into an 11.7 T spectrometer for interrogation by ²⁹Si NMR spectroscopy. A ²⁹Si signal that was 82±5-fold more intense than that in the corresponding thermally equilibrated control spectrum was detected. The transfer of hyperpolarization from the silanol ¹H to the ²⁹Si is likely to occur through both low-field thermal mixing¹² and nuclear Overhauser enhancement.¹³ Consequently, we sought to improve the ²⁹Si NMR signal gain to enable in situ reaction monitoring.

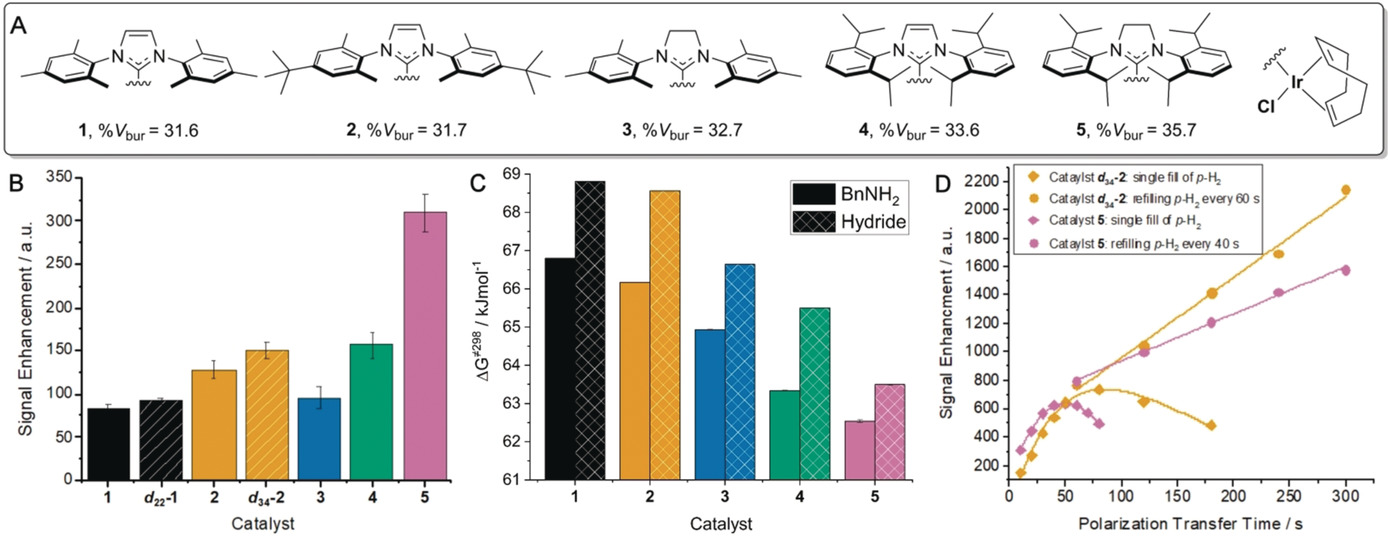

We began by varying the identity of the catalyst's N-heterocyclic carbene (NHC) ligand as it has been shown to affect the observed polarization level. The selective ²H labeling of the NHC can result in increased levels of polarization because of reduced spin dilution and longer T₁ relaxation times.¹⁴ Therefore, an analogous SABRE-Relay sample was prepared using d₂₂-1. After SABRE-Relay transfer, an improved silanol signal gain of 92±4-fold was observed (Figure 1 B). Modification of the steric and electronic properties of the NHC ligand has also been shown to modulate the ligand dissociation rates and thereby lead to better SABRE enhancement.¹⁵ The rate of equatorial BnNH₂ dissociation from [Ir(H)₂(IMes)(BnNH₂-d₇)₃]Cl is 3.33 s⁻¹ and therefore lower than predicted to be optimal.¹⁶ Bulky catalyst 2, furnished with tert-butyl groups, increases the signal gain to 128±11-fold whereas its isotopologue, d₃₄-2, gave a 150±9-fold gain. Catalyst 3, which bears the even more bulky SIMes ligand, also improved the ²⁹Si signal gain compared to 1. Continuing with this trend, we were able to further increase the steric effects of the NHC through the use of catalysts 4 (IPr) and 5 (SIPr), which gave signal enhancements of 157±15 and 310±22, respectively. We would expect these signal enhancements to be further improved by the use of the deuterated isotopologues and are currently exploring routes to their synthesis.

In order to rationalize these differences in polarization level, we calculated the ΔG^≠298 value of ligand dissociation for equatorially bound BnNH₂ and H₂ loss for the active complexes. These values were calculated as described in the Supporting Information. The barrier to H₂ loss is consistently higher than that of BnNH₂ dissociation for each catalyst, which is consistent with the expected dissociative mechanism (Figure 1 C). The catalyst derived from 1, [Ir(H)₂(IMes)(BnNH₂)₃]Cl, gave ΔG^≠298 values of 66.79 and 68.81 kJ mol⁻¹ for BnNH₂ and H₂ loss, respectively. These ΔG^≠298 values decrease when the steric bulk of the NHC ligand is increased across the series of catalysts 1–5. For catalyst 2, they are 66.16 and 68.56 kJ mol⁻¹, respectively. Catalyst 5, which gave the largest ²⁹Si signal enhancements after 10 s polarization transfer, has the lowest values of ΔG^≠298 (62.54 and 63.5 kJ mol⁻¹ for BnH₂ and H₂ loss, respectively). These data confirm that lower barriers to ligand loss promote more effective SABRE-Relay transfer. This effect is likely to be attenuated by relaxation of the NH protons of BnNH₂-d₇ in the presence of [Ir(H)₂(SIPr)(BnNH₂-d₇)₃]Cl whose T₁ was now just 0.8 s at 11.7 T. Thus, rapid ligand exchange allows for the effective replenishment of the polarized transfer agent; however, if this exchange is too fast, rapid relaxation will limit hyperpolarization buildup whilst depleting the p-H₂.

The corresponding hyperpolarized ²⁹Si signal lifetime of T^tBOS was 138.4 s as measured by a variable flip angle pulse sequence (see the Supporting Information). As the decay of the created ²⁹Si magnetization is slow, we postulated that the NMR signal gains could be increased if the SABRE-Relay time was extended beyond 10 s. Consequently, an increase in signal gain to 625±34-fold was obtained using 5 when the polarization time was extended to 50 s (Figure 1 D). Extending this time further decreased the signal intensity because of the finite amount of p-H₂ becoming limiting during the SABRE-Relay process. Upon repeating this experiment with d₃₄-2, a signal gain of 767±38-fold was reached after 70 s exposure to p-H₂. We conclude that while 5 leads to a more rapid buildup of polarization, its higher rate of ligand exchange consumes the p-H₂ in the sample. Complex d₃₄-2 yields higher signal gains with extended polarization transfer times and the same finite volume of p-H₂ as relaxation effects are reduced by slower exchange. In support of this, the relaxation times of the NH protons of BnNH₂-d₇ in the presence of d₃₄-2 were measured to be 3.2 s at 11.7 T.

The polarization times were extended further by evacuating and refilling the NMR tubes containing the SABRE-Relay solutions with p-H₂ periodically until 300 s was reached. For 5, the time between fills was 40 s, and for d₃₄-2, it was 60 s. For both catalysts, a linear increase in ²⁹Si polarization level was observed over time but d₃₄-2 led to the highest signal gain of 2142±180-fold after 300 s. For 5, the signal gain was 1580±120-fold. This behavior is reflected in the lower magnetization buildup slope illustrated in Figure 1 D. Increasing the pressure of p-H₂ from 3 bar to 5 bar yielded a further 10 % increase in signal gain to 2313-fold with d₃₄-2 due to increased p-H₂ availability. An automated polarizer, which introduces a constant flow of p-H₂ into the solution, gave a similar linear increase in signal gain; however, the signal gains only reach a maximum of 100-fold (see the Supporting Information). We suggest that this is due to inefficient mixing of p-H₂ in solution.

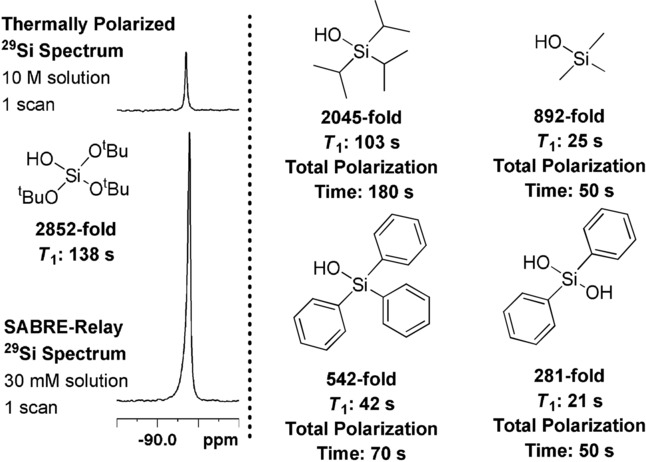

After optimization, we concluded that the best conditions for the polarization T^tBOS are d₃₄-2 (5 mm), BnNH₂-d₇ (50 mm), and T^tBOS (30 mm) in CD₂Cl₂ (0.6 mL) and exposure to p-H₂ at 5 bar for 300 s at 70 G with refreshing the p-H₂ atmosphere every 60 s. This yields a total signal gain of 2852±112-fold (2.3 %) in the ²⁹Si NMR spectrum (Figure 2). These conditions were then applied to the polarization of a number of other silanols as summarized in Figure 2. As their T₁ relaxation times are shorter than that of T^tBOS, the maximum signal gains are achieved with shorter total polarization transfer times.

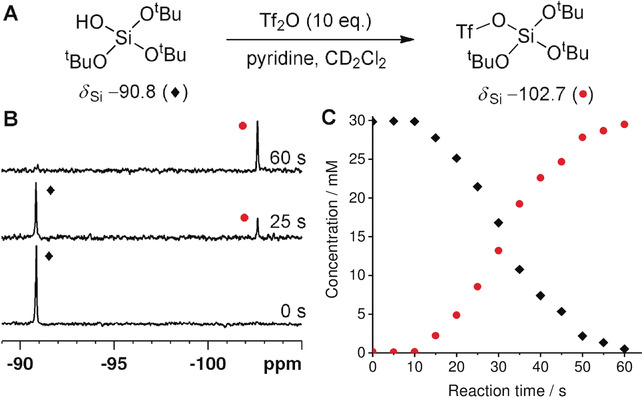

DNP has previously been used for quantitative reaction rate determination using ¹H and ¹³C nuclei.¹⁷ The hyperpolarized ²⁹Si NMR signals and the long T₁ relaxation time of T^tBOS were exploited to monitor a molecular transformation. The nucleophilic substitution of triflic anhydride (Tf₂O) with T^tBOS was chosen as it has been reported as a method for functionalization of silica surfaces.¹⁸ A relaxation-corrected variable flip angle sequence was used to overcome the loss of magnetization due to T₁ relaxation during the reaction and to give an immediate concentration profile as detailed in the Supporting Information.¹⁹ The SABRE-Relay polarization of T^tBOS was conducted using our previously optimized conditions, prior to the introduction of a solution of Tf₂O (10 equiv) and pyridine (10 equiv) in CD₂Cl₂ (0.1 mL). Subsequent rapid sample insertion into an 11.7 T magnetic field prior to acquisition of a ²⁹Si spectrum every 5 s for a duration of 60 s (Figure 3). When Tf₂O was present in excess, we observed conversion of T^tBOS (δ_Si=−90.8 ppm) into its triflate derivative (δ_Si=−102.7 ppm). The identity of these signals was unequivocally confirmed by independent synthesis (see the Supporting Information). After an induction period of 10 s, which we attribute to diffusion of the Tf₂O into the NMR detection region, the expected pseudo-first-order consumption of the starting silanol and the corresponding production of its triflate product was observed. The rate constant for this was determined to be 0.070±0.001 s⁻¹ and is not affected by changing the concentration of the SABRE catalyst, which confirms that the catalyst does not participate in the nucleophilic reaction. This data would not be possible to collect using ²⁹Si NMR spectroscopy under Boltzmann conditions because of the requirement for signal averaging and long T₁ values; the speed of this reaction means that it would be complete before the first measurement could be made. When the reaction was repeated with substoichiometric quantities of Tf₂O, a new resonance at δ_Si=−93.2 ppm was observed, which we attribute to the product of dimerization (see the Supporting Information). It is formed by reaction of T^tBOS with its triflate intermediate in a two-step process. The same signal is present in the ²⁹Si NMR spectrum when the reaction was repeated with tris(tert-butoxy)silyl chloride; however, the reaction is now too rapid to derive any kinetic data. As the oligomerization of silanols is a key step in the synthesis of silica materials, the result demonstrates that it may be possible to detect and quantify intermediates in the sol–gel process.

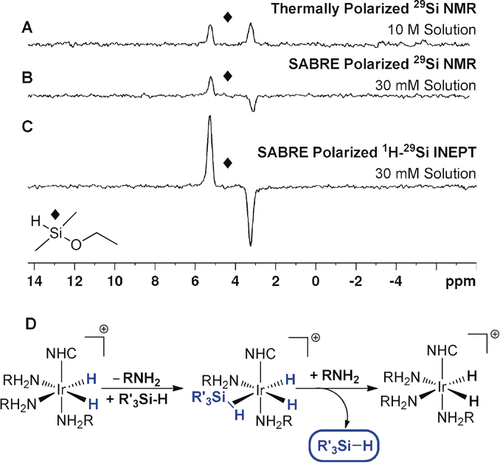

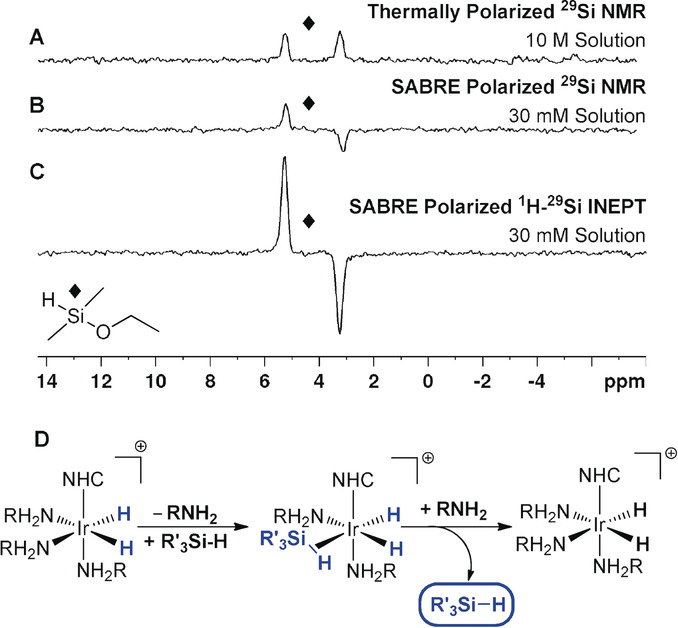

During the course of our investigation into hyperpolarized ²⁹Si NMR spectroscopy, we also discovered a method to hyperpolarize important silanes via SABRE. When a sample containing d₂₂-1 (5 mm), dimethylethoxysilane (50 mm), and BnNH₂-d₇ (50 mm) in CD₂Cl₂ (0.6 mL) was shaken at 70 G for 10 s, a hyperpolarized signal gain of 206±24-fold was observed in the ²⁹Si NMR spectrum as an antiphase doublet (J_Si–H=205 Hz; Figure 4 B). Antiphase character is typically seen for two inequivalent p-H₂-derived hydride ligands;^{4b, 5c, 12} here, similarly complex polarization is spontaneously created, but now shared between a ²⁹Si and a ¹H nucleus. The T₁ value for this signal was measured to be 38±1.2 s. In the ¹H NMR spectrum, after SABRE polarization, the intensity of the Si−H resonance is 70±5 times greater than in a thermally equilibrated reference spectrum. The dominant hydride-containing species in the ¹H NMR spectrum was [Ir(H)₂(d₂₂-IMes)(BnNH₂)₃]Cl,^8a and no hydride ligands were seen that could be attributed to a silane complex. As SABRE transfer is seen when a 70 G field is employed, it demonstrates the existence of a polarization transfer route involving p-H₂-derived hydride ligands, and dihydride-η²-silane complexes have been exemplified elsewhere.²⁰ We searched spectroscopically for the presence of such a species at low temperature in our SABRE sample; however, no signals attributable to an intermediate η²-silane complex could be detected.

After SABRE catalysis at 70 G, a ¹H–²⁹Si INEPT based transfer sequence was utilized at 11.7 T to create the same antiphase signal as that of Figure 4 B with an increased signal gain of 772±56 (Figure 4 C). The use of alternative co-ligands, such as DMSO-d₆ and CD₃CN, did not increase the signal gains when compared to those with BnNH₂-d₇. Additionally, when the sample is placed under a D₂ atmosphere (3 bar) at room temperature for 24 h, a 60 % reduction in the Si−H signal was observed in the ¹H NMR spectrum, thus indicating that while H/D exchange occurs, it is slow. No Si−H site exchange was observed by EXSY methods on the timescale of relaxation, which further suggests that the key intermediate is of an η²-silane type rather than an oxidative silyl hydride, which would undergo rapid Si−H scrambling.

Changing the silane to pentamethyldisiloxane gave a ²⁹Si signal gain of 252±22 in the ¹H–²⁹Si INEPT spectrum. However, a number of other silanes, such as triethoxysilane and triphenylsilane, yielded no SABRE catalysis and therefore highlight the sensitivity of this approach to the steric and electronic properties of the silane. Work is now ongoing to further characterize the intermediates involved in this process in order to broaden scope and applicability.

In summary, we have demonstrated the hyperpolarization of silanols and silanes using p-H₂. Development of the SABRE-Relay method⁷ gave large ²⁹Si signal gains that approach 3000-fold. The effects of catalyst structure and their influence on ligand exchange processes were determined through calculation of ΔG^≠298 values and the influence on carrier amine T₁ relaxation rates. The large polarization levels attained and the long T₁ values were exploited using a relaxation-corrected variable flip angle pulse sequence to measure kinetic data for the reaction of a silanol and Tf₂O through a ²⁹Si NMR response. Finally, silanes have been shown to be amenable to SABRE-based polarization transfer when BnNH₂-d₇ was used as a co-ligand to give ²⁹Si signal gains of 772±56-fold. We propose that an iridium dihydride-η²-silane is the active catalyst in this process,²⁰ and full rationalization of this SABRE pathway is ongoing. We anticipate that the hyperpolarized methods exemplified here for ²⁹Si will extend more generally to other slow-relaxing heteronuclei such that intermediate characterization by NMR spectroscopy is widely supported.
