Modification of Fluorescent Photoinduced Electron Transfer (PET) Sensors/Switches To Produce Molecular Photo-Ionic Triode Action^†

Fluorescent photoinduced electron transfer (PET) sensors/switches¹–⁴ are a well-established application of molecular devices, to the point of real-life deployment worldwide in blood electrolyte diagnostics.⁵–⁸ Important picosecond laser studies on fluorescent PET sensors/switches have demonstrated the transient existence of radical ion species,⁹–¹¹ and thus designers can proceed with confidence. As a result of their modular fluorophore-spacer-receptor construction, fluorescent PET systems are very amenable to modification in terms of the format, as well as in terms of the detailed functionalities. The latter approach has yielded many individual examples of sensors and switches based on fluorescence which target important analytes.¹²–¹⁵ On the other hand, the former approach has the potential to set up new areas of endeavor and application, which is exploited here.

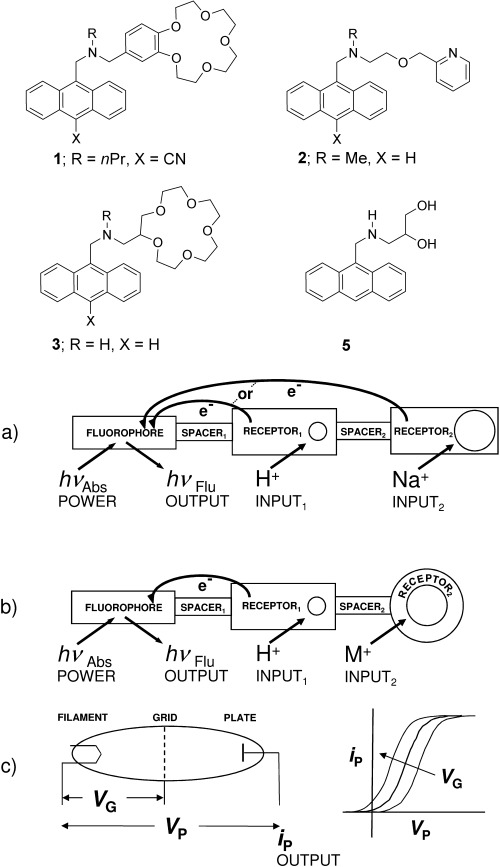

The controllable quenching of molecular fluorescence¹, ² can be exploited to build switchable systems which emulate familiar electronic devices. Some of these molecular systems have unique applications which are inconvenient for their electronic counterparts, such as wireless operation in micrometric spaces.¹⁶ The first molecular logic gate¹⁷–²³ 1 (an advanced molecular switch²⁴) was a fluorophore-spacer₁-receptor₁-spacer₂-receptor₂ system,²⁵, ²⁶ where two photoinduced electron transfer (PET)⁴, ²⁷ channels arising from the two receptors were controlled by binding H⁺ and Na⁺ ions, respectively, and thus the fluorescence output corresponded to photo-ionic AND logic. Strong fluorescence emerges only when all PET processes are suppressed (Figure 1 a).⁴ Related, but distinct, fluorophore-spacer₁-receptor₁-spacer₂-receptor₂ systems,²⁸ where both receptors respond to H⁺ ions, for example, 2, give rise to fluorescent off-on-off action, which can correspond to ternary logic behavior.²² We now demonstrate aspects of molecular photo-ionic triode action for the first time by structurally mutating the fluorophore-spacer₁-receptor₁-spacer₂-receptor₂ system 1 into a novel format exemplified by 3, where the convenient photoredox capability of receptor₂ is removed from 1 (Figure 1 b). Nearly 20 distinct formats of luminescent PET switching systems, each possessing its own defining features and applications, are known.²⁶ Fluorescence off-on switching is, therefore, controlled within 3 by selective ion binding of receptor₁. This switching profile is influenced by the orthogonally selective ion binding of receptor₂, which is forced into a secondary role (Figure 1 b). The amine receptor₁ within 3 would bind H⁺ instead of alkali and alkaline earth cations. The crown ether receptor₂ within 3 would bind alkali and alkaline earth cations instead of H⁺. This photo-ionic triode action complements molecular all-photonic triode behavior, which was reported recently by Gust, Moore, Moore, and co-workers.²⁹ Molecular all-electronic transistor action, and logic gates arising therefrom, is also known.³⁰, ³¹ It is also important to note a different conceptual approach to a molecular triode based on PET, as described by Verhoeven and co-workers.³²

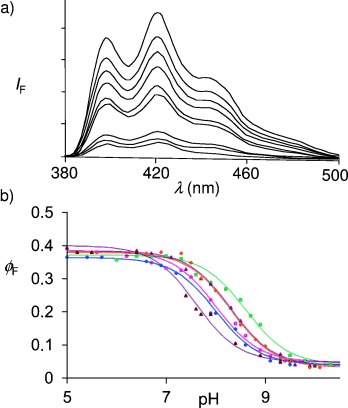

The electronic triode³³ (the forerunner of the transistor³³) is a fundamental switch and consists of a vacuum tube containing a hot filament undergoing thermionic emission of electrons which are collected by a plate electrode, provided the latter is at a sufficiently positive voltage. The plate current (i_P) output is essentially a sigmoidal function of the plate voltage (V_P) input because the electron current saturates at highly positive voltages, owing to the limited supply of electrons from the filament. The triode contains a grid electrode between the filament and the plate. The voltage of the latter (V_G) sensitively controls electron traffic, that is, the i_P-V_P characteristic curve is shifted along the voltage axis depending on the value of V_G (Figure 1 c). Compound 3 shows a very similar effect at the molecular level when its fluorescence emission spectrum is examined under various ionic conditions (Figure 2 a). The fluorescence quantum yield (ϕ_F) output is a sigmoidal function of the pH input and the shift of the ϕ_F-pH curve along the pH axis depends on the presence of another cation which lodges in the [15]crown-5 ether (Figure 2 b). Compound 3 is conveniently prepared from 9-anthraldehyde by conversion into an imine (4) with aminomethyl-[15]crown-5 ether, which is subsequently reduced with NaBH₄ (see supporting information). Compound 3 is, therefore, a fluorescent PET sensor for H⁺ ions³⁴ with an important additional tuning element. Figure 2 b shows the data points and the fitted sigmoidal curves for each situation on employing the Henderson–Hasselbalch Equation [Eq. (1)] for the fluorescence data.³⁵

(1)

The pK_a values determined by fluorescence spectroscopy agree with the corresponding values obtained by absorption spectroscopy, even though the latter values are only estimates because of the small absorption changes that are seen (Table 1). This is as expected for fluorescent PET sensors and switches carrying fluorophores with ππ* excited states,²⁵, ³⁴ since only ϕ_F is pH-dependent and since the pK_a value of the excited state is essentially identical to that of the ground state in these cases. The latter feature contributes to the operational simplicity of fluorescent PET systems compared with other sensing approaches based on fluorescence.⁴ The electrostatic repulsion between the cation bound by the crown ether and the protonated amine controls the shift of the pK_a value (Table 1). Me₄N⁺ was employed to establish the control situation where the crown ether receptor₂ is left unbound. Sizeable ΔpK_a values of 0.3, 0.3, 0.6, 0.6, and 1.0 are found with K⁺, Ca²⁺, Na⁺, Sr²⁺, and Ba²⁺, respectively. As a consequence of the good geometric fit of an Na⁺ ion into the [15]crown-5 ether cavity,³⁶ it produces a substantial effect, despite its single charge. A lariat action³⁶ from the amine side chain probably contributes to the larger dications being so effective. The tunability of the present system is already significant and sufficient for triode action, similar to the electronic version (shown schematically in Figure 1 c, right panel). Nevertheless, it should now be possible to apply the concept to other receptor pairs so that even larger tunabilities can be reached. An important issue in the development of real-life applications⁷ is also addressed here—the variation of the pH value around a “normal” value (pH_normal) is most sensitively registered by a molecular sensor if its pK_a value is matched to the pH_normal value. The tunability of the pK_a value of compound 3 offers a way to make this match.

We have here a rarely noted supramolecular substituent effect³⁷ on pK_a values, where the cation serves as the substituent. Physical organic chemistry usually deals with the effects of substituents which are covalently attached to the structure carrying the reactive site.³⁸ Although many cases of ion-induced pK_a shifts are available,³⁹–⁴³ the concept of photo-ionic triode action is unprecedented. An elegantly tunable fluorescent PET sensor for glucose developed by James and Shinkai⁴⁴ does not correspond to photo-ionic triode action. The essential contribution of the [15]crown-5 ether module to the triode action of 3 is demonstrated by the finding that the pK_a values of control compound 5 (which is devoid of a crown ether unit) are essentially independent of the cation at 8.15±0.15 (Table 1).

To conclude, the tunable I/O characteristic of a molecular photo-ionic device which emulates thermionic triode behavior has been demonstrated for the first time by implementing a new format of fluorescent PET switches. The three-electrode philosophy of the triode is also followed in the photo-ionic system by the use of three active units within structure 3 (Figure 1 b,c). Another key aspect of triode behavior, that is, signal amplification, is well-known in other chemical systems.⁴⁵

Dedicated to Prof. Seiji Shinkai
