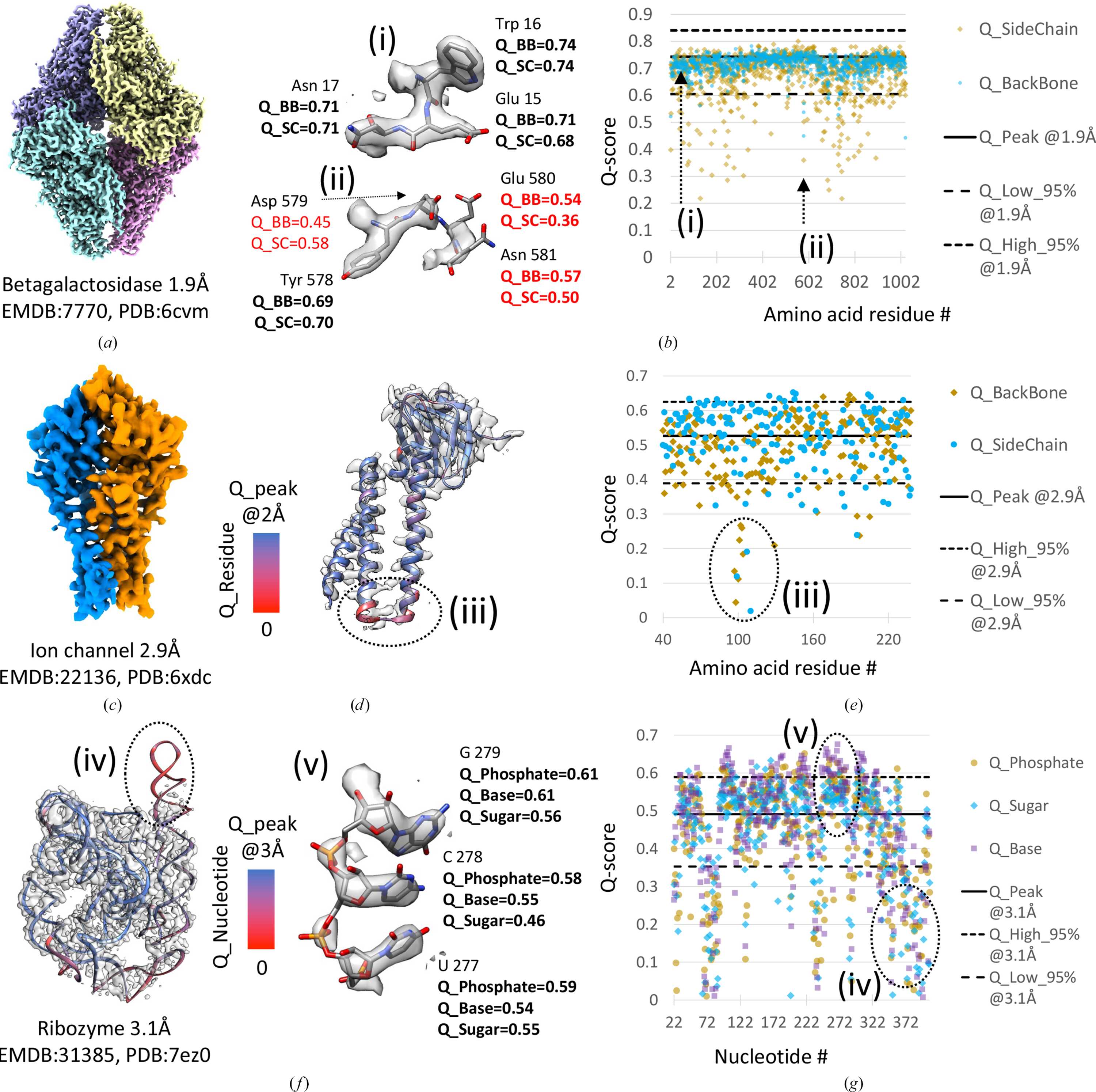

| Figure 3 Examples of Q-score application in proteins and in nucleic acids. (a) β-Galactosidase protein complex with (b) per-residue backbone and side-chain Q-scores; example residues with Q-scores marked on the plot are marked (i) and (ii). (c) Ion-channel protein complex; one of the two proteins in the complex is shown in (d), with a ribbon display color-coded by residue Q-score. (e) Per-residue backbone and side-chain Q-scores for one ion-channel complex protein; an area with low Q-scores is marked (iii). (f) RNA-only Tetrahymena ribozyme; the ribbon model is color-coded by nucleotide Q-score. (g) Q-scores of phosphate, sugar and base atoms in each nucleotide; Q-scores for three residues which are well resolved are shown in (v) and an area with low nucleotide Q-scores is marked (iv). |
