![[Figure 2]](/d/issues/2025/08/00/ic5125/ic5125fig2mag.jpg)
|

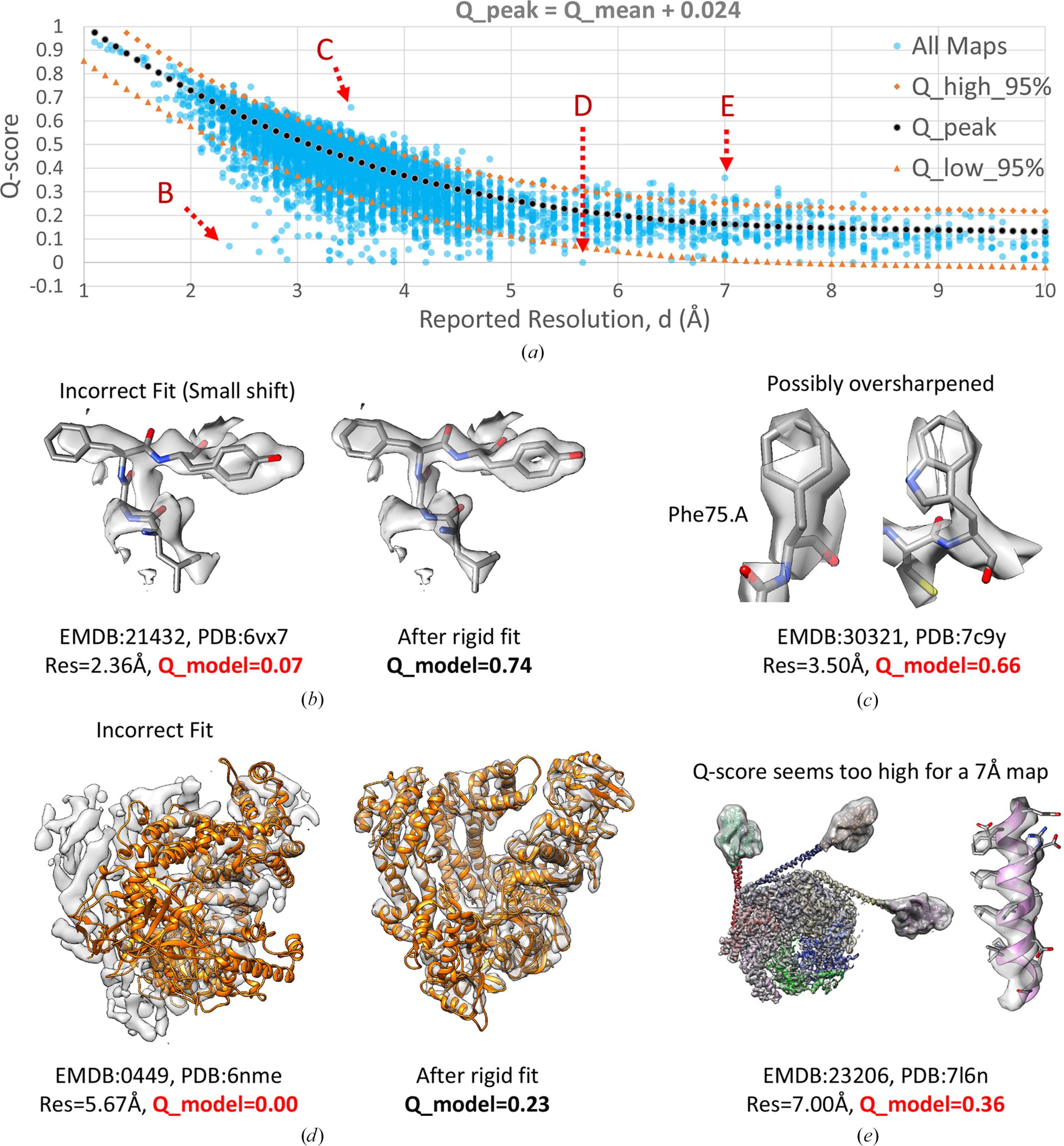

| Figure 2 (a) Plot of Q-scores versus reported resolution for ∼10 000 maps and models in the EMDB (the same data set as in Fig. 1 ![[link]](https://journals.iucr.org/logos/arrows/d_arr.gif){kind=small} ). The dotted curves above and below the Q_peak curve enclose 95% of the data points (equations 2, 3 and 4). (b–e) Illustration of maps and models with Q-scores outside the 95% curves. Overall Q-scores for each model are indicated with Q_model and are colored red if outside the 95% curves. In (b) and (d) the Q-scores are inside the 95% curves after properly fitting the model to the map and
re-calculating the Q-scores. |
