Enhanced intensity-based clustering of isomorphous multi-crystal data sets in the presence of subtle variations

Thompson, A.J.; Beilsten-Edmands, J.; Tam, C.; Sanchez-Weatherby, J.; Sandy, J.; Mikolajek, H.; Axford, D.; Jaho, S.; Hough, M.A.; Winter, G.

doi:10.1107/S2059798325004589

Acta Crystallographica Section D
Acta Crystallographica
Section D STRUCTURAL BIOLOGY

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

Figure 5

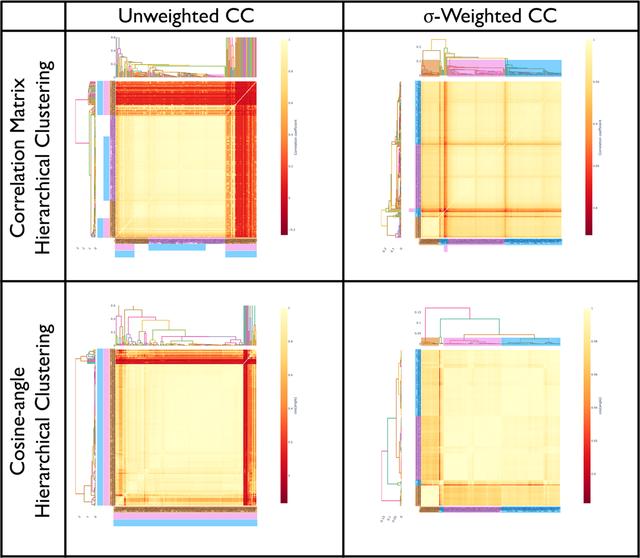

Comparison of HCA analysis of bovine, porcine and human insulin using xia2.multiplex with and without CC σ-weighting as described in Section 2.1

. Data sets corresponding to bovine insulin are highlighted in orange, data sets corresponding to porcine insulin are highlighted in pink and data sets corresponding to human insulin are highlighted in blue. Dendrogram links have colours that are randomly allocated and not representative of groups. The top dendrograms for the unweighted heatmaps show only the lower part of the dendrogram to improve visualization, whereas the full dendrograms are shown to the left.
