![[Figure 9]](/a/issues/2025/05/00/iv5038/iv5038fig9mag.jpg)
|

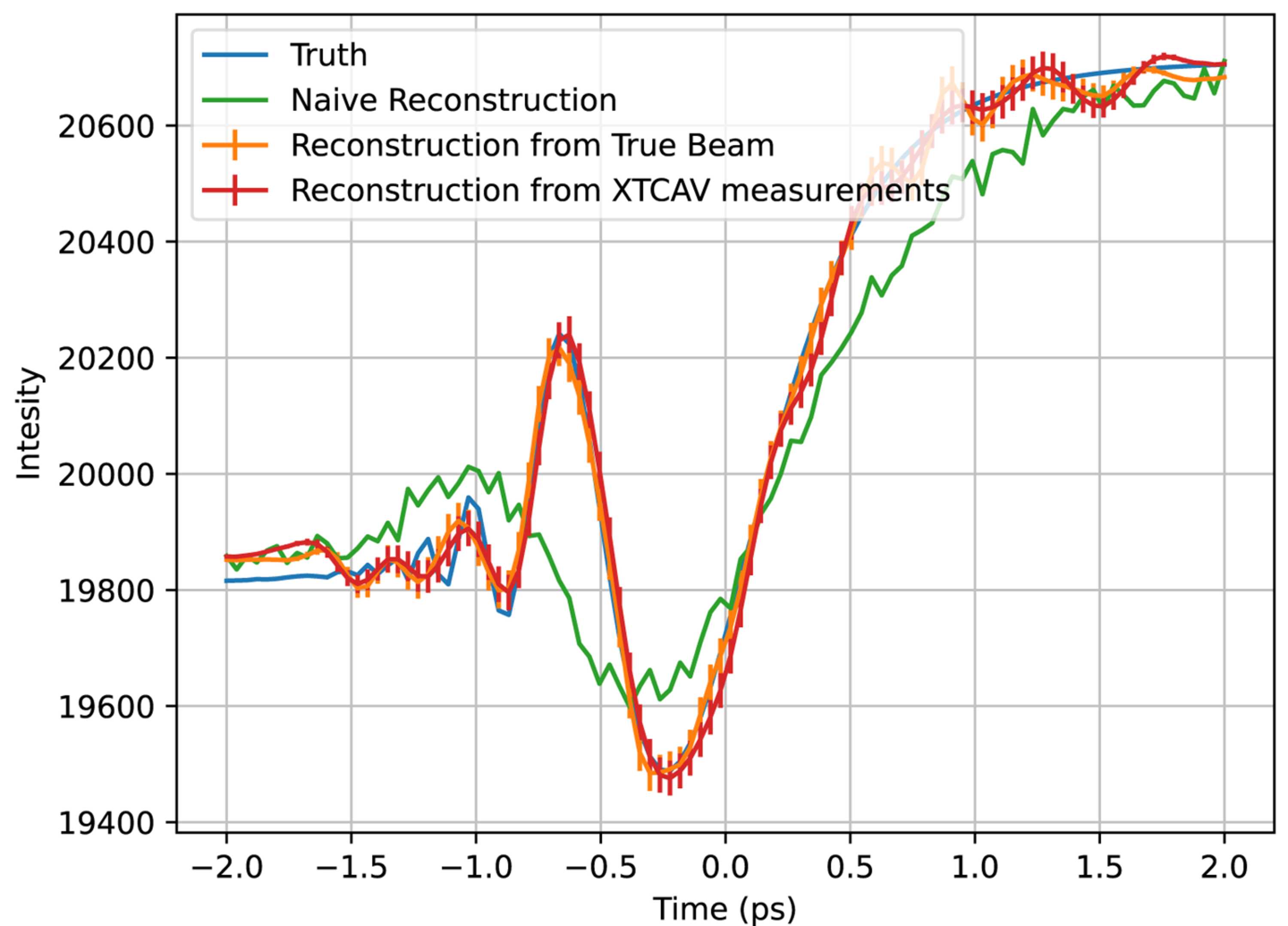

| Figure 9 Plotted in orange is the algorithm's reconstruction of the toy calmodulin temporal profile at q = 1.3 Å−1 from perfect beam measurements, in red is the reconstruction from the XTCAV data, in green is the naive reconstruction, and in blue is the true temporal profile. The naive reconstruction has a relative RMS error of 69%, the reconstruction from perfect beam measurements an error of 14%, and the reconstruction from the XTCAV beam measurements an error of 17%. |
![[Figure 9]](https://journals.iucr.org/10.1107/S2053273325004243/iv5038fig9.jpg)
|
