![[Figure 11]](/a/issues/2025/05/00/iv5038/iv5038fig11mag.jpg)
|

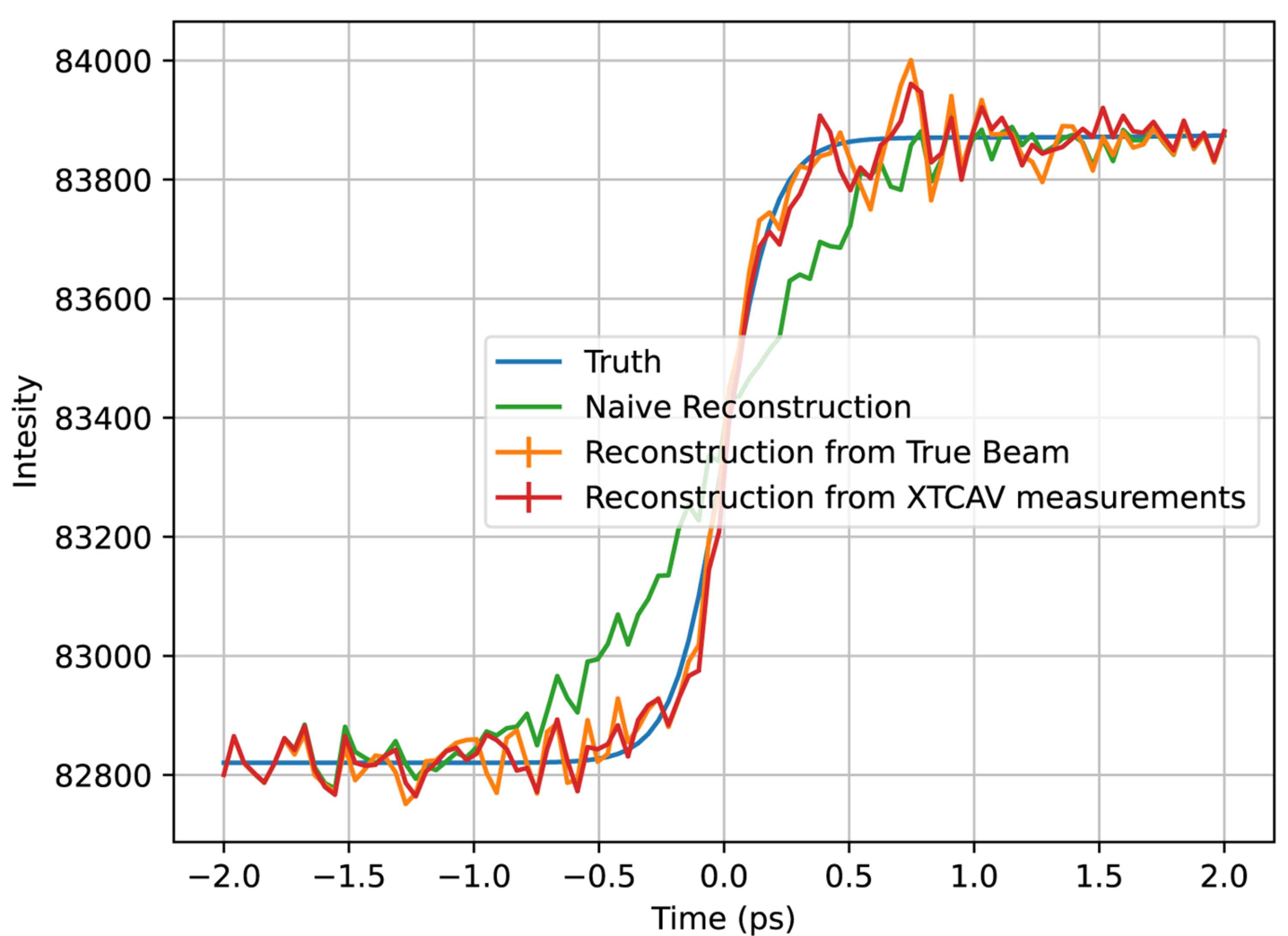

| Figure 11 Plotted in orange is our reconstruction at q = 1.3 Å−1 from the perfect beam measurements, plotted in red is our reconstruction from the XTCAV beam measurements, plotted in green is the naive reconstruction, and plotted in blue is the true temporal profile for rhodopsin. The algorithm recovered a timescale of 88 fs and 93 fs for the perfect and XTCAV measurements, respectively. The naive timescale is 272 fs and the true timescale 100 fs. The error bars on the algorithm's reconstructions are too small to see here. |
