![[Figure 19]](/a/issues/2025/02/00/ae5154/ae5154fig19mag.jpg)
|

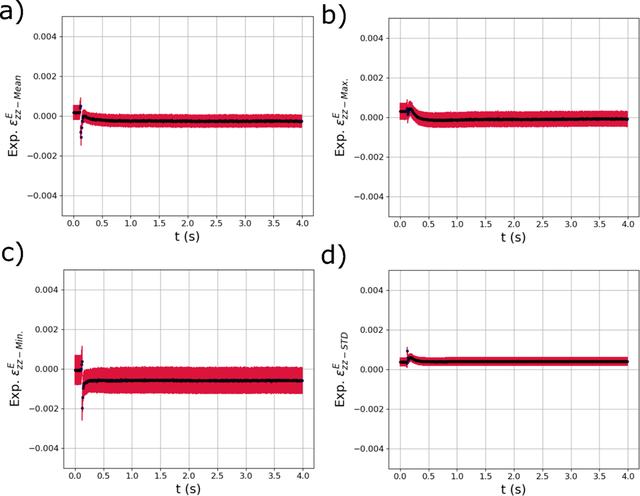

| Figure 19 The evolving (a) mean ![[\varepsilon^{\rm E}_{zz{\hbox{-}}{\rm Mean}}]](https://journals.iucr.org/10.1107/S2053273325000403/teximages/ae5154fi40.svg){kind=small} , (b) maximum ![[\varepsilon^{\rm E}_{zz{\hbox{-}}{\rm Max.}}]](https://journals.iucr.org/10.1107/S2053273325000403/teximages/ae5154fi44.svg){kind=small} , (c) minimum ![[\varepsilon^{\rm E}_{zz{\hbox{-}}{\rm Min.}}]](https://journals.iucr.org/10.1107/S2053273325000403/teximages/ae5154fi48.svg){kind=small} and (d) standard deviation ![[\varepsilon^{\rm E}_{zz{\hbox{-}}{\rm STD}}]](https://journals.iucr.org/10.1107/S2053273325000403/teximages/ae5154fi61.svg){kind=small} of the distribution of elastic strain within the duplicate experimental X-ray diffraction
volume with respect to time t extracted using trained GPR surrogate models. The red error bars correspond to the
square root of the variance (standard deviation) of the GPR surrogate model predictions. |
![[Figure 19]](https://journals.iucr.org/10.1107/S2053273325000403/ae5154fig19.jpg)
|
