![[Figure 9]](/b/issues/2025/03/00/cam5008/cam5008fig9mag.jpg)
|

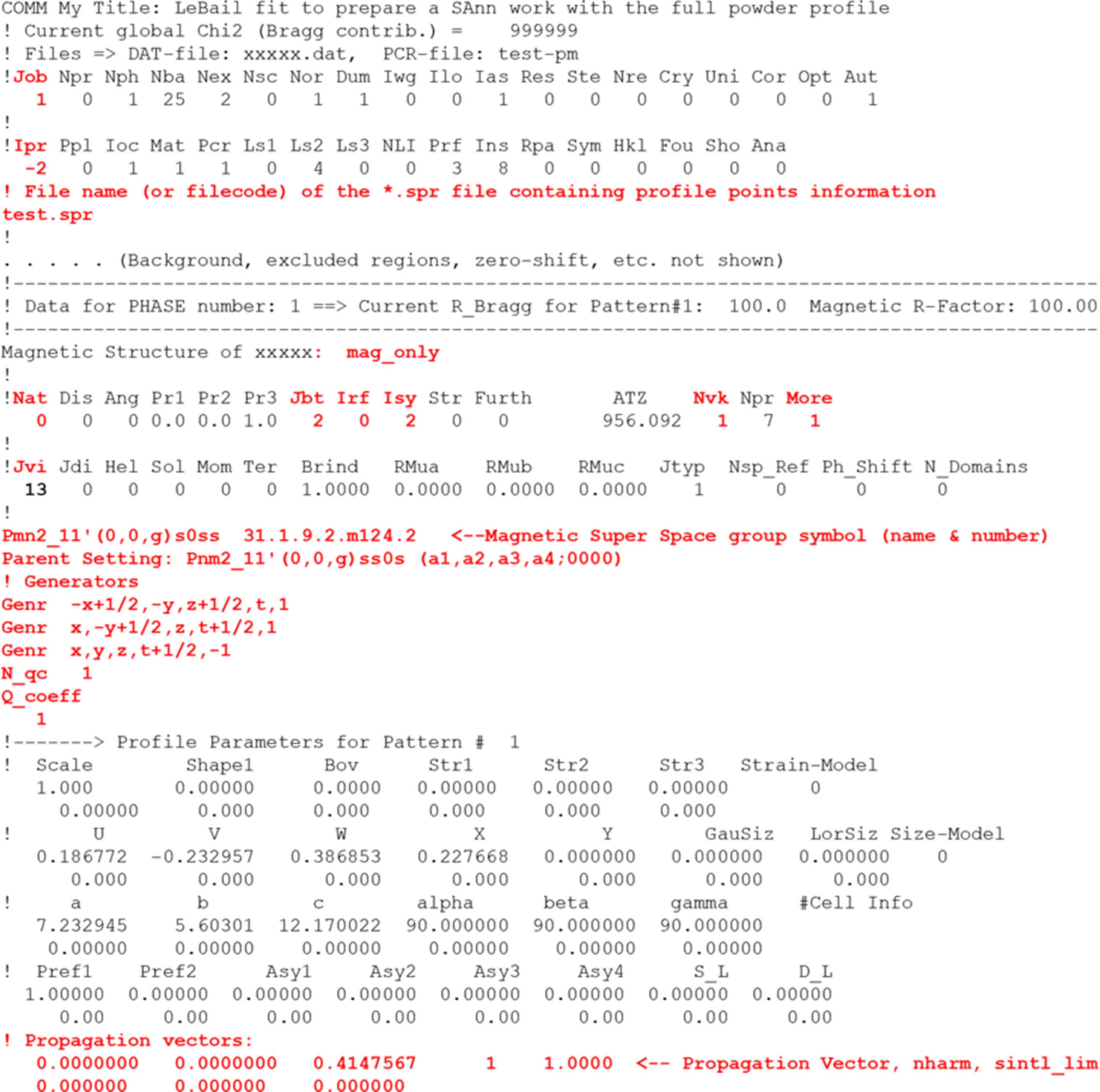

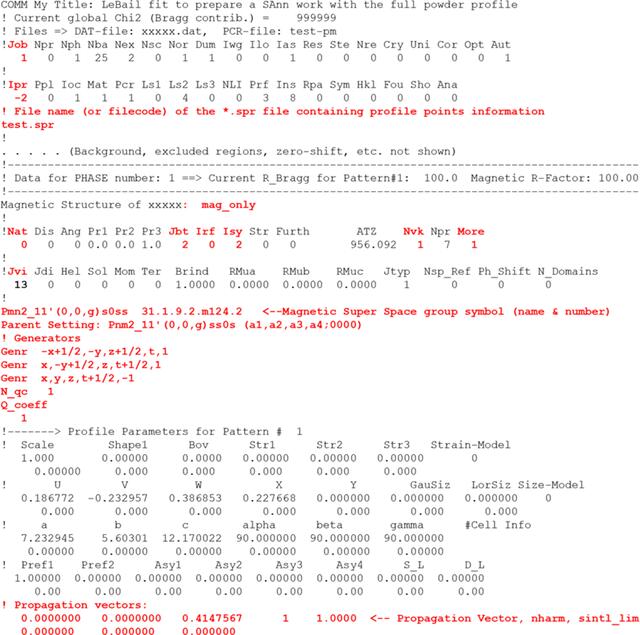

| Figure 9 Example of PCR file (test-pm.pcr) prepared to perform an LBF on the data file xxxxx.dat. It corresponds to constant wavelength NPD data (Job=1) of and incommensurate magnetic structure described using a (3+1)D MSSG (d = 1) defined by its generators. The run will generate both an SPR file (Ipr=-2) of name test.spr, where the final profile information will be stored, and an INT file (More=1, Jvi=13), of name test1_ctlr.int, containing the indices of the allowed reflections (h k l m) according to the provided symmetry operators, and Q_coeff, multiplicity and integrated intensities. Notice that the file xxxxx.dat corresponds to a difference pattern, only the magnetic scattering is present. The keyword mag_only, appearing in the line with the name of the phase indicates to the program that it should generate only the allowed magnetic reflections. |
![[Figure 9]](https://journals.iucr.org/10.1107/S2052520625003944/cam5008fig9.jpg)
|
