![[Figure 2]](/b/issues/2024/06/00/cam5004/cam5004fig2mag.jpg)
|

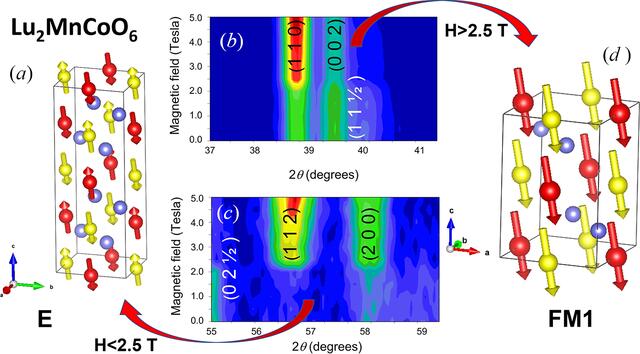

| Figure 2 (a) Magnetic structure of Lu2MnCoO6 at 4 K for low external fields (H < 2.5 T). (b) and (c) Details of the field dependence of neutron intensities collected at D1B for Lu2MnCoO6 showing both the vanishing of superstructure E-type peaks and the enhancement of FM peaks with increasing magnetic field. (d) Magnetic structure of Lu2MnCoO6 at 4 K for high external fields (H > 2.5 T). Red and yellow balls (arrows) stand for Mn and Co atoms (moments), respectively. Oxygen atoms have been removed for the sake of clarity. |
![[Figure 2]](https://journals.iucr.org/10.1107/S2052520624009454/cam5004fig2.jpg)
|
