A study of structural effects on the focusing and imaging performance of hard X-rays with 20–30 nm zone plates

Tong, X.; Dhamgaye, V.; Chen, Q.; Wu, Q.; Deng, B.; Zhang, L.; Fox, O.; Wang, H.; Zhao, J.; Chen, Y.; Xu, Z.; Li, P.; Sawhney, K.

doi:10.1107/S1600577524009615

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

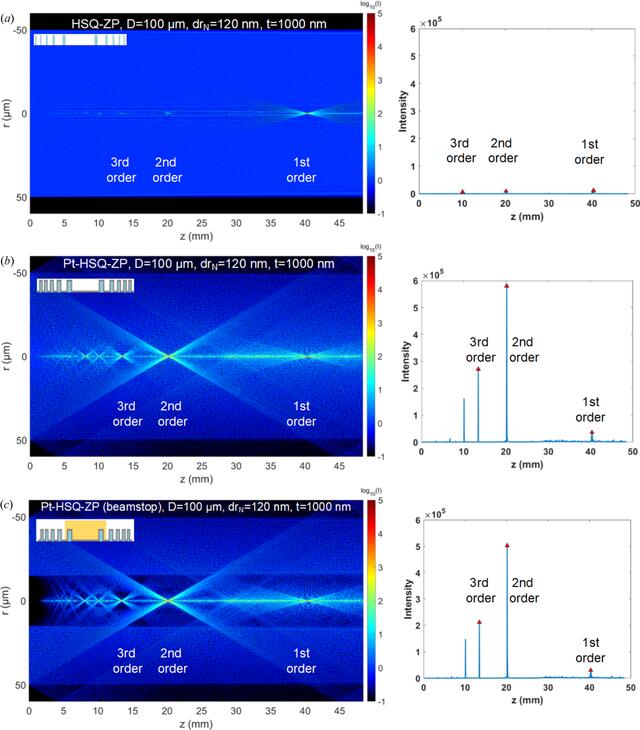

Figure 1
Calculated results of wavefield propagation of ZPs using a modified BPM (Tong et al., 2022

) for (a) the ZP template before ALD (HSQ-ZP), (b) the ZP after ALD of Pt (Pt-HSQ-ZP) and (c) the ZP integrated with a beamstop (30 µm diameter). The X-ray energy was 8 keV and the ZP resolution was 30 nm. The plots on the right show the light field intensity distribution extracted along the central optical axis.
