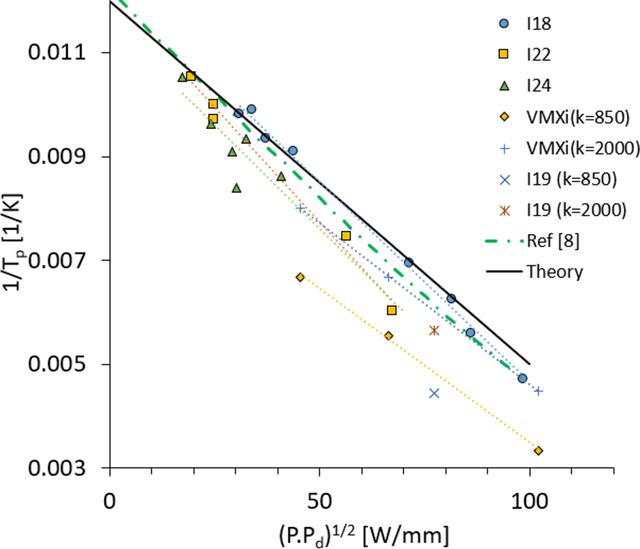

Figure 2
The black solid line is the inverse of peak temperature calculated with equation (4)[link] using C = 7 × 10−5 mm W−1 K−1. The symbols are FEA results (see Table 2[link]) and the green dashed line is from the literature (Zhang et al., 2013BB26). Other lines are guides to the eye.
