Figure 1

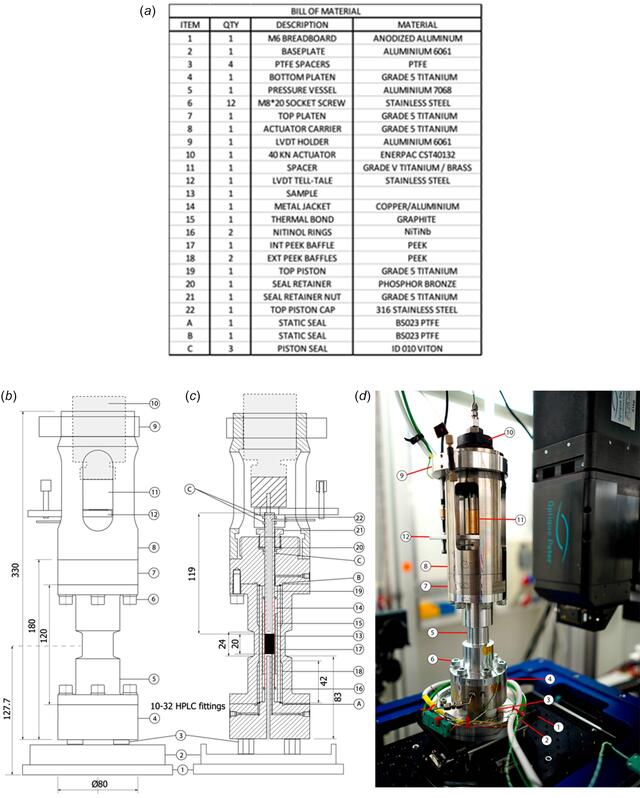

Bill of materials (a), outer and inner dimensions (b, c) and sectional drawing (c) of Heitt Mjölnir, and a photograph of the apparatus deployed at the TOMCAT beamline of the Swiss Light Source synchrotron at PSI, Switzerland (d). Numbers and letters labelled on parts (b), (c) and (d) refer to items on the bill of material (a). CAD drawings for each component are provided in the supporting information. All dimensions are in mm.
