Harmonic radiation contribution and X-ray transmission at the Small Quantum Systems instrument of European XFEL

Baumann, T.M.; Boll, R.; De Fanis, A.; Grychtol, P.; Ilchen, M.; Jastrow, U.F.; Kato, M.; Lechner, C.; Maltezopoulos, T.; Mazza, T.; Montaño, J.; Music, V.; Ovcharenko, Y.; Rennhack, N.; Rivas, D.E.; Saito, N.; Schmidt, P.; Serkez, S.; Sorokin, A.; Usenko, S.; Yan, J.; Geloni, G.; Tanaka, T.; Tiedtke, K.; Meyer, M.

doi:10.1107/S1600577523003090

Journal of Synchrotron Radiation Journal of

Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 7

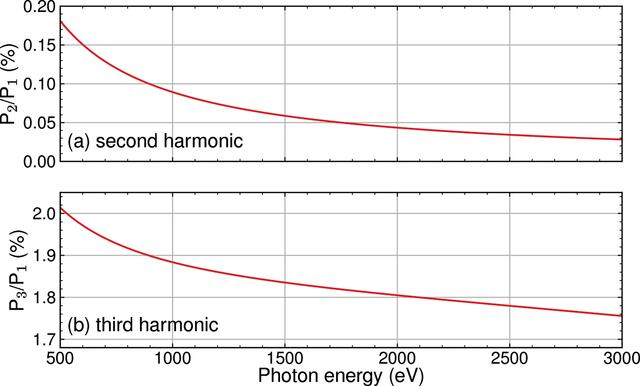

Contribution of the second- (a) and third-harmonic (b) radiation in dependence of the fundamental photon energy, calculated from the semi-analytical model for the undulator tapering conditions during the harmonics measurements without including apertures.
