Harmonic radiation contribution and X-ray transmission at the Small Quantum Systems instrument of European XFEL

Baumann, T.M.; Boll, R.; De Fanis, A.; Grychtol, P.; Ilchen, M.; Jastrow, U.F.; Kato, M.; Lechner, C.; Maltezopoulos, T.; Mazza, T.; Montaño, J.; Music, V.; Ovcharenko, Y.; Rennhack, N.; Rivas, D.E.; Saito, N.; Schmidt, P.; Serkez, S.; Sorokin, A.; Usenko, S.; Yan, J.; Geloni, G.; Tanaka, T.; Tiedtke, K.; Meyer, M.

doi:10.1107/S1600577523003090

Journal of Synchrotron Radiation Journal of

Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 4

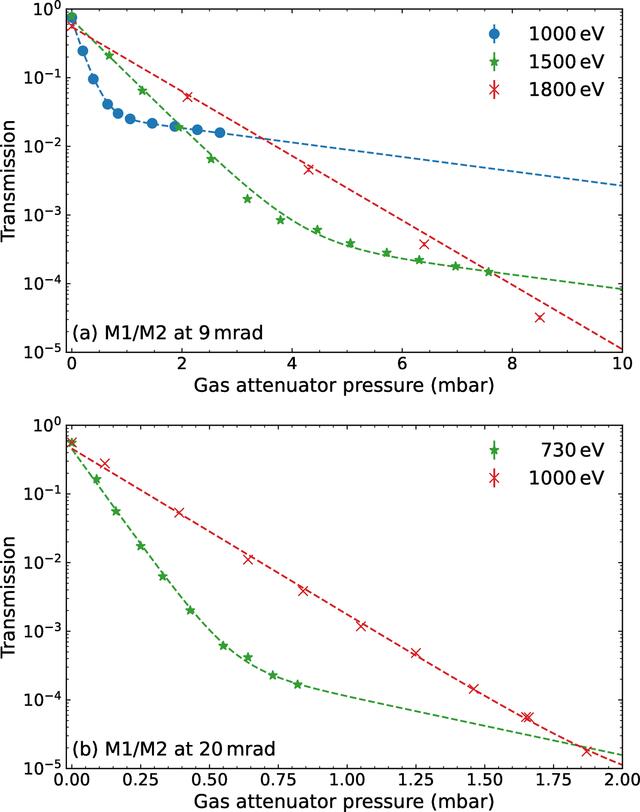

Results of the harmonics measurements. (a) The transmission measured with the CBR relative to the upstream XGM as a function of the gas attenuator pressure for M1 and M2 at an incidence angle of 9 mrad. The dashed lines represent the results of a two-parameter fit. (b) Data for an M1/M2 incidence angle of 20 mrad for 730 eV and 1000 eV.
