Cryo-cooled silicon crystal monochromators: a study of power load, temperature and deformation

Khosroabadi, H.; Alianelli, L.; Porter, D.G.; Collins, S.; Sawhney, K.

doi:10.1107/S160057752200039X

Journal of Synchrotron Radiation Journal of

Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 5

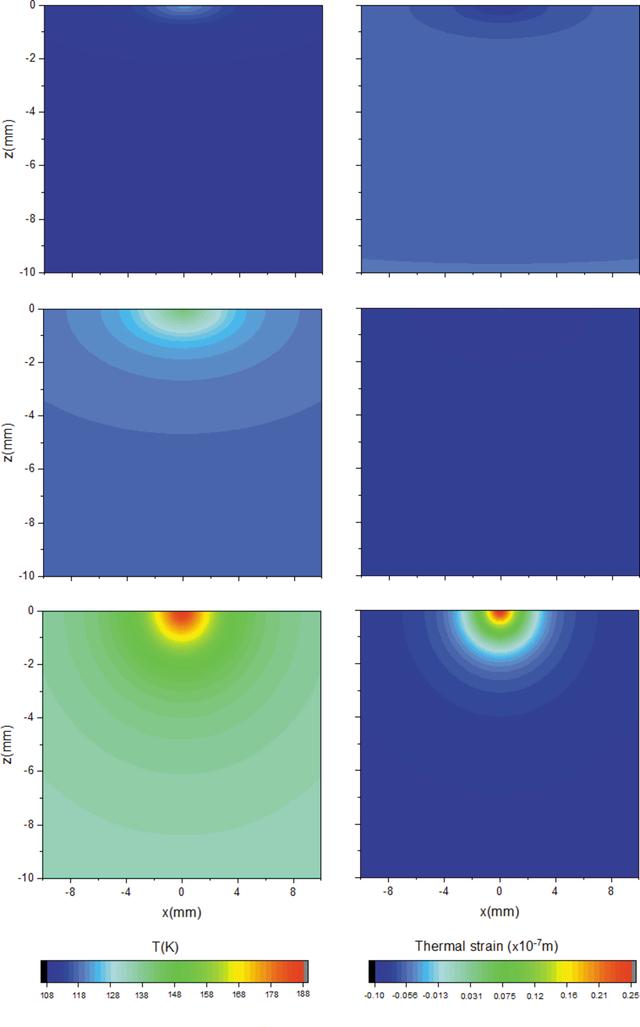

I16 Si crystal temperature and thermal strain calculated for different values of primary slit sizes, corresponding to P = 69 W, 116 W and 207 W (top to bottom) at fixed photon energy E = 3.5 keV. Left: temperature distribution. Right: thermal strain relative to 97 K (or P = 0).
