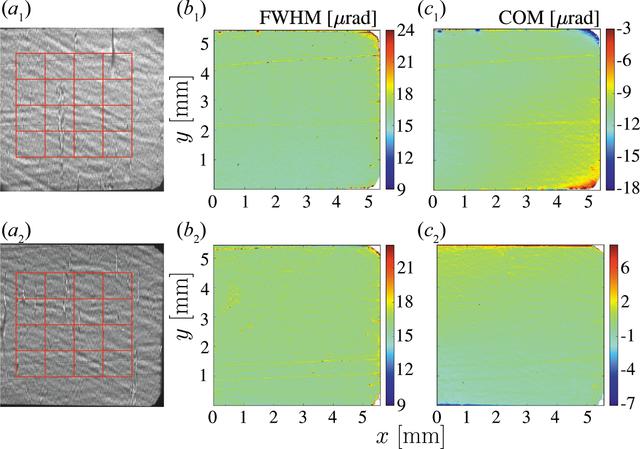

| Figure 8 X-ray 400 Bragg reflection images and RCI maps for diamond crystal VB5 after annealing. Columns are as in Fig. 3 ![[link]](https://journals.iucr.org/logos/arrows/s_arr.gif) : (a) X-ray images at the peak of the crystal-integrated rocking curve, (b) the Bragg reflection angular width and (c) the centers of mass of the Bragg reflection angular dependences. Rows correspond
to (1) medium-temperature annealing in air (MTA) and (2) high-temperature high-vacuum
annealing (HTHV). |
