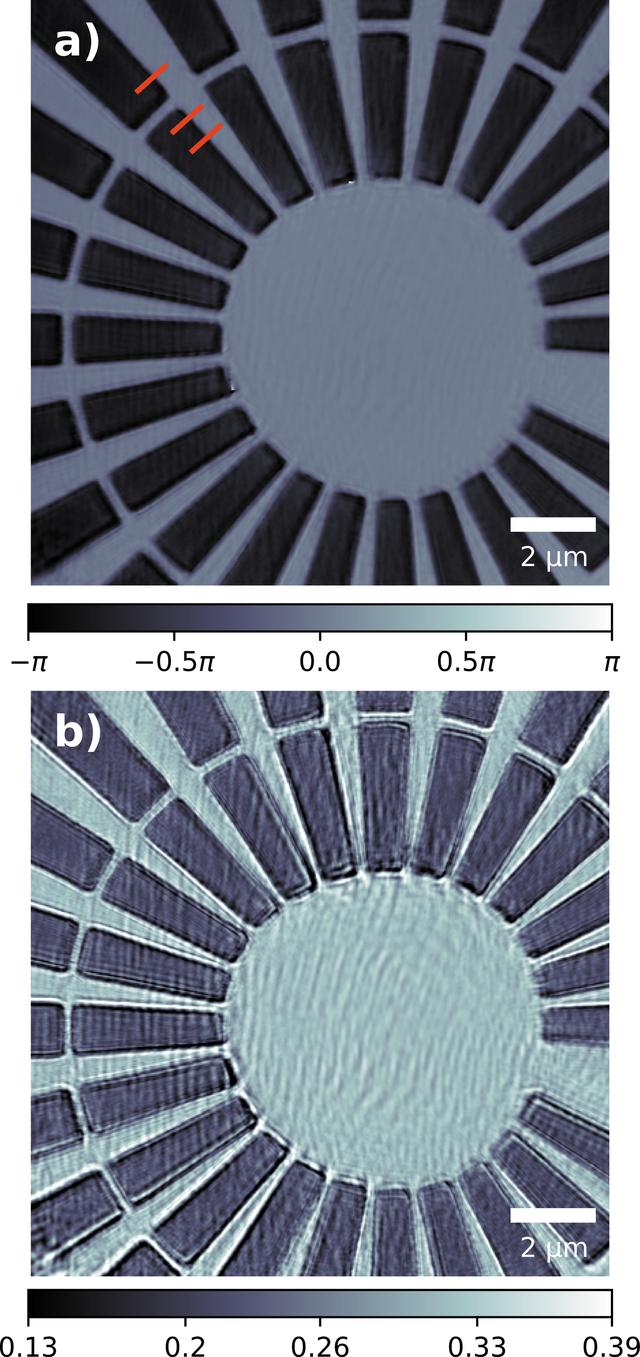

Figure 5

Ptychographic reconstruction of the Siemens star object (a) phase and (b) amplitude using the beryillium compound refractive lens illumination at 15 keV; units of phase are in radians (rad) and amplitude are arbitrary units (a.u.). Red markings denote where line profiles were taken along sharp features in order to quantify the obtained resolution; plots of these can be found in the supporting information.
