![[Figure 4]](https://journals.iucr.org/pp5128fig4mag.jpg)
|

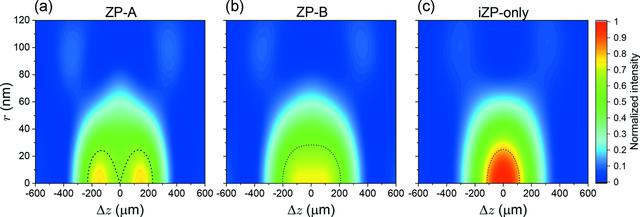

| Figure 4 Calculated two-dimensional intensity distributions: (a) ZP-A, (b) ZP-B and (c) iZP-only. The intensity is a normalized value by the peak intensity of iZP-only. The black dashed lines denote contours of 80% intensity relative to self-peak intensity. |
![[Figure 4]](https://journals.iucr.org/10.1107/S1600577518016703/pp5128fig4.jpg)
 |
