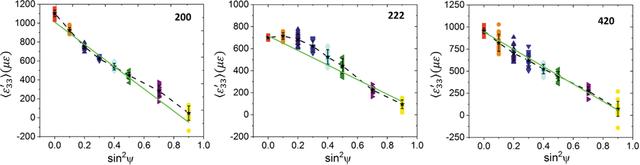

Figure 10

[\langle \varepsilon_{33}^{\prime} \rangle] versus [\sin^2 \psi] plots for the 200, 222 and 420 reflections for the in-plane constrained single-phase Cu mesh heated by 25°C. At each ψ angle, strain values for all diffracting grains are shown. For all plots the dashed line connects the average strain values (included to guide the eye). The green solid straight lines depict least-squares fits.
