Signature of dislocations and stacking faults of face-centred cubic nanocrystals in coherent X-ray diffraction patterns: a numerical study

Dupraz, M.; Beutier, G.; Rodney, D.; Mordehai, D.; Verdier, M.

doi:10.1107/S1600576715005324

Journal of Applied Crystallography Journal of Applied

Crystallography

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

Figure 12

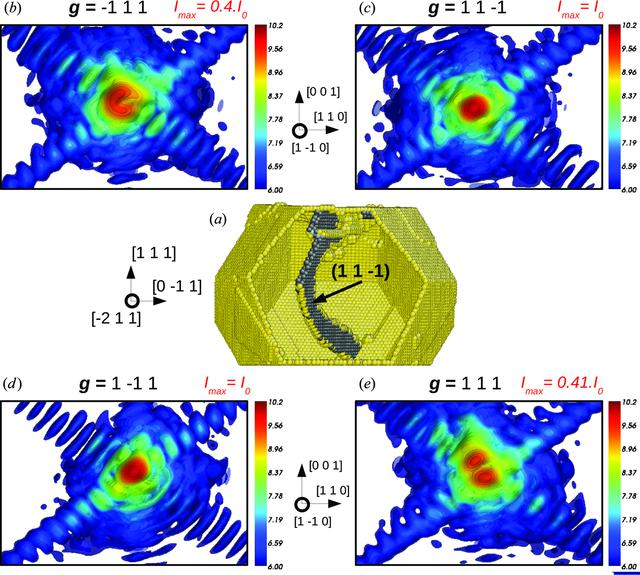

(a) Gold nanoparticle after 650 000 indentation steps. A dislocation half-loop with b of type $[\textstyle{1\over2}]$ 〈110〉 can be observed. (b)–(e) Calculated CXD patterns for four different 111-type diffraction vectors. The selected area of the reciprocal space is kept to the same value in all figures and is equal to 0.08 × 0.12 Å⁻¹.

JOURNAL OF

APPLIED

CRYSTALLOGRAPHY

ISSN: 1600-5767

Volume 48| Part 3| June 2015| Pages 621-644

https://doi.org/10.1107/S1600576715005324
