A transparent two-dimensional in situ beam-position and profile monitor for synchrotron X-ray beamlines

Kyele, N.R.; Decanniere, K.; Silfhout, R.G. van

doi:10.1107/S0909049505031250

Journal of Synchrotron Radiation Journal of

Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

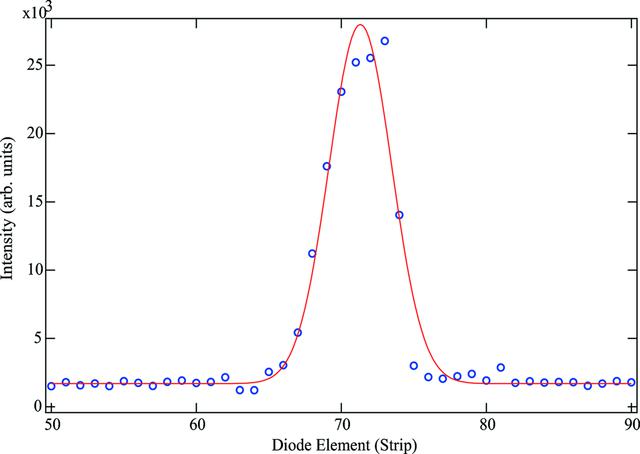

Figure 6

The vertical profile of the beam as measured by placing a linear photodiode array in the X-ray beam. Each diode element is 100 µm high and 10 mm wide. The full curve represents the best-fit Gaussian curve to the data.
