Figure 5

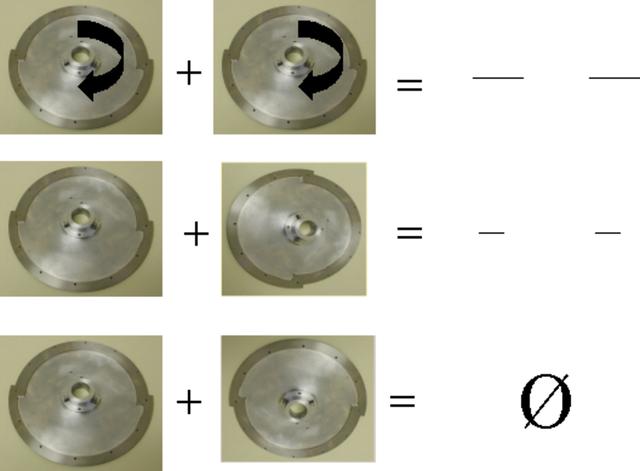

Two discs of the mechanical chopper developed by Cole and co-workers (Husheer et al., 2005BB38). When operational, the discs lie parallel to each other and the X-rays are fired at the outer rim of each disc, perpendicular to the disc surface. The X-ray pulse lengths are determined from the relative positioning of wheels with respect to each other, e.g. in phase (top), one rotated 90° to the other (middle), and completely out of phase to each other (bottom).

Journal logo FOUNDATIONS
ADVANCES
ISSN: 2053-2733
Volume 64| Part 1| January 2008| Pages 259-271
https://doi.org/10.1107/S0108767307065324
