2.1.1. Coprecipitation Method

Coprecipitation involves mixing a solution containing transition metal M^x+ ions with a solution of Fe²⁺ or Fe³⁺ containing ferrocyanide or ferricyanide ligands (i.e., [Fe(CN)₆]⁴⁻ or [Fe(CN)₆]³⁻) in various ways (dropping one solution into the other or simultaneously mixing both) to produce solid metal hexacyanoferrate (Figure 2a) [53–55]. The main advantages of this method are the low-cost precursors and low-temperature synthesis condition, eliminating the need for additional energy input, thus rendering it economical compared to other methods [26]. The process conditions, such as mixing speed, reaction temperature, solution pH, and precursor concentration, can be adjusted to control particle size, size distribution, morphology, and crystallinity [37, 56]. Although coprecipitation is commonly realized as a batch process, it may be set up as continuous production using reactors, making it highly scalable (Figure 2b). This allows for the transition from laboratory-scale synthesis to industrial-scale production [57]. These numerous advantages make coprecipitation a conventional and widely used method for the synthesis of PBAs [57, 58]. Unlike other methods, coprecipitation allows the production of PBAs containing transition metals other than Fe (Co, Ni, Mn, Cu, and Zn) by mixing two precursor solutions [55].

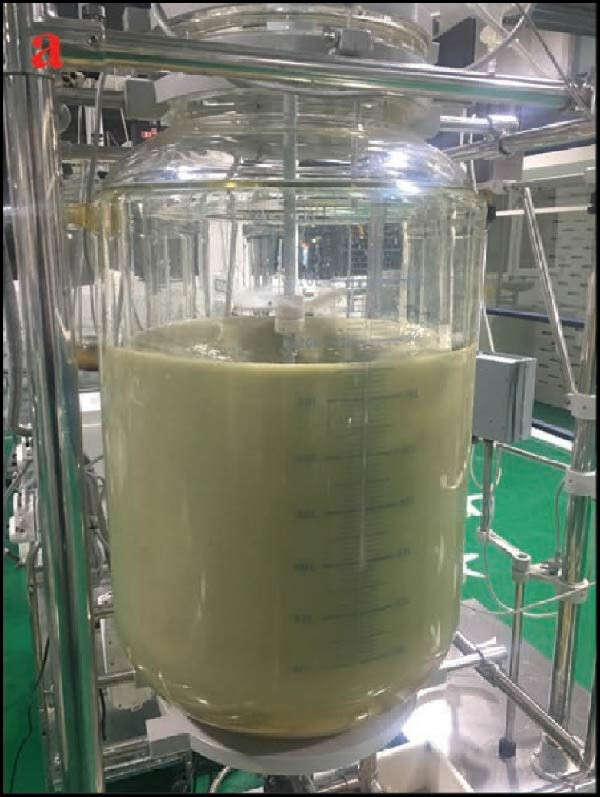

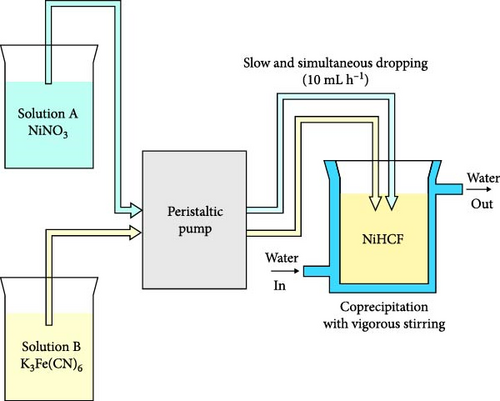

The coprecipitation method of PBA synthesis involves precipitate formation through a reaction between solutions containing two different transition metals (M₁ = Co, Ni, Mn, Cu, Zn, or Fe). This process includes two stages: nuclei formation and growth of these nuclei into PBA particles. Because of the low solubility product constant (K_sp) of metal hexacyanoferrates, precipitation occurs instantaneously [58, 59]. The rapid reaction between metal ions M^x+ and ligands, leading to the formation of nuclei, results in the creation of numerous Fe vacancies and the incorporation of water coordinated to M₁ within the PBA lattice [60, 61]. In the coprecipitation-synthesized PBA, water and Fe vacancies hinder the movement and insertion/extraction of alkali ions, thus affecting rate capability. To minimize these types of defects, the precipitation rate from precursor ions must be decreased (Figure 2c) [59, 62]. In addition, increased concentration of alkali ions in synthesis could prevent the probability of water binding and reduce related defects. This section describes approaches for altering coprecipitation process parameters to fabricate the PBAs capable of rapid ion insertion and extraction during charge and discharge.

First, the concentration of the precursor solution can be controlled to reduce the rate of coprecipitation from the precursor ions. High concentrations of precursor ions increase the probability of collisions, accelerating ion bonding. Conversely, low concentrations can result in sufficient product yield while necessitating significant synthesis time. Therefore, in the coprecipitation synthesis, the precursor concentration must be controlled to mitigate defect formation and ensure adequate synthesis yield [63].

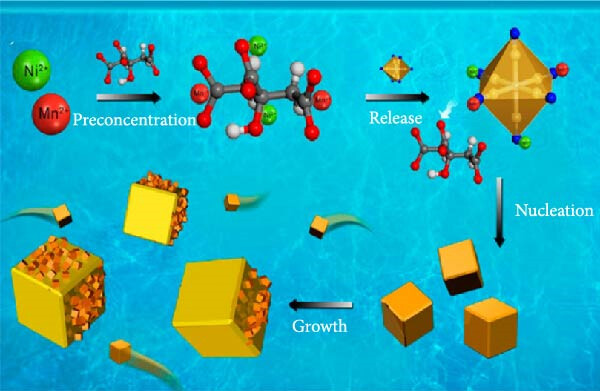

The addition of chelating agents or surfactants to the precursor solution during synthesis can also decrease the rate of reaction between ions. These agents prevent the direct bonding of precursor ions, thereby slowing nuclei formation [39, 64, 65]. Furthermore, the concentration of guest ions (Na⁺ and K⁺) entering PBA’s interstitial sites may be increased to reduce defects formed during coprecipitation. Fe vacancies or water-related defects generated in coprecipitation hinder alkali-ion insertion and extraction. Thus, increasing the concentration of alkali guest ions such as Na⁺ in the precursor solution reduces the amount of coordinated water in the lattice, thus decreasing crystalline defects [66].

Finally, control of the particle growth rate involves adjusting the mixing time and reaction temperature of the two precursor solutions. Prolonged mixing time increases the probability of ion interaction, leading to larger particle size and potential aggregation, especially at high temperatures [46]. Larger particles feature a smaller contact area between the electrode material and electrolyte, thereby lowering the number of alkali ions involved in charge storage reactions [67]. Therefore, fine-tuning of the temperature and time of coprecipitation is crucial for synthesizing small particles. The impact of these coprecipitation process parameters on rate capability is discussed in detail in Section 3.

2.1.2. Solvothermal and Hydrothermal Methods

The hydrothermal method can employ a single precursor ferricyanide (A_xFe(CN)₆) dissolved in water. This approach restricts the synthesis to PBAs containing only one type of transition metal.

The high-temperature above 100°C and high-pressure conditions in an autoclave reactor enhance the solubility of precursor ions, thereby inducing greater number of interactions among precursor ions (Figure 2d). This leads to a greater number of interactions between the precursor ions, thus accelerating the nucleation of crystallites [74]. In addition, the high temperature reduces the precursor solution’s viscosity and water’s surface tension, facilitating ion mobility and favoring crystal growth [75, 76]. At elevated temperatures, evaporation may occur within the autoclave. This solvent evaporation could increase the liquid–air interface concentration of the solution, which possibly promotes crystal growth [77]. Increased pressure also increases the probability of ion collisions, accelerating crystal growth [69]. In hydrothermal synthesis, accelerated nucleation and increased growth rates can result in particles of uneven sizes with more defects within the material [78]. Thus, this method poses challenges in producing PBAs with high crystallinity and uniform particle size distribution. Similar to other methods, hydrothermal synthesis also requires control over the reaction rate of precursor ions and the growth rate of particles to minimize defect formation in the PBA lattice.

As mentioned above, solvothermal synthesis can induce more defects in the material than coprecipitation because of faster crystal nucleation and growth. Therefore, PBA with lower crystallinity is more likely obtained through the solvothermal method, necessitating the enhancement of crystallinity. To obtain high crystallinity and low defects through the hydrothermal method, the temperature in the autoclave and synthesis duration must be controlled [42, 79]. This section discusses approaches to adjusting these synthesis factors to produce PBAs with improved rate capability.

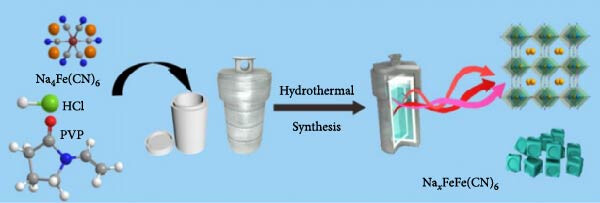

First, the solubility of the Fe(CN)₆ precursor (A_xFe(CN)₆) can be controlled using the acidity of the solution. The acidity conditions that slow the dissolution of Fe²⁺ would inhibit the rapid nucleation of PBA crystals [40]. However, excessive acidity results in the rapid generation of Fe²⁺ in the reactor, leading to their swift recrystallization with residual Fe(CN)₆⁴⁻. Therefore, pH control may be employed to reduce Fe²⁺ solubility, thereby slowing the dissolution of transition metal ions and allowing the synthesis of PBAs with higher crystallinity [72].

Second, the introduction of organic solvents (e.g., isopropanol and ethanol) into the traditionally water-based solvent in the hydrothermal method can slow the precipitation of PBA particles from the precursor ions, increasing crystallinity [80–82]. The addition of organic solvents slows precipitation because of the reduction of solvent polarity. Thus, the addition of nonpolar organic solvents to polar H₂O decreases the solubility of metal ions in the solvent, leading to a decrease in the rate of crystal formation [81].

Third, surfactant additives can assist in dispersing particles, reducing the nucleation and growth rates due to the extended distance between precursor ions. Thus, highly crystalline PBAs can be synthesized based on the decreased reaction rate [28]. Surfactants that selectively adsorb on specific crystal facets enable the control of particle shape and size by reducing surface energy and inhibiting further crystal growth. Furthermore, slow crystallization can be attained through the dispersion of particles in the precursor solution. For example, the solubility of precursors can be controlled by adding polymers or organic additives, which can regulate the reactivity between transition metals and Fe(CN)₆ ions, slowing the dissolution of transition metal ions and decreasing the rate of precipitation [83, 84]. The effects of parameter control in the solvothermal and hydrothermal syntheses on rate capability are discussed in detail in Section 3.

2.1.3. Microemulsion Method

The coprecipitation and hydrothermal methods, which use water as a solvent, can incorporate water into the PBA lattice during synthesis. This inclusion of water can impair the electrochemical performance of PBAs, worsening the rate capability. To overcome this issue, a microemulsion method has been devised. The microemulsion method is expected to reduce the amount of water incorporated in the lattice through the formation of PBA particles within a confined space of micelles. Unlike the previously mentioned synthesis methods, this method does not require specialized and expensive equipment [85]. The microemulsion method employs a mixture of water and oil stabilized using a surfactant. Based on the characteristics of the surfactant (hydrophilic or hydrophobic), micelles are formed between water and oil, within which crystalline PBA particles are formed. This process minimizes the incorporation of water into the PBA lattice and enables control over the size and shape of the particles [86]. Moreover, this method is well suited for preparing uniformly sized particles because of the low reaction rate between particles [78].

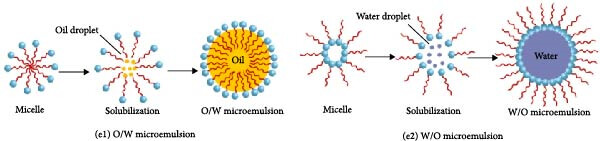

The microemulsion synthetic method is characterized by the presence of both aqueous and oil phases in the precursor solution. The form of this precursor solution changes depending on the properties of the surfactant. Depending on the functional groups of the surfactant, the droplets formed within the micelles can be either of water or of oil [87]. When oil droplets exist in a water medium, the system is called an oil-in-water system. Conversely, when water droplets are present in a continuous oil medium, the system is called a water-in-oil system, also termed reverse microemulsion (Figure 2e) [88]. PBAs are synthesized primarily via the reverse microemulsion method. The precursor ion dissolves exclusively in an aqueous solvent, thus confining the precursor ions to the water-filled spaces within small micelles [44, 89]. Subsequently, micelles containing transition metal ions combine with those containing Fe(CN)₆ ions to form PBA crystallites [35, 89]. Critical conditions for PBA synthesis involve mixing oils such as cyclohexane and n-pentanol with an aqueous solution containing the ferrocyanide ligand (i.e., M_xFe(CN)₆). During this process, surfactants such as cetyltrimethylammonium bromide and isooctane promote the uniform dispersion of the ligands and metal ions in the water droplet interphase, thereby facilitating the formation of a stable microemulsion [44, 90].

A vital feature of the microemulsion method is the use of surfactants to form micelles of a consistent size, which in turn enables the synthesis of PBA crystallites of very uniform size. The size of the water droplets, or micelles, formed during the synthesis process determines the final PBA particle size. This particle size subsequently affects the electrochemical performance when the prepared PBA is used as an active electrode material [28]. The size of the micelles is determined by the water-to-surfactant molar ratio (w = [H₂O]/surfactant), thus enabling the control over particle size during PBA synthesis through the adjustment of this molar ratio (Figure 2f) [89, 91]. However, in several studies, this synthesis method is claimed to be less predictable in determining particle size than other PBA synthesis methods.

The reverse microemulsion method uses surfactants to form nanoscale water droplets, ultimately yielding nanosized PBA particles [92]. The micelles generated during the synthesis must be thermodynamically stable in the solvent to form uniformly sized PBA particles. A stable dispersion system enhances micelle dispersion and promotes nanodroplet formation. This increase in dispersion increases the entropy of the system, spontaneously forming many nanodroplets and forming more uniformly sized particles [93]. Additionally, particle size control has been considered using the type and concentration of surfactants or auxiliary cosurfactants during the synthesis as mentioned above, surfactants must form a surface film and micelles with low interfacial tension. Thus, cosurfactants have been added to further decrease the interfacial tension [94]. Because of these properties, adjustment of the ratio of the two types of surfactants enables the control of micelle size, thereby facilitating the synthesis of particles with specific desired sizes (Figures 2f,g) [95].

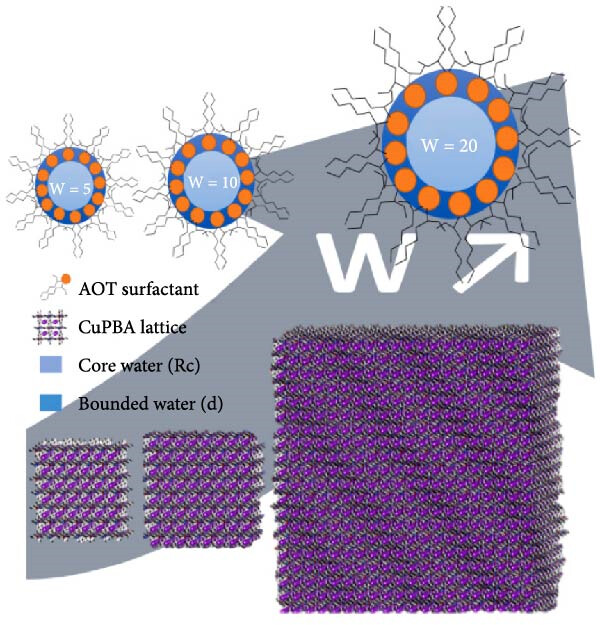

In the PBA synthesis using the microemulsion method, surfactants and cosurfactants play crucial roles in controlling the micelle size and reducing the interfacial tension for improved micelle stability. However, their use introduces significant challenges, particularly in large-scale production. After synthesis, removing surfactants and cosurfactants from the final product requires extensive solvent washing, which can be a tedious and time-consuming process. Moreover, the possible residual impurities from these agents often make it difficult to obtain pure PBAs. As a result, this method may not be well-suited for large-scale manufacturing, where the presence of impurities and complex recovery processes can limit its practicality [78, 96].

2.2.1. Electrodeposition Method

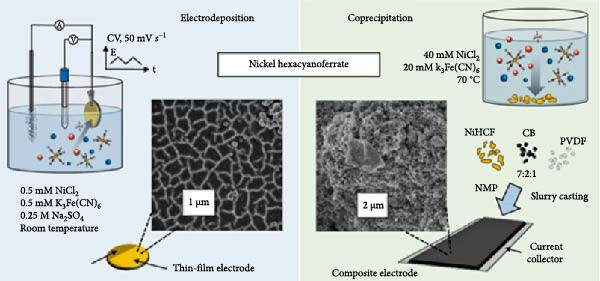

Electrodeposition is a simple synthesis method that allows PBA to be synthesized directly on a substrate in a single step [108]. The PBA synthesis using electrodeposition is typically performed in a three-electrode cell configuration to precisely control the applied potential [109–111]. When a scanning voltage within a specific range is applied to a substrate immersed in a solution with transition metal cations and Fe(CN)₆ anions using cyclic voltammetry (CV), PBA is deposited on the substrate [112]. The major factors determining the characteristics of 1D and 2D PBAs synthesized by the electrodeposition include the electrolyte concentration, electrolyte pH, the applied potential range, and the type of employed substrate [109]. Abbaspour et al. studied the potential range at which FeHCF deposition occurs by the electrodeposition from a single precursor source. They found that a specific potential range of −0.1 to +0.9 V is essential for the FeHCF synthesis, while a narrower voltage range of −0.1 to +0.6 V failed to assemble FeHCF [113]. Yang, Qian, and Deng [112] identified that a precursor solution with a specific pH is favorable for the FeHCF electrodeposition. They also found that the deposition rate on a gold substrate is faster compared to other substrates. According to Kumar, Joseph, and Phani [114], the fast deposition rate of gold is due to the catalytic effect of the substrate material.

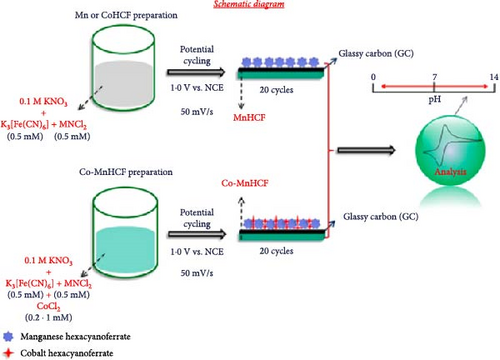

Kumar et al. described the synthesis method for PBA films containing two transition metals (Co and Mn) (Figure 3b) [100]. They electrodeposited Co-MnHCF on a glass carbon substrate using a three-electrode system with a standard calomel electrode as the reference electrode and Pt foil as the counter electrode. The synthesized film was observed through field-emission scanning electron microscopy (FE-SEM) (Figure 3d).

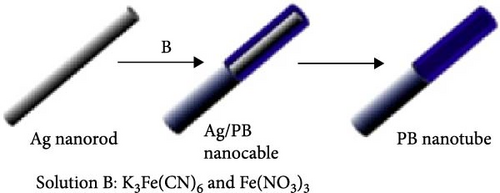

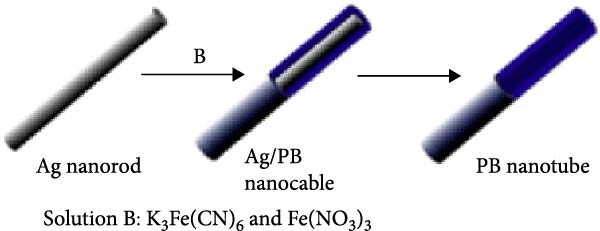

Film, wire, and tube forms of 1D nanostructured PBA synthesized using this method may be densely grown on the electrode surface, as shown in Figure 3b,e. The active electrode material is directly deposited on the substrate; thus, it can be used as an electrode material without any additional electrode manufacturing processes.

In the electrodeposition, like other methods, the decreased rates of nucleation and growth of crystallites on the substrate can lead to the synthesis of high-crystallinity PBA. To reduce the nucleation rate, the electrolyte concentration must be controlled. A higher ion concentration can induce faster nucleation [117]. The pH and composition of the electrolyte can also alter the nucleation rate through the presence of specific ions [118]. Electrodeposition is typically carried out at low current densities and temperatures to retard crystal growth [119]. High current density leads to rapid growth of nuclei formed on the substrate, and rapid particle growth can reduce crystallinity; therefore, it is essential to use an optimized current density for electrodeposition. The loading amount of active material and film thickness can also alter the energy density and diffusion rate. PBA materials with high-rate capabilities can be developed by controlling these factors [99].

3.1.1. Selection of Type and Concentration of Guest Ion

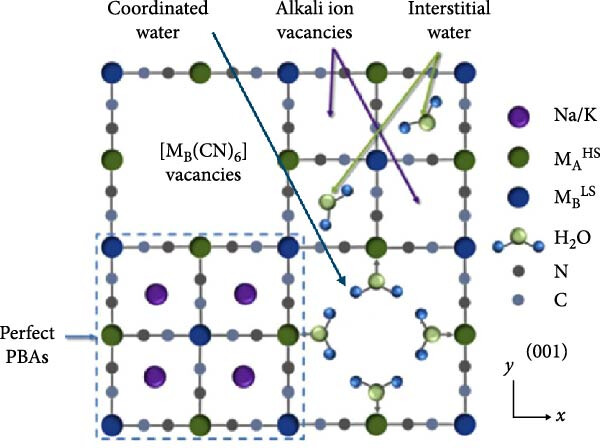

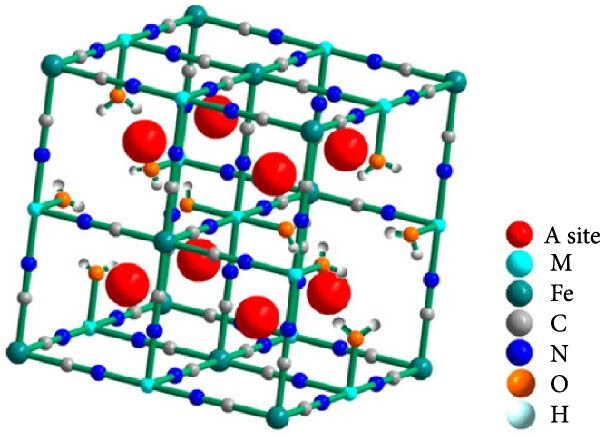

During the synthesis of PBA, alkaline ions from the precursor take a place in the interstitial sites of the lattice as a form of guest ions (A). The radius of the guest ion affects the space it occupies within the lattice. Therefore, the presence of larger ions can reduce the water content of the crystal [141, 142]. Liu et al. [123] added Ba²⁺ during coprecipitation and showed that intercalated Ba²⁺ ions prevent the influx of water into the interstitial sites of the lattice (Figure 5a). The insertion of Ba²⁺ provides additional structural support to the lattice, enhancing its strength and preventing potential structural distortions or collapses that can occur during charge and discharge. This approach enabled fast and reversible insertion and extraction of Na⁺ ions, achieving a high-rate capability (approximately 82.69%) for a 24-fold increase in discharge rate (6 C vs. 0.25 C). Zhou et al. [144] reported the larger radius of K⁺ ions compared to that of Na⁺ ions makes them suitable for occupying the vacant spaces within the MnHCF lattice. The research team synthesized KMnHCF by introducing K⁺ (1.38 Å) with a larger ion radius than Na⁺ (1.26 Å) during the synthesis to prevent the H₂O inclusion into the lattice. As a result, they blocked the insertion of water into the vacant spaces, inducing shorter lattice constants and less distortions. This approach enhanced the structural stability of the MnHCF lattice, resulting in 79% rate capability for a 20-fold acceleration in discharge rate (20 C vs. 1 C).

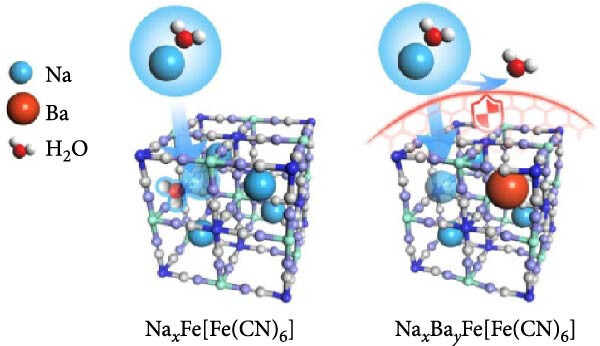

During the synthesis of the PBA structure, the concentration of alkali ions in the precursor can be increased to reduce the amount of water. Additional alkali ions occupy vacant spaces in the lattice, thereby preventing water entry into these positions. Li et al. [70] reported that maintaining a high content of Na⁺ in the lattice reduces the amount of water in the lattice, resulting in the preservation of the reversible structure during cycling. The research team added NaCl during the synthesis process to achieve a Na-rich composition, ultimately obtaining Na_1.56Fe[Fe(CN)₆]∙3·1H₂O with reduced water content (Figure 5b). This approach prevented the insertion of water into the lattice, contributing to the maintenance of structural stability during discharge, as evidenced by the absence of shifts in the X-ray diffraction (XRD) peaks of (200) and (400). The research team also measured the specific capacity at various current densities, confirming improved rate capability.

3.1.2. Use of Additives

When synthesizing PBAs using coprecipitation or hydrothermal methods, slowing down the nucleation and growth rates results in minimization of physical space within the PBA structure. This reduction in internal space within PBAs impedes the insertion of water molecules. Notably, the chelating agents or surfactants in the precursor solution can decelerate nucleation and growth rate of PBA, thereby reducing the amount of water in the synthesized PBA [37]. The chelating agents and surfactants in the solution bind to the transition metal ions and release those slowly, reducing the nucleation and growth rates. Furthermore, surfactants prevent the agglomeration of particles, maintaining particle separation during nucleation and growth, thus controlling the initial nucleation rate.

Wu et al. [145] slowed the crystallization of CoHCF through the addition of sodium citrate. In the presence of the chelating agent, Co²⁺ ions bonded with citrate rather than with water, forming Co citrate, enabling the gradual release of Co²⁺ ions. This strategy decreased the rate of coprecipitation reaction in an aqueous solution, thereby reducing the nucleation rate. As a result, Na_1.85Co[Fe(CN)₆]_0.99∙2·5H₂O with a lower water content in the lattice was obtained. Its rate capability showed above 50% for a 20-fold faster discharge rate (20 C vs. 1 C). Xu et al. [131] reduced the water content of NiHCF by adding Na₄P₂O₇ as a chelating agent during synthesis. They obtained Na_0.22Ni[Fe(CN)₆]_0.76∙3·67H₂O, producing highly crystalline NiHCF with reduced water content. Figure 5c presents the pair distribution function (PDF) curve of NiHCF-l and NiHCF-h. A higher intensity in the PDF corresponds to greater periodicity. The NiHCF-h sample exhibited higher periodicity at longer distances than the NiHCF-l sample due to the higher crystallinity from the reduced amount of water. This reduction in water content facilitated the movement of Na ions resulting in the rate capabiltiy of over 82% for a 25-fold increase in discharge rate (5 C vs. 0.2 C) (Figure 5c). Park et al. [146] introduced a surfactant (polyvinylpyrrolidone [PVP]) to weaken the electrostatic interactions between CN ligands and water molecules, thereby preventing the incorporation of water. Owing to the polarity of PVP, the hydrophilic part attracted water molecules, whereas the hydrophobic part repelled them, indirectly regulating the electrostatic forces between CN ligands and water molecules and preventing the entry of water molecules during the formation of Mn-Co-PBA@CF crystals. The obtained material showed a high-rate capability, 69% for a 10-fold increase in discharge current density (1 vs. 0.1 A g⁻¹).

3.1.3. Adjustment in pH and Concentration of Precursor Solution

You et al. [138] synthesized FeHCF by hydrothermal method in an acidic environment to reduce the nucleation rate, ultimately decreasing the amount of water in the lattice. In an acidic environment, Fe(CN)₆⁴⁻ slowly decomposes into Fe²⁺, and during the process, part of Fe²⁺ is oxidized to Fe³⁺. The reaction between Fe³⁺ and [Fe(CN)₆]⁴⁻ resulted in a slow growth of the product, leading to the synthesis of highly crystalline HQ-NaFe with fewer vacancies and a composition of Na_0.61Fe[Fe(CN)₆]_0.94. In contrast, a sample synthesized under constant pH conditions, LQ-NaFe with more vacancies and a composition of Na_0.13Fe[Fe(CN)₆]_0.68, exhibited a specific capacity of 110 at 150 mA g⁻¹. For LQ-NaFe, no discharge capacity was observed at a higher current density of 600 mA g⁻¹, indicating a 0% rate capability. Conversely, HQ-NaFe demonstrated an improved rate capability of approximately 64% with a fourfold increase in discharge rate (600 vs. 150 mA g⁻¹).

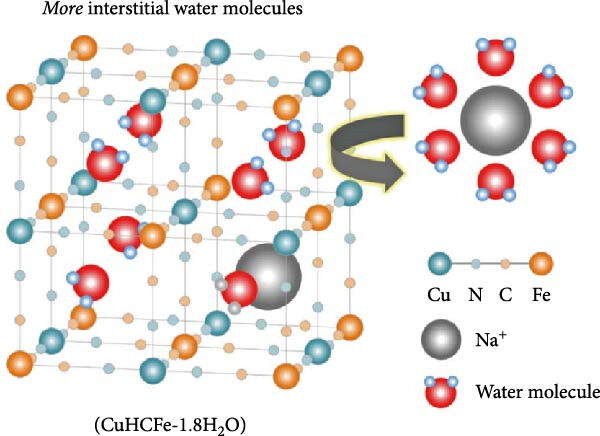

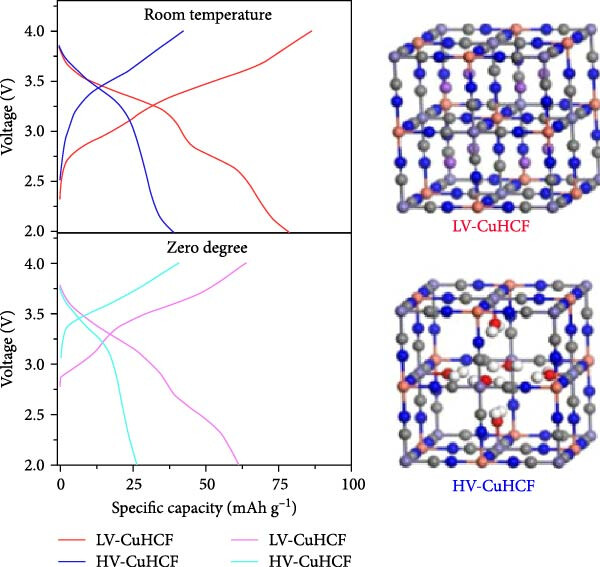

Wang et al. [143] used ethanol as a solvent in the coprecipitation of CuHCF to prevent direct bonding between Cu²⁺ ions and water. This approach aimed to reduce the amount of water incorporated in the lattice. By partially substituting the water solvent in precursor solution with ethanol, low-water-content CuHCF (LV-CuHCF) with a Fe/Cu ratio of 0.931 was synthesized (Figure 5d). LV-CuHCF exhibited a enhanced rate capability than HV-CuHCF (68% vs. 40%) at a 50-fold increase in discharge rate (50 C vs. 1 C). This was attributed to the lower content of coordinated water in LV-CuHCF, which was synthesized by partially replacing water with ethanol.

3.1.4. Postsynthesis Treatment

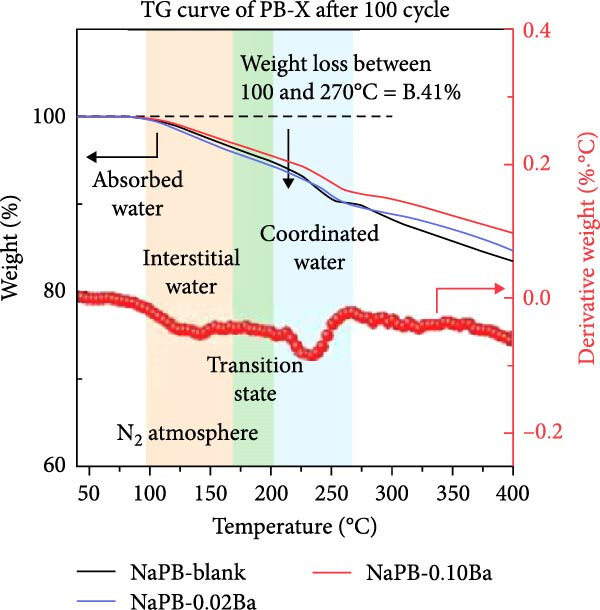

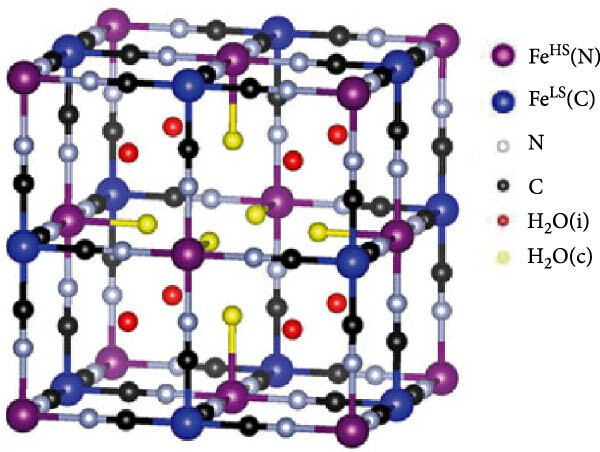

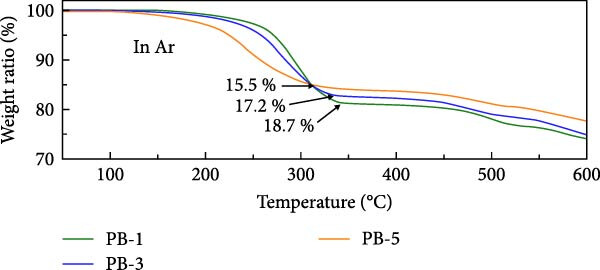

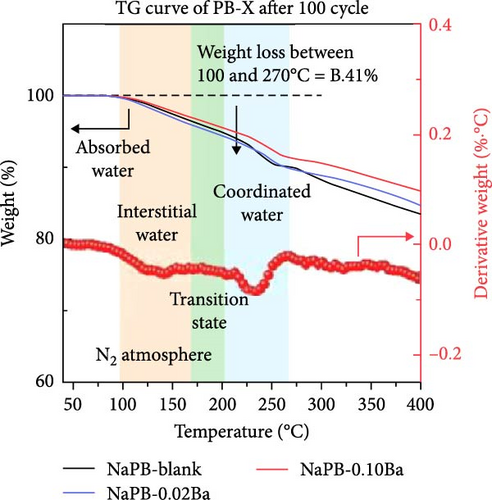

The two distinct types of water in the PBA lattice have been identified, both of which are removed at temperatures exceeding 200°C. Although the amount of incorporated water may be reduced using certain methods during synthesis, the water content in the lattice may be reduced through heat treatment. Wang et al. [48] annealed FeHCF at 270°C to remove incorporated water, obtaining Na_1.76FeFe(CN)₆∙2·5H₂O. This process minimized the water content within the structure and led to high rate capability at various current densities.

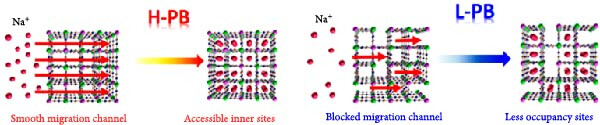

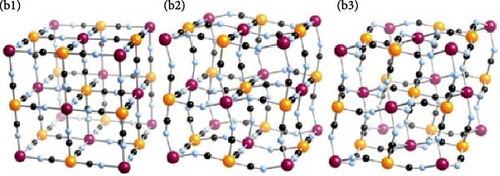

3.2.1. Introduction of Dopants to the Precursors

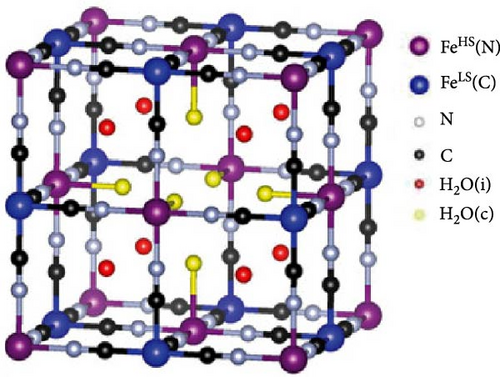

FeHCF possesses two distinct oxidation states of iron (Fe²⁺ and Fe³⁺) coordinated with C and N, unlike other PBAs. The high-spin Fe (Fe^HS; Fe³⁺) predominantly contributes to redox reactions, whereas low-spin Fe (Fe^LS; Fe²⁺) only partially participates in [153]. The substitution of Zn dopants at Fe^HS sites has been reported to reduce Fe vacancies, accordingly enhancing the rate capability [154]. This rate capability enhancement is attributable to the replacement of coordinated water molecules at the Fe^HS sites by dopant. The Zn substitution in Fe^HS sites leads to a decrease in water content and consequently a reduction in Fe vacancies. A dopant can be introduced into the transition metal site in PBA using precursor solution including a doping element in coprecipitation synthesis [155].

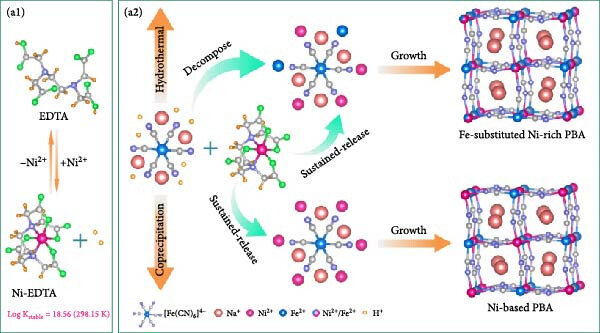

Shen et al. used Ni as a dopant at Fe sites and added the chelating agent ethylenediaminetetraacetic acid (EDTA) to reduce Fe vacancies in the prepared material and enable it to maintain structural stability during charge and discharge (Figure 7a) [151]. When Ni is doped into FeHCF, Ni²⁺ replaces Fe³⁺. The substitution of Fe³⁺ with inactive transition metal inhibits the formation of coordinated water and consequently Fe vacancies. This approach resulted in a reduction in the content of coordinated water. The doping of a FeHCF sample (H-PBA) with Ni yielded Na_1.59Ni_0.65Fe_0.35[Fe(CN)₆]_0.97·2·28H₂O with a Fe vacancy content reduced by approximately 6%. Through this approach, they secured the Na⁺ migration pathways, significantly increasing rate capability, to approximately 78% for a 50-fold discharge acceleration (500 vs. 10 mA g⁻¹).

3.2.2. Use of Additives

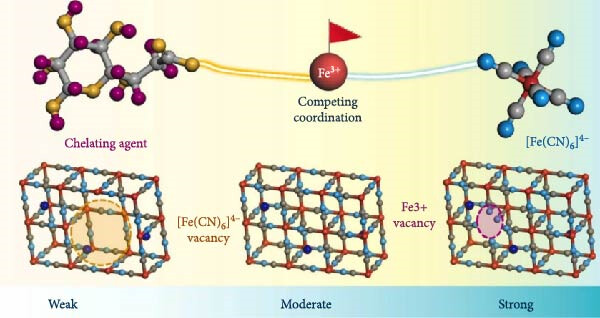

Section 3.1 discussed the addition of chelating agents and surfactants during the synthesis of PBA to reduce the H₂O content as was discussed. Fe vacancies are generated owing to the rapid nucleation and growth of PBA, necessitating control over the reaction kinetics. Therefore, chelating agents and surfactants minimizes coordinated water within the PBA, thereby reducing Fe vacancies (Figure 7b).

Xu et al. [152] induced slow crystallization during the coprecipitation synthesis of NiHCF by adding Na₄P₂O₇ as a chelating agent. Ni²⁺ chelates with P₂O₇⁴⁻, preventing Ni²⁺ from bonding with water and causing the slow release of Ni²⁺. This approach slowed the coprecipitation reaction in the aqueous solution, thus reducing the amount of coordinated water. As a result, the prepared PBA maintained its structure even after multiple charge–discharge cycles, resulting in a significantly improved rate capability, 78% rate capability for a 50-fold faster discharge rate (50 C vs. 1 C).

3.2.3. Adjustment of the Coprecipitation Reaction Conditions

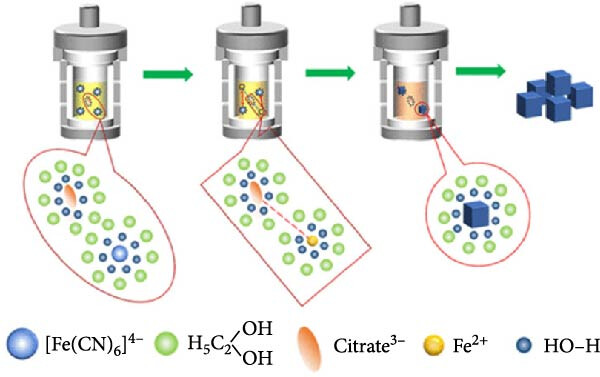

Wang et al. [82] have performed the synthesis using the solvothermal method with ethylene glycol as the solvent to eliminate water incorporation and reduce the reaction rate. Ethylene glycol hinders the interactions between Fe²⁺ and [Fe(CN)₆]⁴⁻, serving as an insulator layer and preventing oxidation. The role of the insulator layer is to slow the formation of FeHCF crystals, thereby reducing the number of Fe vacancies and enabling the synthesis of a stable crystal structure (Figure 7c). The M-PB, synthesized with the least amount of Fe vacancies, exhibited an approximately 50% rate capability for an 80-fold increase in discharge current density (4000 vs. 50 mA g⁻¹). Yang et al. [150] reported that a decrease in the crystal growth rate diminishes Fe vacancies at low temperatures. This research team aimed to determine the optimal temperature at which Fe vacancies are minimized by conducting coprecipitation synthesis at various temperatures (0, 40, and 80°C). With the increase in synthesis temperature, the growth of PBA crystals accelerates, generating more Fe vacancies. Therefore, sample (Na_1.73Fe[Fe(CN)₆]_{0.98 0.02}) synthesized at the lowest temperature contained less Fe vacancies than that (Na_1.12Fe[Fe(CN)₆]_{0.92 0.08}) at the highest temperature, exhibiting an around 71% improvement in rate capability when discharged at a much higher rate (8 C vs. 0.1 C).

Li et al. [157] decreased synthesis pH by adjusting the amount of HCl, which determines the pH of the hydrothermal solution and a material with fewer vacancies. The decrease in pH, as described by Equation (10), promotes the formation of Fe²⁺ and stabilizes them because Fe²⁺ ions are more stable in an acidic environment, which prevents easy oxidation to Fe³⁺. Ultraviolet-visible spectroscopy, which measures a sample’s light absorbance in the ultraviolet and visible ranges, was employed to analyze the oxidation state of Fe in the FeHCF. Neale et al. reported that the change in absorbance peak at 700 nm indicates charge transfer between low-spin Fe²⁺ and high-spin Fe³⁺. This peak decreased when the FeHCF sample was prepared from a higher pH precursor solution, suggesting a higher concentration of high-spin Fe²⁺ in its reduced form. In addition, at lower pH levels, the reaction rate decreases (Figure 7d). The reduction in Fe vacancies attained through this strategy improved the stability of the prepared PBA material by preventing structural changes during K⁺ insertion and extraction. This reduction in Fe vacancies resulted in a 29% improvement in rate capability for a 120-fold increase in discharge current density (9000 vs. 75 mA g⁻¹).

3.3.1. Addition of Dopant

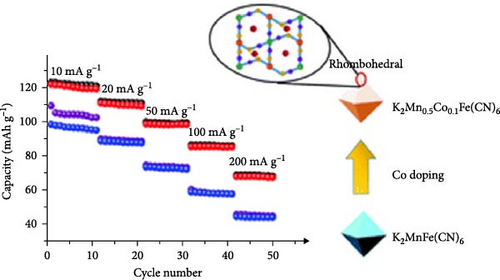

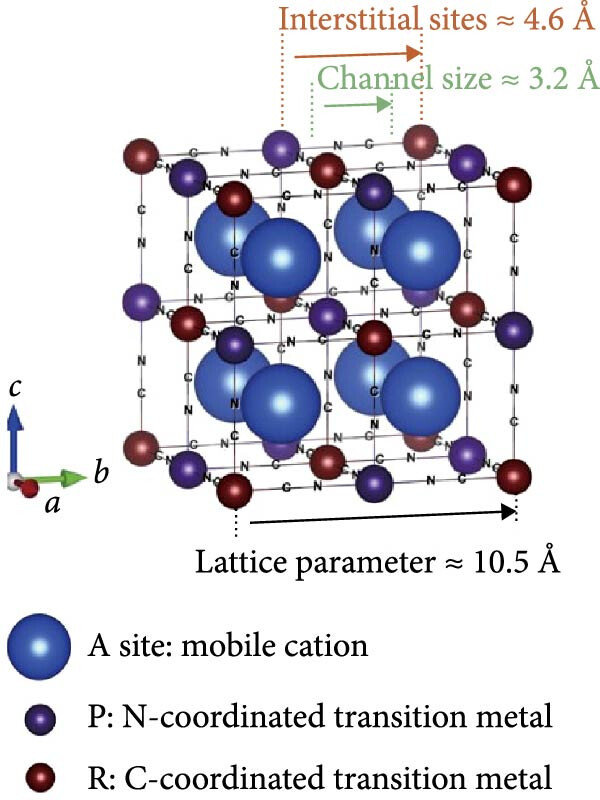

Partial substitution of the transition metal sites in PBA through doping can be used to control the structure of PBA. Dopants are selected based on the bond characteristics of the transition metal (bond length and coordination number). Doping reduces the bandgap of the synthesized PBA, induces transitions to stable phases, and alleviates structural distortions during charge–discharge processes, allowing rapid ion diffusion.

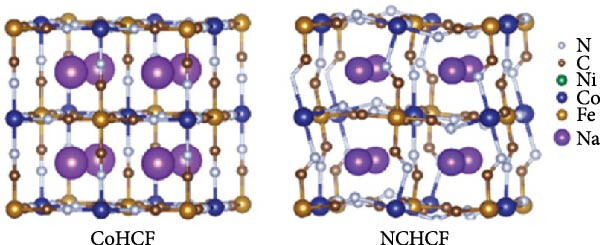

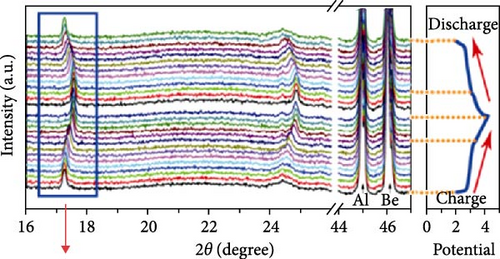

Quan et al. [169] used a coprecipitation synthesis method to induce a phase transition from cubic to a more stable monoclinic structure in CoHCF (Na₂CoFe(CN)₆) via doping with Ni. They explained that Ni-doping altered the lengths of bonds between atoms, leading to the phase transition from cubic to monoclinic (Figure 9a). Furthermore, doping contributed to electron transfer, reducing the band gap from 1.1 to 0.81 eV. Their DFT calculations indicated that the introduction of external electrons by Ni ions improved charge transfer. The reduced band gap and improved charge transfer in their turn increased the electrical conductivity. In addition, the transformation into a more stable monoclinic structure minimized structural distortions occurring during ion insertion and extraction, allowing for a 72% improvement in rate capability at a significantly faster rate (1000 vs. 20 mA g⁻¹).

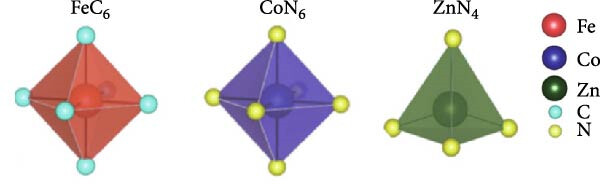

Kim et al. [171] achieved a high-rate capability by doping CoHCF with Zn at the Co site, thereby reducing structural distortions occurring during charge and discharge. In the CoHCF structure, Co is weakly bonded to N in the CN group, leading to the dissolution of Co due to structural distortion during charge and discharge. The added Zn is connected to six Fe atoms and CN groups in CoHCF, bonding with four neighboring Fe atoms (Figure 9b). Zn-doping reduced the lattice parameter, and the interaxial angle approached 90°. The substitution of 0.07 Co with Zn alleviated structural distortion during charge and discharge, suppressing Co dissolution. They reported an ~81% rate capability improvement when the charging rate was increased by 20-fold (2.0 vs. 0.1 A g⁻¹).

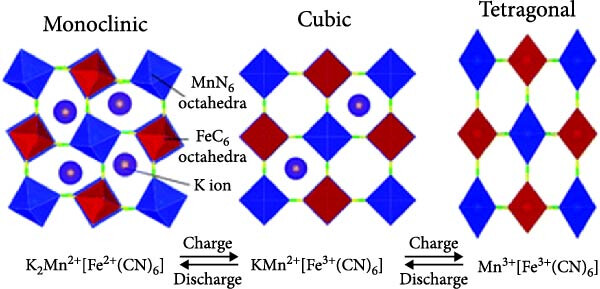

Jiang et al. [173] reduced the structural distortions caused by Mn³⁺ in MnHCF by doping Fe into Mn sites. During charge and discharge, MnHCF undergoes structural distortion due to the Jahn–Teller effect caused by the generation of Mn³⁺, resulting in a transition from a monoclinic to a tetragonal structure [164]. DFT calculations showed that doping Fe into Mn sites reduced the density of Mn³⁺. In addition, Fe doping reduced the band gap from 3.8 to 2.7 eV, reducing the activation energy of ion diffusion and increasing ion conductivity, which induced a phase transition from the tetragonal phase to a less structurally distorted monoclinic phase during charge/discharge. It reduced structural distortion during charge and discharge, enabling rapid ion insertion and extraction, resulting in ~63% rate capability for a 12-fold increase in discharge rate (120 C vs. 10 C). Jiang’s research team also doped Co into the Mn sites of MnHCF, resulting in an improvement in rate capability through a phase transition to a less distorted rhombohedral structure (Figure 9c) [172].

The high-entropy strategy can be employed to achieve the stable PBA electrode [174–176]. The high-entropy material typically involves mixing five or more elements in equimolar ratios to produce fewer phase alloys for a stable material based on the increased configurational entropy [177]. In synthesizing PBAs from aqueous precursors, the inclusion of H₂O-related defects and Fe vacancies within PBAs would induce structural instability during Na-ion insertion/extraction, potentially degrading stability and rate capability. High-entropy PBAs maintain a single phase during charge and discharge reaction, allowing Na-ion transport via a solid-solution mechanism. No phase transition in the storage mechanism results in stable charging and discharging behavior [175]. Ma et al. manufactured a stable PBA by incorporating five metal cations at a high-spin nitrogen-coordinated site, which undergoes charging and discharging through a phase transition-free solid-solution phase, achieving near zero-strain.

3.3.2. Addition of Additives

The addition of an alkali-ion-containing chelating agent in the PBA synthesis via coprecipitation can increase the concentration of alkali ions within the PBA crystals, inducing a stable rhombohedral or monoclinic structure. Rhombohedral and monoclinic structures have lower band gaps and energy barriers for alkali-ion insertion than cubic structures. In addition, these structures allow reversible phase transitions during charge and discharge, thereby reducing mechanical stress and enhancing rate capability [25, 139].

Wang et al. [168] added sodium citrate as a chelating agent during the coprecipitation of FeHCF, which elevated the sodium ions contents within the prepared FeHCF. This high sodium contents enabled reversible phase transitions between the rhombohedral, cubic, and tetragonal structures of PBAs during charge and discharge (Figure 9d). Furthermore, the elevated concentration of sodium ion within the lattice led to the formation of a rhombohedral structure. This high sodium ion resulted in reduced water content in the PBA, which may enhance the rate capability. In addition, the rhombohedral structure, known for its ability to facilitate rapid ion diffusion, exhibited a high sodium-ion diffusion coefficient. As a result, when sodium content in the structure reached 1.73 through citrate addition, the product exhibited a rhombohedral structure, which was effectively restored during charge and discharge. Owing to the reversible maintenance of the structure, the synthesized PBA showed a rate capability of 83% for a 50-fold increase in discharge rate (500 vs. 10 mA g⁻¹).

The incorporation of a chelating agent during coprecipitation has been reported to slow the release of transition metal ions. This sluggish ion release minimizes the formation of vacancies and coordinated water in the crystal, enhancing the structure’s periodicity and stability [33, 178]. The structure with increased crystallinity maintained ion pathways during charge/discharge, enabling high-rate capability [130]. Jiang et al. [39] used sodium carboxymethylcellulose (CMC), commonly used as a binder, as a chelating agent in the coprecipitation PBA synthesis. According to DFT calculations, the bonds with CMC (binding energy: −4.39 eV) are more robust than those with citrate (bonding energy: −3.69 eV). As a result, CMC formed strong bonds with Fe³⁺ ions, causing a slow release of Fe³⁺. This, in turn, reduced the binding rate with Fe(CN)₆ ions, slowing crystal nucleation and growth and further inhibiting Fe vacancy formation. The reduction in Fe vacancies maintain high crystallinity and allowed the structure to remain reversible during ion insertion and extraction. Consequently, the prepared PBA showed a rate capability of 78.5% for a 100-fold increase in discharge rate (1 C vs. 0.01 C).

3.3.3. Control of Synthesis Conditions (Temperature)

During coprecipitation synthesis, particle nucleation and growth rates may be controlled using reaction temperature. In other words, higher synthesis temperatures not only favor particle growth but also lead to faster crystal growth. Therefore, it is essential to conduct synthesis under appropriate temperature conditions.

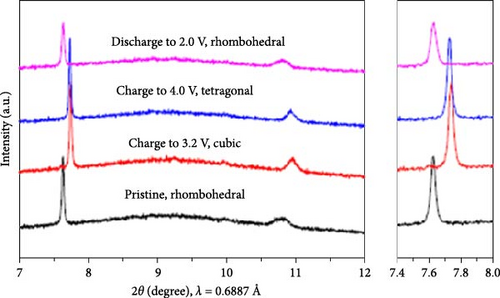

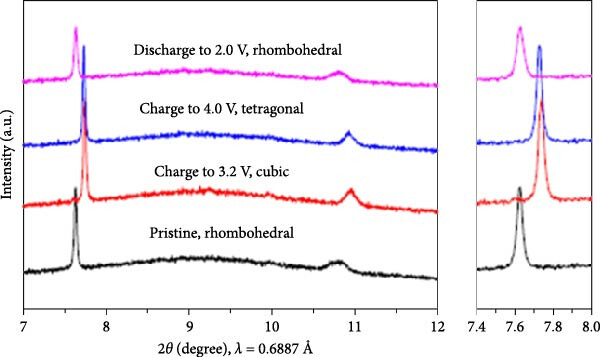

Xie et al. [170] explained that during the coprecipitation synthesis of NiHCF at 0°C or 25°C, a rhombohedral structure may be obtained because of the reduced nucleation and growth rates of crystals. Synthesis at lower temperatures has a similar effect to the addition of chelating agents, slowing crystal growth and inhibiting the generation of Fe vacancies and incorporation of water. The reduction of these types of defects was accompanied by an increase in Na content within the lattice, leading to the formation of a stable rhombohedral structure. NiHCF synthesized at lower temperatures exhibited a structure with minor lattice distortion, allowing it to maintain a reversible rhombohedral–cubic structure during charge and discharge. Rhombohedral NiHCF (Na_1.3Ni[Fe(CN)₆]_0.81) exhibited a rate capability of 78% for a 200-fold increase in discharge rate (40 C vs. 0.2 C).

3.4.1. Reducing Particle Size

Smaller particles have a greater specific surface area than larger particles, increasing the area of the interface between the electrode and the electrolyte. As a result, more active sites are available for the intercalation/deintercalation of alkali ions. Furthermore, the expanded contact area between the electrolyte and the PBA electrode reduces R_ct, allowing more ions to participate in the charge–discharge reactions [67].

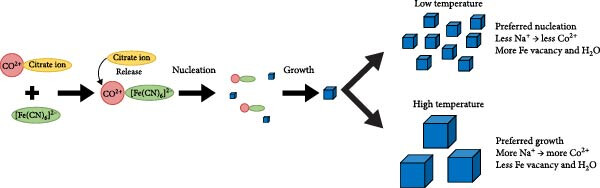

Kim et al. [187] reduced the size of CoHCF particles by synthesizing them at low temperatures. During coprecipitation synthesis, increasing the precursor precipitation temperature accelerates nuclei growth, forming larger particles. Conversely, a low process temperature favors nucleus generation over growth, resulting in smaller particles (Figure 10a). These smaller particles are believed to provide shorter diffusion pathways for the inserted alkali ions. Rapid insertion/deinsertion of Na⁺ ions in these tiny particles results in high-rate capability, 89% for a 20-fold increase in discharge rate (2 vs. 0.1 A g⁻¹).

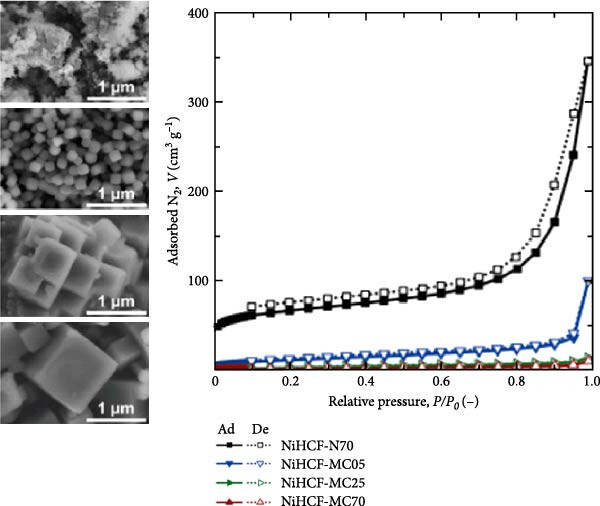

Park et al. synthesized various NiHCF samples through coprecipitation at various temperature conditions (5–70°C) similar to CoHCF fabrication; smaller particles were produced when synthesized at 5°C. This material showed a 79% rate capability for a 100-fold increase in discharge rate (100 C vs. 1 C) [45]. In contrast, the material synthesized at 70°C showed a rate capability of only 48% under the same conditions (Figure 10b).

Choi et al. [46] reduced particle size by decreasing the mixing time of the precursor solution and decreasing the concentration of the chelating agent. They also compared the effects of these changes on electrochemical performance [46]. The decrease in the mixing time of the precursor from 12 h to direct mixing shortens the growth duration, resulting in a reduced average particle size. Similarly, a decrease in the concentration of the chelating agent from 0.1 to 0.03 M increases the nucleation rate, inducing smaller particles. These adjusted synthesis conditions resulted in a decrease in particle size, shortening the path for alkali ions within the particles and increasing the rate capability.

At the same time, the reduced citrate-ion concentration in synthesis resulted in a higher possibility of transition metal ions binding with H₂O, leading to the higher formation of H₂O-related defects within the PBA structure. This also induced many Fe vacancies in the PBA, leading to a decrease in the number of active sites and deterioration of the specific capacity. In contrast, the reduction in mixing time induced less particle size reduction compared to samples with reduced citrate-ion concentration. However, the quantity of Fe vacancies within the crystals was preserved, resulting in improved capacity, rate capability, and stability in CoHCF.

3.4.2. Formation of Unique Particle Shapes (Hollow Shell and Core–Shell)

In PBA particles with a hollow shell structure, the pathways for alkali-ion movement are elongated because of the empty interior. To shorten these pathways, hollow shell or core–shell morphologies with the same shape may be prepared (Figure 11a,b). The hollow shell morphology with an empty center offers several advantages: (1) it provides a shorter pathway with a thin shell and a widened interface, promoting effective mass diffusion and reactions [186, 193], and (2) it provides space to accommodate volume changes during charge and discharge, enhancing the stability of the prepared material [190]. The hollow shell morphology can be achieved through etching; detailed information about etching is provided below.

Wan et al. [193] induced a hollow morphology with a stepwise surface during hydrothermal PBA synthesis with benzoic acid. The prepared material showed decreased volume expansion and ion diffusion distance during charge and discharge. Furthermore, they fabricated a composite material from the synthesized material and CNTs to produce a binder-free cathode with high electrical conductivity (Figure 11c). It showed a rate capability of approximately 23% for a 1000-fold increase in discharge rate (100 C vs. 0.1 C).

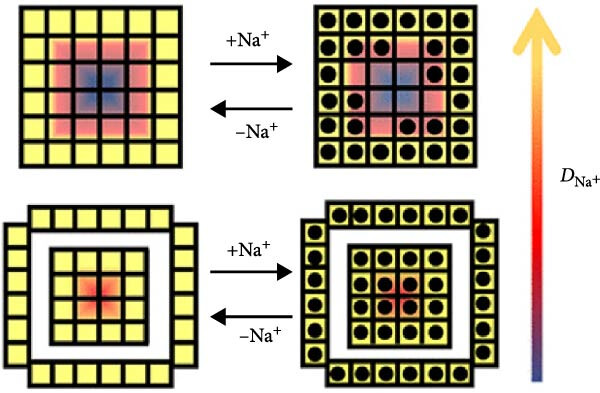

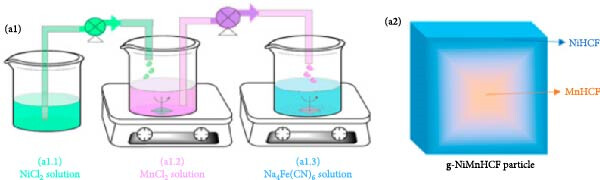

A core–shell structure with two overlaid shells may effectively increase the kinetics of ion movement within the electrode [38]. Feng et al. prepared a PBM@PBN core–shell structure consisting of MnHCF particles coated with NiHCF to suppress the leaching of Mn²⁺ during the charge and discharge of MnHCF particles (Figure 11b) [189]. In addition, the external coating layer reduced the volume change of internal particles during cycling. In other words, owing to the NiHCF protective layer, a reversible phase transition in MnHCF was induced during charge and discharge, enhancing the electrode stability. Because of the improved structural stability, this core–shell structure exhibited ~69% rate capability for a 10-fold increase in discharge rate (10 C vs. 1 C).

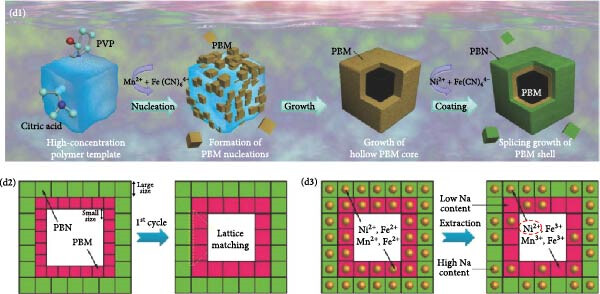

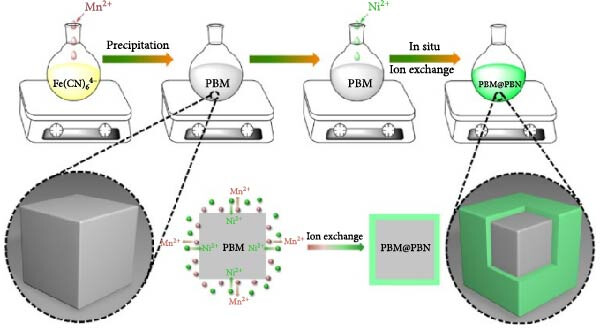

Huang et al. designed an electrode using PBM@PBN, which consists of a hollow-core–shell structure composed of a MnHCF hollow shell with a NiHCF shell on top (Figure 11d) [190]. This structure prevented the expansion of the hollow-core configuration, thereby enhancing stability by inhibiting the dissolution of Mn³⁺ due to the Jahn–Teller effect during the charge and discharge of MnHCF. Simultaneously, the shell provided pathways for ion movement. As a result, the material showed a rate capability of ~44% when discharged at a 64 times higher current density (3200 vs. 50 mA g⁻¹).

Here, n, A, and C₀ represent the number of electron moles transferred in the redox reaction, the electrode area, and the concentration of active material at the interface, respectively. The ion diffusion coefficient (D) can be obtained from Equation (15). In EIS, ion conductivity can be analyzed from the slope of the low-frequency region in the Nyquist plot, which is related to ion diffusion resistance. Both CV and EIS confirmed that the shortened ion diffusion path in the nanoflower morphology enhances the ion diffusion coefficient compared to the cubic morphology in PBAs. Synthesizing unique PBA structure with a short ion diffusion path is a practical approach to improve the rate capability of electrodes.

Here, τ represents the pulse duration, M_B is the mass of the active material, V_M is the molar volume of the active material, S is the surface area of the electrode, M_B is the molar mass of the active material, ΔE_s is the steady-state voltage change after the current pulse, and ΔE_t is the voltage change during the current pulse. By substituting ΔE_s and ΔE_t obtained from the GITT experiments into Equation (16), the ion diffusion coefficient can be calculated. GITT analysis showed that the ultrathin nanosheet-assembled FeHCF exhibited a higher ion diffusion coefficient (D) than the nanoball-structured FeHCF, indicating that the morphology of active particles plays a crucial role in determining ion diffusivity [197].

3.4.3. Etching Surface

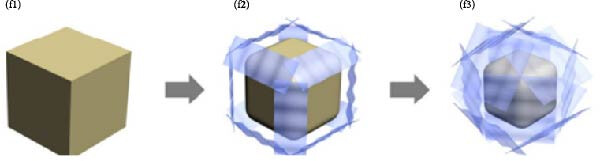

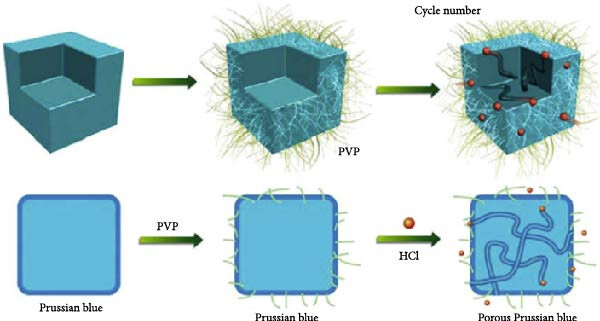

Cubic PBA particles can be etched to provide additional pathways for the insertion and extraction of alkali ions while simultaneously reducing the ion diffusion distance within the electrode (Figure 11e,f) [28, 183, 192]. Cubic PBA particles undergo etching starting from the defect-rich regions. They dissolve in a sequence from the corners or edges to the next face, resulting in a morphology resembling concave cubes or nanoframes (Figure 11g) [192]. This increased particle surface area can enhance ion diffusion rates [40, 198].

The pH of the etching solution and etching time must be precisely controlled to achieve selective etching, allowing precise particle morphology control [28]. This means that etching can be broadly categorized into acidic or alkaline etching based on the pH of the etching solution [28]. Notably, etching must be performed within an appropriate pH range because excessively low pH can lead to chemical reactions between H⁺ and Fe(CN)₆⁴⁻ [37]. The reaction between H⁺ and cyanide creates Fe vacancies within the PBA structure and reduces the number of cyanide groups. The reduced cyanide content within the PBA can be analyzed through the decreased peak around 2500 cm⁻¹ in FT-IR spectra, corresponding to the C≡N triple bond. For instance, Wang et al. confirmed a reduction in the cyanide FT-IR peak in FeHCF synthesized in a highly concentrated HCl solution. This result indicates that FeHCF synthesis in low pH precursor solutions induces significant amount of Fe(CN)₆ vacancies [71].

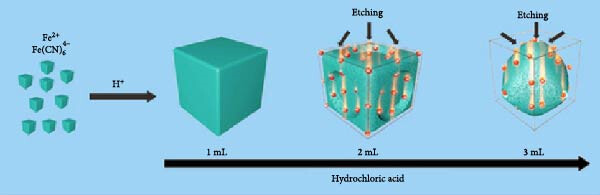

Liu et al. [40] etched the edge portion of PBA in an acidic environment using HCl, obtaining particles with a concave shape. The partial etching and transformation into a concave shape increased the surface area. Despite the external shape changes, crystal structure analysis revealed that the original crystalline structure was well-maintained. As a result, the prepared material exhibited approximately 77% rate capability for a 25-fold increase in discharge rate (5 vs. 0.2 A g⁻¹).

At the same time, Ren et al. [191] induced a unique nanoflower morphology by etching the electrode material using NaOH. In this study, the team used NaOH to disassemble the Fe–C≡N–Ni bonds at the edges of cubic NiHCF, causing their dissolution. During etching, dissolution occurred at the edges of the particles, but the plane surface remained unchanged, allowing ion diffusion through the surface. The shortened ion diffusion distance due to etching enabled efficient ion insertion and extraction (Figure 11h). As a result, the ion diffusion coefficient (D_Na+) increased. The material exhibited approximately 46% rate capability for an approximately 40-fold increase in discharge rate (40 C vs. 1.1 C).
