1. Introduction

Immediate implant placement has gained popularity among dentists and patients as a desirable treatment option. This approach not only shortens the overall treatment duration and reduces clinical morbidity but also plays a crucial role in preserving peri-implant mucosal tissue following tooth extraction [1]. However, achieving the ideal three-dimensional positioning of the implant while ensuring primary stability presents challenges, largely due to factors such as the morphology of the extraction socket and the surrounding alveolar bone [2].

Despite its advantages, immediate implant placement does not inherently limit alveolar bone resorption, which typically accompanies tooth extraction [3]. Ridge alterations and bone remodeling processes are primarily observed within the first 12 months postextraction [4]. However, an increase in soft tissue remodeling, as reflected by the pink aesthetic score (PES), suggests that although bone modifications occur, they may not be clinically evident when managed with proper clinical case selection and appropriate hard and soft tissue grafting procedures [5, 6]. In the realm of immediate implant placement, the role of adjunctive surgical procedures becomes pivotal for ensuring long-term success rates [7]. These procedures vary, ranging from flapless to open-flap surgical approaches, and involve different bone graft materials such as autologous, allograft, or xenograft [8]. Additionally, the type of connective tissue graft (CTG) used significantly impacts clinical decision-making and treatment outcomes [9].

The adoption of immediate implant placement in the aesthetic zone necessitates careful consideration of several pre- and intraoperative factors to minimize aesthetic compromise and maximize overall success. Over the past two decades, extensive research on immediate implant placement in partially edentulous patients has demonstrated survival rates comparable to those of delayed implant placement using conventional surgical approaches [10–12]. A previous systematic review assessing the influence of an immediate implant protocol on clinical performance and aesthetic outcomes revealed an overall implant survival rate up to 5 years of 95.8% (93.3%–97.4%), which aligns with survival rates for other implant placement concepts, and a restoration survival rate after 5 years of 94.8% [7]. Additionally, 10-year data on the outcomes of fixed implant-supported restorations showed a survival rate of 95.5%, with a 98.8% implant survival rate noted in the literature [13]. No significant influence of retention type (screw vs. cement) on the survival rate was observed [14].

A multidisciplinary approach that integrates immediate implant planning with prosthodontics is crucial for achieving long-term functional and aesthetic success. However, the challenge of combining tooth-supported crowns with a single immediate implant-supported crown in the aesthetic zone poses significant risks for aesthetic complications. Recently, monolithic and layered zirconia crowns have become increasingly popular for anterior crowns, representing 84% of treatments in a material selection survey conducted by the National Dental Practice-Based Research Network [15]. These crowns are designed to provide high-strength restorations with an adequate clinical appearance [16]. This case report describes a conservative approach involving the atraumatic extraction of a maxillary central incisor and its replacement with a single immediate implant placed in a fully guided surgery, highlighting the use of zirconia ceramics in the aesthetic zone for restoring single immediate implant-supported crowns over a follow-up period of 2 years.

2. Materials and Methods

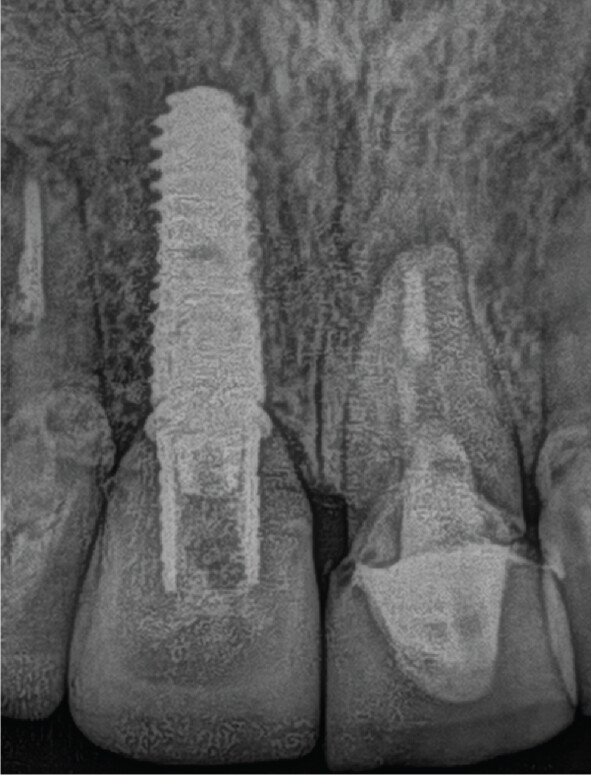

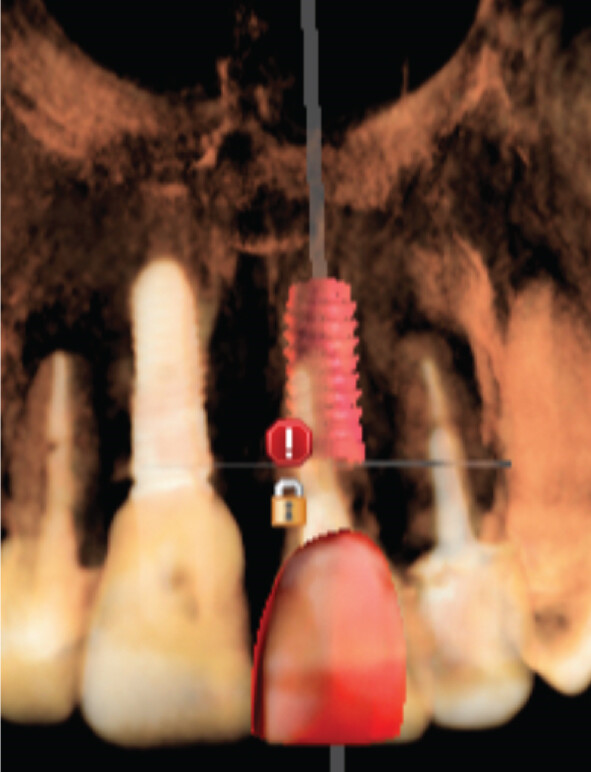

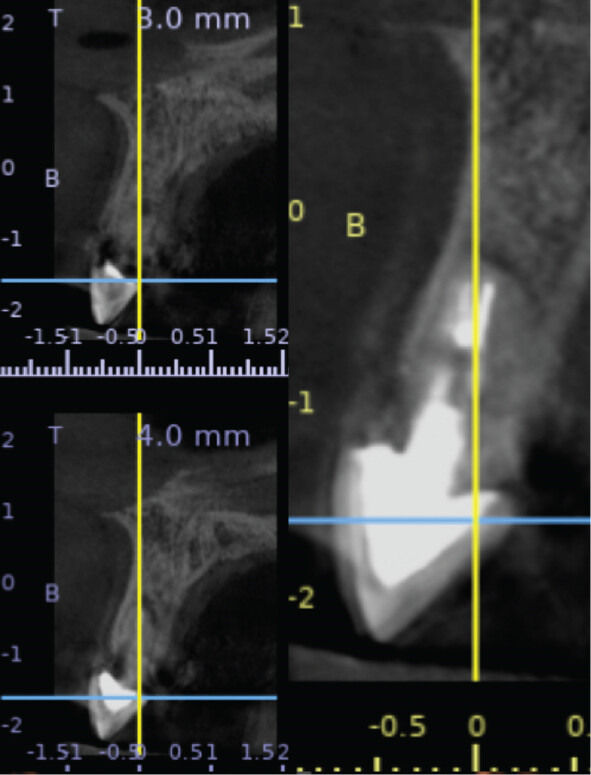

A 45-year-old female patient presented to the clinic with the chief complaint of mobility in the upper front tooth and had porcelain fused to metal (PFM) crown. Radiographic and CBCT evaluation revealed a fracture of the clinical crown and was diagnosed as hopeless. A digital evaluation was performed for implant therapy (Figure 1).

The patient was informed that implant therapy was an option along with other options, including a fixed dental prosthesis from the right central incisor to the left lateral incisor and a removable partial denture as well. The patient selected implant therapy. During the occlusion evaluation, the clinical crown came off, and the patient requested to start the treatment as soon as possible (Figure 2).

Clinical conditions evaluated to finalize the treatment plan included socket bone walls, soft tissue phenotype, no signs of infection, PES and WES, and ERA to evaluate the possibility of extraction and immediate implant (Table 2). The treatment option consisted of the replacement of the upper left central incisor with a single immediate implant placement and immediate loading of a single supported crown with CTGs for buccal volume augmentation and to rectify the midfacial recession, and bone graft with allograft material was also proposed.

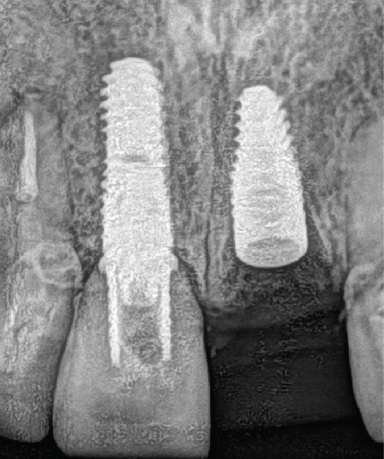

Digital planning for tooth extraction and immediate implant placement was managed using CBCT radiography, and the thickness of the buccal and lingual bone allowed the conventional placement of an implant with a 10 mm length and 4.1 mm diameter. Atraumatic flapless tooth extraction was conducted with piezoelectric instruments (Piezomed, W&H, Bürmoos, Austria) in order to preserve the intact buccal. The surgical guide was positioned, and an implant 10 mm × 4.1 mm (Bone Level Tapered, Straumann, Basel, Switzerland) was drilled for immediate implant placement with palatal direction to avoid injury to the labial bone plate and to provide a room between the outer surface of the implant fixture and the inner surface of the labial plate. The jumping distance ranged from 2 to 3 mm, which was determined by controlling the implant diameter. Bone graft material xenograft bone (Geistlich Bio-Oss; Pharma AG, Bahnhofstrasse 40 CH-Wolhusen) was used to complete the space between buccal bone and implant (Figure 3).

A CTG (1 mm thick and 5 mm wide) was harvested from the palate after local anesthesia with 40mg/mL001mg/mL of articaine. The length of the CTG was equal to that of the site to reconstruct measured from the buccal aspect. The CTG was tunneled into a pouch with a microblade between the keratinized mucosa and the bone graft material/cortical plate of the socket. Interrupted sutures in the mesial and distal aspects of the sockets were used to stabilize the CTG in position (Figure 4).

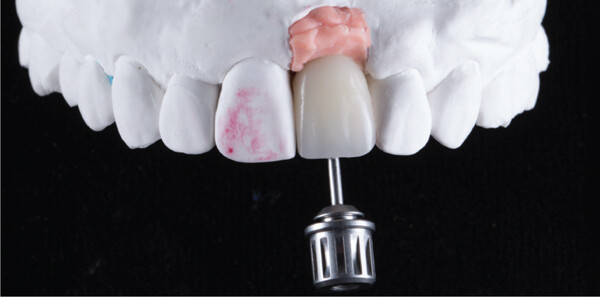

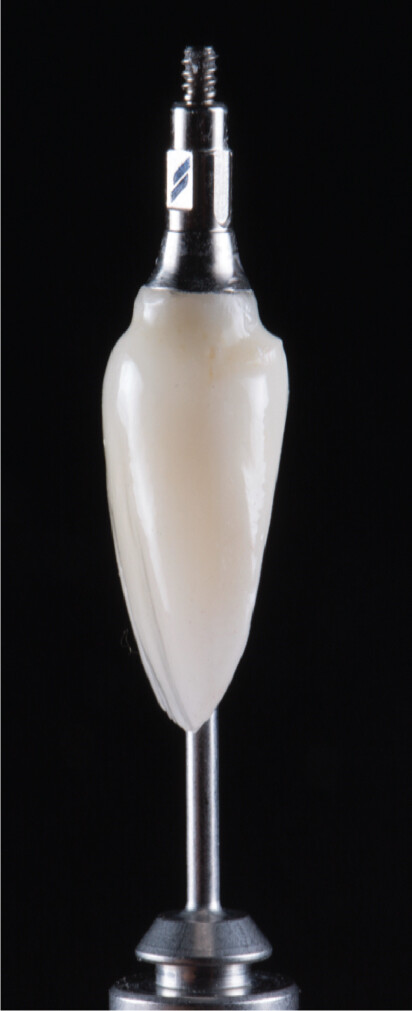

The healing process of the soft tissue was monitored, and at 4 months after implant placement, the provisional approach was modified to include single crowns and screw-retained provisional restoration. The final implant impression (RC Impression Post, Straumann Group, Basel, Switzerland) of the teeth and implant were taken. Subsequently, a screw-retained monolithic zirconia implant-supported crown was fabricated (Figure 5).

The final screw-retained implant restoration was placed in the mouth, and the access hole was sealed with Teflon tape and flowable composite (Figure 6).

Occlusion, maximum intercuspation, excursive movements, and protrusion were checked. The patient was pleased with the shade and shape of the final restorations. A full-mouth guard was provided to protect the restorations.

3. Results

A multidisciplinary approach was integral to the treatment plan, considering factors provided by PES, WES, and ERA, such as buccal bone presence and tissue biotype, to guide the decision between early or delayed implant placement. The plan also addressed aesthetic concerns, including maintaining the interproximal papilla between the implant and natural teeth, distributing interproximal space between upper incisors, and achieving color-blending with different structures (tooth and implant).

Digital implant planning played a crucial role in ensuring accuracy in the 3D implant position. Emphasis was placed on implant depth to provide an adequate emergence profile and achieve gingival symmetry between the implant and natural teeth. Immediate implant placement was executed, and to prevent complications from both biological and aesthetic perspectives, CTGs were employed to enhance tissue augmentation. Factors such as interproximal attachment of adjacent teeth, the presence of bone on the buccal surface of the implant, and horizontal and vertical implant positions were considered.

4. Discussion

Achieving aesthetic outcomes by integrating single immediate implant-supported crowns in the aesthetic zone presents a complex challenge compared to utilizing a singular type of restoration. The timing of implant placement relative to tooth extraction can be categorized into delayed, immediate-delayed post-soft tissue healing, and immediate placement which typically preserves the extraction socket walls [19, 20]. Prior studies have indicated that immediate implant placement carries a 20%–30% higher risk of mucosal recession compared to other protocols [21, 22]. To mitigate this risk, atraumatic tooth extraction followed by connective and hard tissue grafting is employed to maintain gingival contours.

Atraumatic extraction combined with immediate implant placement has been observed to harmonize aesthetics and the health of keratinized tissue [23], primarily by preserving the labial bone plate during extraction and maintaining intact mucosa without employing an open flap technique. When an implant is optimally placed three-dimensionally within the bone, a gap often emerges between the implant’s outer surface and the labial plate’s inner surface, referred to as the “jumping gap.” One study examining the histologic outcomes of a substantial horizontal jumping gap of 4.2 mm without bone grafting showed direct bone contact up to the last implant fixture thread, suggesting that immediate implantation in sockets with intact buccal bone can achieve osseointegration without bone grafts [24]. In our study, the osteotomy for immediate implant placement was strategically oriented palatally to avoid damaging the labial bone plate, allowing for a controlled jumping gap of 2–3 mm, which we filled up to the bone level with graft material, extending to the soft tissue margin. Immediate implant placement posttooth extraction demonstrated high survival rates and favorable aesthetic results, significantly appealing to both clinicians and patients. A systematic review assessing immediate postextraction implants reported a 98.4% success rate at 2 years, with marginal bone loss under 1 mm [25]. Similarly, a clinical trial comparing immediate and delayed implant placement over 5 years found no significant differences in failure rates between the maxilla and mandible, with success rates of 92.4% and 94.7%, respectively [23].

Choosing between immediate or delayed placement often hinges on the treatment’s impact on the patient since long-term survival rates are generally comparable. The patient in our case study opted for immediate implant placement to minimize surgical interventions and save time.

Furthermore, the CTG technique, aimed at minimizing peri-implant tissue changes, has shown successful functional and aesthetic outcomes, particularly evident in a randomized clinical trial that assessed soft tissue augmentation during implant placement in patients with a thin gingival phenotype. The results demonstrated excellent aesthetics as per the PES up to 12 months postrestoration [24–27].

In this case report, the implant was positioned using computer-designed surgical guides based on a prosthetically driven implant protocol, ensuring optimal placement that minimizes risks such as facial mucosal margin recession and maximizes aesthetic outcomes. Our study’s findings advocate for immediate implant placement whenever bone dimensions allow, as it significantly improves both PES and WES, maintaining an optimal emergence profile with a polished temporary crown. Immediate implants after maxillary anterior tooth extraction have proven to achieve satisfactory aesthetic outcomes.

This study’s limitations include the necessity to investigate the most effective immediate implant protocols in patients with defective labial bone plates and to elucidate the relationship between long-term mucosal stability and the position of the facial bone crest. Future research should delve into the interaction between mucosal stability, the type of bone graft material used, and the facial bone’s position and thickness.

5. Conclusions

Atraumatic tooth extractions for immediate implants and ideal contouring of the soft tissues can impact the outcome of the result and fulfill the patient’s aesthetic expectations. Here, we showed a single immediate implant-supported crown in the aesthetic zone was able to fulfill the patient’s aesthetic expectations at the 2-year follow-up.

Ethics Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Institutional Review Board (or ethics committee).

Conflicts of Interest

The authors declare no conflicts of interest.

Author Contributions

All authors contributed to this clinical case report.

Funding

This research received no external funding.
