2.1. EEG Dataset and Preprocessing

Recent efforts have aimed to unify datasets related to dream report research using EEG, EMG, ECG, and EOG signals [28]. Leveraging this initiative, we used a public dataset described in [17], which includes dream and dreamless reports from sleep onset, N2, and REM. In this dataset, subjects were awakened to provide open-ended verbal reports on their mental experiences. EEG epochs containing dreams and dreamless content were evaluated by two raters, achieving a 97.4% agreement rate; disagreements were resolved by a third rater.

The dataset includes EEG data from 28 subjects, recorded with 58 EEG channels from the BrainProducts cap using the 10–10 system, with a sampling rate of 400 Hz [17]. Subjects reported dream experiences 23% of the time, and 77% reported dreamless experiences.

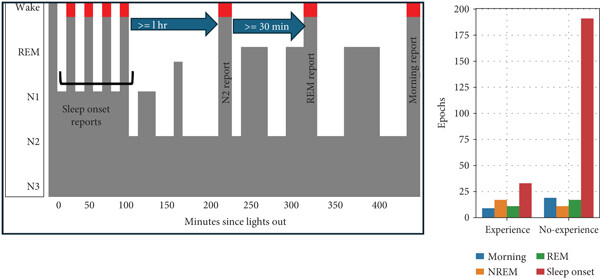

During the first hour of the night, up to 10 dream reports of sleep onset were collected, which occurred during various stages of NREM: 61% from N1, 38% from N2, and 2% from N3. One hour after the last dream report of “sleep onset,” another report was collected when N2 was visually detected. Subsequently, at least 30 min later, another report was collected when REM sleep was visually detected. The subjects then slept uninterrupted until they were awakened around 8 a.m. to provide a final dream report. The process and distribution of reports across different sleep stages are illustrated in Figure 1.

EEG channels were re-referenced by subtracting the average of the right and left mastoids (A1 + A2)/2, and the dataset was then downsampled to 200 Hz. To increase the number of instances, each epoch was divided into 2, 5, 10, or 15-s segments. As shown in our previous research, using these segment sizes yielded similar or better performance compared to using the entire epoch [27]. Based on experimental results, we report findings using 2-s segments to maximize the number of EEG instances in the dataset. We also tested various band-pass filter frequencies and found that a range of 0–35 Hz provided the highest performance, so we applied this band-pass filter range. Depending on the experiment configuration, features were extracted from the EEG signal segments and used as input for the ML algorithms, as detailed below. We tested all combinations and selected the best parameters by iteratively creating ML models using 10-fold cross-validation.

2.2. Common Spatial Pattern (CSP)–Based Feature Extraction

CSPs and principal component analysis (PCA) are well-established techniques for EEG signal processing. PCA is a technique for dimensionality reduction and noise reduction, applied to EEG data to extract the most informative components. CSP, on the other hand, is used for feature extraction by finding spatial filters that enhance discriminatory information between different tasks. This involves calculating the covariance matrix of the EEG signals and deriving generalized eigenvectors from these matrices to obtain the spatial filters, which are designed to maximize the variance in one class while minimizing it in the other.

The first required step is to separate the dataset into a training set and a test set. In the training set, CSP filters are computed using labeled EEG data for each class. These filters are then used to transform EEG signals into a new set of features that highlight relevant spatial patterns for classification.

We applied CSP to the EEG data to obtain spatial filters that enhance class-specific patterns. Subsequently, PCA was applied to further reduce the dimensionality and capture the most informative components. For both CSP and PCA, the number of components was set to the number of channels in the dataset. After feature extraction, the features were standardized by removing the mean and scaling to unit variance using methods implemented in the scikit-learn Python library [38].

2.3. DWT-Based Feature Extraction

DWT effectively analyzes nonstationary signals by offering a time-frequency representation that captures both low and high frequencies. It offers a detailed view of the original signal while significantly reducing the computation time by passing the signal through a series of low-pass and high-pass filter pairs [39].

DWT uses a multiresolution analysis approach to decompose the signal into different scales or resolutions. EEG signals are decomposed into approximation coefficients (representing low-frequency components) and detail coefficients (representing high-frequency components) at each level. This decomposition is applied iteratively to the approximation coefficients, forming a tree-like structure.

In our previous research, we decomposed EEG signals into various sub-bands and extracted features, demonstrating strong performance in EEG-related tasks. Building on these results, in this study, we applied DWT with four levels of decomposition to extract five sub-bands from each EEG channel (four arrays of detail coefficients and one approximation per EEG channel). Based on experimental evidence and previous research findings, we utilized the mother wavelet biorthogonal 2.2 [40, 41].

For each sub-band, we computed 10 features that have demonstrated good performance in previous EEG signal research: Selvik fractal dimension, Katz fractal dimension, Petrosian fractal dimension, Higuchi fractal dimension, instantaneous energy, Teager energy, Hjorth mobility, Hjorth complexity, kurtosis, and skewness [27, 40–42]. This process was repeated for each channel individually, and the resulting features were concatenated into a single feature vector for each instance.

2.4. Classifiers

The feature vectors obtained from the CSP- or DWT-based feature extraction processes were input into several well-known ML algorithms for comparison: GB, SVM, k-nearest neighbors (KNN), logistic regression (LR), and multilayer perceptron (MLP) [43–47]. Below is a brief description of the methods of interest in our work since, as will be explained later, those methods are the ones with which we obtained the highest performance.

GB focuses progressively on complicated cases, offering an optimal technique for handling unbalanced datasets by enhancing the impact of positive labels. It combines weak learners (e.g., decision trees) to create strong learners capable of accurate predictions using gradient descent to minimize the loss function [43]. GB trees allow us to retrieve importance scores, summarizing which features were most useful for the construction of such decision trees and for the prediction task. GB has demonstrated superior performance over other algorithms, particularly in binary classification problems [43–46].

LR explores the relationship between dependent and independent variables, focusing on how well predictor variables can predict the dependent variable, and examines the conditional probability distribution of the response given the predictor values [48, 49].

SVM offers a global solution, with classification complexity independent of feature dimensions, and is flexible in representing complex functions. SVM uses hyperplanes, defined by support vectors, to separate data classes by maximizing margins [50].

KNN stores training data instances and learns based on the KNN, where k is an integer value determined experimentally and highly dependent on the data. The k data points most similar to a new data point in the training dataset are localized, and the prediction is obtained by applying the majority vote on the k-nearest data points [51, 52].

MLP is a fully connected feedforward neural network that uses backpropagation for training. It consists of an input layer, one or more hidden layers with many neurons stacked together, and an output layer. The inputs are combined with the initial weights in a weighted sum and are subjected to the activation function. Each layer feeds the next with the result of its calculation, looping through all hidden layers to the output layer [53].

All ML methods were implemented in Python using the scikit-learn library [38]. For algorithms in which hyperparameters were available, we selected them experimentally; for example, in the case of KNN, we tested the performance of the models using up to 20 neighbors and automatically selected the best k for each experiment. We divided the EEG dataset into 70% for training and 30% for testing, evaluating performance with accuracy, F1 score (referred to as Fscore in this document), precision, recall, and AUROC. We used a 10-fold cross-validation for performance evaluation and reported the average results. The results presented correspond to the performance of the test set unless otherwise specified.

2.5. Channel Reduction and Selection

While laboratory settings and research-grade EEG equipment provide controlled environments and high-quality multichannel recordings, they may not be suitable for certain applications, situations, or populations. Traditional EEG systems face challenges such as high computational costs, equipment immobility, and the complexity of high-density setups.

The main objectives of channel reduction and selection are to (1) reduce computational costs for EEG signal processing, (2) mitigate overfitting by eliminating unnecessary channels and improving classification performance, as many channels may contain redundant or irrelevant information, (3) identify brain areas generating task-dependent activity, and (4) create power-efficient and easy-to-use portable EEG systems, reducing preparation time. All of these objectives can be achieved by selecting the most relevant channels and removing redundant and task-irrelevant channels [41, 54].

To address these challenges, we used a computationally efficient permutation-based channel selection method along with the multiobjective optimization (MOO) algorithm NSGA-II [40, 41, 55].

2.5.1. Permutation-Based EEG Channel Selection

Permutation-based channel selection effectively identifies the most relevant channels for ML-based sleep stage classification, as demonstrated with models of five and two classes [55, 56]. This method systematically evaluates the impact of each EEG channel on classification performance, providing a data-driven approach to identify the most informative channels.

The process begins by creating a model with the 58 EEG channels available in the dataset, for which it uses 70% of the data for training. The remaining 30% of the data serves as a test set to predict dream or dreamless states and measure performance, establishing the baseline performance.

We extracted data from the first EEG channel of all instances in the test set and randomly reassigned it to different instances. This alteration ensures that the EEG channel data no longer corresponds to its original instance. Since the model was trained to associate specific information with this channel position, we can assess the importance of the EEG channel information by observing its impact on the classification performance for the test set instances.

To compute the performance change (performance delta), we calculate the average difference across the metrics: accuracy, Fscore, precision, recall, and AUROC. This procedure is applied to all EEG channels, allowing us to identify which channels contribute to performance increases or decreases in the test set, thus highlighting their importance in classifying EEG signals with dream and dreamless content. In addition, the process is repeated using 10-fold cross-validation to ensure that the important channels identified remain consistent across different test sets.

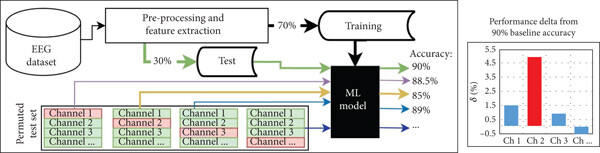

Figure 2 illustrates this process, highlighting that Channel 2 is the most relevant, as its removal results in the greatest performance decrease compared to other channels.

2.5.2. NSGA-Based Channel Selection

A MOO problem involves maximizing or minimizing two or more objective functions by systematically selecting input values from a valid set and evaluating the function values, which may be subject to constraints [57]. NSGA-II is a widely used MOO algorithm that identifies a set of solutions superior to others in the search space when all objectives are considered but potentially inferior for one or more specific objectives. Solutions are deemed feasible if they satisfy all constraints and optimal if they achieve the best values for the objective functions. These solutions are referred to as Pareto front solutions or nondominated solutions, while the rest are called dominated solutions. The algorithm employs a nondominated sorting ranking selection method to prioritize promising candidates and uses a niching mechanism to maintain diversity within subpopulations [57–59].

We use NSGA-II to select the most relevant channels for classifying dreams versus dreamless states. This algorithm has successfully identified important EEG channels in various applications with two to five objectives [27, 41]. NSGA-II addressed certain limitations of its predecessor, including high computational complexity, a nonelitist approach, and the need to specify a sharing parameter to maintain diversity within the population. Reduced the computational cost from O(MN³) to O(MN²), where M is the number of objectives and N is the population size. Furthermore, NSGA-II introduced an elitist mechanism by comparing the current population with the best nondominated solutions identified in previous iterations [59].

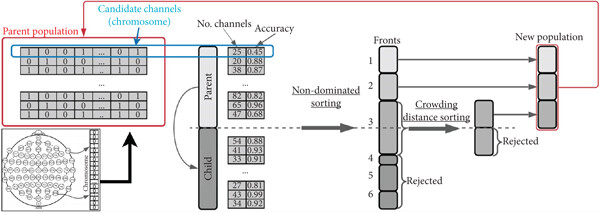

Figure 3 illustrates the NSGA-II process. In this example, each gene represents an EEG channel, and each chromosome in the population represents a combination of these channels. The objectives are to minimize the number of channels while increasing or maintaining accuracy. The algorithm calculates the Pareto fronts based on these objectives to select the best candidates for the next generation. It uses the parent population to generate the offspring (or child) population through genetic operations like crossover and mutation, and the next generation’s parent population is then selected from a combined pool of parents and offspring [59].

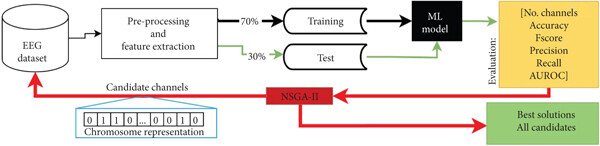

Figure 4 presents the flowchart of the optimization process used in this study. It is defined by six unconstrained objectives based on the NSGA-II structure: (1) decrease the number of EEG channels required to classify EEG signals with dream and dreamless content, while (2–6) increase or at least maintain the classification performance in the five different metrics used to evaluate test sets (accuracy, Fscore, precision, recall, and AUROC). We use a chromosome with binary values to represent the 58 EEG channels, where each gene indicates whether a channel is included in the classification process (1) or not (0).

The process begins by generating chromosomes in the population, which represent an iteration of NSGA-II and are candidates for the best channel configurations. EEG data corresponding to channels marked as 1 in each chromosome is extracted, and then the ML models are trained using 70% of this data and tested in the remaining 30%.

This process is repeated with populations of 15 chromosomes, a value determined experimentally. The optimization process ends based on an objective space tolerance of 0.001, which is evaluated every 10 generations. If the optimization goals are not met, the process stops after a maximum of 200 generations, also determined experimentally.

3.1. Exploring the Effectiveness of CSP-Based and DWT-Based Feature Extraction for Dream and Dreamless Classification Using EEG Signals

Here, we compare the two methods for feature extraction implemented in this study: (1) CSP-based feature extraction and (2) DWT-based feature extraction to decompose EEG signals into different sub-bands and compute 10 features per sub-band. After preprocessing the dataset and extracting the features of each EEG channel, we feed them into various ML algorithms. Figure 5 presents the results for the Top 3 algorithms for both feature extraction methods.

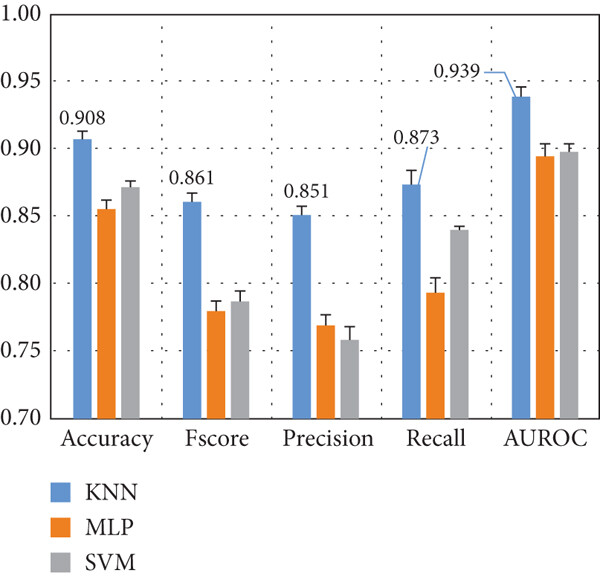

Figure 5 demonstrates that the CSP features combined with KNN yield the highest performance, with a 10-fold cross-validation standard deviation of approximately 1%, indicating model robustness and consistency. DWT features result in a 5% performance drop across most metrics, with Fscore and precision decreasing by 10%. Thus, subsequent experiments focus on CSP with the KNN algorithm.

3.2. Impact of Awake Assumption and Dataset Balancing on EEG-Based Dream Classification

In describing the original datasets, the authors comment that when some of the dream reports were collected, the subjects were probably awake. This could occur in the sleep onset or in the morning reports, as the time between one report and the next was random. However, reports collected after visually confirming N2 or REM sleep stages were free of this assumption.

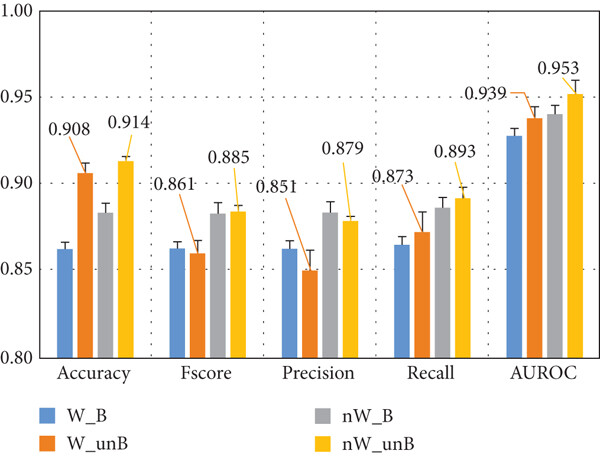

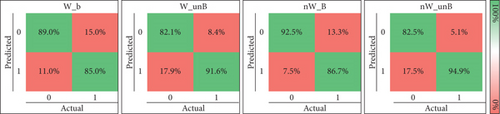

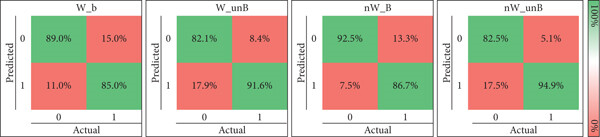

To assess the impact of the awake assumption on model performance, we conducted a set of experiments with and without these dream reports. As shown in Figure 6(b), when considering only dream reports with awake assumption not reported in the public dataset, 34.3% of the dataset is removed, which could reduce the performance due to the low number of instances from which the model can learn. Figure 6(c) shows the distribution of the subsets when awake is assumed or not, which illustrates that instances are present in a similar way in both classes.

We also evaluated the effect of dataset balancing. Balancing the subdatasets refers to the use of the same number of instances as the class with fewer instances, which were randomly chosen in each fold from the class with more instances. The results obtained are presented in Figure 6(a). W_B shows the performance using only instances with the awake assumption of the authors of the dataset and balancing the dataset, and W_unB without balancing the subdataset. nW_B present indicates the performance considering only instances where there is no awake assumption and a balanced dataset, and nW_unB without balancing the subdataset. The confusion matrices for the four different experiments are presented in Figure 7.

The results indicate that unbalanced datasets consistently lead to better performance, regardless of whether dream reports with the awake assumption were included. When comparing these results with the analysis of the entire dataset in Figures 5 and 6(a), the performance difference is minimal, averaging less than 0.02.

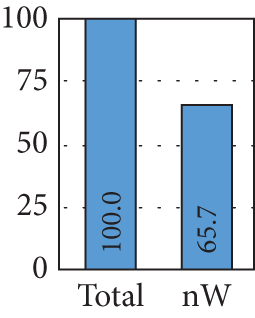

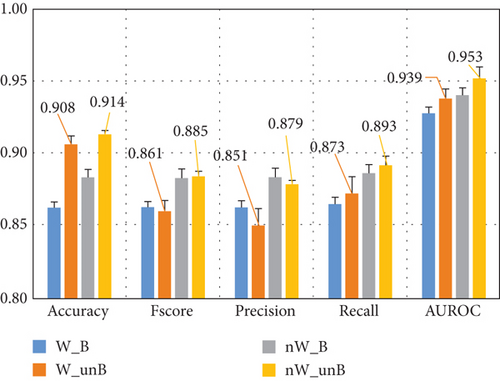

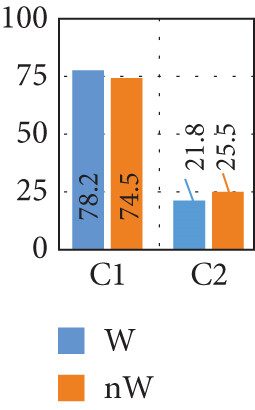

Figure 6(a) also shows that when the subdatasets are balanced (using the same number of instances for both classes as the class with fewer instances), the classification of dreamless reports decreases by approximately 7% and 10%, respectively, for both, when including instances with the awake assumption or not. On the other hand, the correct classification of dream reports increases by 6% and 8%, respectively. In addition to the segregation of the instances with the awake assumption, this may also be due to the smaller number of instances used to train and test the ML models.

Based on these findings, we chose to proceed with the full dataset (unbalanced, including reports with the awake assumption) for further analysis of dream and dreamless EEG signals.

3.3. Assessing ML Generalizability on Dream and Dreamless Classification From Unseen Subjects Using a Leave-One-Subject-Out Approach

In this experiment, we aimed to evaluate the generalizability of ML models for detecting dream and dreamless states in unseen subjects using a leave-one-subject-out of the training set approach. Once the ML model is trained with the data from 27 subjects, the EEG data from the excluded subject is used for testing the performance to classify the dream reports. This process was repeated for each of the 28 subjects, and the average performance was reported.

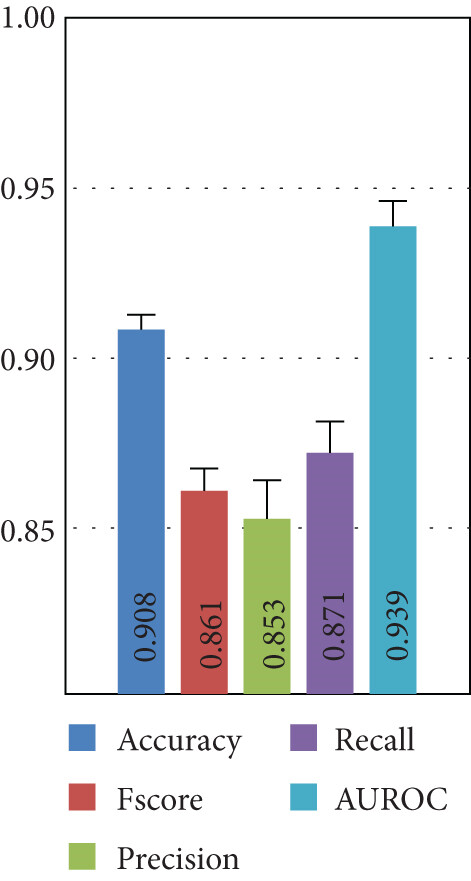

Figure 8(a) shows the average performance in the training sets with one subject excluded at a time. The results are similar to those of Figure 5, especially with CSP-based feature extraction and KNN, except for the precision and recall metrics.

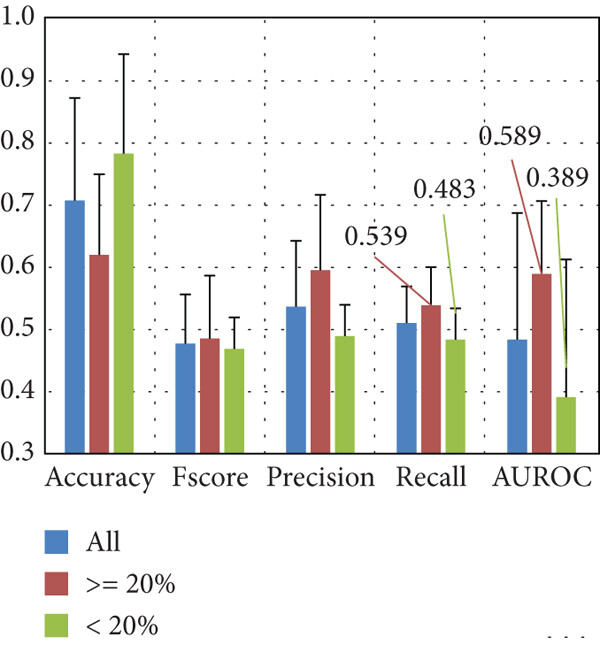

Figure 8(b) shows the average performance on the excluded subjects’ data. The results indicate a high standard deviation and accuracy exceeding 0.7, but performance for all other metrics appears to be random. To explore whether random performance is associated with class imbalance in the subject excluded from the training set, we also plot the results, including only subjects where the percentage of the class with fewer instances is ≥ 20, and also separating the subset of subjects if the percentage of the class with fewer instances is < 20. The results show that when considering at least a class distribution of 20% and 80%, the performance slightly increases in most metrics, but the standard deviation remains high.

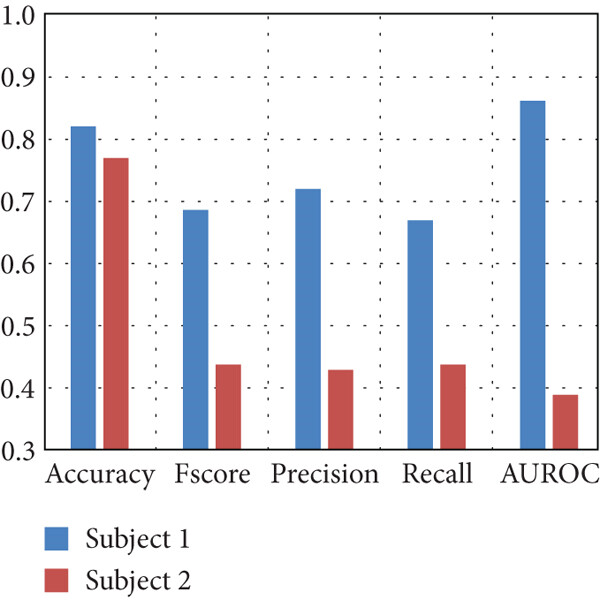

Due to the high standard deviation, Figure 8(c) presents the performance for the subjects with the highest and lowest performance. These findings demonstrate that the ML model can classify EEG signals from excluded subjects as dream or dreamless, with some subjects achieving performance above 0.65 in all metrics.

3.4. Permutation-Based Channel Selection for EEG-Based Dream and Dreamless Classification

As demonstrated by testing on unseen data (i.e., leave-one-subject-out of the training set), the performance remains random at this stage of our research. Thus, this aspect is reserved for future work. Our current focus is on using a minimal number of EEG channels for dream and dreamless classification with data from all available subjects.

One limitation of our previous work was the use of only six EEG channels [27]. In this experiment, we applied a permutation-based channel selection method to identify the most relevant EEG channels for dream and dreamless classification. The average results obtained after 10-fold cross-validation are presented in Figure 9 and illustrate how much performance decreases when we remove a specific channel from the test set. For example, if instead of using the EEG signal from Fpz, we use random values, the Fscore decreases by 0.012 from the baseline performance (which is when using data from the Fpz channel), and the AUROC decreases by around 0.015. This highlights Fpz as a crucial EEG channel for dream and dreamless classification.

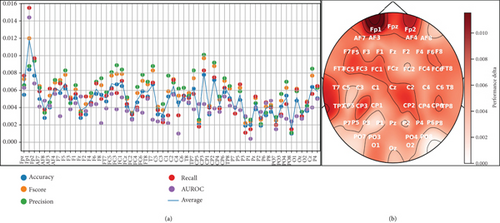

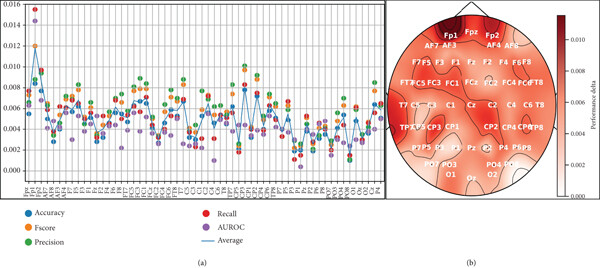

To provide a clear overview of the most relevant channels according to the permutation-based channel selection, Figure 9 presents a topographic map where the most important areas are shown in darker shades.

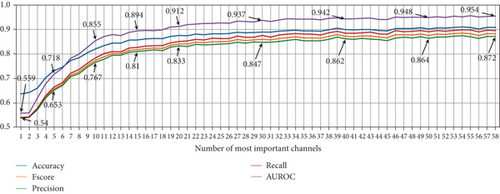

Based on the identified relevant channels, we conducted experiments using from 1 to 58 of the most important channels to observe performance trends across different metrics. Figure 10 shows that the performance remains stable with more than 25 EEG channels, with only minor fluctuations compared to using all 58 channels.

3.5. NSGA-Based Channel Selection for Dream Versus Dreamless Classification

The findings of the previous experiment are relevant, as they align with those reported by the authors of the dataset. However, the performance loss according to the importance of the channels in Figure 9 is under 2% at worst, suggesting that similar performance could be achieved with different EEG channel combinations.

We used the NSGA-II algorithm to determine the optimal EEG channels to obtain the highest classification performance. NSGA-II has been shown to be robust when selecting the optimal EEG channels for different EEG-related tasks [27, 41]. For this, we defined six objectives to be optimized; Objectives 1–5 aim to maximize the five performance metrics, while Objective 6 minimizes the number of EEG channels used to create the ML models.

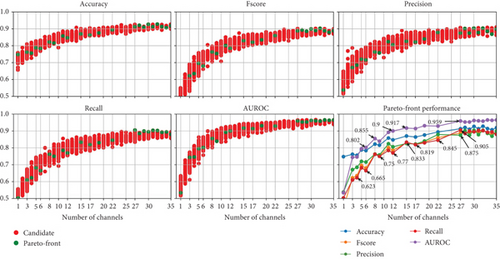

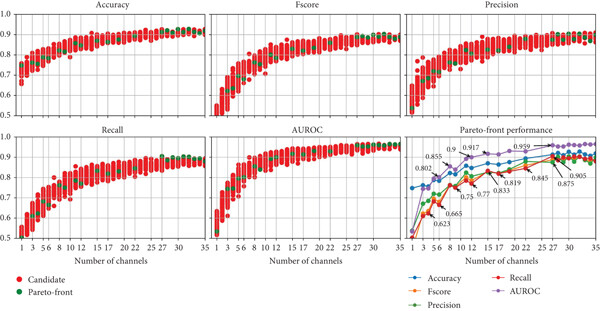

Figure 11 presents the results of the NSGA-II optimization, with subplots for each optimized metric as the number of channels decreases and a subplot for performance on the Pareto front. Although the dataset includes 58 EEG channels, the results show that using at least 27 EEG channels yields low-performance variation and achieves the highest possible performance compared to the results presented in Figure 5. Thus, we present performance graphs for one to 35 EEG channels.

The results indicate that when using less than 10 EEG channels to create ML models, the performance starts to decrease drastically. This is also shown in the results of the permutation-based channel in Figure 10. However, the NSGA-based channel selection method achieves higher performance, with AUROC reaching 0.8 with five EEG channels compared to 0.718 with the permutation-based channel selection method.

We decided not to include the selected channels using the NSGA-based method because the results in the Pareto front come from different channel combinations, which may not consistently include the EEG channels deemed optimal by other combinations. For example, supposing that the “Fp1” channel is in the Pareto front when using only one channel, it does not mean that the results when using 3 EEG channels of the Pareto front include the “Fp1” channel. And a single topographic map showing the selected channels in the Pareto front covers the entire scalp, which is consistent with previous findings that argue that the differences between EEG signals with dream and dreamless content are global rather than localized [17].

3.6. Exploring the Impact of Random Combinations of EEG Channels for Dream and Dreamless Classification

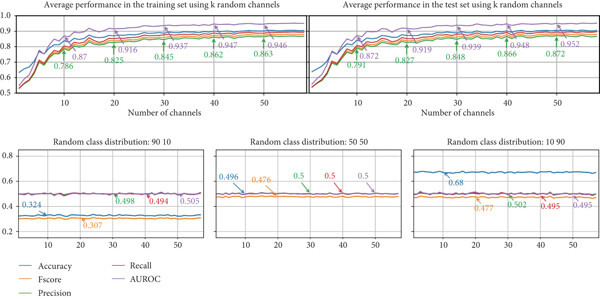

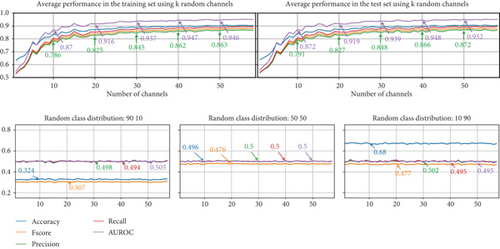

The upper subfigures of Figure 12 present the average results for the EEG-based dream versus dreamless classification using random channel combinations. Each experiment was repeated 10 times with randomly assigned channel combinations for each fold.

The results indicate that when using random combinations of channels, the highest performance is comparable to that achieved with permutation-based channel selection. These findings also suggest that NSGA-II can effectively identify channels with better performance and that other random channel combinations may not be able to match the performance of the optimal channel combination identified by NSGA-II.

The difference between the approaches for channel selection is more pronounced with fewer than 15 EEG channels. Using 10 random EEG channels yielded the following performance: accuracy: 0.842, Fscore: 0.798, precision: 0.791, recall: 0.807, and AUROC: 0.872.

The lower subfigures of Figure 12 include the results of a set of experiments in which we randomly assign labels to test sets 10 times (10-fold cross-validation) and then use models trained with K = 1 − 58 channels and with the correct labels to predict the classes in the test sets. First, we show the performance obtained with random labels to obtain a class distribution of [90 10], then [50 50], and [10 90]. In all three cases, the performance obtained is random, clearly indicating that the EEG signals from dream and dreamless reports are correctly associated. Balancing the dataset across any of the classes does not improve performance metrics, except accuracy (see the class distribution [10 90] from Figure 12). This simple exercise shows the importance of using different metrics for the evaluation of performance due to the unbalanced datasets that can be obtained from dream reports.
