1. Introduction

Industrialization, over the last century, has an exponential growth, thus increasing the consumption of natural resources and in turn leading to a wide variety of environmental issues. Heavy metal contamination is one of the primary effects of various anthropogenic activities (besides natural processes) that pose a major threat to our environment [1]. The major anthropogenic activities responsible for heavy metal pollution include mining, municipal waste, and agricultural and industrial runoff. Over the last few decades, various heavy metals such as arsenic (As), zinc (Zn), copper (Cu), lead (Pb), chromium (Cr), mercury (Hg), nickel (Ni), and cadmium (Cd) have been accumulating in the soil as well as water bodies that pass trophic levels and responsible for toxicity [2]. The contamination of soils with heavy metals can alter the respective ecosystem as the polluted soils become unfit for crop cultivation and will impose toxic effects on other life forms [3]. Based on the activities, some of the sites have become the hotspots of heavy metal contamination, e.g., the soil around coal mines and petrochemical industries that tend to have high concentrations of heavy metals [4]. Statistics show that each year, approximately 5 million tonnes of Pb, 3.4 million tonnes of Cu, 15 million tonnes of Mn, and 1 million tonnes of Ni are released into the soil globally [5] and contaminate the surrounding environment. Hrazdan River, Armenia, is one of the examples of heavy metal pollution in natural resources where contaminants have exceeded the safe levels required [3, 6]. In Bangladesh, agricultural products grown around the industrial areas contain higher concentrations of As, Cd, Cr, and Pb, than permitted [7]. For example, methylmercury chloride is seen to induce a central nervous system (CNS) injury in rats at different concentrations [8]. Minamata disease is another example of mercury poisoning that causes neurological and congenital disorders [5]. Heavy metal pollution in water resources of Uttar Pradesh, India [9], and Damodar River basin, India [10], Lahore, Pakistan [11]; wastewater irrigated vegetables in Bahawalpur, Faisalabad, Gujranwala, Lahore, Multan, Sahiwal, Sargodha, and Rawalpindi (Pakistan) [12]; Nandan Pb–Zn mining area (Guangxi, China) [13]; soil near Carmina mine site (Asturias, NW Spain) [14]; and Aznalcóllar mine (Seville, SW Spain) [15] are some of the prominent cases of heavy metal pollution in the intrusion of pollutant in food and other natural resources.

These heavy metals are highly toxic, nonbiodegradable, and present in the soil in different forms and confirmation viz dissolved ions (such as Cd⁺, $$, Pb²⁺, and $$), exchangeable ions (such as Cu²⁺, Zn²⁺, Cd²⁺, and Ni²⁺), and organic complexes (such as Pb²⁺ and Hg²⁺ that bind to dissolved organic matter in the soil) [16]. It can also form toxic complexes with methyl and ethyl compounds that can accumulate in various trophic levels in a food chain [5]. From water and soil, the heavy metals can intrude at different trophic levels and have toxic effects. According to the 2021 update of the Public Health Impact of Chemicals: knowns and unknowns by WHO, it was estimated that approximately 1 million lives were lost to lead exposure in 2019 [17]. As and Cr exposure are also believed to have carcinogenic effects in both adults and children [18]. By soil and water bodies, these pollutants enter biological systems mainly via crops and seafood and impose lethal effects even in low concentrations. The major issue with heavy metals and associated pollutants is the limited range and sensitivity of the detection system. Several methods have been described for heavy metal detection systems, which are described in Table 1.

Various remediation methods have been discovered to tackle the issue of heavy metal contamination of ecosystems. The techniques used for heavy metals and associated complex decontamination and treatment have been classified into physical methods, chemical methods, and biological methods. Physical approaches rely on sedimentation, filtration, drying, crushing, adsorption, and physical entrapment of metal and pollutants from contaminated soil and water. Chemical approaches employed electroplating, ion exchange, and electrokinetic extraction, and soil flushing methods for pollutant removal. The major challenges with physical and chemical methods are cost, efficiency, and toxic residue generation. In contrast, biological methods have been considered safe and eco-friendly methods that work on the biotransformation, bio-absorption, and degradation of pollutants and heavy metals using microorganisms (bioremediation) and plants (phytoremediation) [16, 30]. Each method has its benefits and limitations, which have a direct influence on its application under various circumstances (Table 2).

Bioremediation approaches employ microorganisms and metabolites (enzymes) as biological agents to transform and degrade or accumulate pollutants including heavy metals in biomass. Microbial growth, enzyme catalytic properties, and some environmental physicochemical factors such as salinity, pH, and temperature modulate the bioavailability and natural transformation. Microorganisms including archaebacteria, protozoa, fungi, and algae have already been reported to interact with heavy metals and alter their forms and availability via biomineralization, bioprecipitation, biomethylation, and bioleaching [31]. Bacillus subtilis, Escherichia coli, Aspergillus niger, Cladophora glomerata, Saccharomyces cerevisiae, and Chlorella vulgaris are some of the widely researched microorganisms that contributed to the bioremediation of heavy metals [30].

Similarly, phytoremediation is the use of plants as catalysts to remove pollutants from soil and water. Some plants including Alyssum, Azolla, Berkheya, Corrigiola, and Eleocharis have the tendency to accumulate higher amounts of heavy metals naturally (also called hyperaccumulators), without showing the signs of any toxicity [32, 33]. Plants also have more or less cellular mechanisms as microorganisms, but the amplitude is much higher and hence can accumulate large amounts of pollutants for longer duration. Phytoremediation has garnered quite some attention over the past, thus leading to the discovery of many plants that can be exploited to solve this modern-day environmental issue in an environmentally friendly way. The upcoming section will provide insight into phytoremediation and its efficiency under various conditions.

2. Phytoremediation

Phytoremediation is an effective method to counter the bottlenecks of other remediation strategies including inefficiency, cost, and secondary pollutant generation. It helps in absorbing these ionic pollutants from soil and water [34]. This technology is not only economic but also aesthetic [16]. Studies conducted to enhance the rate and efficiency of phytoremediation techniques over the last few decades help us to compare various strategies and decide the most efficient way to tackle the heavy metal problem.

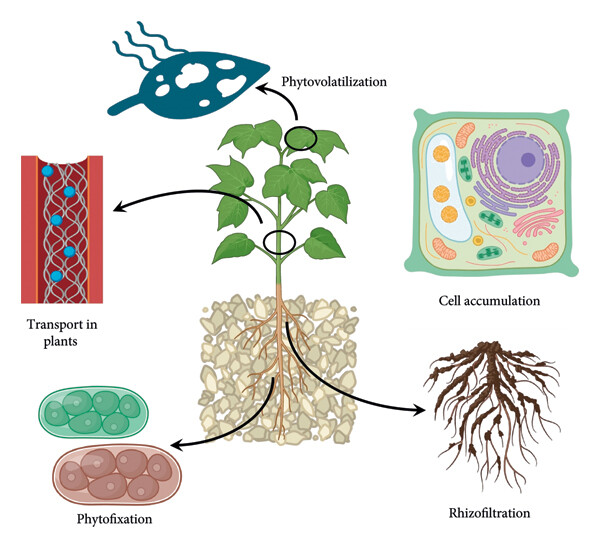

Phytoremediation exploits the root and shoot system of plants to interact with different contaminants. Plants themselves have significant tolerance for pollutants and heavy metals, while in some cases, heavy metals may have a toxic effect on growth and physiology. Recent studies have shown that Lemna valdiviana and Ulva ohnoi can remediate substantial concentrations of As (pH 6.3–7.0) and Cd, respectively, without any effects on the growth of the plant [33]. Some of the stimulators, amendments, and optimization approaches might help in improving the tolerance and survival rate of plants. Certain natural zeolites such as clinoptilolite and mordenite have helped in reducing As concentrations in shoots by 87% to prevent the entry of As into the food chain, thus making the remediation process not only environmentally friendly but also less wasteful, as it prevents the destruction of the crop after harvest [35]. The phytoremediation approach exploited multiple mechanisms including phytostabilization, phytoextraction, phytovolatization, and phytofiltration for heavy metal removal (Figure 1). The mechanisms are discussed below in detail.

3. Phytostabilization

Phytostabilization deals with heavy metal pollutants by forming residue-bound molecules/complexes inside the root. In other words, the contaminants are immobilized within the roots or in the rhizosphere through adsorption, precipitation, and complexation [33, 36]. Heavy metal-tolerant species of plants including Arabidopsis arenosa, A. halleri, Deschampsia cespitosa, Silene vulgaris [37], Zea mays, Brassica napus [38] cutback the bioavailability of the contaminants in soil and minimize its leaching into groundwater sources, thus thwarting the entrance of the toxicants into the food chain [34]. Phytostabilization may be considered a slow process and is appropriate for low-value areas where nonagronomic plant species need to be used. These areas may include green spaces and ecosystem services [39]. Phytostabilization may be augmented by the addition of soil amendments such as manures, biosolids, and also bio-inoculants (bacteria and fungi) [40]. The evaluation of these strategies can be done through the change in soil health, pH, texture, organic matter content, and redox potential. Ecotoxicity tests such as root elongation, phytotoxicity assays, microbial activity, and enzymatic activity are also important evaluations that need to be considered for an all-round soil health profile [39]. In soil, rhizobacteria is a group of microorganisms that reside in close proximity to the root system and, hence, can play a crucial role in phytostabilizing the heavy metals. Gao et al. [41] conducted a study on phytostabilization of heavy metals by Sasa argenteostriata (Regel) E.G. Camu using two sets of Pb, Zn, and Cd (low and high concentrations). The analysis suggested that biological concentration factor (BCF) of S. argenteostriata raised with concentration of pollutants, while translocation factor reduced. Among all three heavy metals, Pb has shown the highest mobility in rhizosphere, and the residual concentration of Zn and Cd was high in rhizosphere due to low translocation. It was also found that rhizospheric bacteria have a crucial role in phytostabilization and S. argenteostriata-modulated rhizobacterial community by regulating the pH of rhizospheric soil. Wang et al. [42] also reported that the addition of soil amendments including spent mushroom compost and attapulgite improved the pH, fertility, and water retention of the manganese slag. The planting of Koelreuteria paniculata further aids in reducing the bioavailability of heavy metals and lowers the movement of Mn, Pb, and Zn via runoff by 15.7%, 8.4%, and 10.2%, respectively. The plant has changed the microbial population to improve the rhizosphere stability by augmenting beneficial fungi and suppressed the pathogenic fungi. The phytostabilization of pollutants works through six different mechanisms as mentioned in Figure 2.

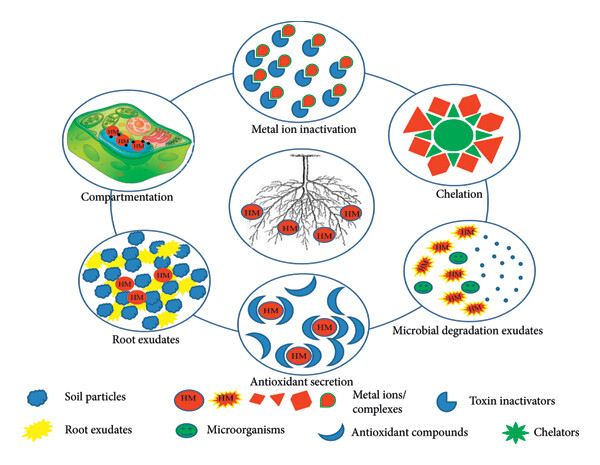

Secretion of exudates such as saccharides, organic acids, proteins, peptides, and amino acids via roots enables the accumulation and stabilization of metal pollutants [38, 43], whereas metalloproteins such as phytochelatins and metallothioneins assist in chelating metal ions from the surrounding polluted soil [38, 44]. Microbial degradation of pollutants in root proximity also assists in immobilizing the heavy metal pollutants around the rhizosphere [38, 45]. Homogalacturonan (a pectin-binding that binds and deactivates metal ions in the cell wall) performs cell wall protective functions [34, 38]. Antioxidants such as superoxides, ascorbic acid, glutathione, and catalase help in countering the oxidative stress of metal ions and pollutants [34, 38, 46, 47]. The compartmentation of pollutants in vacuoles is another mechanism that helps in the immobilization of heavy metal pollutants [34, 38]. All these mechanisms are cumulatively responsible for effective and efficient heavy metal removal. Based on the activity of the abovementioned mechanisms, different plants have different tolerance ranges. Imperata cylindrica is seen to have a high tolerance for Cu at 300 mg.kg⁻¹ [46]. The potential of metal ion chelation is also observed in maize against Cd in soil, by the addition of metal chelators such as ethylenediamine tetra-acetic acid and diethylenetriacetic acid [48].

4. Phytofiltration

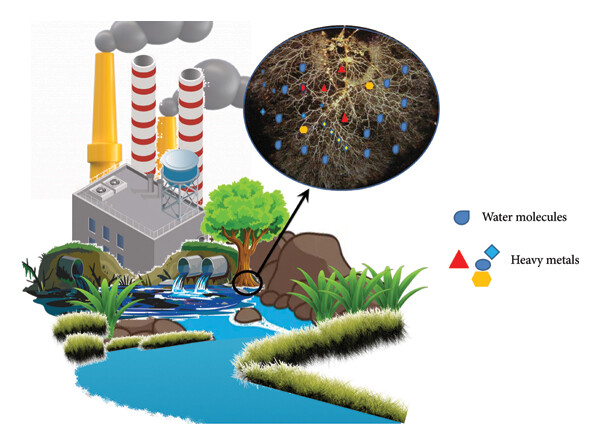

Phytofiltration is the filtration of heavy metals and pollutants from wastewater using shoots (caulofiltration), roots (rhizofiltration), and seedlings (blastofiltration) [34]. In rhizofiltration, the roots act as a filter, trapping, and accumulating heavy metal pollutants (Figure 3) [49]. In addition to filtration, the root exudates can further change the pH of the rhizosphere, leading to the precipitation of the pollutants and immobilizing them [34]. Water hyacinths, cattails, and azolla are commonly employed for this purpose [49]. The aquatic plant Typha angustifolia also exhibits a great capacity for rhizofiltration. It is capable of absorbing 4,941.1–14,109.4 mg of Cd and 14,039.3–59,360.8 mg of Zn per plant [50]. Terrestrial plants such as B. Juncea and H. Annus are also popularly used for rhizofiltration due to their longer and hairy root system. After these plants are saturated with the pollutants, they are harvested and disposed of [34]. Singh et al. have identified Canna, Typha, and Eichhornia [51] as potential phytoremediators for removing more than 90% heavy metals including Ni, Cu, Cd, Cr, and Pb by rhizofiltration. Sitarska et al. [52] also reported the removal of Hg by Salvinia natans via rhizofiltration with around 94% removal rate. The study also confirmed the toxic effect of Hg on plants as total protein and chlorophyll concentrations were reduced by 30% and 54%, respectively.

5. Phytovolatilization

This phytoremediation strategy can be employed in the case of heavy metals such as Se, Hg, and As and also for the detoxification of organic pollutants. It uses plants that convert pollutants into volatile molecules and complexes and release them into the atmosphere through surfaces like leaves [34]. Phytovolatilization has two forms: direct and indirect. Direct phytovolatilization is where the plant uptakes the pollutants, translocating them to the leaves where the pollutants are transformed and released into the atmosphere through transpiration. Water is the biggest source of nutrients for plants as well as for pollutants and contaminants. Pollutants move along with water and are taken up by plants through roots and distributed to other plant parts via conducting tissues. The aerial part of plants is in direct contact with sunlight and hence has a higher possibility to release volatile pollutants along with water through transpiration, which is referred to as direct phytovolatilization. Among intake pollutants, some are hydrophobic and need to follow the other path as the pathway of transpiration and direct phytovolatilization are different, especially for hydrophobic contaminants that need to cross cutin or suberin (hydrophobic barriers of the epidermis and woody dermal tissues). Some of the pollutants can also be released from the roots due to high volatile compounds flux in the root. This process of losing pollutants and contaminants from the root is referred to as indirect phytovolatilization. In other words, indirect phytovolatilization is the result of an increased flux of volatile contaminants from the subsurface due to root activities. Some of the factors that are responsible for increased flux are chemical transport via hydraulic redistribution, increase in soil permeability, advection of water toward the surface, etc. [53]. Ryegrass can be used for the volatilization of trifluralin compounds that are known to be residue-bound. Other plants that are commonly used for this process are B. juncea and B. oleracea for Se and Polypogonmon speliensis for As [36]. Another example is the use of poplar trees in the phytovolatilization of trichloroethylene (TCE), a common groundwater contaminant. Poplar trees absorb TCE through their roots and release it as a less toxic vapor [54].

6. Phytoextraction

Phytoextraction or phytoaccumulation simply refers to the absorption of heavy metal contaminants by roots and translocation and deposition into cell walls, cell membranes, and vacuoles of the shoots [36, 55]. Mainly, the metal cations that are absorbed by the plant form a metal–phytochelatin complex (M–PC), inside the plant, and are then translocated and stored in the vacuole [36]. The hyperaccumulator plants with metal-enriched biomass are further harvested and disposed of [55]. Thus, the recovery of heavy metals from biomass for recycling may be an alternative for sustainable heavy metal decontamination-cum-recycling. Specialized salt-excreting structures in halophytic plant species, found within the Tamaricaceae, Frankeniaceae, Poaceae, and Chenopodiaceae families, can be exploited to remove heavy metals from their leaves [56].

Plants such as Amaranthus viridus, Cannabis sativa, Oenothera rosea, Chenopodium album, Sonchus asper, Datura stramonium, Nasturtium officinale, Polygonum maculosa, Conyza canadensis, and Xanthium stramonium have also been reported for the phytoextraction of heavy metals such as Fe, Zn, Cr, Ni, and Cd from municipal wastewater [57]. The Agios Filippos Mine in Northeast Greece has been inactive for decades, and research on the soil quality in recent years has shown that even a broad area around the mine suffers from heavy metal contamination, particularly Cu, Mn, Zn, Pb, Cd, and As. A systematic planting of the plant Thlaspi caerulescens was proposed in addition to microbial and chemical amendments. This approach suggested the speculated recovery time to be 52 years, and the decontamination rate is expected to be 0.5 kg/ha/year for Cd and 20 kg/ha/year for Zn in a total decontaminated area of 2.2 km² [58]. Ceratophyllum demersum has exceptionally proven itself in Egypt by reducing the leaching of Cr and PB by phytoaccumulation, where 95% of Pb and 84% of Cr removal were observed. Phytoextraction of Ni and Pb was observed in Pakistan by using the plant Helianthus annuus. More than 50% of removal, 17 mg/kg in plant tissue was seen over 2 decades [59]. Efforts have been made to estimate the potential of technology for the removal of heavy metal pollutants from water as well as soil (Table 3).

7. Challenges in Phytoremediation

Phytoremediation is a promising strategy for the cost-effective decontamination of polluted soil and water with heavy metals. However, it relies on the natural metabolic behavior of plant cells as well as microorganisms residing in close proximity (rhizosphere) to the said environment. Thus, being an in situ process, its application becomes challenging where the contaminated area needs to be converted into a green area, especially in heavily populated cities with space constraints. Also, the scale-up process is highly uncertain in terms of efficacy due to complex plant–soil–microbe interactions, and operational expenditure (OPEX) [75]. The adsorption capacity of plants and the toxic effect of heavy metals are also among the biggest challenges to the survival of plants [76]. In the case of high mortality of plants, the cost of operation will rise. It is also evident that phytoremediation is a slow process and requires large-scale cultivation of vegetation for up to several generations to eliminate pollutants from the affected area. The development of high tolerance lines is required, which need not only funds but also social acceptance. Therefore, government regulations and management plans might also raise an issue in using this strategy as specifically tailored plans need to be made for it to work appropriately [77]. Phytoremediation mostly refers to the process of accumulating heavy metals and pollutants within the plant biomass. It has the potential to be passed across the food chain upon consumption [78]. Besides, burning and valorization of plant biomass also tend to release bulk amounts of pollutants in the environment again.

8. Future Prospects and Nanophytoremediation

Practically, scientific research alone cannot overcome these large gaps for environmental pollutants, and heavy metal accumulation due to limited landscape, resources, and funding opportunities. Government interventions and industrial investment become equally important to solve these bottlenecks. Without the assistance and cooperation of the authorities of the state, it would be impossible to detoxify these contaminated environments. In addition, responsible behavior is also required to minimize the use of polluting chemicals in the required amount only, when its application becomes necessary.

9. Conclusion

Phytoremediation is an eco-friendly and sustainable approach for pollutant removal and degradation from soil as well as water. It relies on natural metabolic and development activities that allow plants to uptake pollutants and heavy metals followed by transformation to volatile form or accumulate within cells as complex or poor or no-toxicity. However, in some cases, the plant’s low tolerance power, serious toxic impact on the plant’s growth, and slow rate of detoxification have raised concerns about the poor performance of phytoremediation. Recent research efforts have integrated nanotechnology and nanomaterials to improve overall performance by changing the form of pollutants or immobilizing them on nanomaterials. However, the approach needs feasibility analysis for long-term as well as short-term impacts on the environment. The assessment must also be conducted for end valorization analysis for plant biomass.
